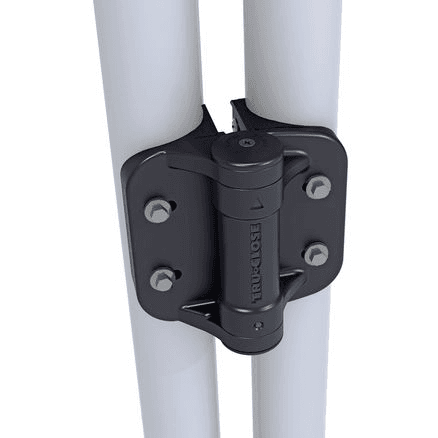

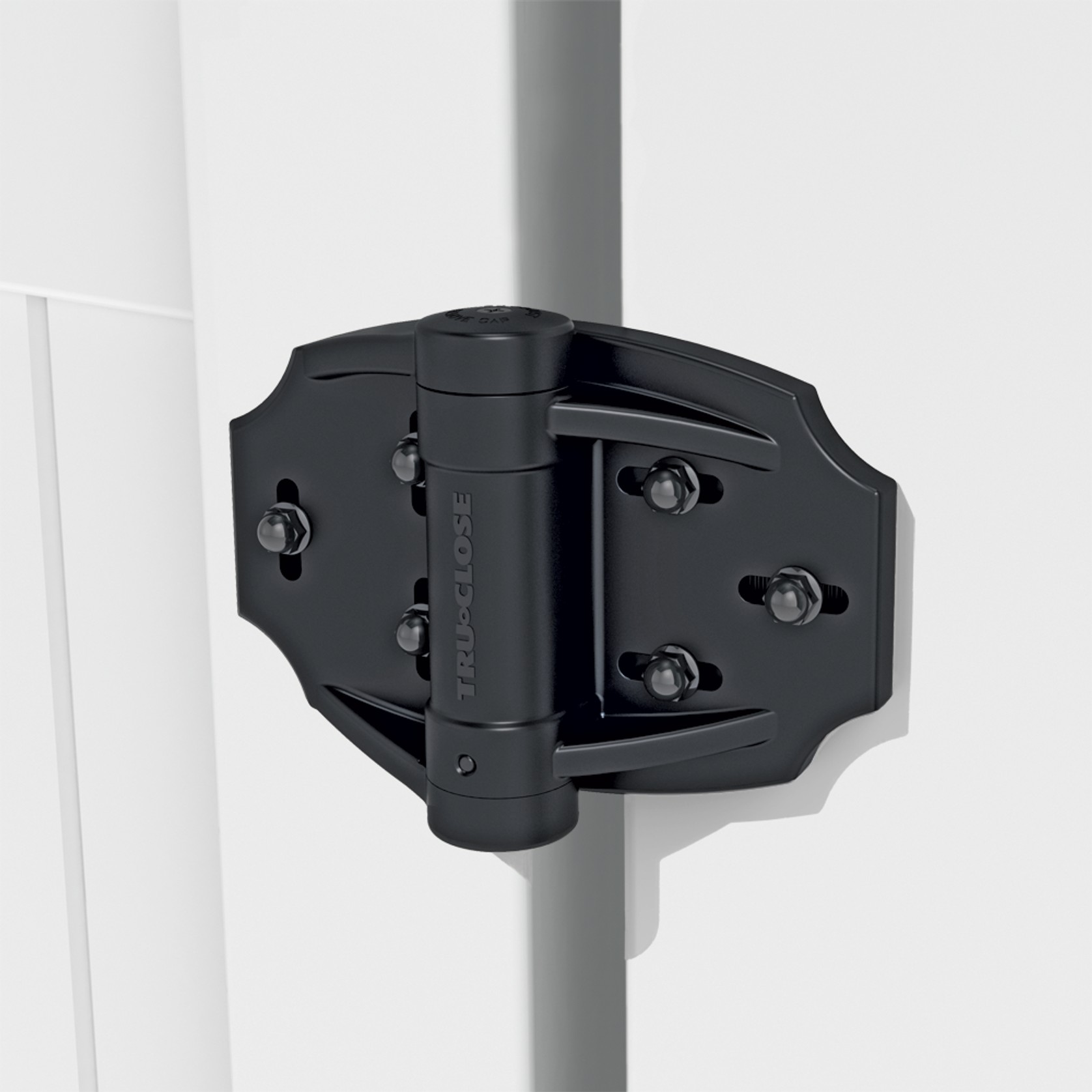

Truclose® Multi-Adjust Heavy Duty Hinge

TruClose® Gate Hinges are the world's most trusted gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges rust, binding, sagging and staining. The TruClose® MULTI-ADJUST™ Hinges are the worlds most adjustable gate hinges. Theyre ideal for heavy or high-traffic wood or vinyl gates weighing up to 60kg. TruClose hinges are quick and easy to install and to adjust for self-closing speed. D&D has sold millions of award-winning TruClose® Gate Hinges worldwide.

  • Category
    Gate Accessories, Automatic Gates, Security Gates
  • Range
  • Brand
    D&D Technologies
  • Designer
    D&D Technologies
  • Warranty
  • Country of origin
  • Product Code: TCHDMA1, TCHDMA1WT
  • Gate Type: Self-Closing
  • Gate Material: Wood, Vinyl/PVC
  • Self-Closing Gate Weight: Up to 60kg (132lbs)
  • Approx Gate Size: 1m H x 1.8m W (3ft x 6ft)
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 80mm+ (3")
  • Ideal Gate Gap: 25mm (1")
  • Fixing Method: Screw-On
  • Colour/Finish: Black
Scope of use

Gate Application: Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Public/Commercial Gate, Security Gate, Privacy Gate


Highly Adjustable Gate Hinges for Wood & Vinyl Gates

  • 3-way adjustment - vertical, horizontal & tension
  • Up to 19mm adjustment
  • Self-closes wood and vinyl gates up 60kg (132 lbs)
  • Won’t rust, bind, sag or stain
  • Made from super-strong engineered polymer
  • Internal stainless steel spring and components
  • UV stabilised, self-lubricating durability
  • Only one person needed to hang large gates
  • Easy alignment legs & adjustment slots
  • Australian Made
  • Lifetime Warranty
