VS COR Fold Pull Out for Blind Corner Cabinets
FIT
Vauth-Sagel's PLANERO style brings together aesthetically pleasing design features, such as a contemporary lava grey colourway and minimally visible mechanisms, with the robust practicality of powder coated steel baskets for longevity.
PLANERO models include a pull out pantry (VS TAL Larder), underbench side mounted pull out (VS SUB Side), underbench pull out for narrow spaces of just 150mm wide (VS SUB Slim) and two models for blind corners (corner cabinets with just one opening door) - the VS CORNERSTONE MAXX and the VS COR Fold. Also available is the VS SUB Basket which suits underbench installation and vertical stacking as pantry storage, and the revolving 'lazy Susan' VS COR Wheel Pro unit for 2-doored corner cabinets.
- CategoryKitchen & Laundry, Kitchen Hardware, Kitchen Cabinets & Drawers
- RangeVauth-Sagel Kitchen Storage
- BrandVauth-Sagel
- WarrantyLifetime

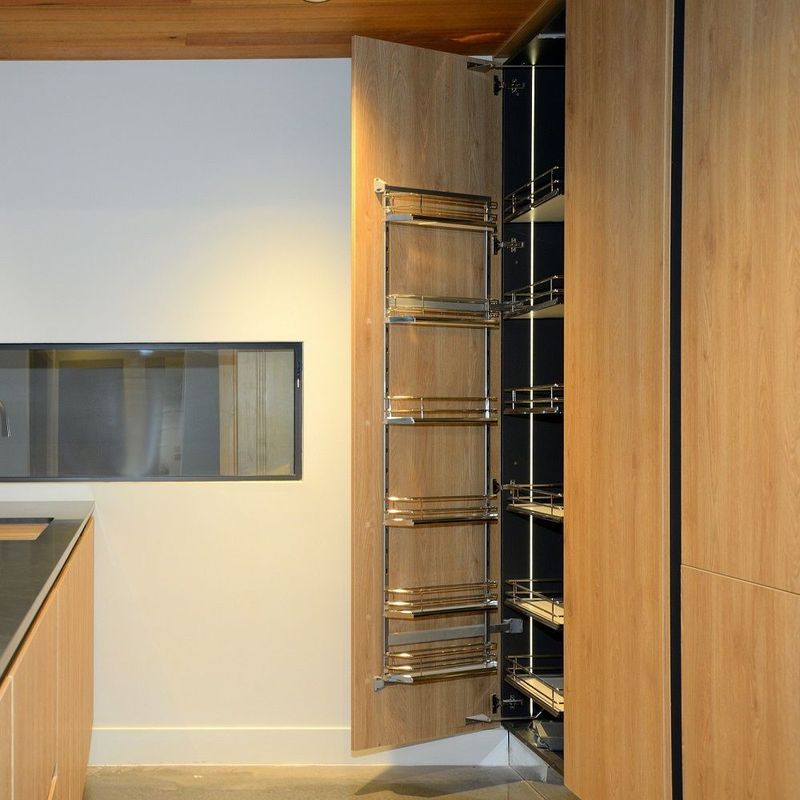

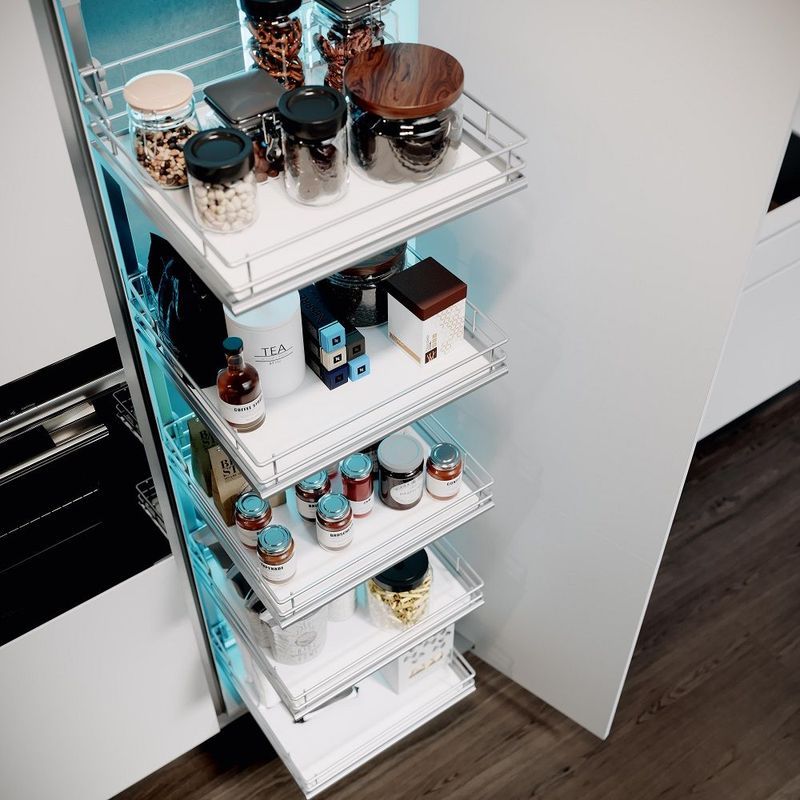

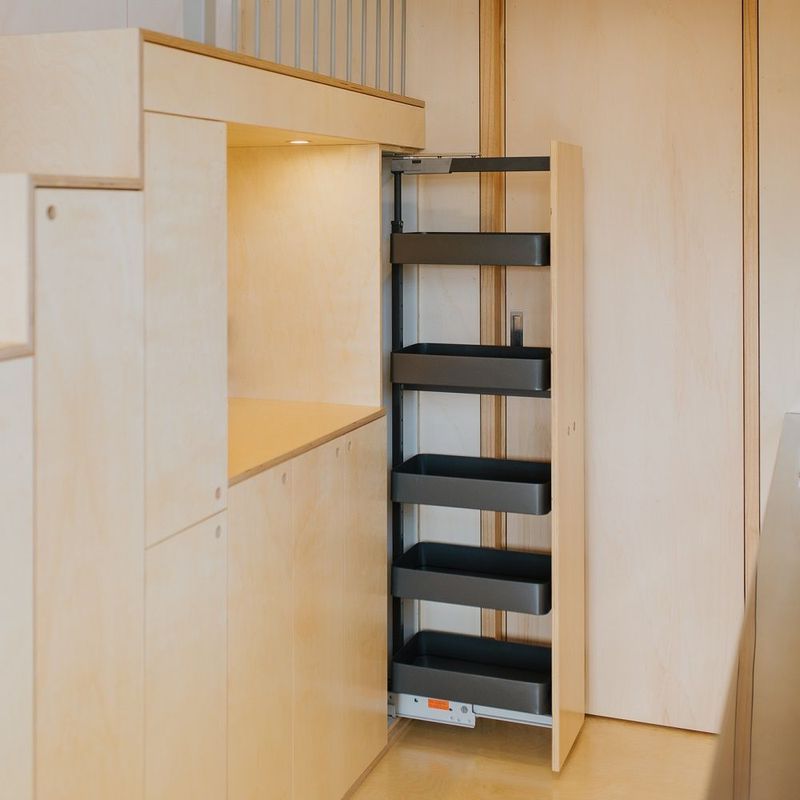

VS TAL Larder in Planero - pull out pantry unit for optimal storage and simple installation.
- For cabinet widths of 300mm and 400mm
- 4 variable frame heights - 1200-1450mm, 1450-1700mm, 1700-1950mm, 1950-2140mm
- 3D front adjustment for a perfect fit
- Full extension pull out with soft close
- 16kg load capacity per basket, with a total sliding load capacity of 80kg (120kg including your cabinet front)

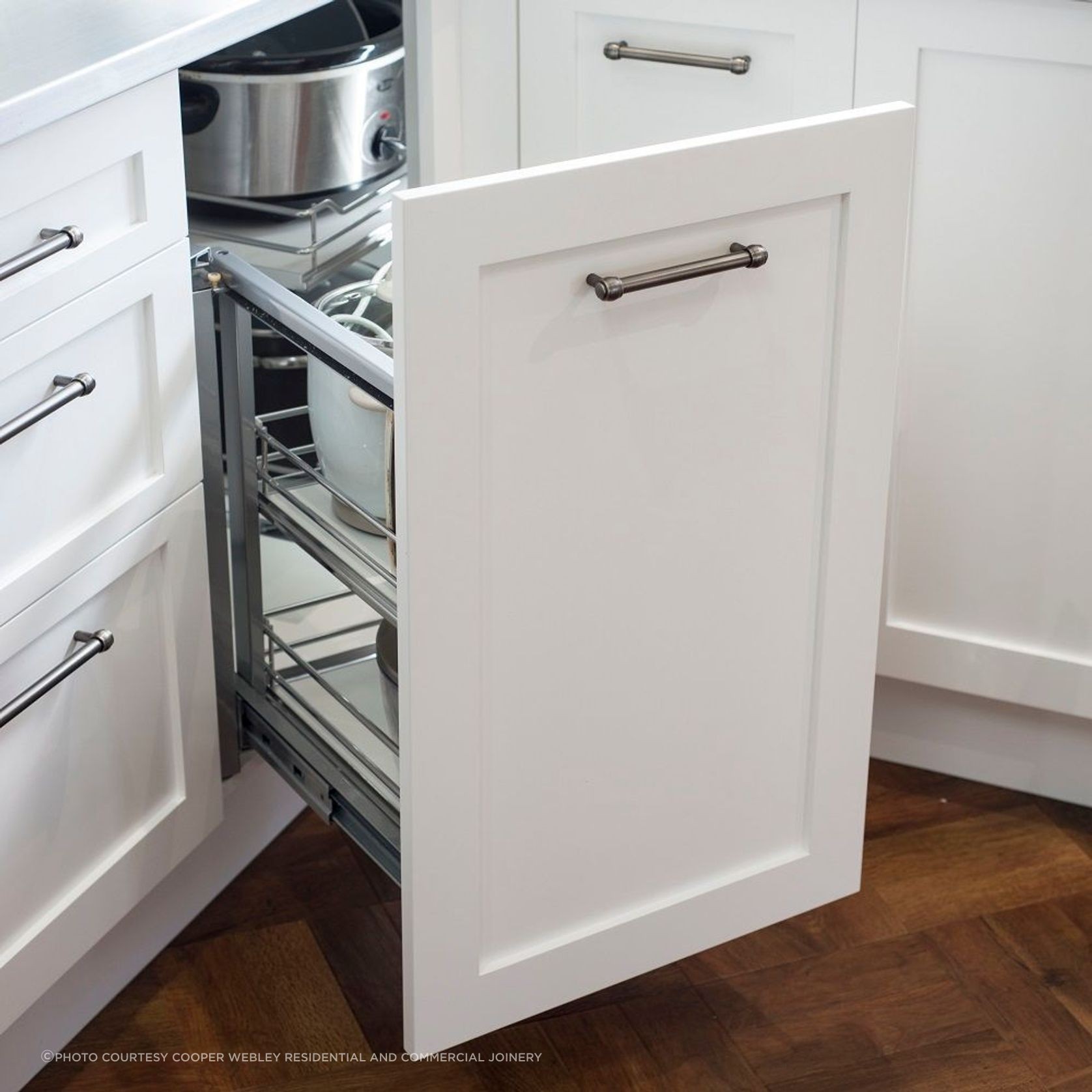

VS SUB Side in Planero - side mounted underbench pull out
- For cabinet widths of 200mm and 300mm
- Height variable installation
- Mount on left or right side
- Full extension pull out with soft close and damping for easy, quiet operation
- 20kg load capacity

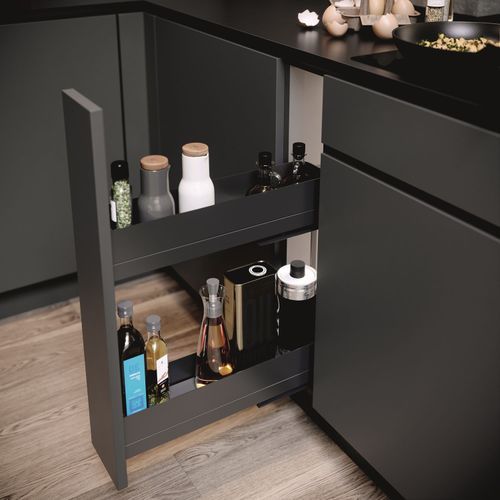

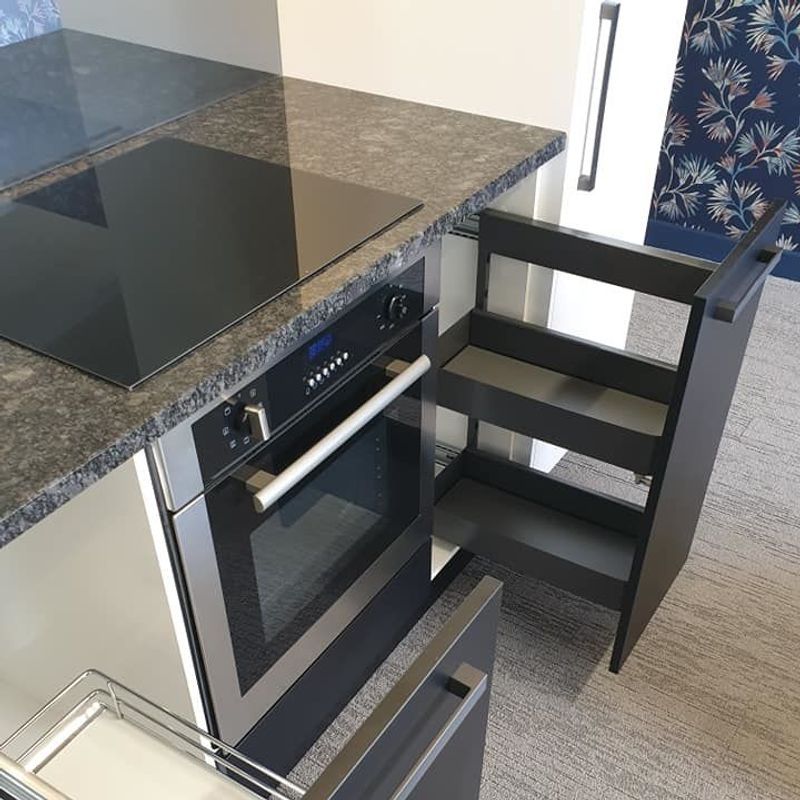

VS SUB Slim in Planero - pull out for cabinets just 150mm wide
- Two fixed shelves
- 12kg load capacity
- With damping for quiet opening and closing
- Mounts on right - access from both sides

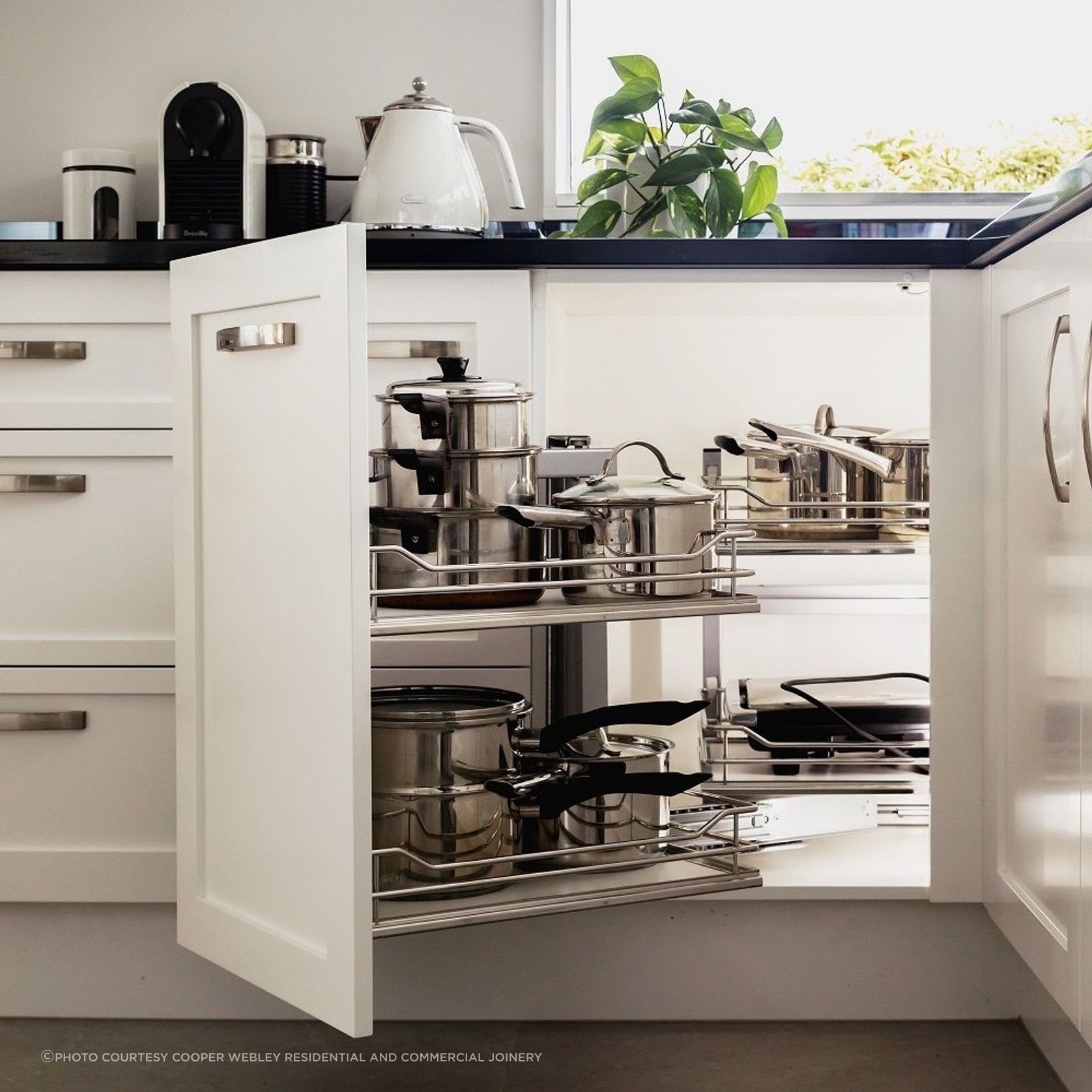

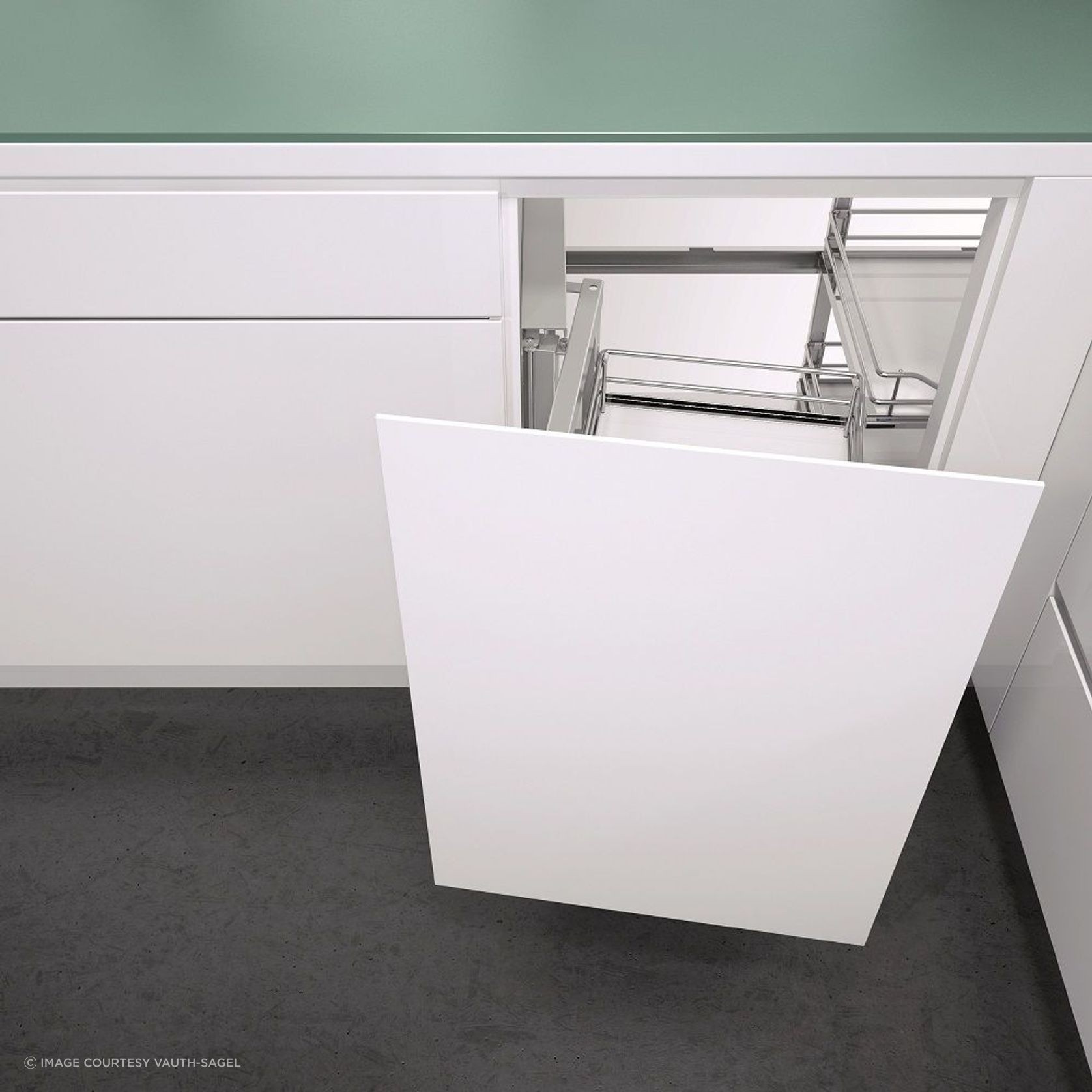

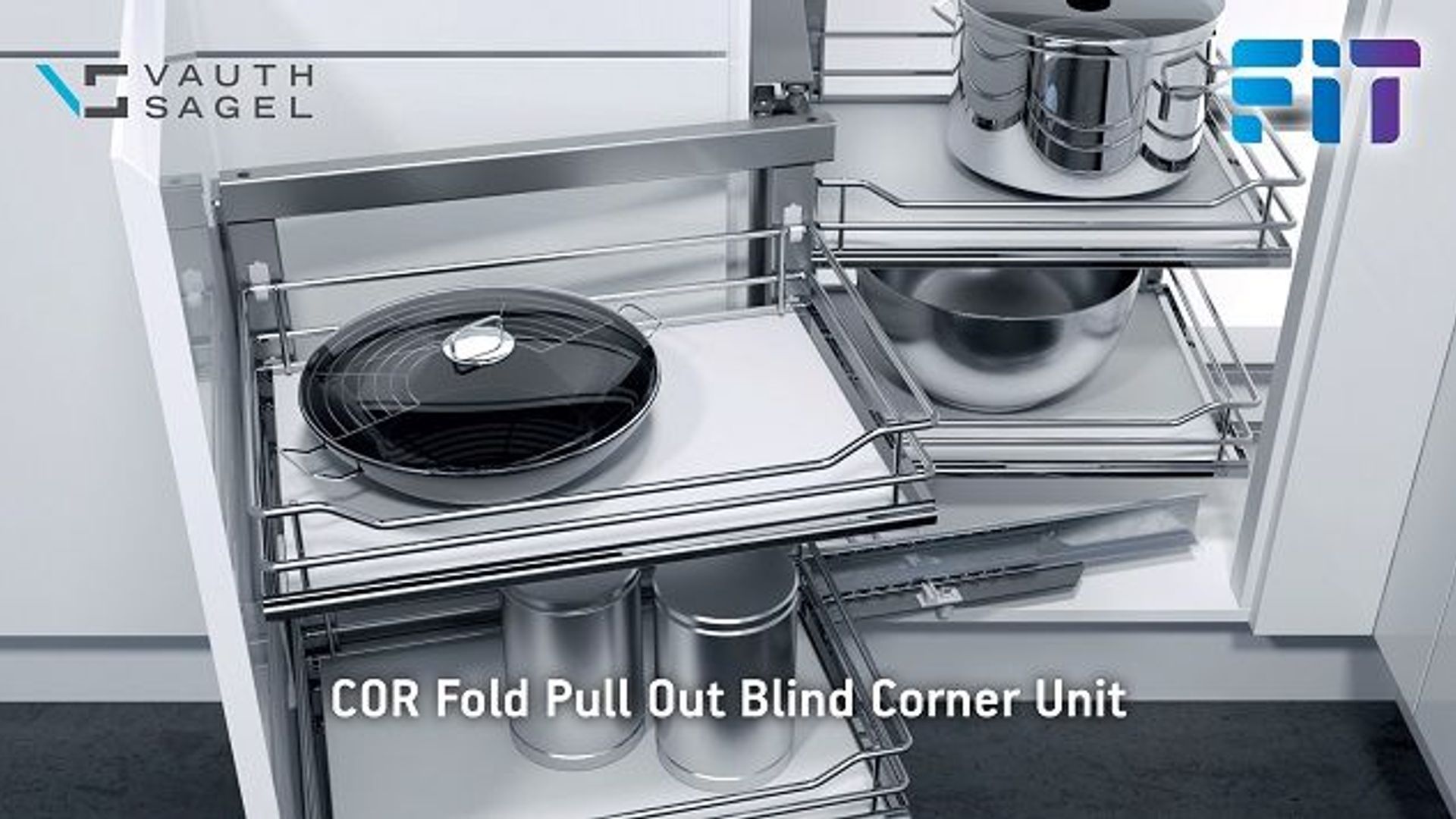

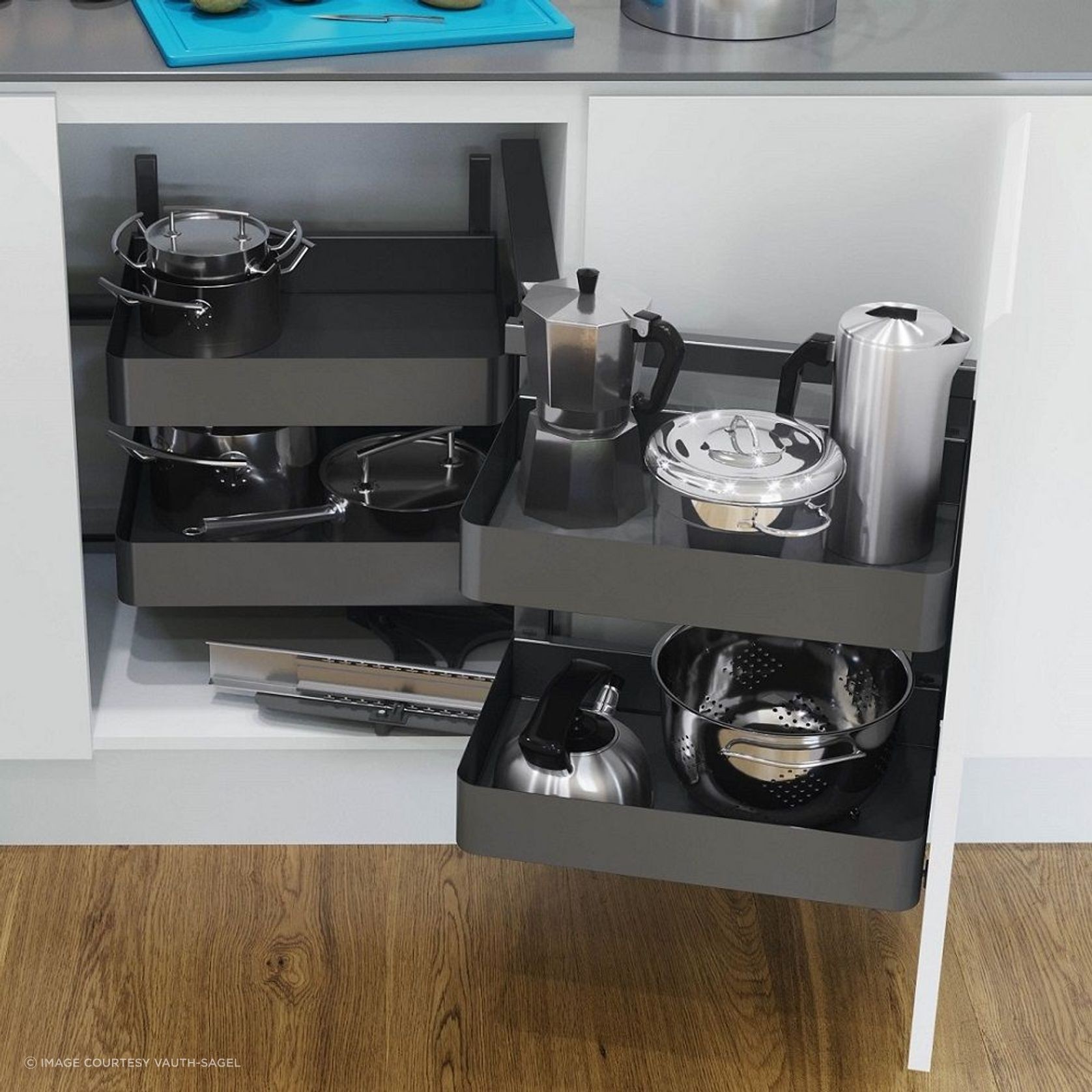

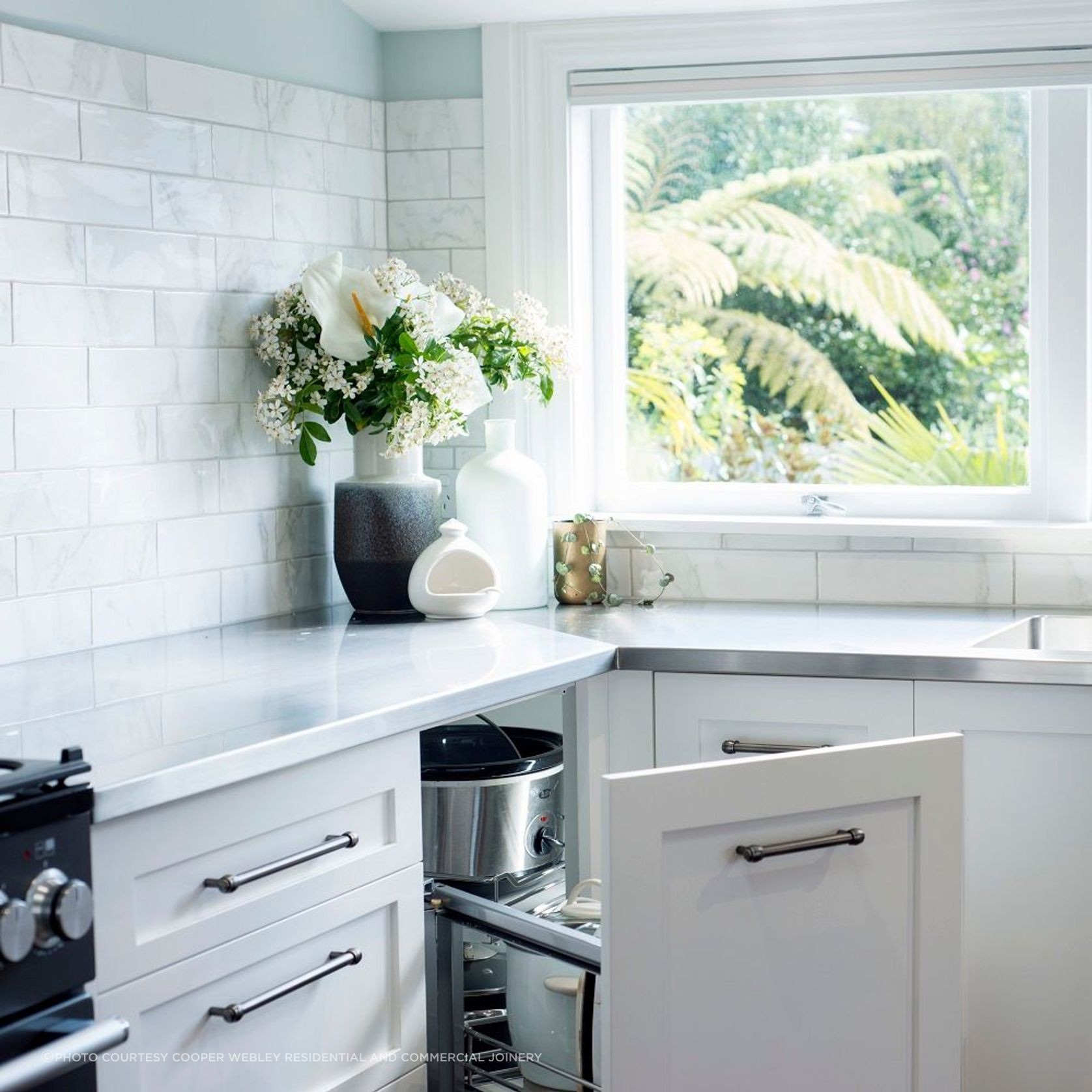

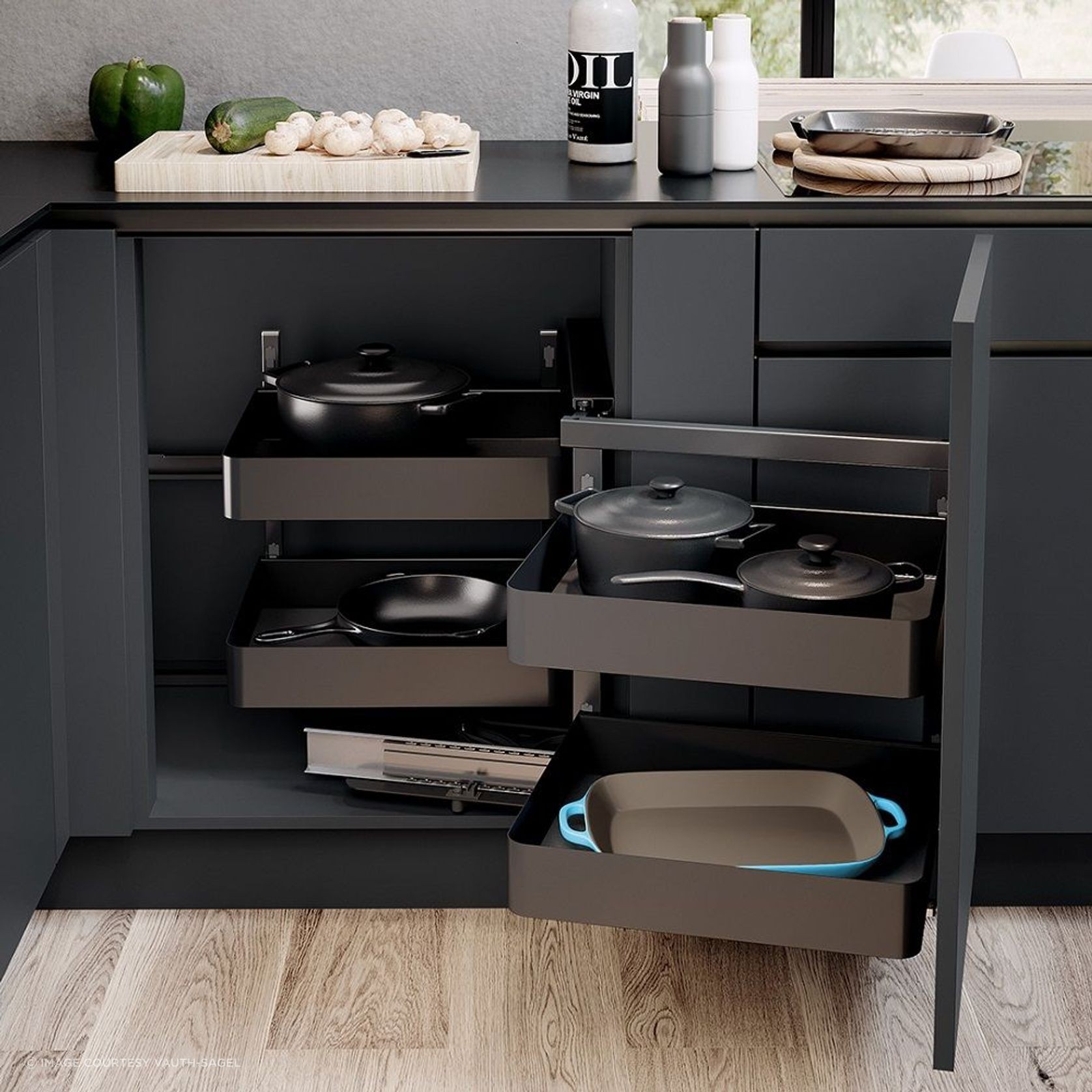

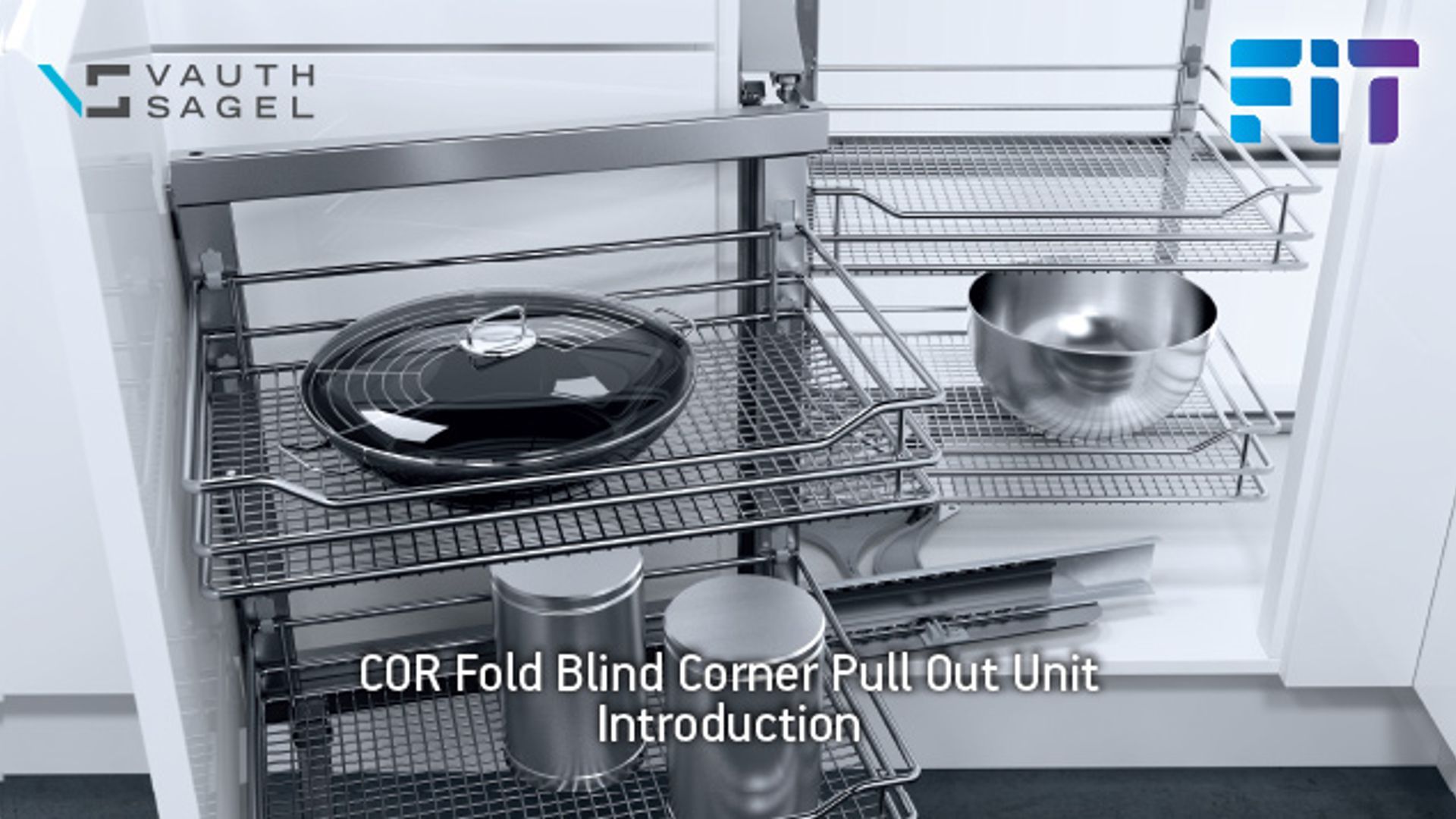

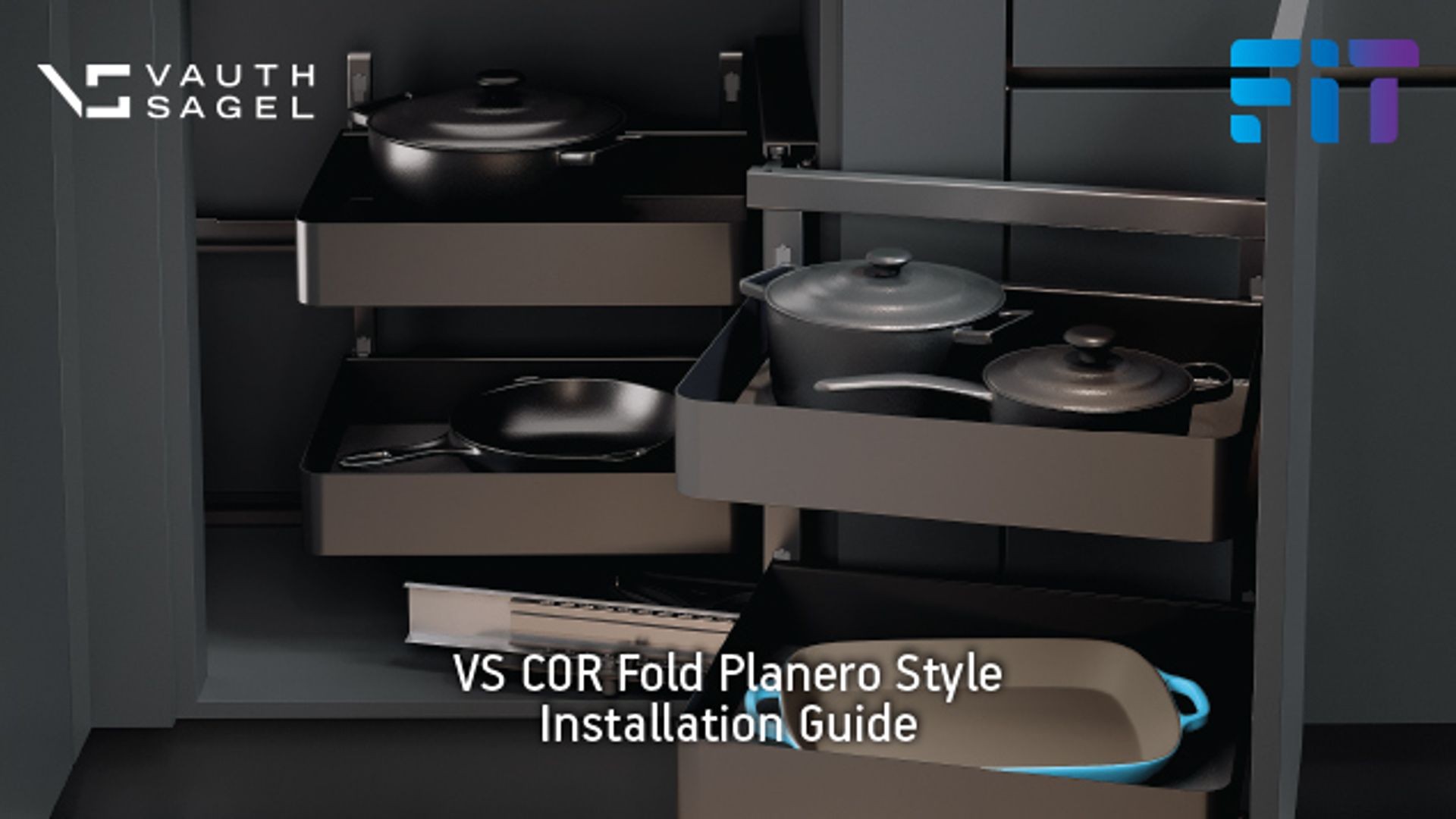

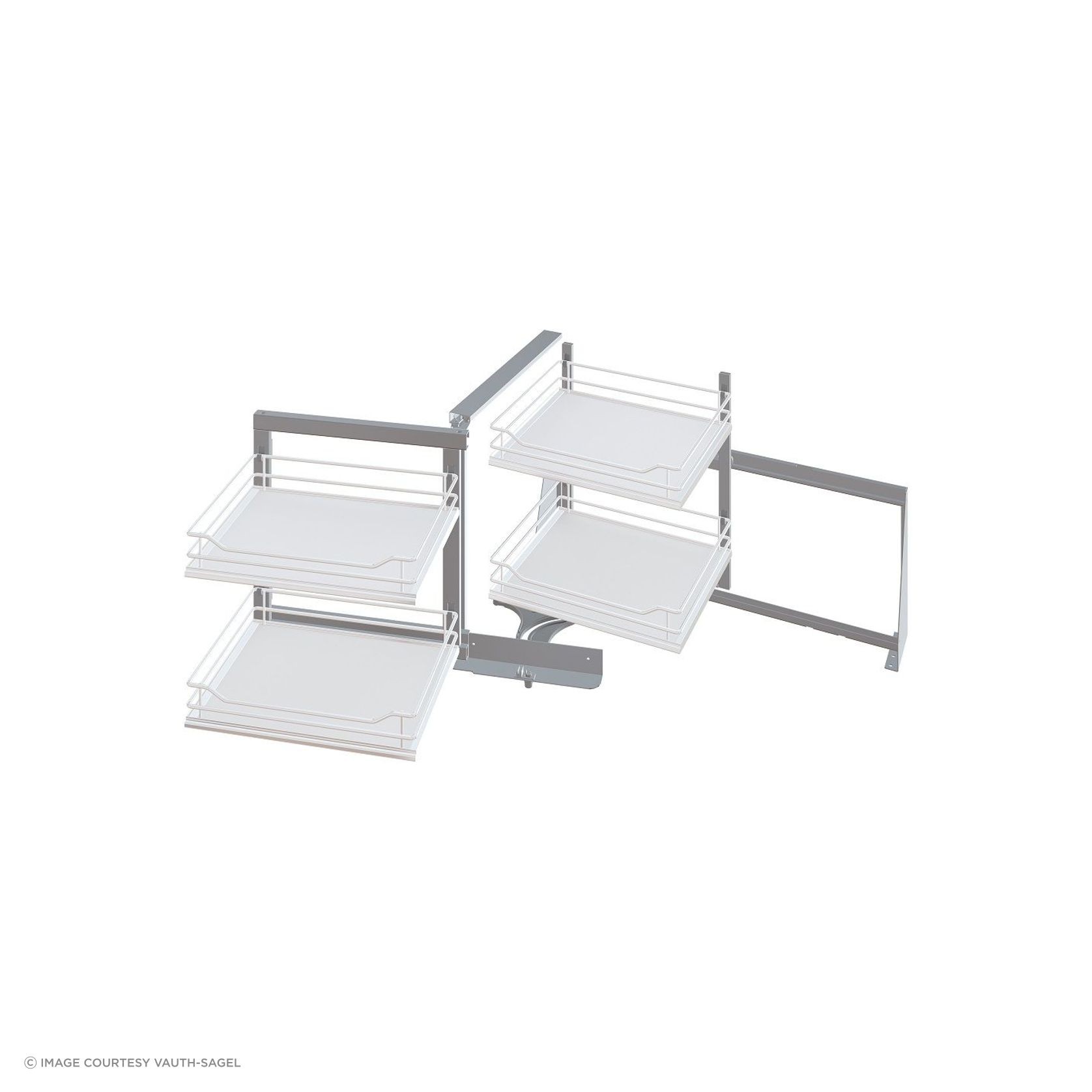

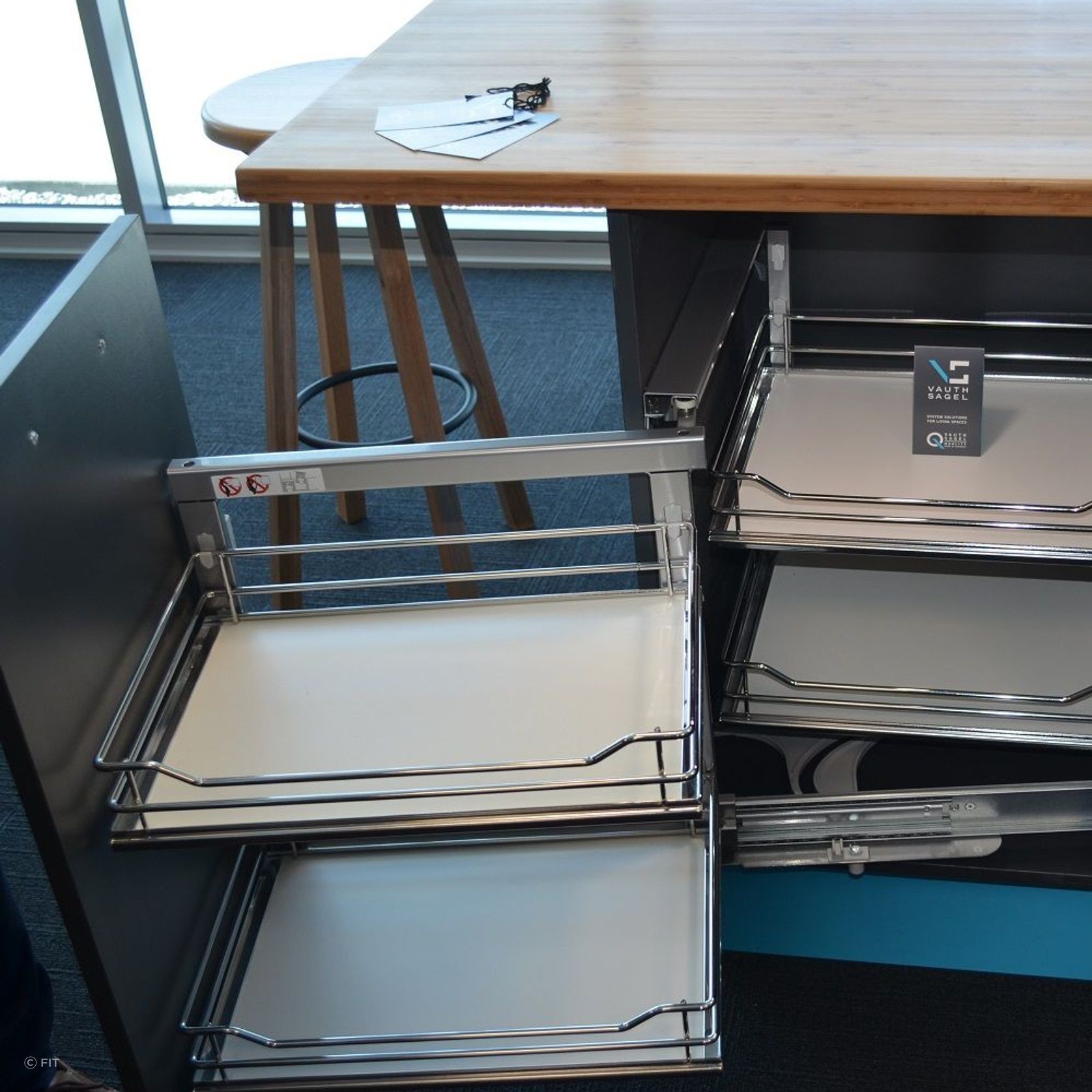

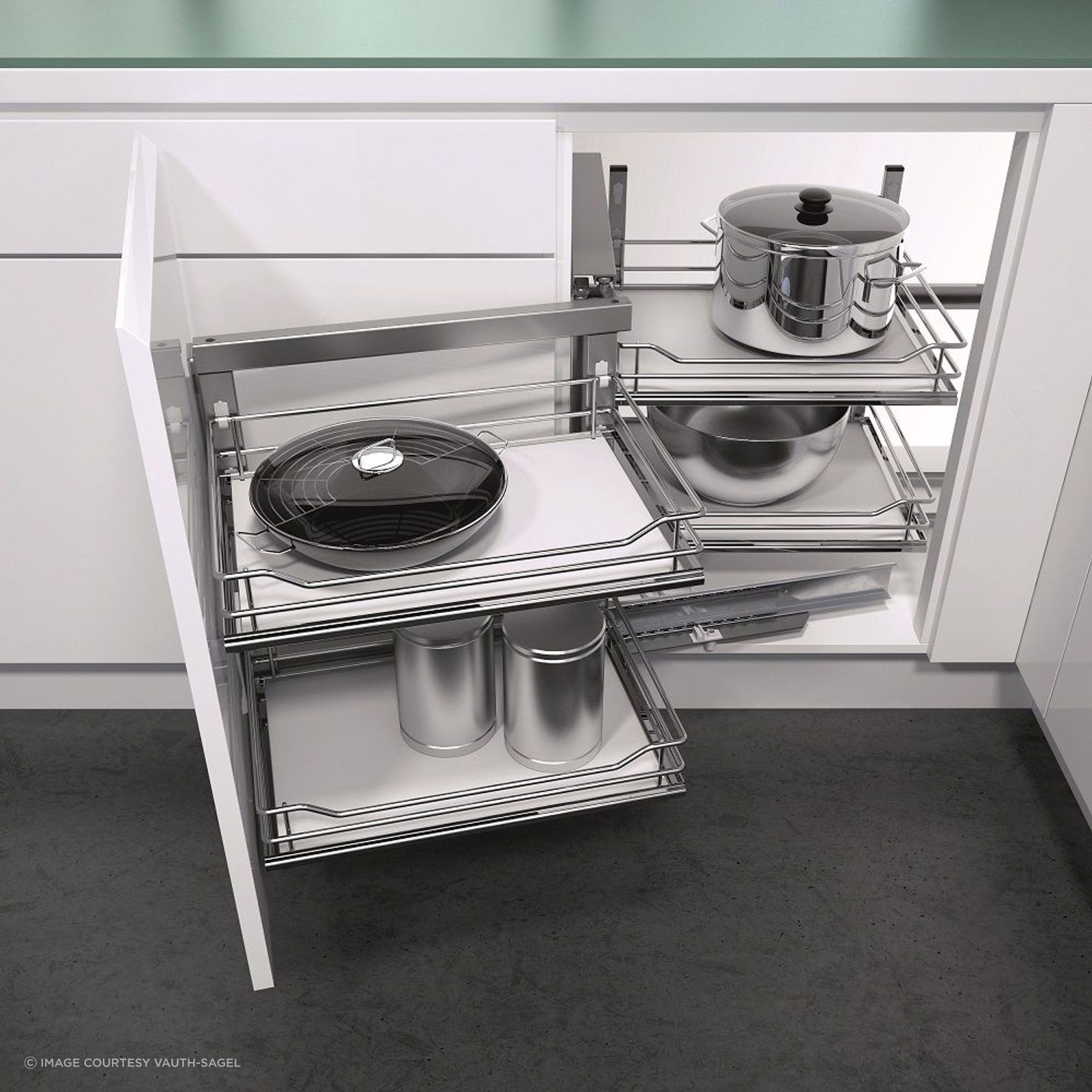

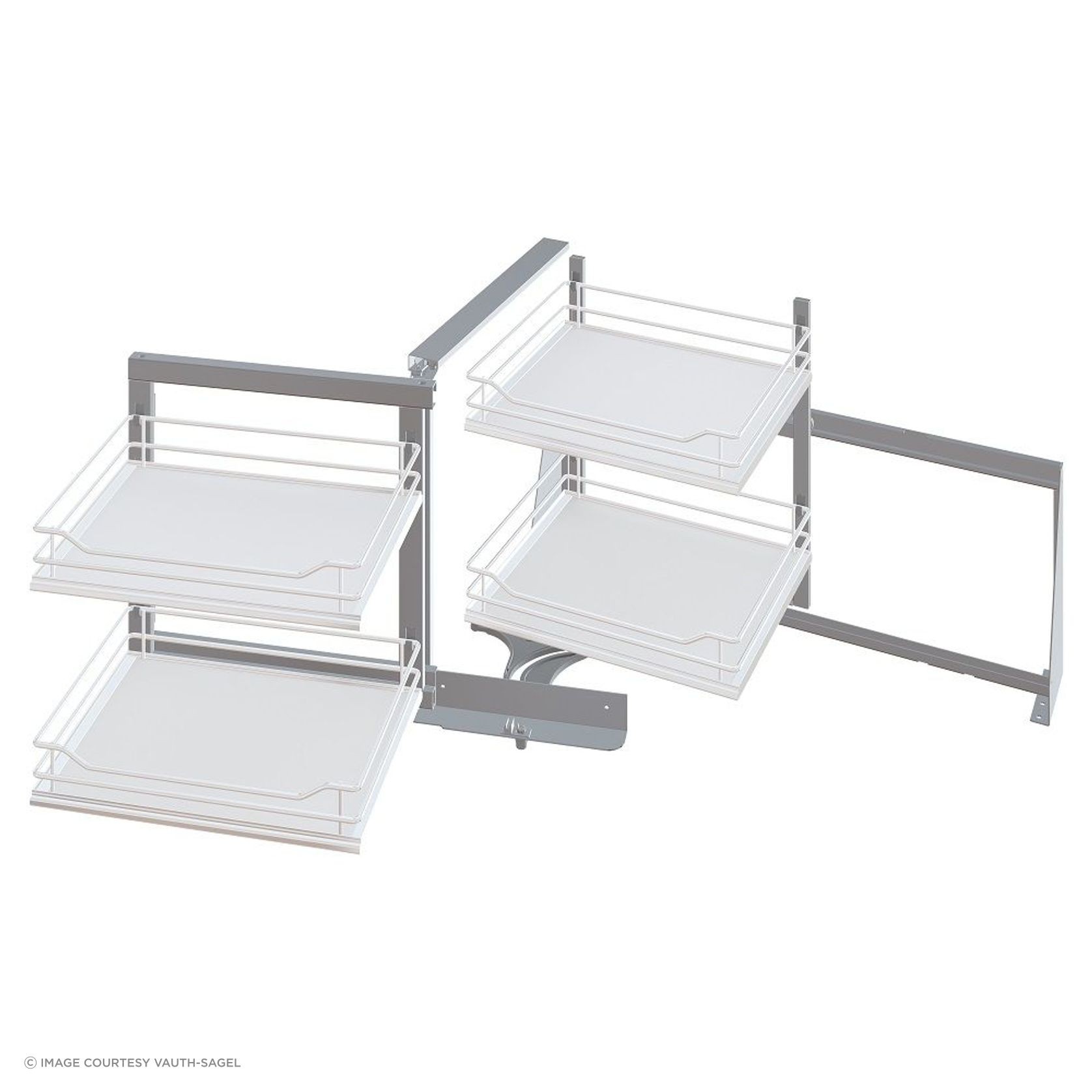

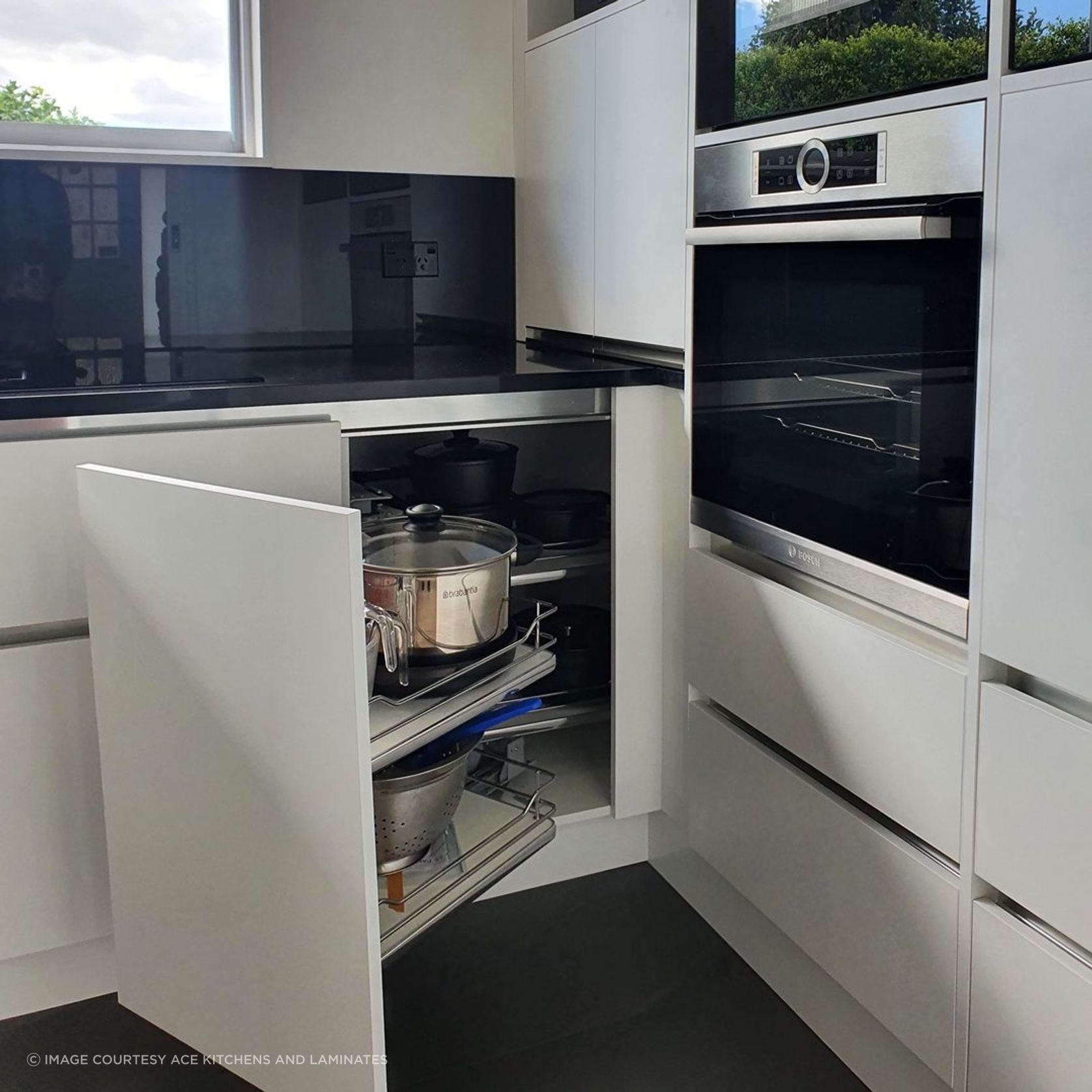

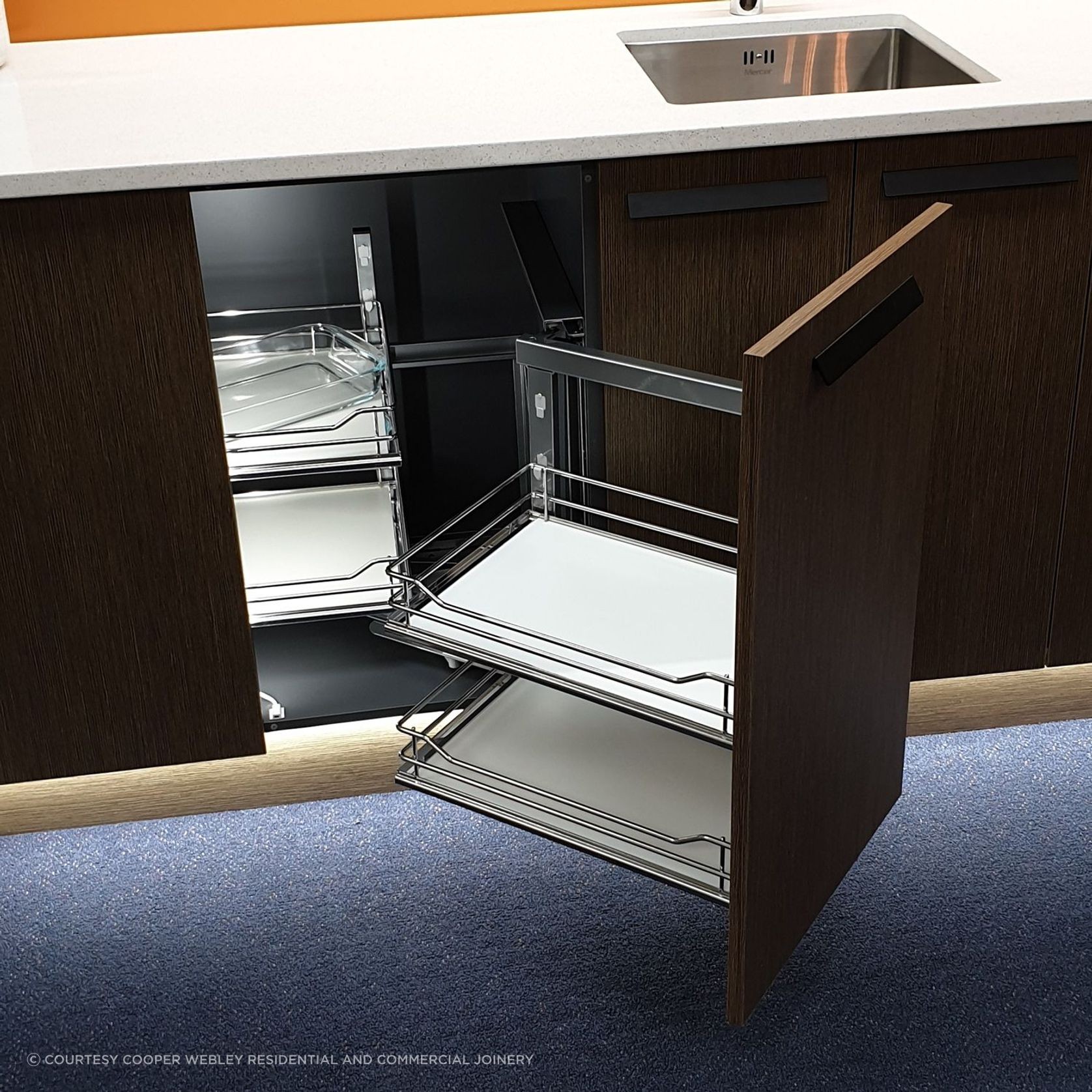

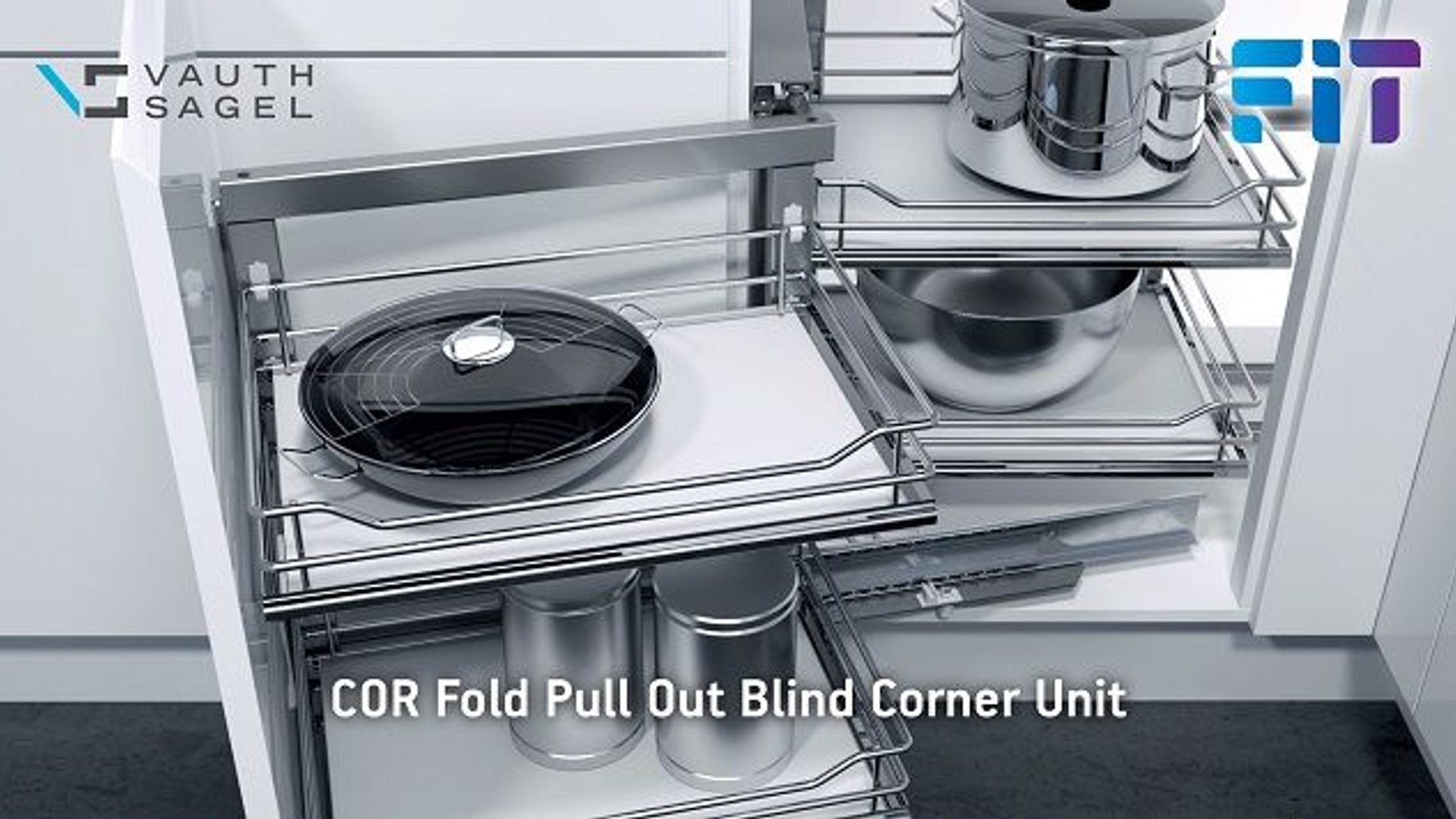

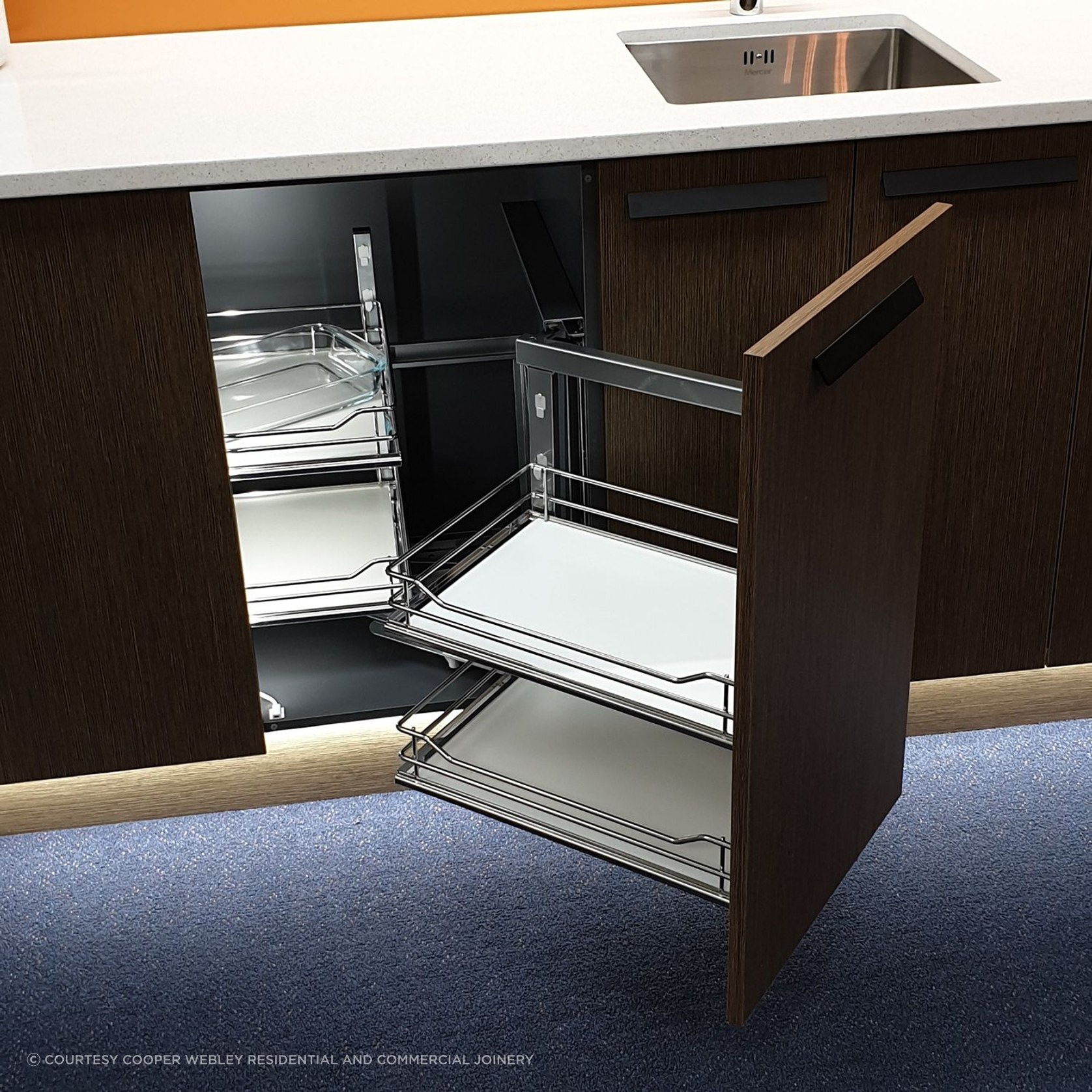

VS COR Fold in Planero - pull out for blind corner cabinet (ie single door access)
- User friendly movement makes contents very accessible; as door opens, front baskets swing sideways, providing easy access to rear baskets
- For cabinet widths of 800mm and 900mm and door widths of 400mm and 450mm
- Individually height adjustable baskets
- 8kg load capacity on front baskets, 9.5kg on rear baskets, for total load capacity of 35kg on unit

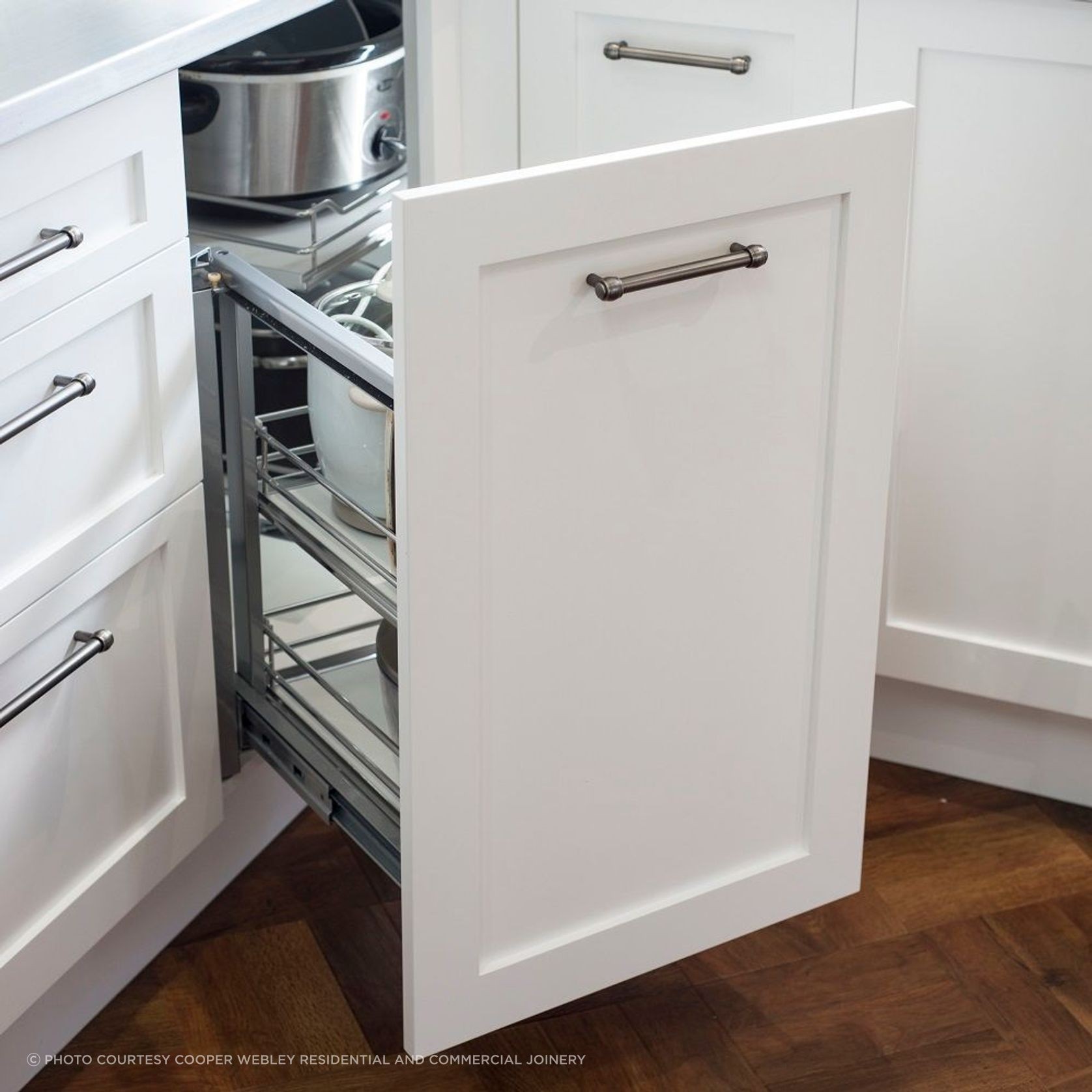

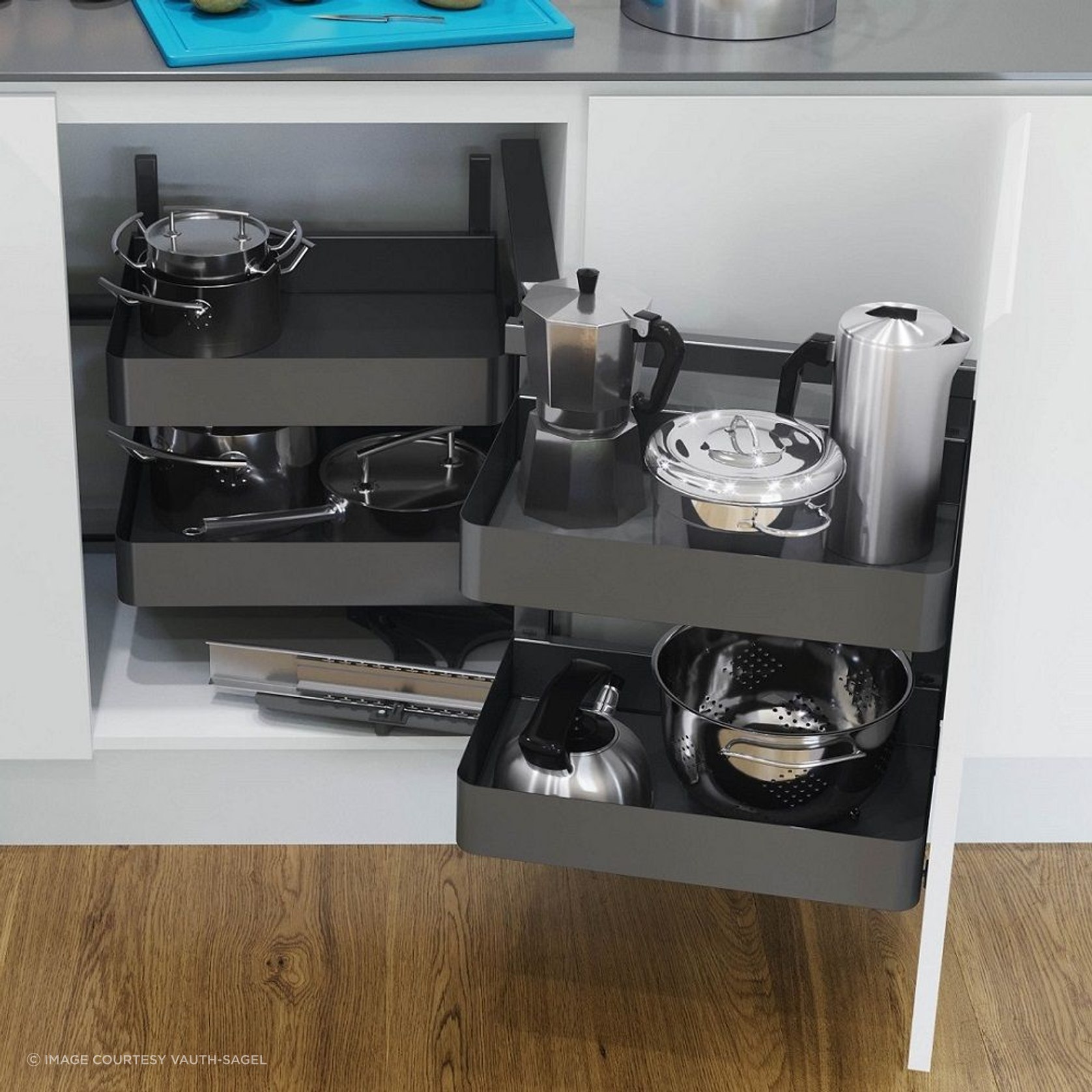

CORNERSTONE MAXX in Planero - pull out for blind corner cabinet
- Full access to cabinet without blocking off adjacent cabinets
- Left and right handed models available
- Simple height adjustment
- Hidden fastening for an aesthetically pleasing 'floating' shelf look
- PAM (power assisted movement) in pull out direction
- For cabinet widths of 800mm, 900mm and 1000mm and door widths of 400mm, 450mm and 500mm
- 25kg load capacity per shelf
- 2 shelf and 4 shelf models available

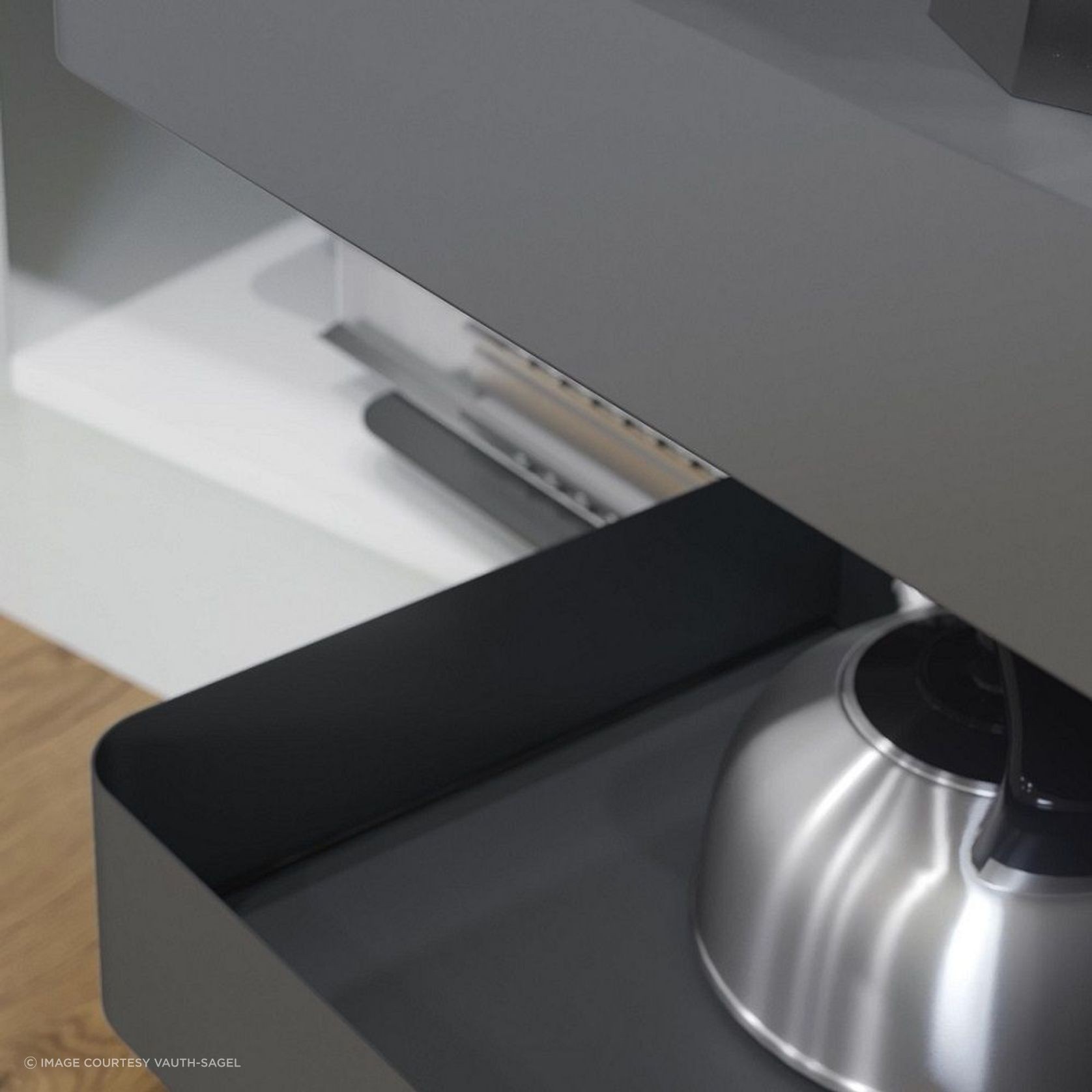

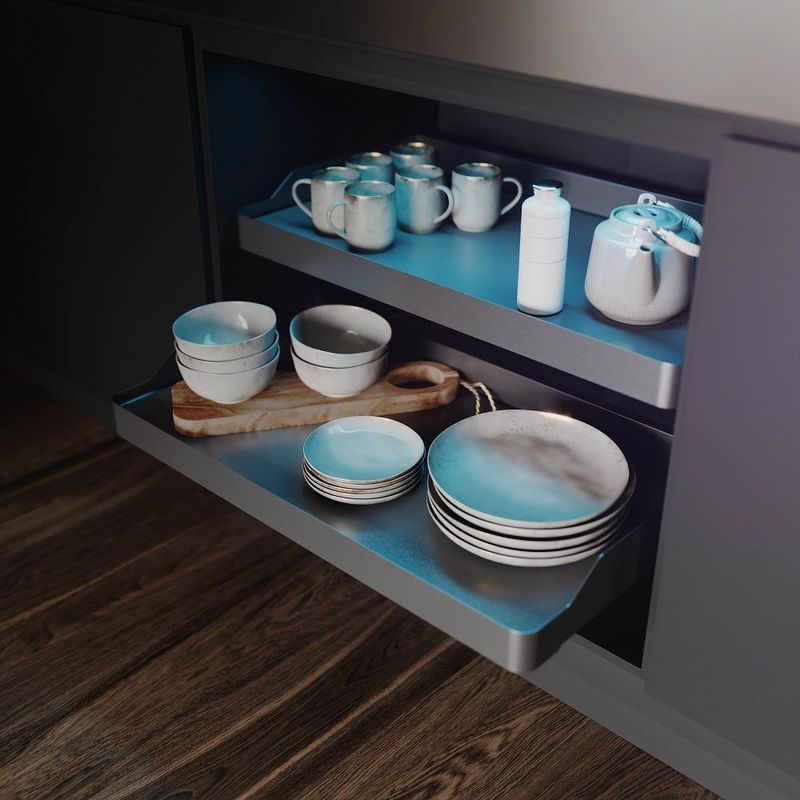

VS SUB Basket in Planero - a new take on the pull out basket
- Like a drawer, gives full access to contents stored at back of unit
- High quality full extension soft close and self close European runners
- Supplied ready to install behind hinged door
- Load capacity 20kg per basket
- Minimum internal cabinet depth 515mm
- Installation height per unit - 160mm with runner
- One unit = one basket and one set of runners (image shows 2 units)
- Available for cabinet widths 400mm, 450mm, 500mm, 600mm

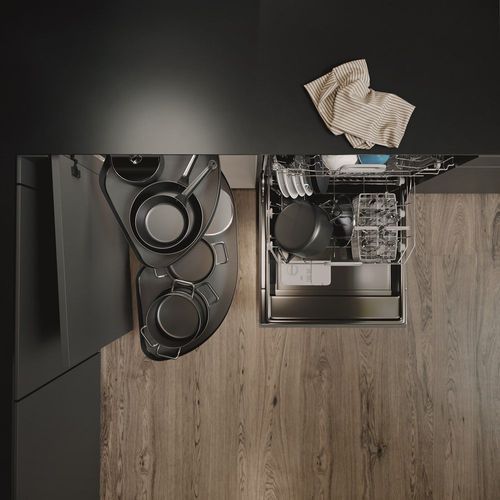

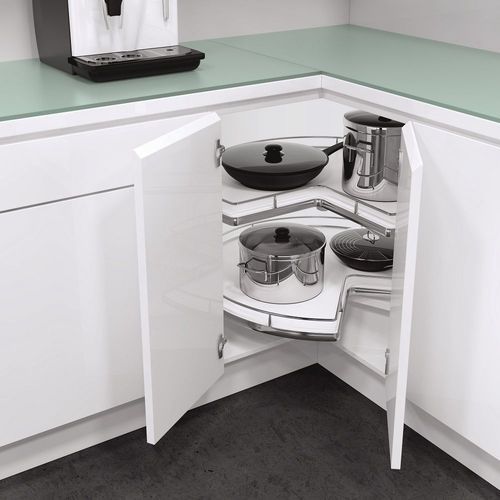

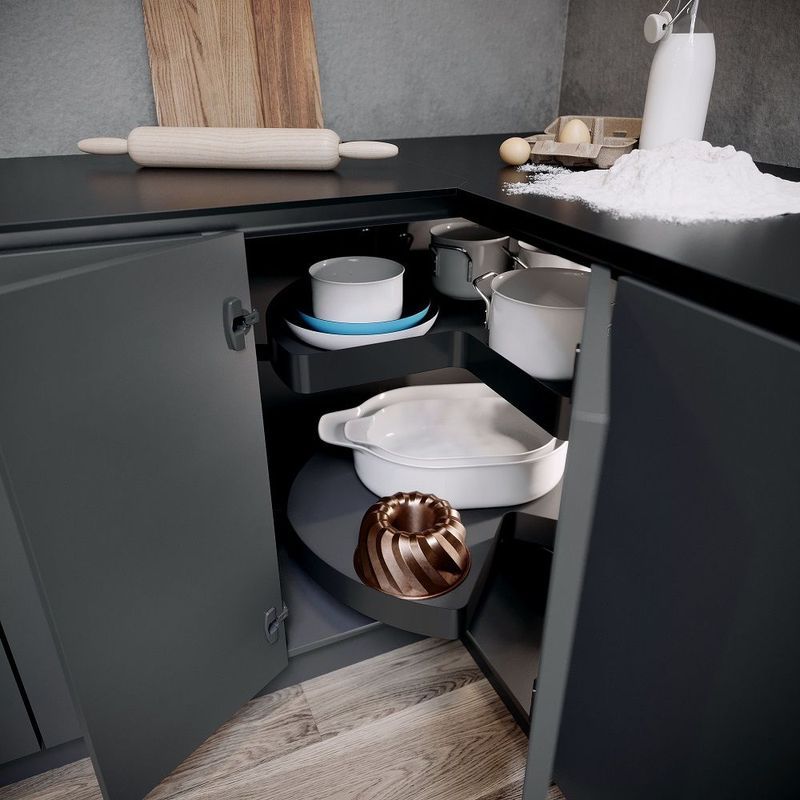

VS COR Wheel Pro - 'lazy Susan' style unti for 2-doored corner cabinets
- Innovative design; no space-limiting central column, creating up to 20% more space on bottom shelf
- Diagonal strut supports shelves; ideal for under corner sink units
- Virtually invisible mechanics for enhanced aesthetic appeal when doors are open
- 28kg carrying capacity per shelf
- Height adjustment for shelves is flexible and independent from carcass height
- Shelf position can be changed after fitting
- Two shelves rotate independently of each other
- Suitable for retrofitting
- Options for 800mm (680mm diameter unit) and 900mm (760mm diameter unit) cabinets
Width = Cabinet Width (external with 16mm board)
