Alderson Avenue

Website

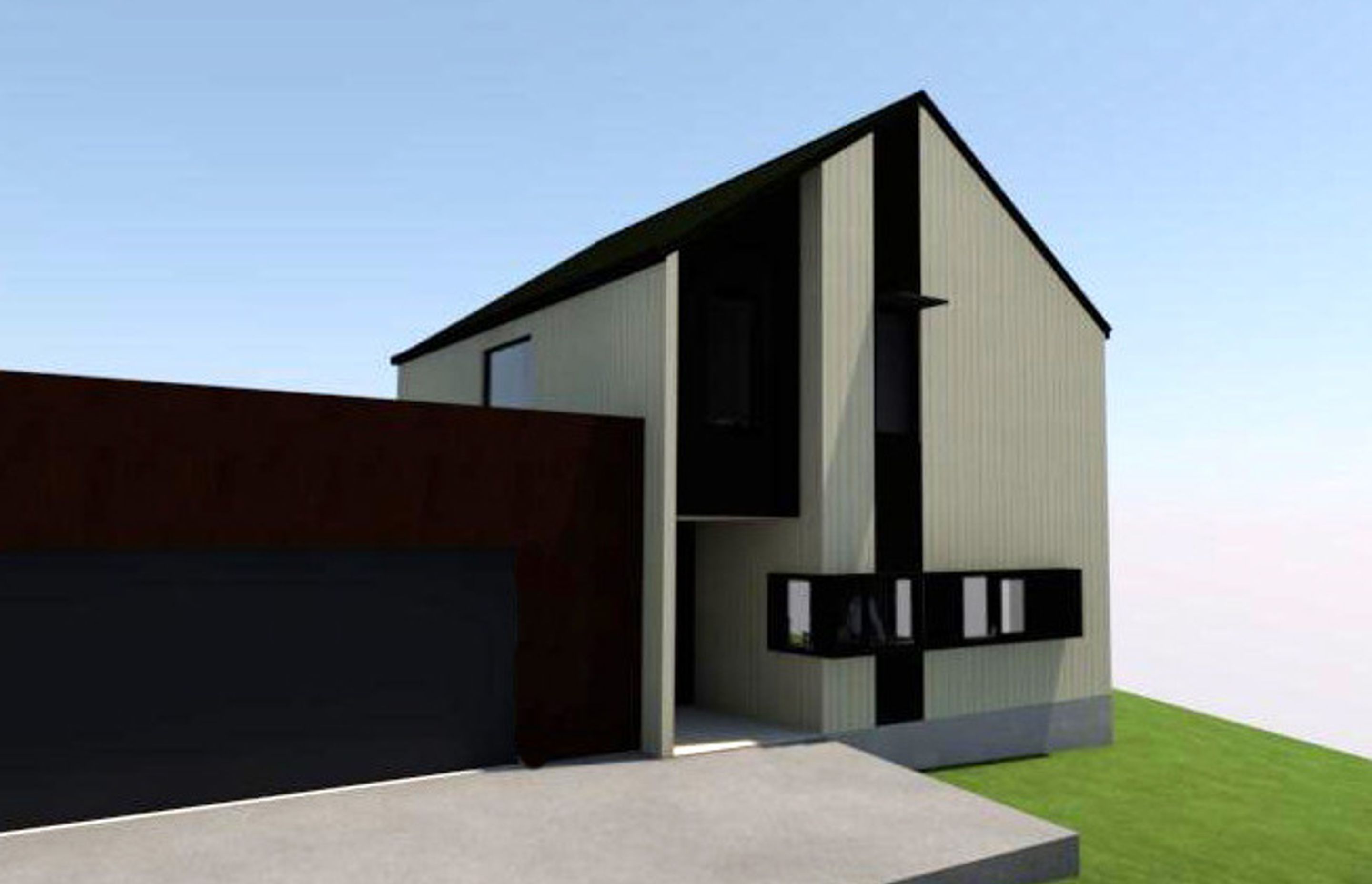

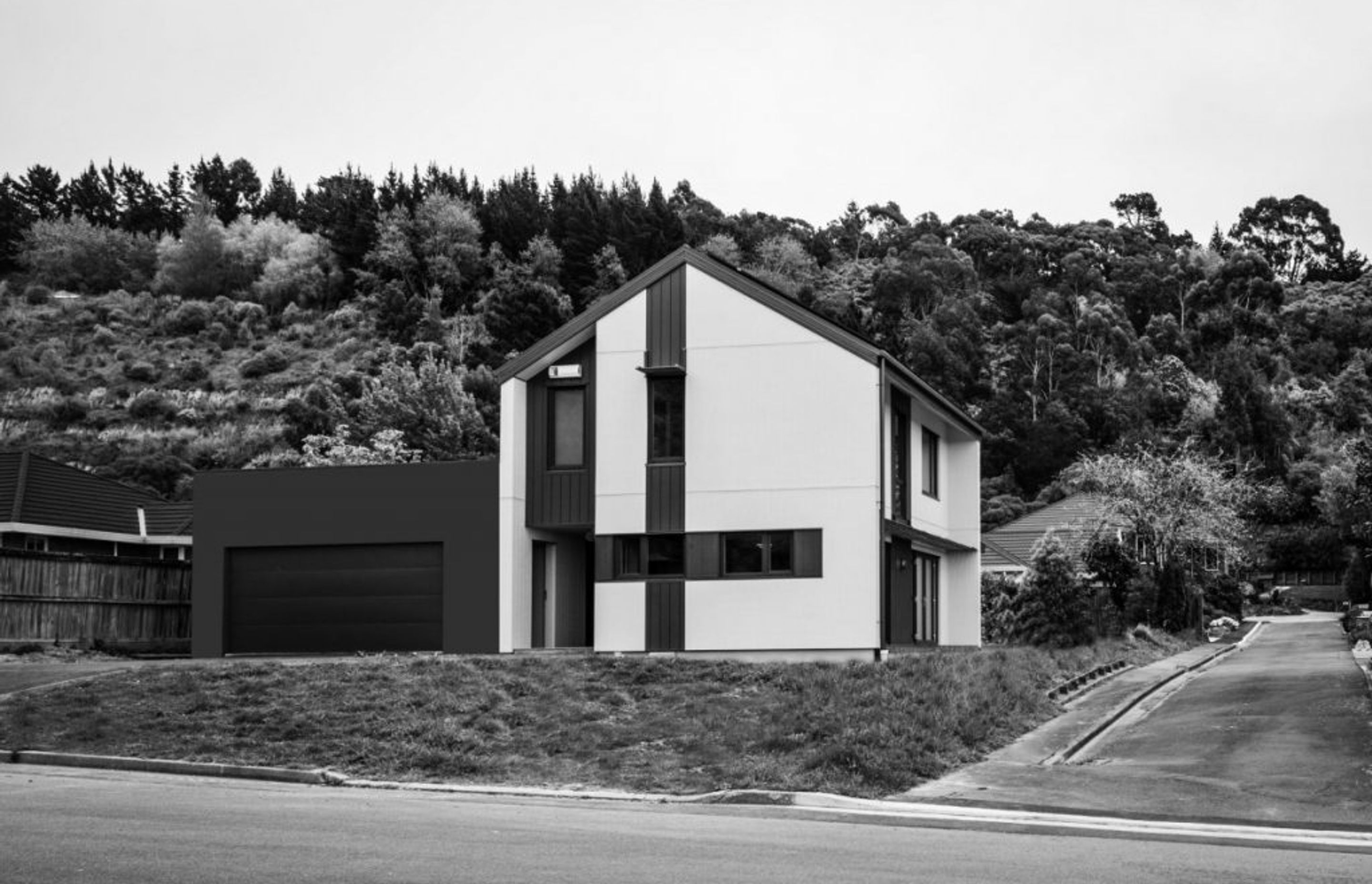

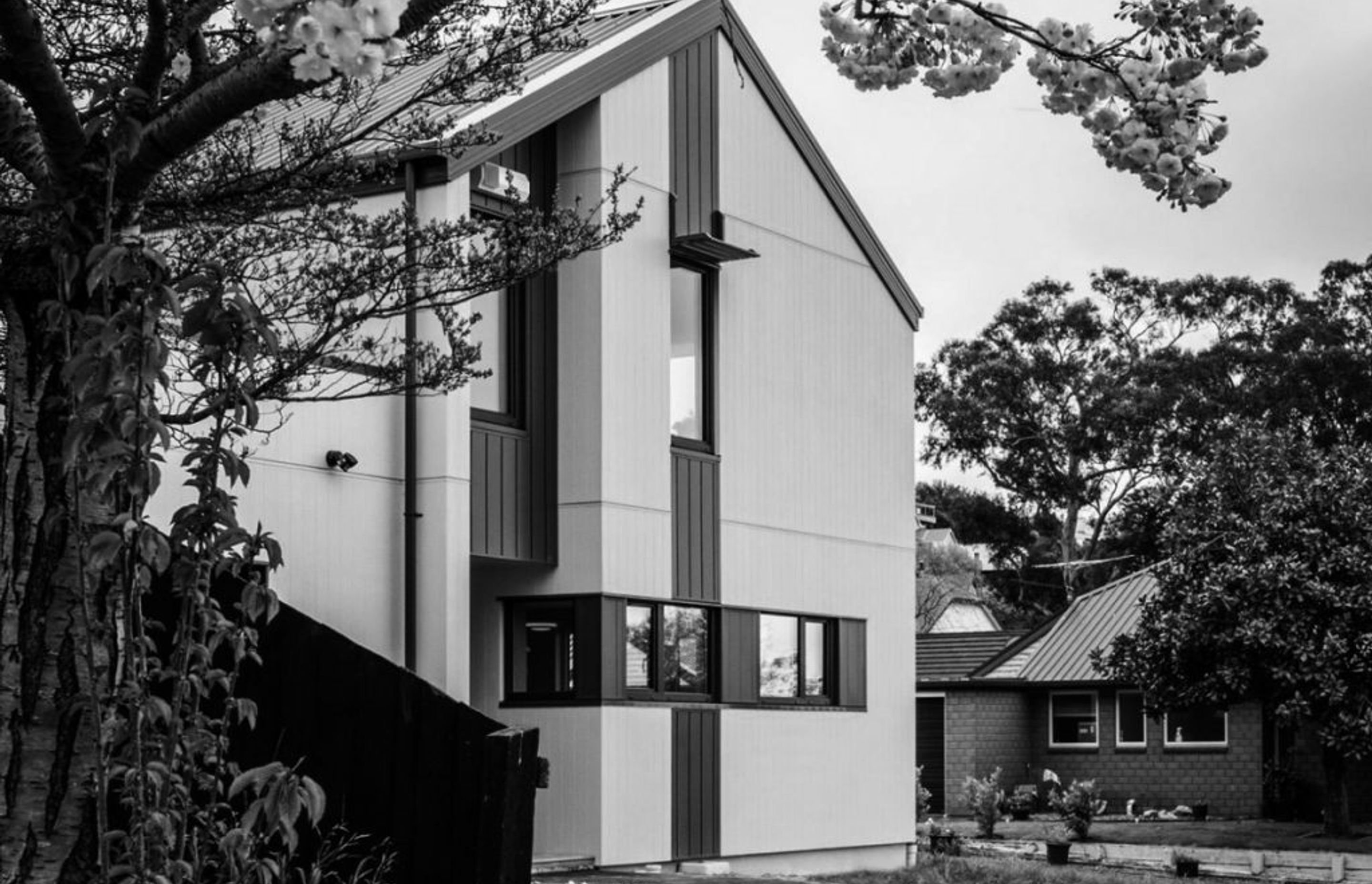

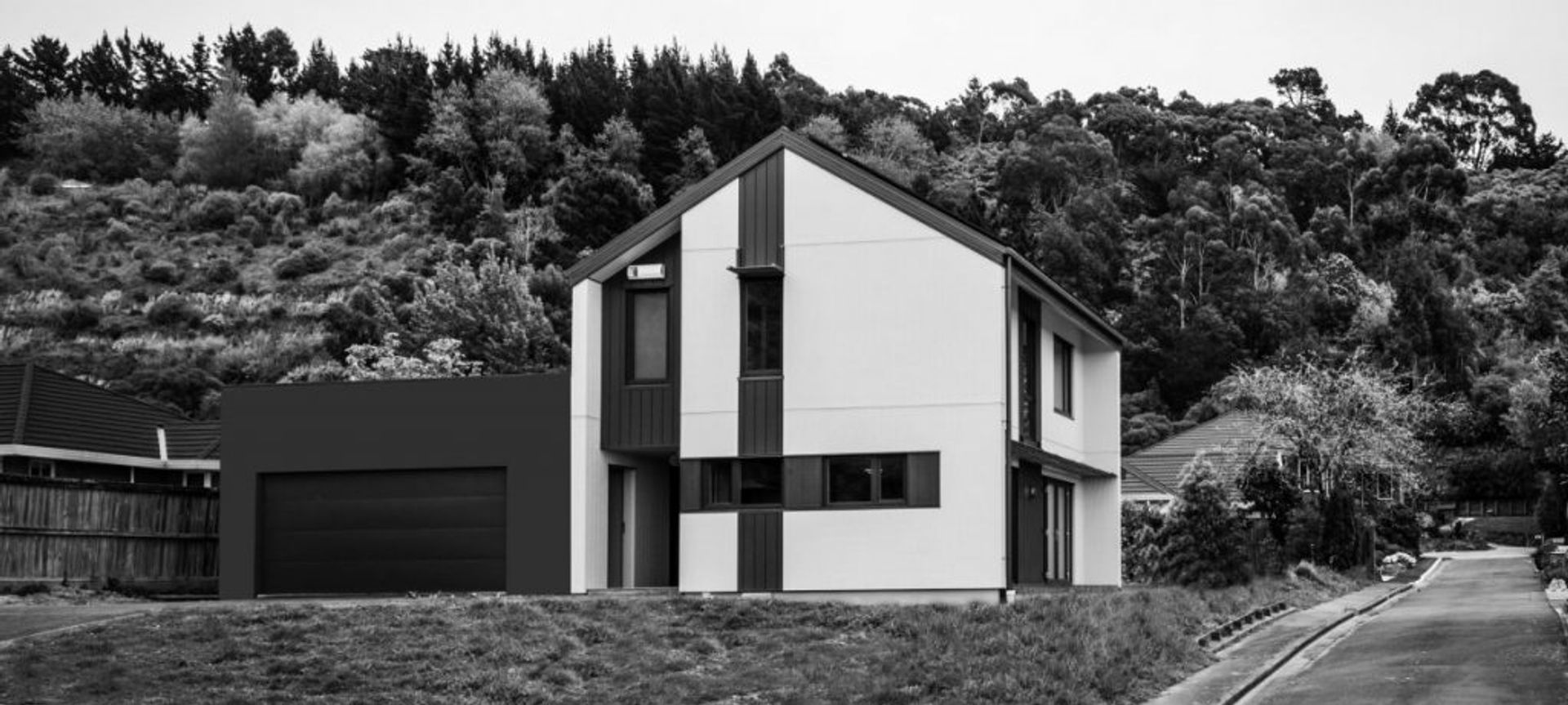

A Superhome on a modest budget designed and built to be Super -Insulated, airtight and energy-efficient, mechanically ventilated with triple glazed recessed joinery. A blower door test exceeded the Passive House Standard of 0.6 air changes/hour, with a test result of 0.44 air changes/hour. This is a good indication of the quality of the building. Well done to the builders Ethos Homes!! The home has a fully insulated floor slab and 140mm thick prefabricated wall panel system with OSB rigid air barrier and Terra Lana wool insulation R4.1.

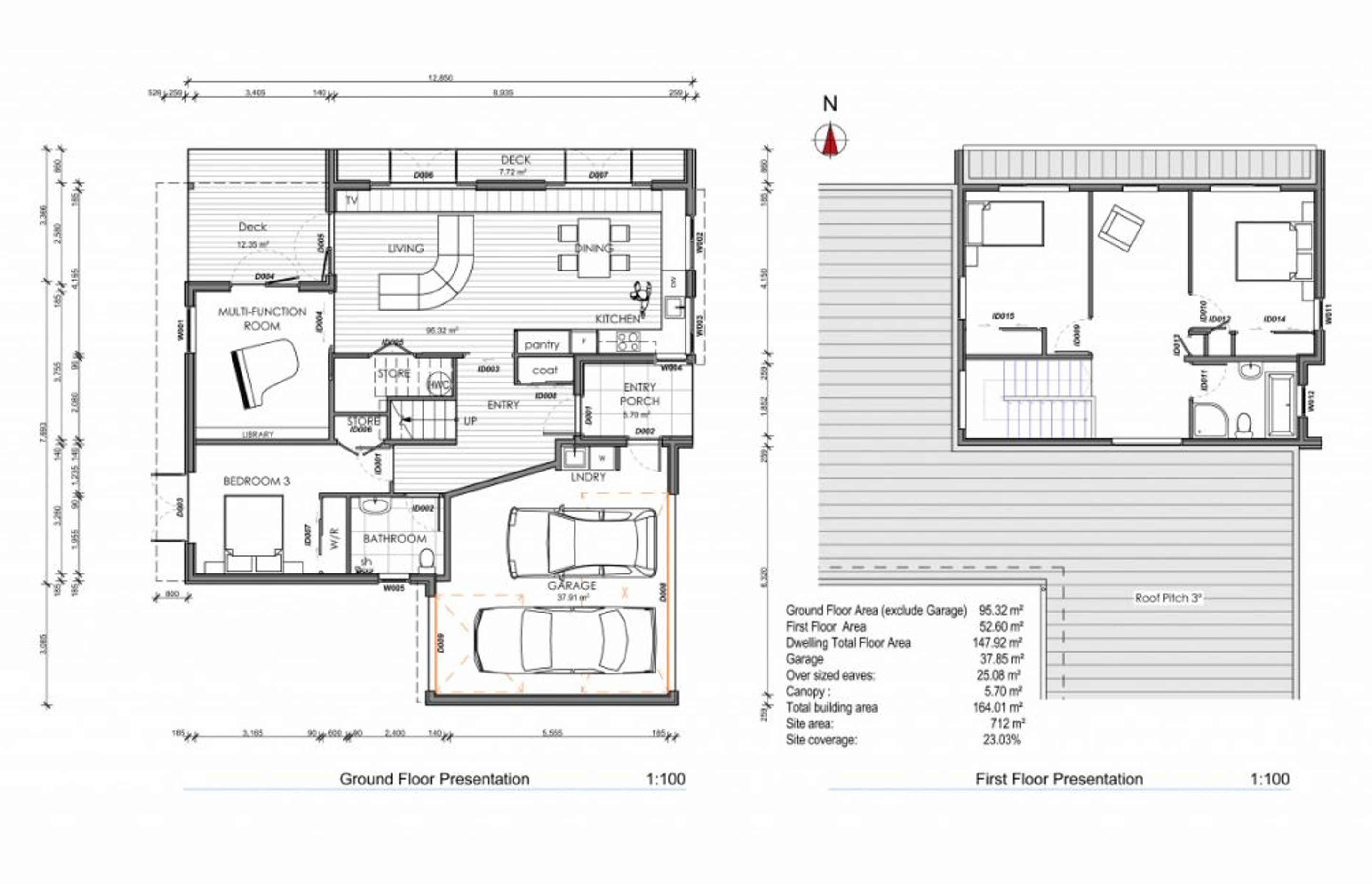

Outline Specification

Floors: European Double Pour fully insulated foundation system (TC2) with ECOmaster Hydronic Underfloor heating

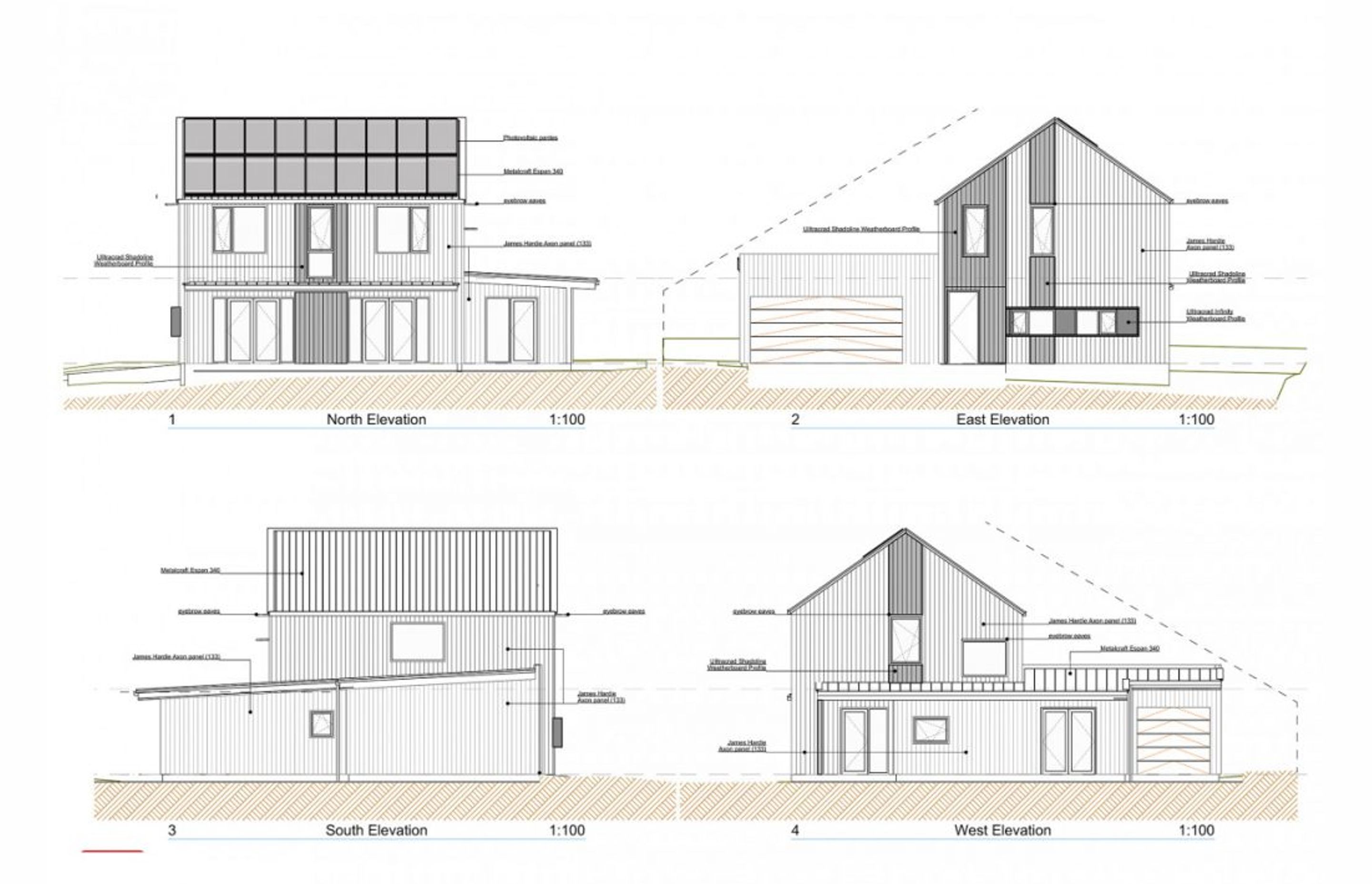

Exterior walls: James Hardie Axon panel over 45mm structural cavity battens on 140mm thick prefabricated wall panel system with OSB rigid air barrier.Terra Lana wool insulation R4.1
Ulltraclad Vertical aluminum Shadoline cladding.
Interior walls: 10mm plasterboard and tiles on villaboard to wet areas.

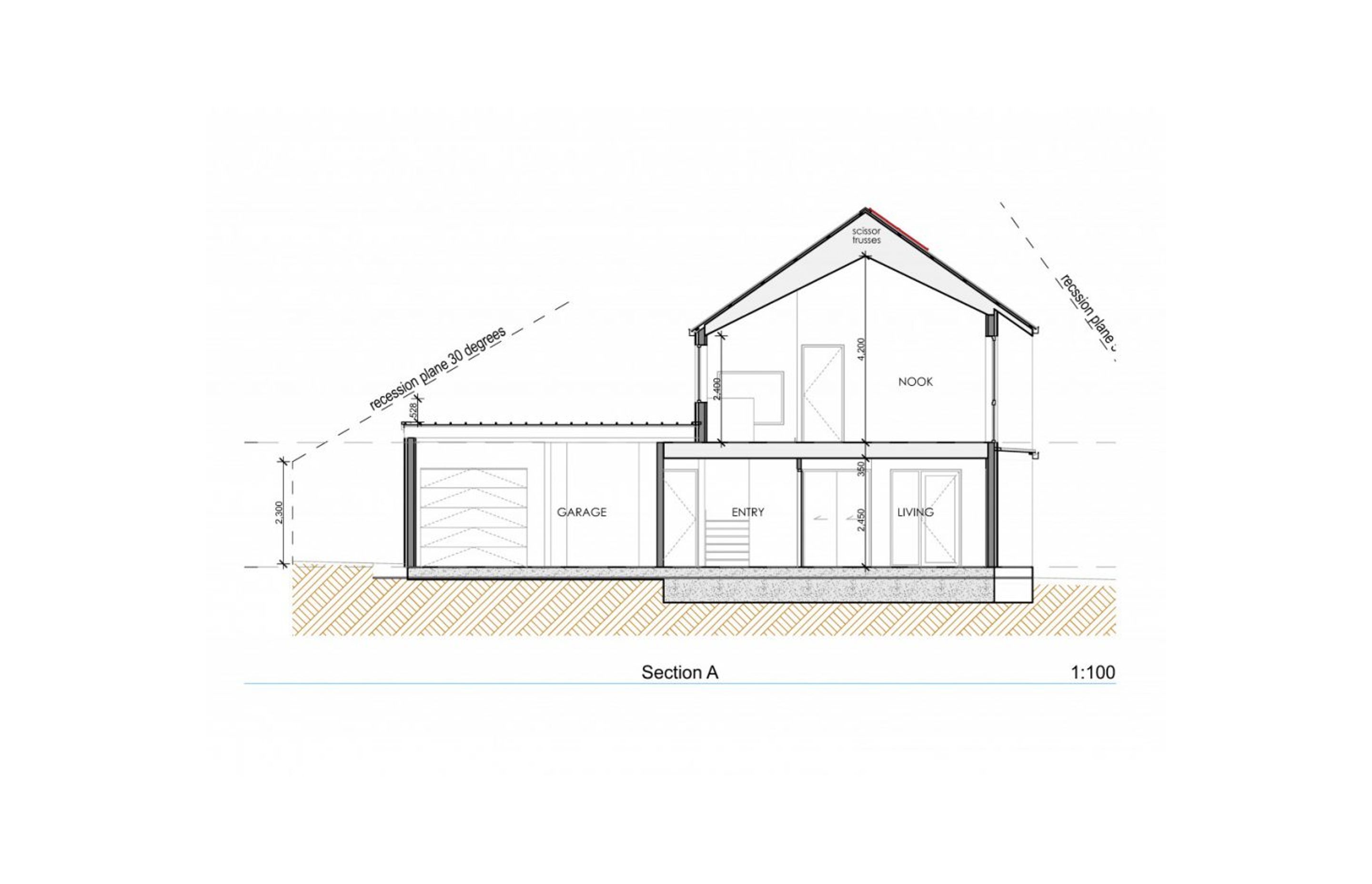

Roof: Metalcraft ESPAN 340 on SG8 70×45 timber purlins @ 900 crs on 20×45 timber cross battens @ 900 crs max over scissor trusses to NZS3604 as per roof framing plans. R5 Terra Lana wool insulation. Proclima roofing underlay and intello airtightness membrane, 13mm Gib board ceiling on 35mm Rondo battens @600 crs fixed with Beta Fix clips.

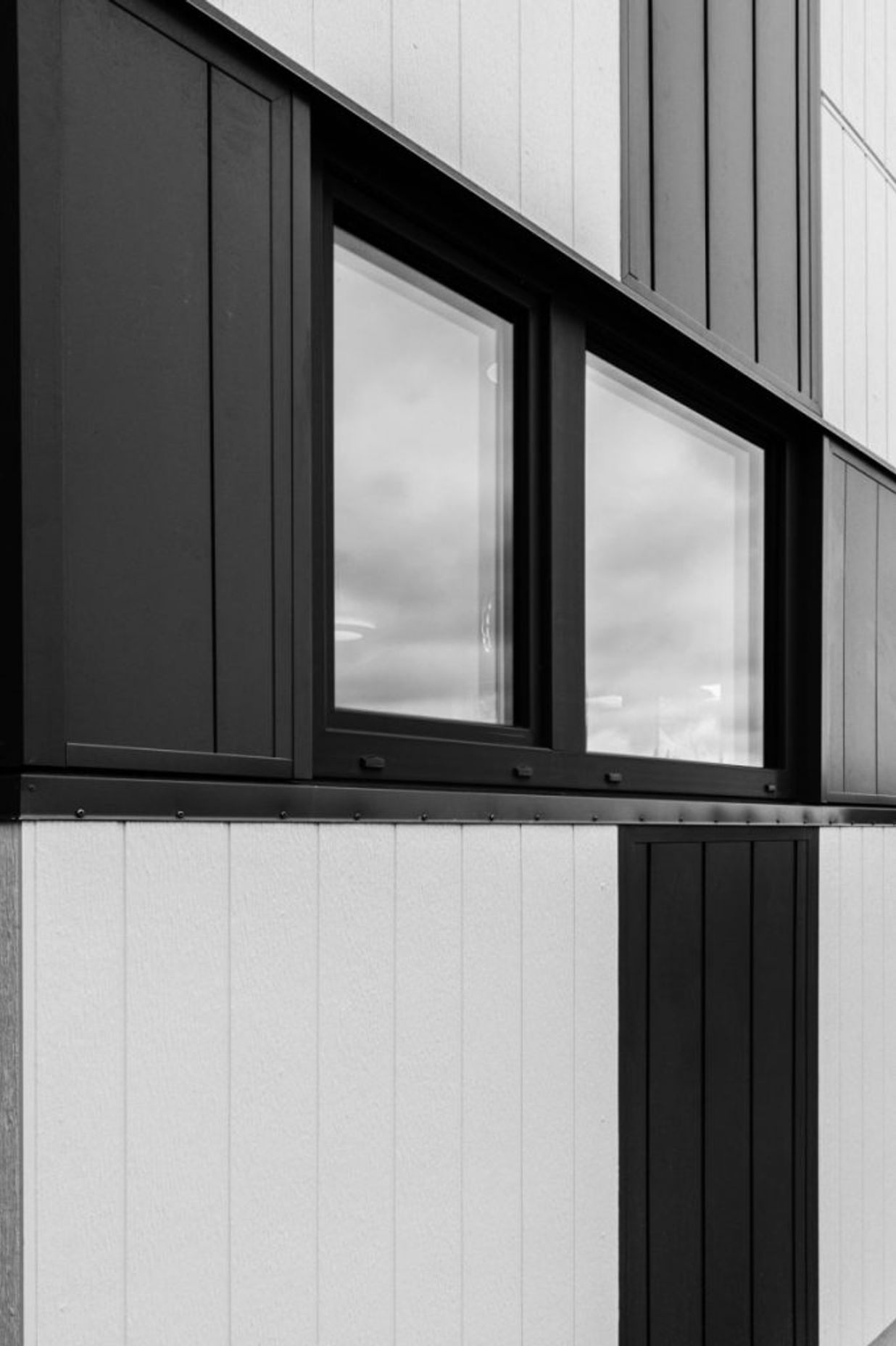

Windows/Doors: uPVC clear triple glazed, Low E argon filled with a thermal internal spacer. No revels, Timber sills added after windows installed. Airtight Joinery installed recessed into the warm part of the wall.
Heating: Hydronic under flooring heating by WarmthNZ
Hot Water: Hot Water Cylinder: Rinnai 300L linked to PV solar system
Ventilation: Wolf, MVHR Mechanical Ventilation Heat Recovery balance system.
Photovoltaic panels: Solarliving photovoltaic panels 5.5kw system
