Inner City Townhouse Development

The two critical drivers informing the conceptual framework for Habitat on Terrace were context and feasibility, both of which leaned heavily on the local town plan. The project feasibility hinged on the addition of the fifth dwelling on a mere 760m2 site which in turn informed the architectural design of the whole development through direct references to the existing Queenslander on the site. The design principles coupled with the yield of the fifth dwelling was able to tip the scale in favour of value over cost to take the development from being a paper project to a built outcome.

The project is an exercise in densification of the inner city suburban site while respecting the local context. It attempts to form an example of how a development project can respond to the character of the Queensland vernacular through its contemporary interpretation.

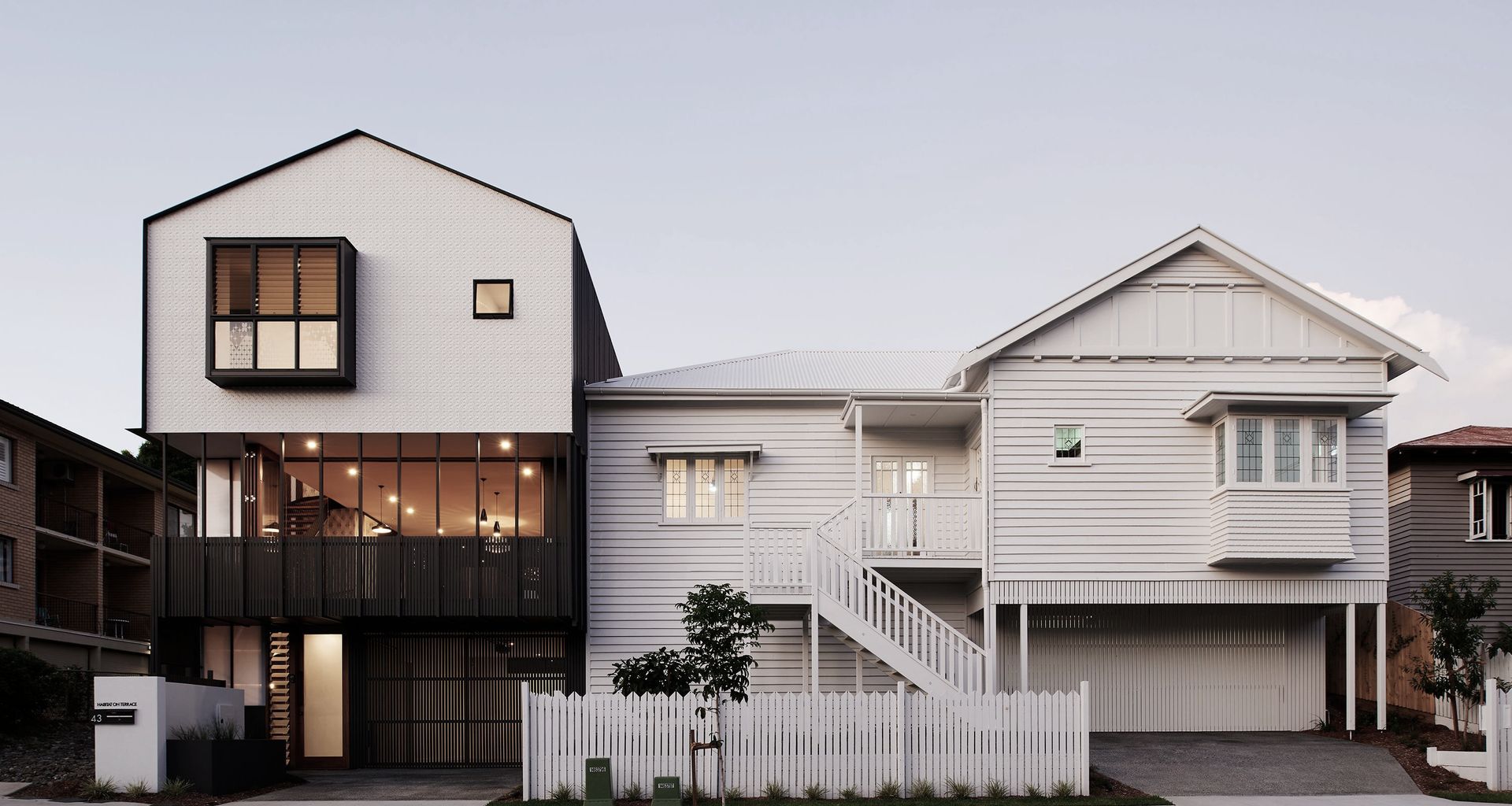

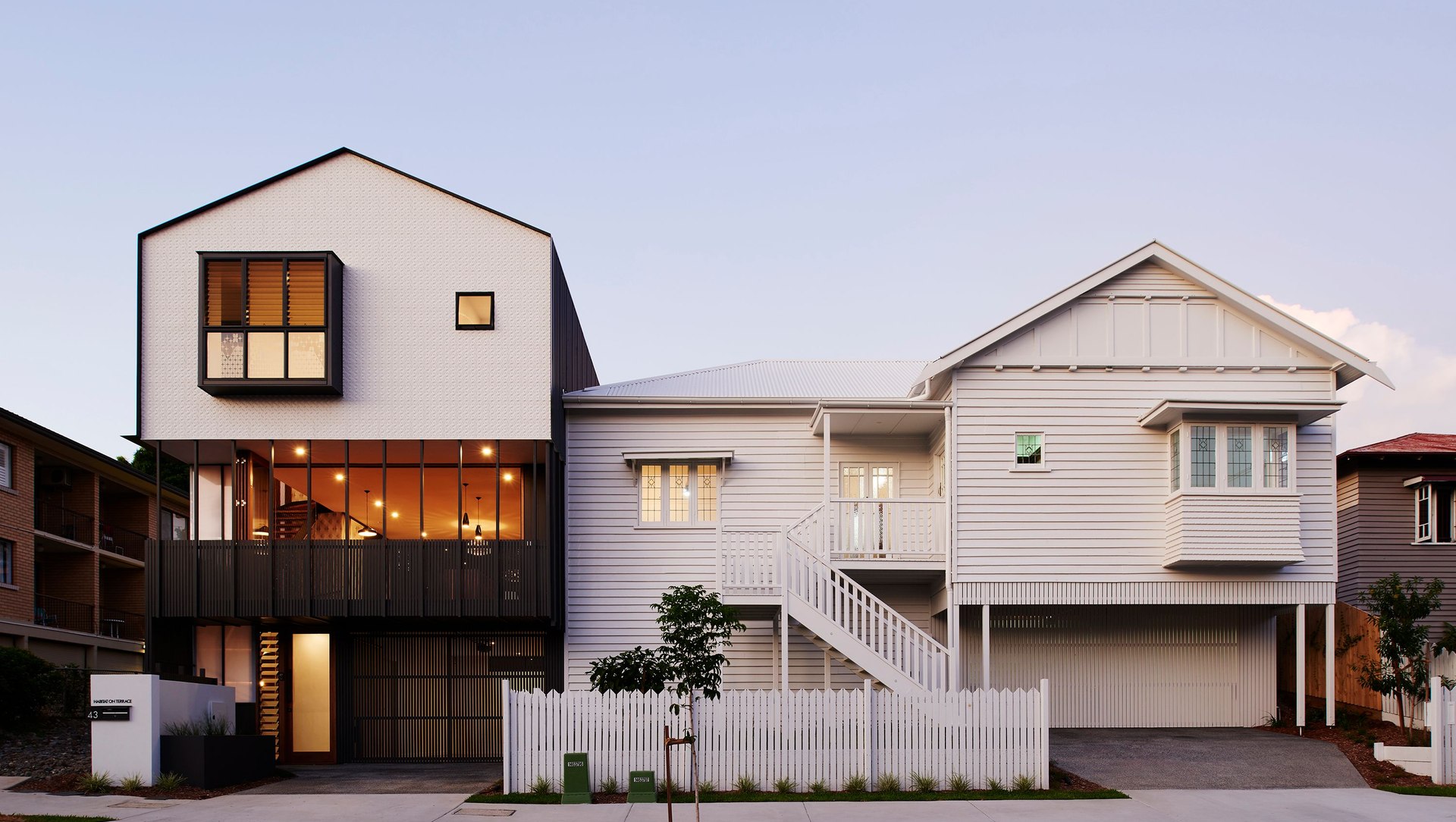

The site strategy took queues from its immediate context. The existing Queenslander was raised and relocated towards a two-storey timber house next-door to the east, while the new ‘fifth’ townhouse was sited to the west, closer to a neighbouring threestorey unit block. The new townhouse borrows height from the adjacent unit block and makes direct reference to the existing Queenslander on the site. It reinterprets the shape, proportion and features of the existing house façade. The result is a contemporary, three-storey, interpretation of the traditional Queensland house, which is supported by the local code.

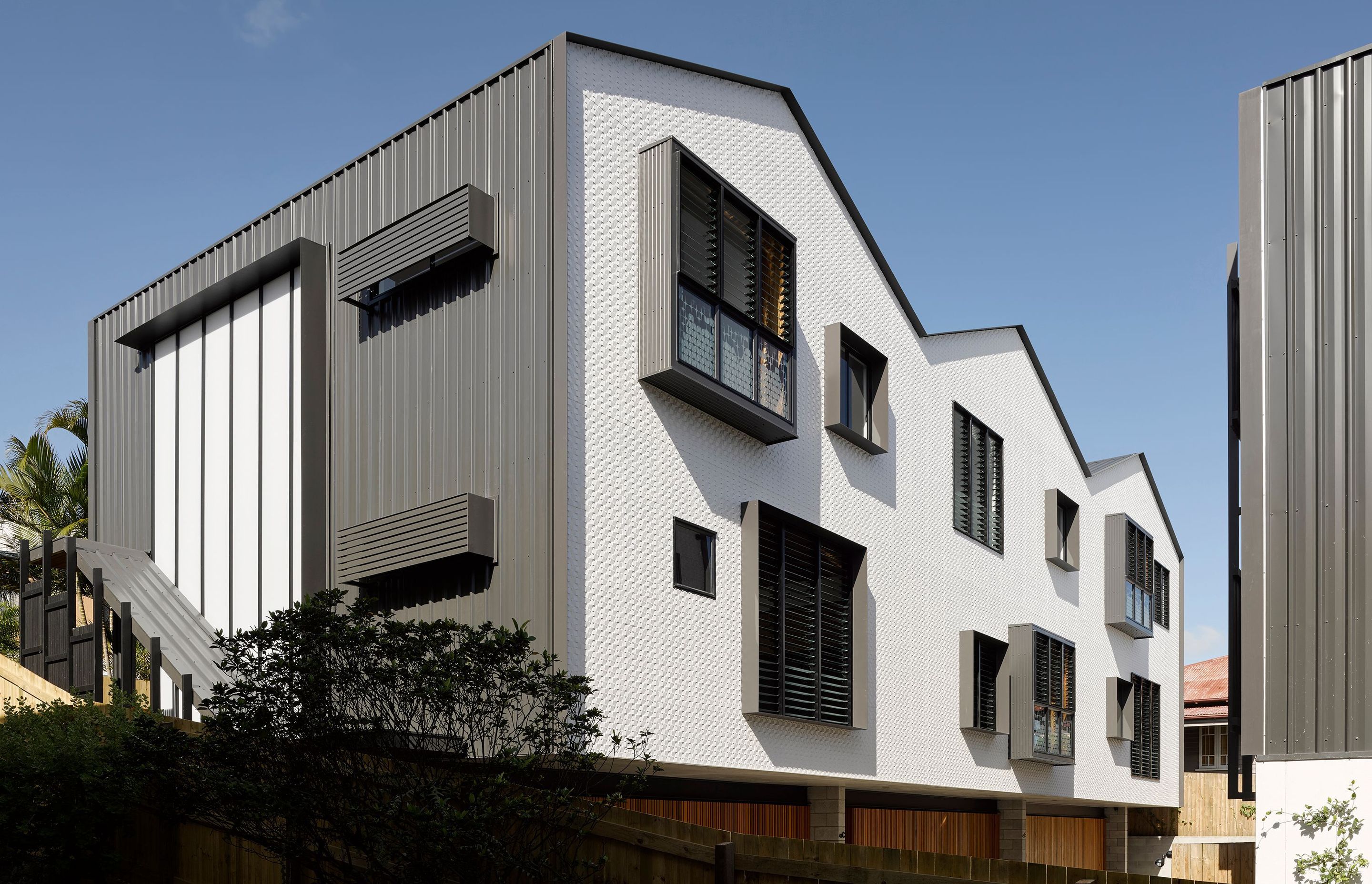

The three rear dwellings repeat this concept to form a set of three ‘glued together’ houses. North and south facades are linked with a ribbon of folded metal sheeting which forms the triple-gable roof that extends down to bookend the form on the east and west sides.

Each dwelling embraces sustainability through passive design principles. Living spaces extend into the landscape through the use of full height bifold doors, which genuinely connect the inside and outside. Despite being compact, the living areas feel generous through borrowing outdoor spaces and vistas.

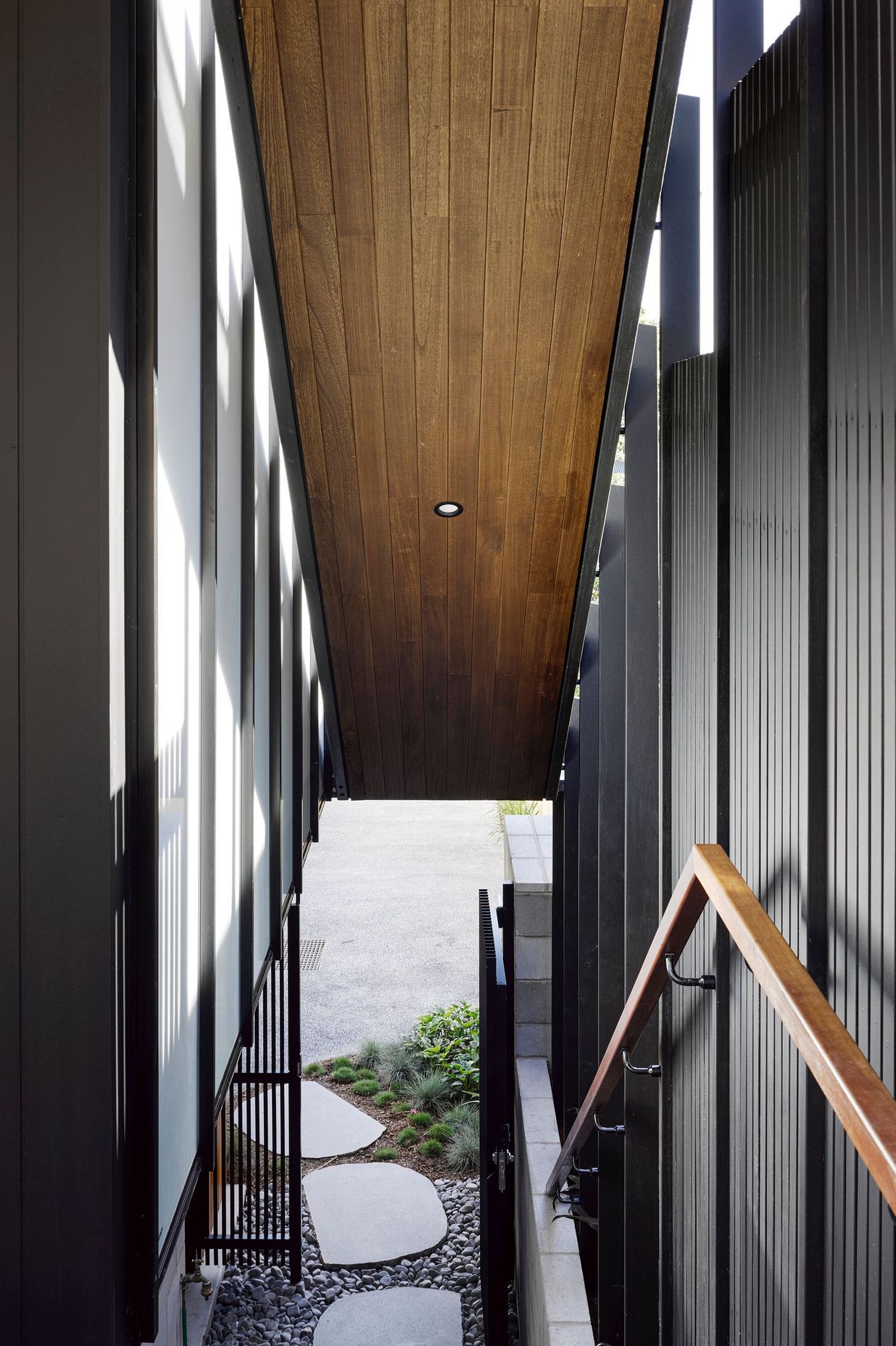

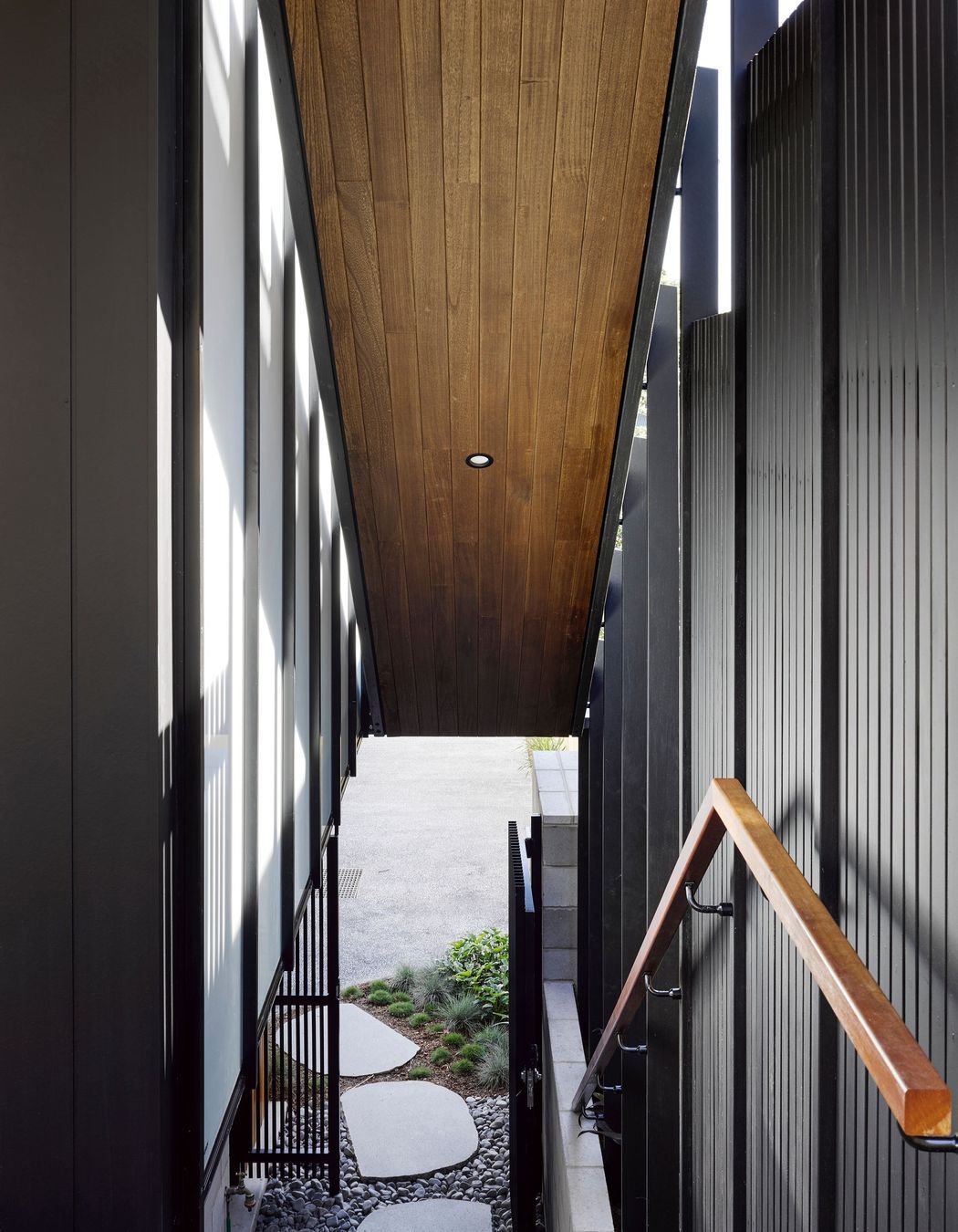

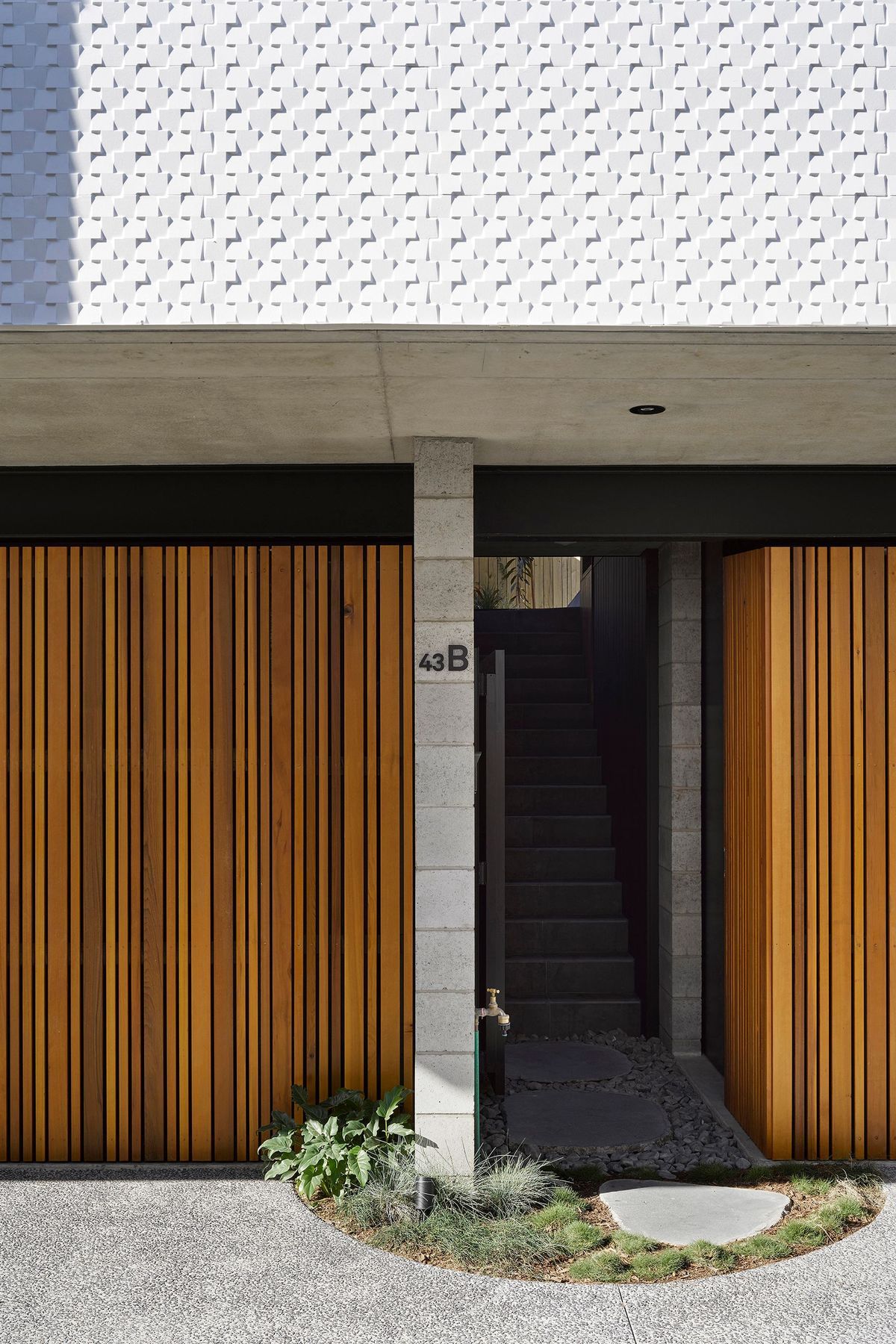

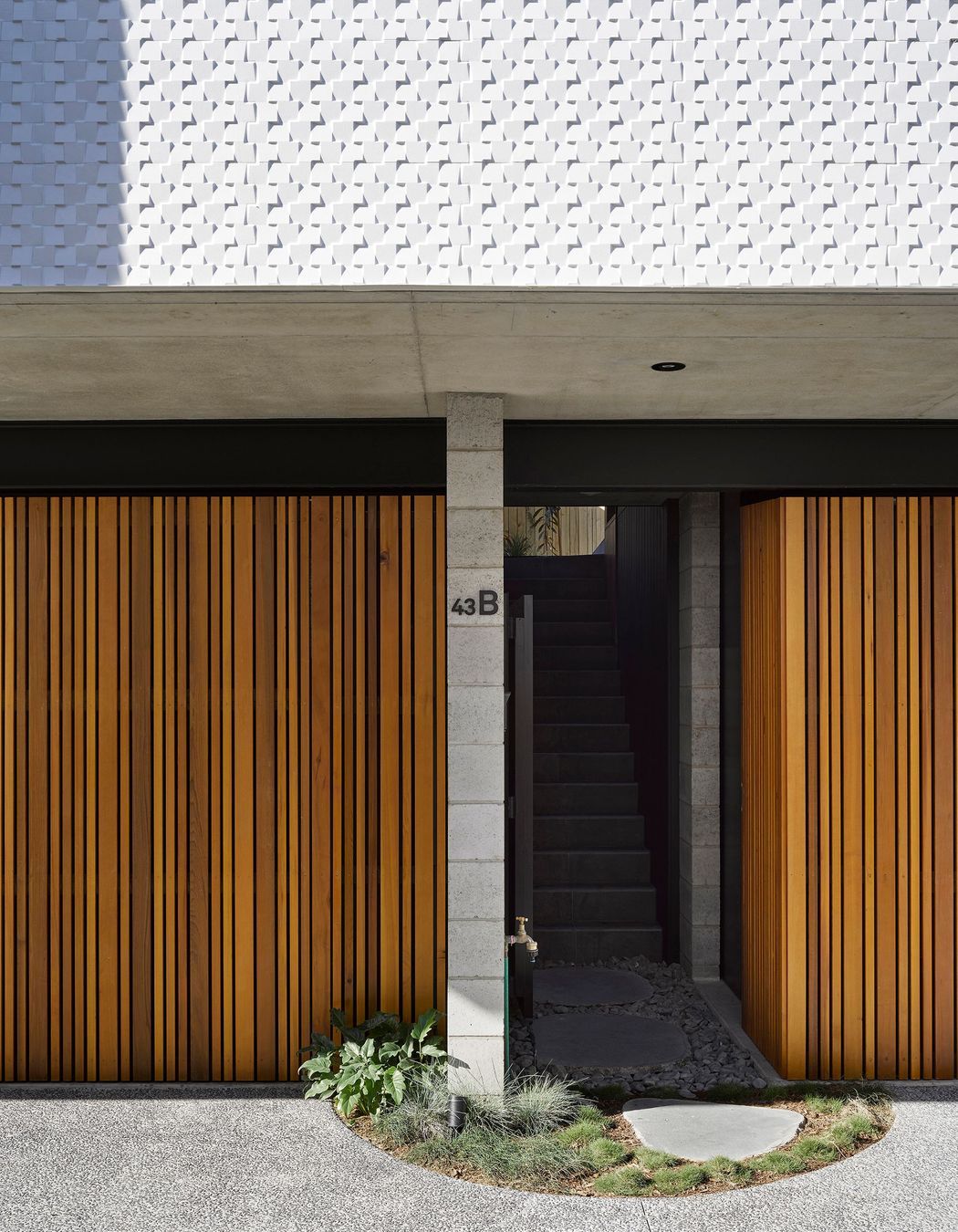

The entry sequence to the three rear townhouses reimagines the experience of arrival. A private external gate and stair leads one up to a beautifully landscaped yard and terrace for each individual home. The rear terrace substitutes the traditional veranda and reveals the entry door.

Awards

2017 AIA Regional Awards Commendation

2017 AIA Queensland State Awards Commendation

2017 UDIA Queensland State Awards Finalist

2017 The Plan International Award Finalist

Location
Toowong, Brisbane

Timeline
2015-17

Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler

Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler

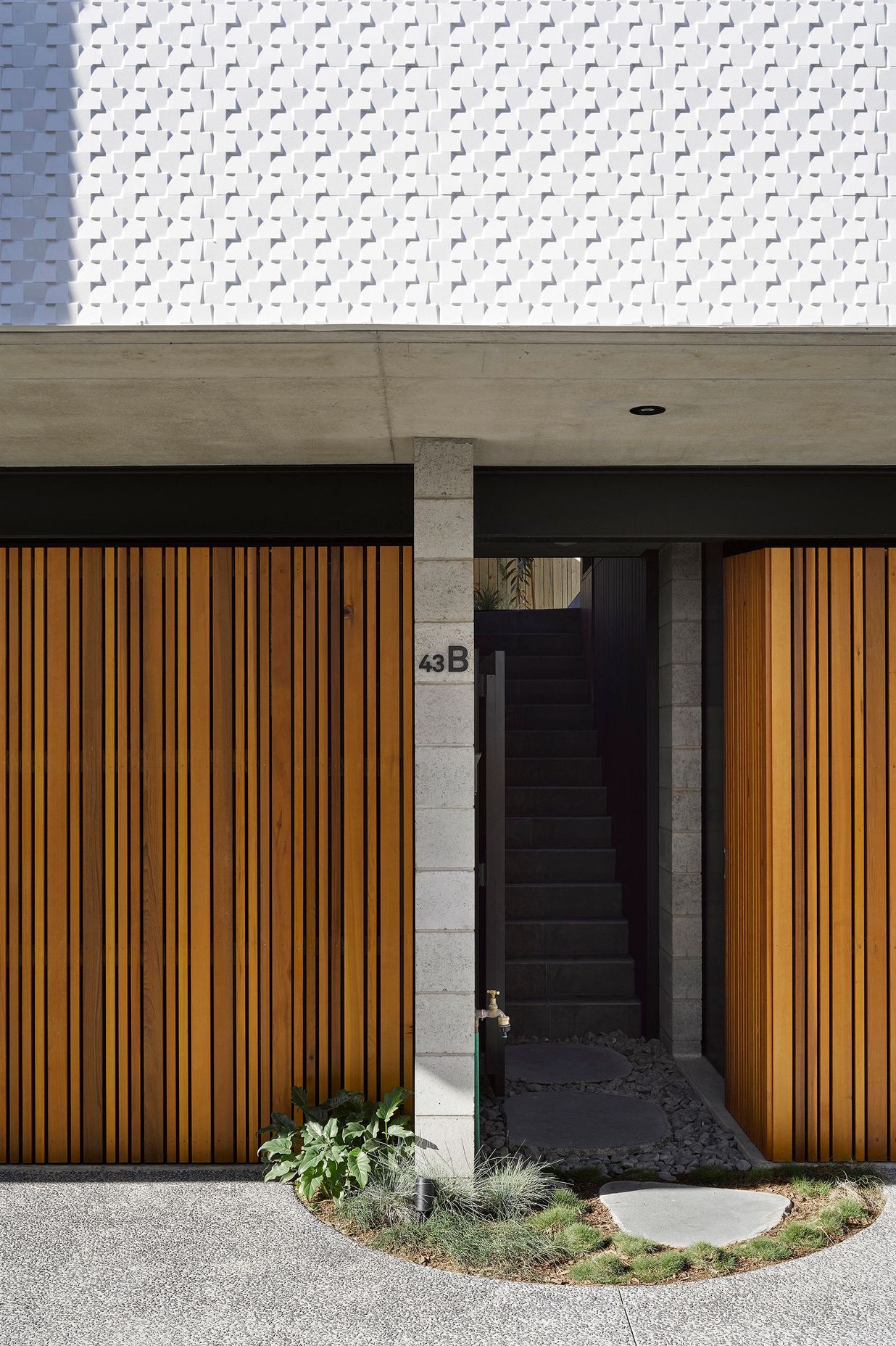

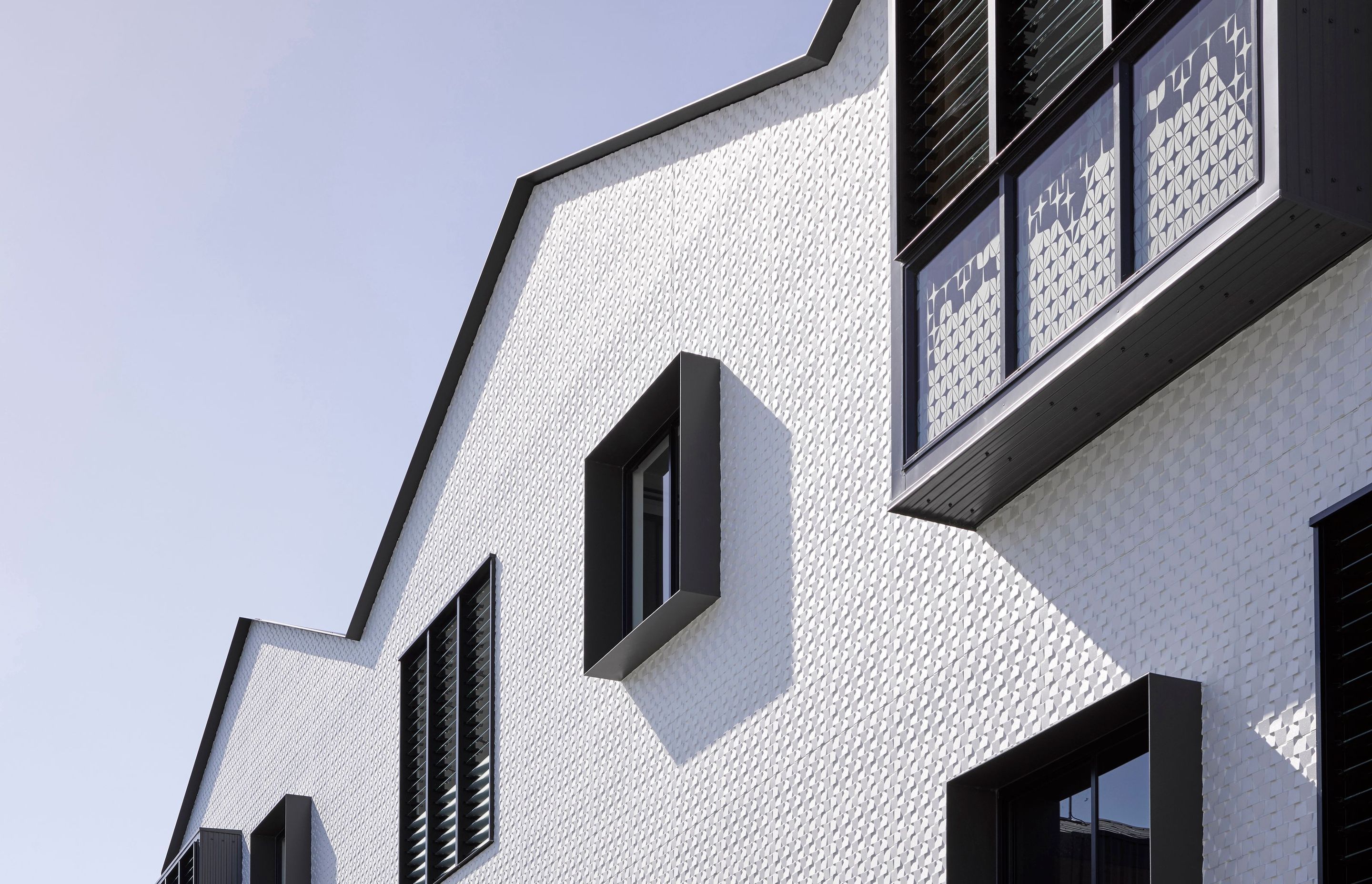

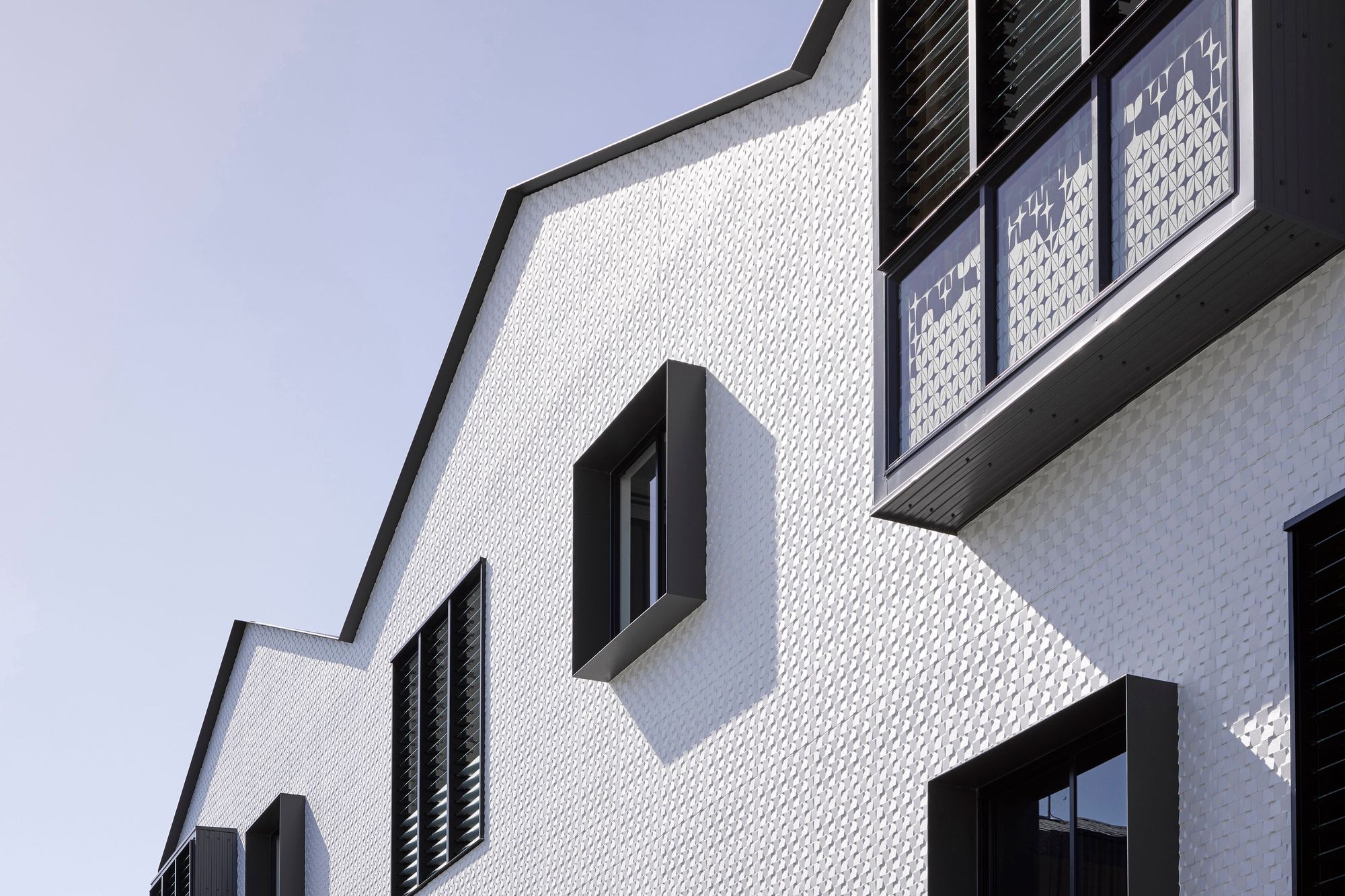

Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler | A harmonious and minimalist palette of finishes and colours includes relief tiles, which create a play of light and shadow throughout the day.

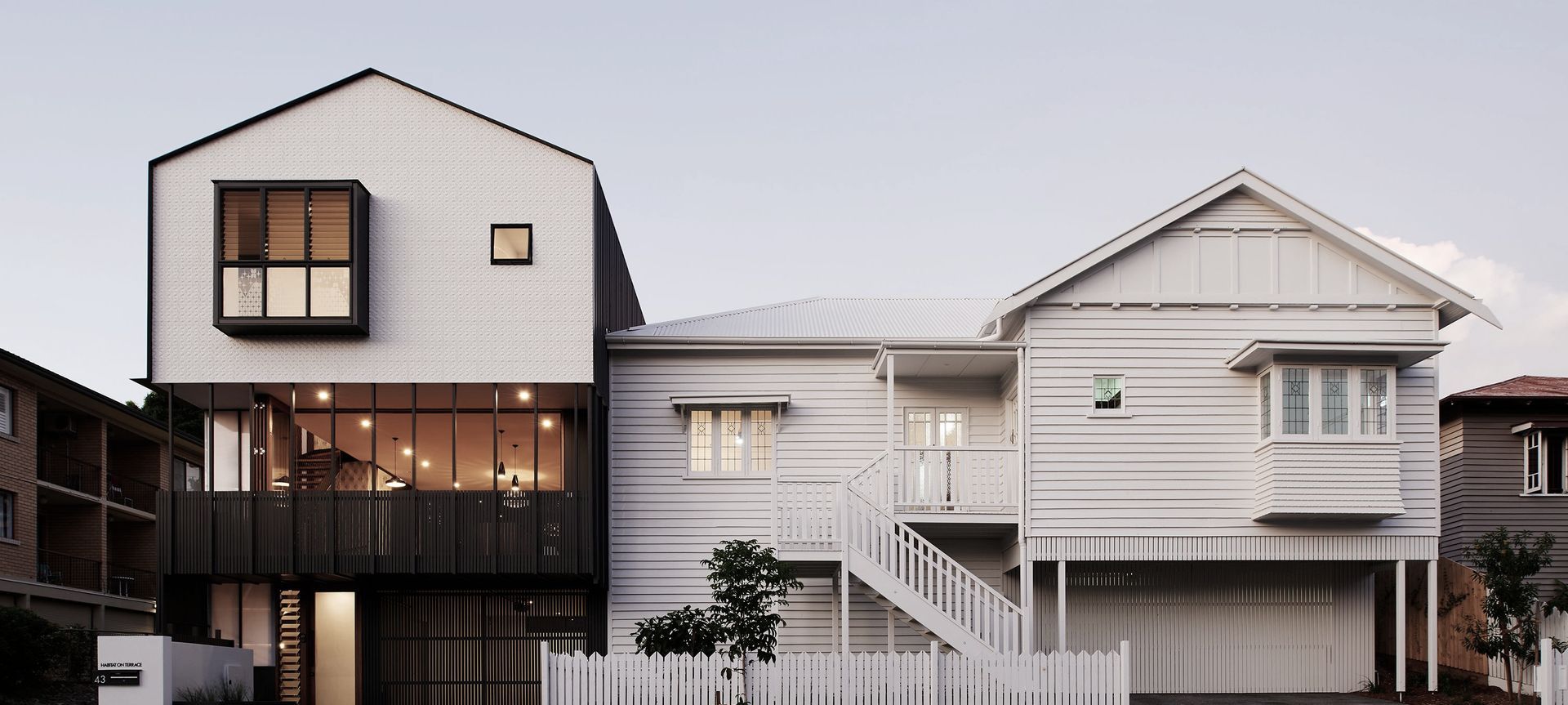

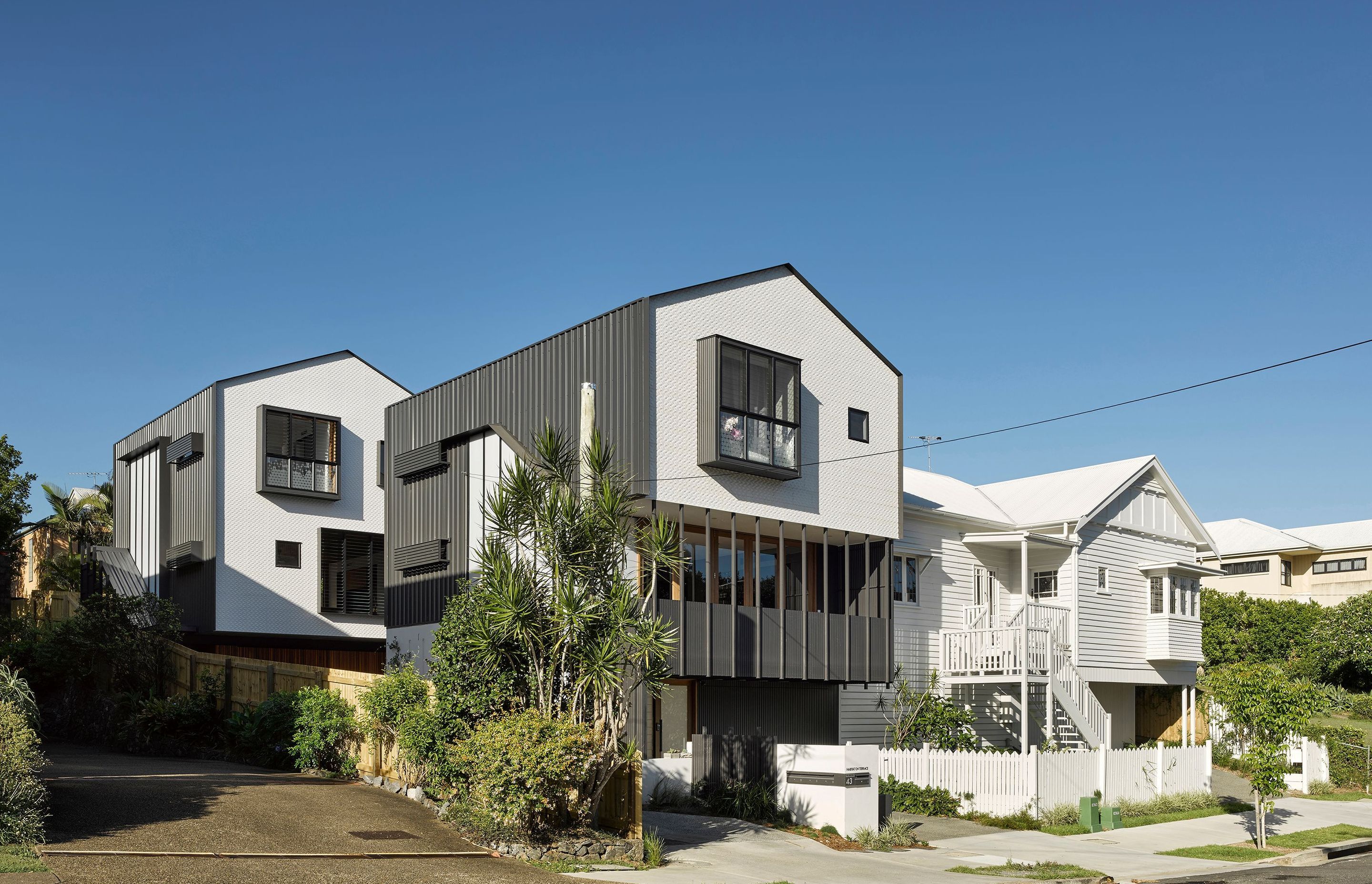

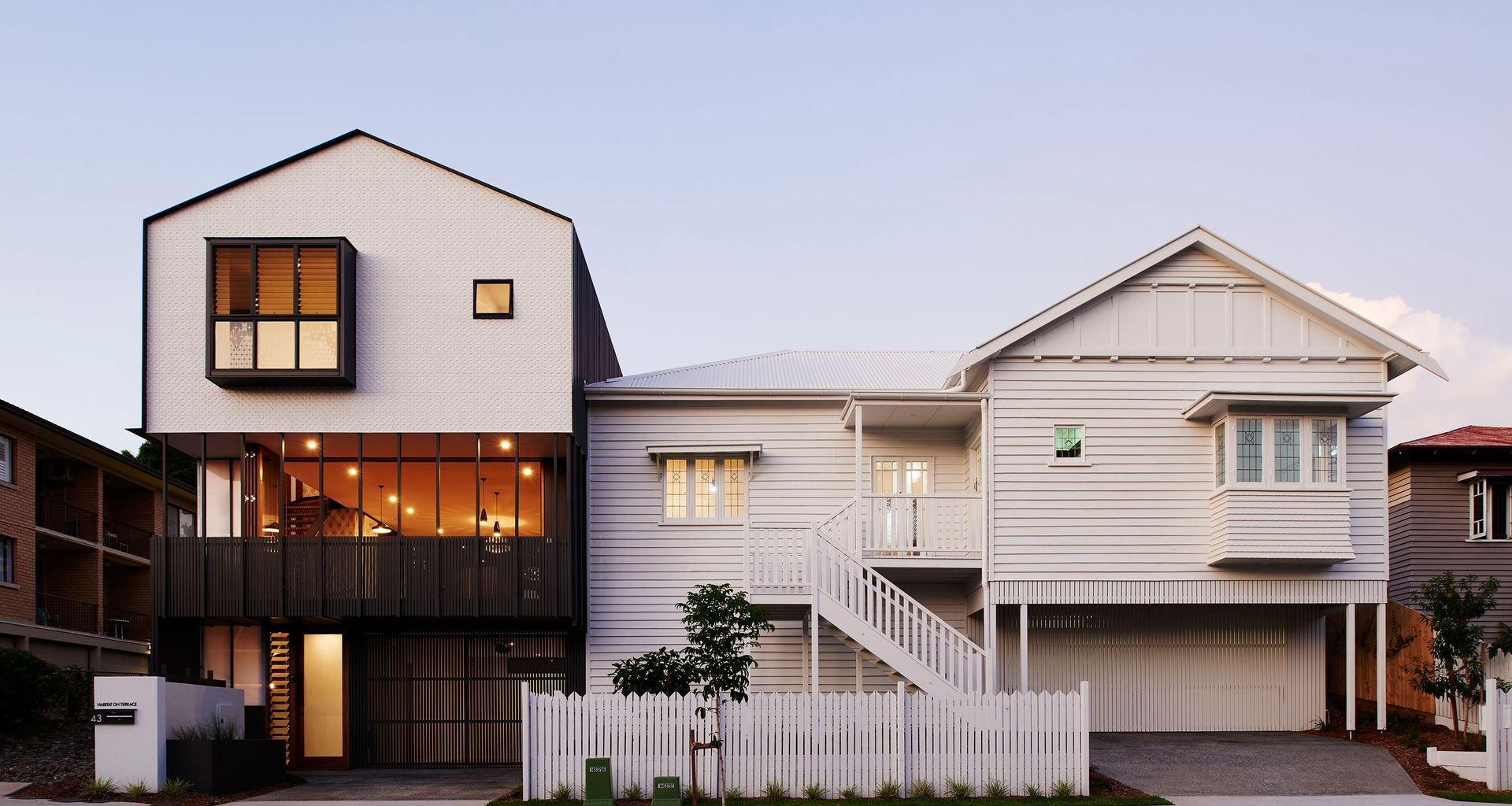

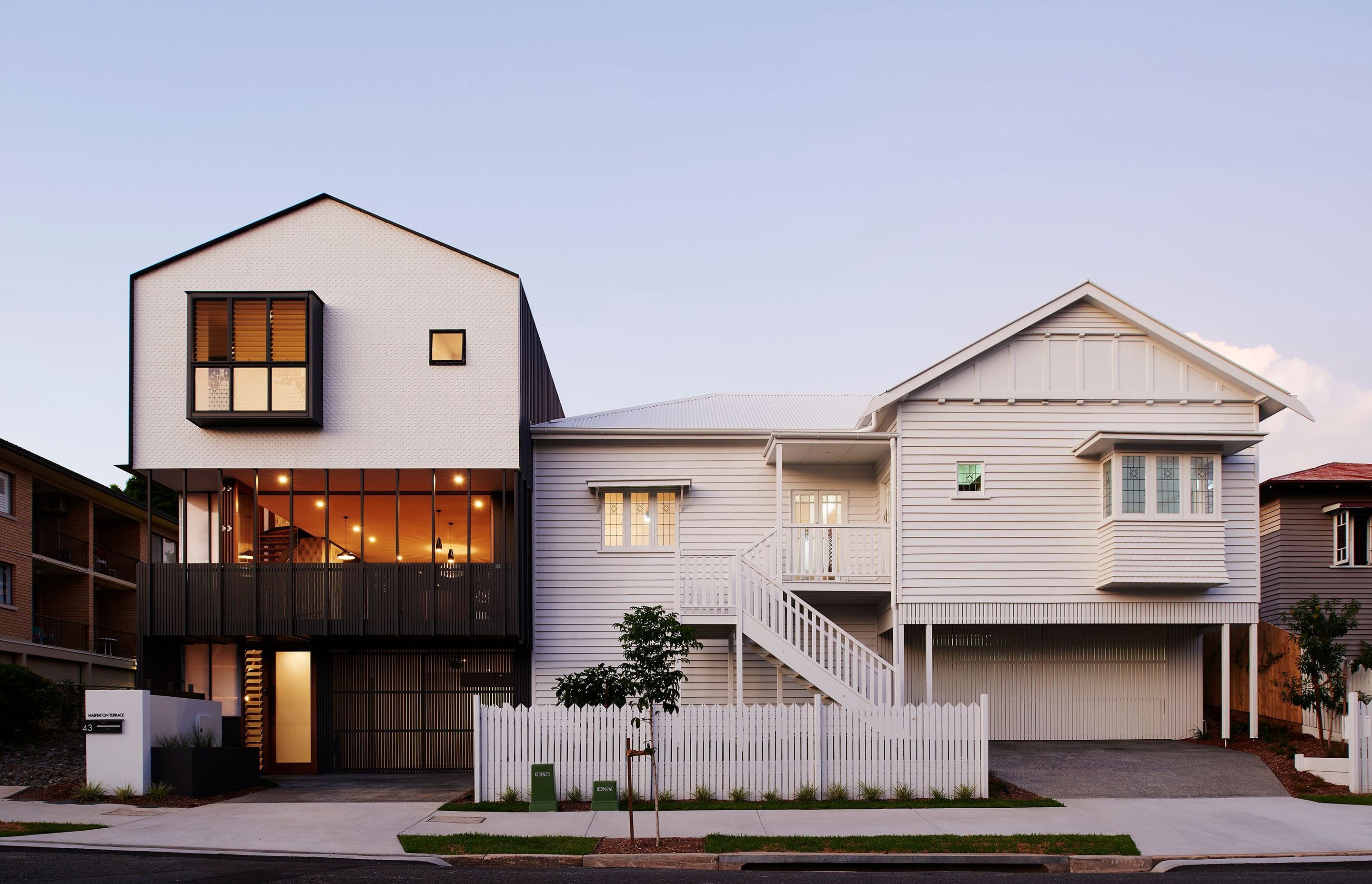

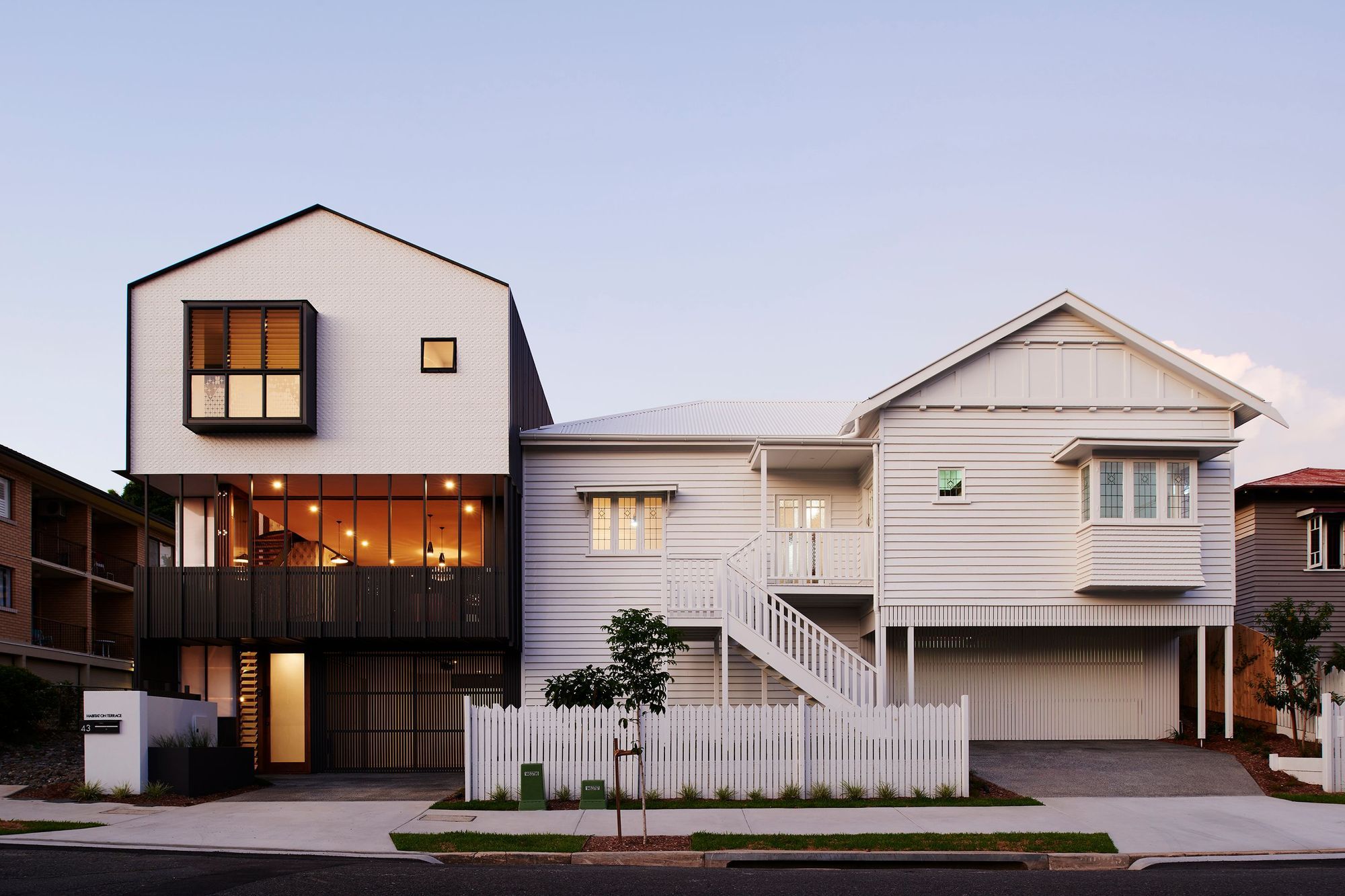

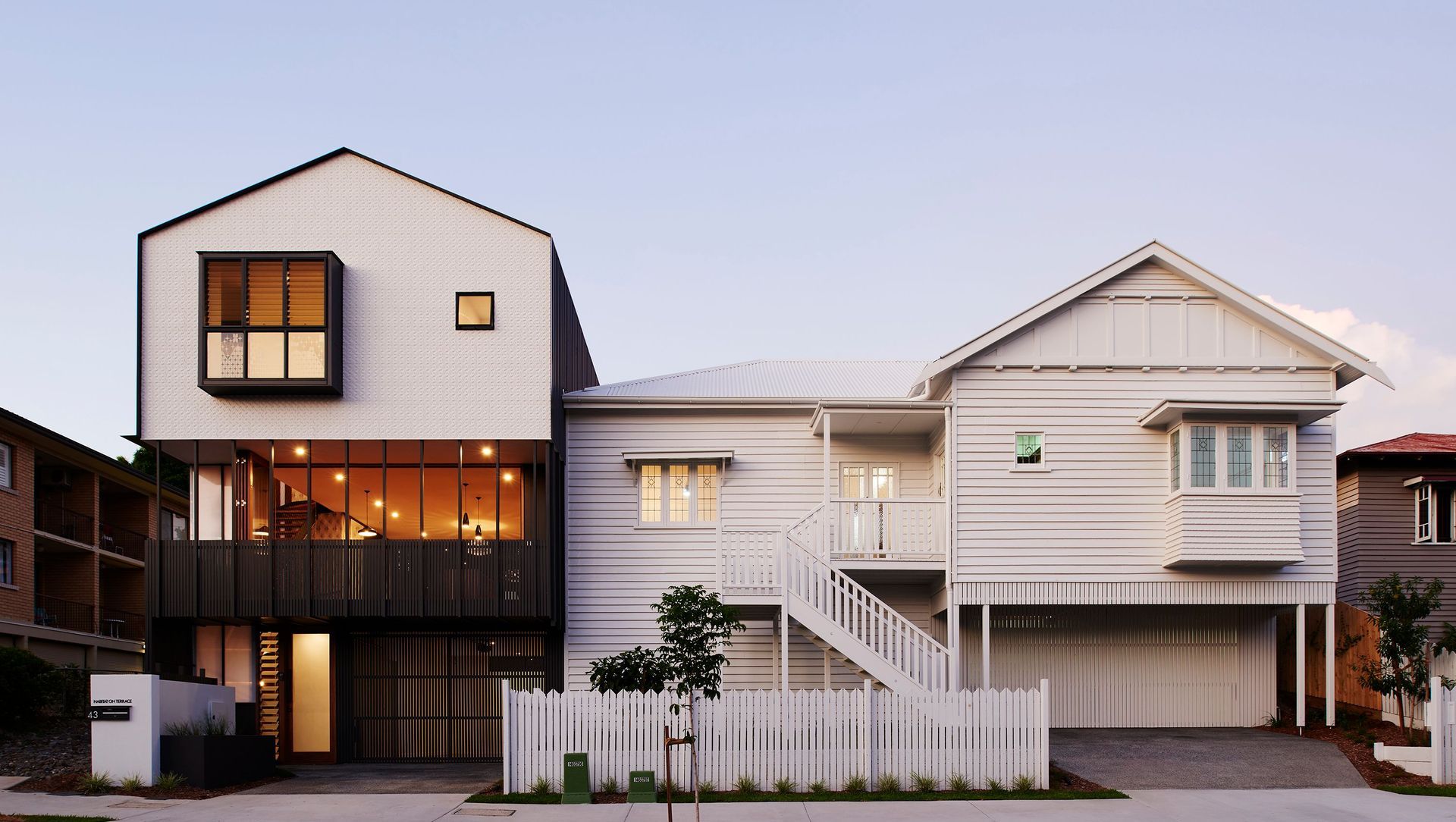

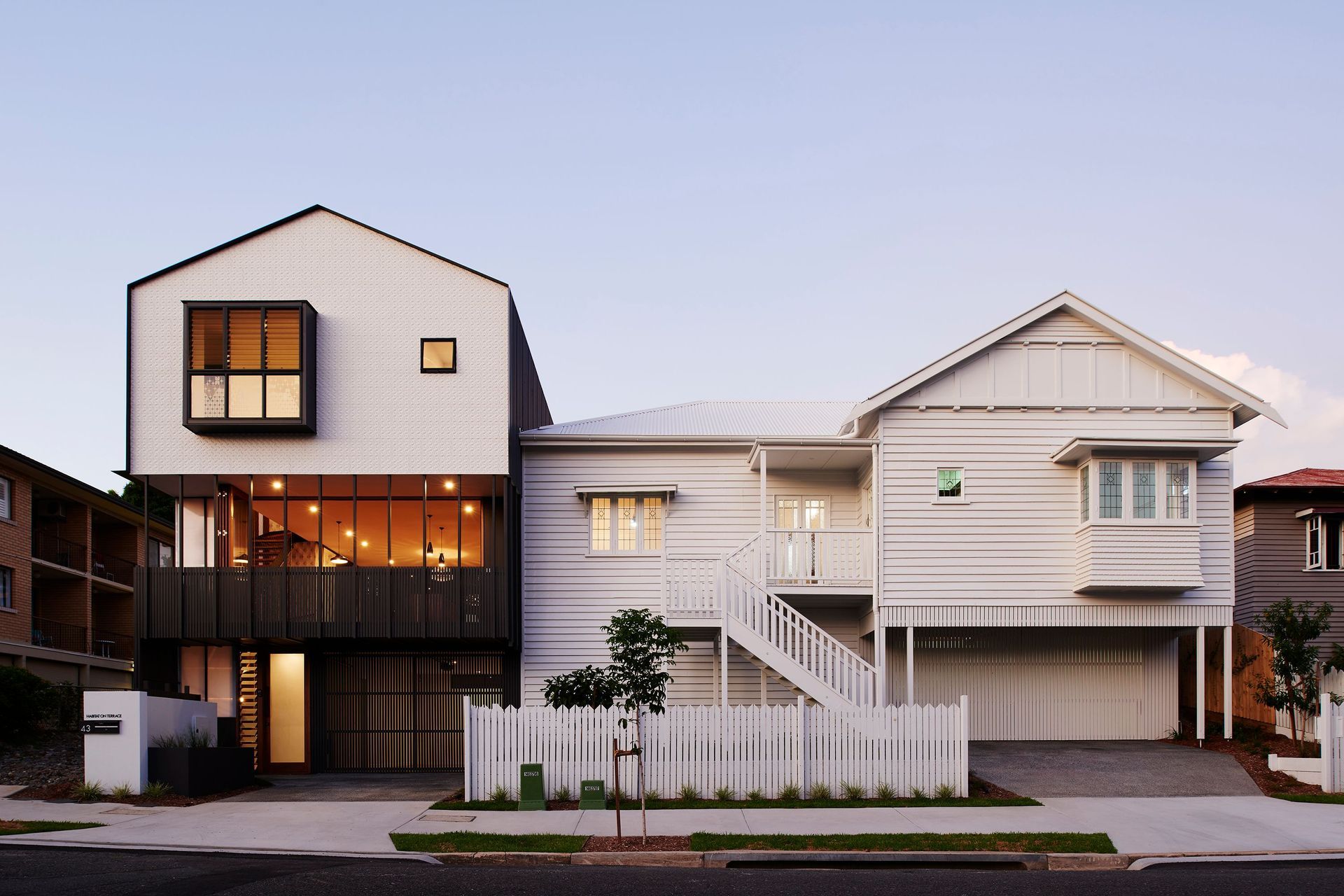

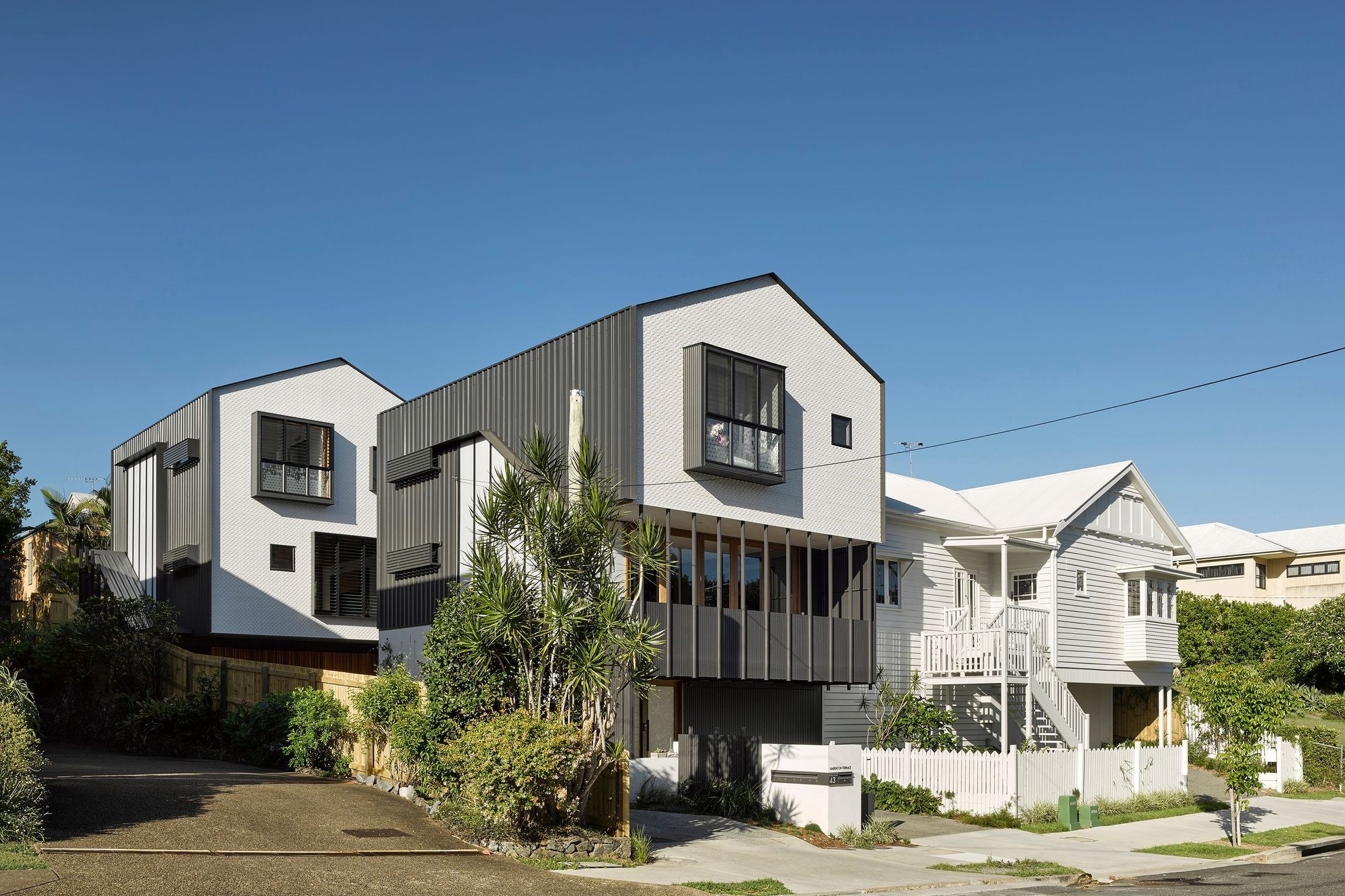

Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler | The contemporary three-storey townhouse references the shape, architectural elements and materials of the adjacent Queenslander.
Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler
Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler
Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler
Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler

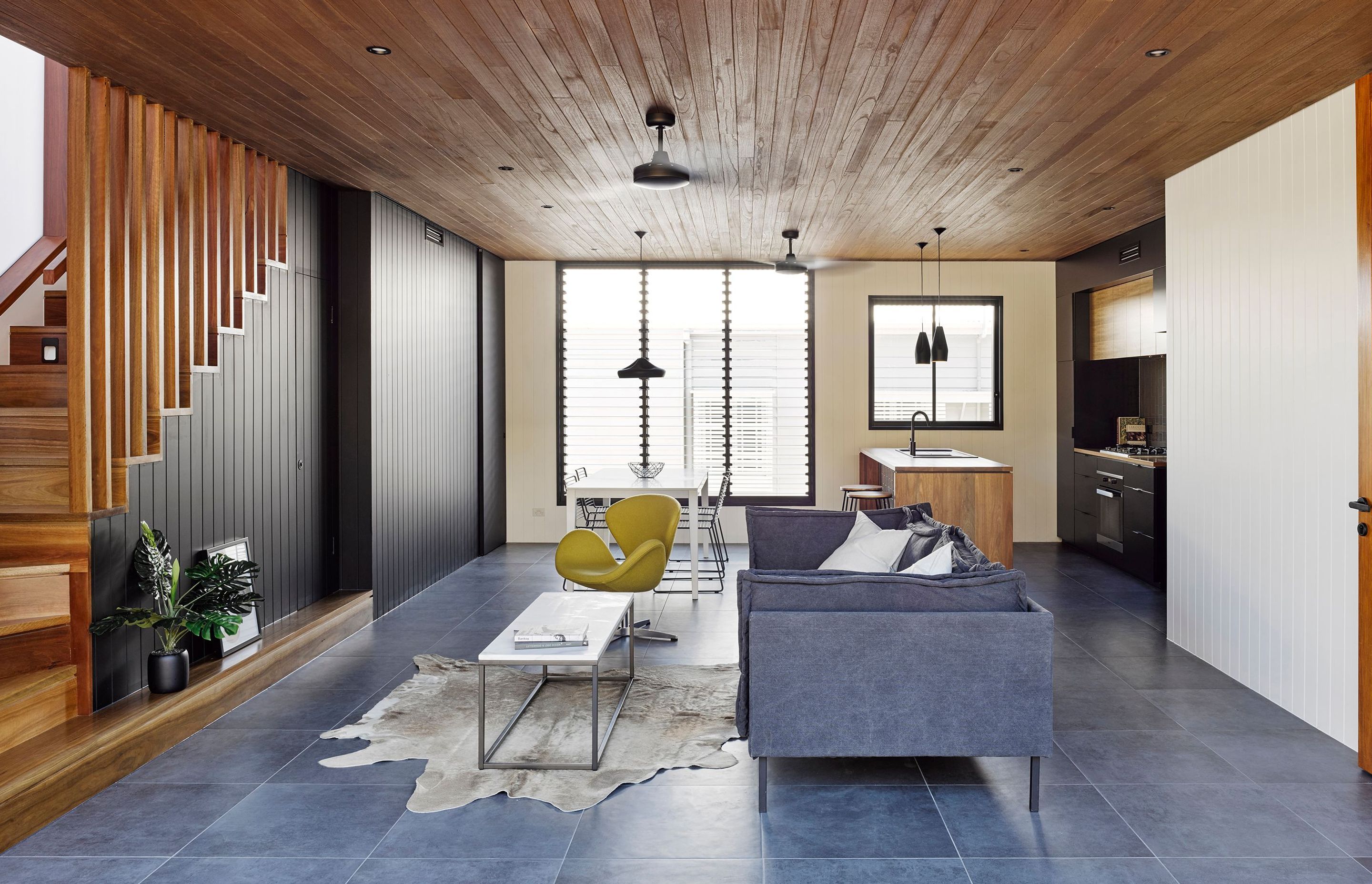

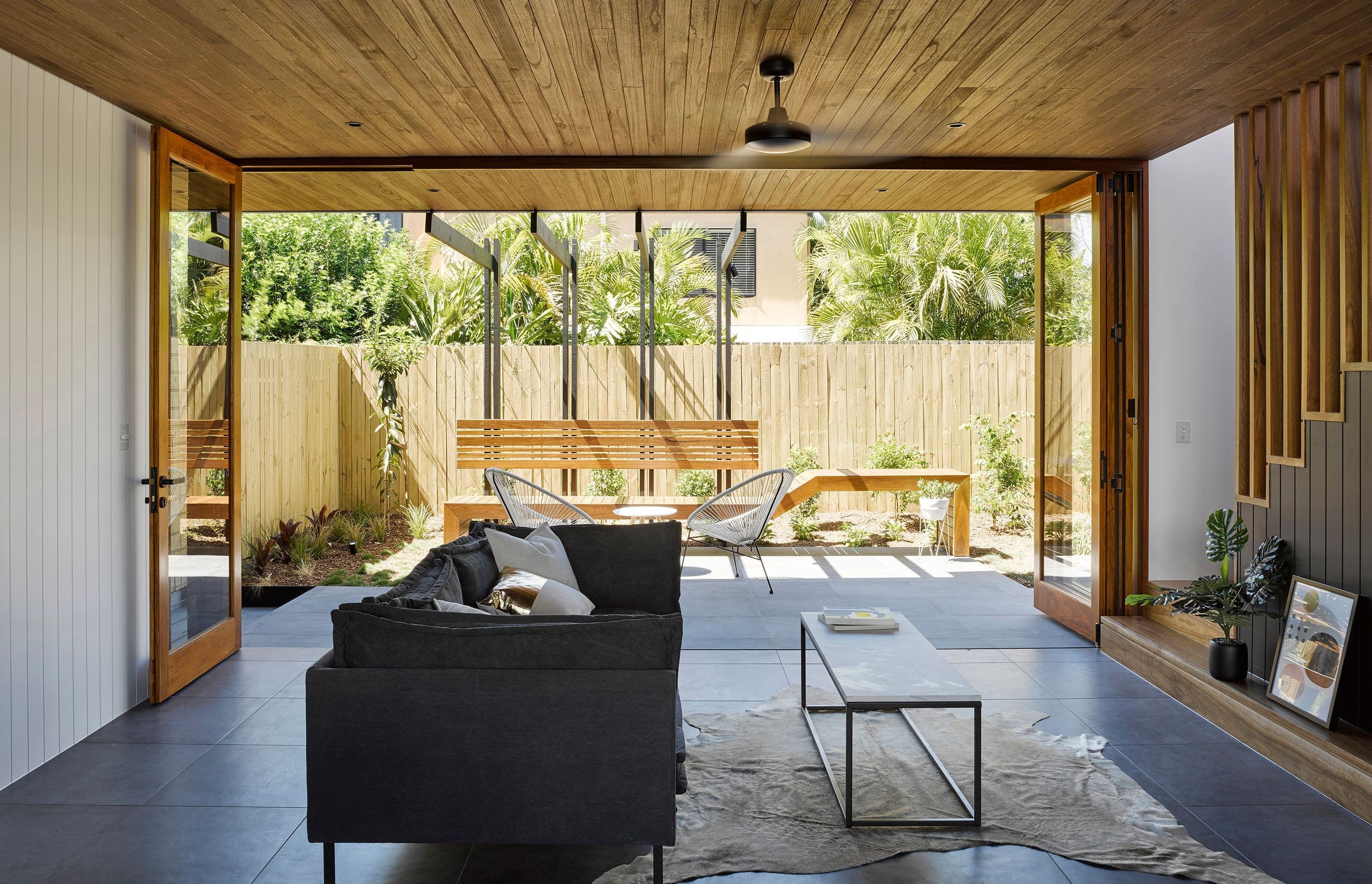

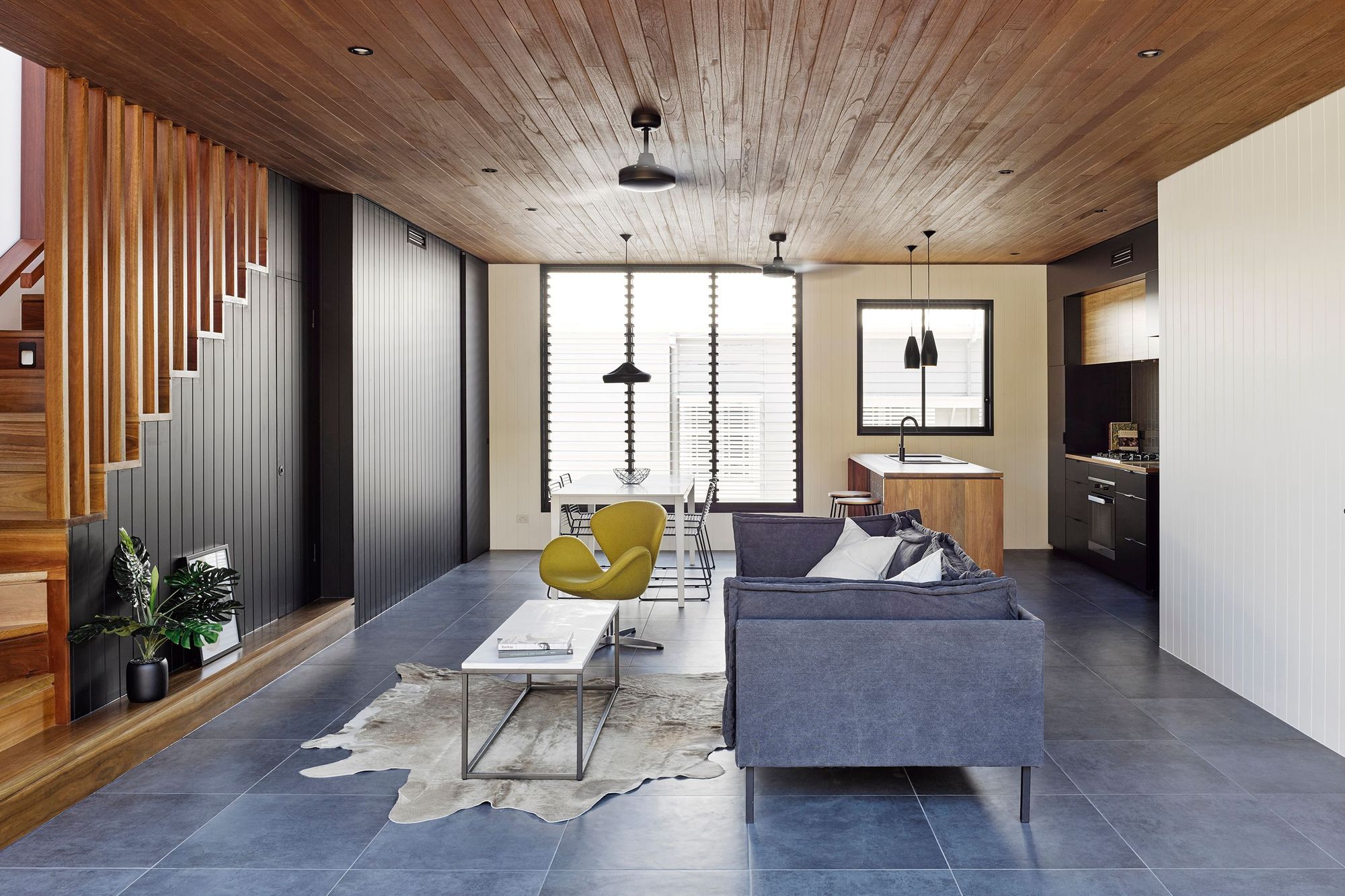

Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler | Living spaces extend into the landscape through the use of full height bi-fold doors. Floor and ceiling finishes seamlessly continue outside to further add to the feeling of spac
Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler
Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler
Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler

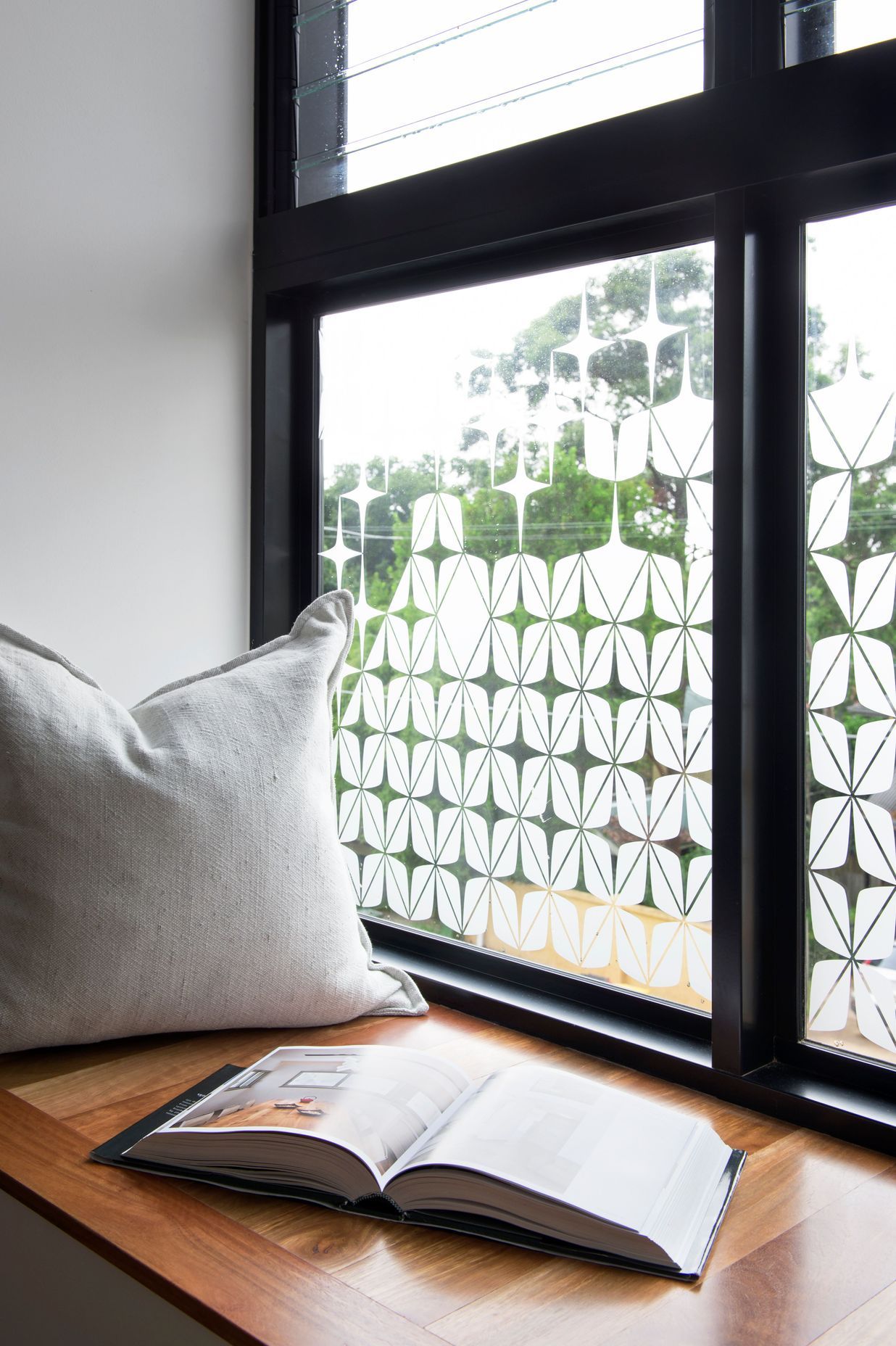

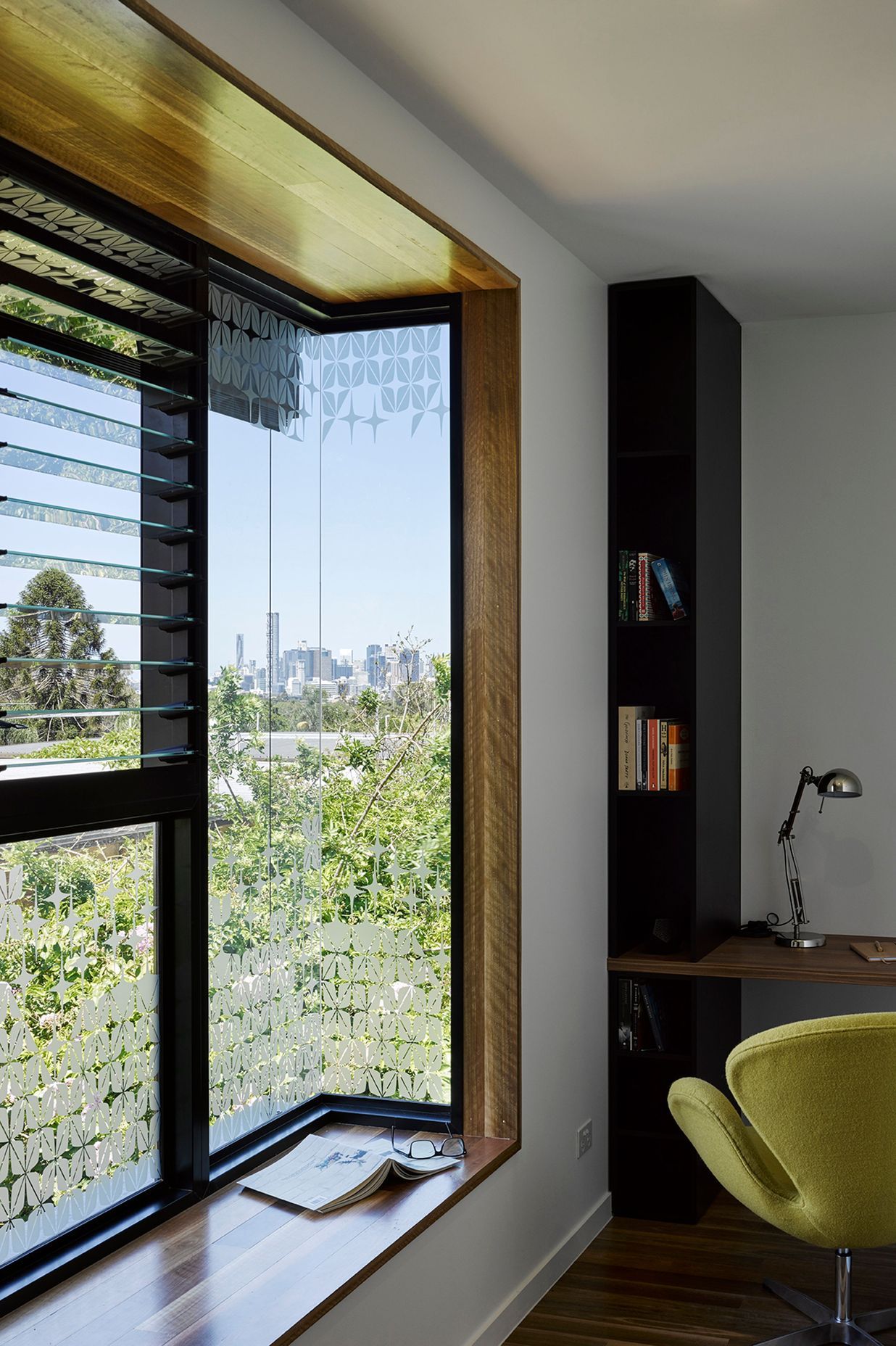

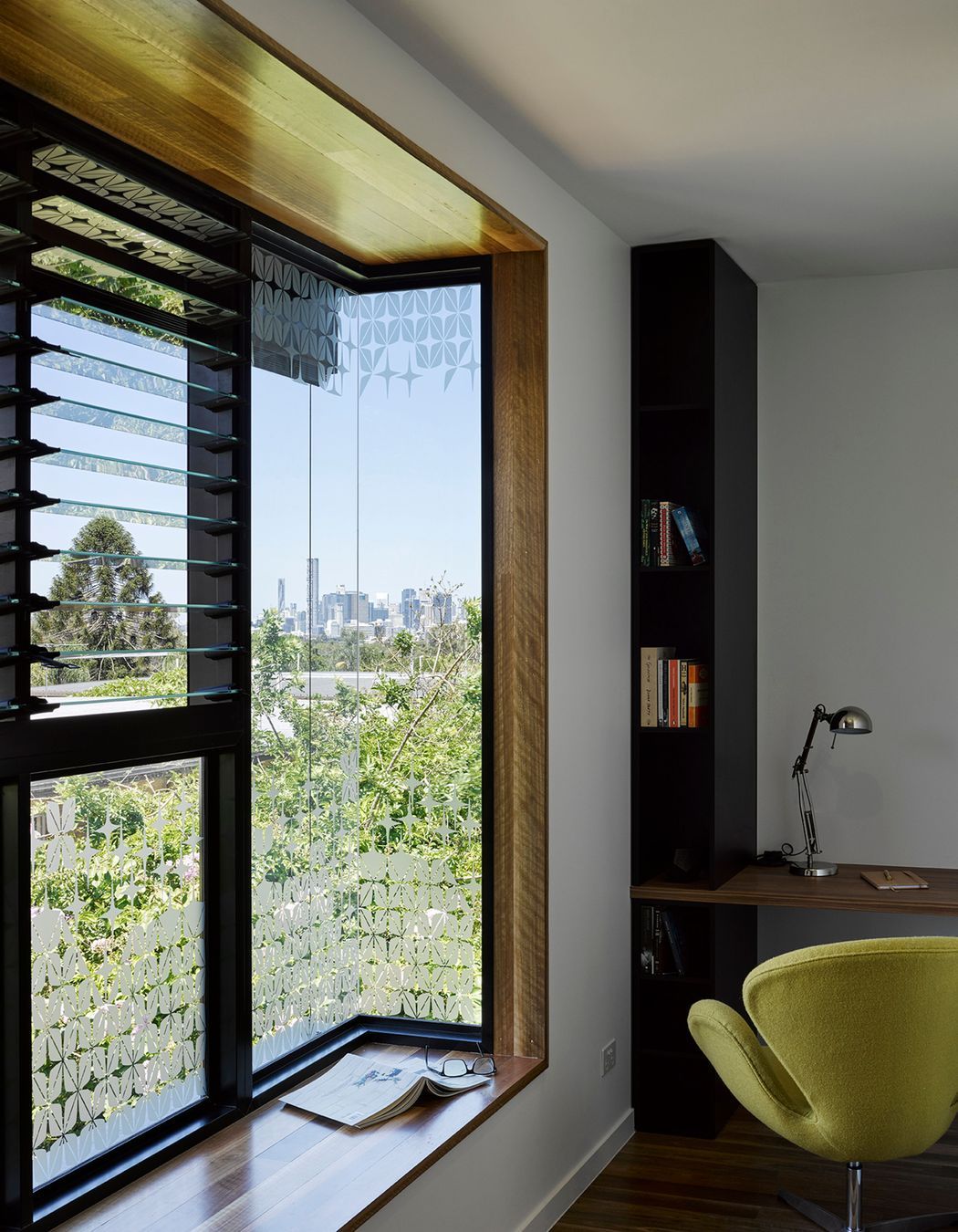

Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler | Bay windows have been designed to take maximum advantage of the city views while offering protection from the sun through automatically controlled venetian blinds.
Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler
Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler
Photography: Christopher Frederick Jones, Roger D’Souza and Cathy Schusler
