Hihi Beach

eHaus Euro - PHI Low Energy - Non-Certified

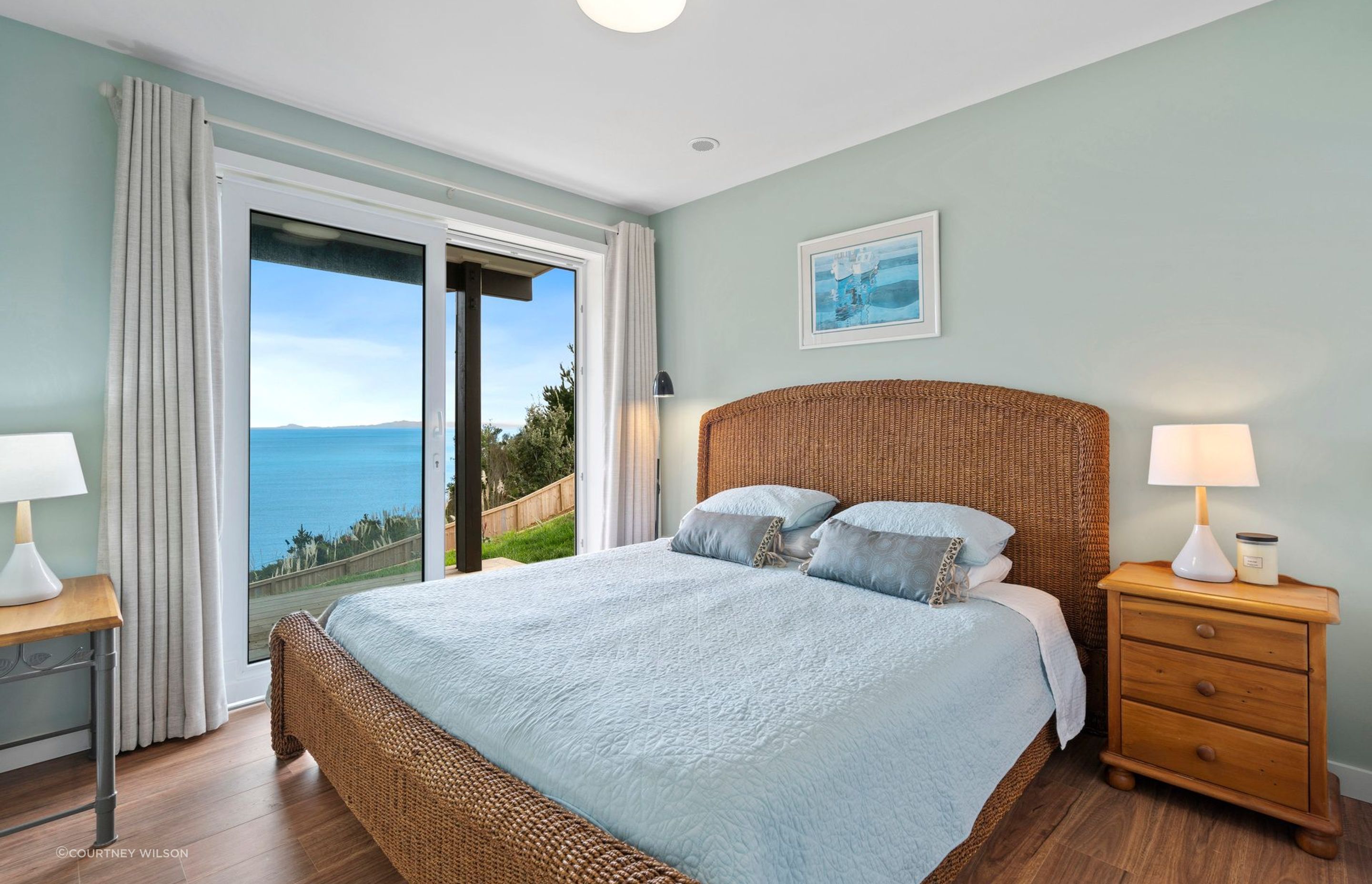

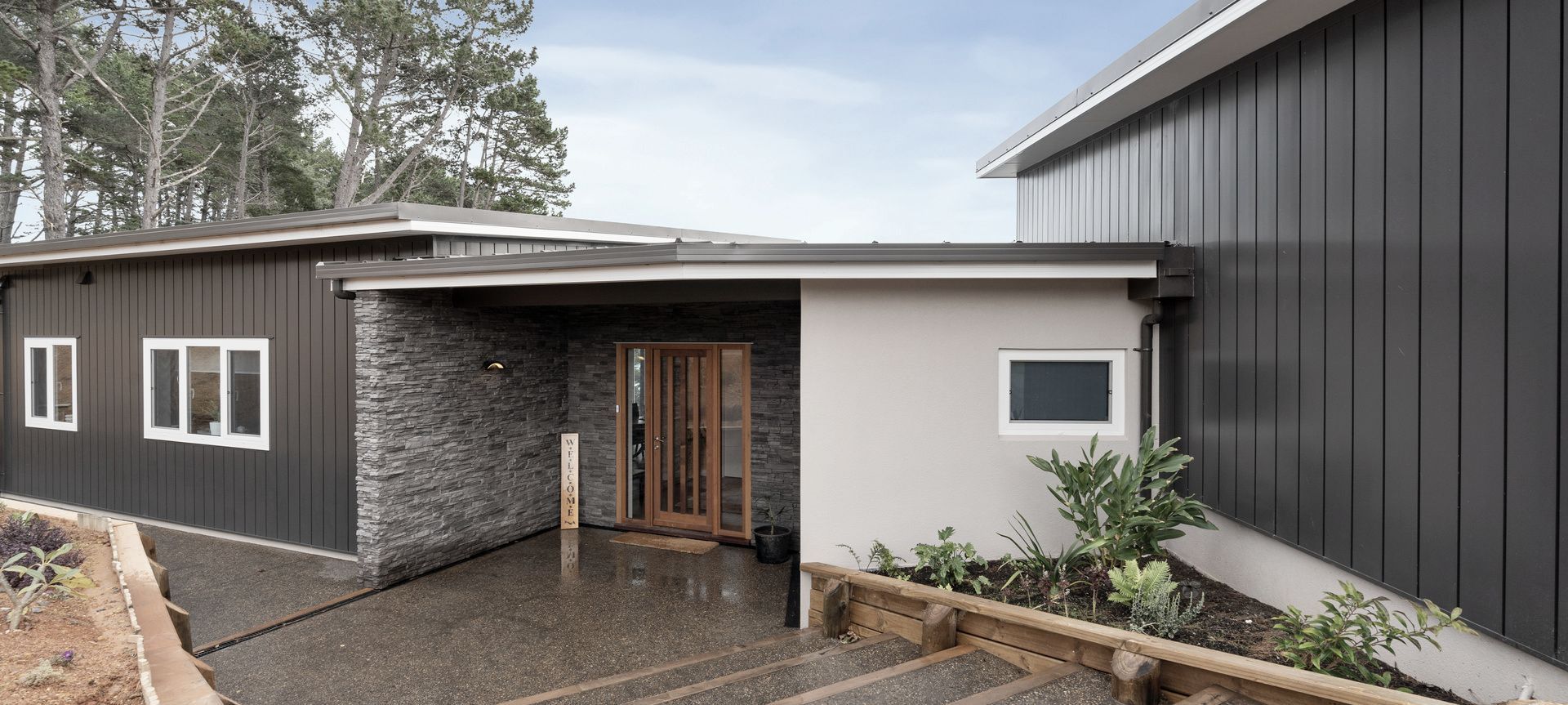

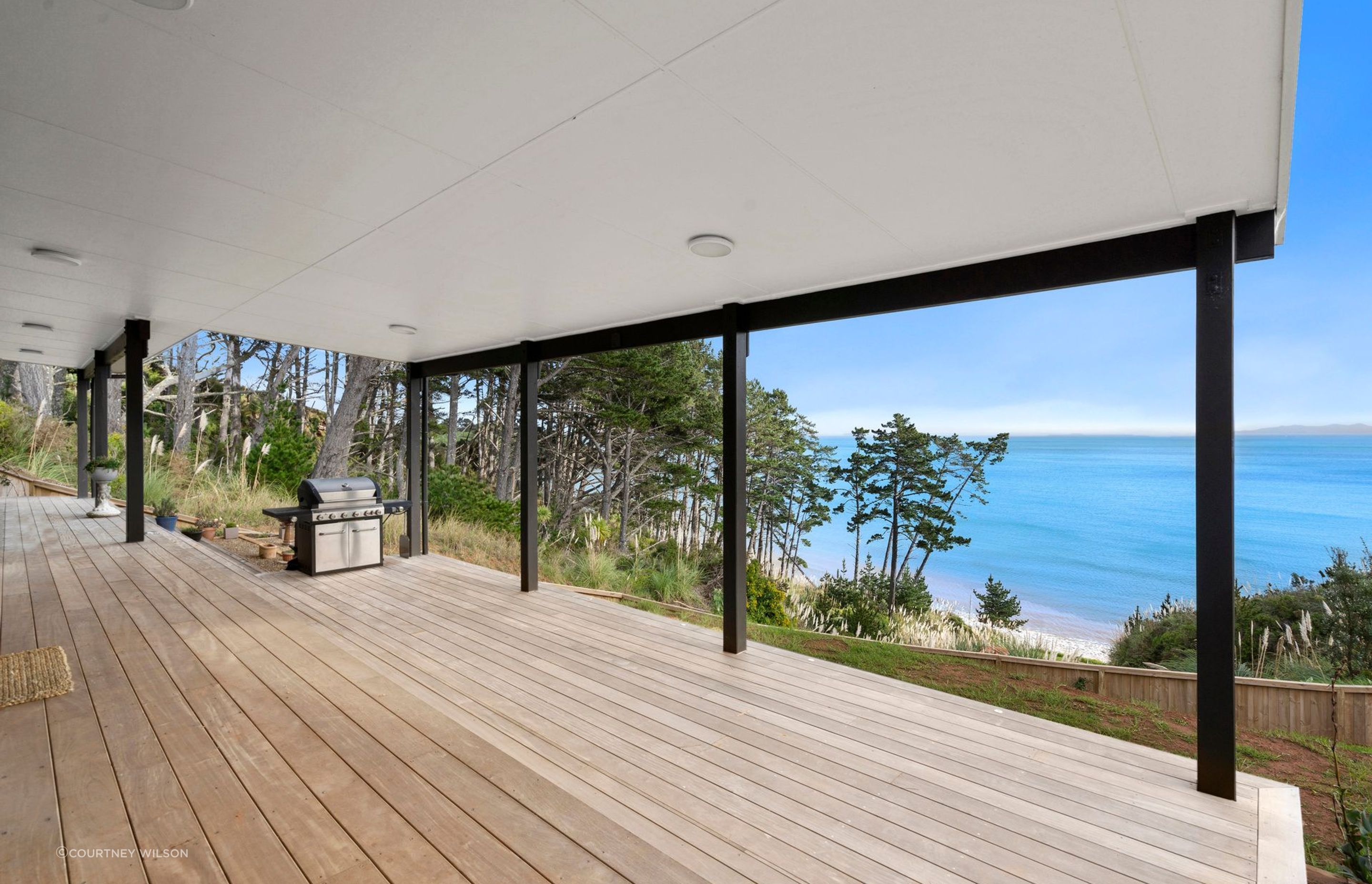

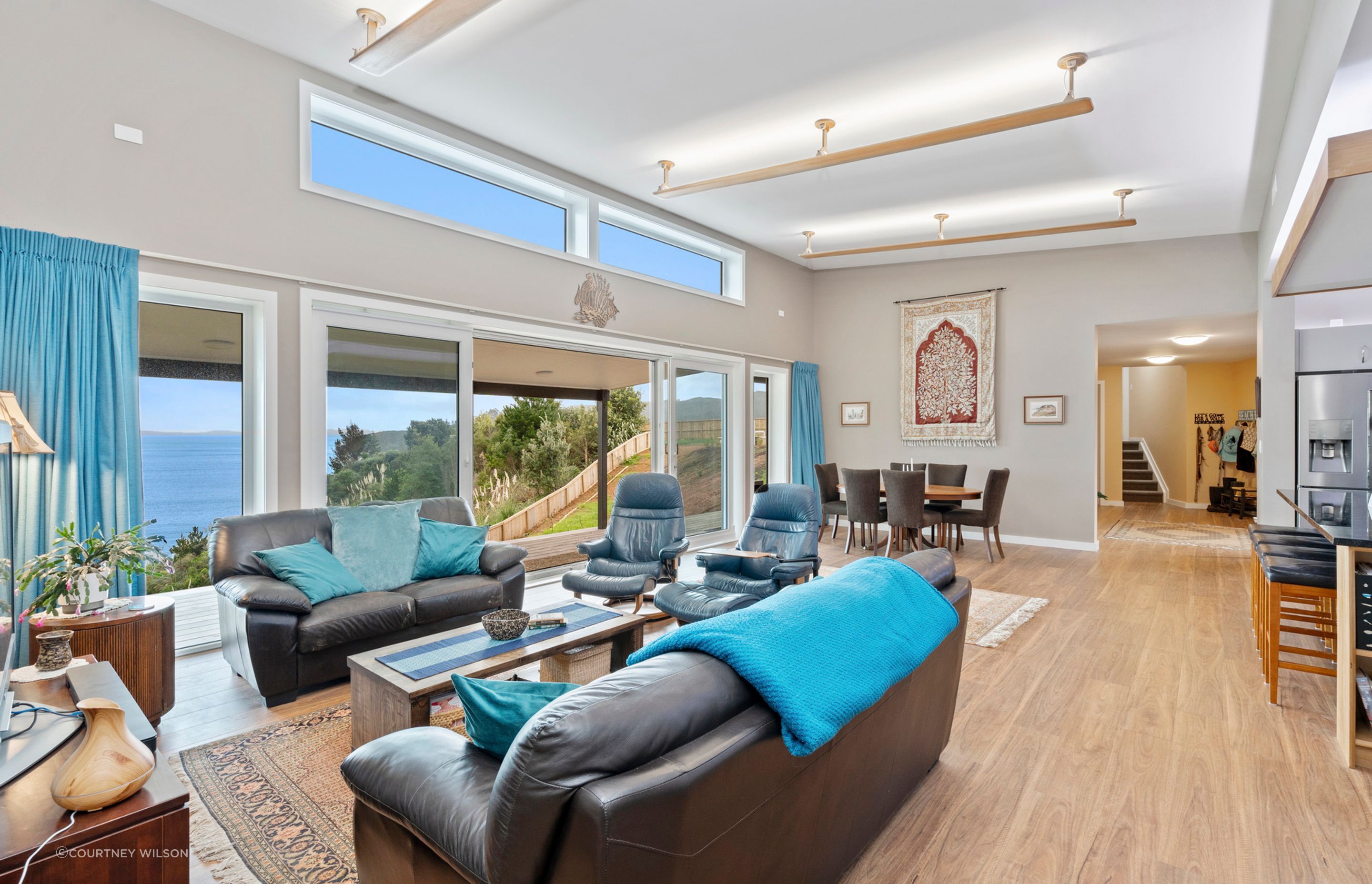

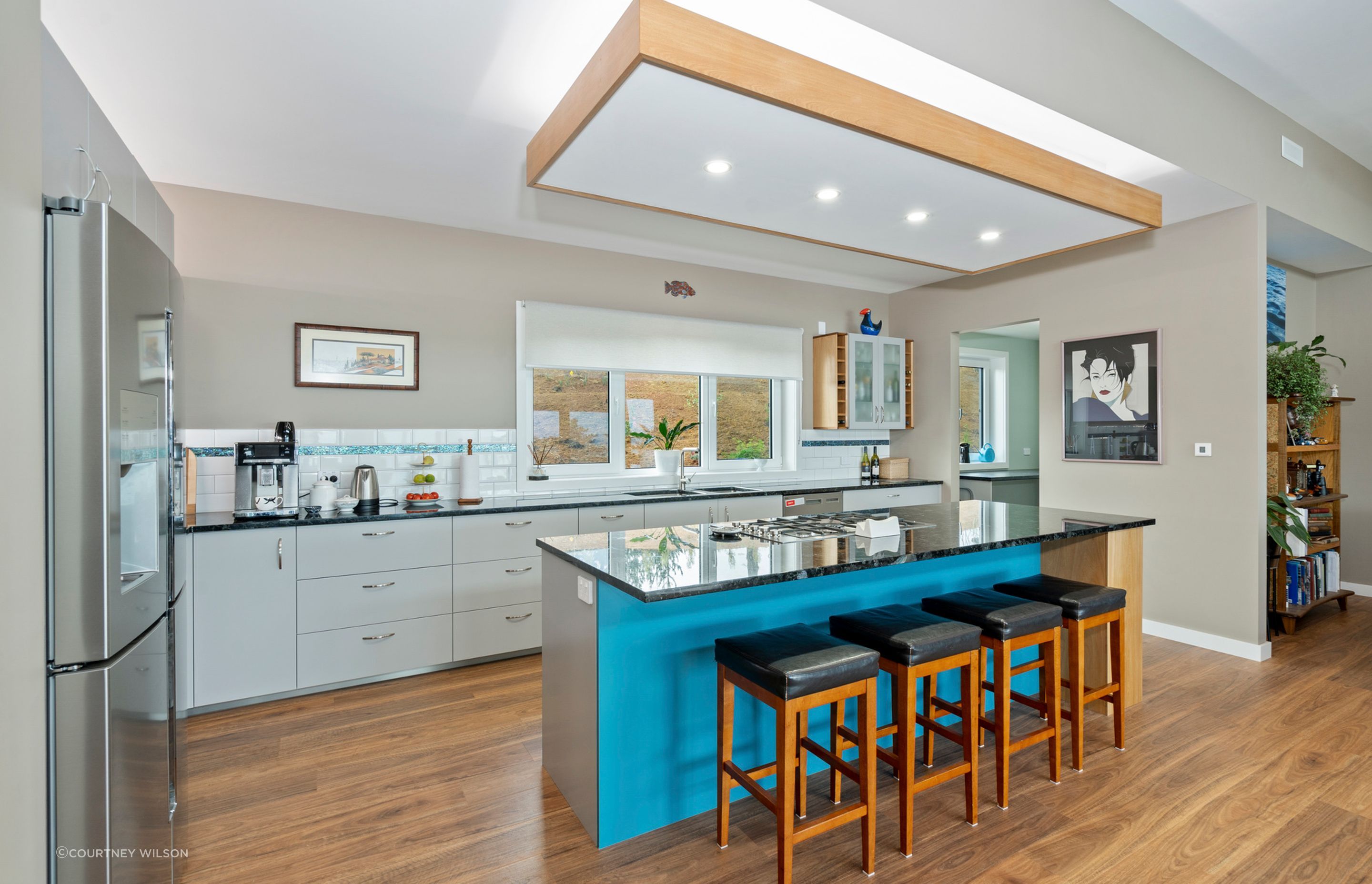

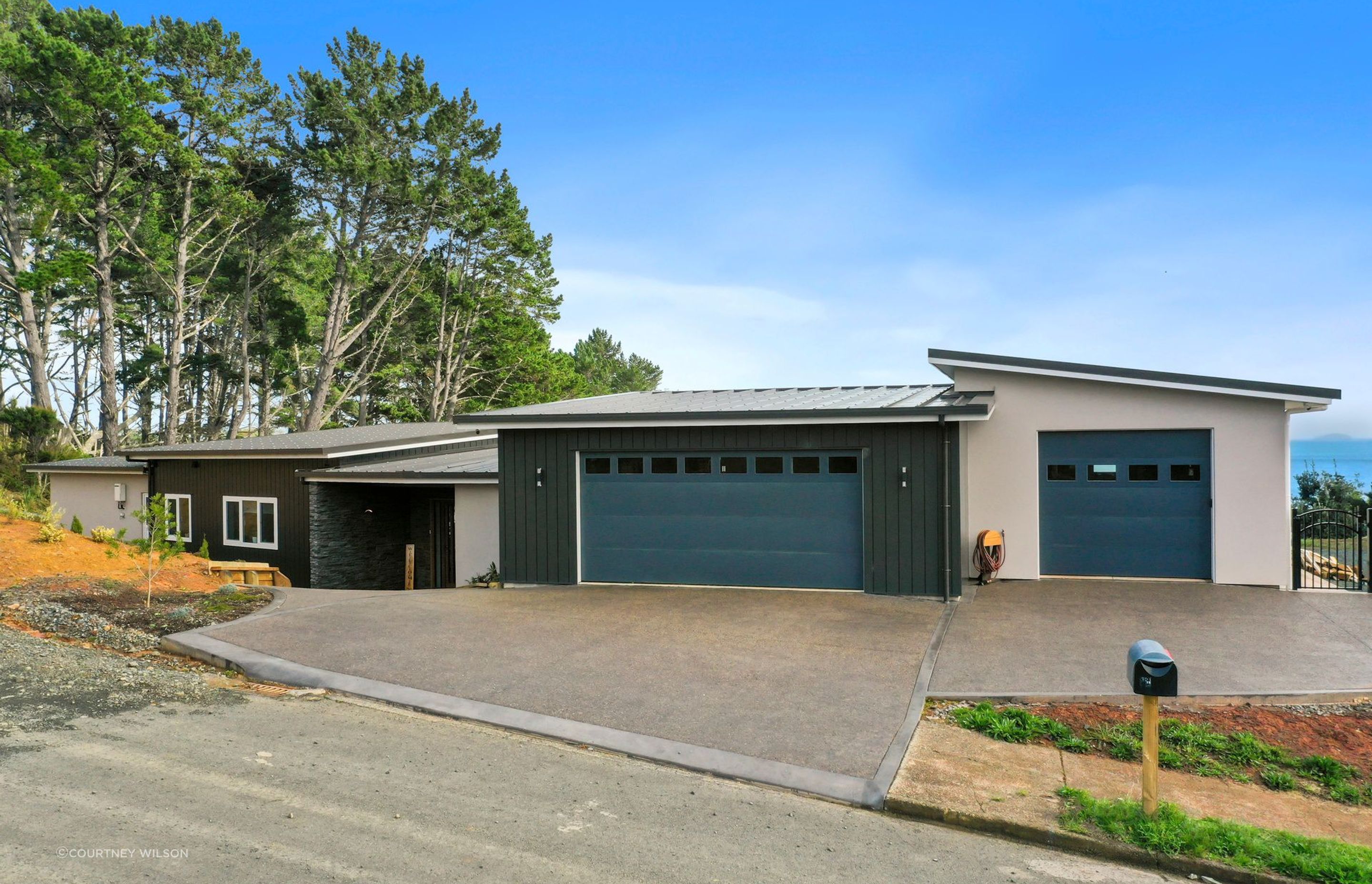

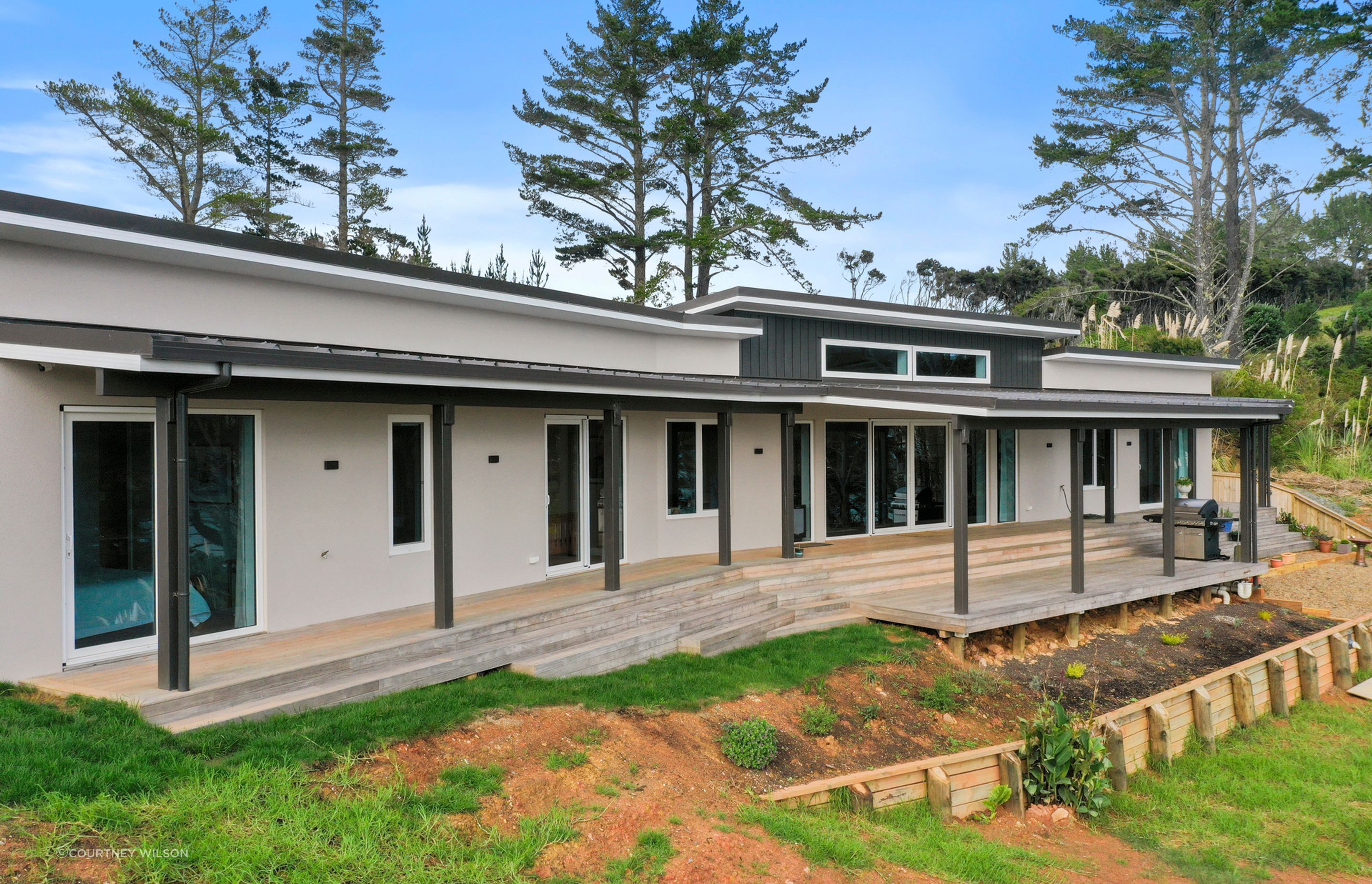

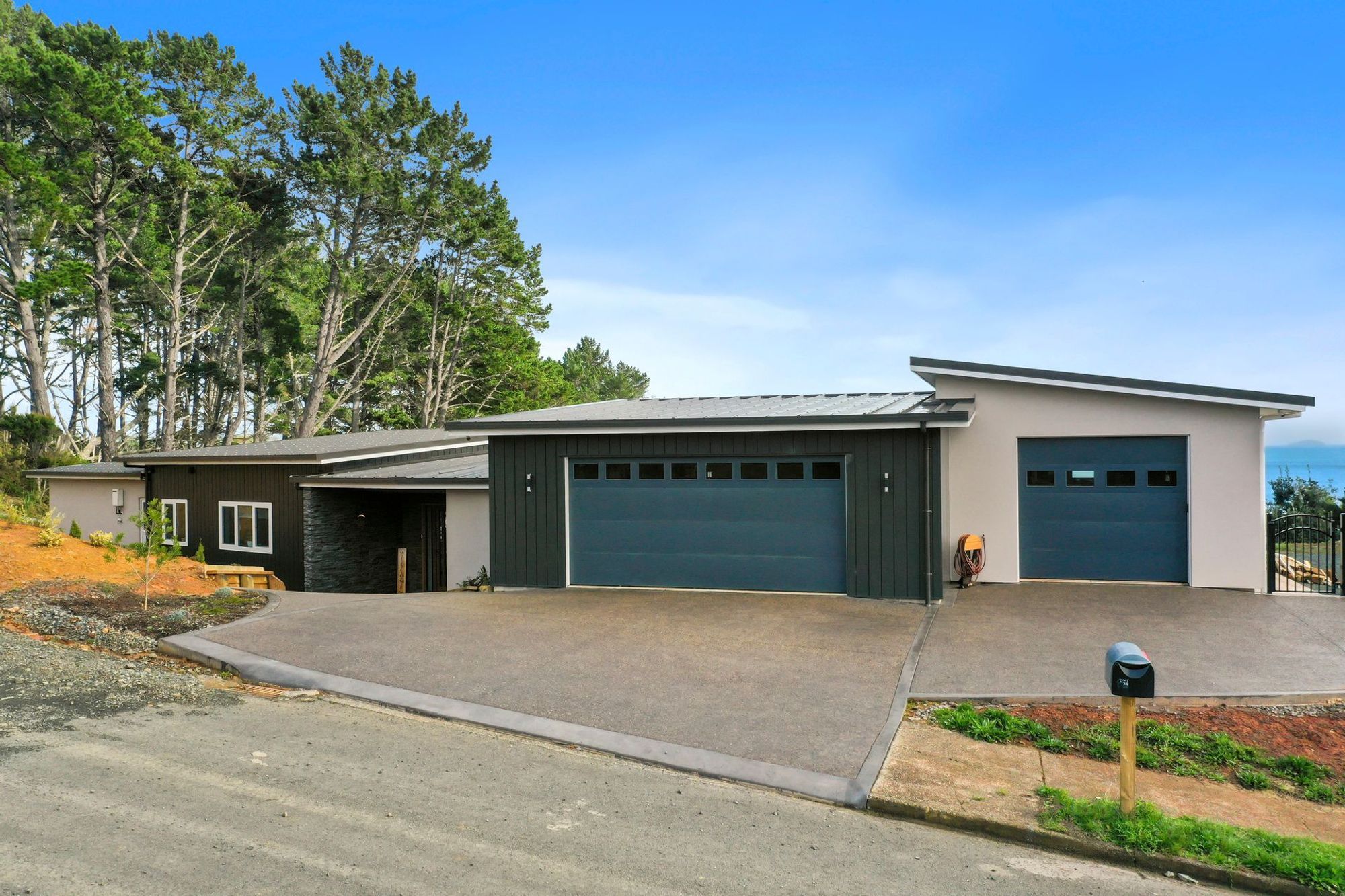

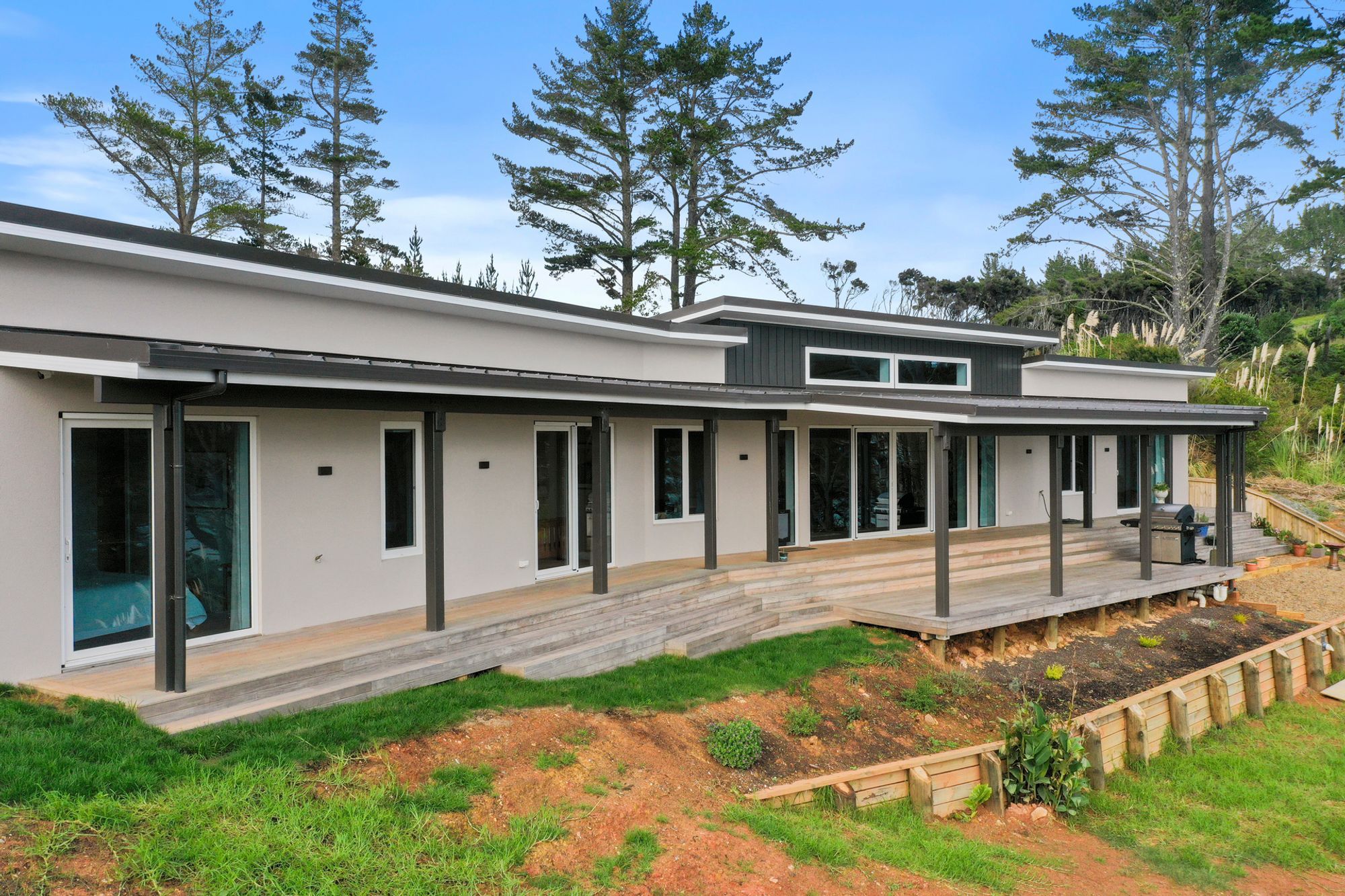

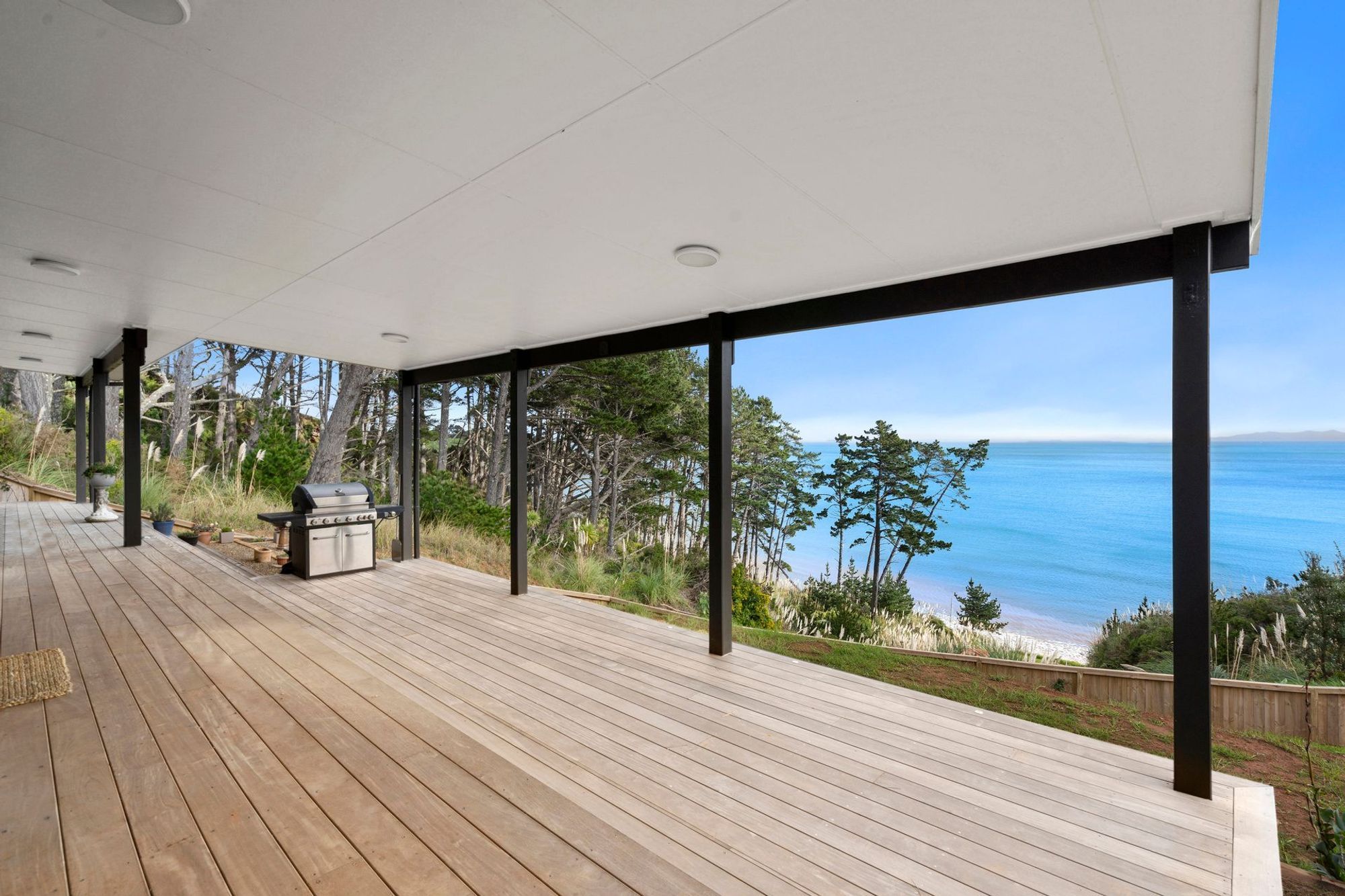

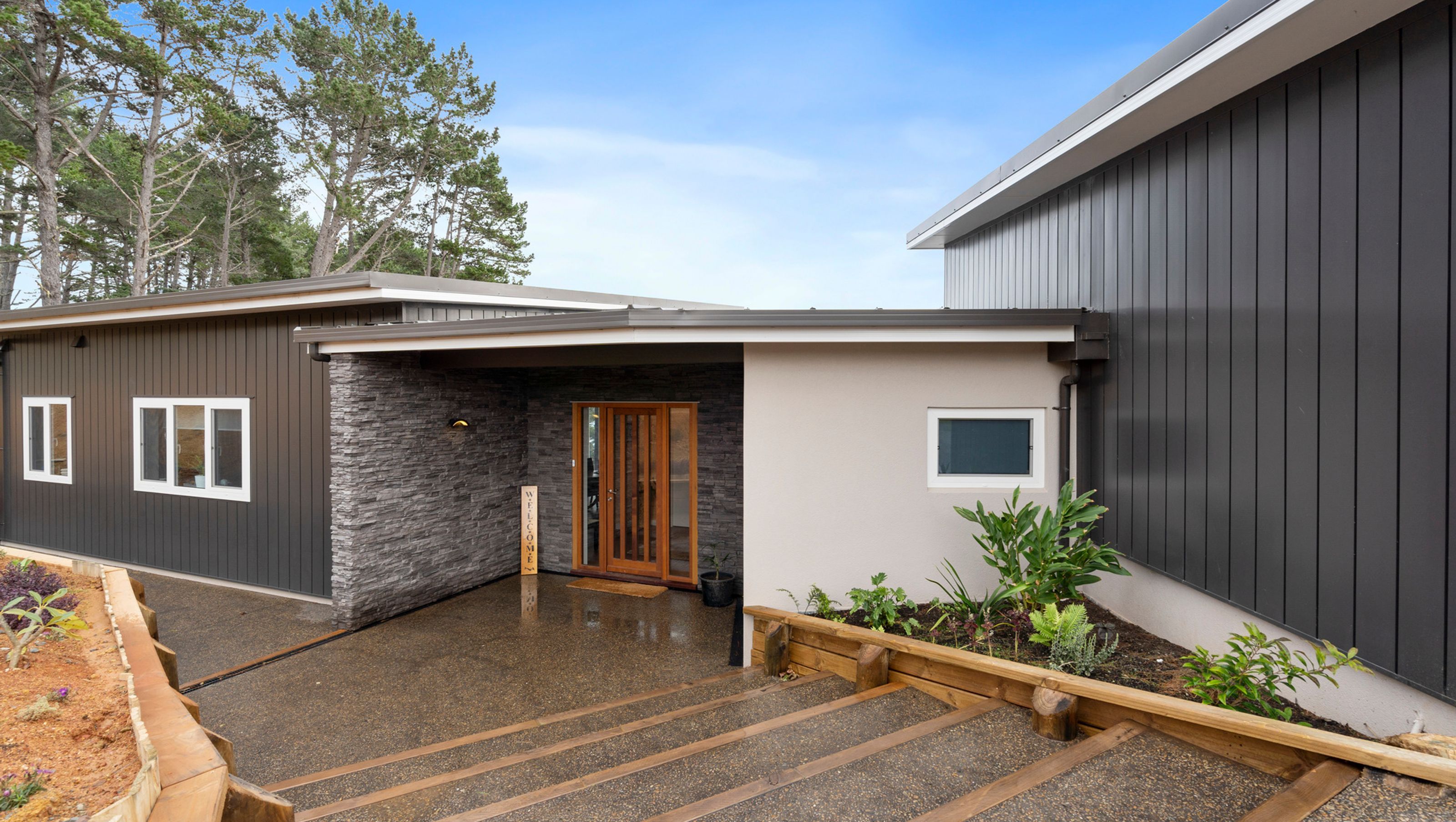

Set in the beautiful  far north on an elevated platform this property has stunning views of Hi Hi Beach and Doubtless Bay. The design has been created to protect from the extremes of nature and provide a perfect space for family and work. Created on multiple levels with the deck areas stepped in line with the natural contours the home nestles into the natural surroundings. The home has its own power generation with solar pv panels converting the plentiful sunshine into energy to drive this home.

Design Components

FLOOR Fully insulated concrete pad with a U-value of 0.184 W/(m²K)

WALL 140mm timber frame U-value of 0.221 W/(m²K)

ROOF Double layer of fibreglass insulation with a U-value of 0.137 W/(m²K)

WINDOW JOINERY FRAME Ropo Windows - uPVC - Uf value 1.30 W/(m²K)

GLAZING Double Glazed Low E Argon Ug value 1.57 W/(m²K) G Value 44%

VENTILATION Zehnder ComfoAir Q350 MHRV

HOT WATER Bosch Compress 3000 - 270L capacity hot water heat pump

Performance Specs

Heating Demand: 10.9 kWh/m²/yr

Heating Load: 10.1 W/m²

Frequency of Overheating: 1.6% year over 25C

TFA: 181.7 m2

Form Factor: 3.89

Air Leakage@50Pa: 0.6 ACHPER Demand: 34 kWh/m²/yr
