Christchurch - Strowan

Website

eHaus Euro - Certified Passive House Plus (2017)

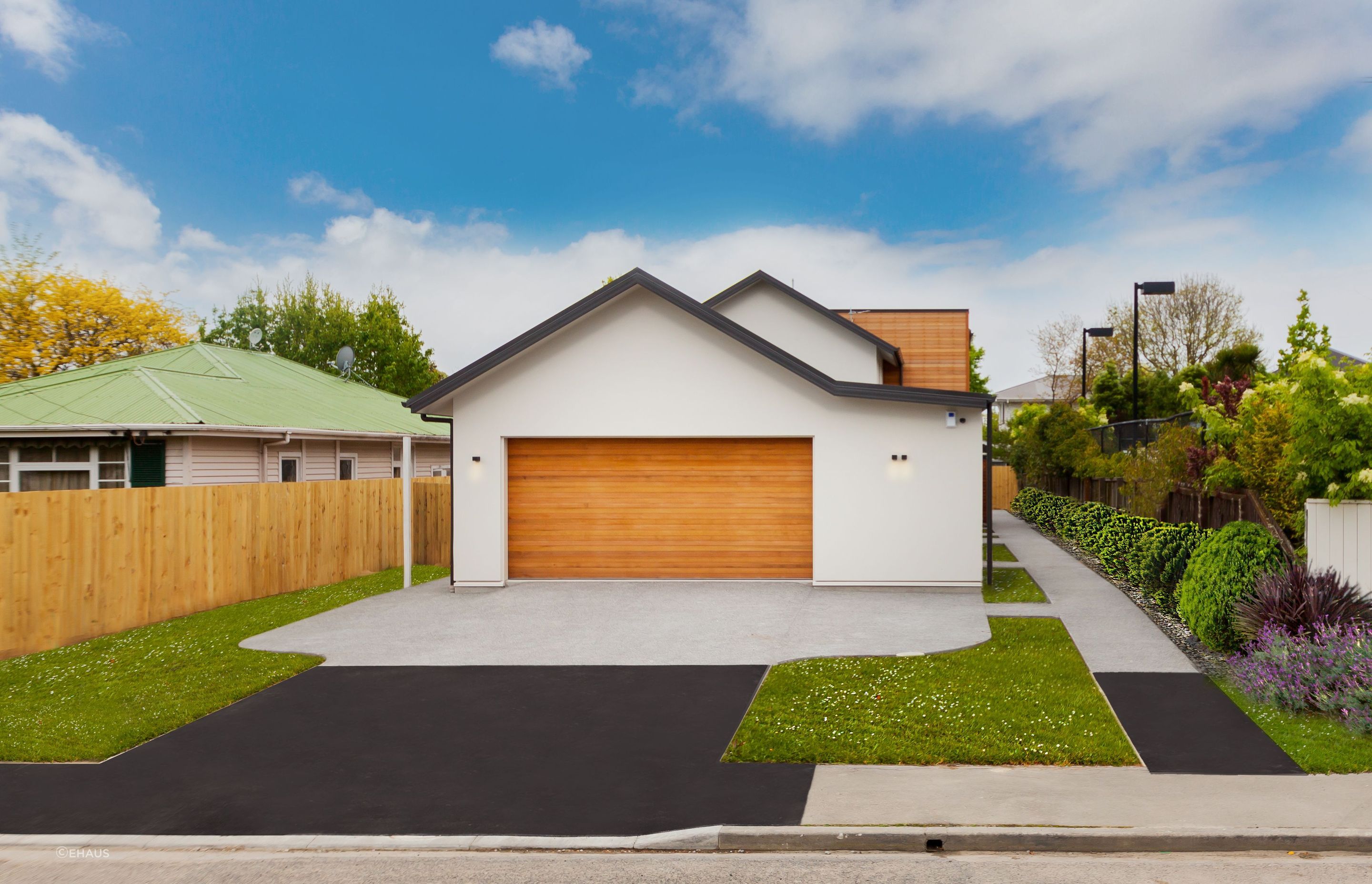

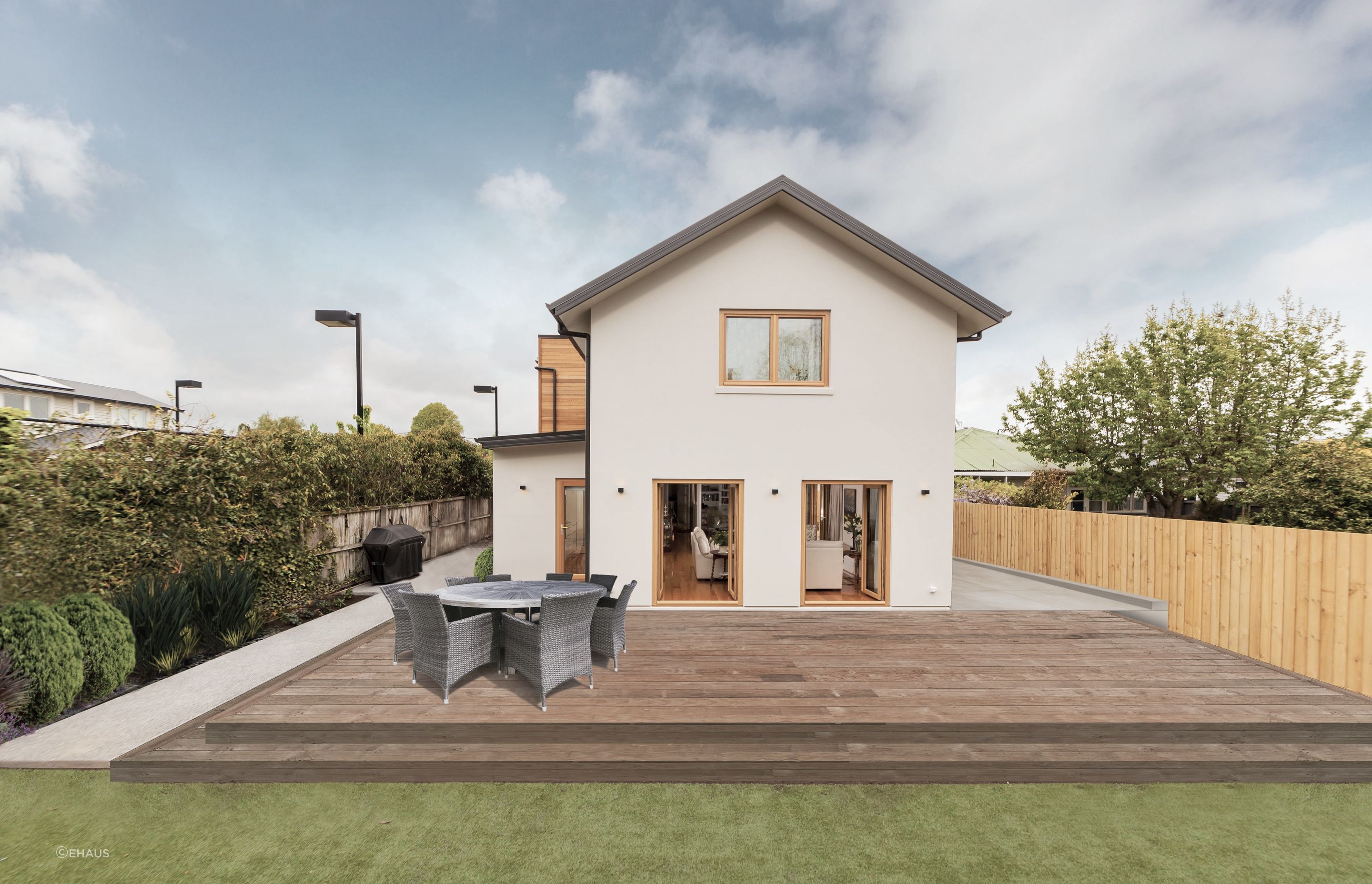

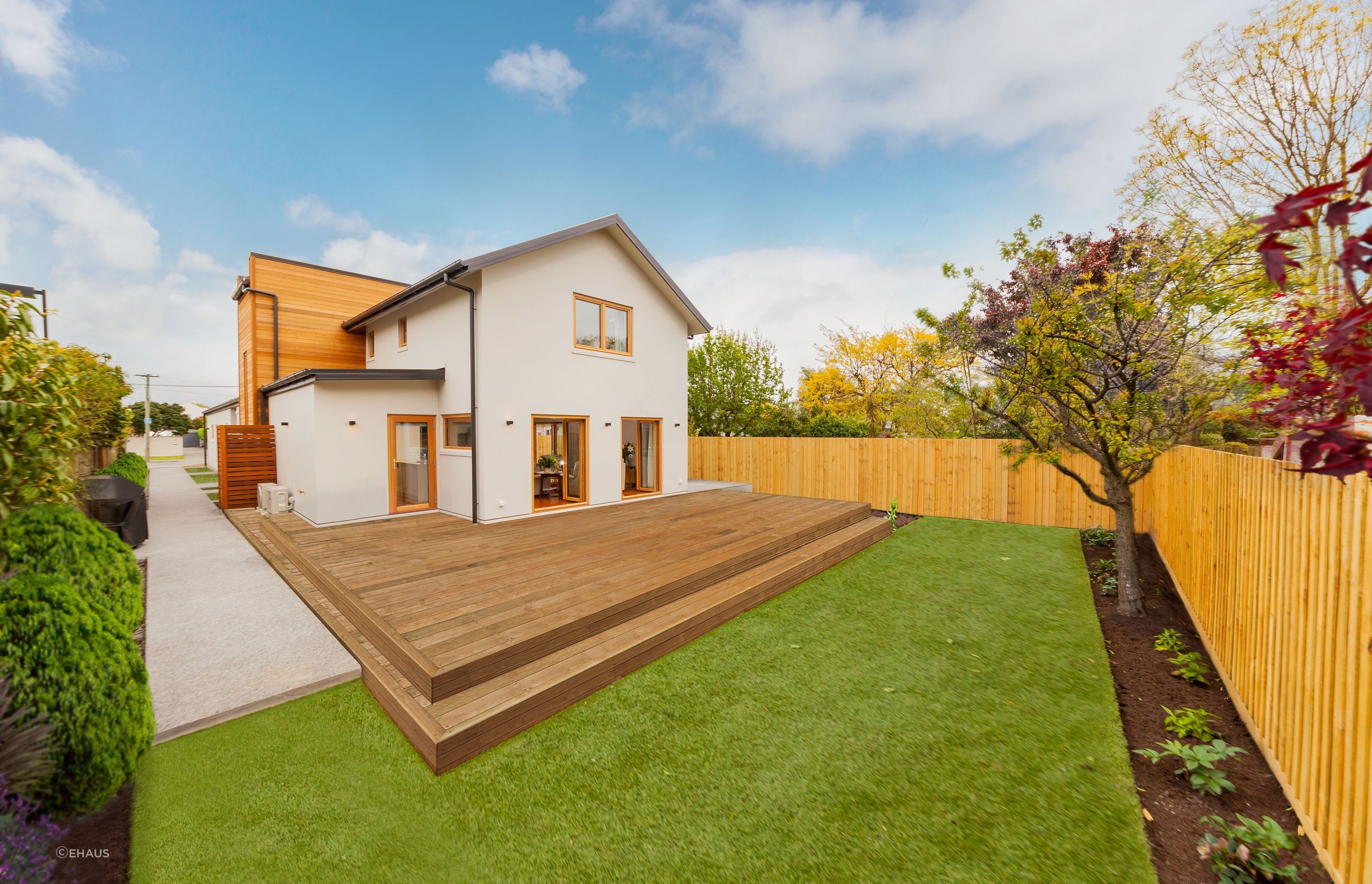

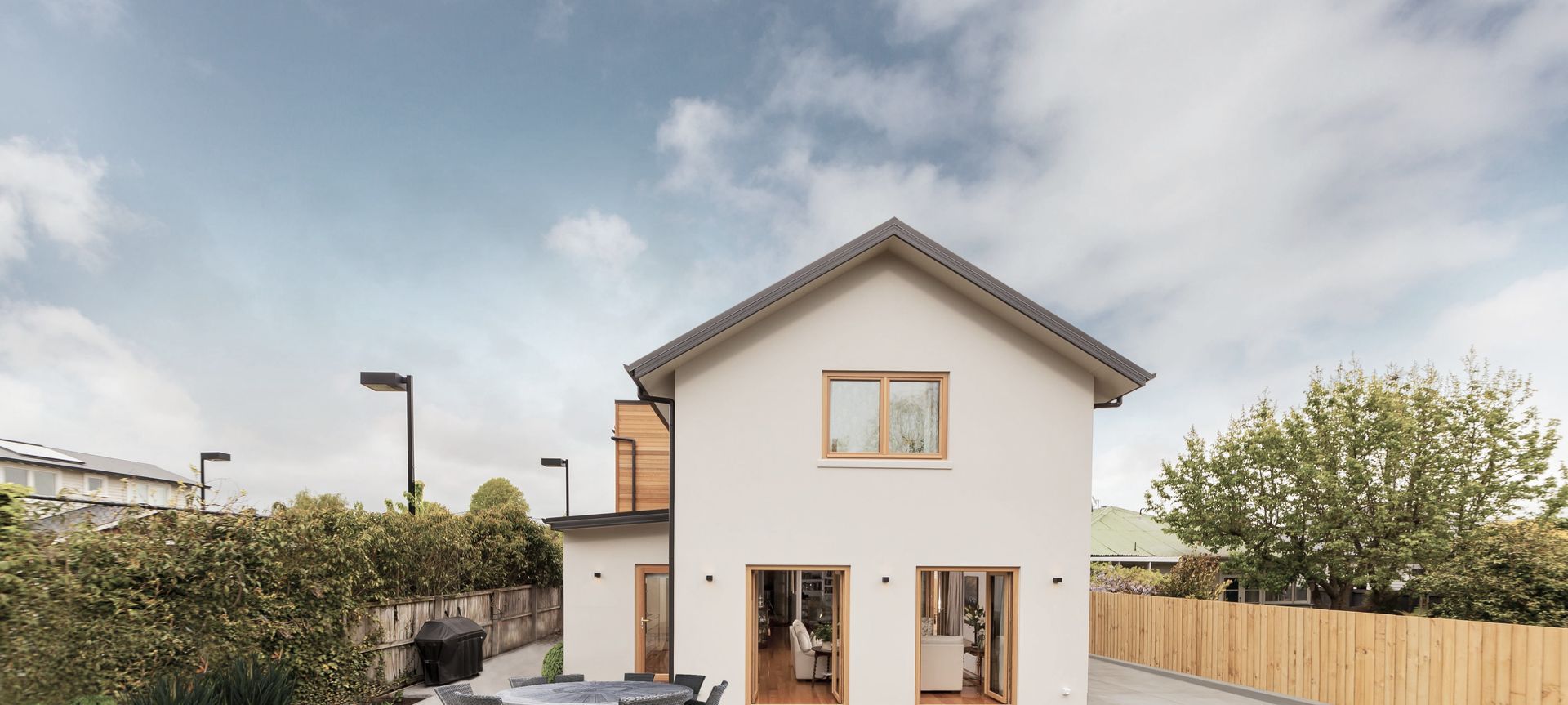

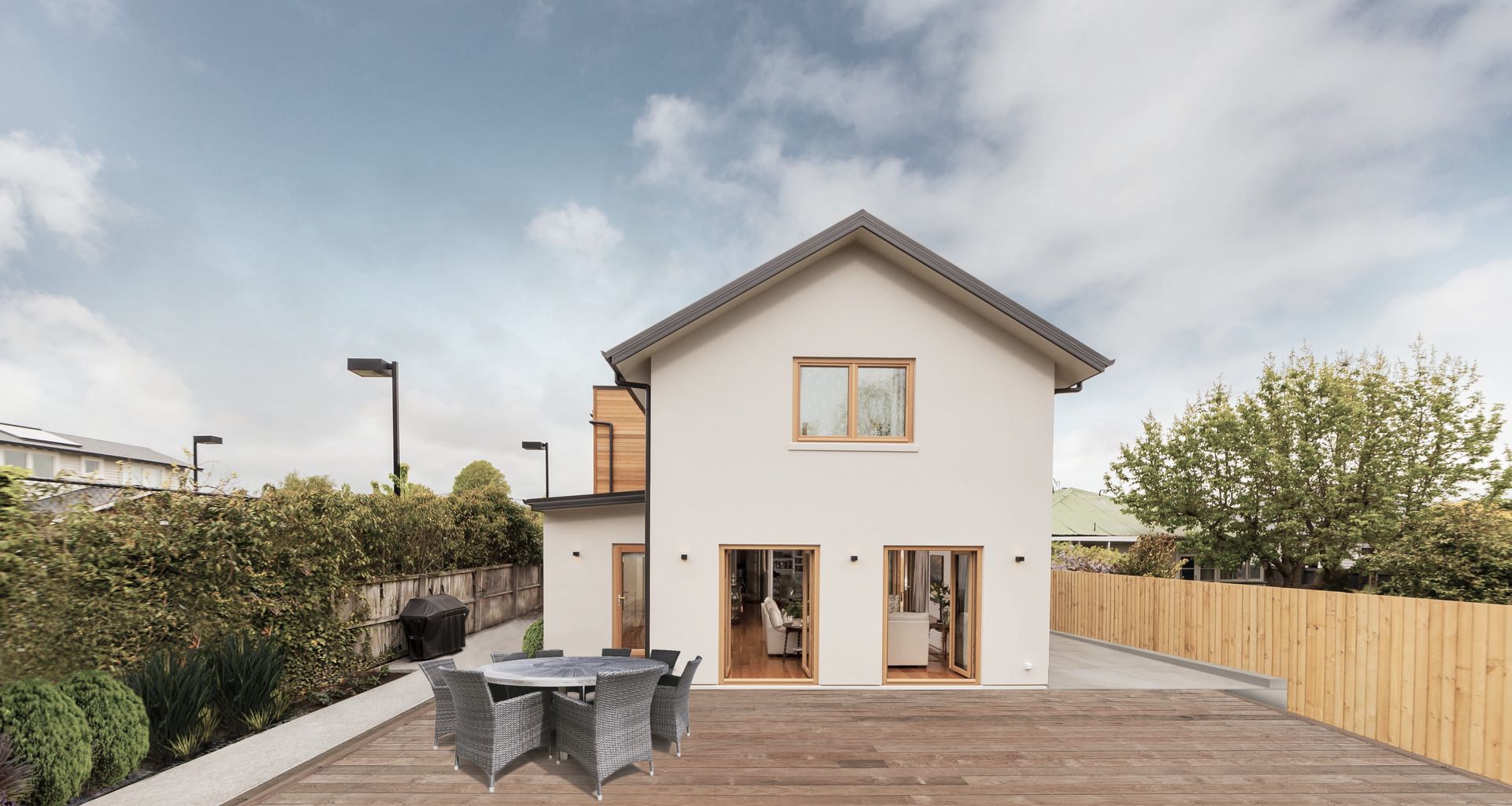

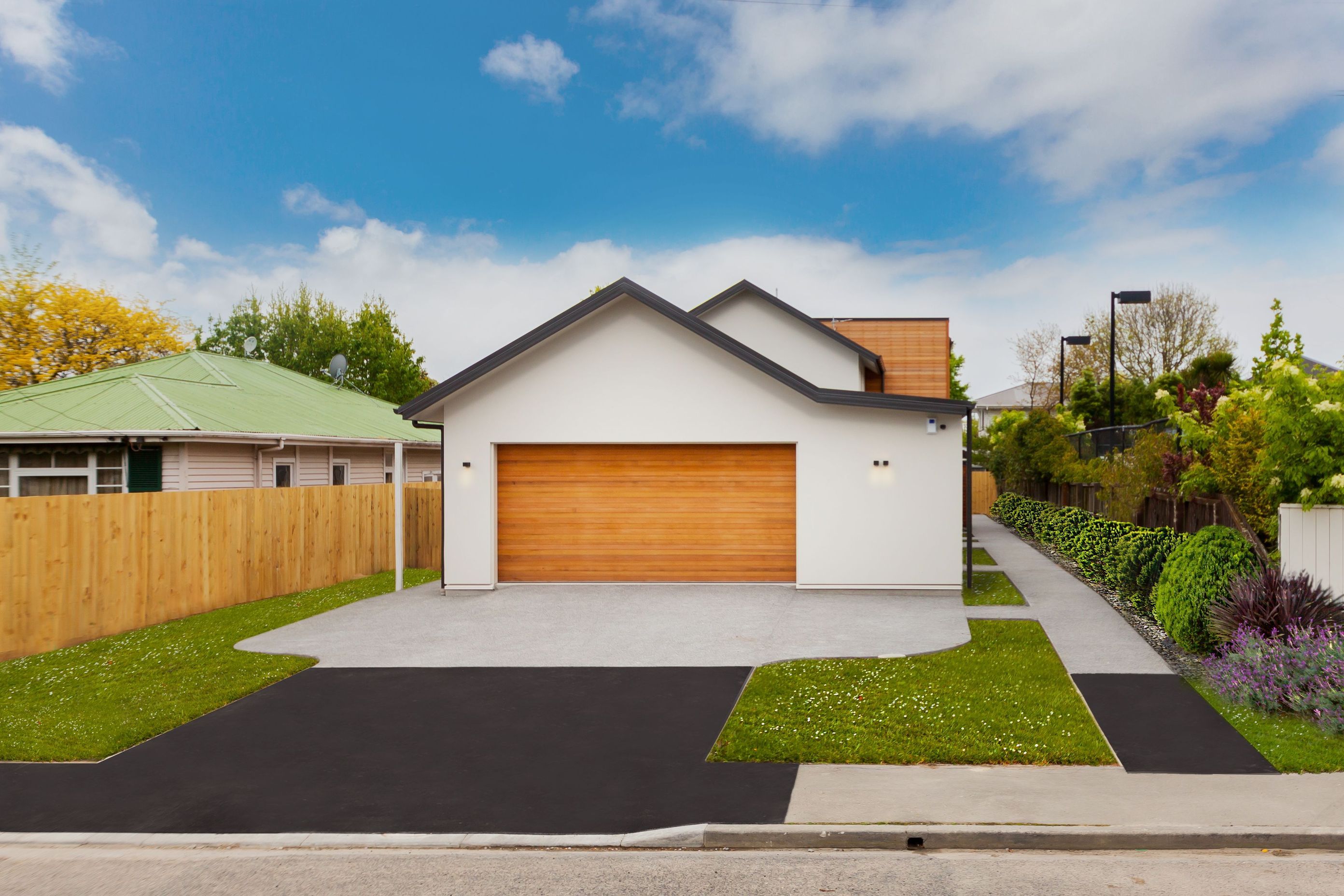

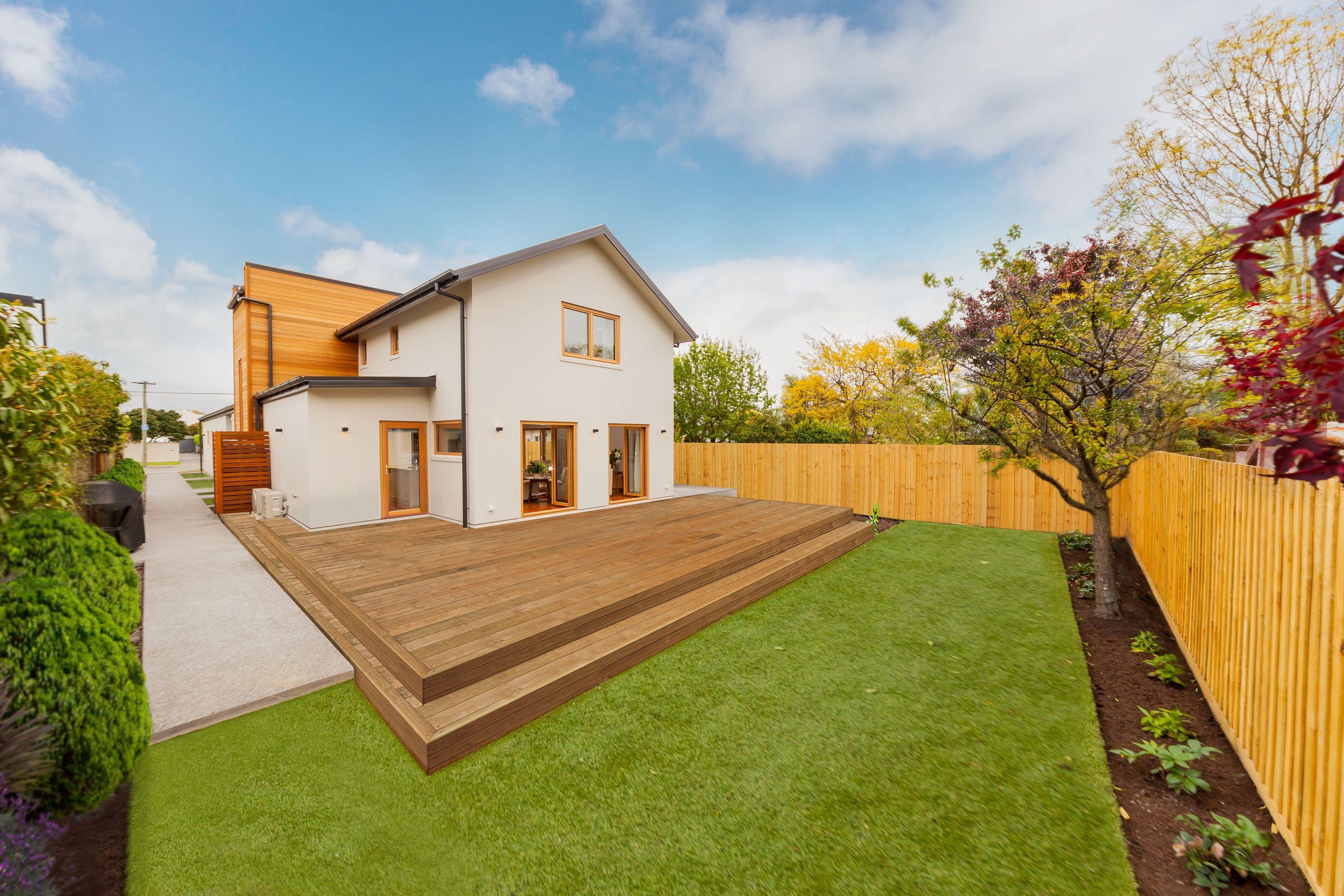

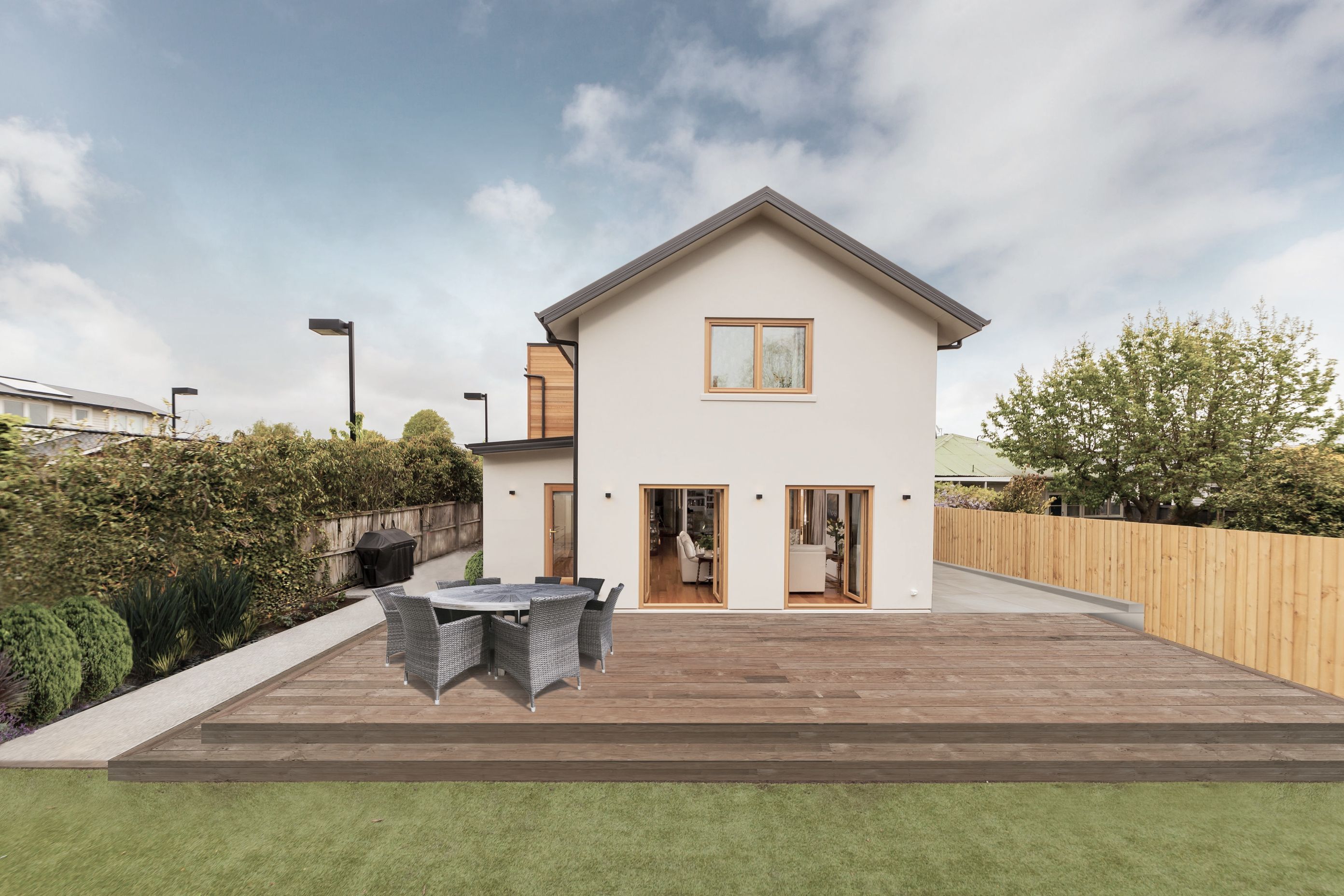

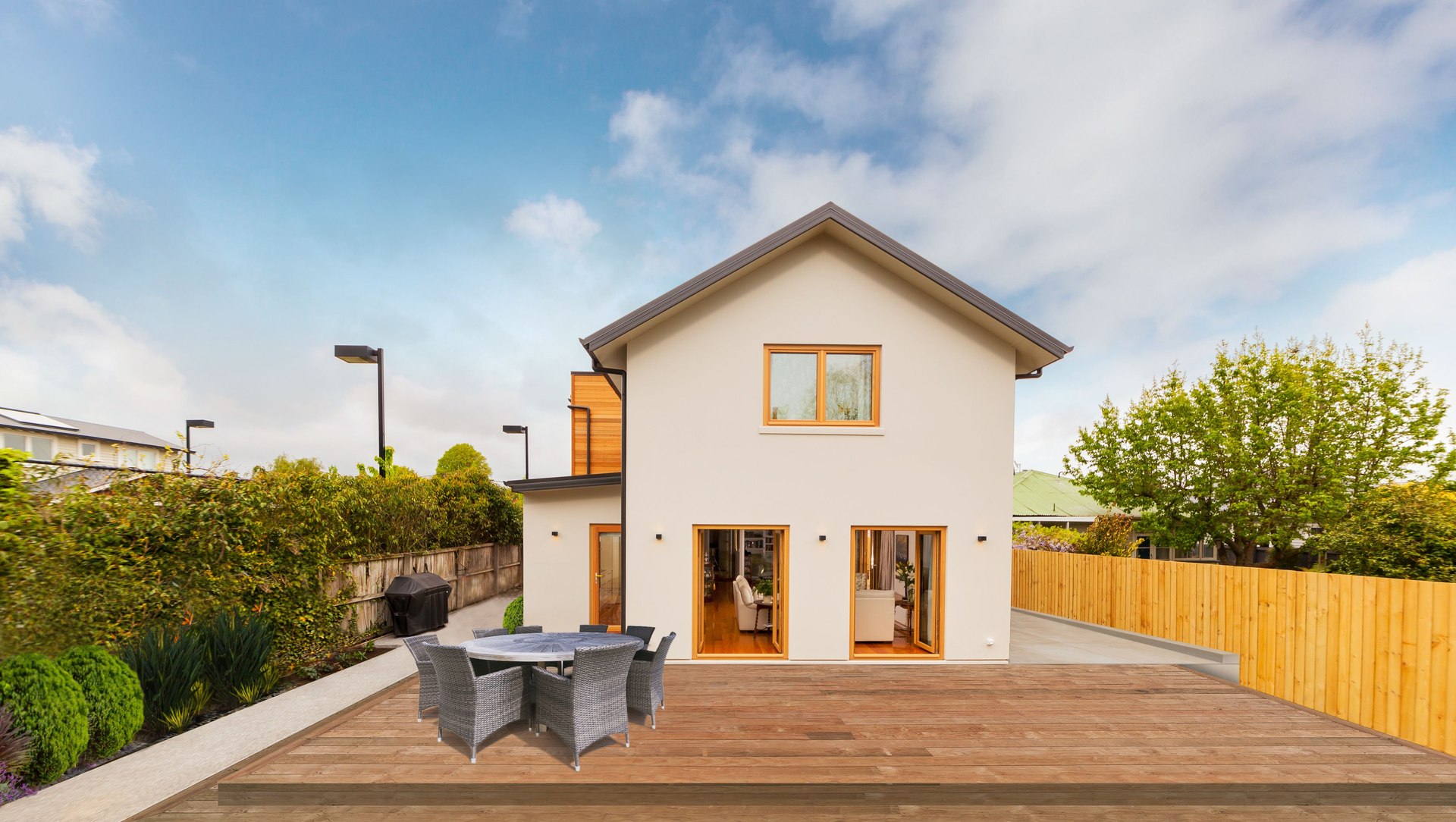

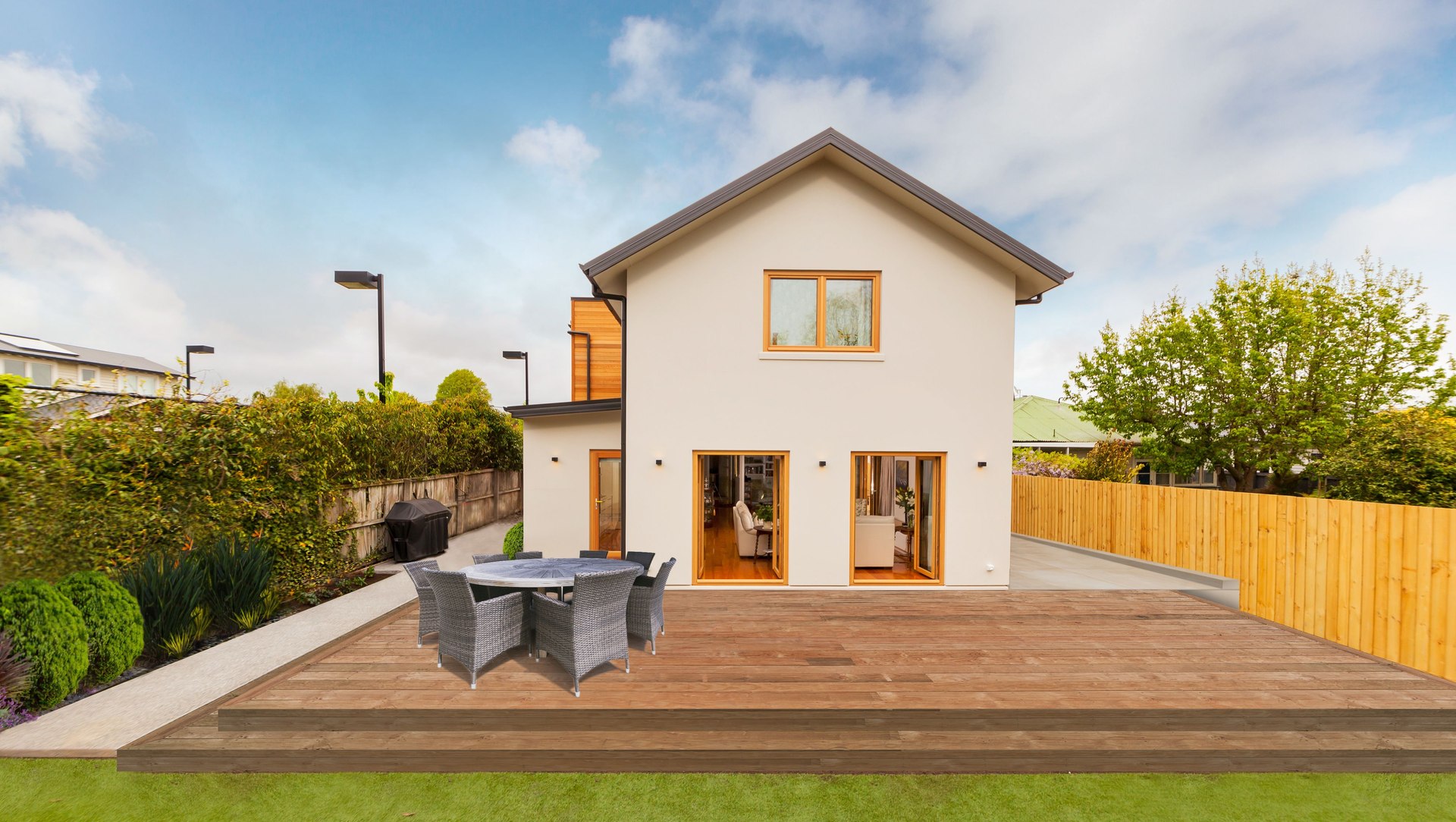

This two story modern residence in the middle of Christchurch replaces the families home that was damaged in the Canterbury earthquakes.

Designed in colboration with Hiberna



Design Components

Floor – EPS raft slab – 70mm EPS VH grade rib insulation 100mm wide, 300mm pods U-value = 0.34 W/(m2K

Wall – SIP Panels 215mm with 50mm insulation in service cavity U-value = 0.155 W/(m2K)

Roof – SIP panels 265mm with 90mm in service cavity  U-value = 0.13 W/(m2K)

Window Joinery Frame – ThermaDura, NatureLine 90 Laminated Siberian Larch U w-value = 0.94 W/(m2K)

Glazing – Sanco Silverstar TRIII E 4:/20AR/4:/20AR/4 ACS plus spacer U g-value = 0.5 W/(m2K)  g -value = 53 %

Ventilation – Zehnder Q350 MHRV

Hot Water – External Heat Pump with 300 Litre storage

Heating/Cooling – 2 Heat Pumps

Power Generation – 7kW solar PV system



Performance Specifications

Heating Demand: 22.1 kWh/m2/yr

Heating load 9.3W/m2

Frequency of overheating 1%

TFA: 198.1 m2

Form Factor: 3.4

Air Leakage@50Pa: 0.51 ACH

PER demand: 31 kWh/m2/yr

Renewable Energy Generation: 46 kWh/m2/yr
