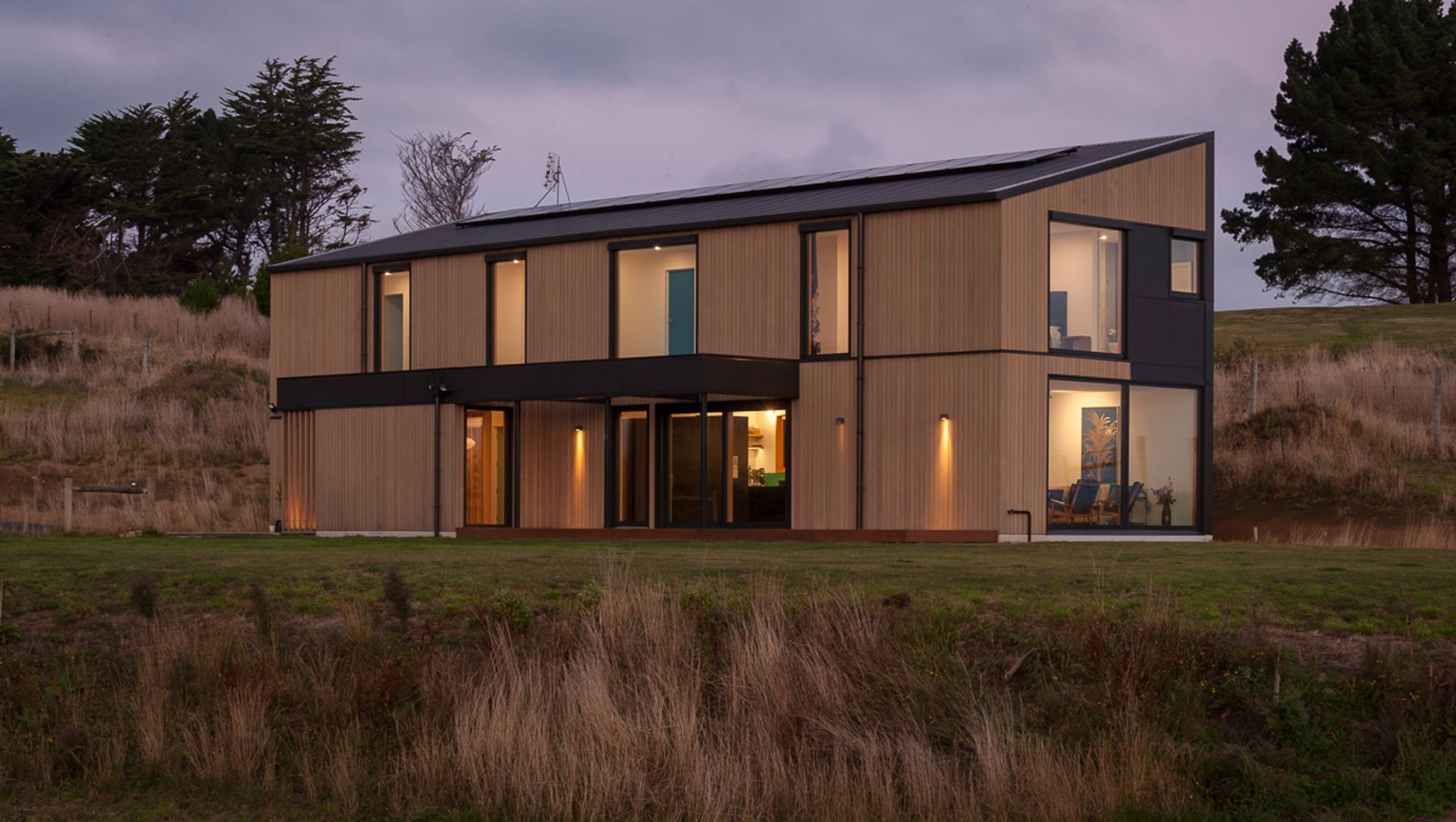

Otago – St Clair Dunedin

Website

Certified PassivHaus Classic

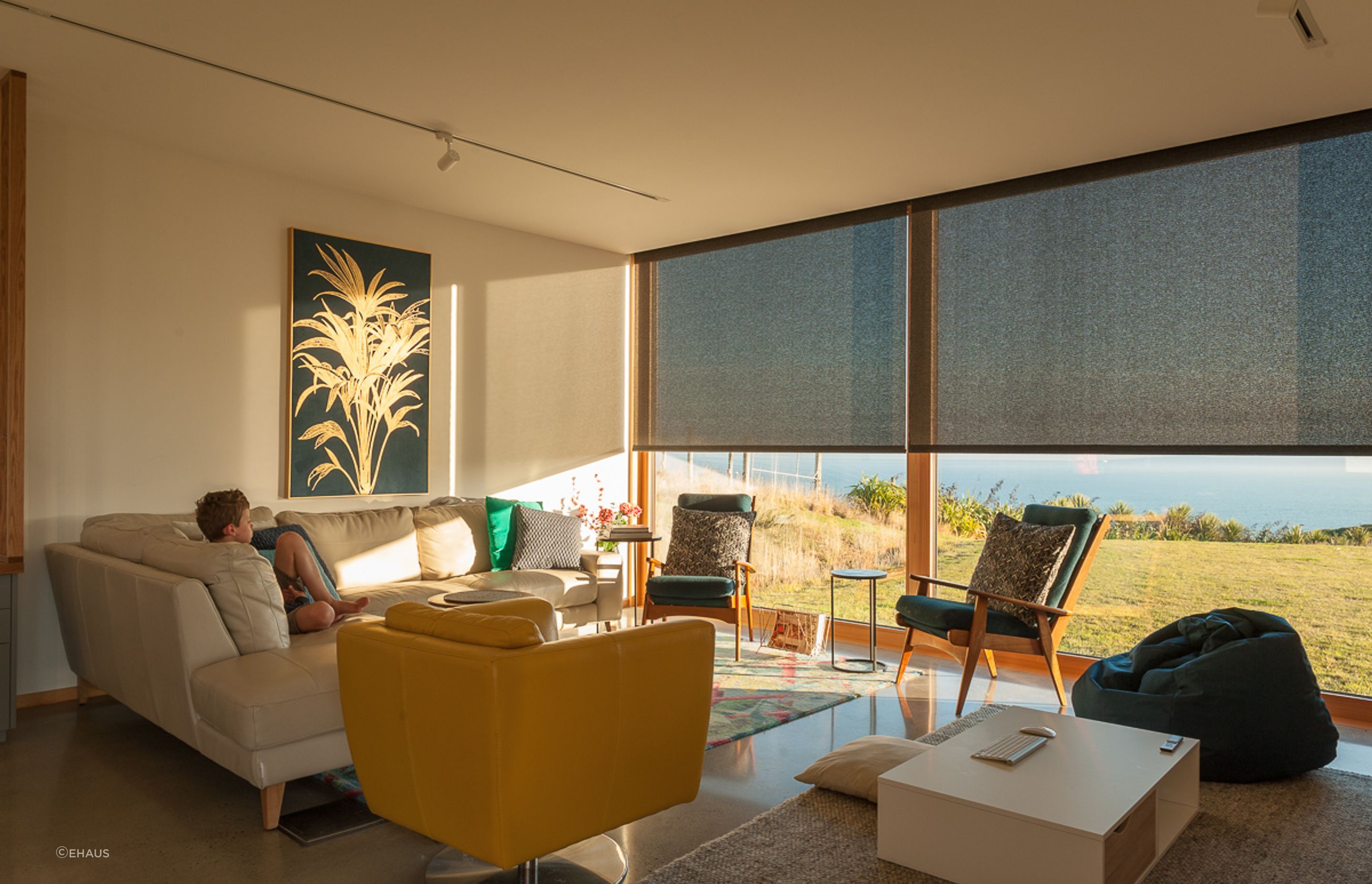

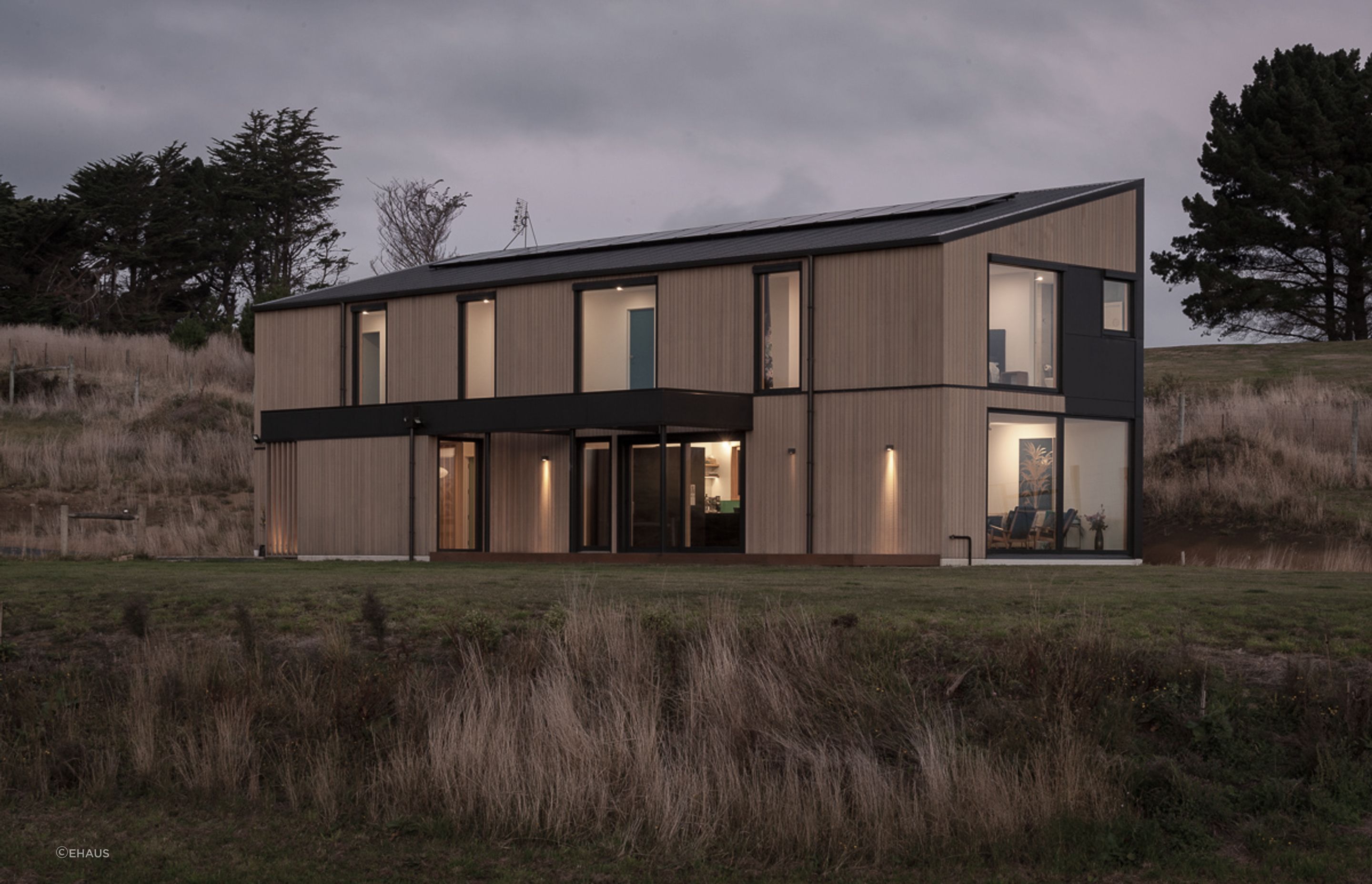

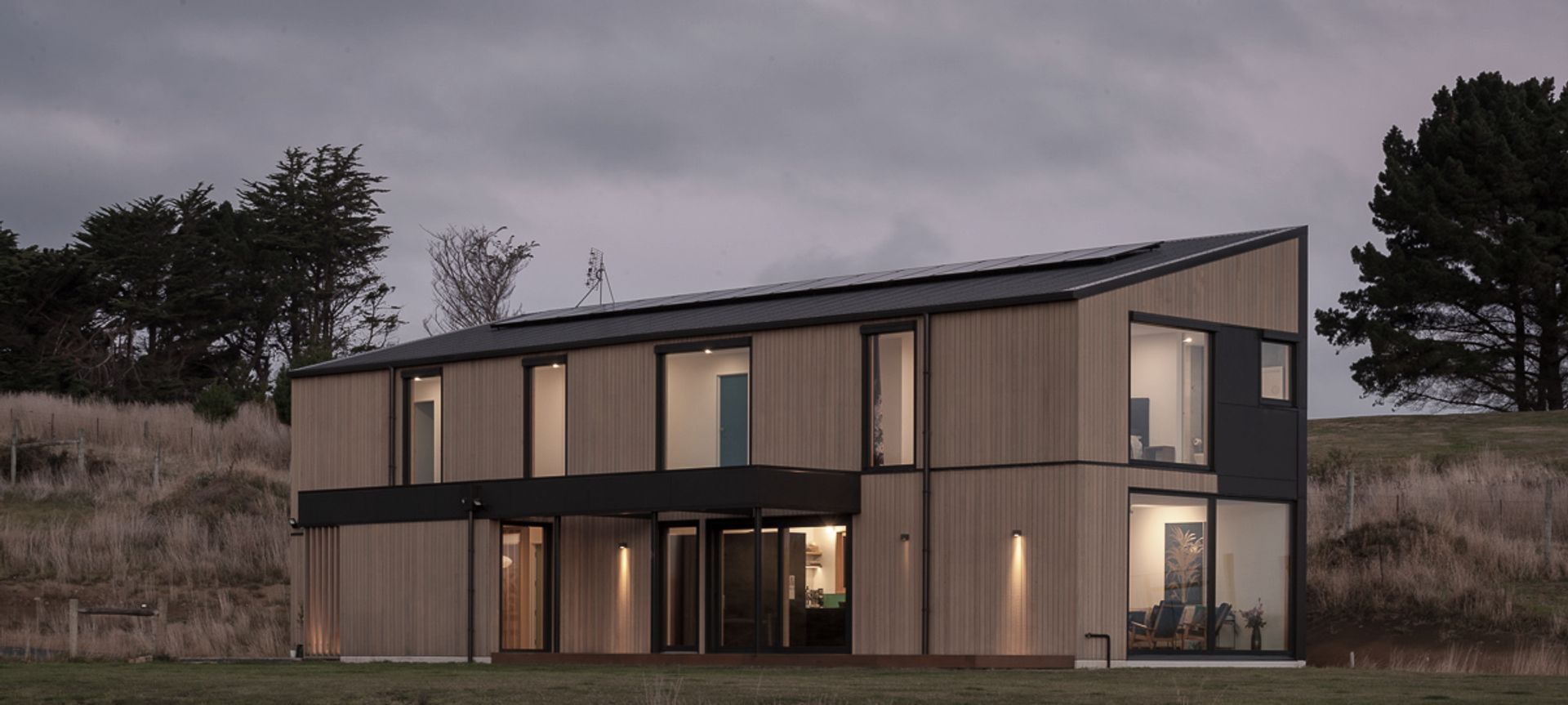

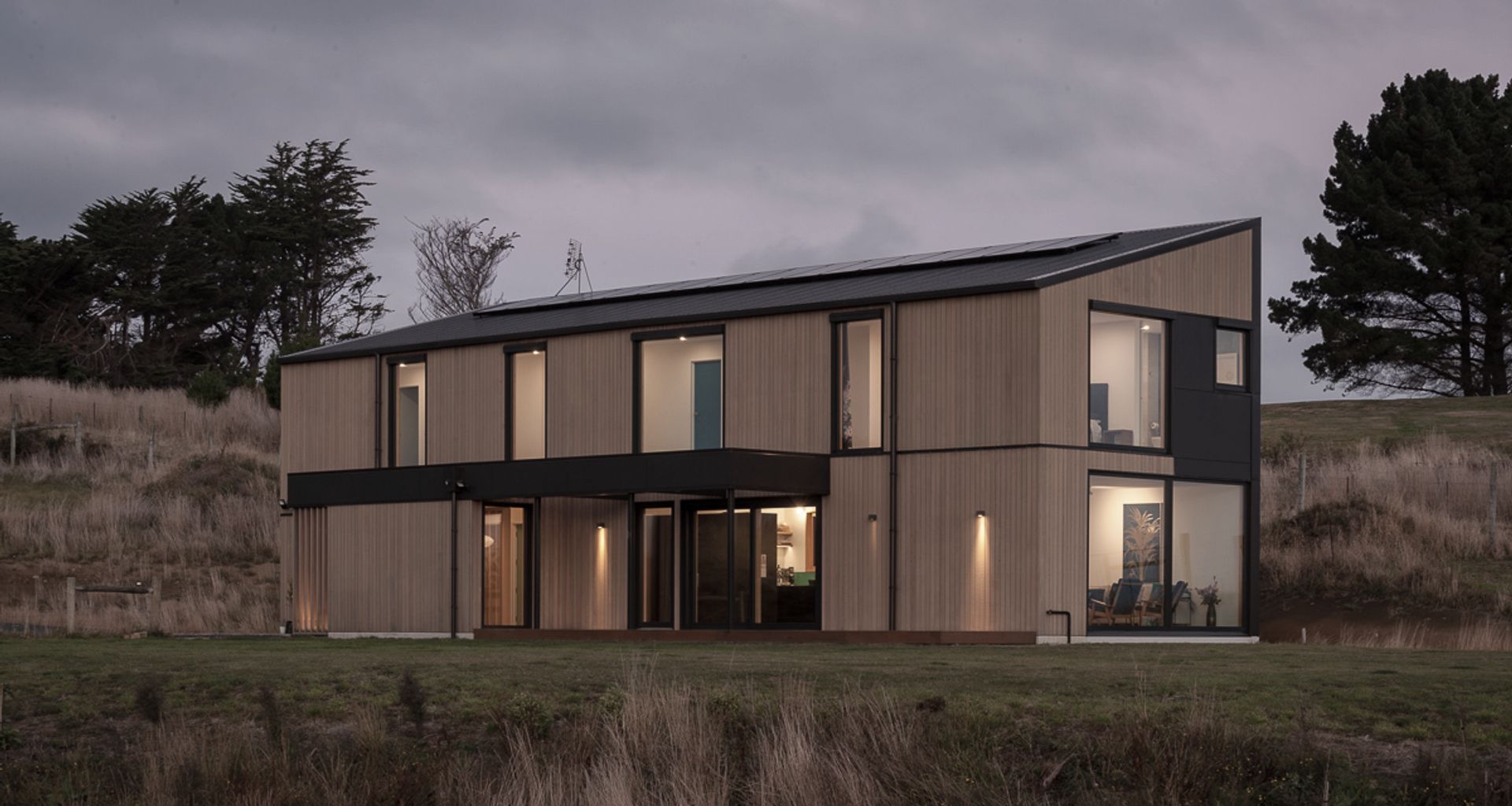

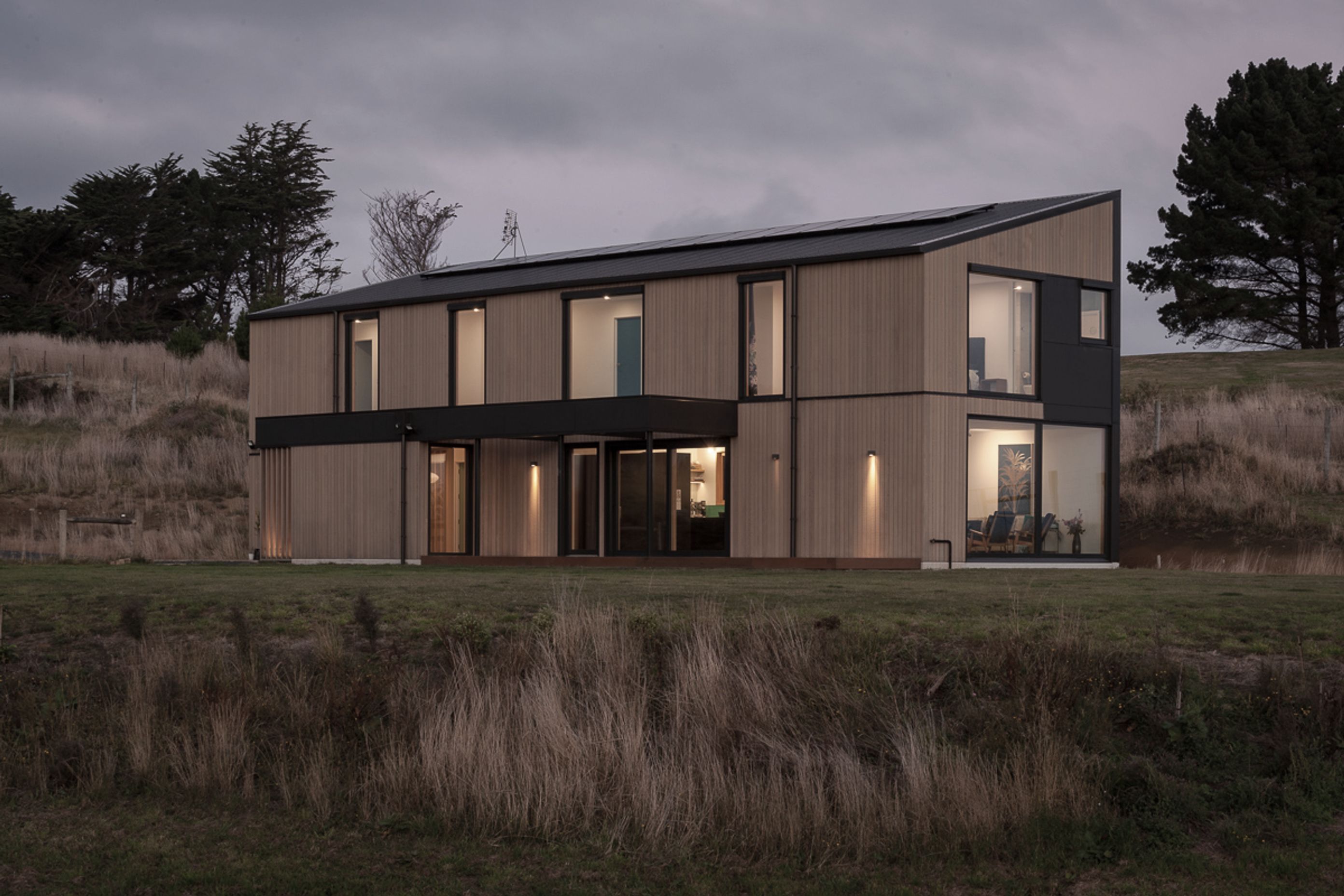

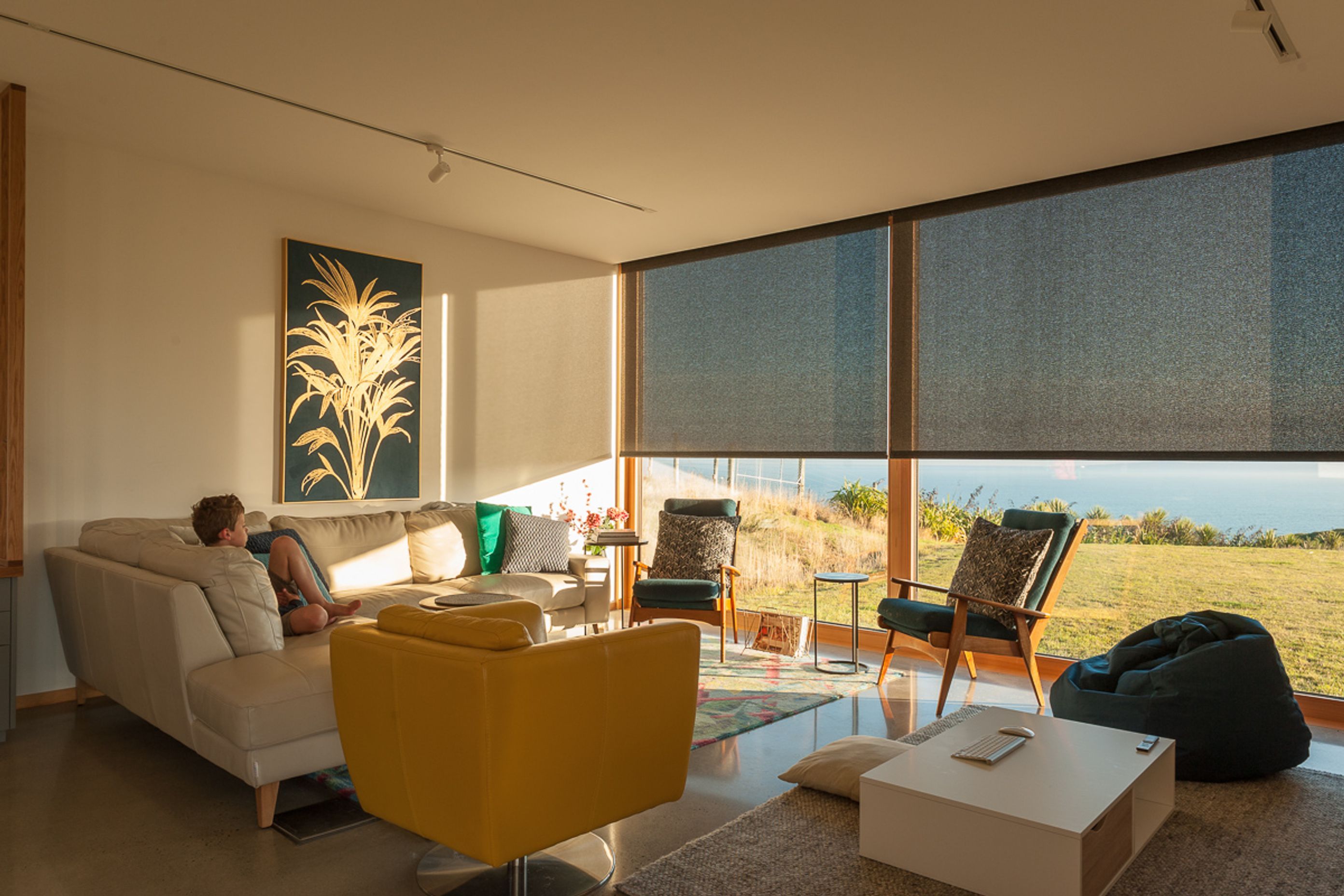

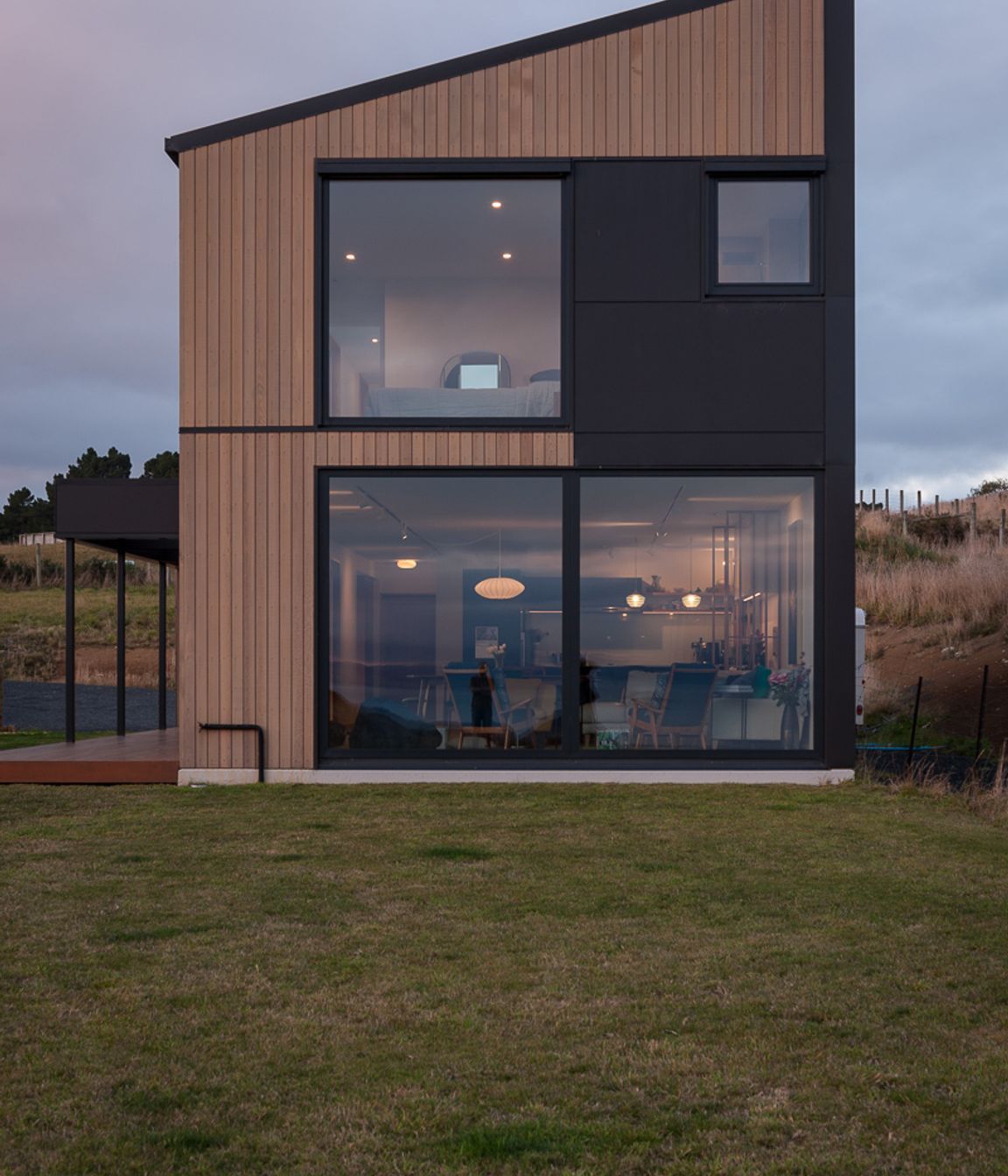

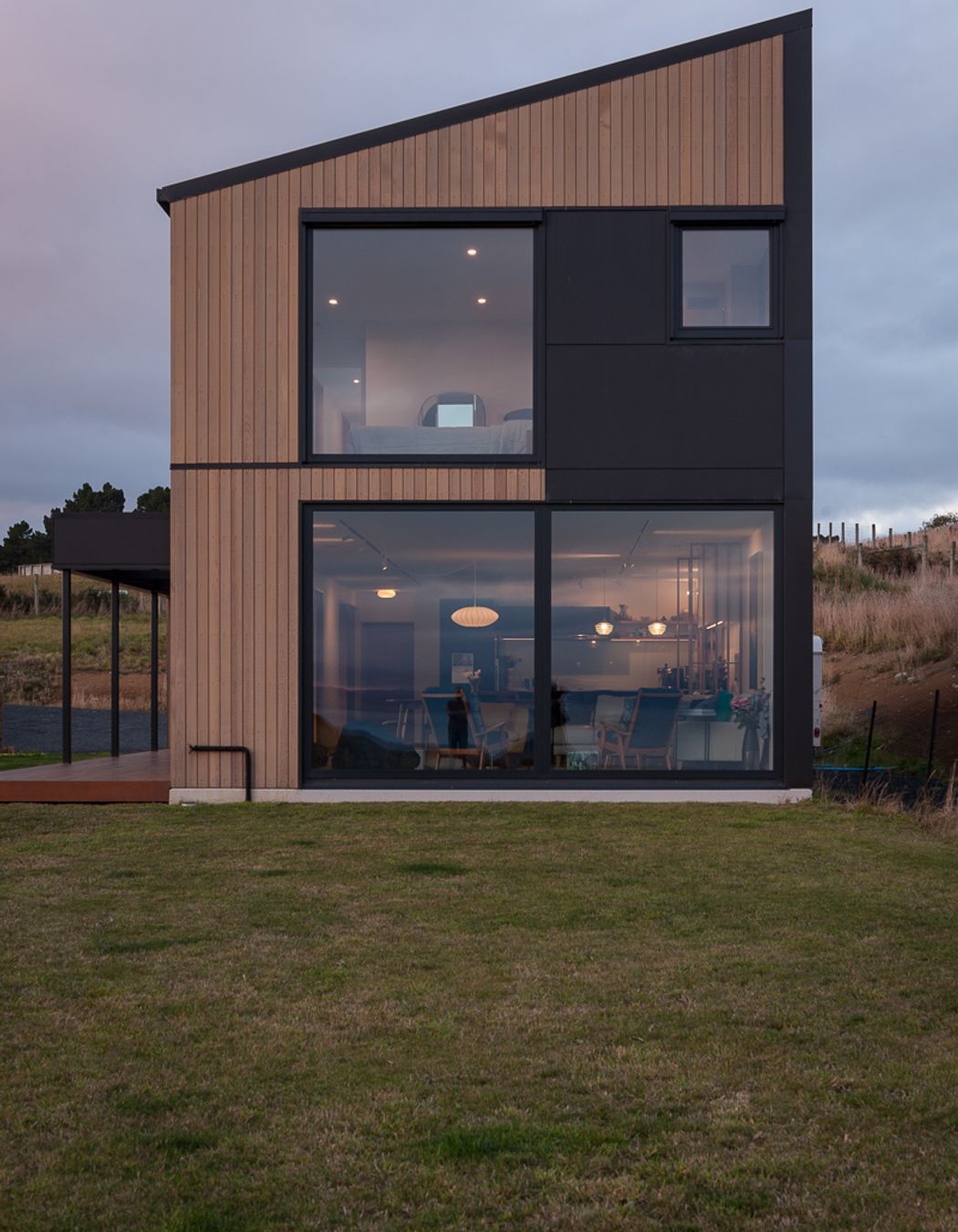

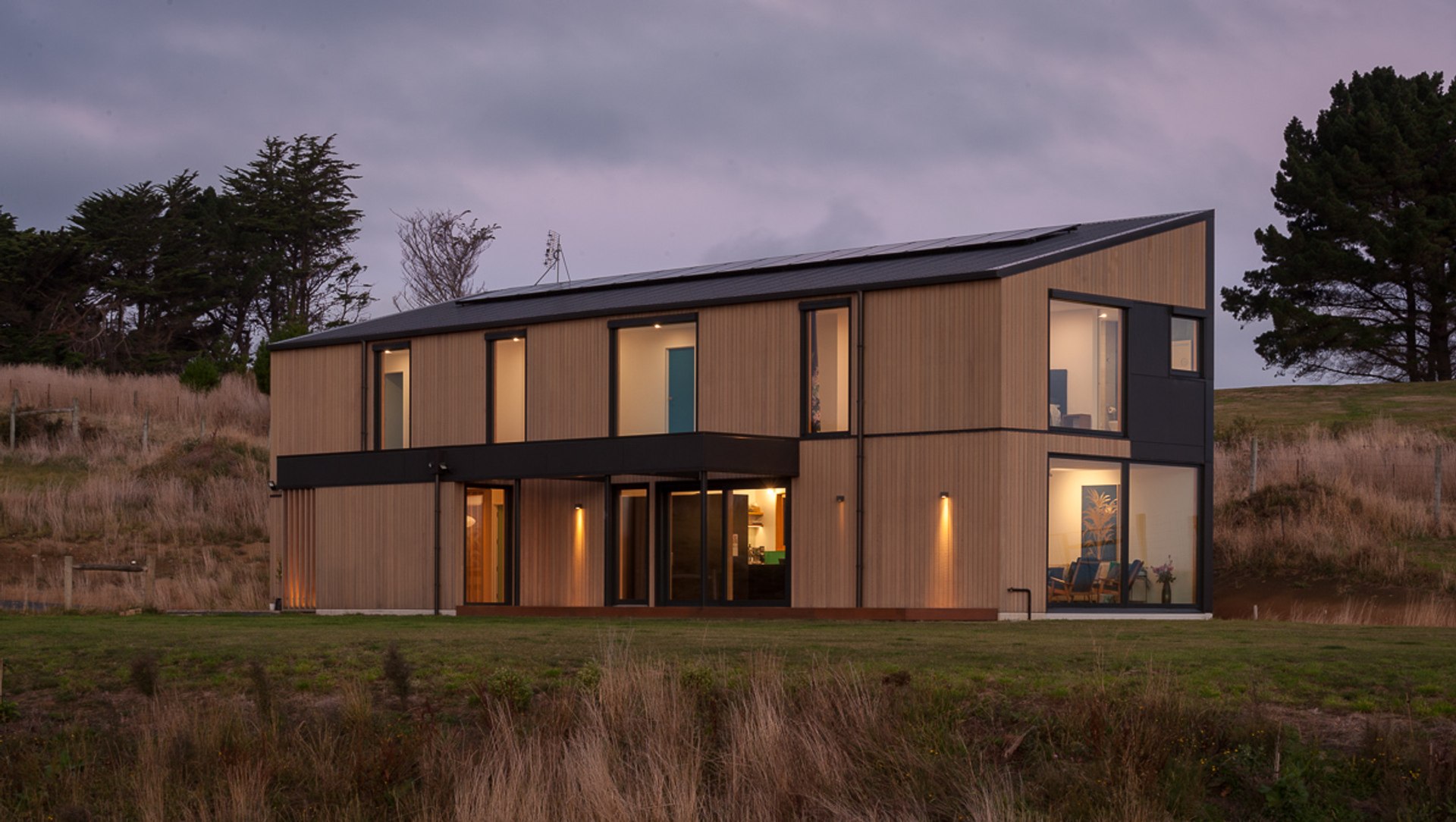

This amazing home sits south west over the coastal view.  The architects had to solve the issue of being able to enjoy the vista while enabling some shelter from the prevailing winds. Super insulation was used along with Triple argon filled low-E coated glazing necessary for the climate this far south. European windows by ecoWindows in wood and aluminium also feature. This grid tied photo-voltiaic home is perfect for this progressive family, often generating more energy than it uses.



Design Components:

Floor – EPS raft slab 200mm U-value = 0.131 W/(m2K)

Wall – 140mm timber frame with service cavity  U-value = 0.212 W/(m2K)

Roof – Double layer of fibreglass insulation  U-value = 0.119 W/(m2K)

Window Joinery Frame – EcoWindows – Wood Alu HA 78 Premium U f-value = 1.30 W/(m2K)

Glazing – Triple glazing  Argon  U g-value = 0.60 W/(m2K) g -value = 54 %

Ventilation – Zehnder Comfo Air  R 350 MHRV

Hot Water – 250L Hot water cylinder

Heating/Cooling – Under tile heating mat on ensuite and bath



Performance Specifications:

Heating Demand: 12.04 kWh/m2/yr

Heating load 13.7 W/m2

Frequency of overheating 0 % year over 25C

TFA: 181.9 m2

Form Factor: 3.04

Air Leakage@50Pa: 0.50 ACH

PE demand: 95 kWh/m2/yr
