100 OD SS Coned Flanges
- 110.9K profile views
- 4 saves

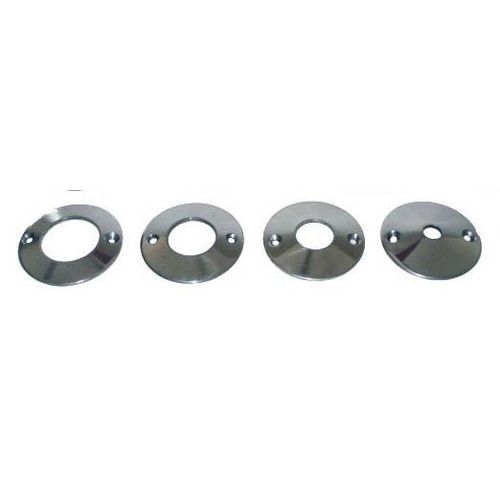

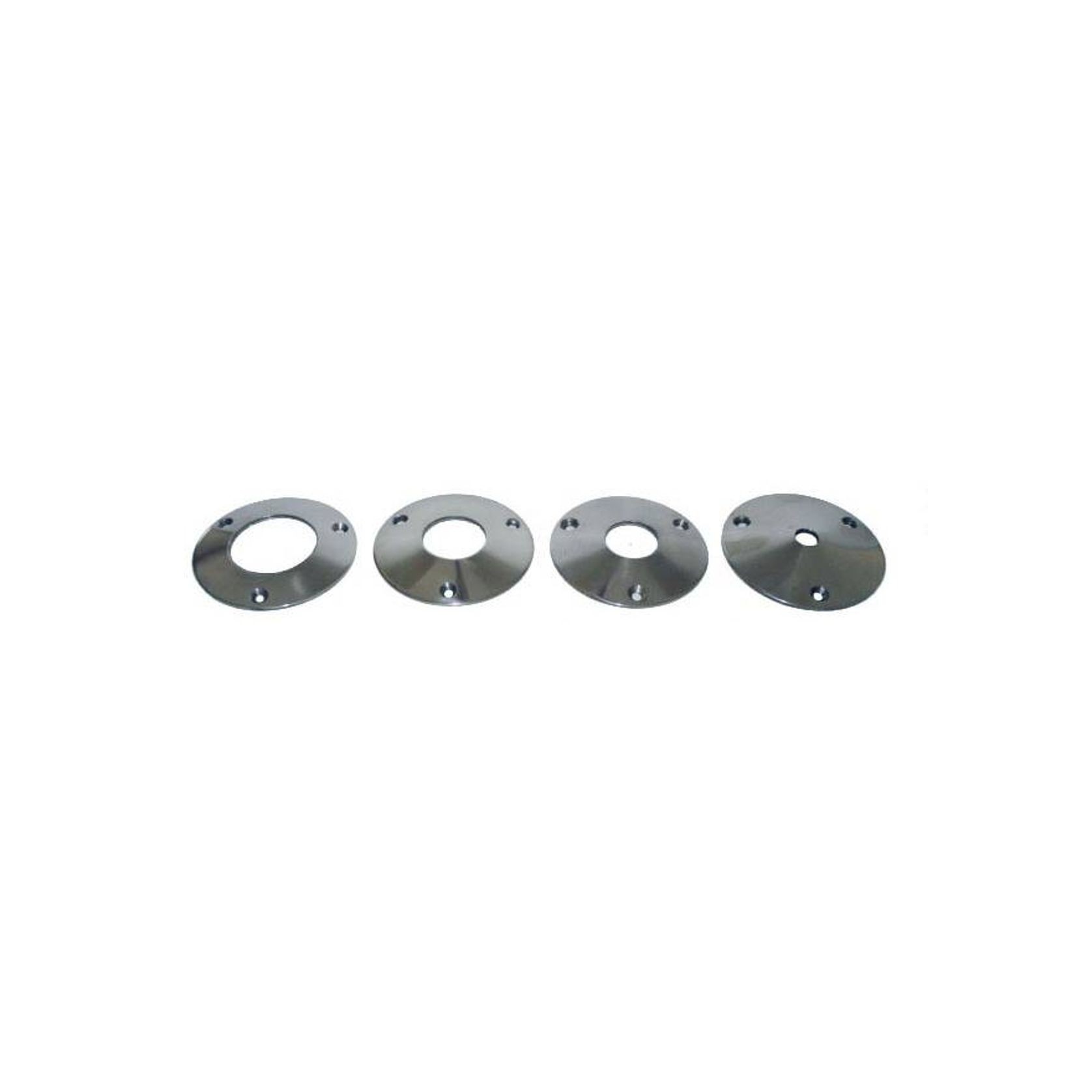

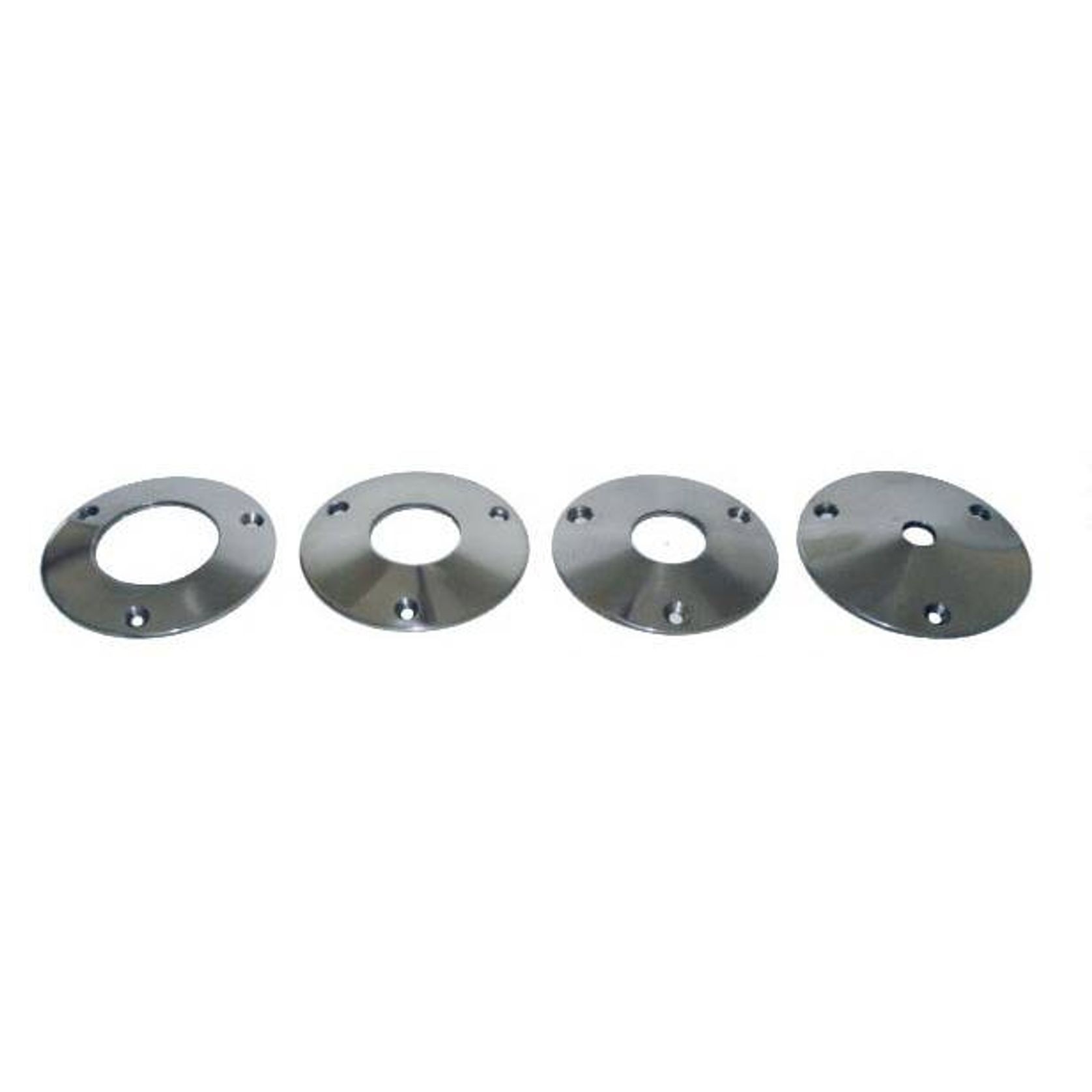

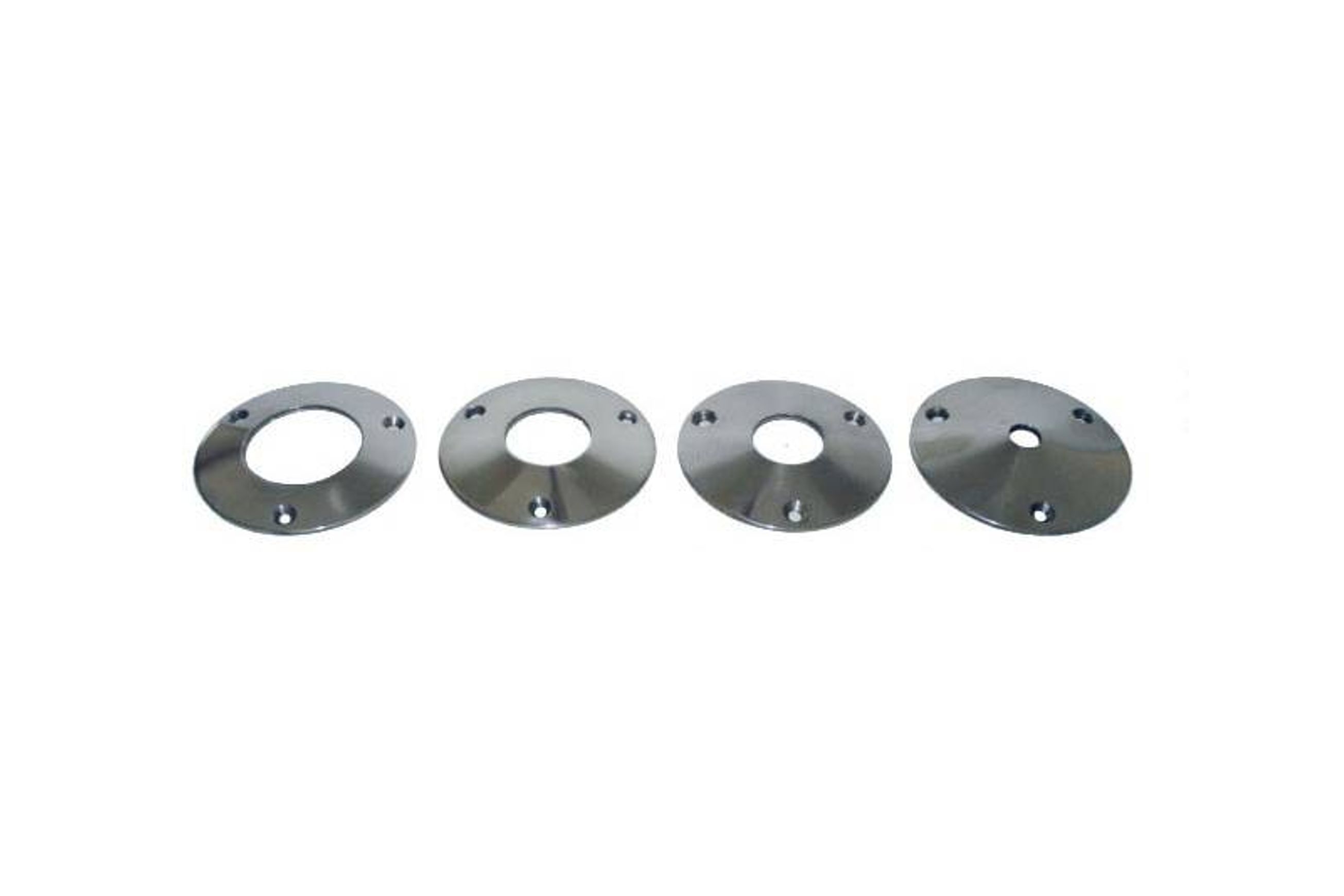

Coned Flanges Stainless Steel 100 OD 316 Satin Finish for Fixing Tube to a Floor or Wall
- Tube or rod pushes through centre hole and is welded from underside.
- Ready for use once welded, no grinding required.
- Centre holes accurately machined, flange sits square on tube.
- No skinned knuckles when fixing flange to wall or floor because screw holes are angled away from tube.
- Screw holes pre-countersunk.
- Coned shape means the flange bears on its outer ring only, so will not rock on high-spots the way that flat-base flanges are inclined to do.
- 3.25mm thickness
Material Available:
- AISI 316 Satin Finish
Product Details
- Product
- 100 OD SS Coned Flanges
- Category
- Stair Rail Brackets
- Sold by
- Handrail Fittings
- Brand
- Handrail Fittings
Material
Coned Flanges Stainless Steel 100 OD 316 Satin Finish for Fixing Tube to a Floor or Wall Tube or rod pushes through centre hole and is welded from underside.
Material Available:
- AISI 316 Satin Finish
