Base for Post Fixing
- 110.9K profile views
- 4 saves

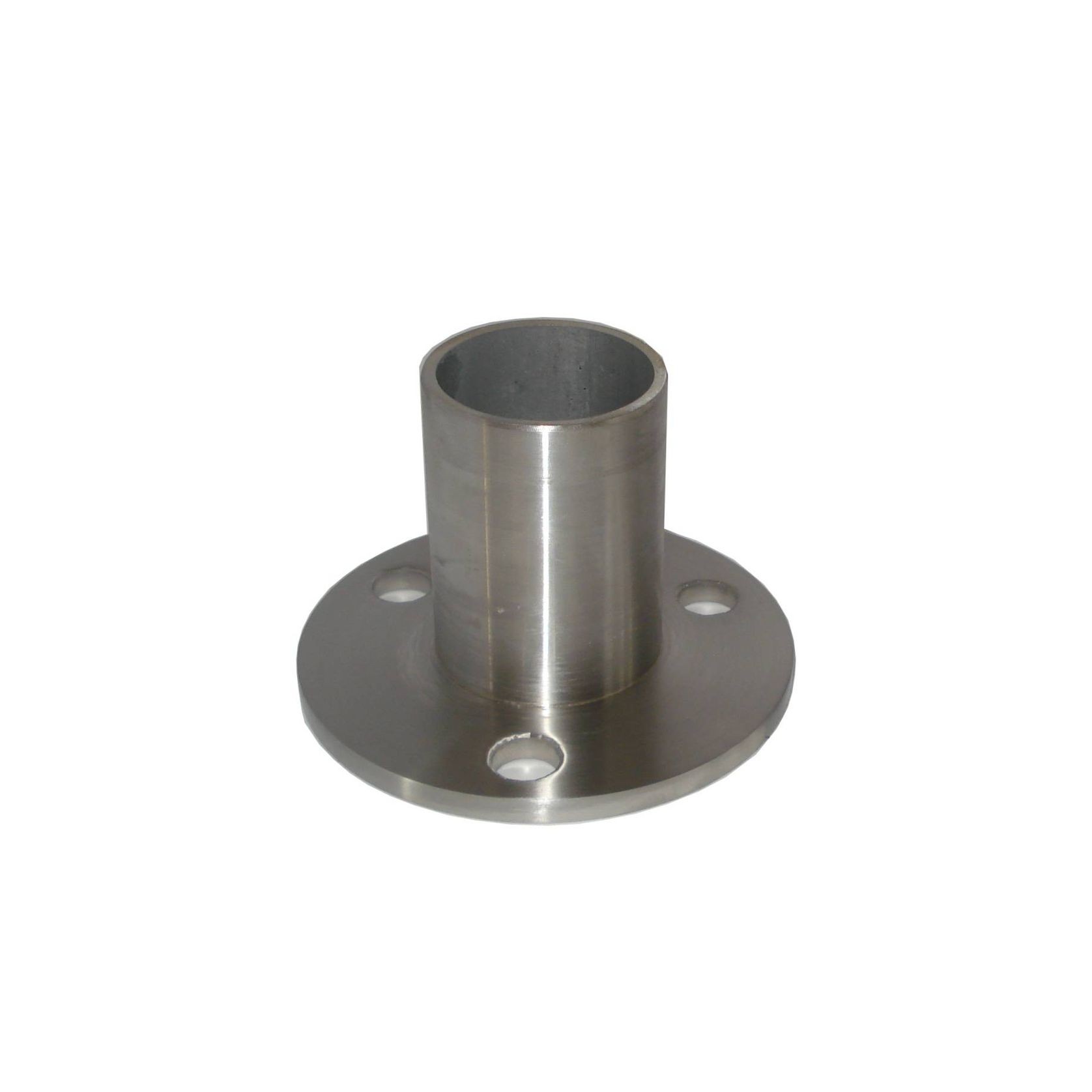

Base Plate for Mounting 38.1mm and 50.8mm Posts
For mounting posts to the ground
Tube slides over spigot- use a 2-pot epoxy to fix the tube in place
To fit Tube 38.1mm & 50.8mm diameter
To fit 1.5mm wall thickness tube
Easy and Strong
3 x 13mm mounting holes
Available with or without cover plate
Materials available:
- AISI 304 Satin Finish
- AISI 316 Satin & Mirror Finish (Cover Plate Only)

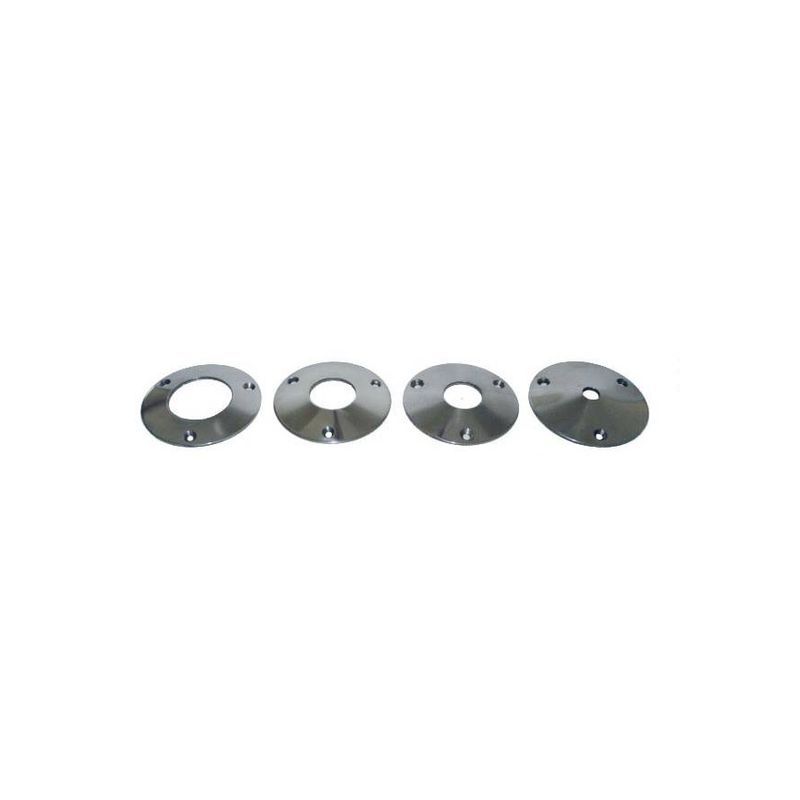

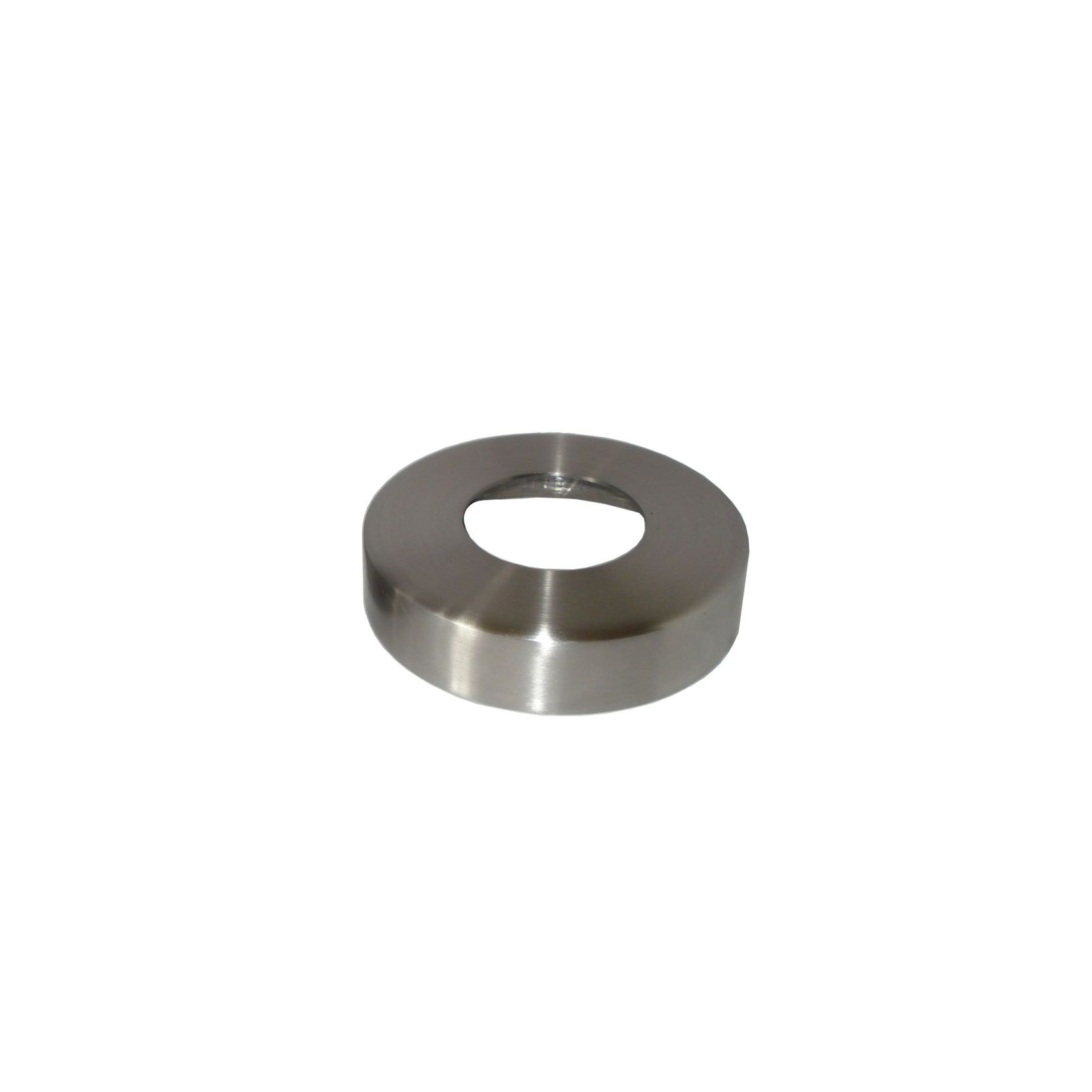

To add a cover plate see here Cover Plates
Download Data Sheet (50.8mm)

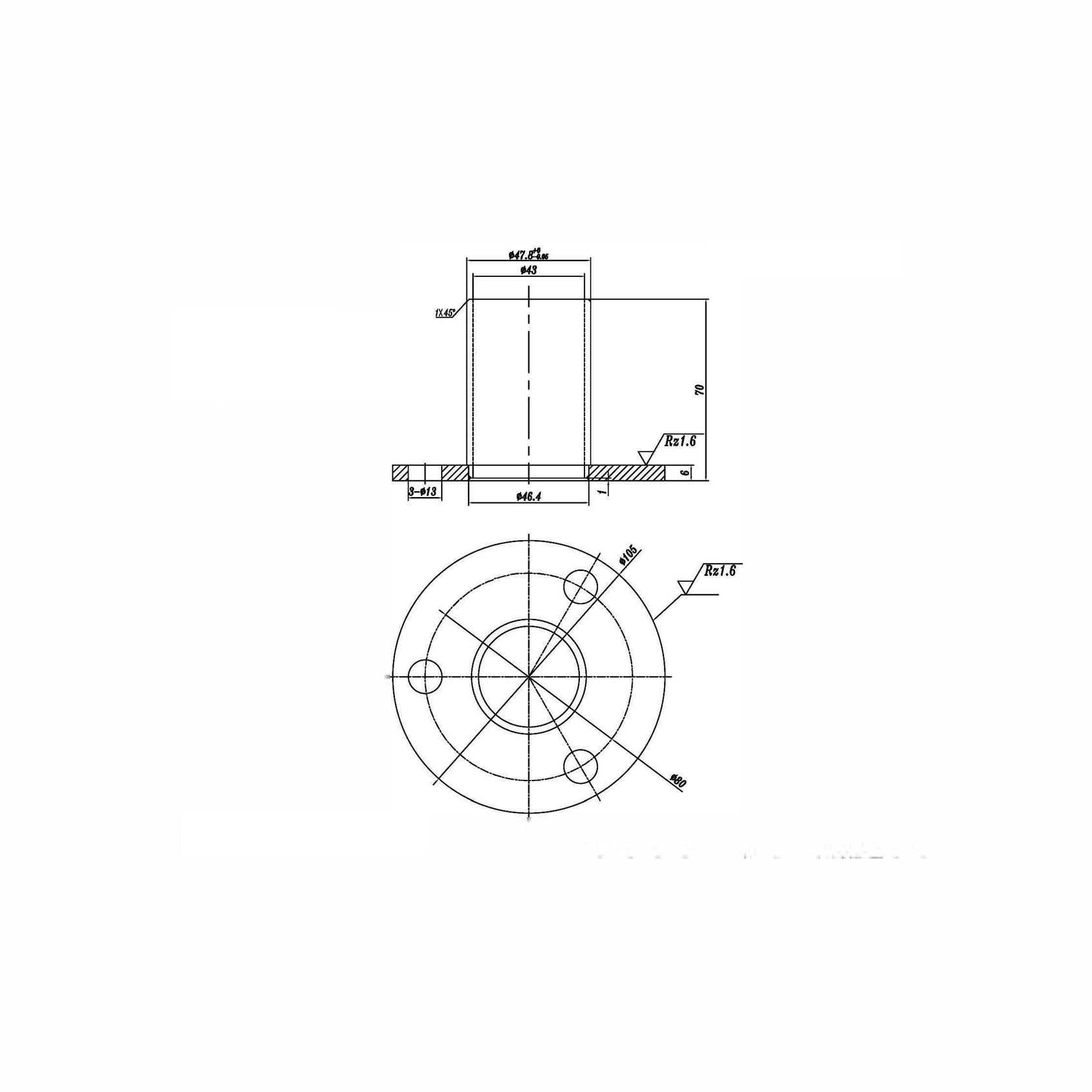

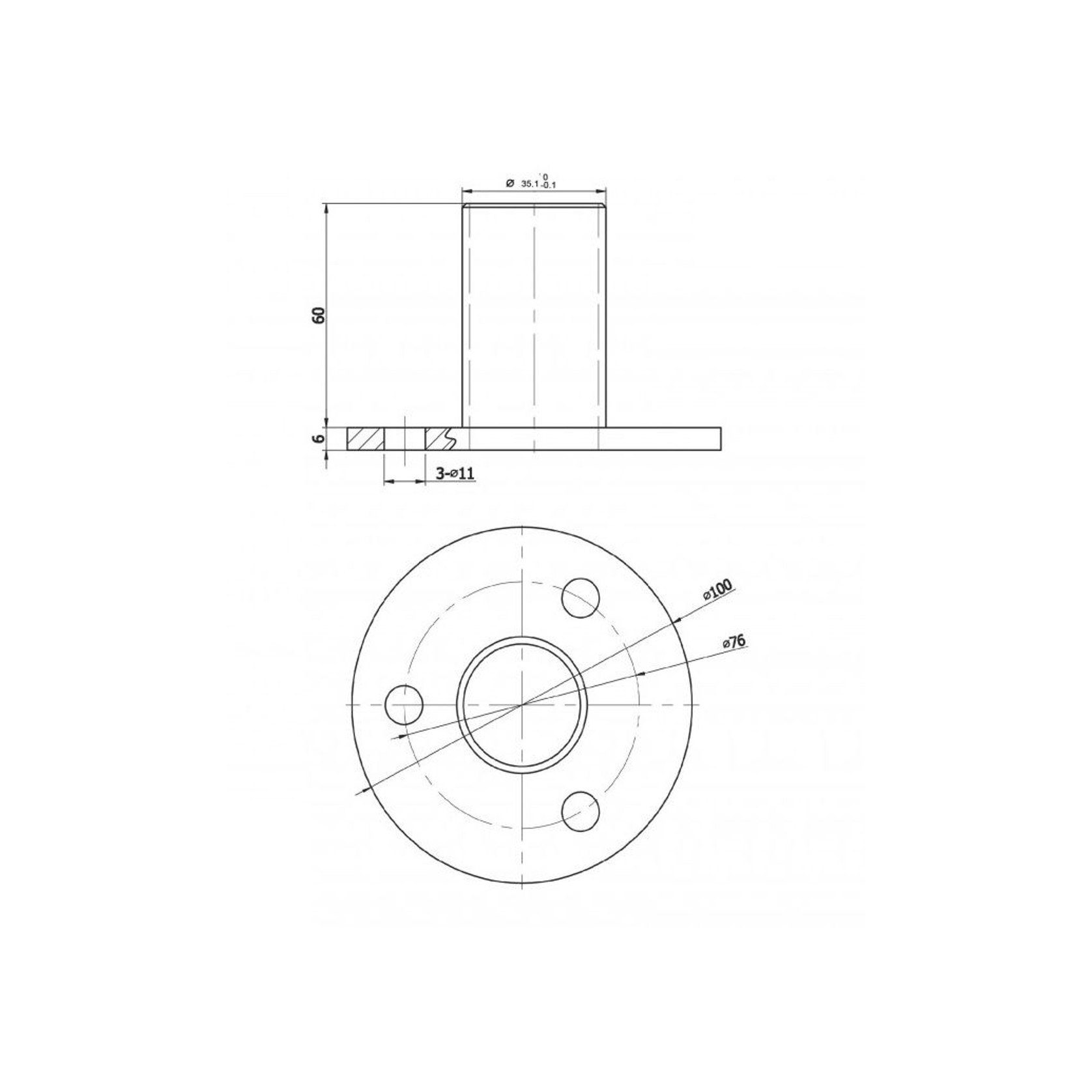

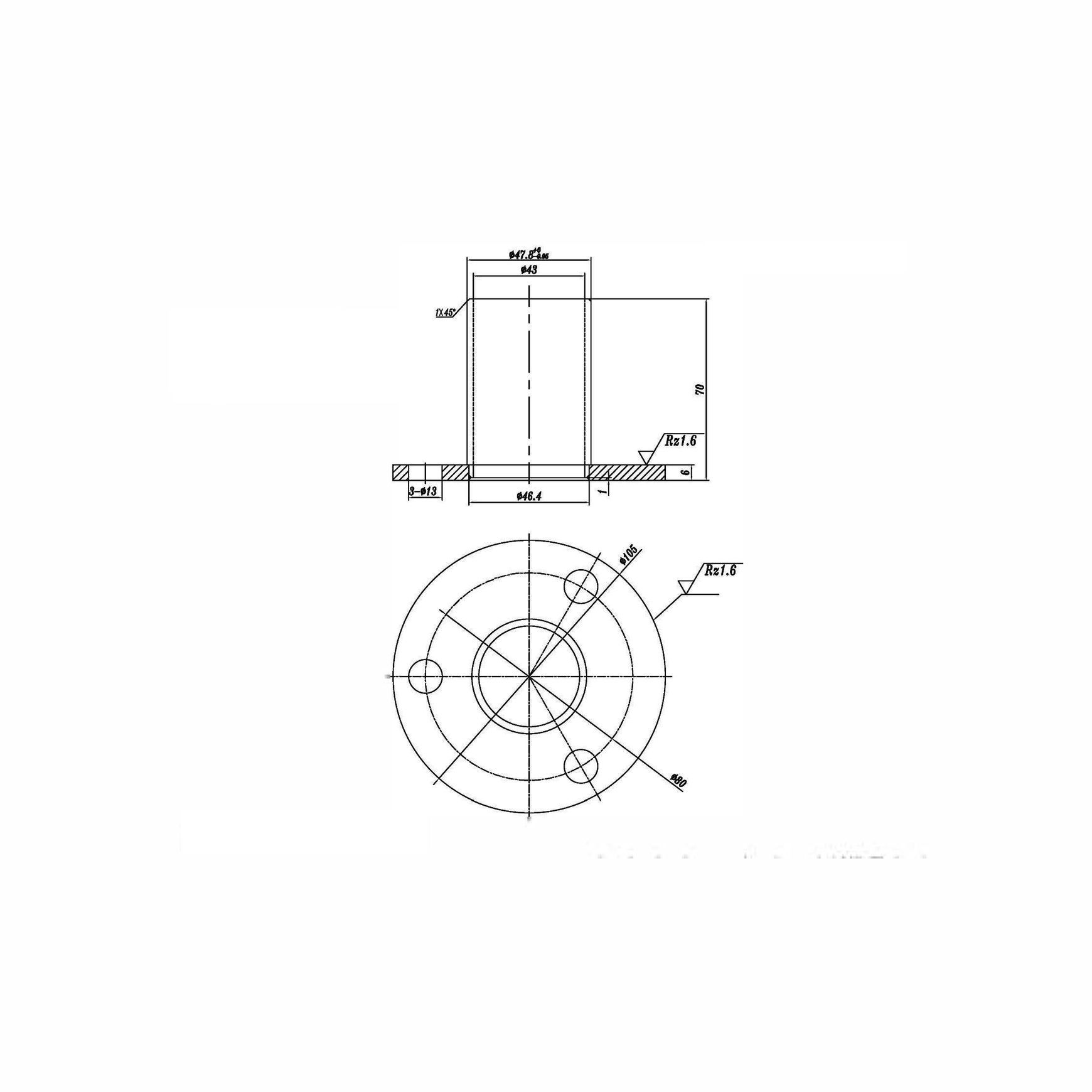

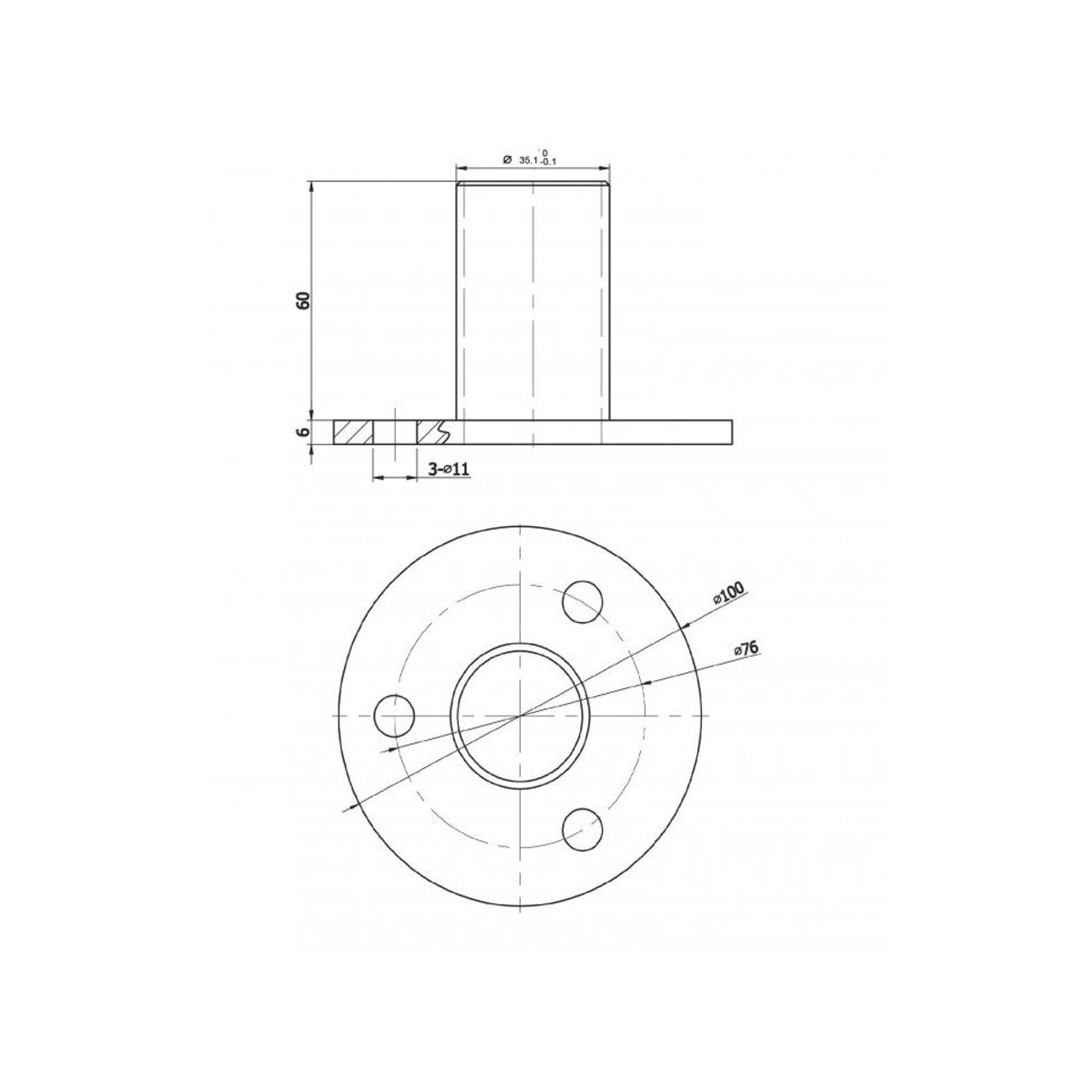

Download CAD File (50.8mm)
Installation: We recommend applying a 2 pot epoxy glue to the inside of your tube before sliding over the spigot, to ensure a snug and permanent fit
Product Details
- Product
- Base for Post Fixing
- Category
- Handrails
- Sold by
- Handrail Fittings
- Brand
- Handrail Fittings
- Warranty
- Lifetime
Material
Base Plate for Mounting 38.1mm and 50.8mm Posts
For mounting posts to the ground
Tube slides over spigot- use a 2-pot epoxy to fix the tube in place
To fit Tube 38.1mm & 50.8mm diameter
To fit 1.5mm wall thickness tube
Easy and Strong
3 x 13mm mounting holes
Available with or without cover plate
Materials available:
- AISI 304 Satin Finish
- AISI 316 Satin & Mirror Finish (Cover Plate Only)
To add a cover plate see here Cover Plates
Download Data Sheet (50.8mm)
Download CAD File (50.8mm)
Installation: We recommend applying a 2 pot epoxy glue to the inside of your tube before sliding over the spigot, to ensure a snug and permanent fit
- Scope of use
Residential
Commercial
Interior
Exterior
Downloads
Downloads (6)6 Direct downloads • 5 Available on request
Frequently asked questions about
Base for Post Fixing
The Base for Post Fixing is supplied by Handrail Fittings. It is also on their website, and you can browse every product Handrail Fittings lists on ArchiPro.
Handrail Fittings does not publish a price for the Base for Post Fixing on ArchiPro. for pricing, or visit their website.
It comes in 2 material options (AISI 304 Satin Finish, AISI 316 Satin & Mirror Finish). Pick one in the row under the description to see it.
Yes. It is part of the Balustrade and Post Mount range from Handrail Fittings, where you can see every product in the range together.
from this page, see their contact details on ArchiPro, or visit their website. The Handrail Fittings profile on ArchiPro has the rest of their products.
