AliClad Max Aluminium Weatherboard

The Building Agency

Introducing AliClad Max

Performance and aesthetics combine in a contemporary aluminium cladding system. Designed in New Zealand for local conditions.

Our tough climate calls for exterior products that can perform in all weather conditions, meet the most stringent code and standards, and bring elegance and architectural integrity.

AliClad Max, designed by The Building Agency, is a premium aluminium weatherboard system that has had every detail and feature designed, tuned and resolved. Backed by decades of local experience and international product knowledge, AliClad Max offers architects, builders and developers a robust and beautifully finished product, supported on an easy-to-install fixing system engineered to perform.

Designed for large-scale commercial projects with a residential application.

Designed for:

WEATHER-TIGHTNESS: The system has been designed in line with NZBC Acceptable Solutions. It has been tested to be compliant with E2:VM1 and NZS4284.

STRUCTURE: The AliClad Max system is designed for very high wind loadings and engineered to be fixed at maximum span distances for reduced project costs.

FIRE PROTECTION: Aluminium is non-combustible under the NZBC and the support system has a limited / non-combustible wall assembly. AliClad has been tested for full-scale system fire performance to BS8414.

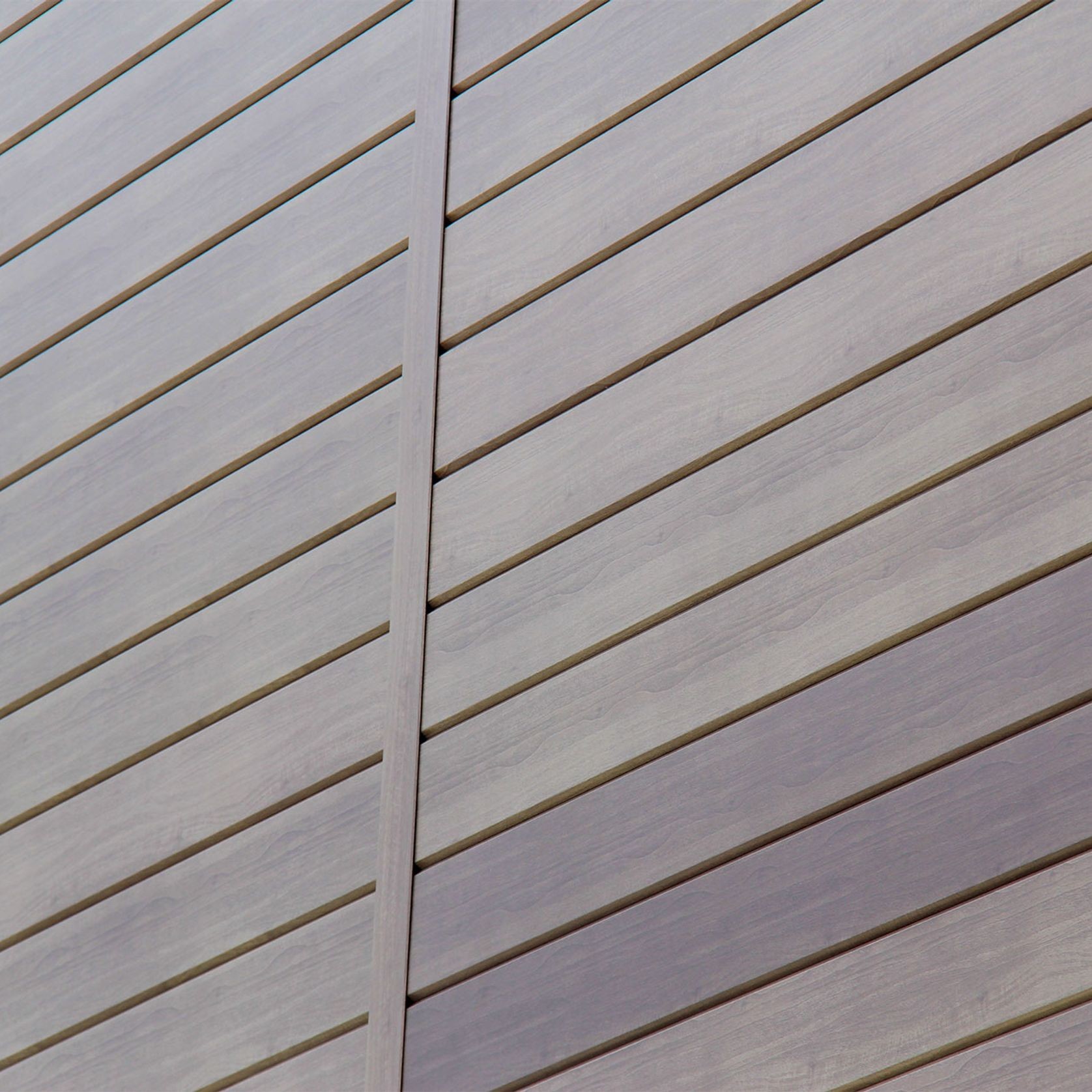

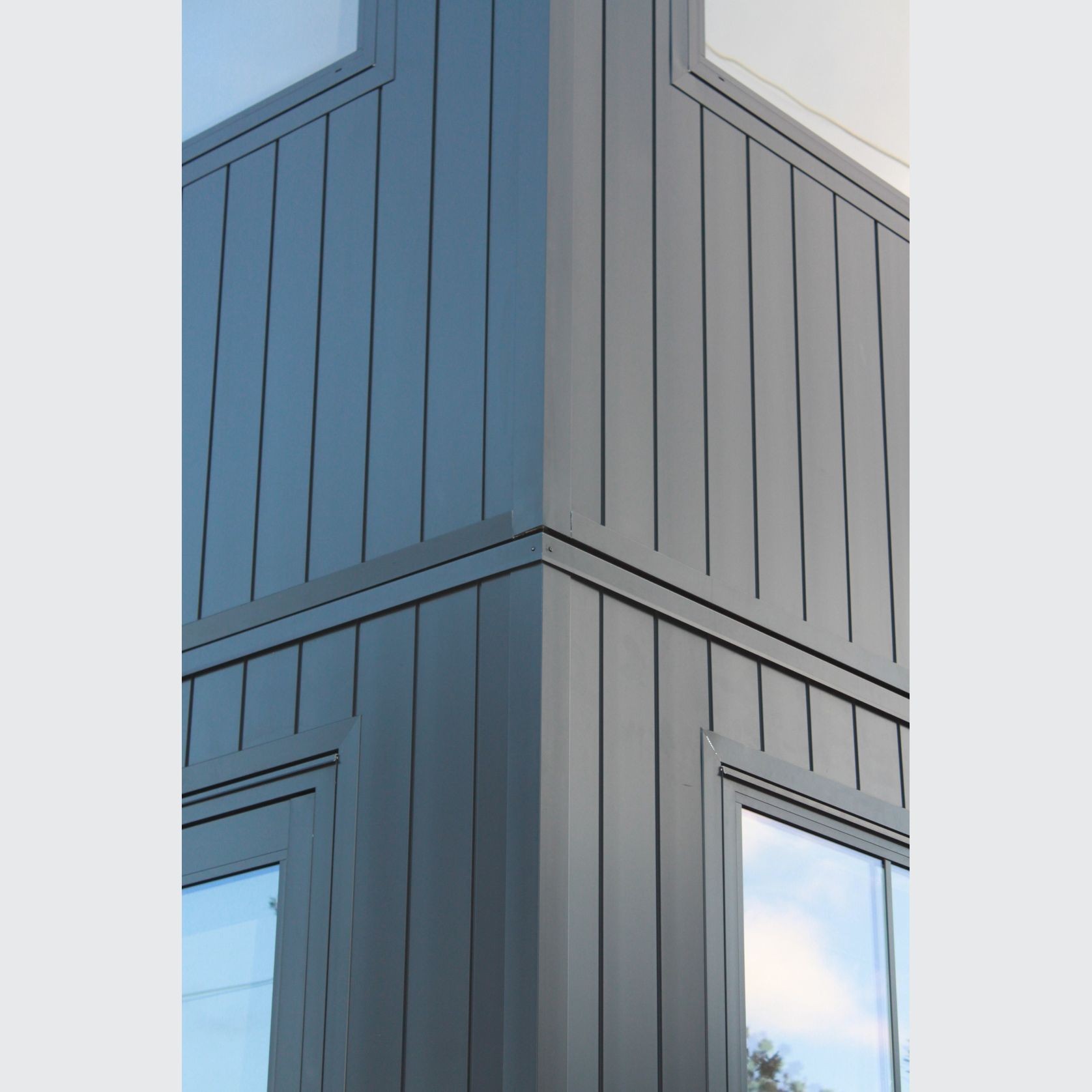

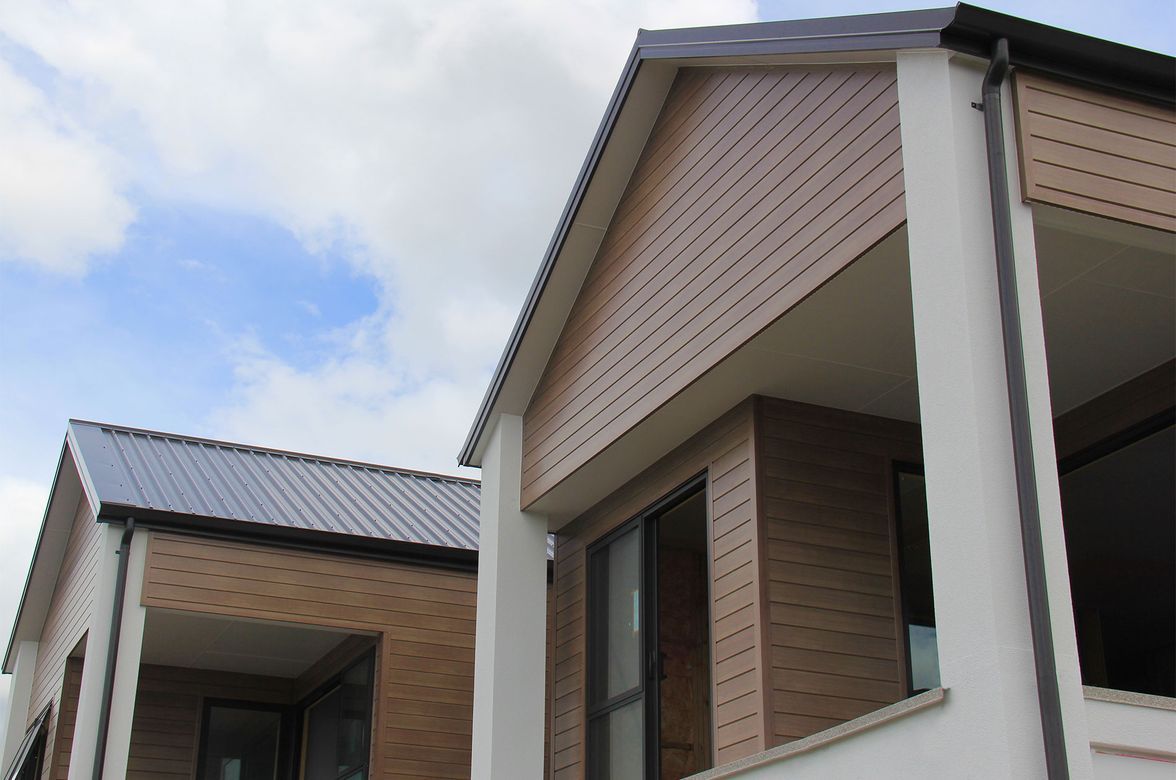

FINISH AND AESTHETICS: Flat and matt powder coat options, anodised-look paint finishes, sublimated woodgrains, and horizontal and vertical profile alignments achieve both classic and contemporary designs.

PLEASE SEE OUR WEBSITE FOR UPDATED COMPLIANCE DOWNLOADS, PDF AND DWG TYPICAL DETAILS.

Details
Specifications
  • Strength: At 2.2mm 6063T5 Aluminium Alloy with high tensile and rigidity properties, AliClad has excellent impact resistance, making it ideal for high-traffic areas such as schools. Improved rigidity over other systems comes from its depth and structure.
  • Mechanical drainage: With no tapes or sealants, AliClad Max has a truly mechanical system drainage for improved weather-tightness.
  • State-of-the-art coating: A state-of-the-art coating line provides both colour and woodgrain options, with a 20-year guarantee.
  • Coated in New Zealand: Because it is coated locally, designers can choose from an extensive range of colours and wood finishes, with reduced lead times. Custom and corporate colours are also available

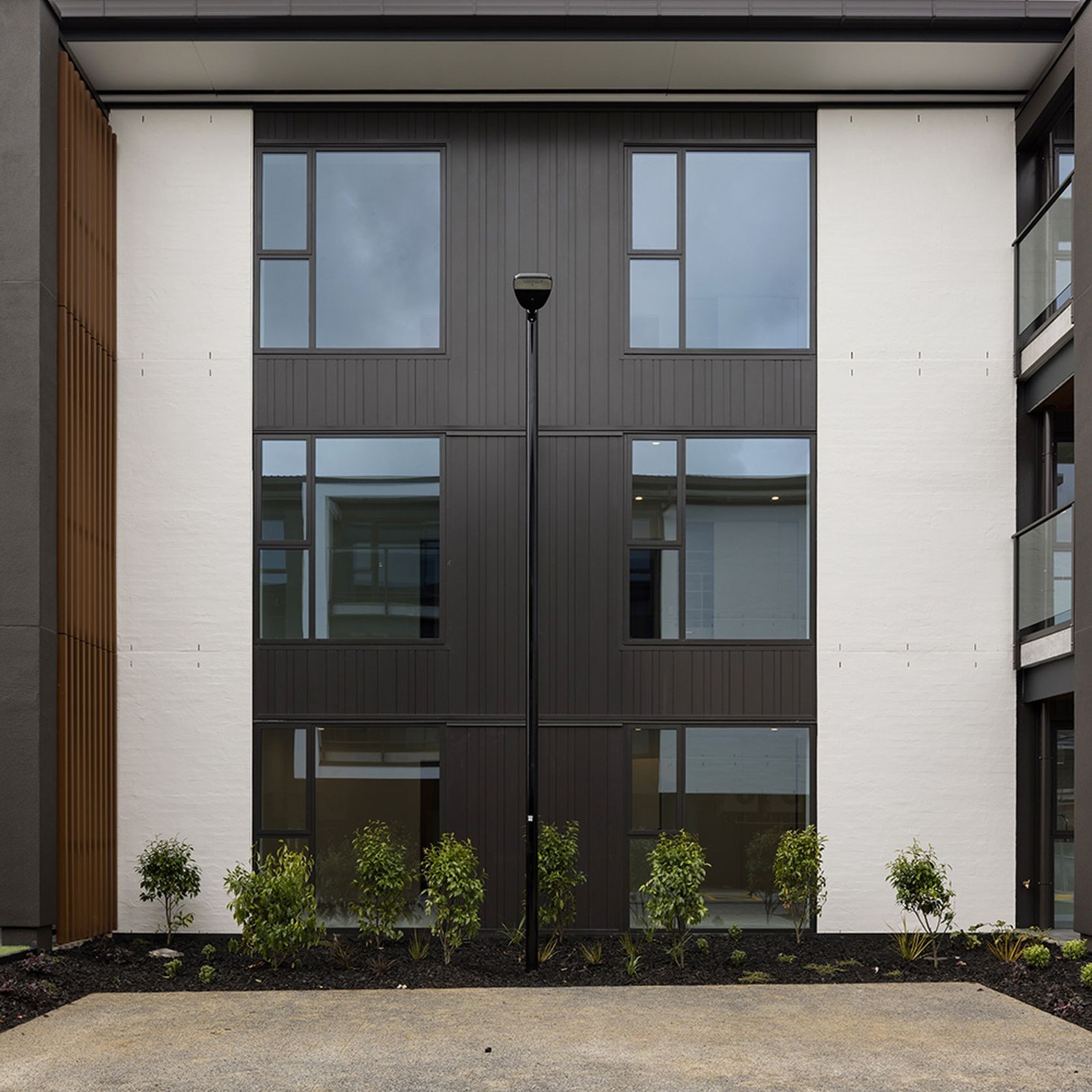

  • Designed for multi-storey: AliClad is verified with a full wall assembly test (BS8414) for buildings over 10m tall.

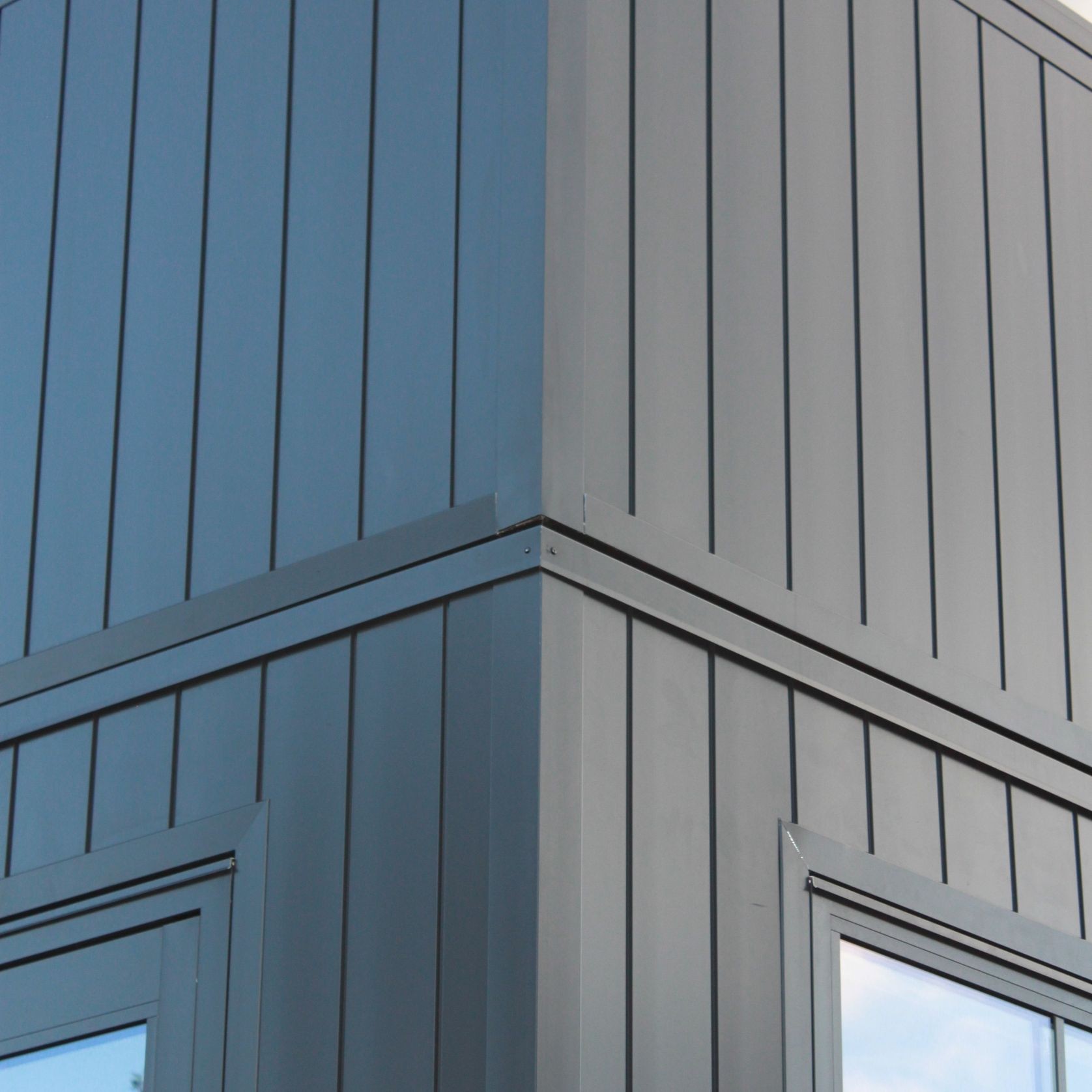

  • Flashing System: AliClad Max’s comprehensive 2-piece and multi-function extruded flashing system ensure ease of installation that does not affect the aesthetic finish.

Designed for:

  • Weather-tightness: The system has been designed in line with NZBC Acceptable Solutions and has been tested to be compliant with E2:VM1 and NZS4284.
  • Fire protection: Aluminium is non-combustible under the NZBC and the support system has a limited / non-combustible wall assembly. AliClad has been tested for full-scale system fire performance to BS8414.
  • Structure: The AliClad Max system is designed for very high wind loadings and engineered to be fixed at maximum span distances for reduced project costs.
  • Finish and aesthetics: Flat and matt powder coat options, anodised-look paint finishes, sublimated woodgrains, and horizontal and vertical profile alignments achieve both classic and contemporary designs.

SEE OUR WEBSITE FOR ALL UP-TO-DATE COMPLIANCE, INSTALLATION AND TECHNICAL DOCUMENTS.
