Arlu® (Argenta) Invisible Neo Concealed Hinge S5
by A'besco - Blinds & Awnings and Architectural Hardware
Sydney, Australia
- 115.8K profile views
- 10 saves
RevolFlush architectural style. Zero visible screws. Solo installation made simple.
Redefine Your Doors with Clean, Unbroken Lines
Imagine opening a door and seeing… nothing.
No protruding metal knuckles. No messy, exposed adjustment screws. Just clean, seamless architectural perfection where your door meets the frame.

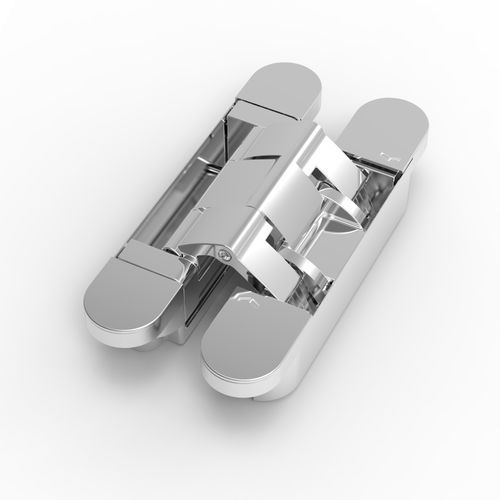

That is the magic behind the Belgian-engineered Arlu® Invisible Neo S-5.

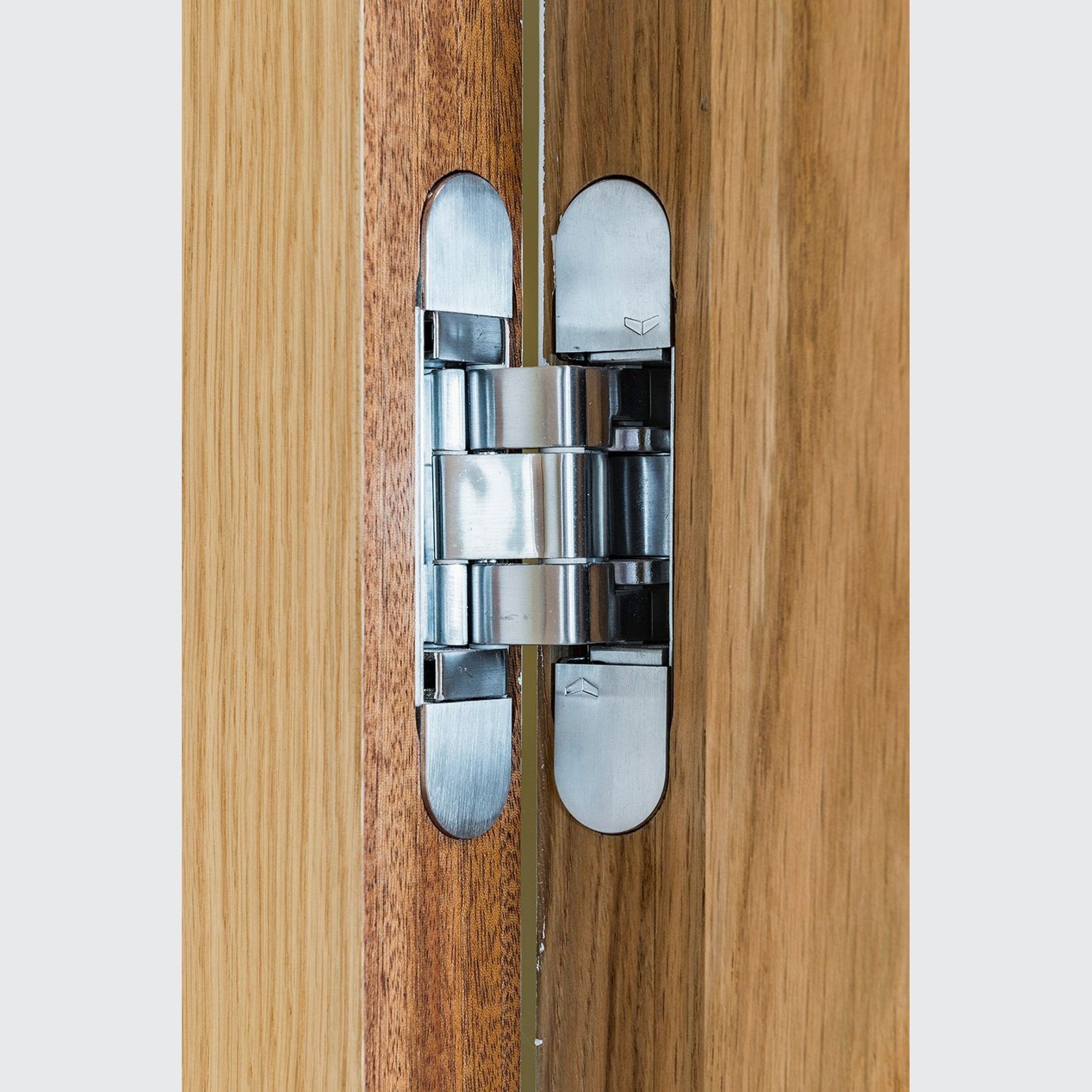

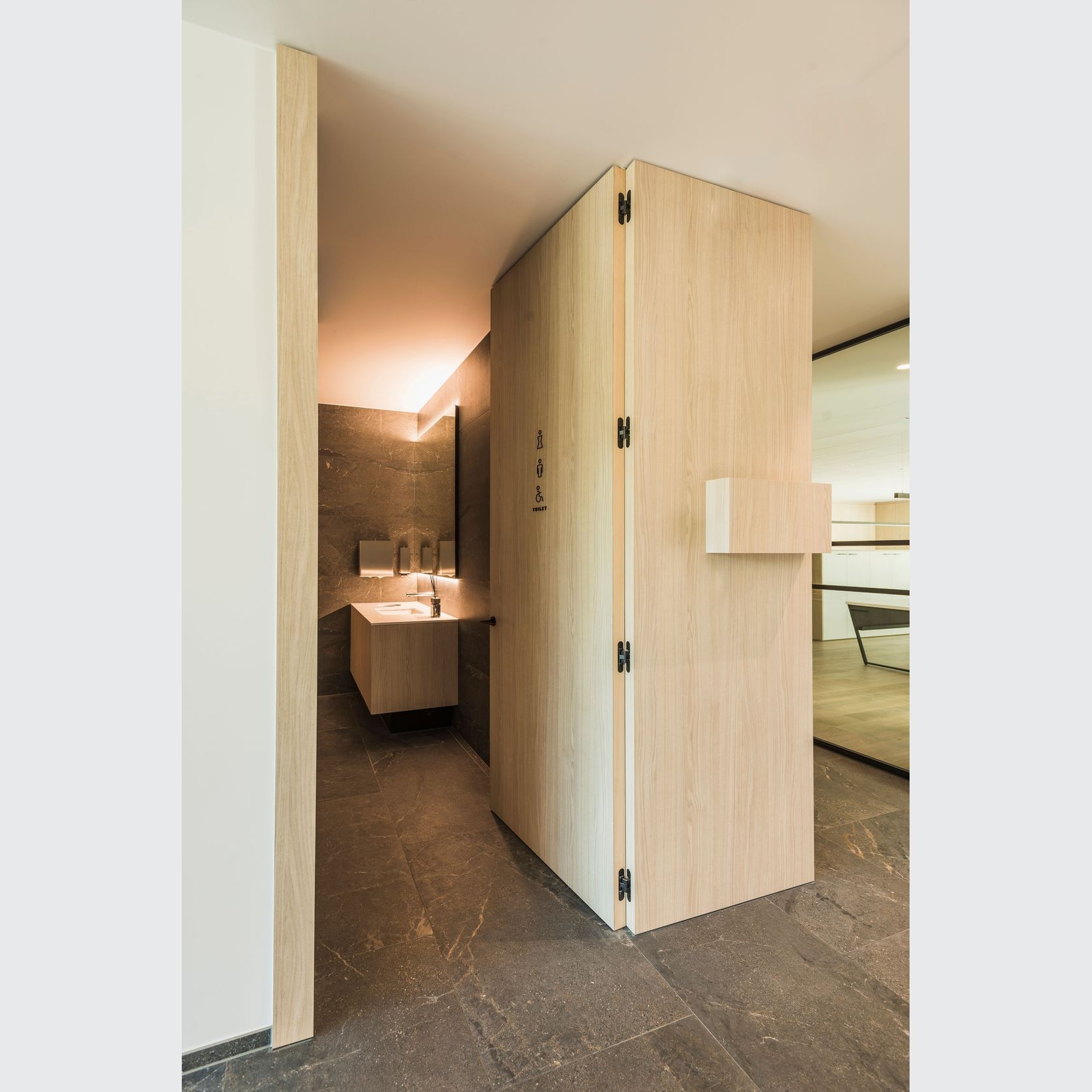

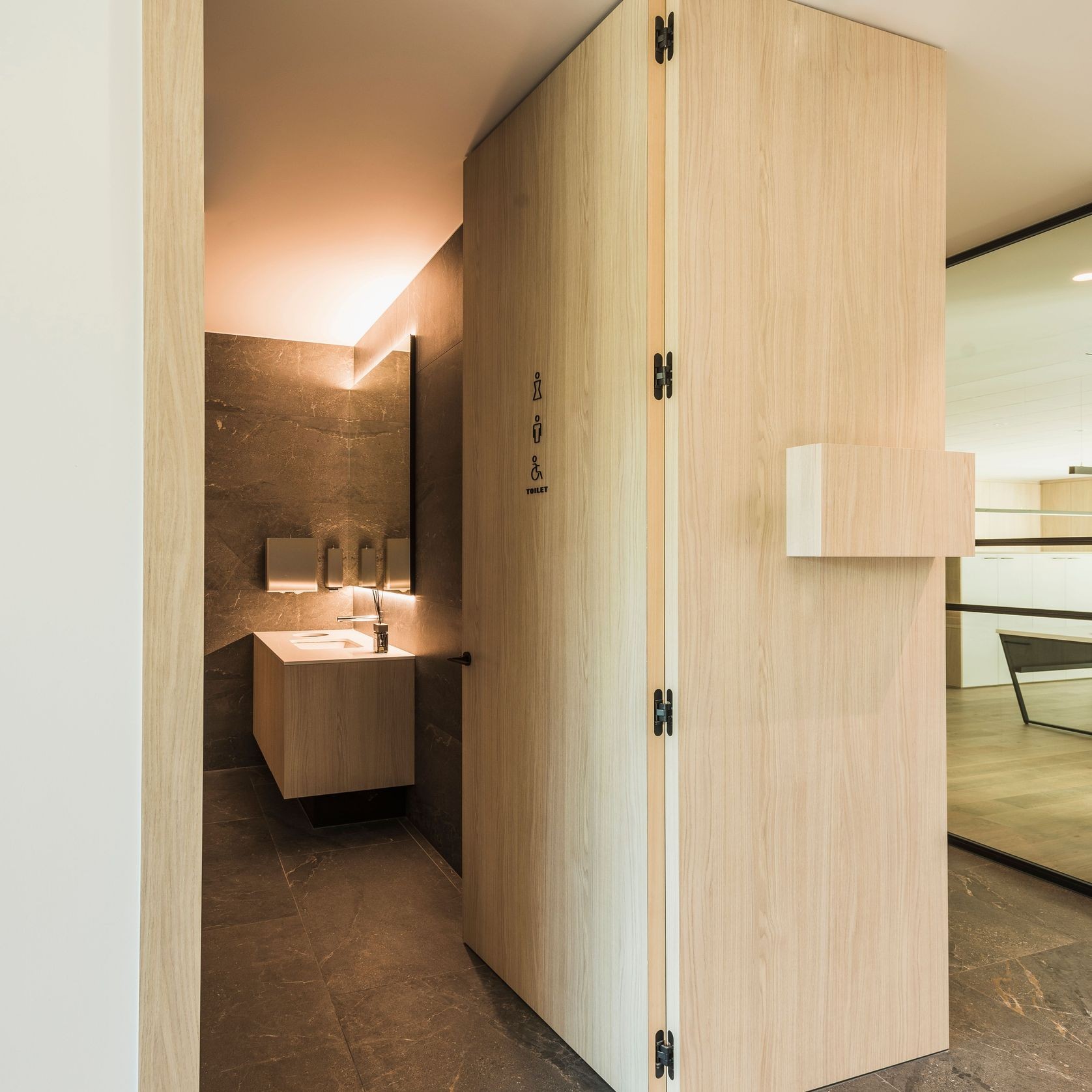

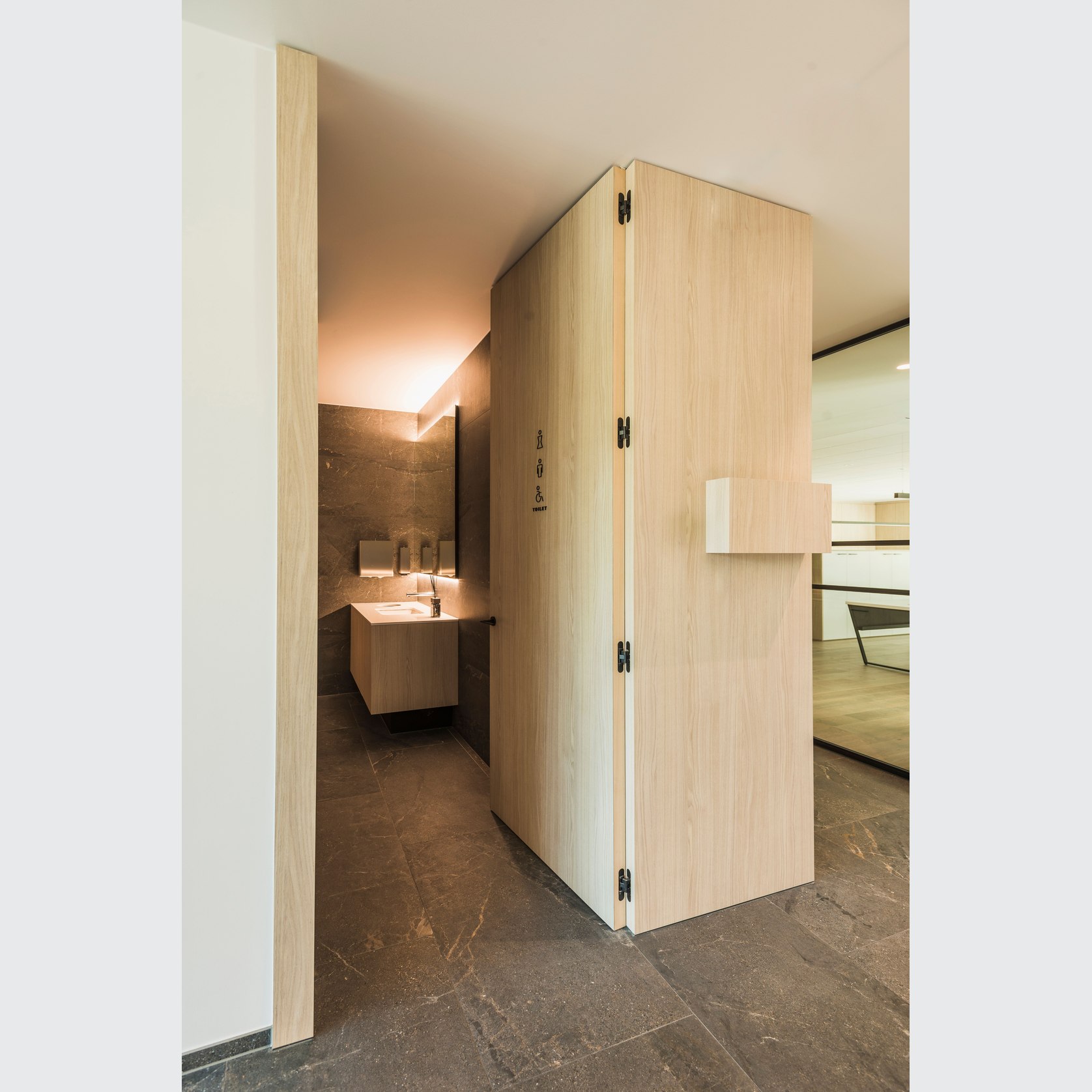

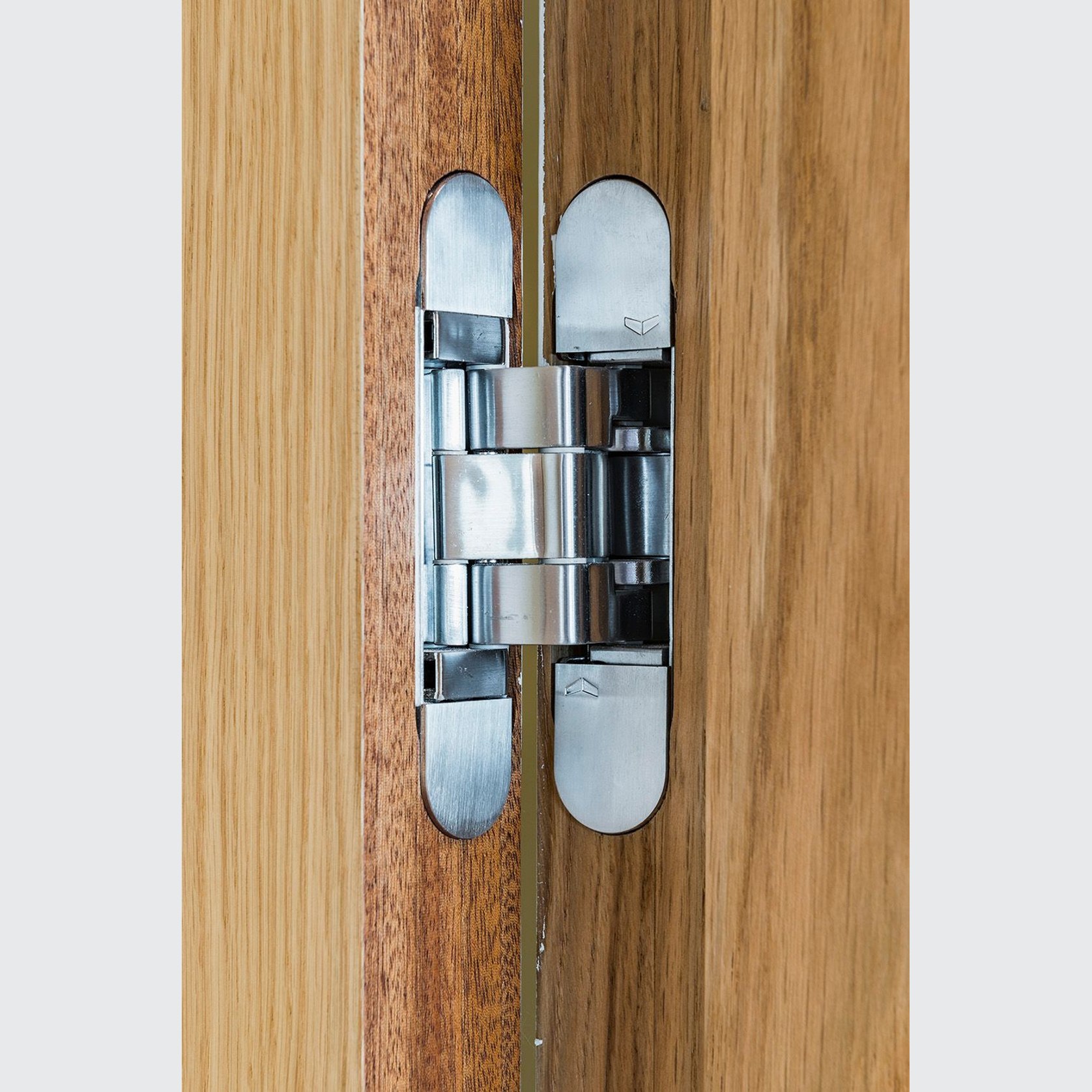

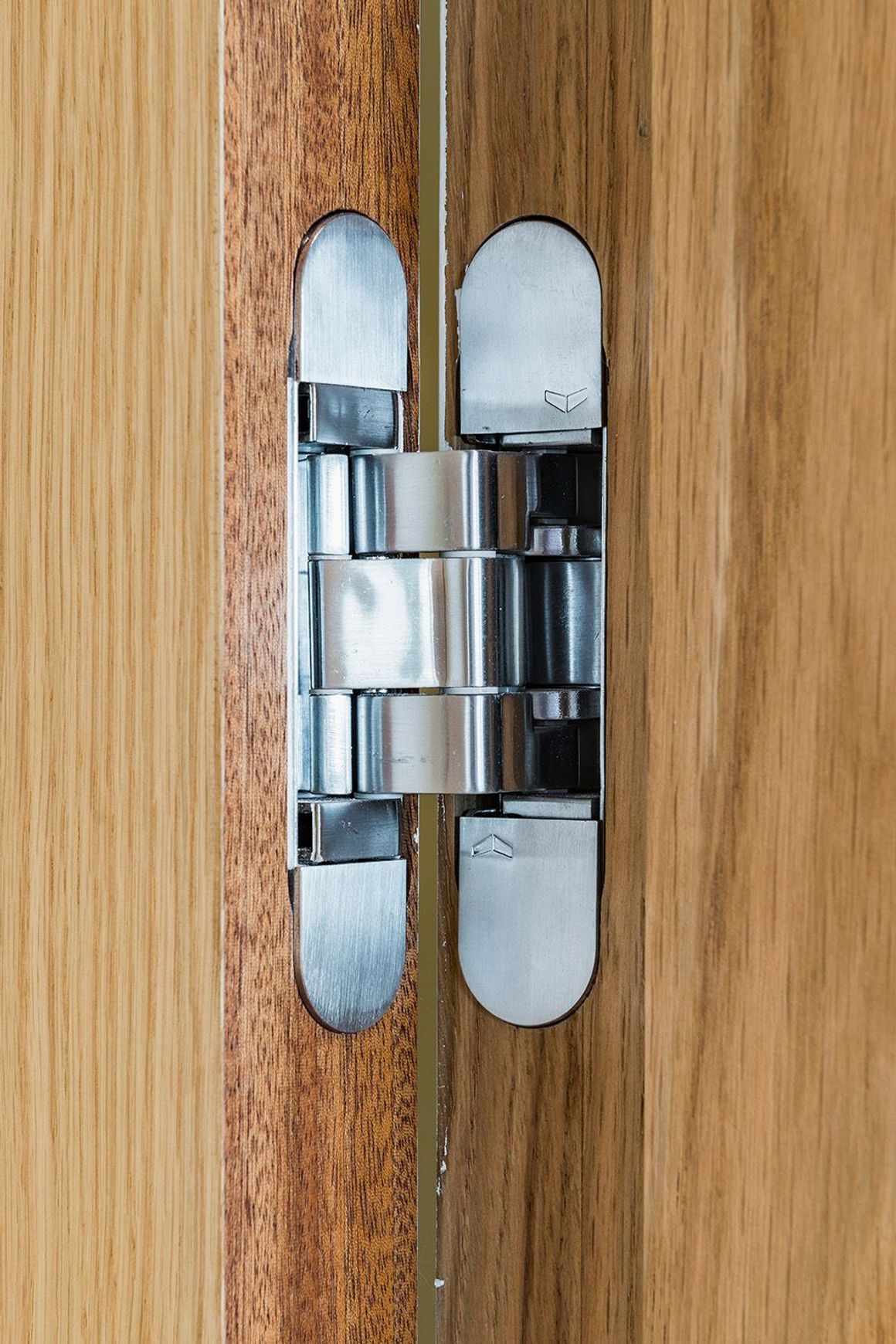

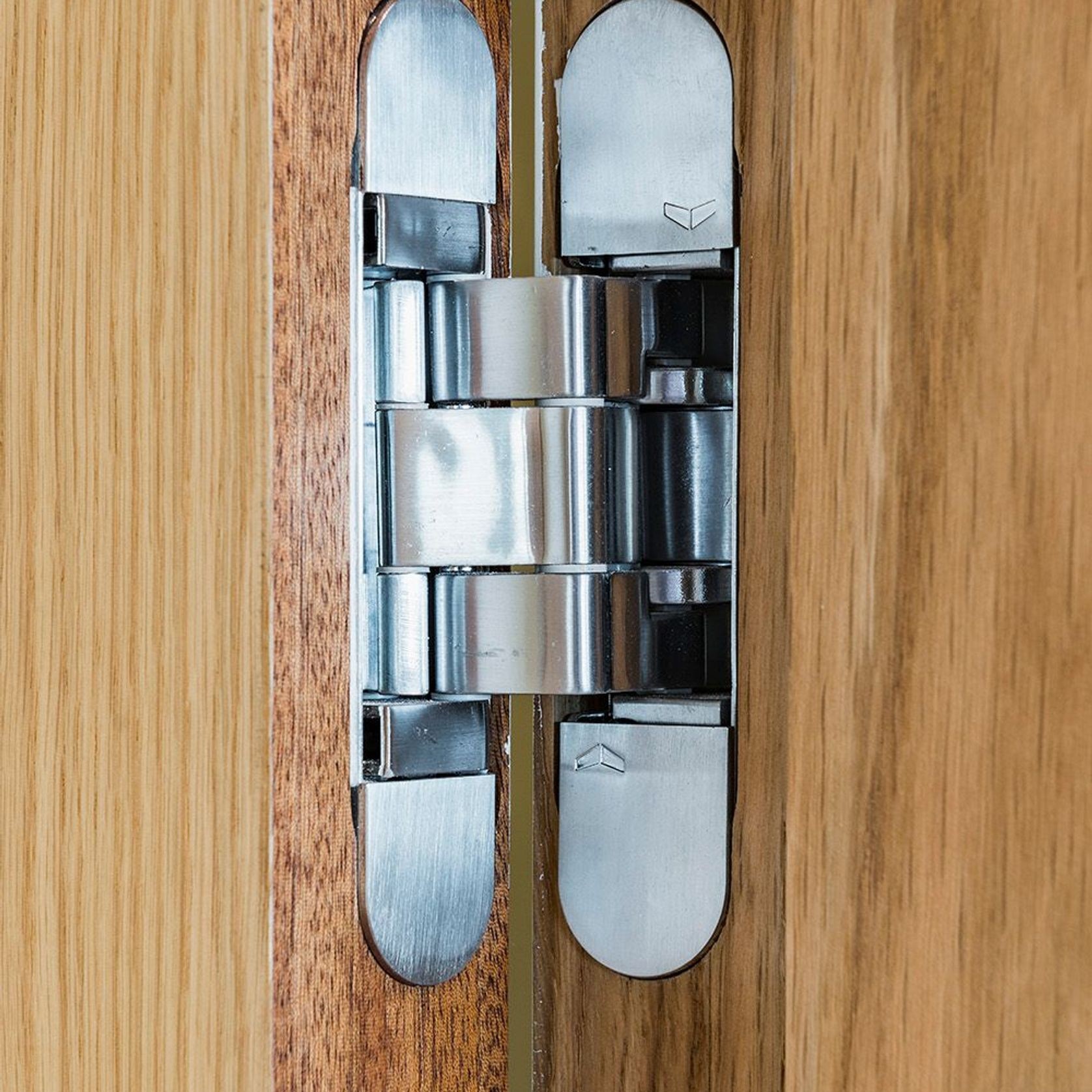

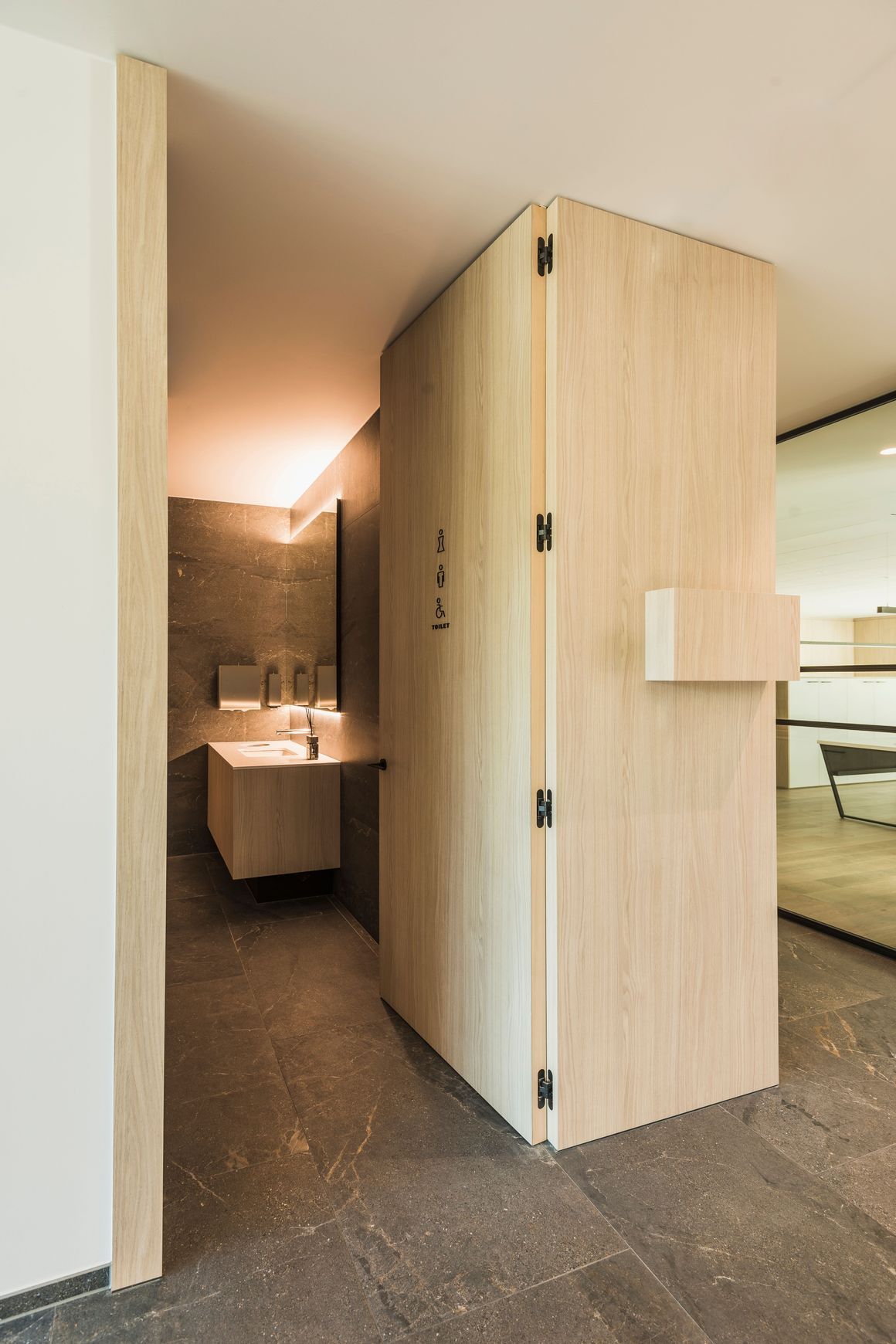

Winner of the prestigious Red Dot Design Award, the Invisible Neo S-5 allows interior doors to sit completely flush against the wall. Whether the door is closed or swung open to a full 180°, matching cover plates hide every single screw and mechanism. The result? An uninterrupted, high-end visual flow in modern residential and commercial spaces.
Installed by One Person. Adjusted in Minutes.
Let’s be honest: aligning traditional heavy concealed hinges can feel like a multi-person nightmare.
Here is where it gets clever…
Thanks to Arlu’s patented Easy-Hook® system, a single installer can hook and set the door directly into the frame—no helpers required and no wedges needed.
Once mounted, fine-tuning takes seconds. You can adjust alignment across three dimensions (height, width, and depth/pressure) using a simple Allen key, all without removing the door.
Product Details
- Product
- Arlu® (Argenta) Invisible Neo Concealed Hinge S5
- Category
- Door and Window Hinges
- Brand
- Arlu
- Country of origin
- Belgium
- Type of use
- Commercial and Residential
- Care and cleaning
- Easy maintenance
Product Variants
- Colours
A'besco - Blinds & Awnings and Architectural Hardware is specified by
RevolFlush architectural style.
Zero visible screws. Solo installation made simple.
Redefine Your Doors with Clean, Unbroken Lines
Imagine opening a door and seeing… nothing.
No protruding metal knuckles. No messy, exposed adjustment screws. Just clean, seamless architectural perfection where your door meets the frame.
That is the magic behind the Belgian-engineered Arlu® Invisible Neo S-5.
Winner of the prestigious Red Dot Design Award, the Invisible Neo S-5 allows interior doors to sit completely flush against the wall. Whether the door is closed or swung open to a full 180°, matching cover plates hide every single screw and mechanism. The result? An uninterrupted, high-end visual flow in modern residential and commercial spaces.
Installed by One Person. Adjusted in Minutes.
Let’s be honest: aligning traditional heavy concealed hinges can feel like a multi-person nightmare.
Here is where it gets clever…
Thanks to Arlu’s patented Easy-Hook® system, a single installer can hook and set the door directly into the frame—no helpers required and no wedges needed.
Once mounted, fine-tuning takes seconds. You can adjust alignment across three dimensions (height, width, and depth/pressure) using a simple Allen key, all without removing the door.
- Pricing
- From $125 *Price indication
- Installation
- Professional installation recommended, Tools required
- Specs
- Material: High-grade Zamak alloy
- Hinge Dimensions (L × W): 120 × 25mm
- Min Door Thickness: 33mm (35mm with max 5mm front panel/cladding)
- Opening Angle: 180°
- Load Capacity (2 Hinges): Up to 75kg (730mm door width) / 45kg (1230mm width)
- Load Capacity (3 Hinges): Up to 95kg (730mm door width) / 65kg (1230mm width)
- Load Capacity (4 Hinges): Up to 110kg (730mm door width) / 80kg (1230mm width)
- 3D Adjustability: Height: -2.5 / +2.5mm | Width: -3.0 / +4.0mm | Depth: -1.0 / +1.0mm
- Durability Rating: Tested to min. 200,000 cycles (EN 1935 Grade 10)
- Fixing Screws: Max Ø4.5 mm SPAX wood screws or M4/M5 machine screws for steel frames
- Features
- Built for Safety & Fire Protection: Minimum space between the door and frame prevents pinched fingers, while optional intumescent kits provide up to 30 minutes of fire resistance (E30 certified).

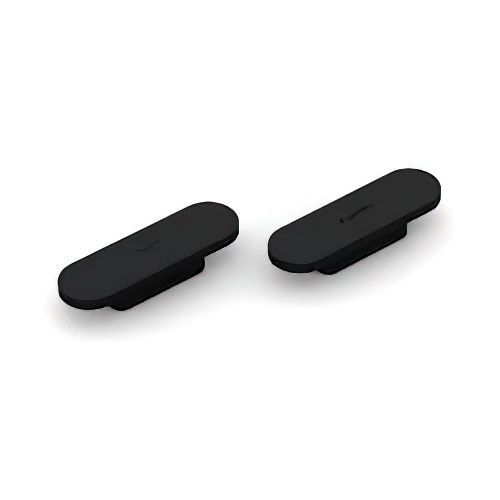

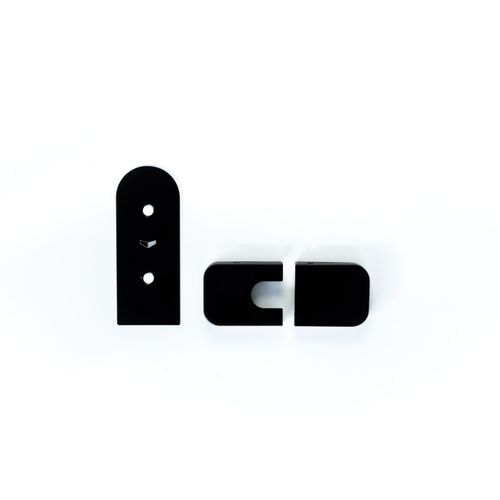

- 100% Invisible Screws: Matching cover plates conceal all fastening hardware, even when open.
- 180° Opening Angle: Enjoy wide, smooth clearance with zero obstruction.
- Universal Compatibility: Reversible design works effortlessly on left- or right-opening doors.
- Zero-Maintenance Design: Fitted with self-lubricating argentalon® bearings so you never deal with squeaks or grease messes.
Downloads
Downloads (4)4 Direct downloads • 5 Available on request
Frequently asked questions about
Arlu® (Argenta) Invisible Neo Concealed Hinge S5
The Arlu® (Argenta) Invisible Neo Concealed Hinge S5 is supplied by A'besco - Blinds & Awnings and Architectural Hardware. It is also on their website, and you can browse every product A'besco - Blinds & Awnings and Architectural Hardware lists on ArchiPro.
A'besco - Blinds & Awnings and Architectural Hardware lists the Arlu® (Argenta) Invisible Neo Concealed Hinge S5 from $125, as a price indication. For an exact price for your project, .

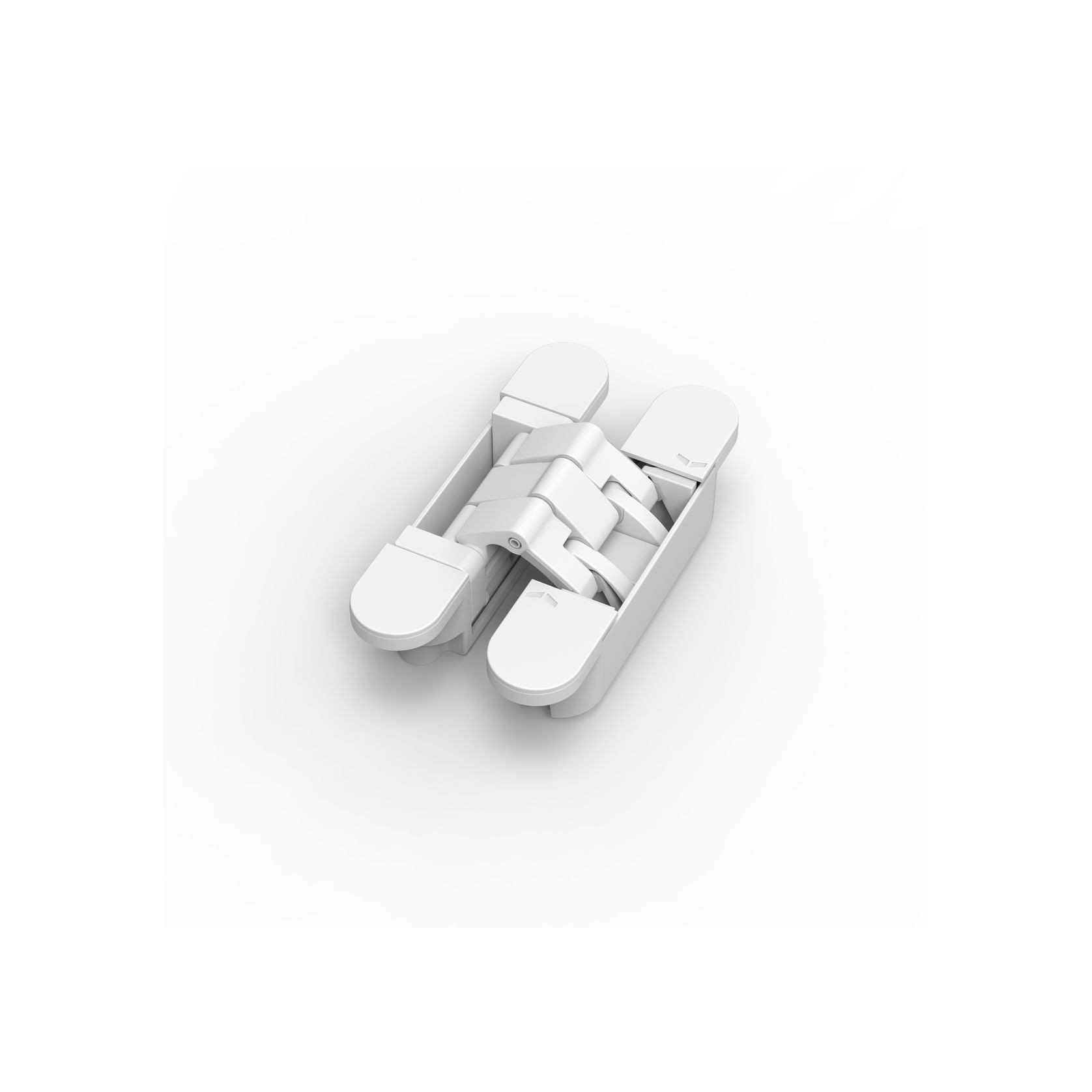

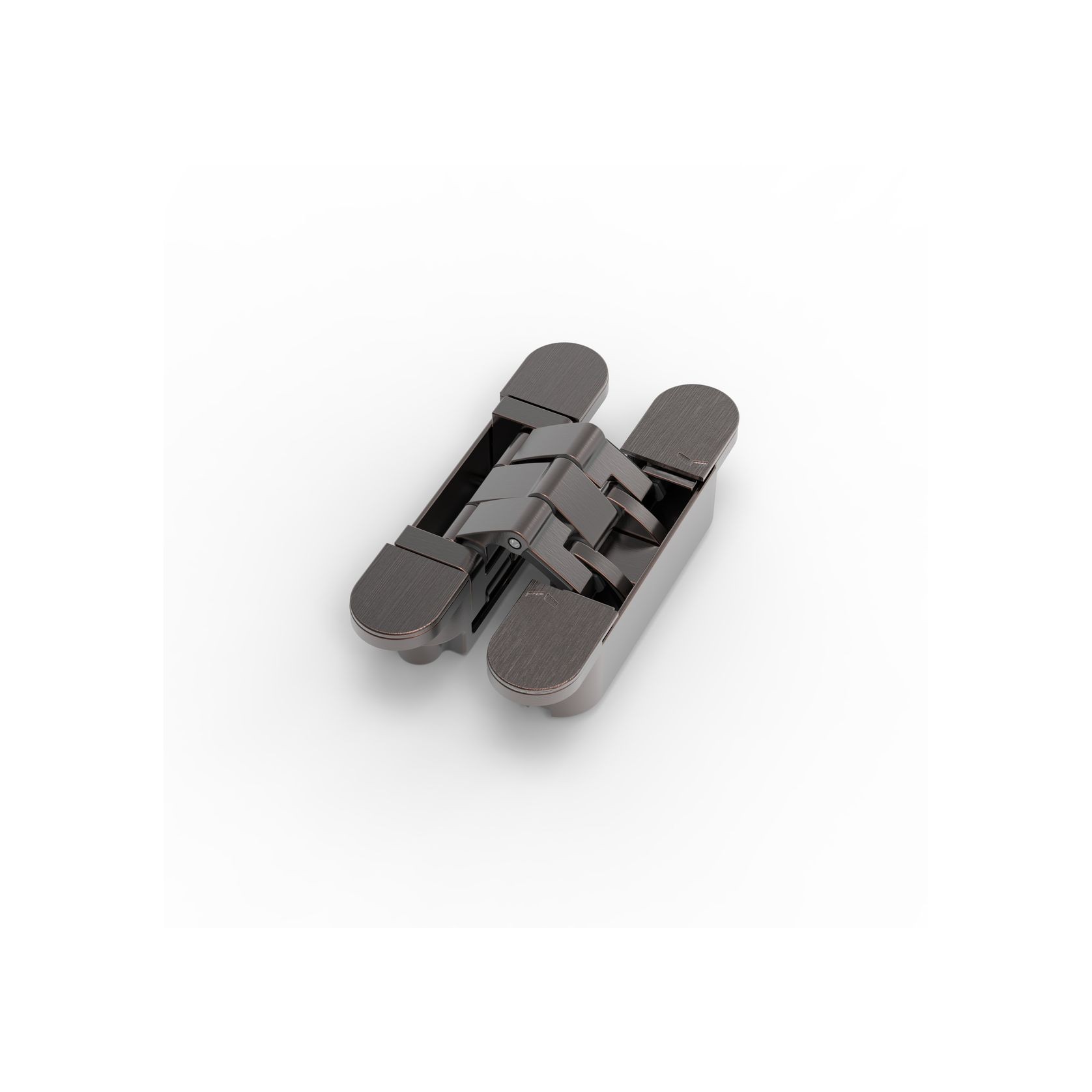

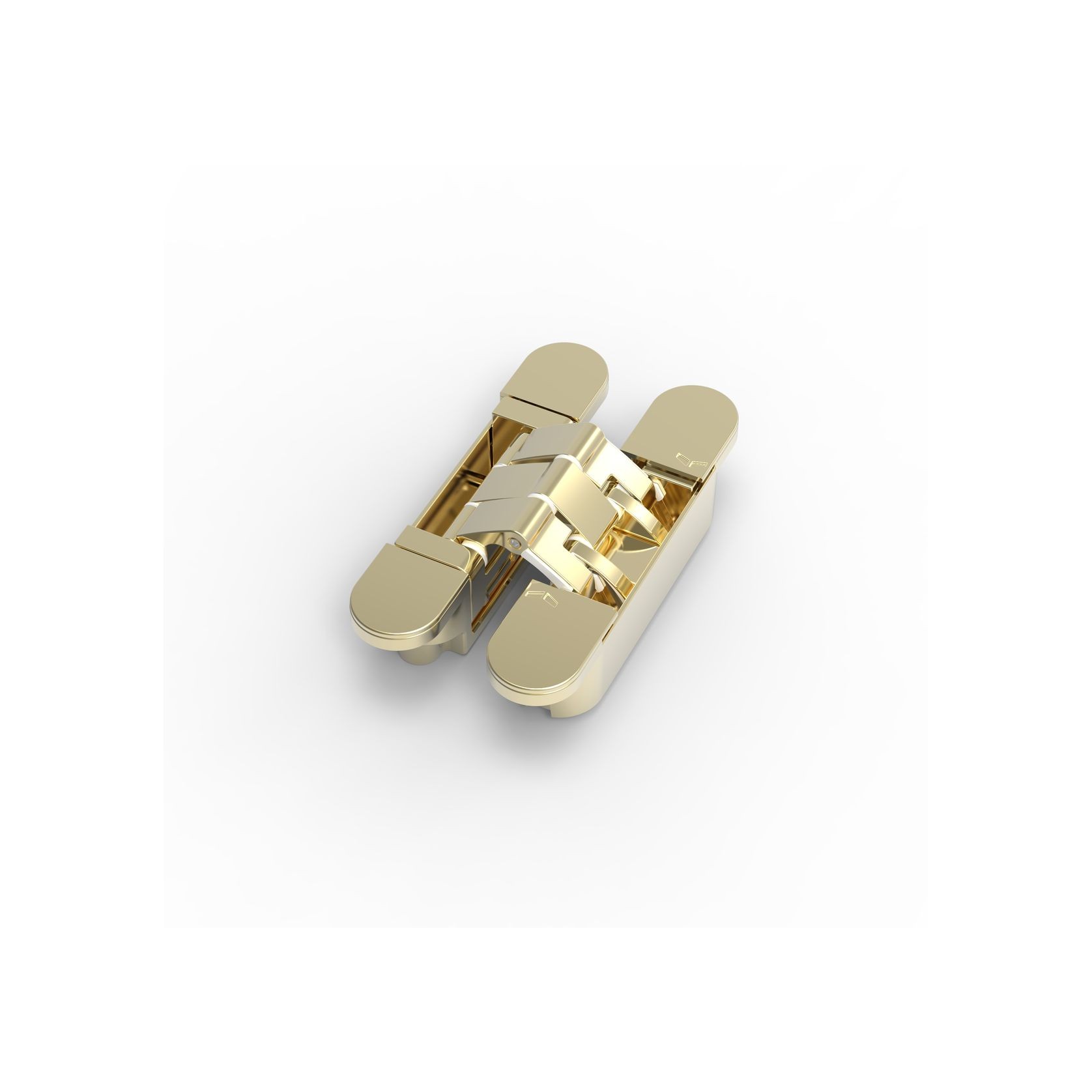

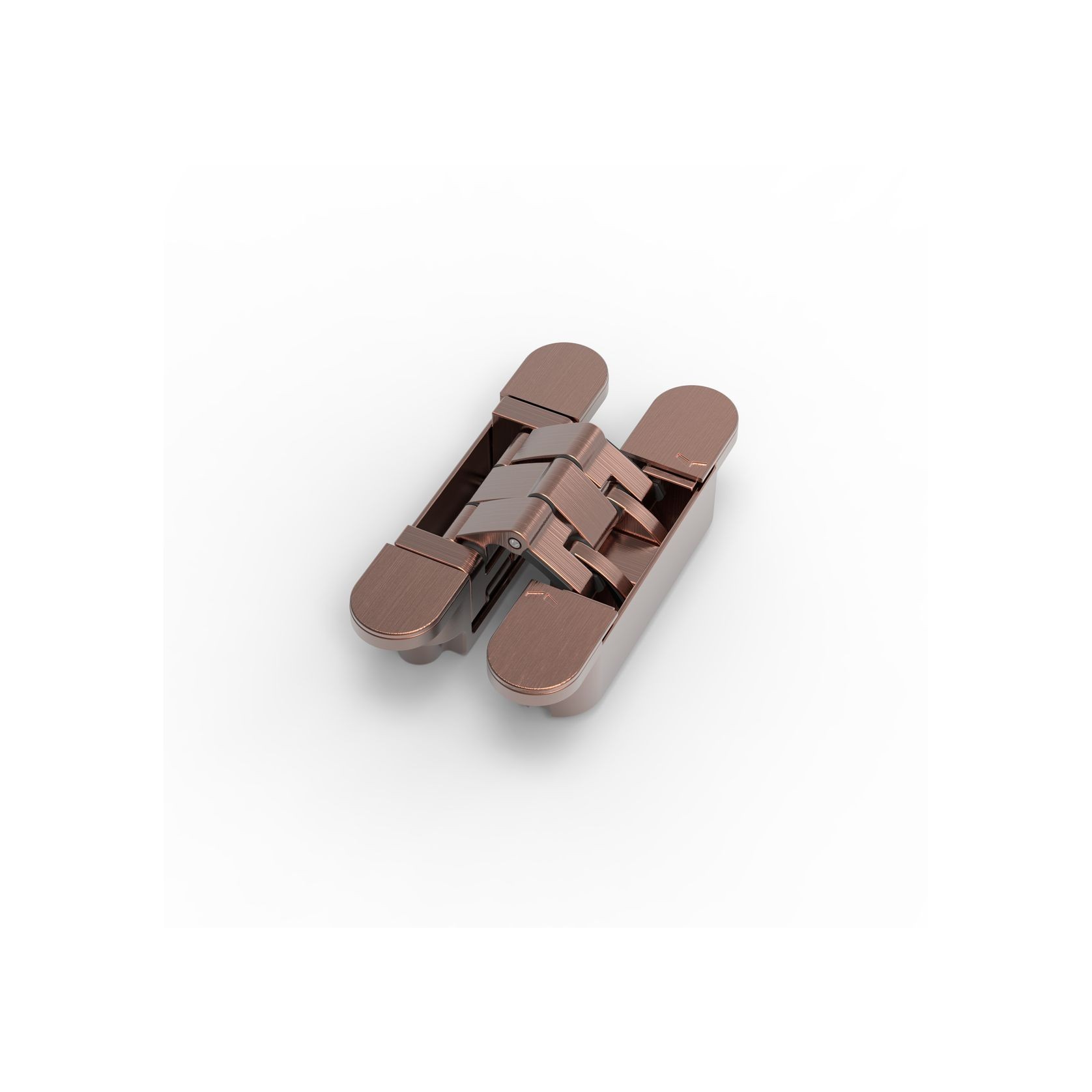

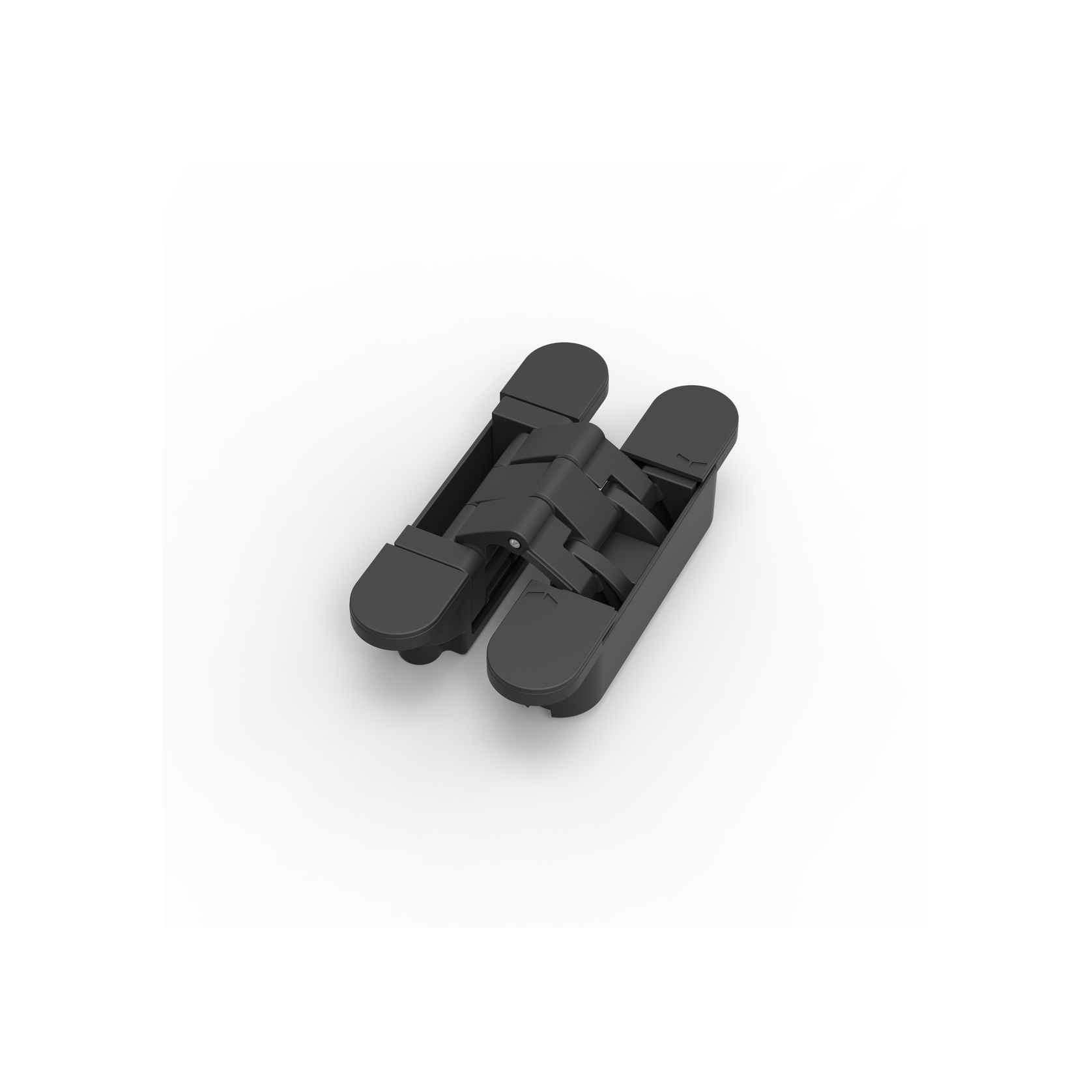

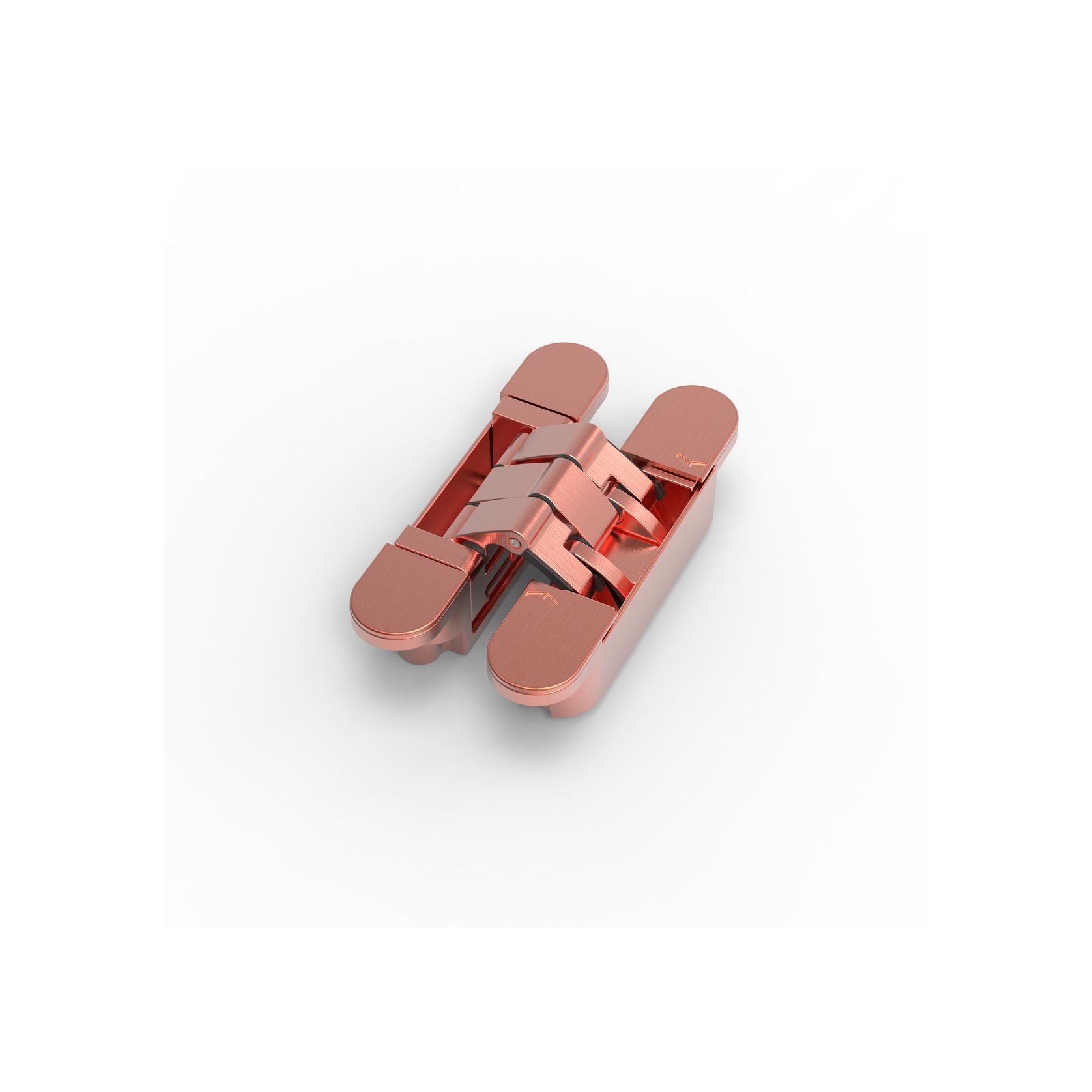

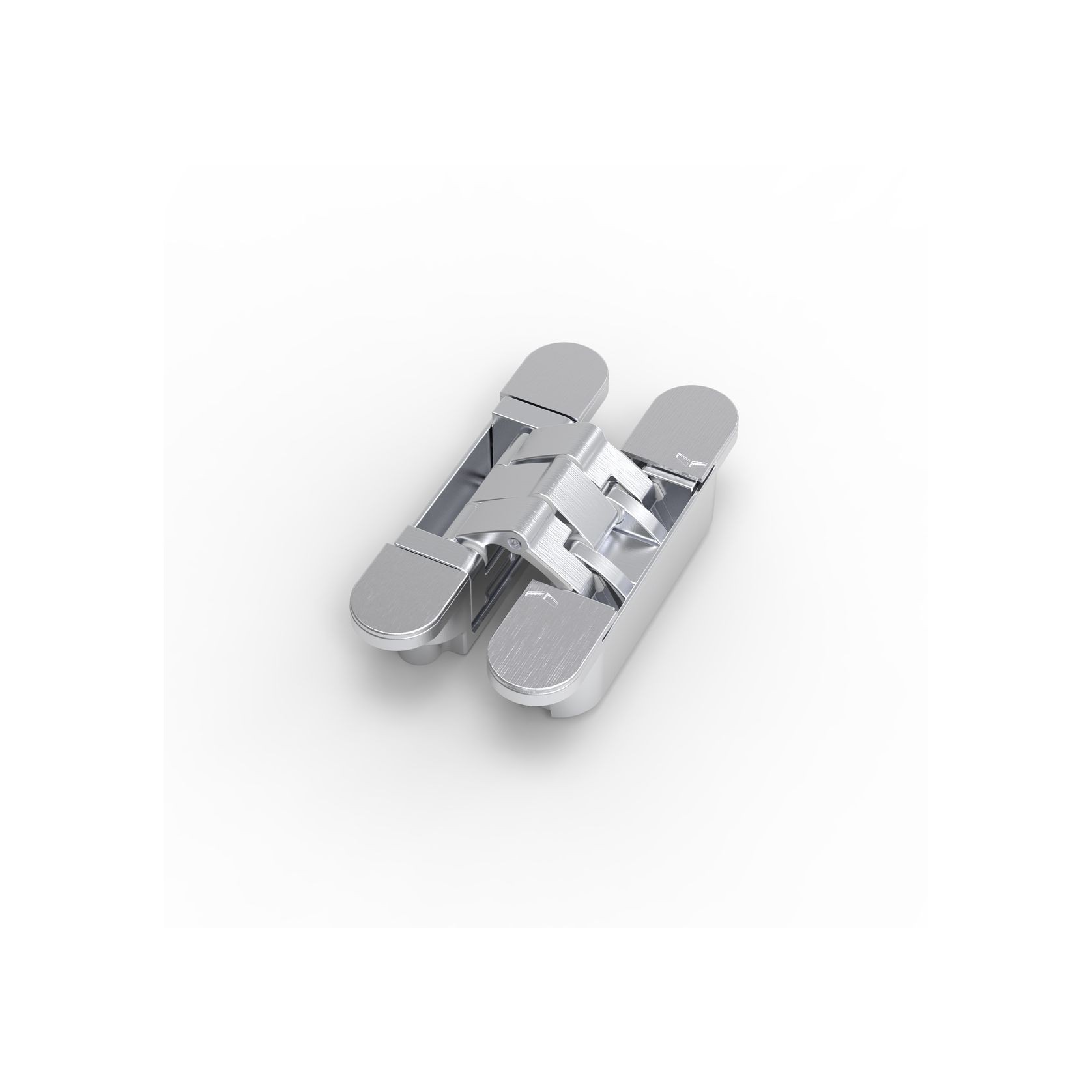

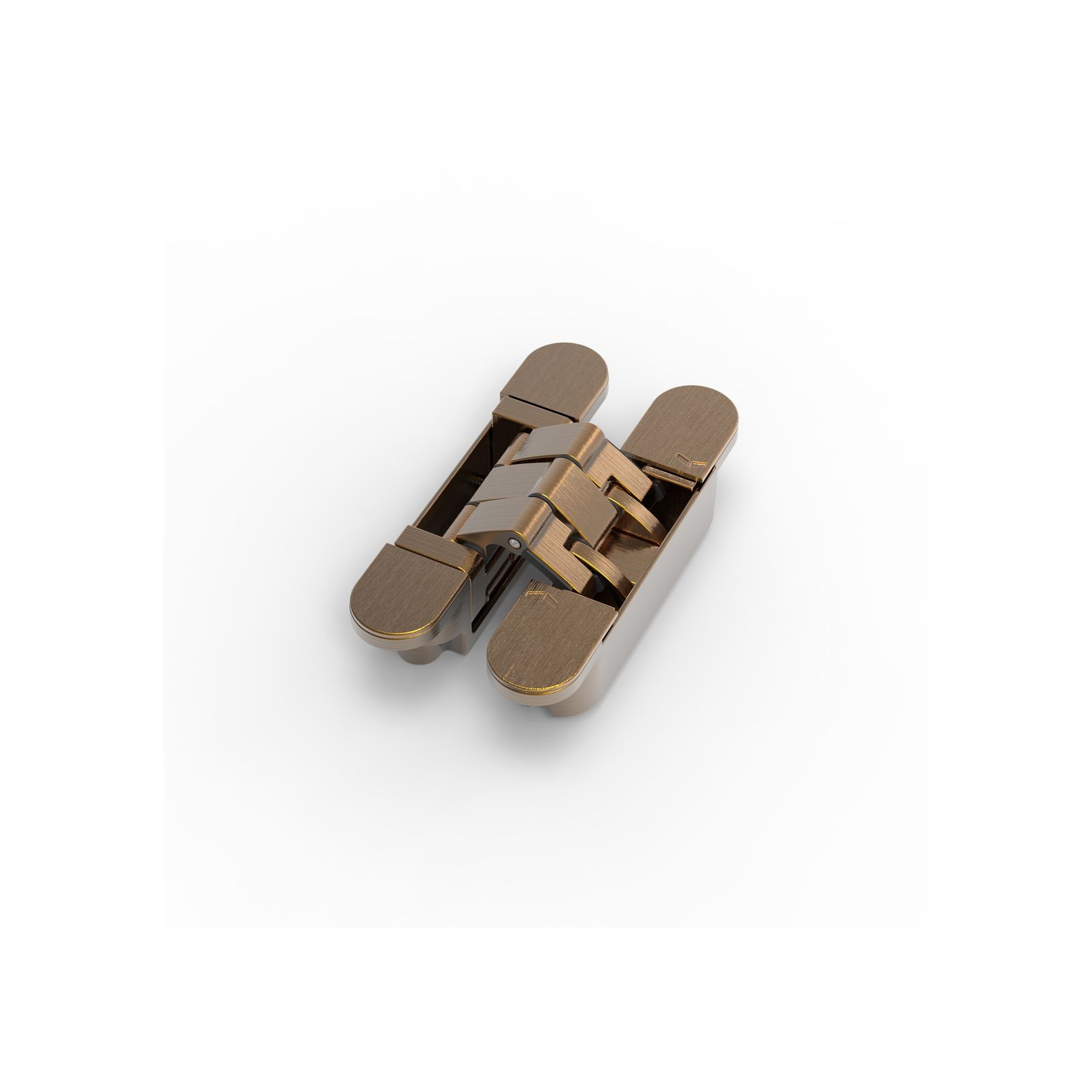

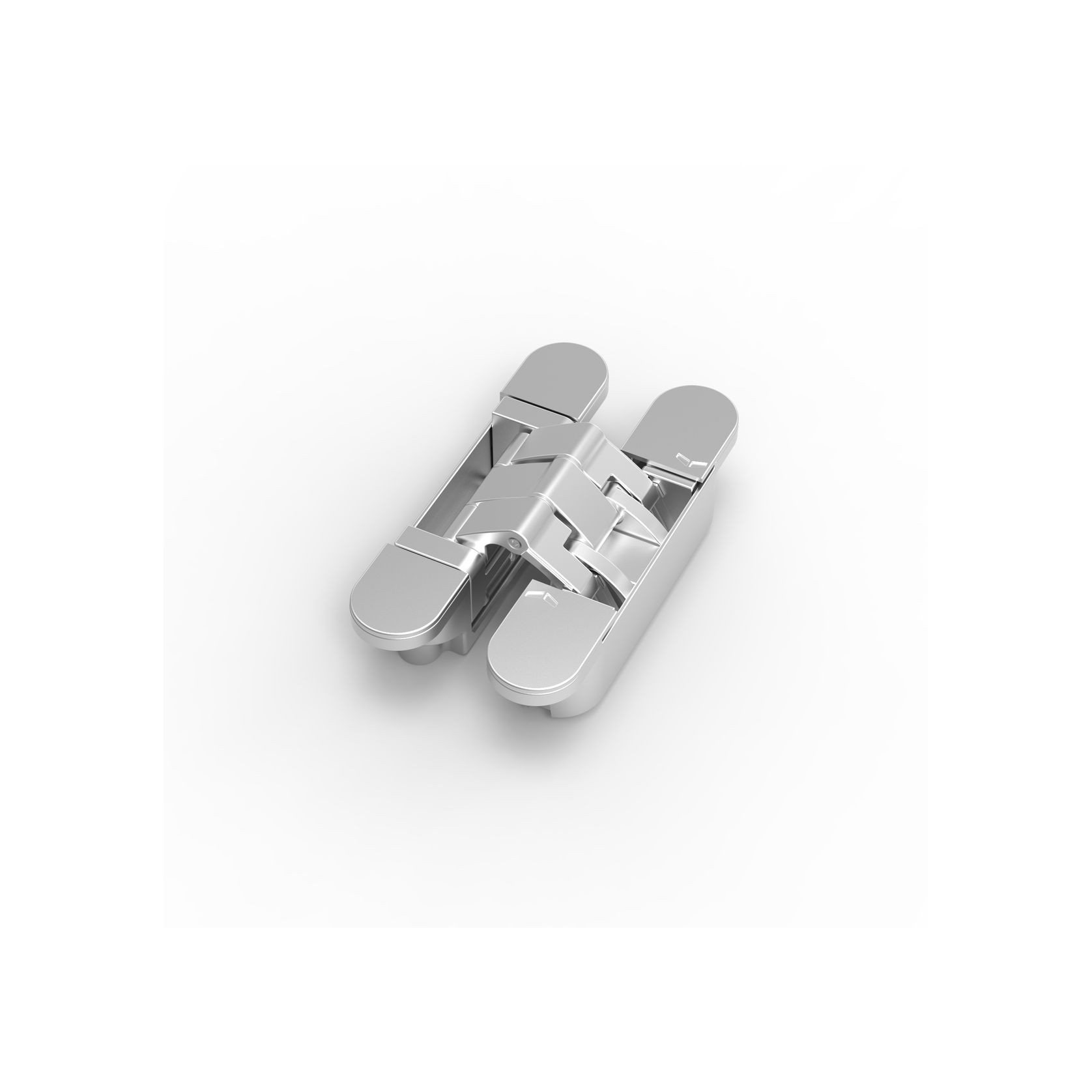

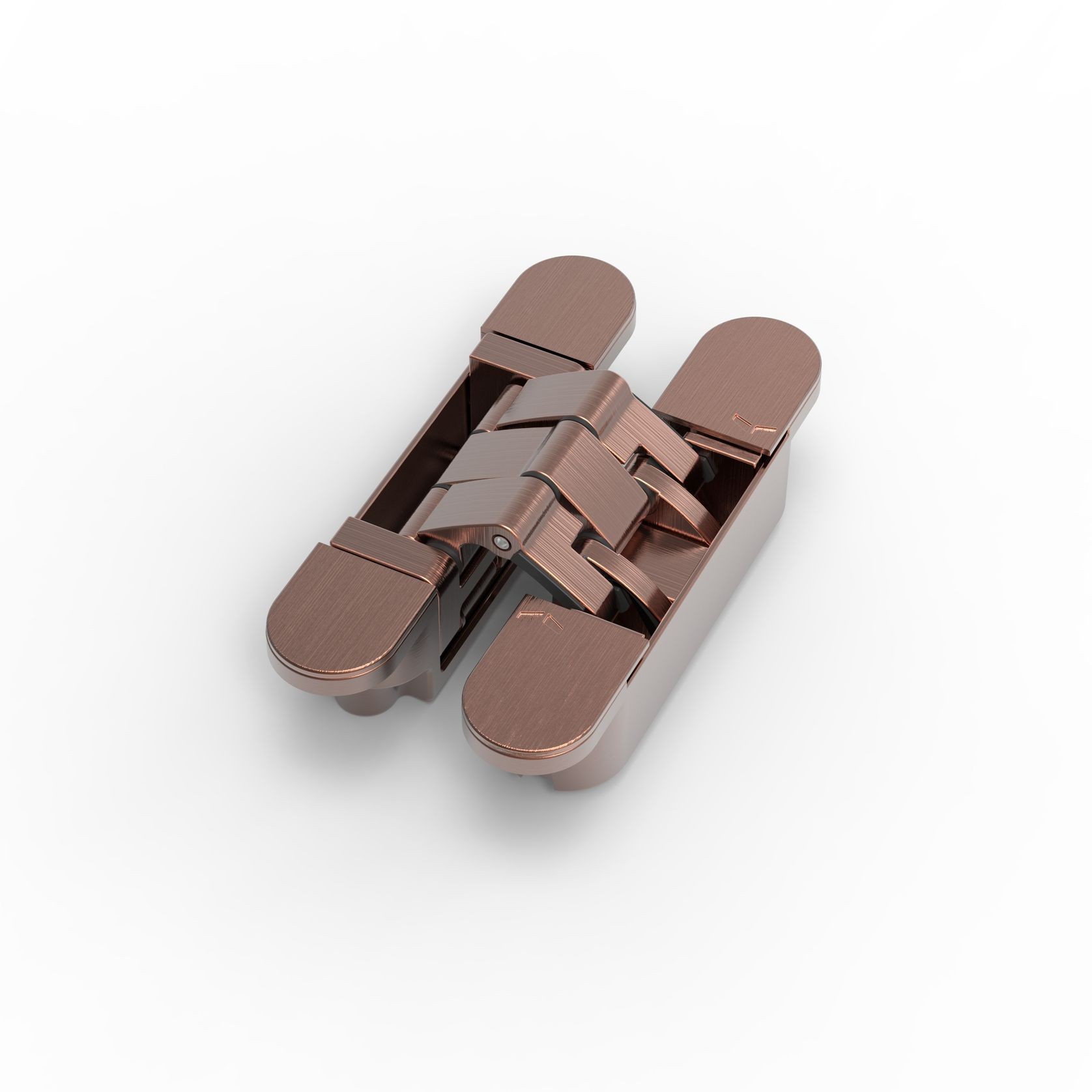

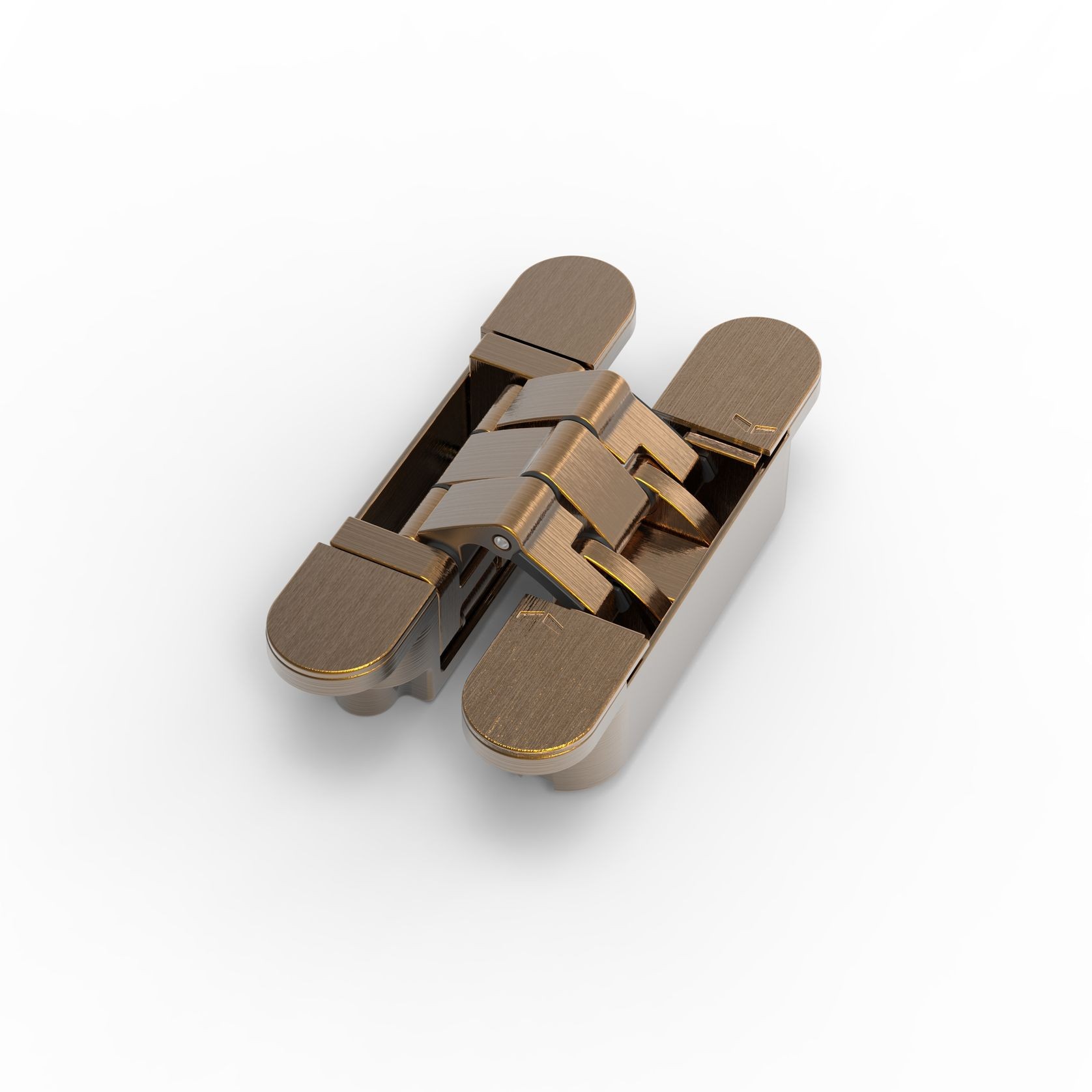

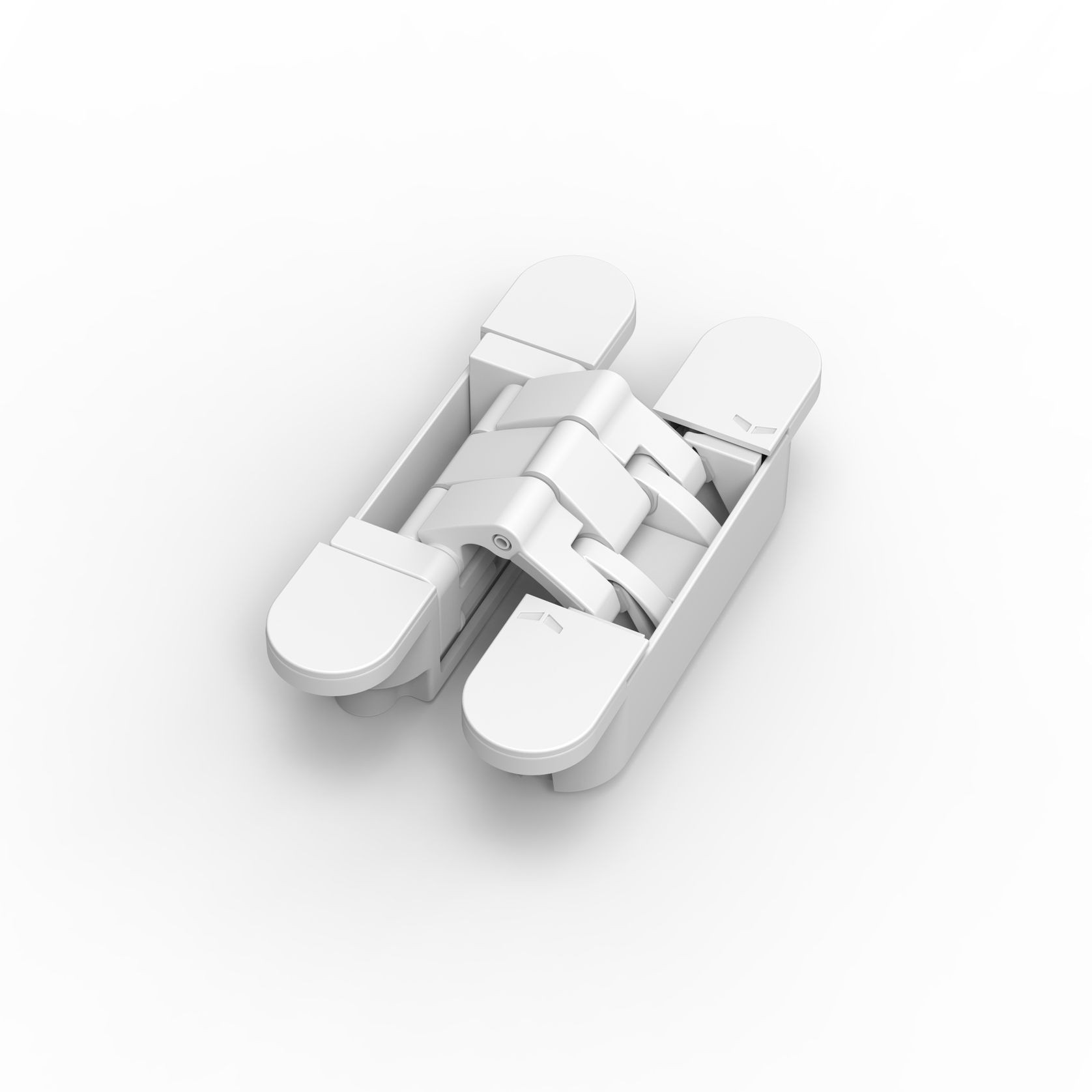

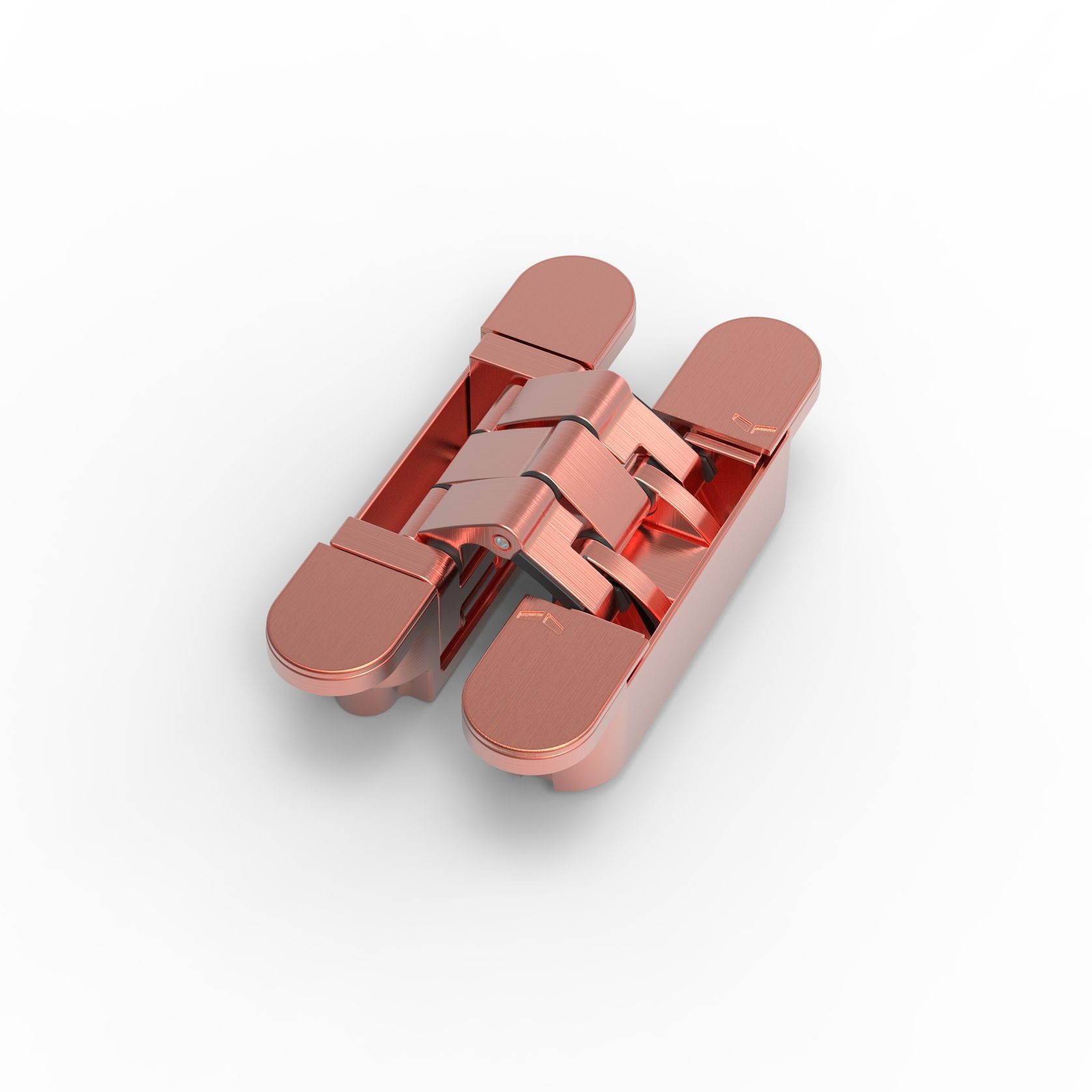

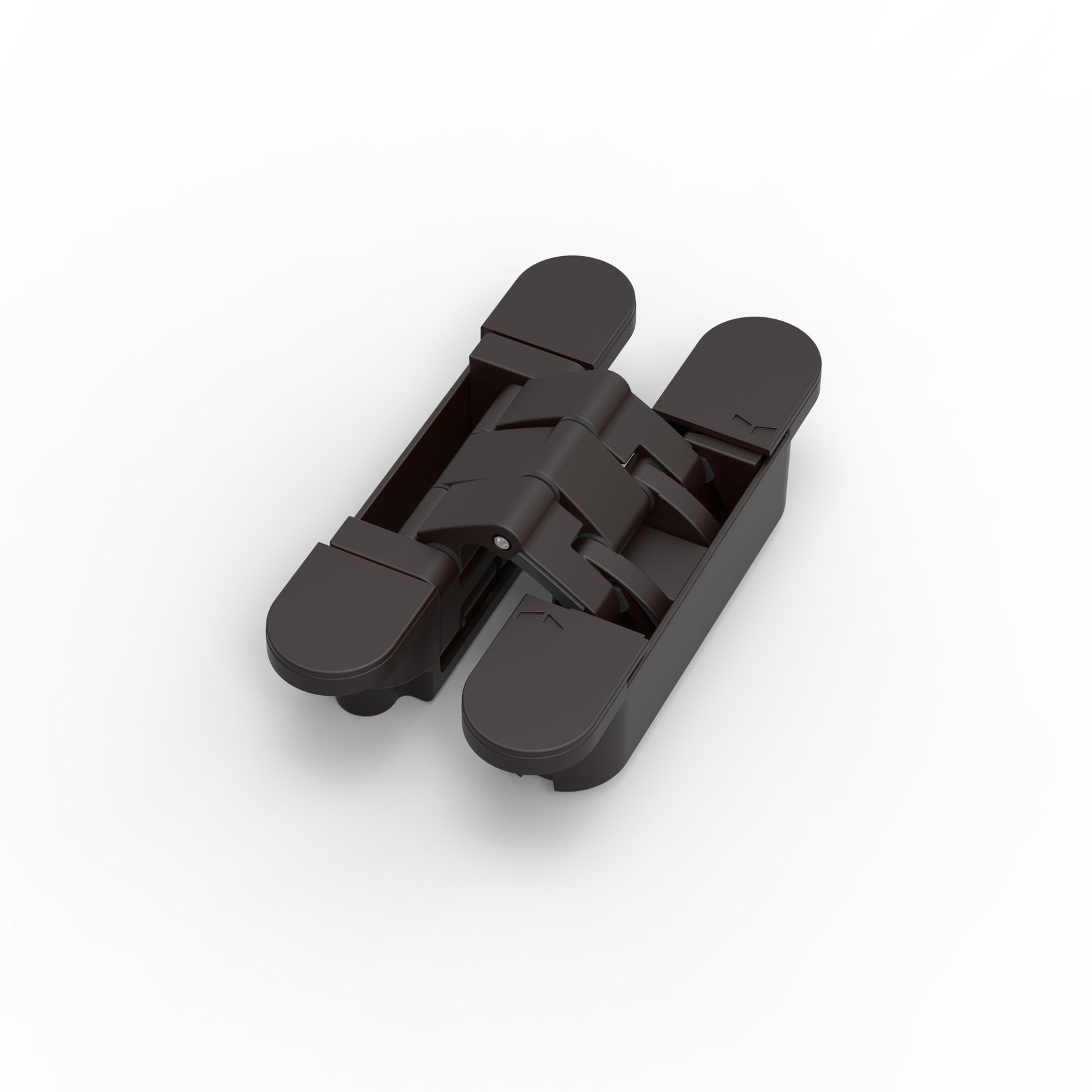

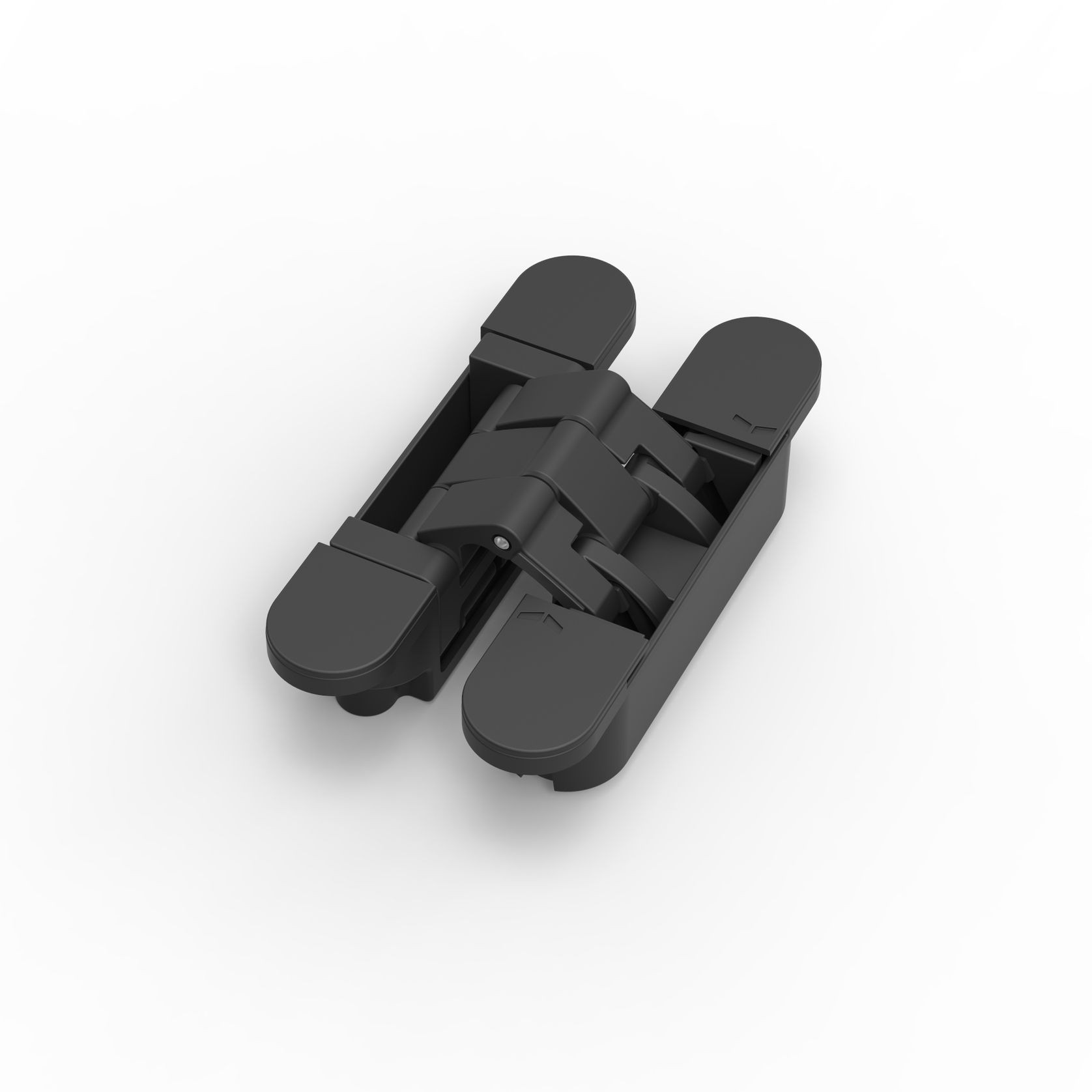

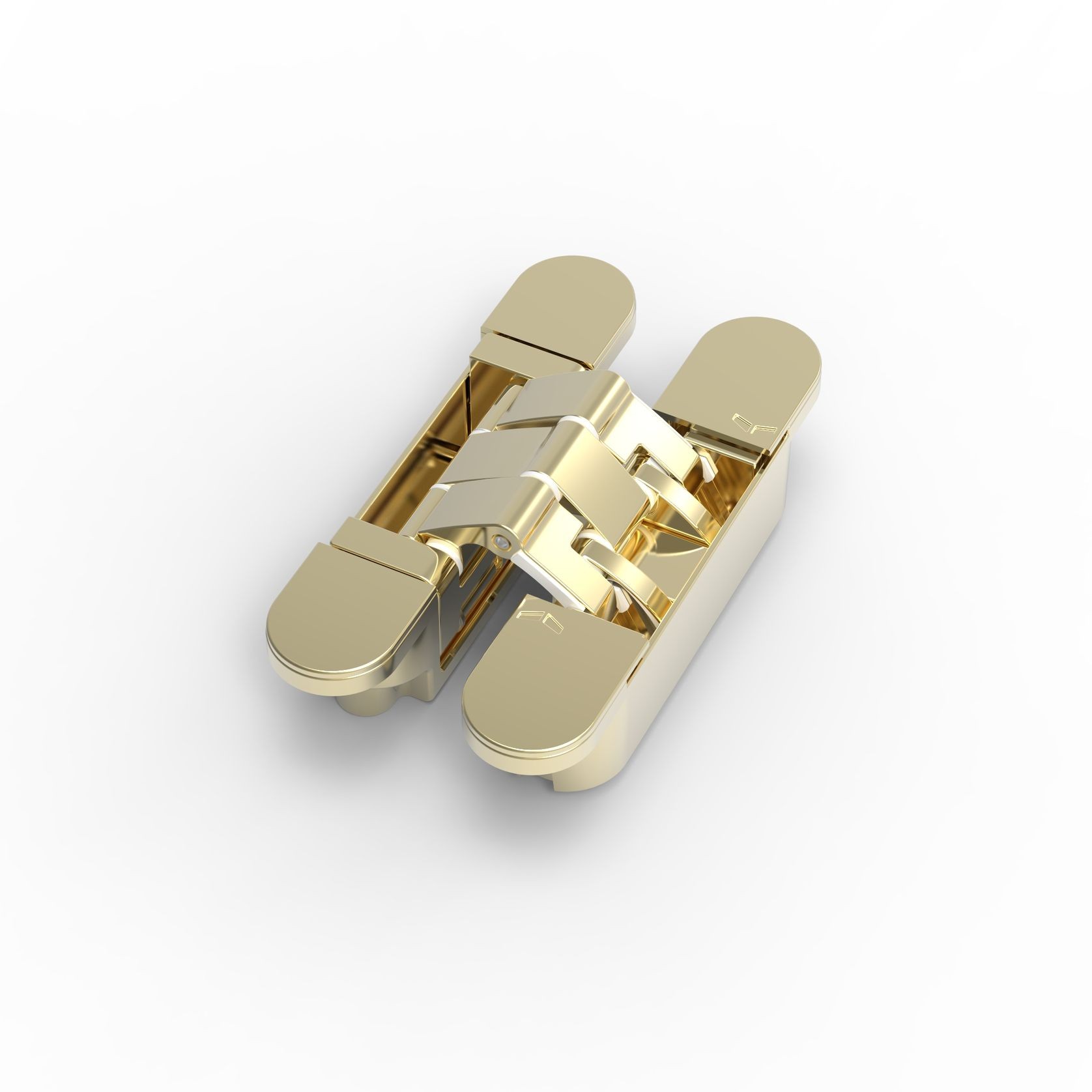

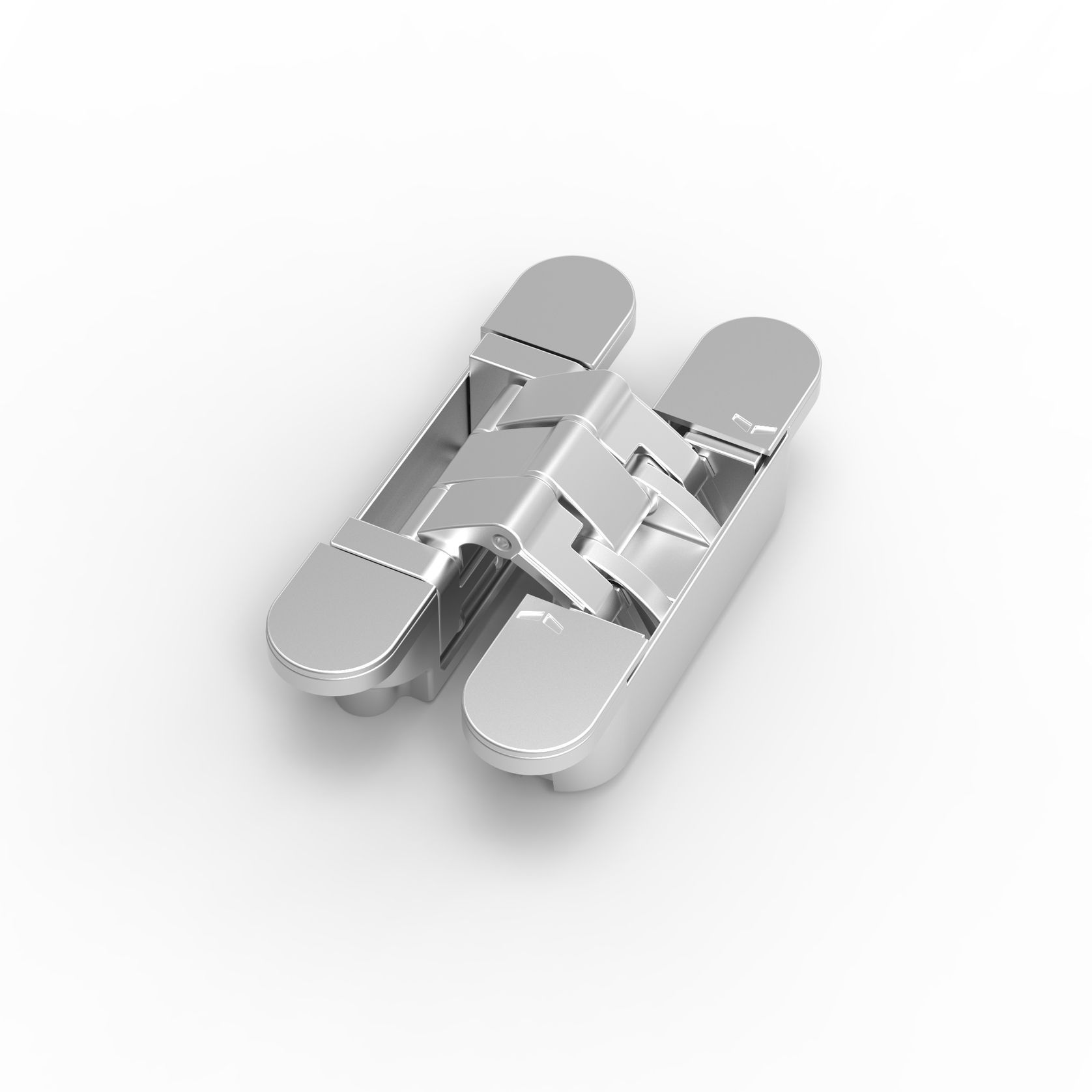

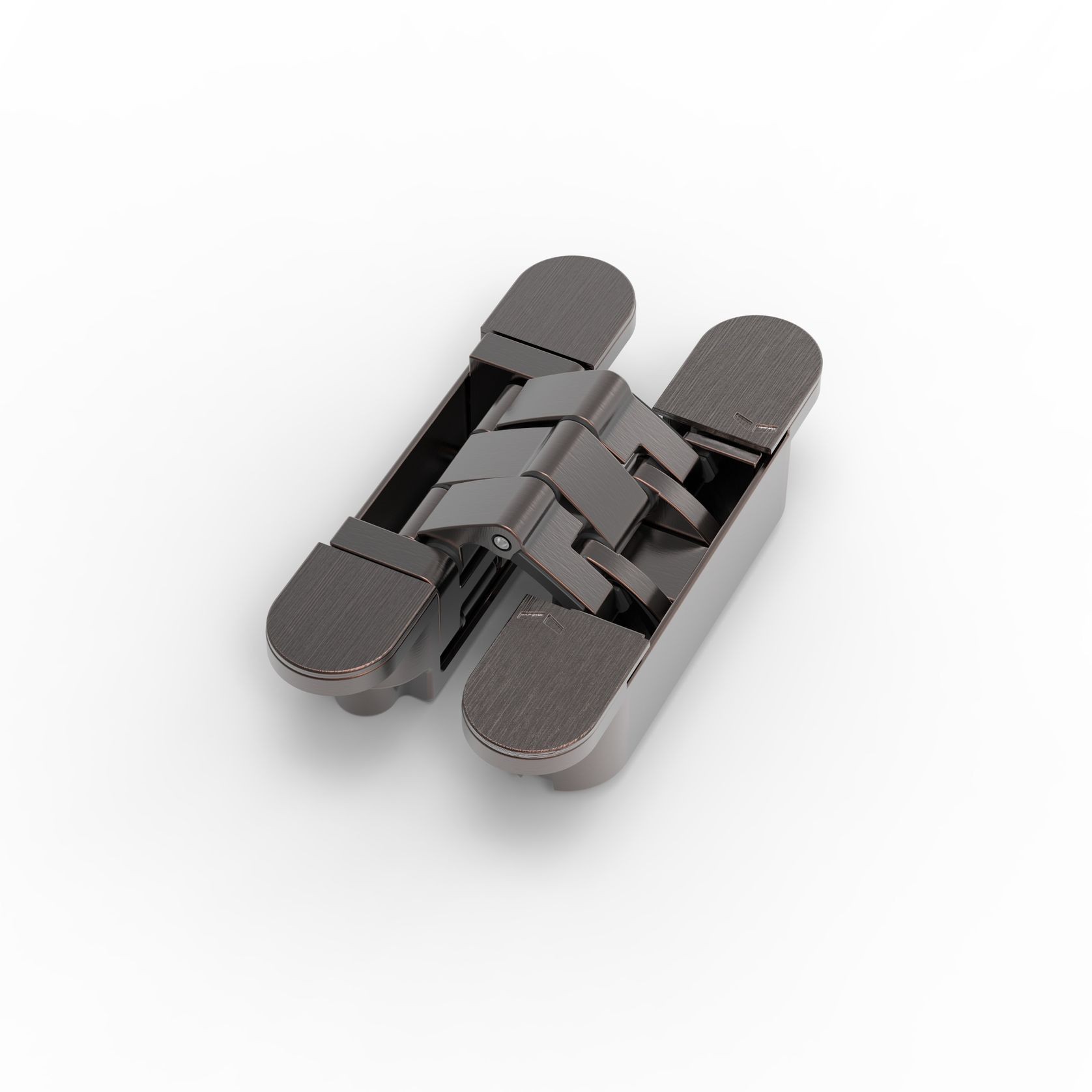

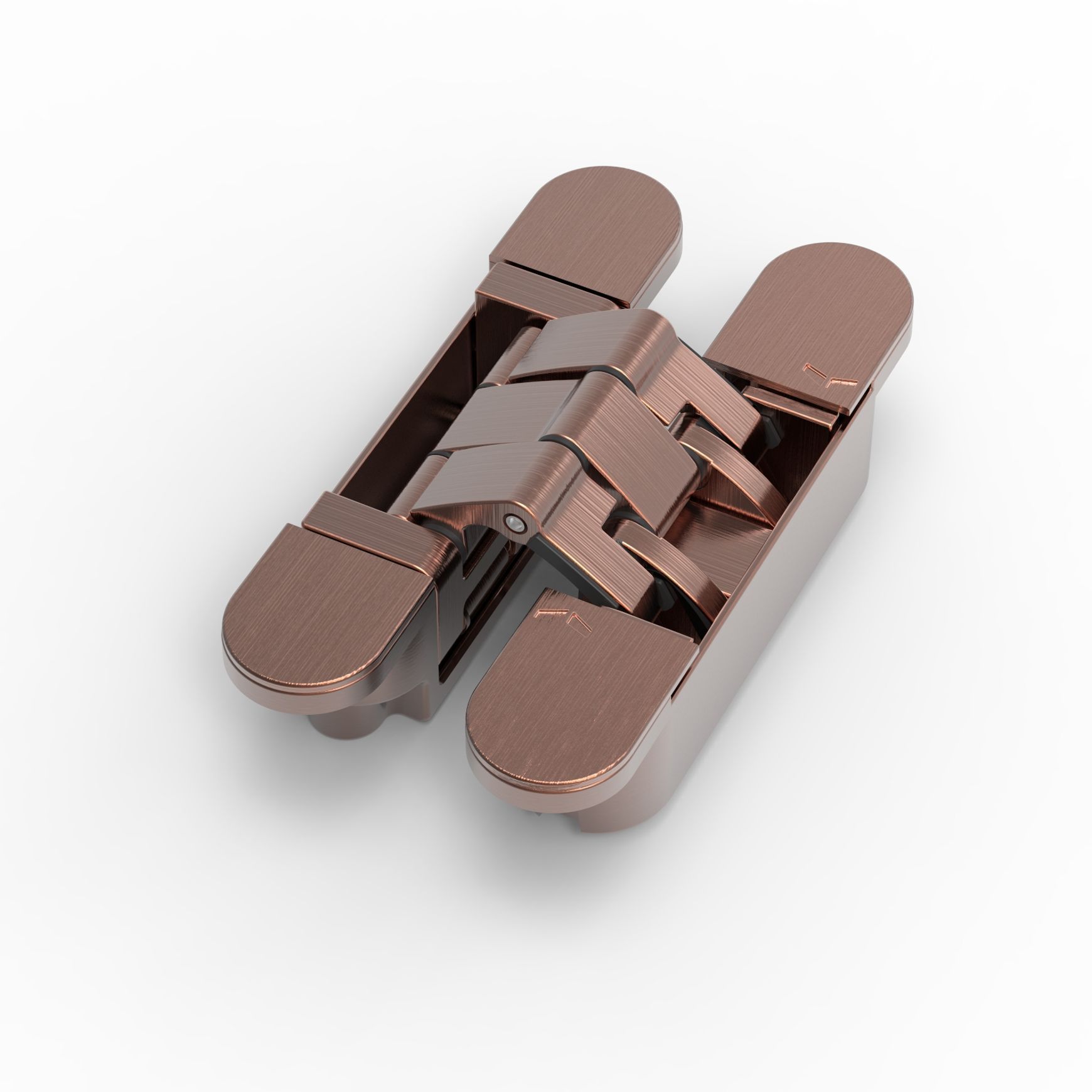

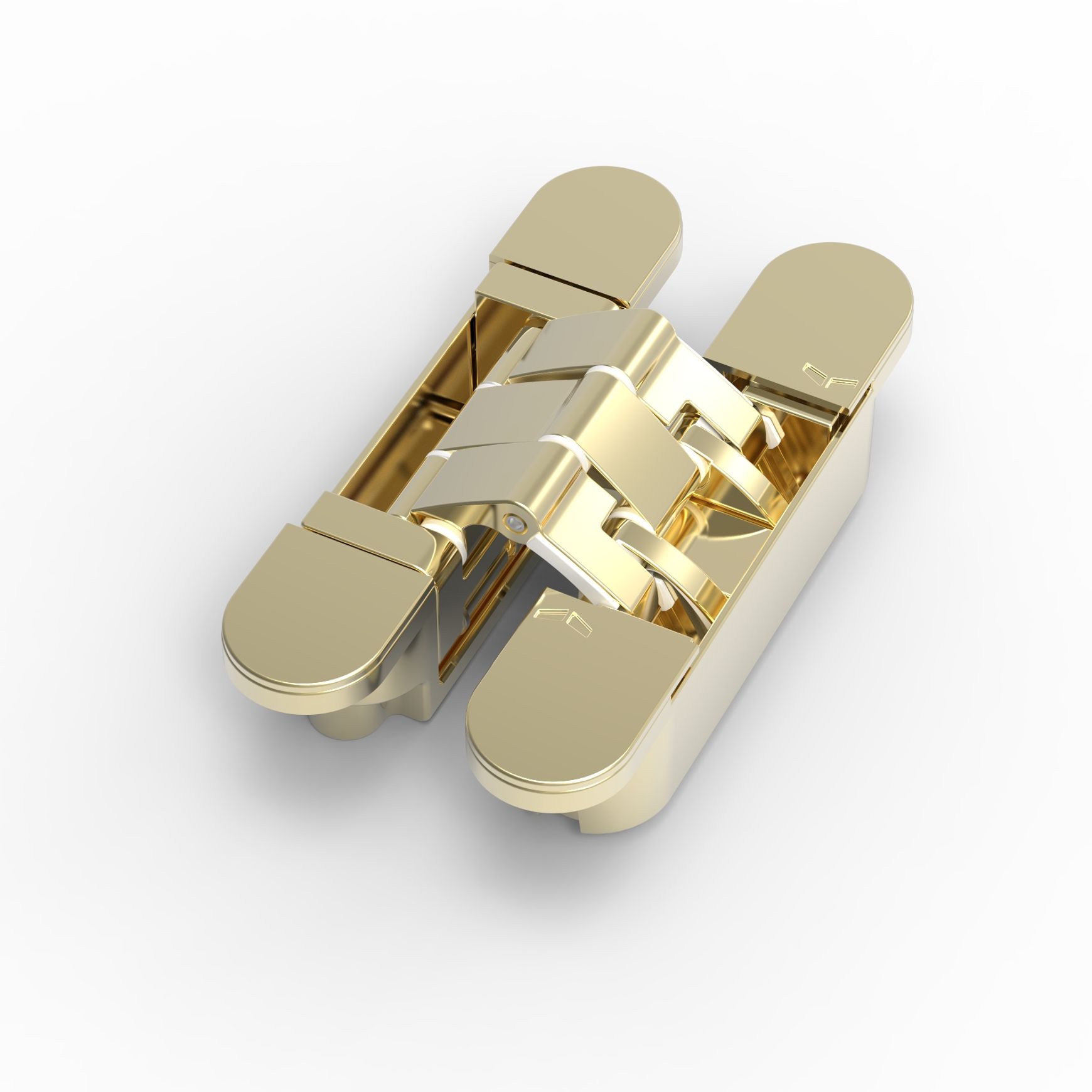

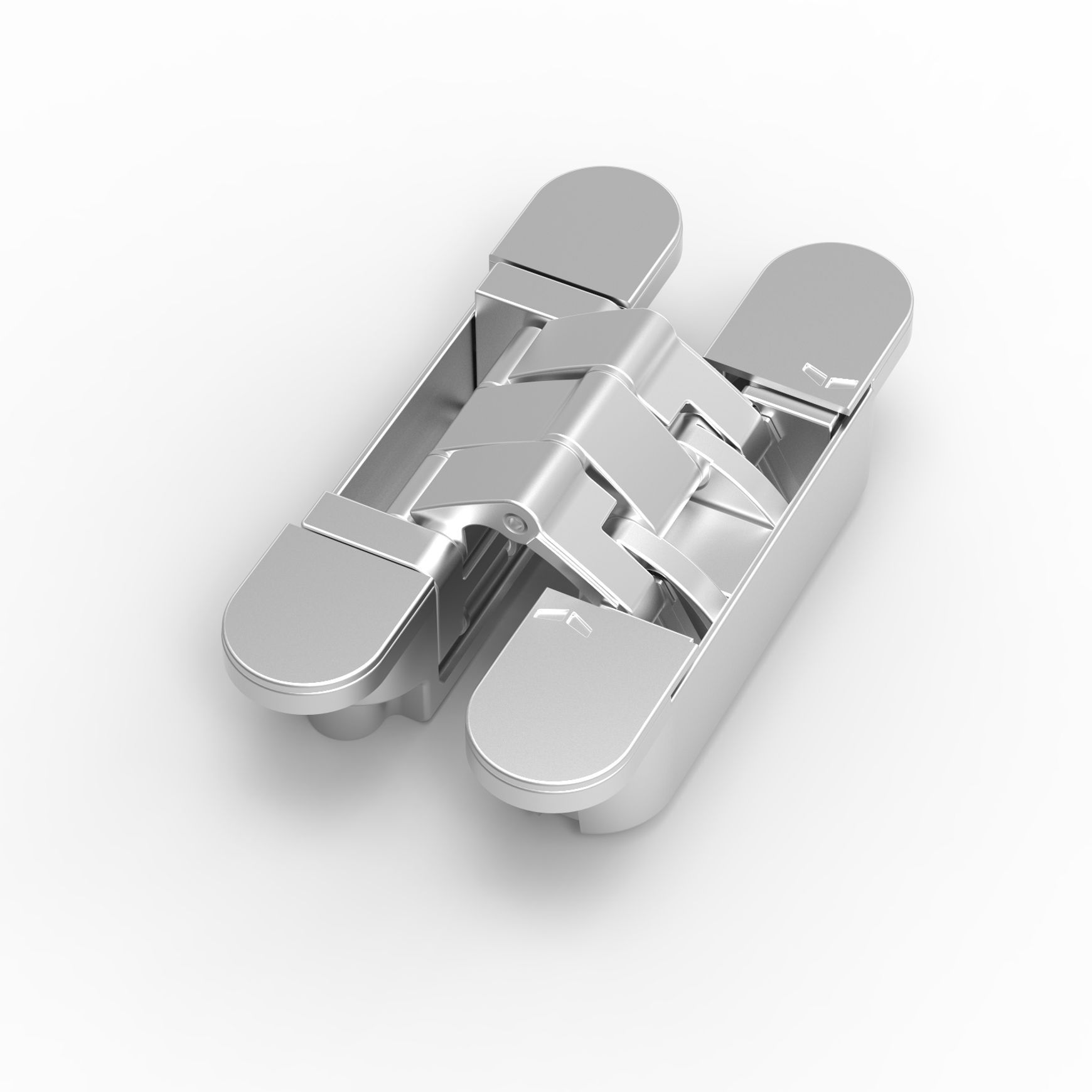

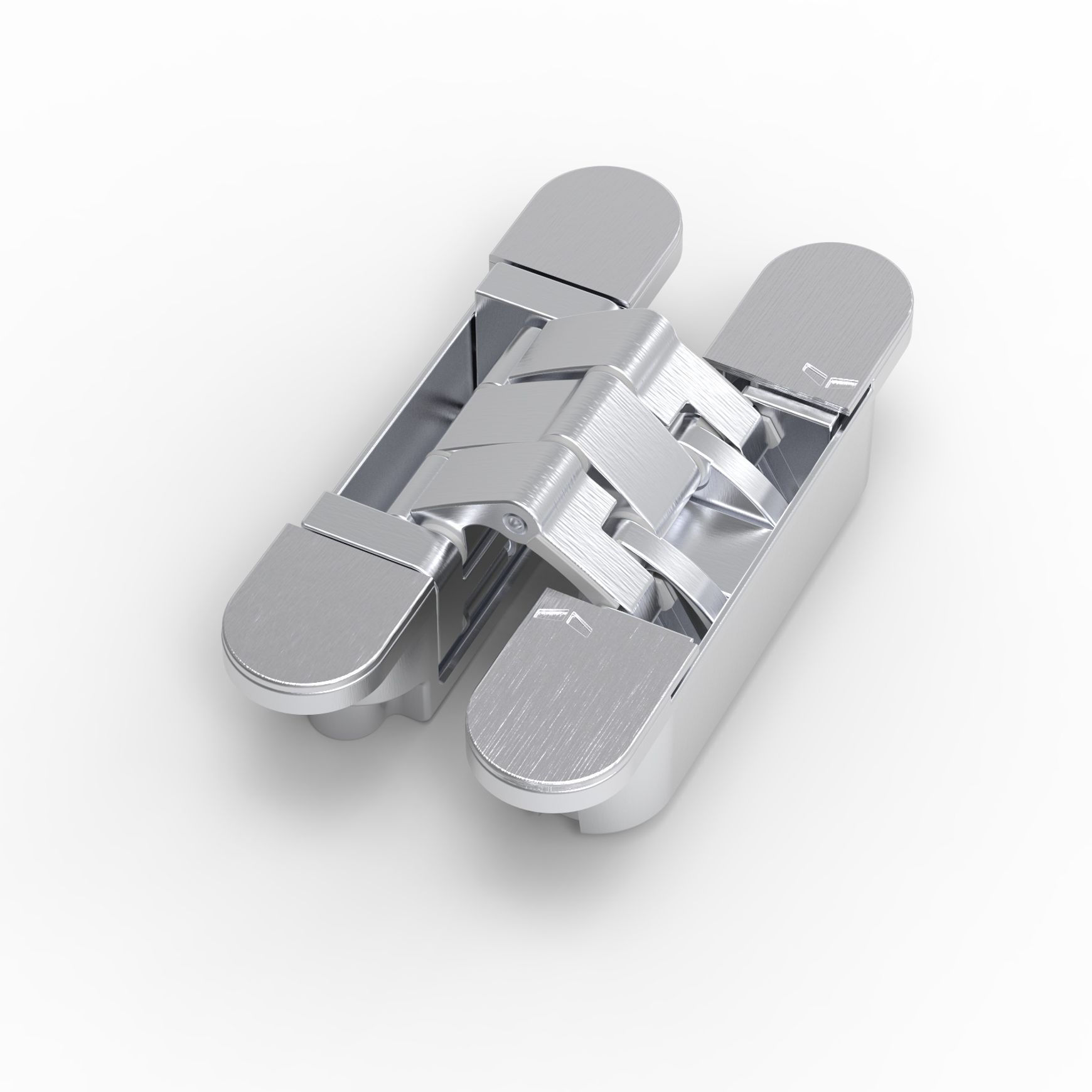

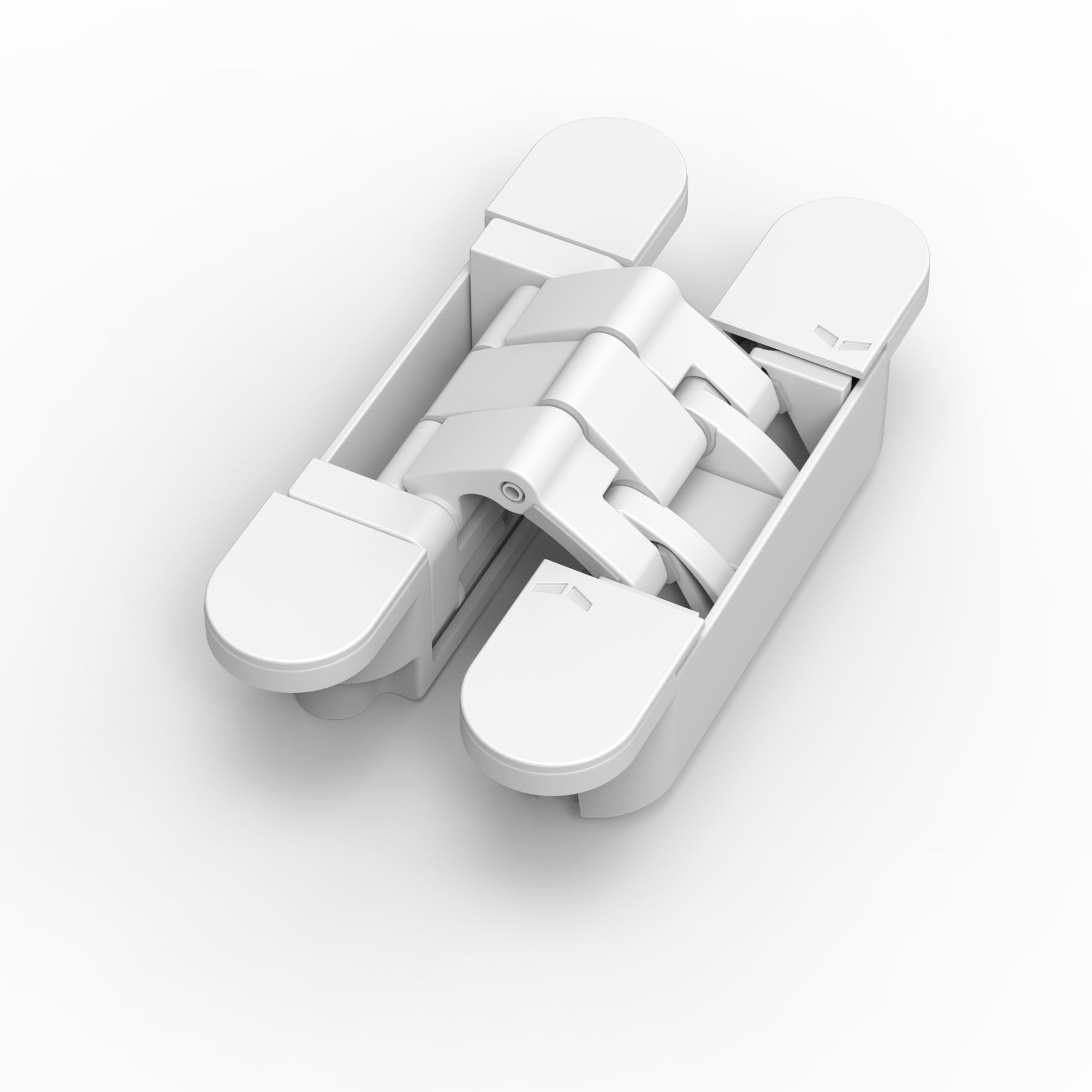

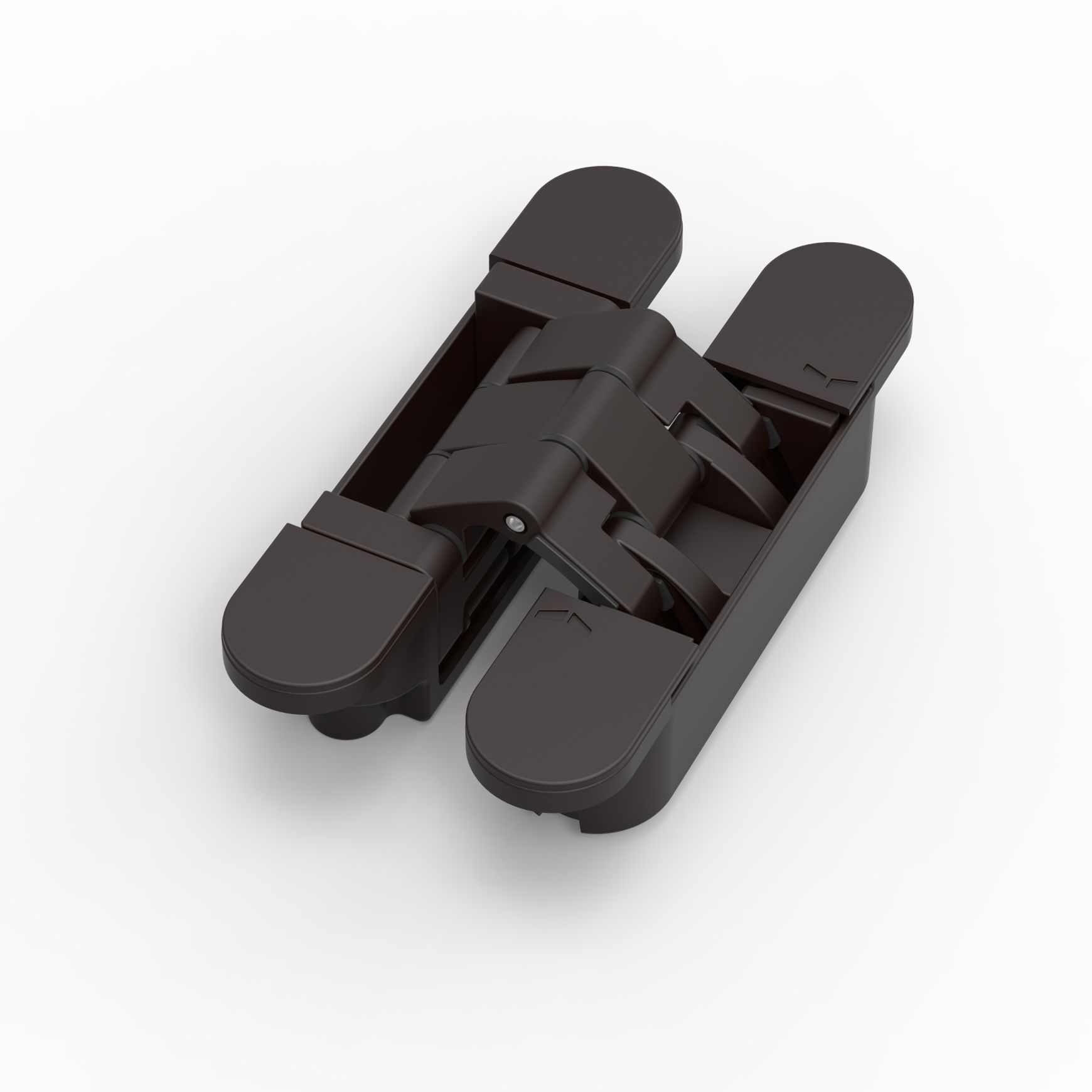

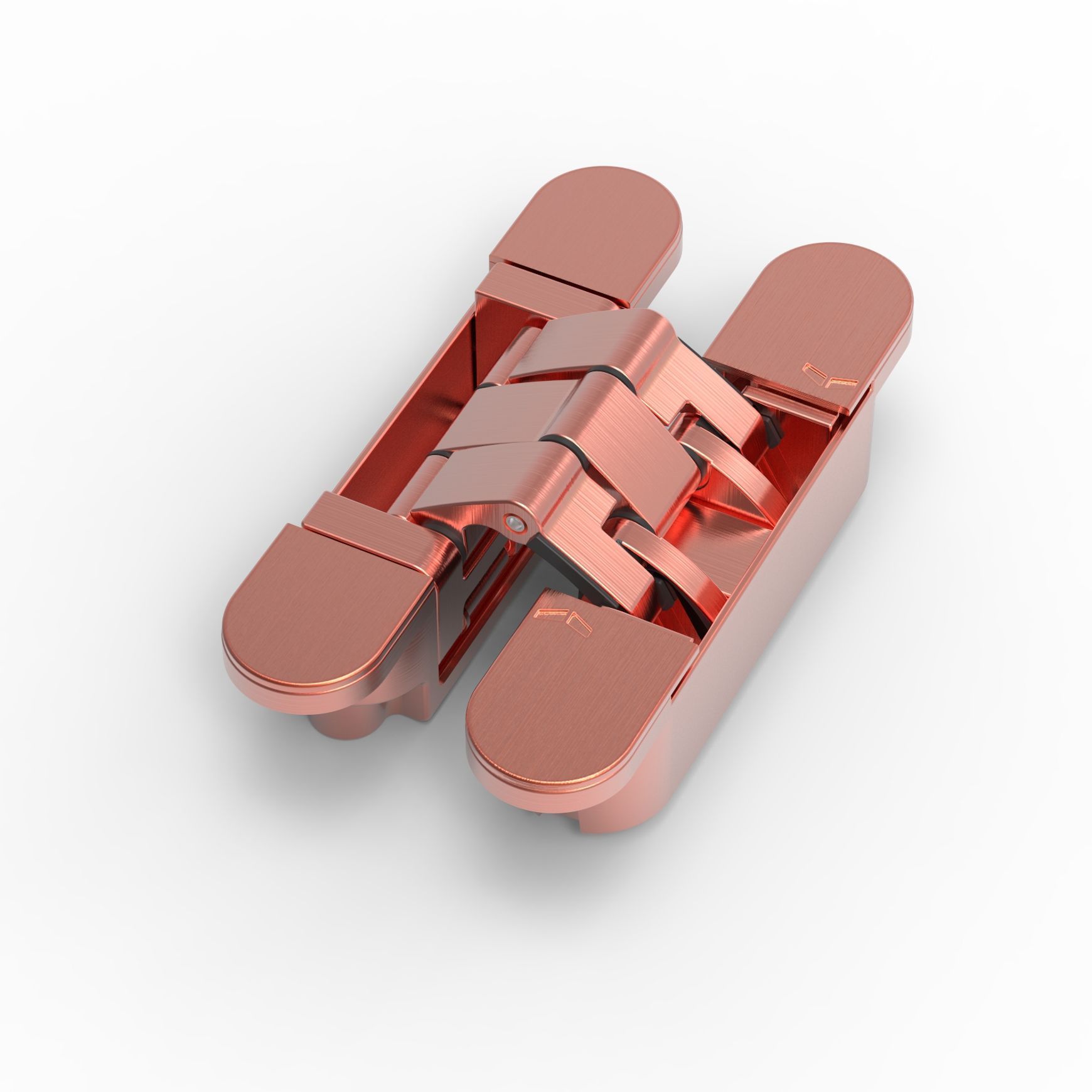

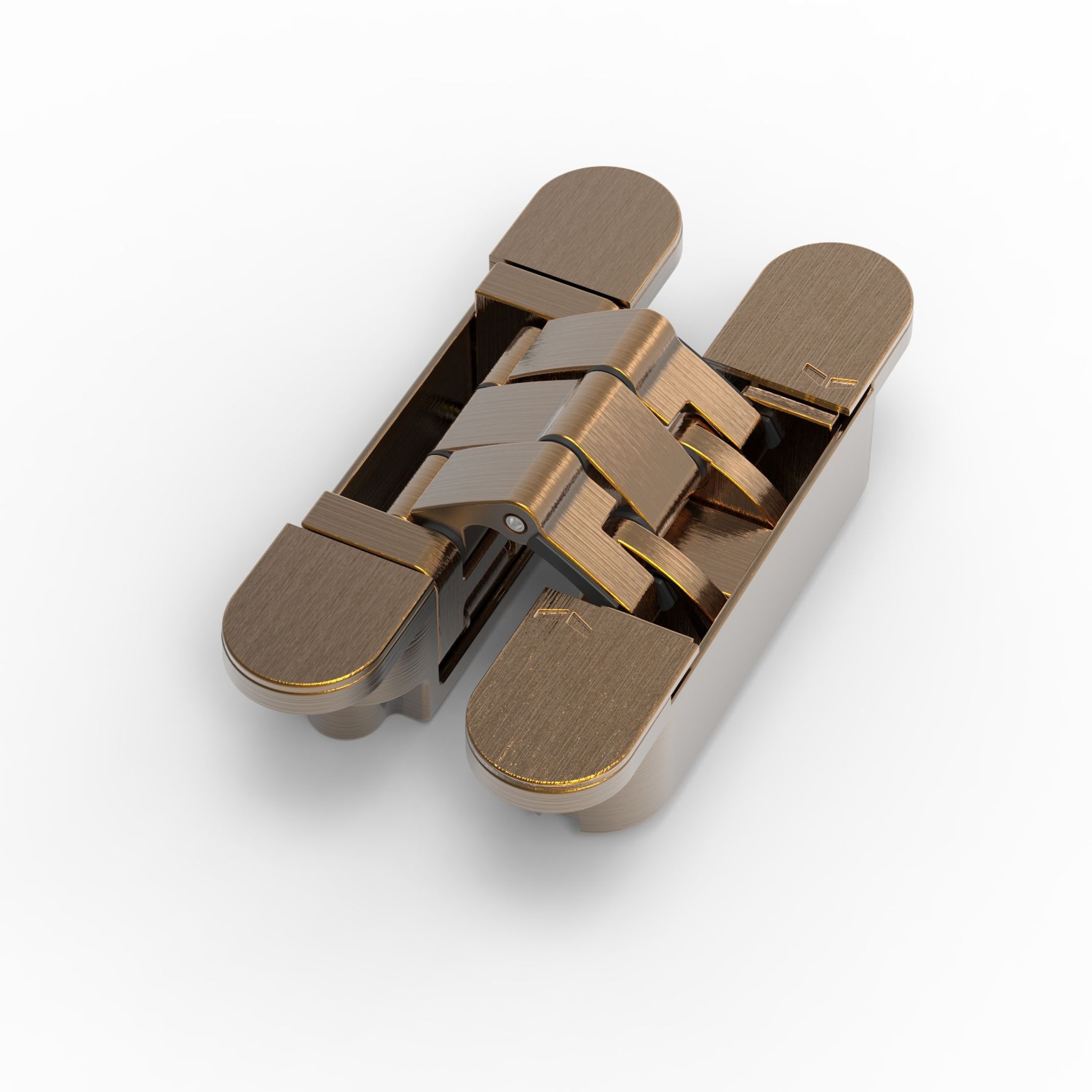

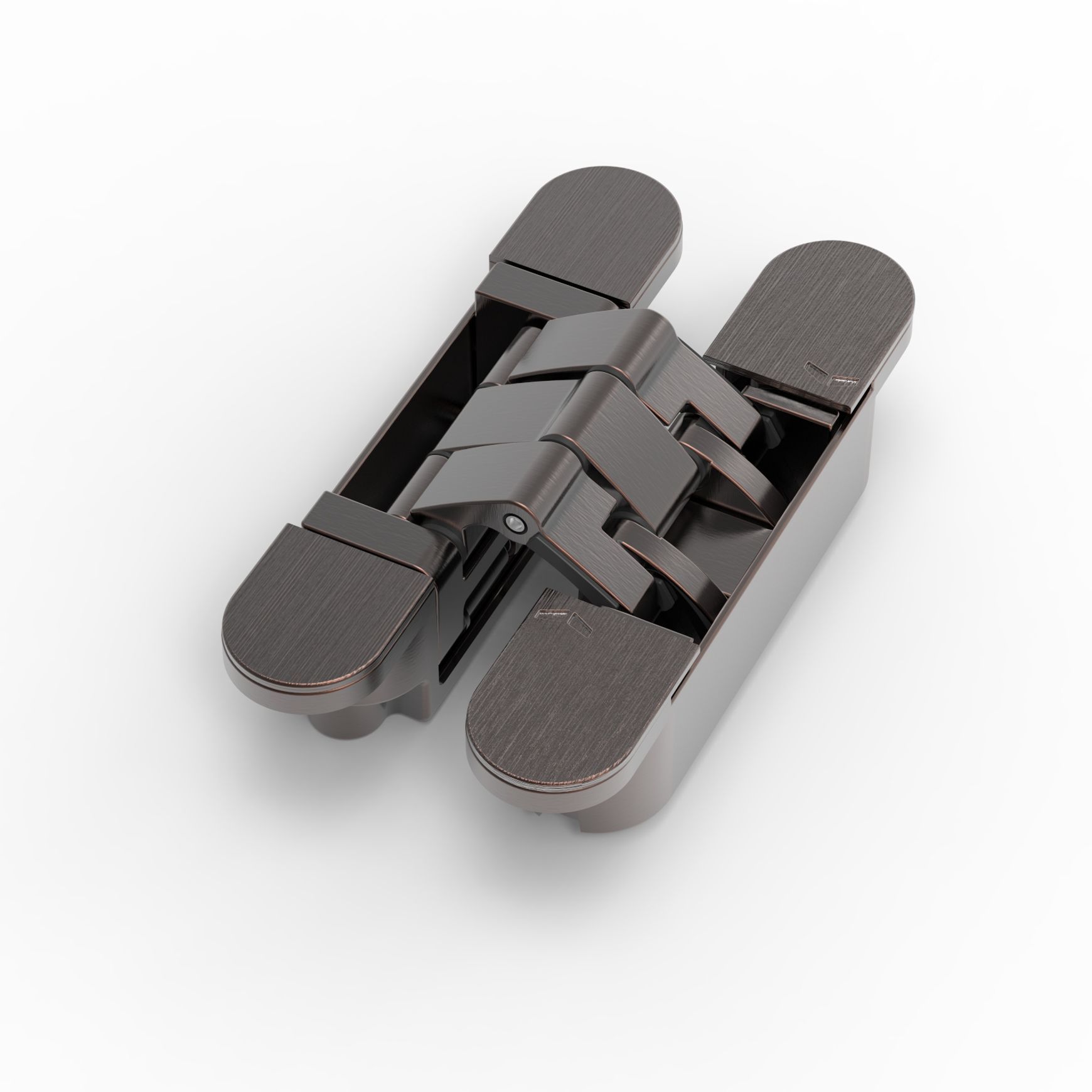

It comes in 10 colour options (Black Umber, Bronze, Classic Bronze, Copper, Dark Bronze, Glossy Chrome, Matt Chrome, Polished Brass, Stainless Steel, White Matt). Pick one in the row under the description to see it and its price.
Yes. It is part of the Architectural Hardware range from A'besco - Blinds & Awnings and Architectural Hardware, where you can see every product in the range together.
from this page, see their contact details on ArchiPro, or visit their website. The A'besco - Blinds & Awnings and Architectural Hardware profile on ArchiPro has the rest of their products.
