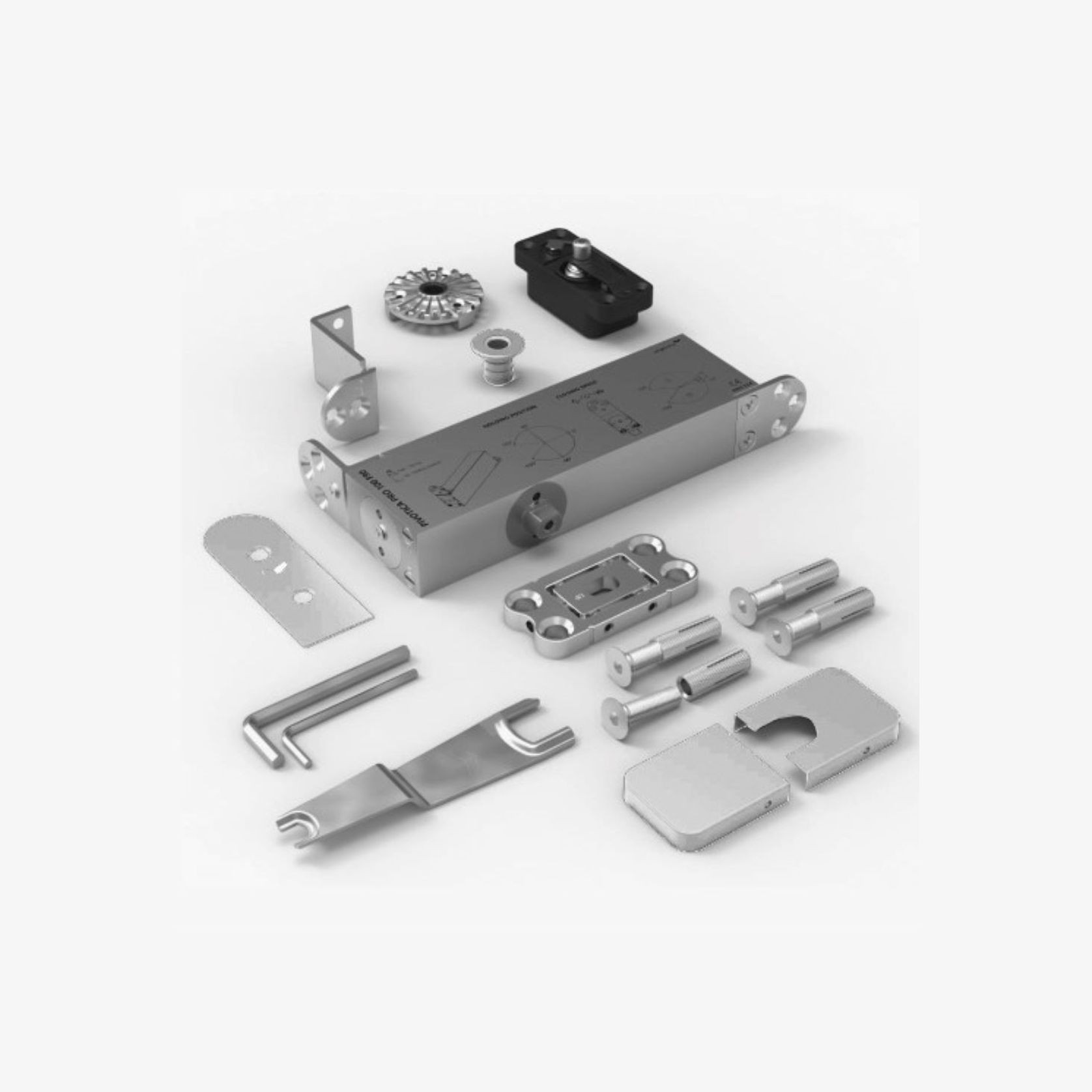

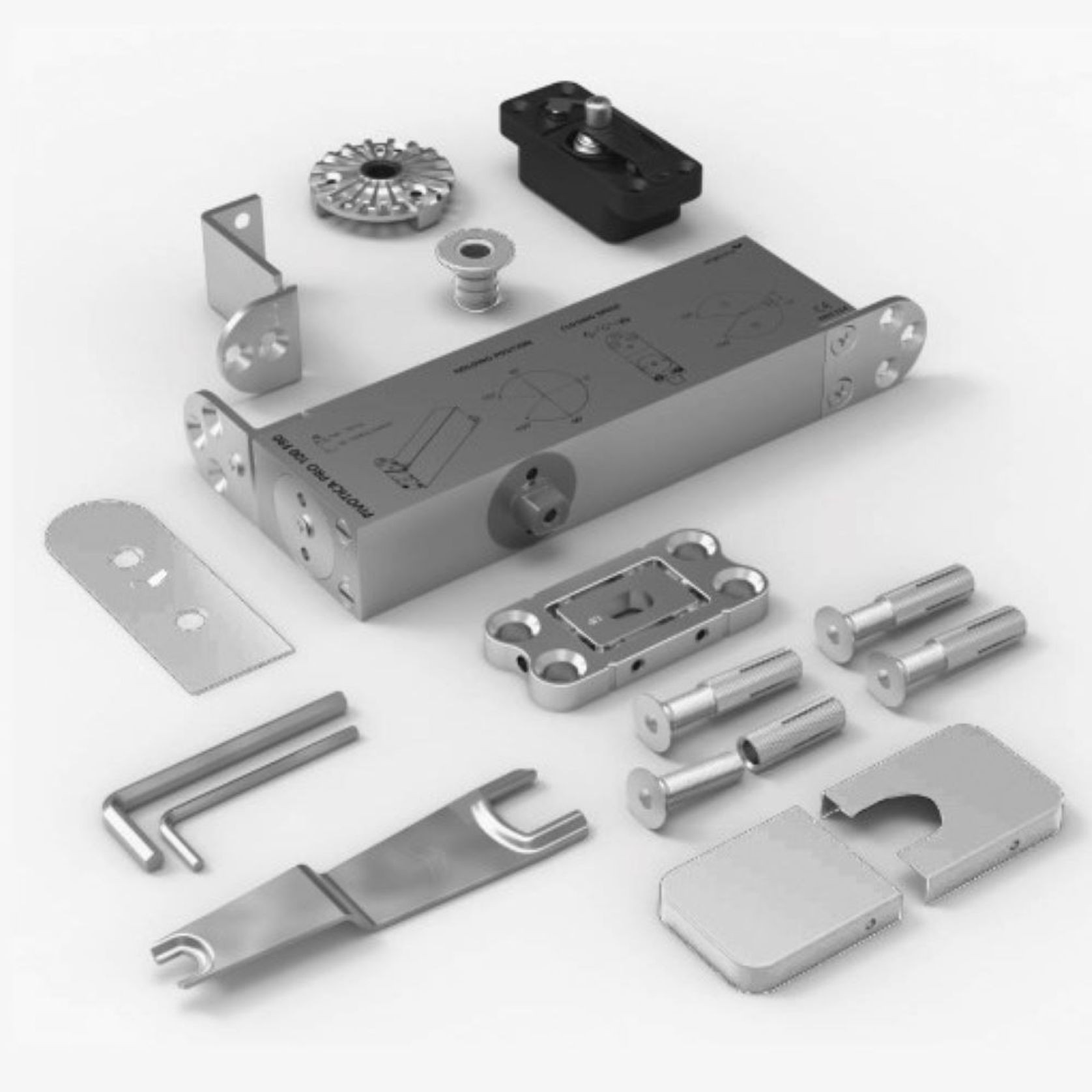

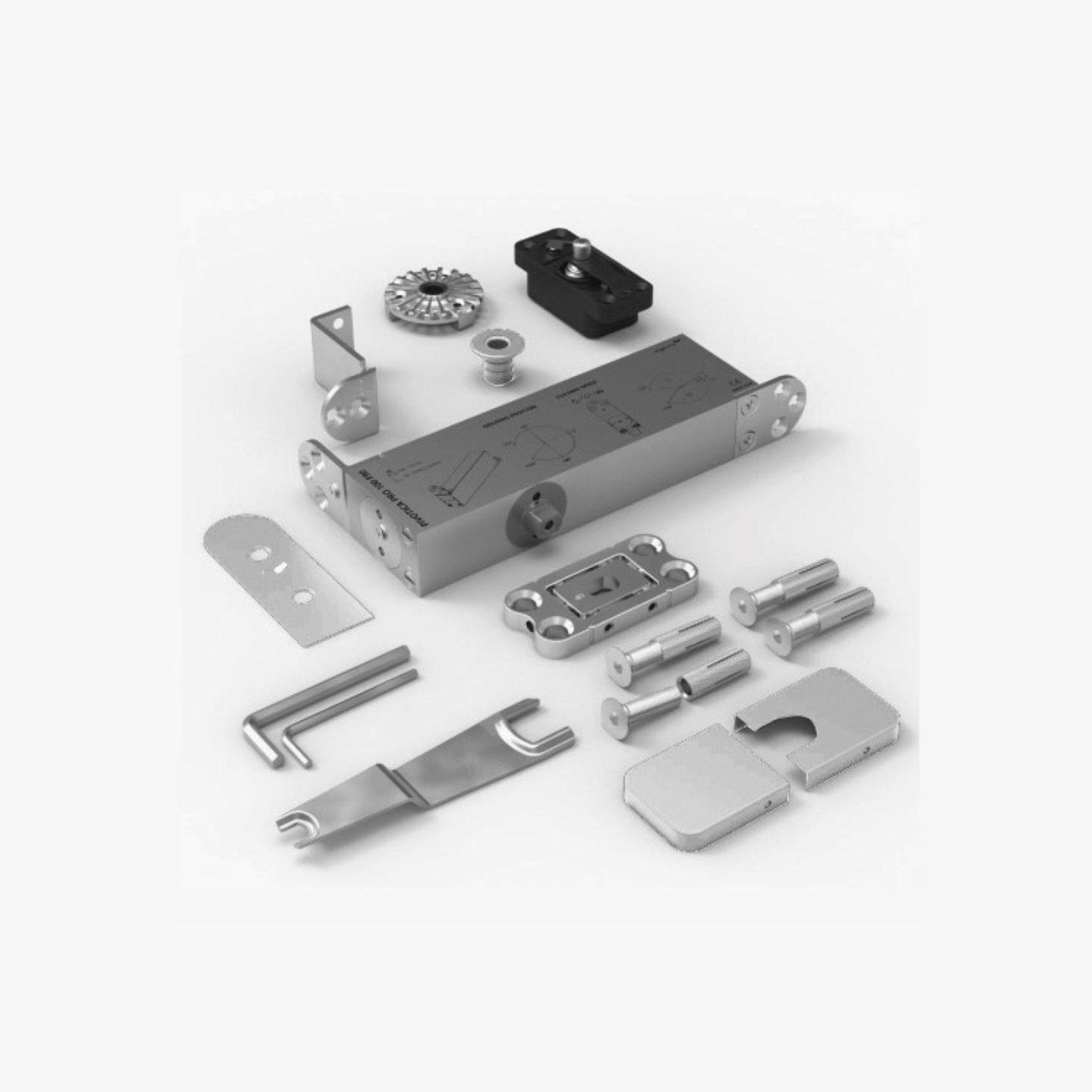

Arlu® (Argenta) Pivotica Pro 100 FM F0

Seamless Elegance, Compact Power: The Concealed Self-Closing Pivot Hinge Transform interior spaces with effortless, self-closing motion for doors up to 100kg—without disturbing underfloor heating.

Pricing

From $515 *Price indication

Specs

• Mounting Style: FM (Floor-Mounted surface footplate)
• Function Option: F0 (Free Swing — 0° auto-return, no hold open)
• Max Door Weight: Max. 100kg
• Door Thickness: Min. 40mm – Max. 100mm
• Max Door Height: 3000mm
• Max Door Width: Up to 1000mm (Corner) | Up to 2000mm (De-centralised/Central)
• Opening Range: 150° Bidirectional
• Bottom Clearance: 13mm
• 3D Adjustability: Width: +3mm | Depth: +3mm | Alignment: +4°
• Compliance: EN1154 Certified

Selection Guide: FM vs. BI & F0 vs. F90

Ensure you specify the correct model variant for your project:

1. F0 (Free Swing) vs. F90 (Hold Open): F0 (This Product): Always self-closes to 0°. Ideal for utility rooms, ensuite entries, or feature doors where you want the door to stay closed when not in active use.
   F90: Includes a mechanical hold-open catch at +90° and -90°.

2. FM (Floor Mounted) vs. BI (Built-In): FM (This Product): Installs directly on top of finished floors with a 13mm bottom gap. Ideal for retrofits, timber floors, or slabs containing underfloor heating.
   BI: Embedded into subfloors prior to finishing for a tighter 5-11mm bottom clearance.


Features

• Certified Quality: Complies with EN1154 European standards for door closing devices and is cycle-tested for over 200,000 smooth operations.
• Versatile 100kg Capacity: Supports timber and composite interior doors weighing up to 100kg, with heights up to 3000mm and door thicknesses starting from 40mm.
• Underfloor Heating Safe: The surface-mounted FM floor plate requires no floor box recessing, preserving heating elements embedded beneath the slab.
• Active Hydraulic Damping: Features a built-in 2-speed hydraulic mechanism that smoothly pulls the door to a flush 0° alignment while dampening momentum to protect walls and prevent caught fingers.
• Flexible Axis Positioning: Install your pivot axis in a standard corner position (minimum 58.5mm offset for doors up to 1000mm wide), off-centre, or fully centered (for doors up to 2000mm wide).
• 3D Precision Micro-Adjustment: Fine-tune your door alignment effortlessly after hanging with 3D adjustability +3mm width, +3mm depth, and +4° angle adjustment) to maintain perfect shadow gaps.
