Architectural Elegance Meets Hands-Free Convenience: The Concealed Self-Closing Pivot Hinge with 90° Hold-Open
Transform modern interior spaces with effortless motion for doors up to 100kg—complete with an integrated hold-open feature and zero risk to underfloor heating.
Redefining Standard-to-Medium Weight Interior Pivot Doors

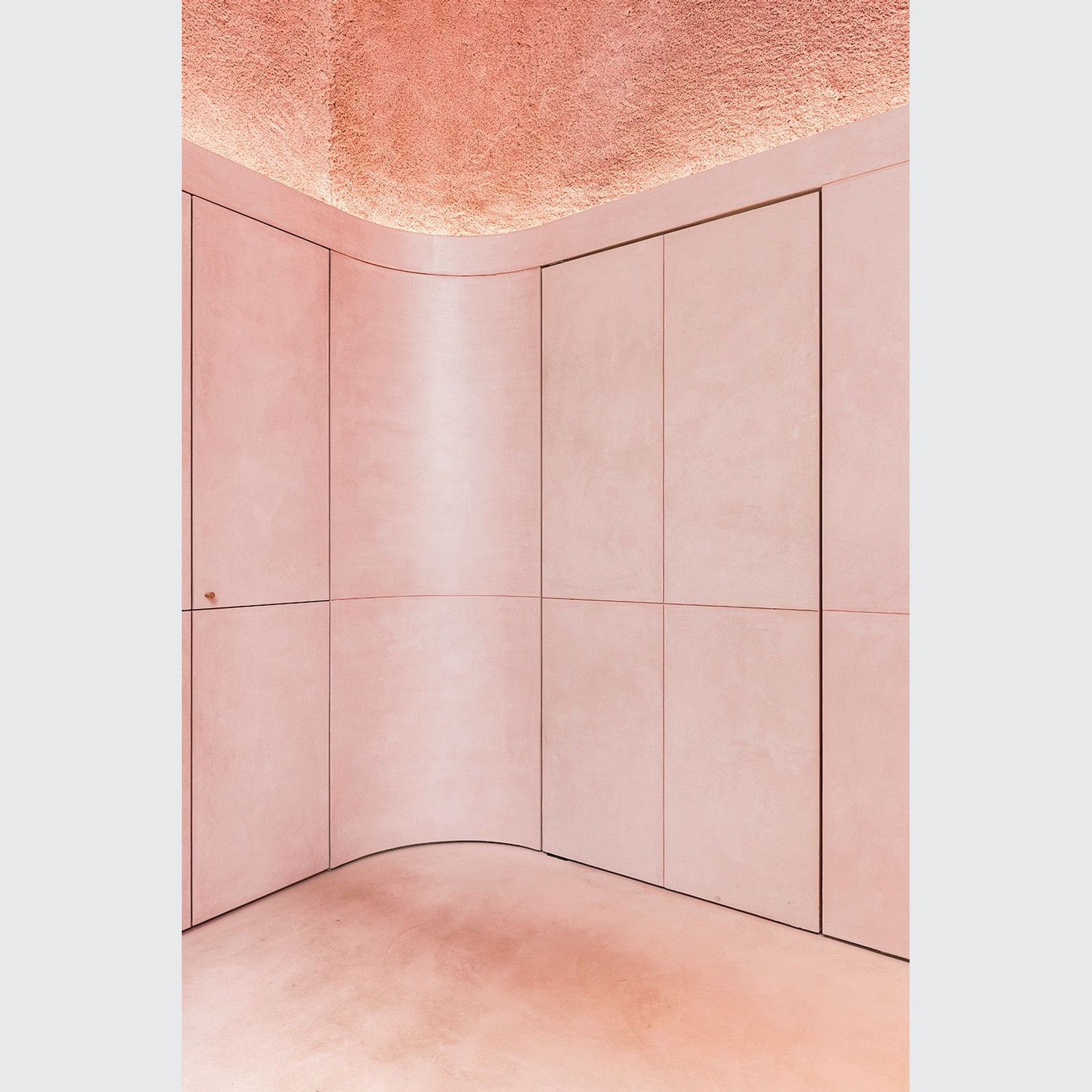

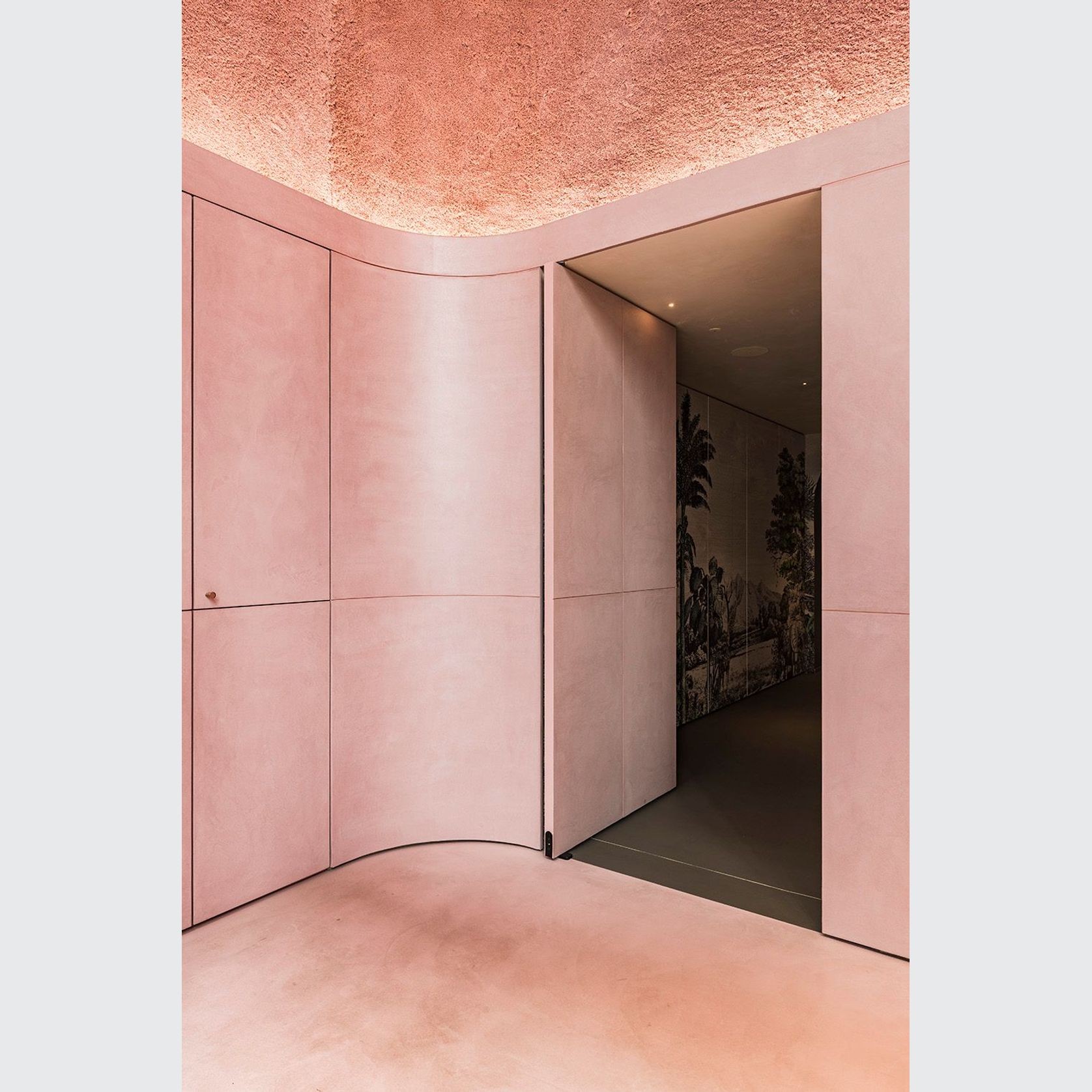

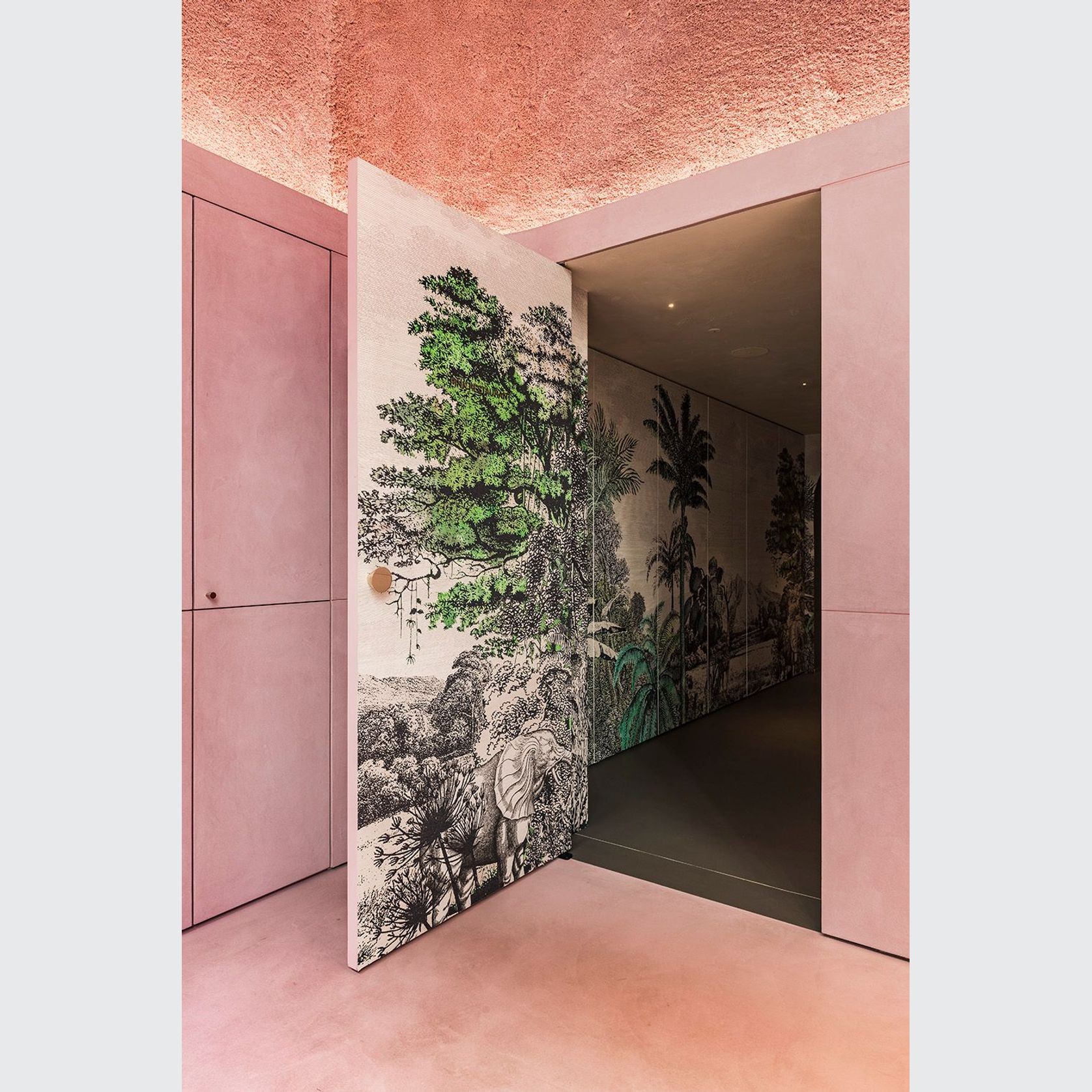

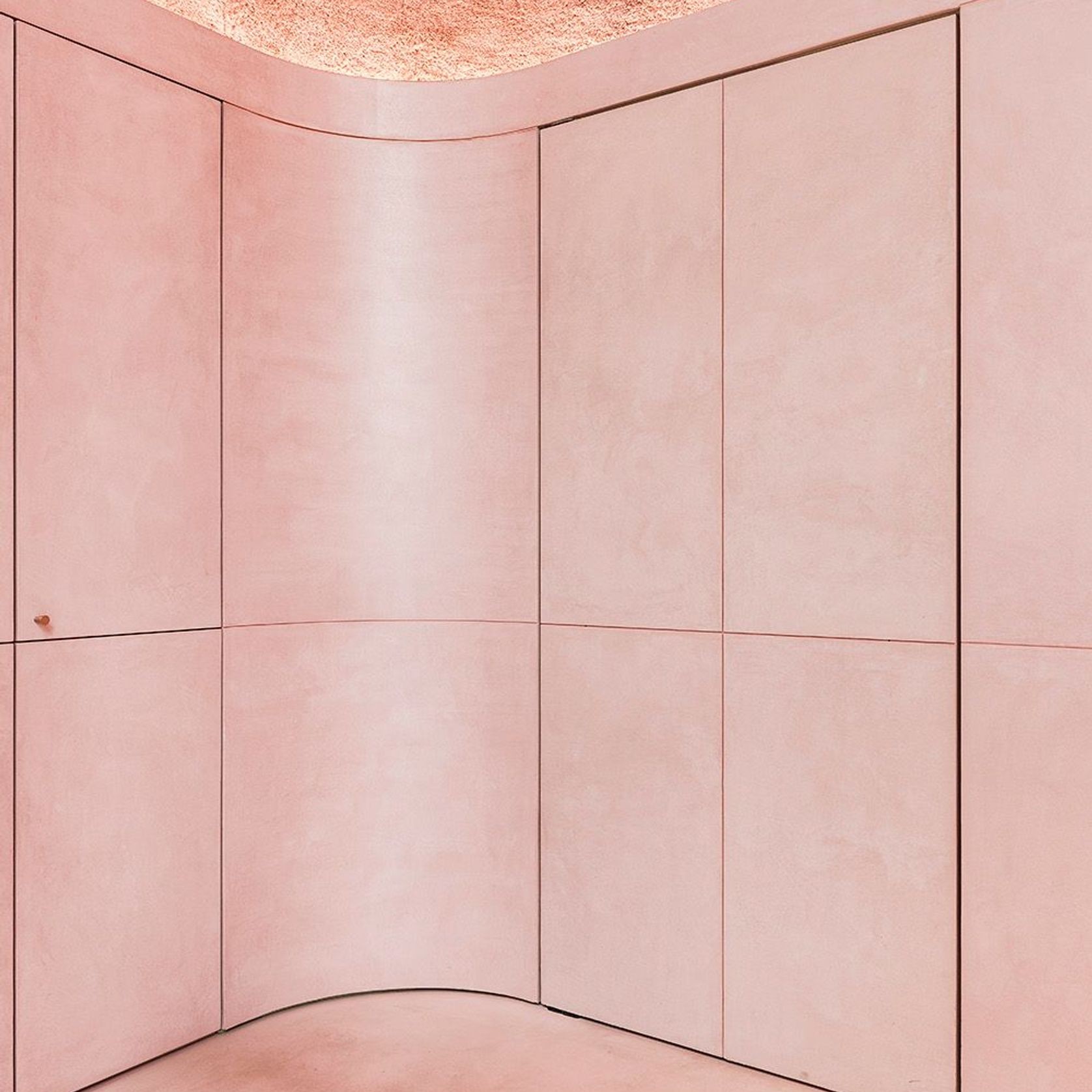

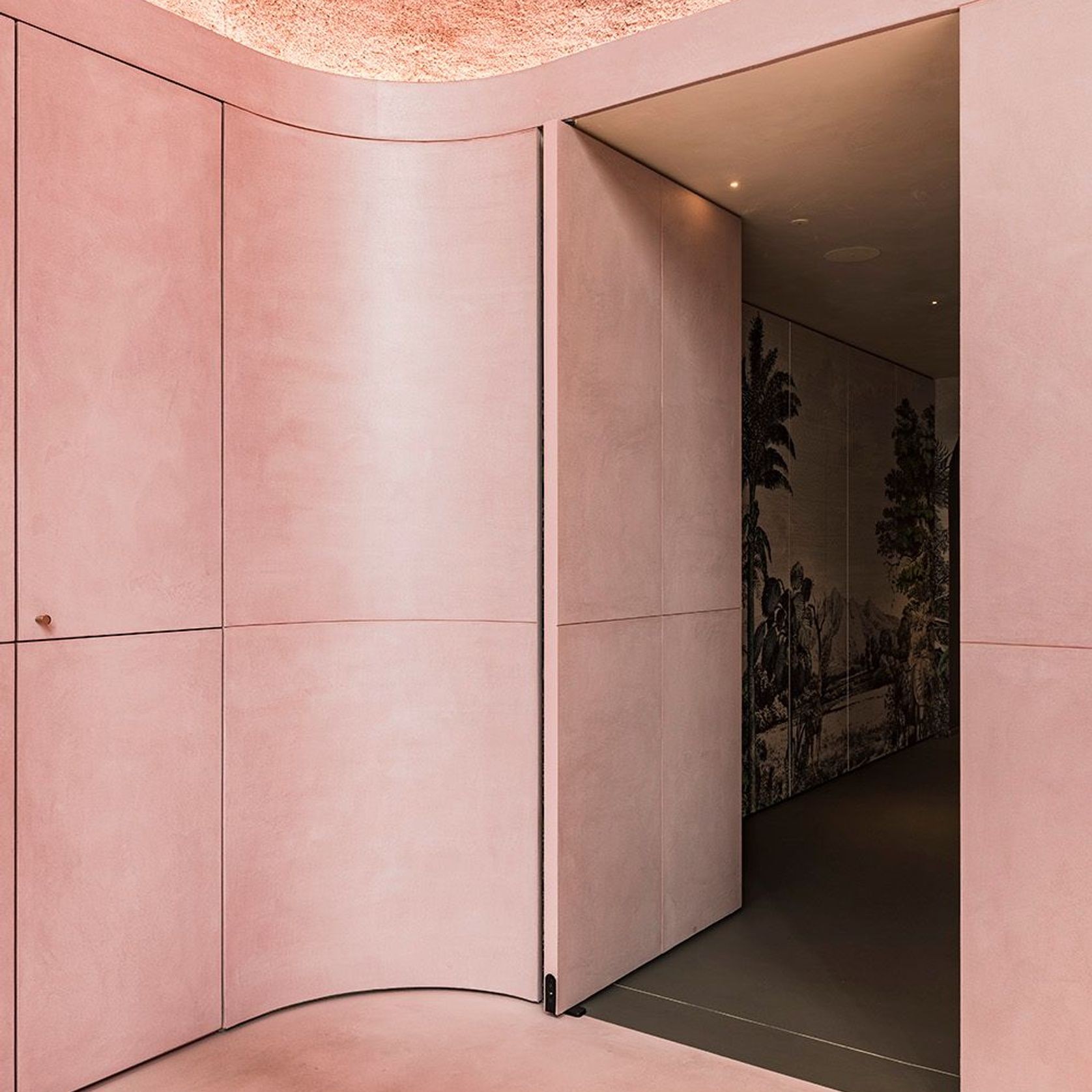

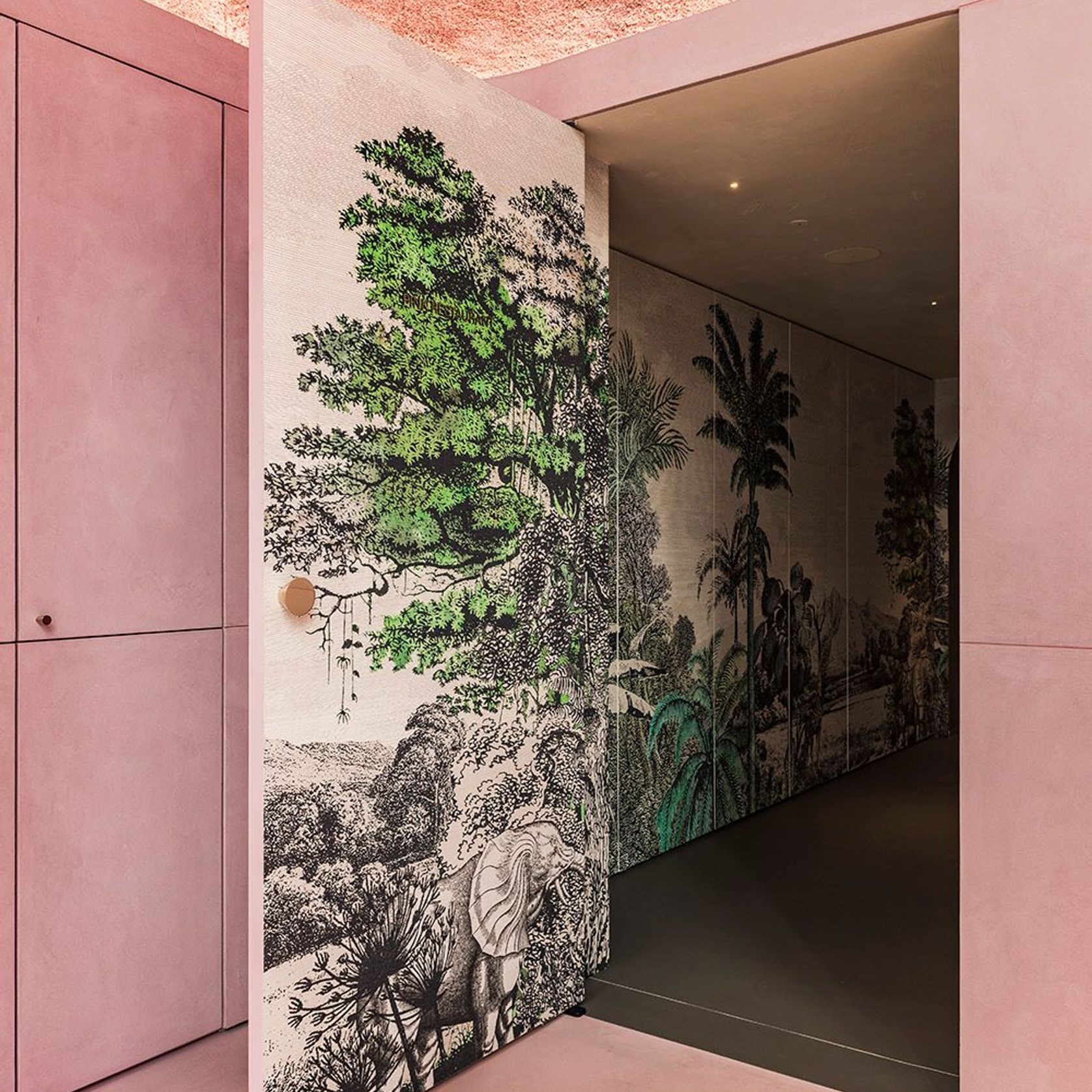

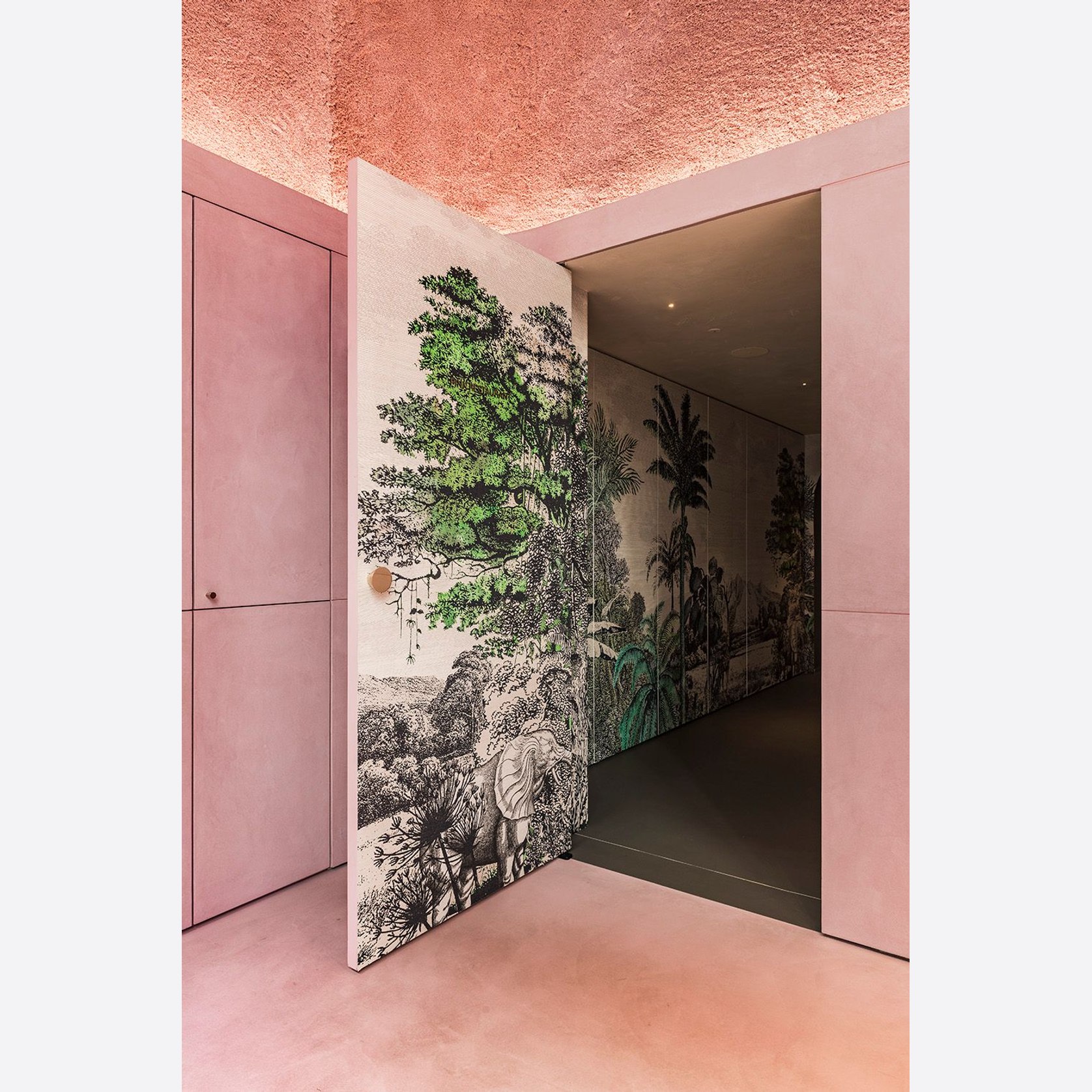

Architectural pivot doors bring unmistakable character and elegance to modern residential and commercial builds. However, keeping a door open during daily movement—whether managing room-to-room flow, encouraging natural light, or moving furniture—often requires unsightly external floor stops that disrupt your design lines.
Enter the Arlu® (Argenta) Pivotica Pro 100 FM F90.

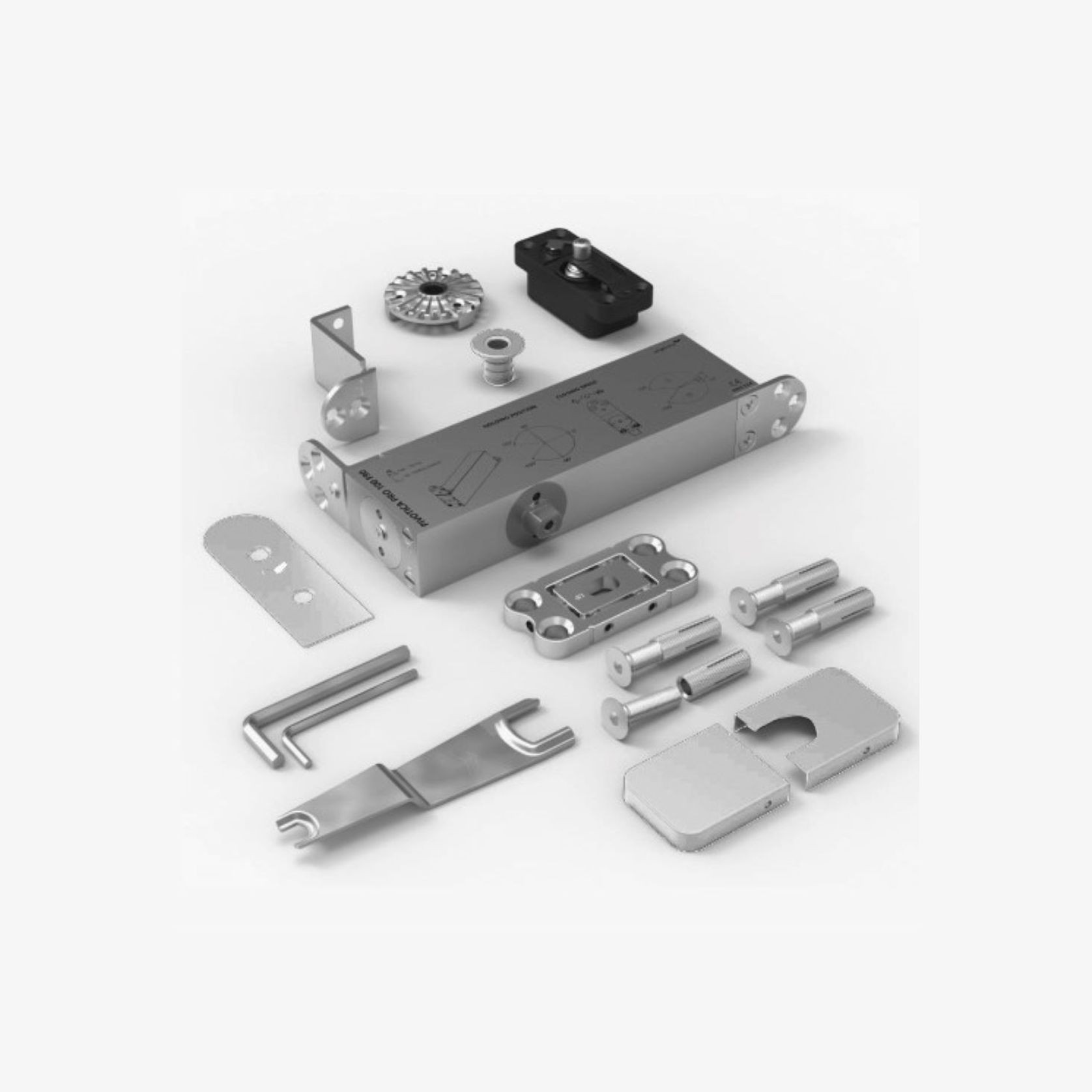

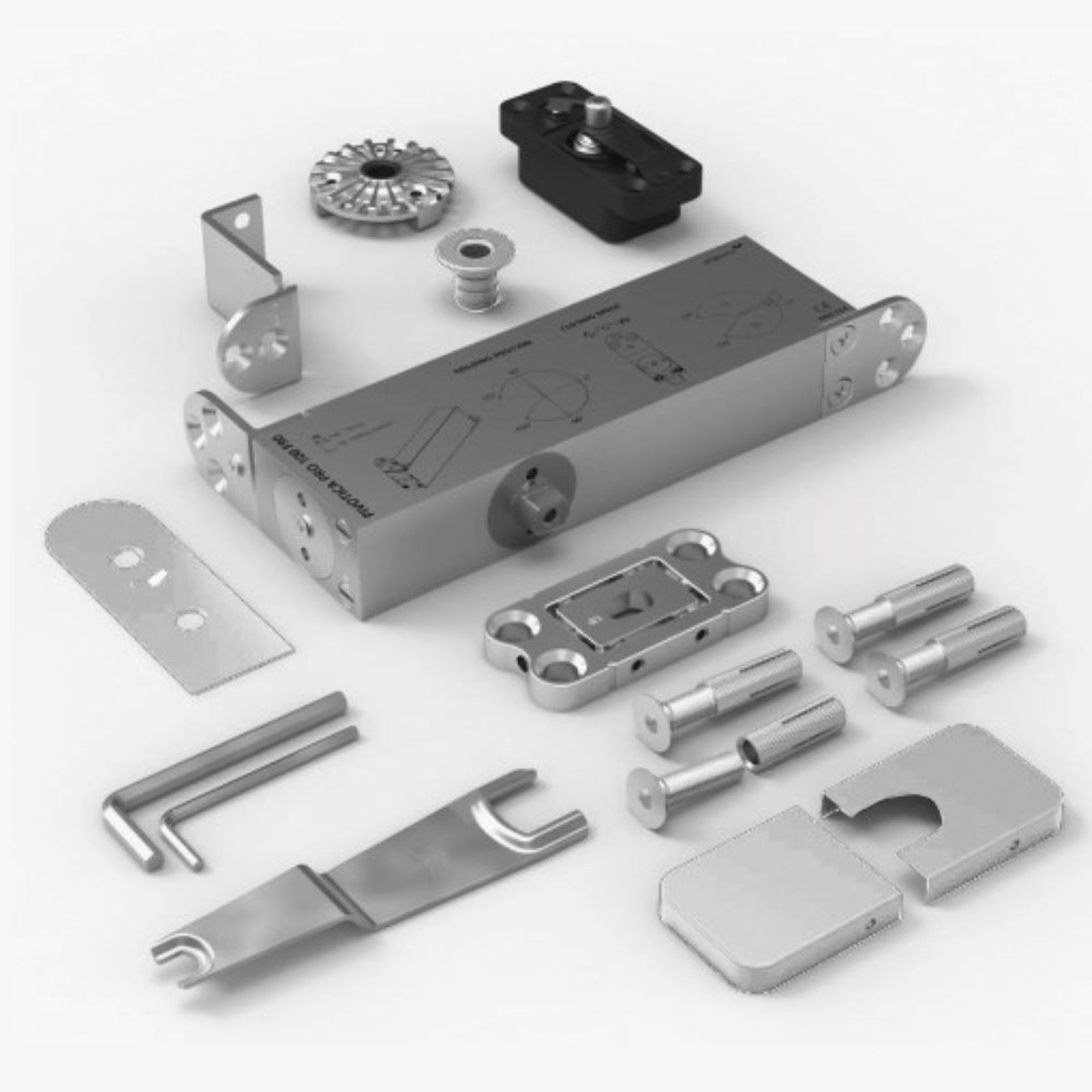

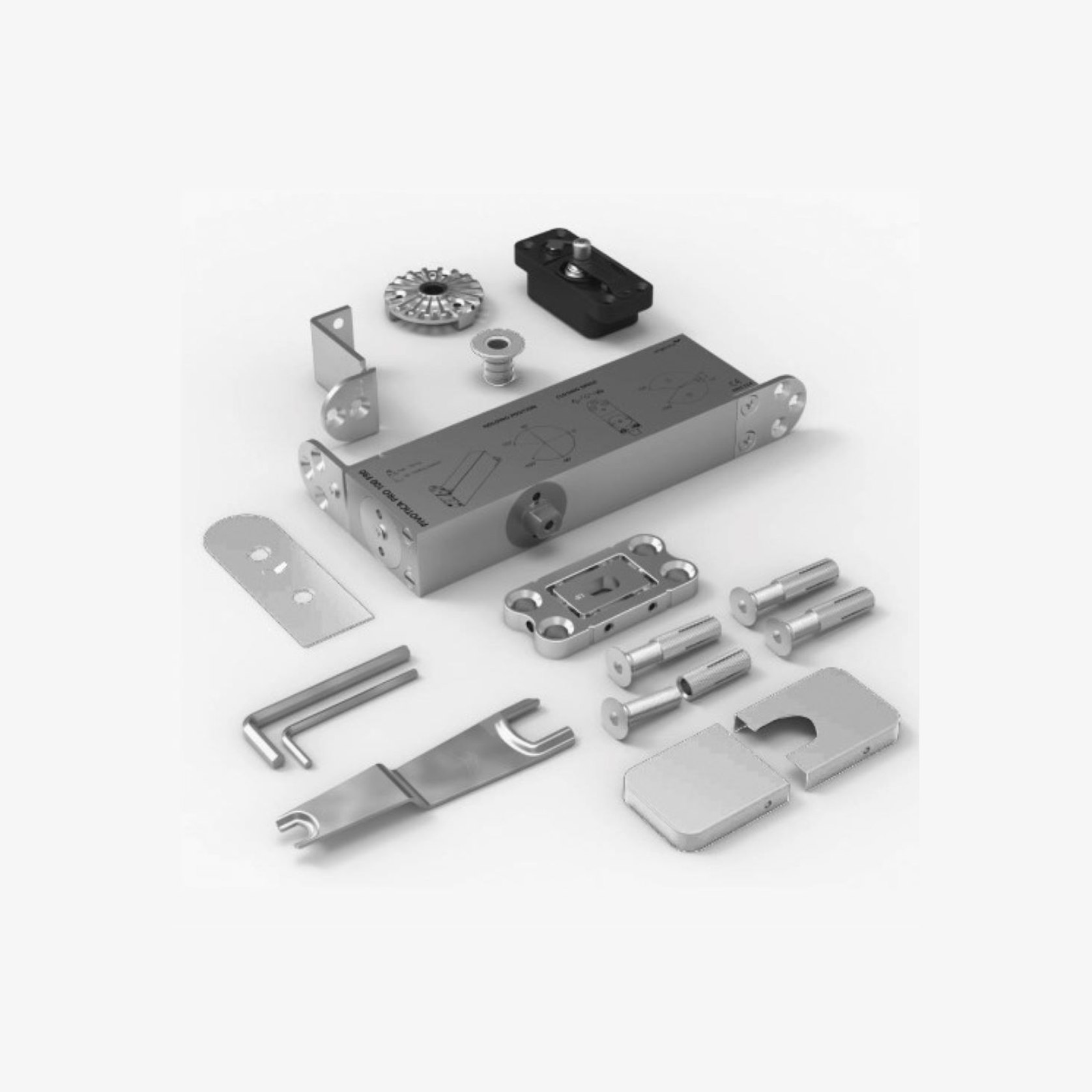

Engineered in Europe, this compact concealed self-closing pivot system gives architects, interior designers, and builders complete spatial flexibility. Designed specifically for timber and composite interior doors weighing up to 100kg, the hinge hardware remains virtually hidden when closed, delivering seamless wall alignment with flexible daily functionality.
What Does the “FM F90” Configuration Mean?
- FM (Floor Mounted): Surface-mounted footplate with minimal drilling depth, making it 100% safe for floors with embedded underfloor heating.
- F90 (Hold Open at 90°): Opens up to 150° in both directions with a built-in mechanical hold position at +90° and -90°. When pushed below 90°, the integrated hydraulic mechanism automatically pulls the door back to a perfectly flush 0° closed position.
Product Details
- Product
- Arlu® (Argenta) Pivotica Pro 100 FM F90
- Category
- Door and Window Hinges
- Brand
- Arlu
- Country of origin
- Belgium
- Type of use
- Commercial and Residential
- Care and cleaning
- Easy maintenance
- Installation
- Professional installation recommended
Product Variants
- Colours
A'besco - Blinds & Awnings and Architectural Hardware is specified by
Architectural Elegance Meets Hands-Free Convenience: The Concealed Self-Closing Pivot Hinge with 90° Hold-Open
Transform modern interior spaces with effortless motion for doors up to 100kg—complete with an integrated hold-open feature and zero risk to underfloor heating.
Redefining Standard-to-Medium Weight Interior Pivot Doors
Architectural pivot doors bring unmistakable character and elegance to modern residential and commercial builds. However, keeping a door open during daily movement—whether managing room-to-room flow, encouraging natural light, or moving furniture—often requires unsightly external floor stops that disrupt your design lines.
Enter the Arlu® (Argenta) Pivotica Pro 100 FM F90.
Engineered in Europe, this compact concealed self-closing pivot system gives architects, interior designers, and builders complete spatial flexibility. Designed specifically for timber and composite interior doors weighing up to 100kg, the hinge hardware remains virtually hidden when closed, delivering seamless wall alignment with flexible daily functionality.
What Does the “FM F90” Configuration Mean?
- FM (Floor Mounted): Surface-mounted footplate with minimal drilling depth, making it 100% safe for floors with embedded underfloor heating.
- F90 (Hold Open at 90°): Opens up to 150° in both directions with a built-in mechanical hold position at +90° and -90°. When pushed below 90°, the integrated hydraulic mechanism automatically pulls the door back to a perfectly flush 0° closed position.
- Pricing
- From $515 *Price indication
- Specs
- Mounting Style: FM (Floor-Mounted surface footplate)
- Function Option: F90 (Hold open at -90° / 0° / +90° with auto-return)
- Max Door Weight: Max. 100kg
- Door Thickness: Min. 40mm – Max. 100mm
- Max Door Height: 3000mm
- Max Door Width: Up to 1000mm (Corner) | Up to 2000mm (De-centralised/Central)
- Opening Range: 150° Bidirectional
- Bottom Clearance: 13mm
- 3D Adjustability: Width: +3mm | Depth: +3mm | Alignment: +4°
- Compliance: EN1154 Certified
Selection Guide: FM vs. BI & F0 vs. F90
- F90 (Hold Open) vs. F0 (Free Swing):F90 (This Product): Mechanically holds the door open at 90° in both directions. Ideal for living room entrances, hallway doors, or office partitions where keeping the door open is regularly needed.
F0: Free-swing operation that automatically glides back to 0° closed without holding open. - FM (Floor Mounted) vs. BI (Built-In):FM (This Product): Mounts directly onto finished flooring with a 13mm bottom gap. Recommended for retrofits, timber floors, or slabs with underfloor heating.
BI: Embedded floor plate recessed into subfloors prior to finishing for a tighter 5–11mm bottom gap.
- Features
- Certified Quality: EN1154 European standard compliant and cycle-tested for over 200,000 operations.
- Integrated 90° Hold-Open Position: Keeps doors securely parked open at 90° in both directions without needing separate wall latches or floor catches.
- Versatile 100 kg Capacity: Supporting door weights up to 100kg, height limits up to 3000mm, and door thicknesses starting from just 40mm.
- Underfloor Heating Safe: The surface-mounted FM floor plate eliminates deep slab cutouts, keeping underfloor heating elements completely protected.
- Active Hydraulic Soft-Closing: Features a built-in active 2-speed damper that smoothly controls the closing motion back to 0°, preventing slams and finger jams.
- Flexible Axis Positioning: Install your pivot axis in a corner mount (minimum 58.5mm offset for doors up to 1000mm wide), off-centre, or fully central (for doors up to 2000mm wide).
- Precision 3D Adjustment: Easily align your doors after installation (+3mm width, +3mm depth, and +4° alignment angle) to maintain clean, consistent shadow lines.ned to elevate interiors and simplify installation, this pivot hinge is the finishing touch your space needs to stand out.
