Architectural Elegance Meets Hands-Free Convenience: The Concealed Self-Closing Pivot Hinge with 90° Hold-Open
Transform high-traffic interior spaces with effortless motion for doors up to 150kg—complete with an integrated hold-open feature and zero risk to underfloor heating.
Redefining How Heavy Pivot Doors Function
Large, architectural pivot doors make an undeniable statement in modern homes and commercial spaces. But keeping a heavy door open during daily life—whether hosting guests, encouraging open-plan airflow, or moving furniture—usually requires clunky, external floor stops that ruin your floor lines.

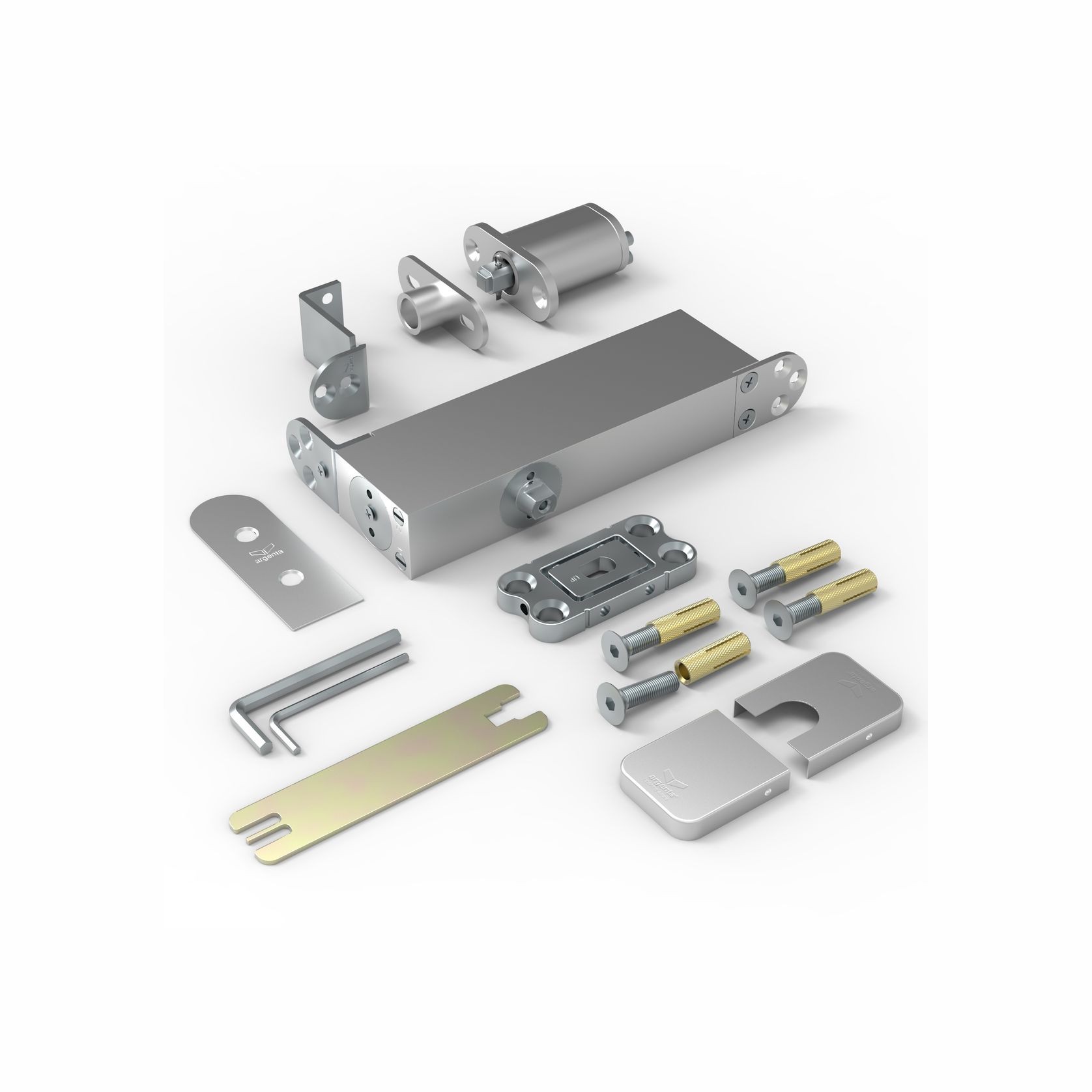

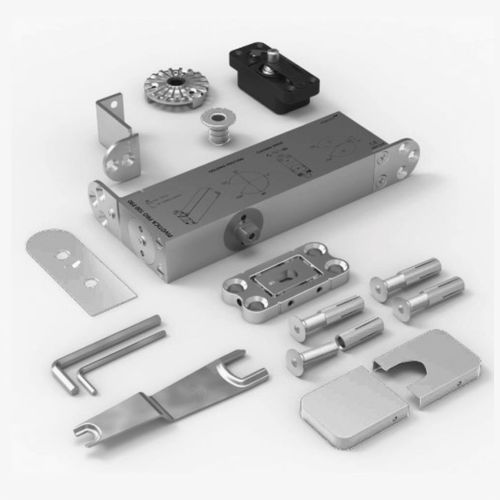

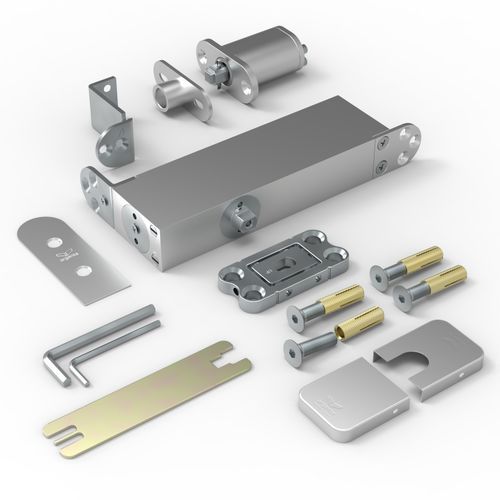

Enter the Arlu® (Argenta) Pivotica Pro 150 FM F90.
Engineered in Europe, this concealed self-closing pivot system gives architects, interior designers, and builders complete creative freedom. Built to handle heavy doors weighing up to 150 kg, the hinge remains virtually invisible when closed, delivering clean architectural lines with built-in operational flexibility.
What Does the “FM F90” Configuration Mean?

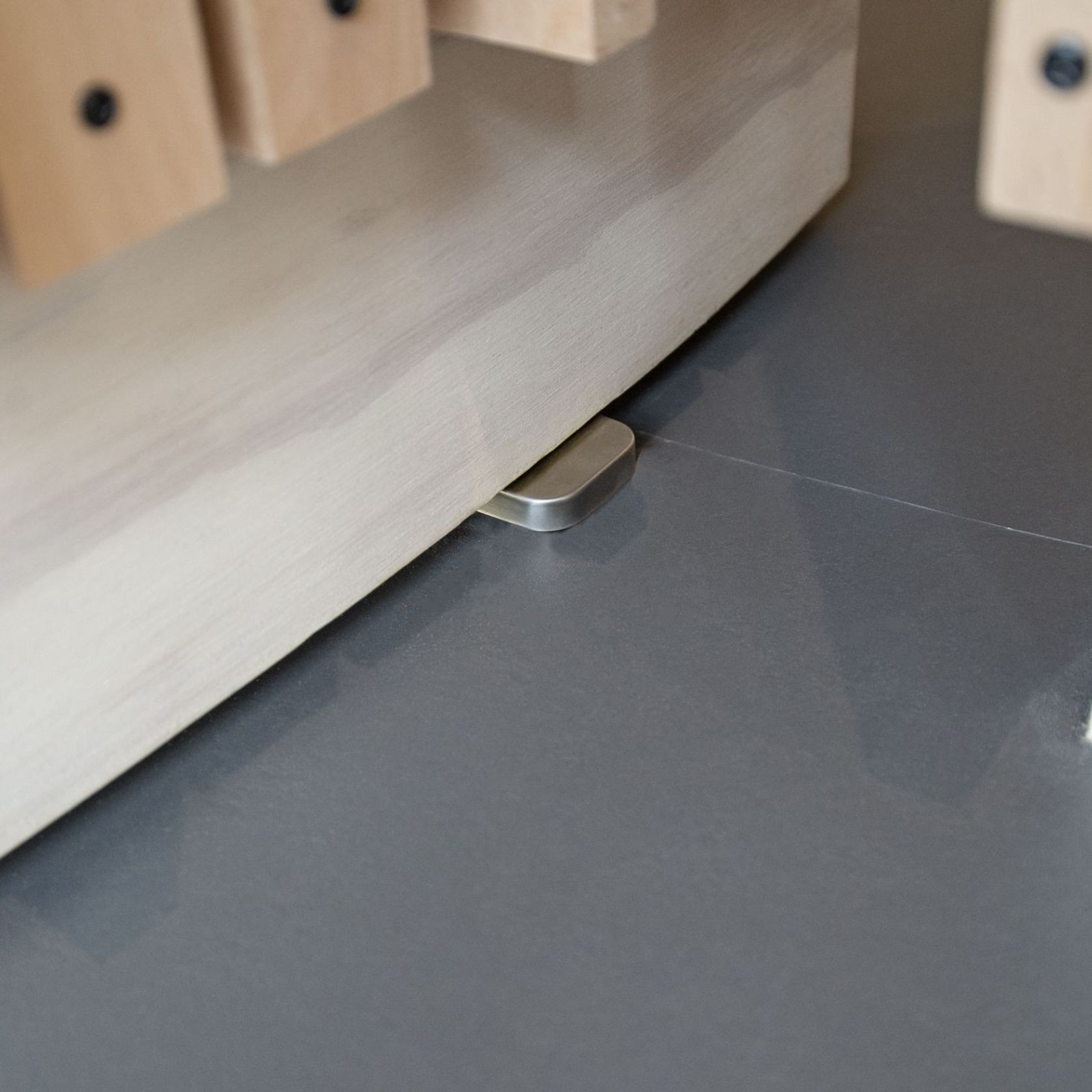

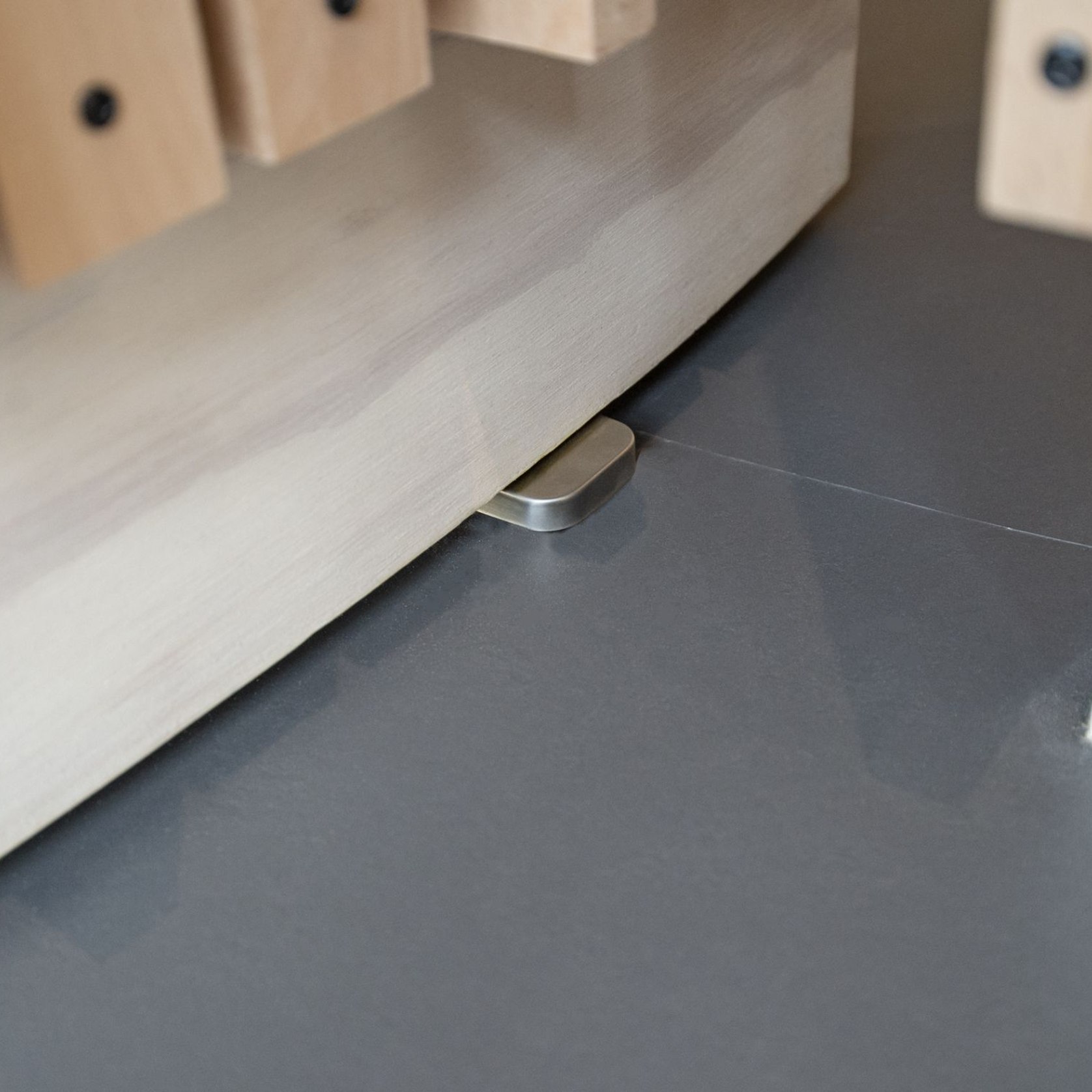

- FM (Floor Mounted): Surface-mounted footplate with minimal drilling depth, making it 100% safe for floors with embedded underfloor heating.
- F90 (Hold Open at 90°): Opens up to 150° in both directions with a built-in hold-position at +90° and -90°. When pushed below 90°, the integrated hydraulic mechanism automatically pulls the door back to a perfectly flush 0° closed position.
Product Details
- Product
- Arlu® (Argenta) Pivotica Pro 150 FM F90
- Category
- Door and Window Hinges
- Brand
- Arlu
- Country of origin
- Belgium
- Type of use
- Commercial and Residential
- Care and cleaning
- Easy maintenance
Product Variants
- Colours
A'besco - Blinds & Awnings and Architectural Hardware is specified by
Architectural Elegance Meets Hands-Free Convenience: The Concealed Self-Closing Pivot Hinge with 90° Hold-Open
Transform high-traffic interior spaces with effortless motion for doors up to 150kg—complete with an integrated hold-open feature and zero risk to underfloor heating.
Redefining How Heavy Pivot Doors Function
Large, architectural pivot doors make an undeniable statement in modern homes and commercial spaces. But keeping a heavy door open during daily life—whether hosting guests, encouraging open-plan airflow, or moving furniture—usually requires clunky, external floor stops that ruin your floor lines.
Enter the Arlu® (Argenta) Pivotica Pro 150 FM F90.
Engineered in Europe, this concealed self-closing pivot system gives architects, interior designers, and builders complete creative freedom. Built to handle heavy doors weighing up to 150 kg, the hinge remains virtually invisible when closed, delivering clean architectural lines with built-in operational flexibility.
What Does the “FM F90” Configuration Mean?
- FM (Floor Mounted): Surface-mounted footplate with minimal drilling depth, making it 100% safe for floors with embedded underfloor heating.
- F90 (Hold Open at 90°): Opens up to 150° in both directions with a built-in hold-position at +90° and -90°. When pushed below 90°, the integrated hydraulic mechanism automatically pulls the door back to a perfectly flush 0° closed position.
- Pricing
- From $645 *Price indication
- Installation
- Professional installation recommended, Tools required
- Specs
- Mounting Style: FM (Floor-Mounted surface footplate)
- Function Option: F90 (Hold open at -90° / 0° / +90° with auto-return)
- Max Door Weight: Max. 150kg
- Door Thickness: Min. 50mm – Max. 100mm
- Max Door Height: 3000mm
- Max Door Width: 2500mm (for doors <100kg); 2000mm (for doors 100–150kg)
- Opening Range: 150° Bidirectional
- Bottom Clearance: 13mm
- 3D Adjustability: Width: +3mm | Depth: +3mm | Alignment: +4°
Selection Guide: FM vs. BI & F0 vs. F90
Ensure you choose the correct model variant for your project requirements:
- F90 (Hold Open) vs. F0 (Free Swing): F90 (This Product): Mechanically holds the door open at 90° in both directions. Perfect for living rooms, hallway dividers, kitchen entries, or office spaces where doors need to stay open periodically.
F0: Free-swing function that always returns to 0° closed without a hold-open detent. Best for ensuite doors or privacy panels. - FM (Floor Mounted) vs. BI (Built-In): FM (This Product): Installs directly on top of finished flooring with a 13mm bottom gap. Ideal for heated slabs or timber retrofits.
BI: Recessed baseplate built into subfloors for a minimal 5–11mm bottom gap.
- Features
- Certified Rigorous Testing: EN1154 European standard compliant and cycle-tested for over 200,000 smooth operations.
- Integrated 90° Hold-Open Position: Keeps doors securely open at 90° in both directions without needing unsightly floor stops or wall catches.
- Heavy-Duty 150kg Capacity: Effortlessly carries large timber and composite interior doors weighing up to 150kg, with heights up to 3000mm and door thicknesses starting from 50mm.
- Underfloor Heating Safe: The surface-mounted FM floor plate eliminates the need for deep floor box cutouts, keeping underfloor heating systems completely intact.
- Active Hydraulic Soft-Closing: Features a built-in active 2-speed damper that smoothly closes the door to its 0° position, preventing slam damage and protecting fingers.
- Customisable Pivot Placement: Position your pivot point as a corner hinge (minimum 61.5mm offset), off-centre, or fully centered for floating partition walls.
- Precision 3D Adjustment: Fine-tune post-installation alignment with ease (+3mm width, +3mm depth, and +4° alignment angle) to ensure uniform shadow gaps.
