Ultra-shallow 21mm frame depth. Zero visible screws. Seamless 3D adjustability for narrow door frames.
Sleek Flush Design for Ultra-Narrow Frames
What happens when your architectural vision calls for flush interior doors, but your door frames are too shallow for standard concealed hinges?
You shouldn’t have to compromise on style or compromise your wall framing.
Enter the Arlu® (Argenta®) Invisible Tyo.
Specially developed for modern minimalist architecture, the Invisible Tyo requires an installation depth of just 21mm in the door frame. This allows for ultra-slim, streamlined jambs and discreet door lines without sacrificing strength. When closed, the hinge disappears entirely into the wall line. When open up to 180°, matching cover caps keep every single screw completely out of sight.
Slim Depth. Heavy Performance.
Setting up narrow door frames doesn’t mean wrestling with complex hardware.
Here’s where it gets clever…
Despite its compact, shallow footprint, the Invisible Tyo easily supports doors up to 95kg. It works seamlessly on left- or right-opening doors, giving you complete flexibility across your build.
Once the door is hung, fine-tuning is effortless. You can precisely adjust alignment across three dimensions (height, width, and depth) using a simple tool—all without taking the door off its frame.
Product Details
- Product
- Arlu® (Argenta) Invisible Tyo Door Hinge
- Category
- Door and Window Hinges
- Brand
- Arlu
- Country of origin
- Belgium
- Type of use
- Commercial and Residential
- Care and cleaning
- Easy maintenance
Product Variants
- Colours
A'besco - Blinds & Awnings and Architectural Hardware is specified by
Ultra-shallow 21mm frame depth.
Zero visible screws. Seamless 3D adjustability for narrow door frames.
Sleek Flush Design for Ultra-Narrow Frames
What happens when your architectural vision calls for flush interior doors, but your door frames are too shallow for standard concealed hinges?
You shouldn’t have to compromise on style or compromise your wall framing.
Enter the Arlu® (Argenta®) Invisible Tyo.
Specially developed for modern minimalist architecture, the Invisible Tyo requires an installation depth of just 21mm in the door frame. This allows for ultra-slim, streamlined jambs and discreet door lines without sacrificing strength. When closed, the hinge disappears entirely into the wall line. When open up to 180°, matching cover caps keep every single screw completely out of sight.
Slim Depth. Heavy Performance.
Setting up narrow door frames doesn’t mean wrestling with complex hardware.
Here’s where it gets clever…
Despite its compact, shallow footprint, the Invisible Tyo easily supports doors up to 95kg. It works seamlessly on left- or right-opening doors, giving you complete flexibility across your build.
Once the door is hung, fine-tuning is effortless. You can precisely adjust alignment across three dimensions (height, width, and depth) using a simple tool—all without taking the door off its frame.
- Pricing
- From $55 *Price indication
- Installation
- Professional installation recommended, Tools required
- Specs
- Material: High-grade Zamak alloy
- Hinge Dimensions (L × W): 110 × 30mm
- Min Frame Fitting Depth: 21mm
- Door Thickness: Min. 38mm (40mm with max 6mm front cladding)
- Opening Angle: 180°
- Load Capacity (2 Hinges): Up to 75kg (730mm door width) / 45kg (1230mm width)
- Load Capacity (3 Hinges): Up to 95kg (730mm door width) / 65kg (1230mm width)
- Load Capacity (4 Hinges): Up to 105kg (730mm door width) / 75kg (1230mm width)
- 3D Adjustability: Height: -2.0 / +3.0mm | Width: -3.0 / +3.0mm | Depth: -1.0 / +1.0mm
- Durability Rating: Tested to min. 200,000 cycles
- Fixing Screws: Max. Ø5.0mm SPAX wood screws
- Features
- Enhanced Finger Protection: Minimal gap between door leaf and frame reduces pinch hazards.
- Ultra-Shallow 21mm Frame Depth: Purpose-built for slender, narrow door frames and custom timber jambs.
- 100% Invisible Hardware: Color-matched plastic cover caps conceal all mounting screws and adjustment mechanisms.
- 180° Swing Clearance: Wide, smooth opening range with no visual clutter.
- Universal Compatibility: Reversible design works on both left- and right-opening doors.
- Built to Last: Tested to over 200,000 opening cycles and fitted with self-lubricating washers for silent, smooth action
Downloads
Downloads (4)4 Direct downloads • 5 Available on request
Frequently asked questions about
Arlu® (Argenta) Invisible Tyo Door Hinge
The Arlu® (Argenta) Invisible Tyo Door Hinge is supplied by A'besco - Blinds & Awnings and Architectural Hardware. It is also on their website, and you can browse every product A'besco - Blinds & Awnings and Architectural Hardware lists on ArchiPro.
A'besco - Blinds & Awnings and Architectural Hardware lists the Arlu® (Argenta) Invisible Tyo Door Hinge from $55, as a price indication. For an exact price for your project, .

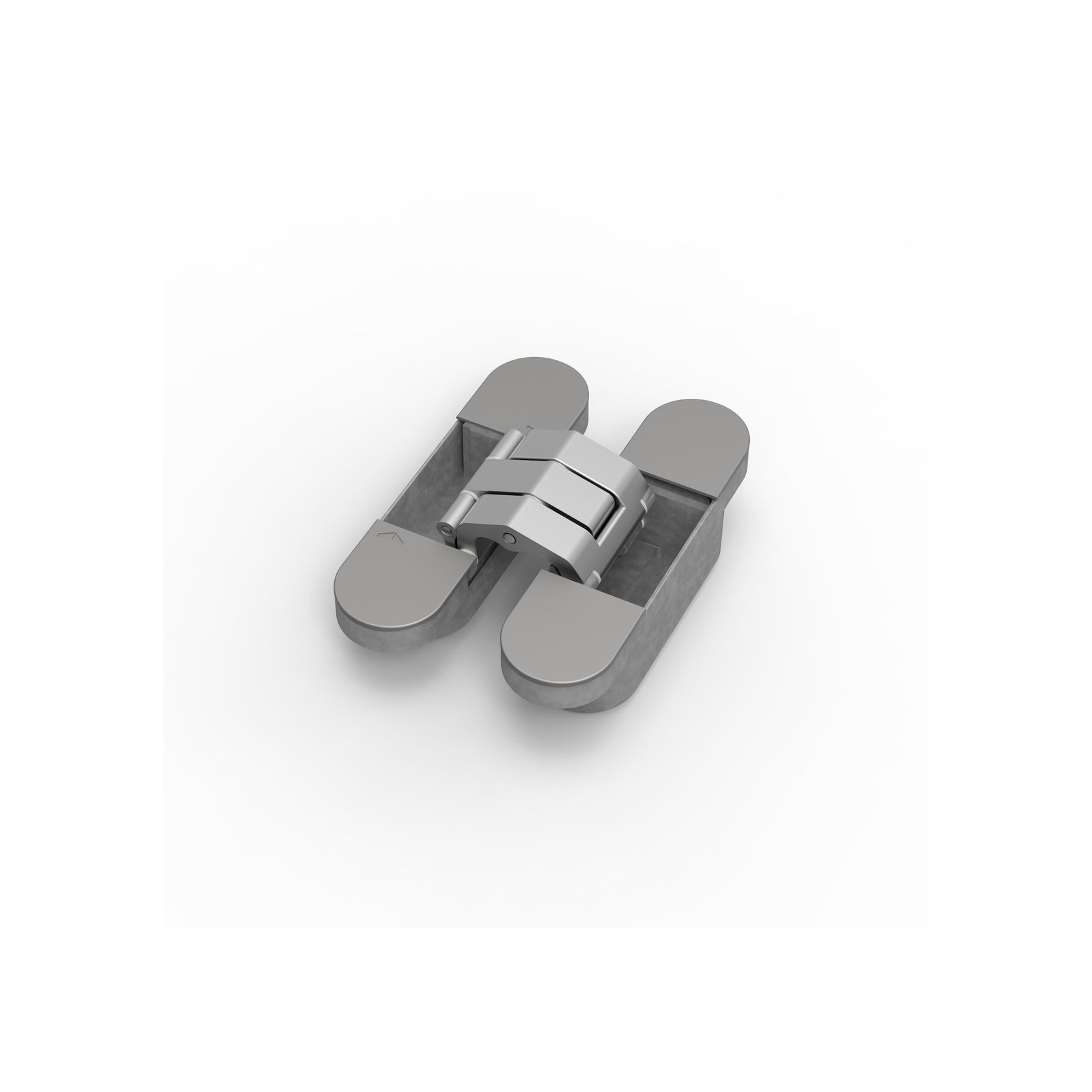

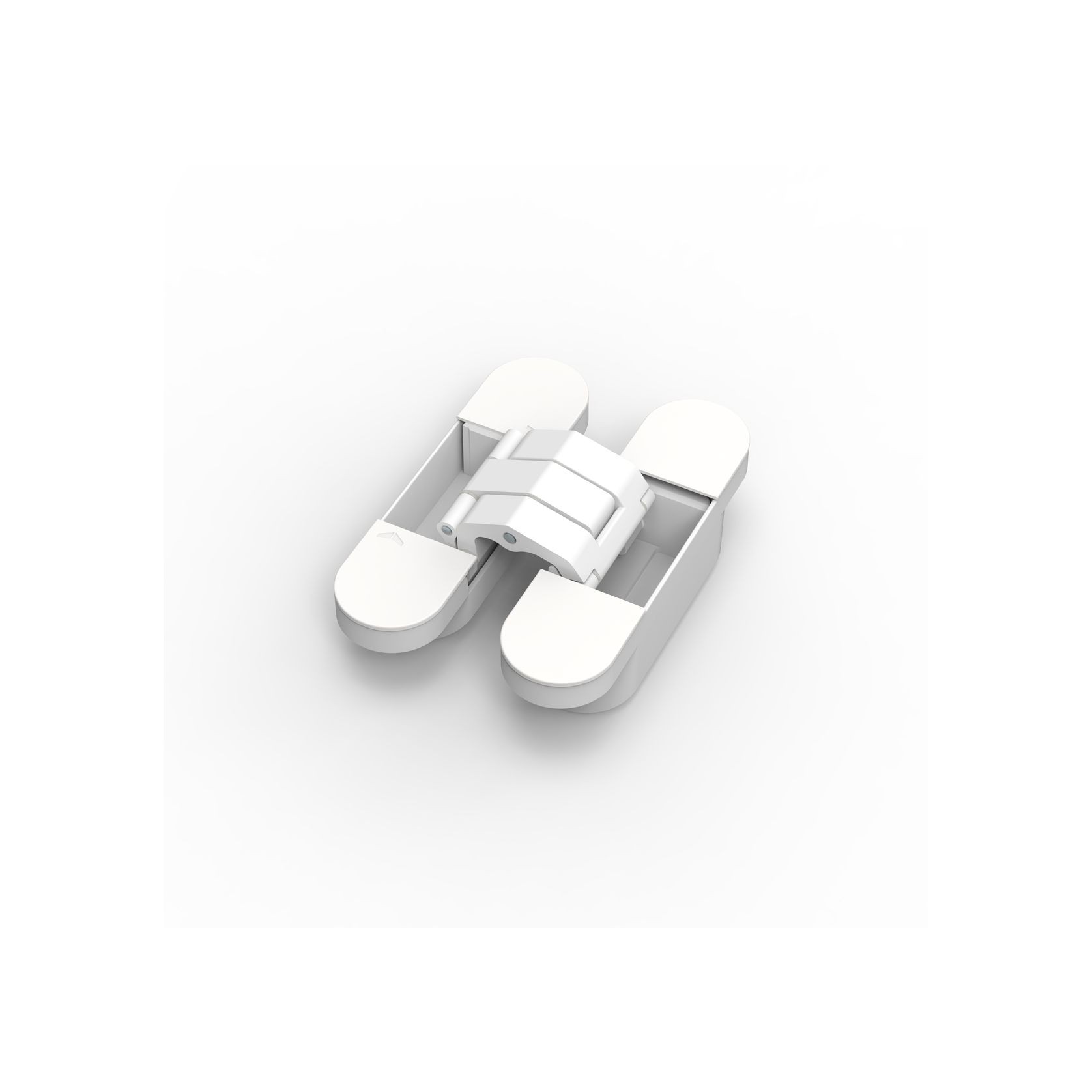

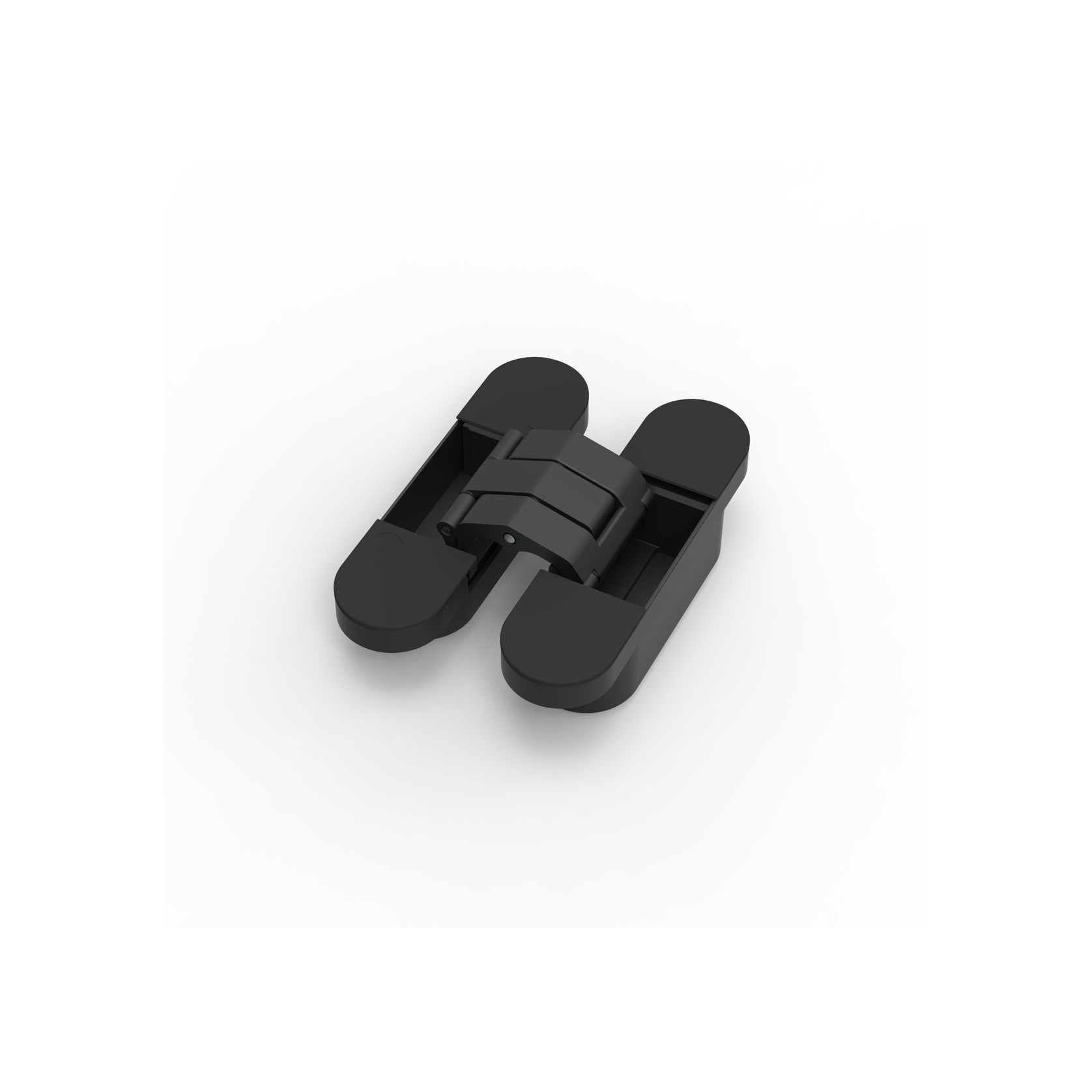

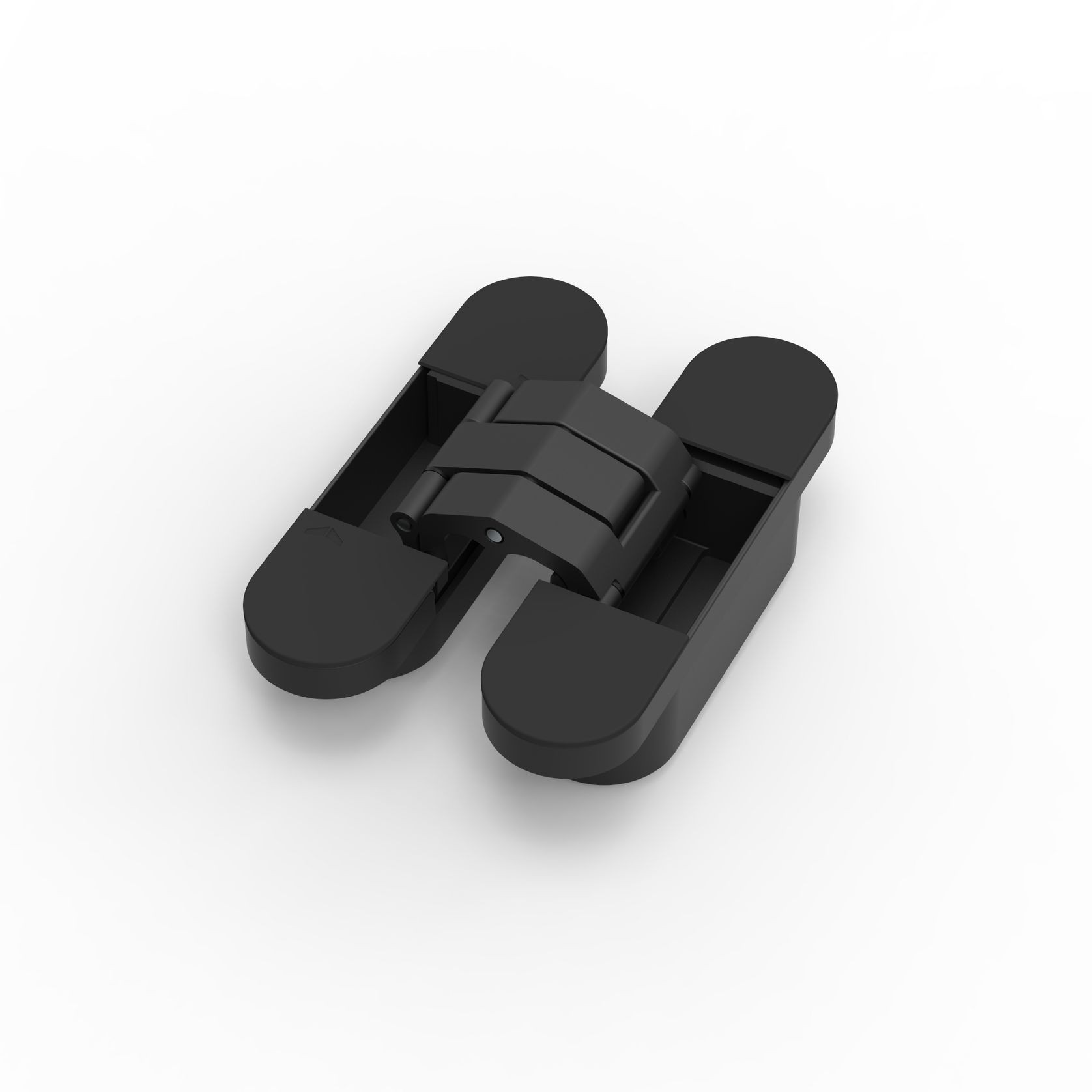

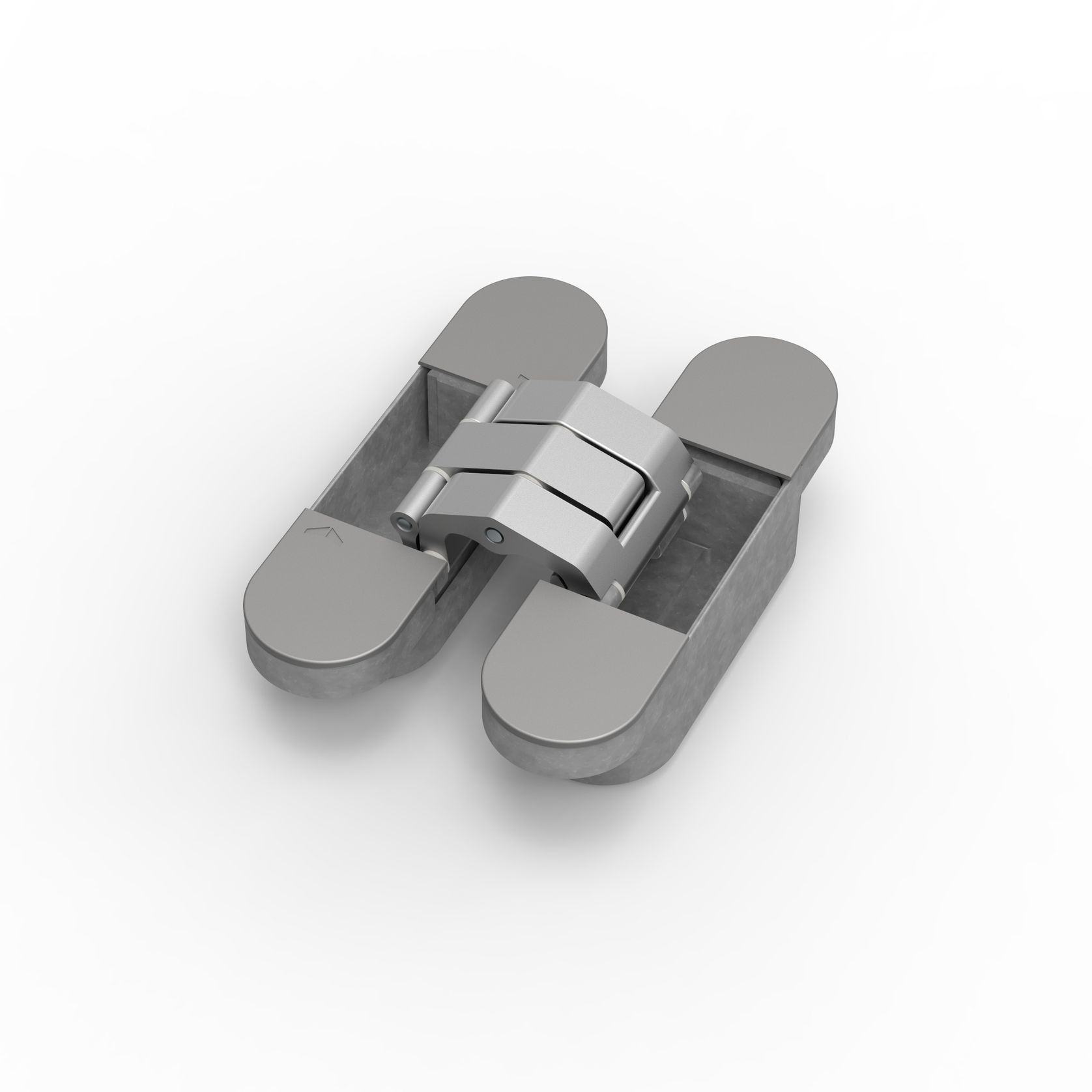

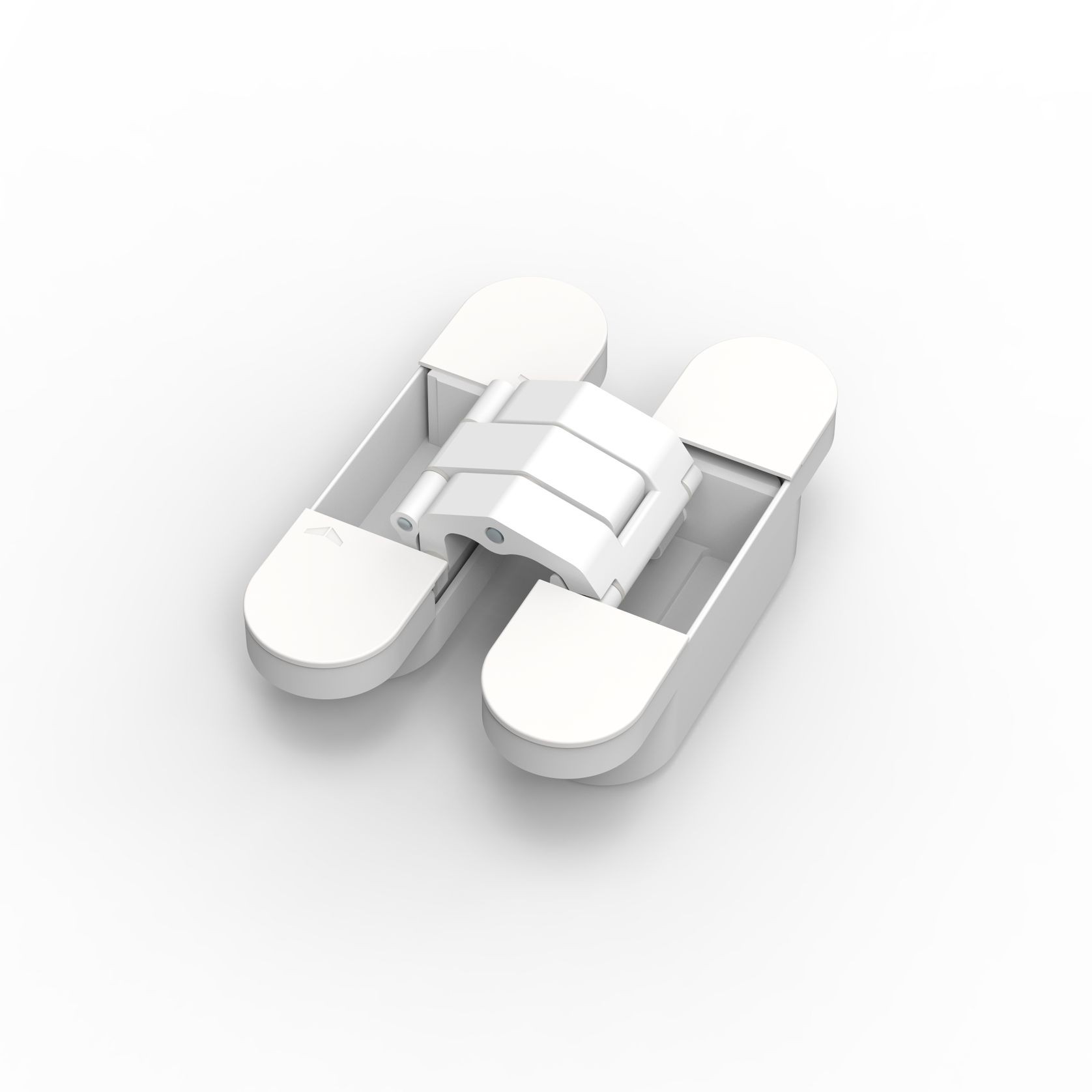

It comes in 3 colour options (Matt Chrome, White, Black). Pick one in the row under the description to see it and its price.
