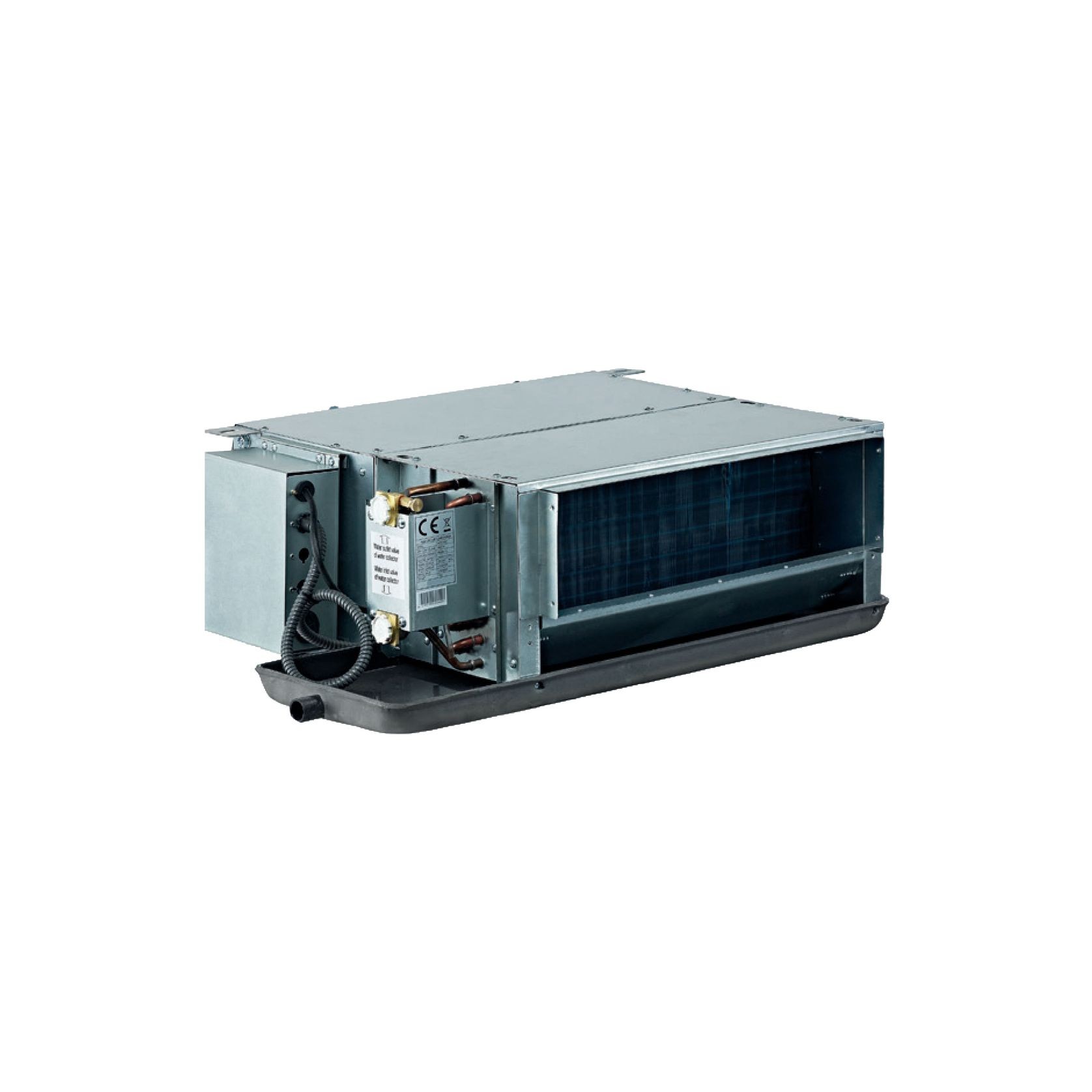

Baxi - Fan Coil Ducted Solution (IQD30)
Auckland, New Zealand
- 583.4K profile views
- 189 saves
Baxi enlarges the product offer, introducing a complete range of hydronic fan units for heating and cooling systems, ideal for any residential and commercial application. The fan coil units can be combined with the newest low temperature heating generators, such as condensing boilers and heat pumps.
Product Details
- Product
- Baxi - Fan Coil Ducted Solution (IQD30)
- Category
- Ducted Heat Pump Systems
- Sold by
- Warm NZ Heating Solutions
- Pricing
- $1,456.49
- Range
- Hydronic Heating
- Designer
- Baxi
- Brand
- Baxi
- Type of use
- Commercial and Residential
- Care and cleaning
- Professional cleaning recommended
- Installation
- Professional installation recommended
- Assembly
- Professional assembly recommended
Warm NZ Heating Solutions is specified by
Stephen Jones ArchitectsArchitects
Christian Anderson ArchitectsArchitects
Chaplin Crooks ArchitectsArchitects
Hulena ArchitectsArchitects
Hamish Shaw ArchitectsArchitects
I Am DeveloperArchitects
Evelyn McNamara ArchitectureArchitects
Stephan Meijer ArchitectureArchitects
Charissa Snijders ArchitectArchitects
Brendon Gordon ArchitectsArchitects
Alabaster WorkshopManufacturers and Suppliers
Harrison LaneBuilders
Stehr Brothers ConstructionBuilders
Net ZeroManufacturers and Suppliers
Our ProjectsBuilders
Dash BuildBuilders
WaterwareManufacturers and Suppliers
Emandee HomesBuilders
Beck BuildingBuilders
PlumbcraftPlumbers & Gas Fitters
Precision ConstructionBuilders
No Shock ElectricalElectricians
M C Fearnley DesignArchitectural Designers
Wilson ConstructionConstruction
Nicola Manning DesignInterior Designers
Christopher Hay ConstructionBuilders
Home ProjectsBuilders
FortéManufacturers and Suppliers
F. L. BoneManufacturers and Suppliers
QUATTRO UNOKitchen & Bathroom Designers
Baxi enlarges the product offer, introducing a complete range of hydronic fan units for heating and cooling systems, ideal for any residential and commercial application.
The fan coil units can be combined with the newest low temperature heating generators, such as condensing boilers and heat pumps.
- Specs
Model
- IQD30 - 841 x 241 x 522 (WxHxD) mm
- IQD50 - 941 x 241 x 522 (WxHxD) mm
- IQD60 - 1161 x 241 x 522 (WxHxD) mm
- IQD80 - 1461 x 241 x 522 (WxHxD) mm
- IQD110 - 1856 x 241 x 522 (WxHxD) mm
- Features
• Designed for built-in installation
• Compact dimensions: height of only 241 mm
• High efficiency and low noise
• 3-stage exchange coil
• 2 pipe system
• Bottom or back air intake option
• Head pressure adjustment based on the pressure losses of the ventilation ducts
• Outdoor air intake option
• Hydraulic connections on the left side (front view)
• INCLUDED condensate drain pan for valve connection site
• 4 levels of static pressure (0Pa - 12Pa - 30Pa -50Pa)
Downloads
Downloads (3)3 Direct downloads • 6 Available on request
Frequently asked questions about
Baxi - Fan Coil Ducted Solution (IQD30)
The Baxi - Fan Coil Ducted Solution (IQD30) is supplied by Warm NZ Heating Solutions. It is also on their website, and you can browse every product Warm NZ Heating Solutions lists on ArchiPro.
Warm NZ Heating Solutions lists the Baxi - Fan Coil Ducted Solution (IQD30) at $1,456.49. For an exact price for your project, .
It is listed under Ducted Heat Pump Systems on ArchiPro, where you can compare it with ducted heat pump systems from other suppliers.
Yes. It is part of the Hydronic Heating range from Warm NZ Heating Solutions, where you can see every product in the range together.
from this page, see their contact details on ArchiPro, or visit their website. The Warm NZ Heating Solutions profile on ArchiPro has the rest of their products.
