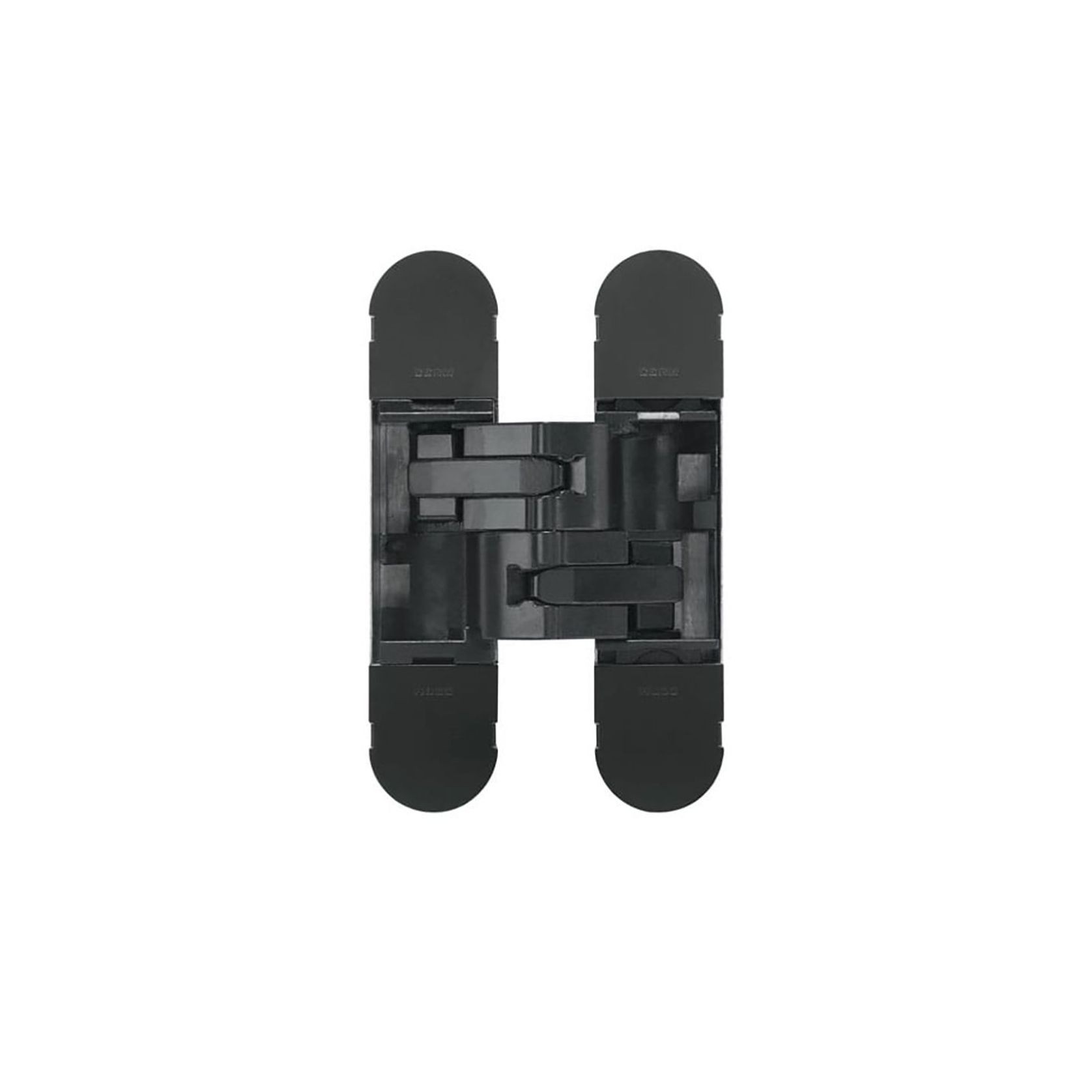

Bellevue Ceam Door Hinge 3D Invisible Concealed 85kg
Black

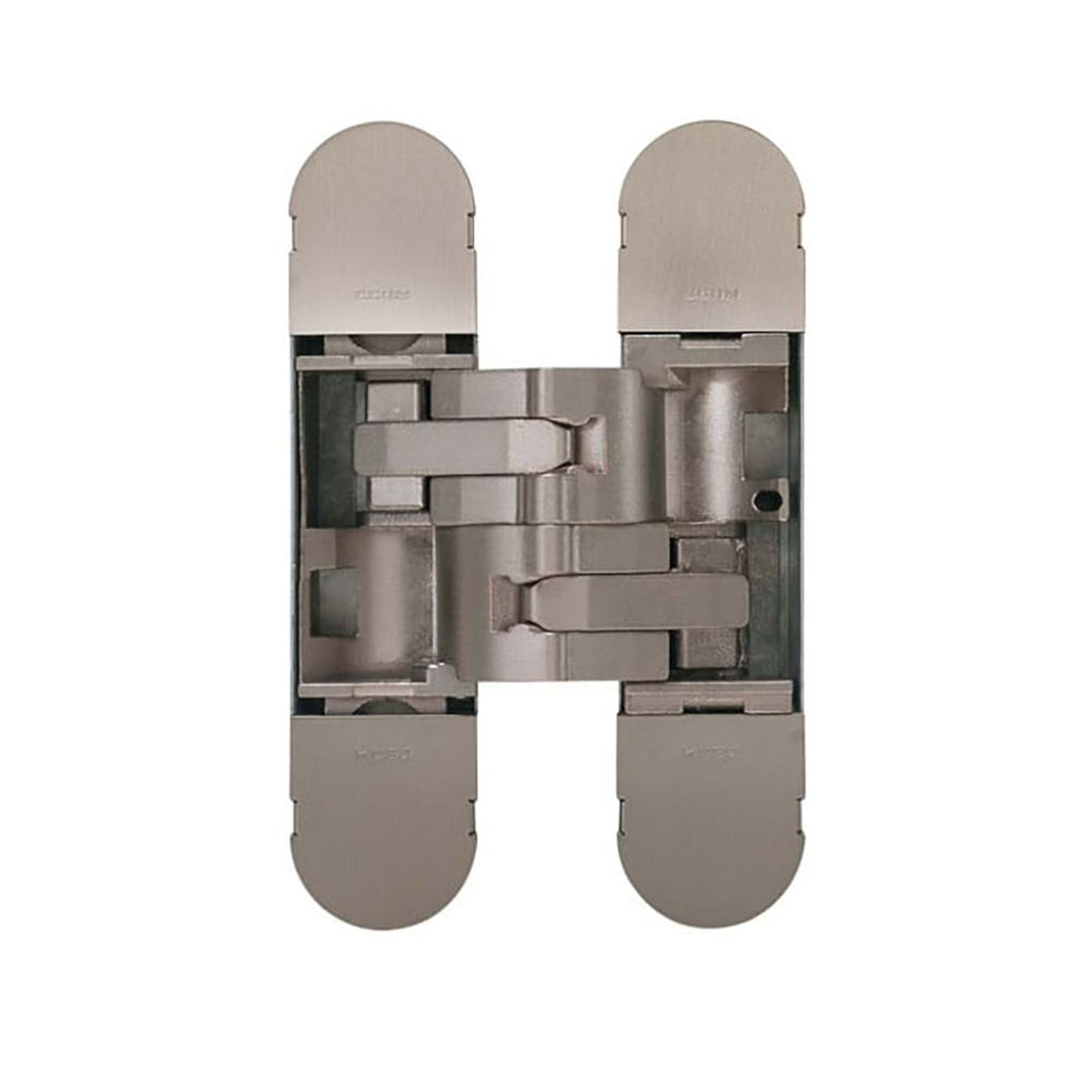

Bellevue Ceam 3D Invisible Concealed Wide Throw Door Hinge
BAC1230S

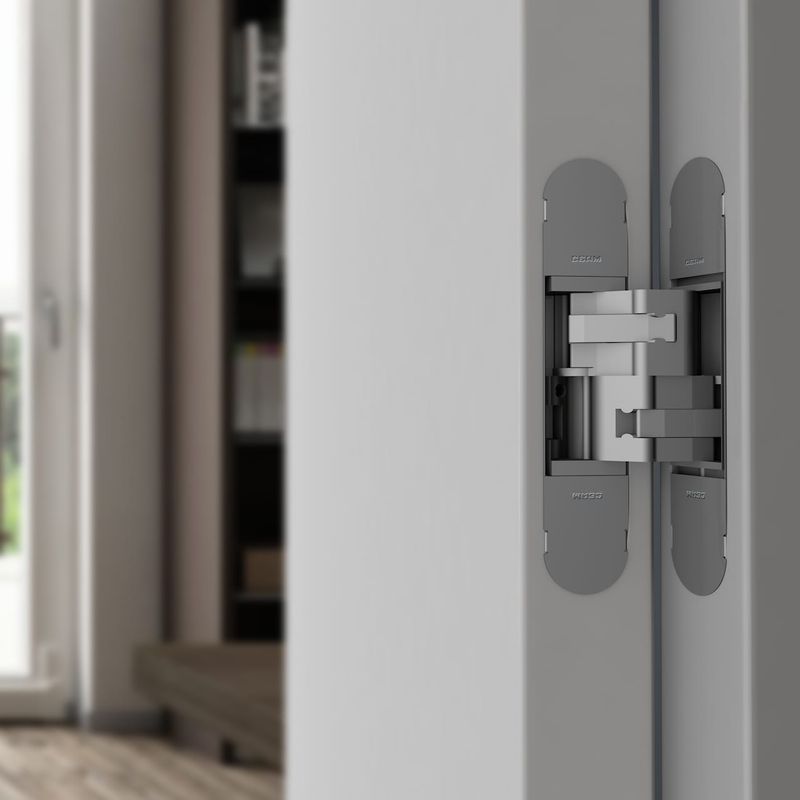

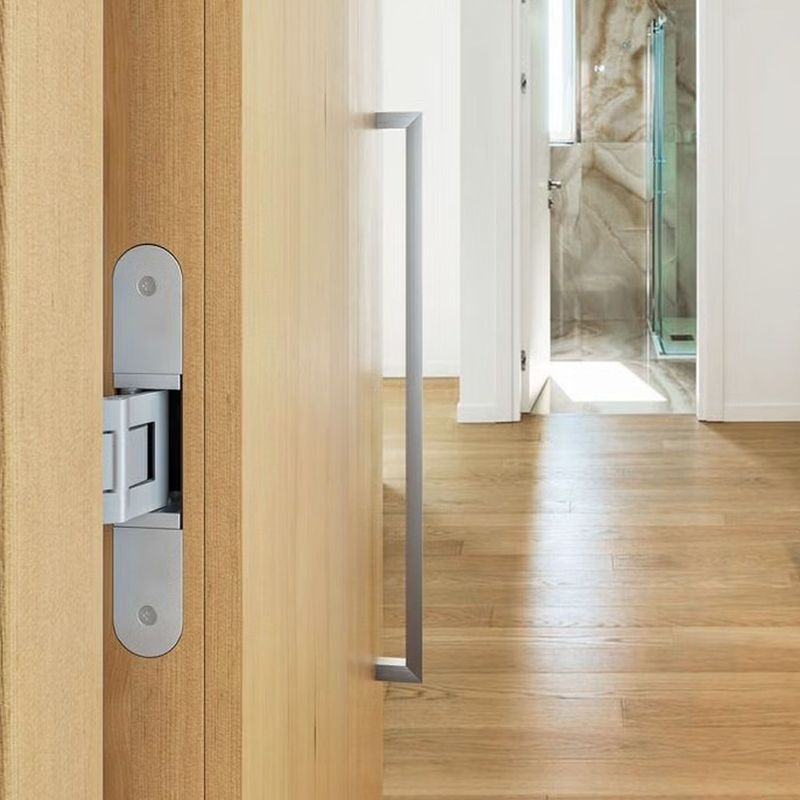

Ceam 3D Invisible Concealed Door Hinge Function - recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.
Details
- CategoryDoor and Window Hinges
- RangeBellevue
- BrandBellevue
- DesignerCEAM
General
- Country of originAustralia
- Type of useCommercial and Residential
- Care and cleaningEasy maintenance
- InstallationProfessional installation recommended
- AssemblyTools required

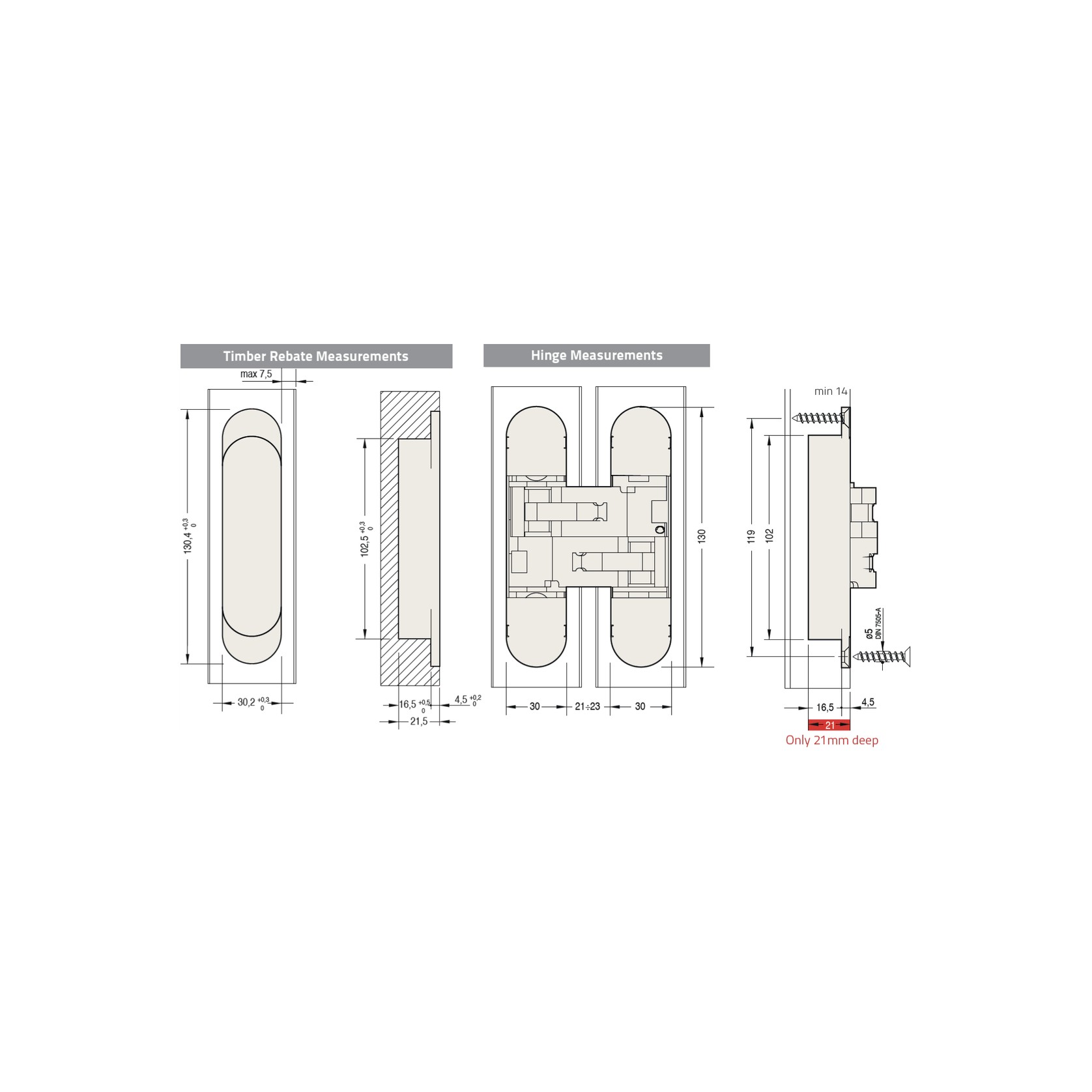

Specifications

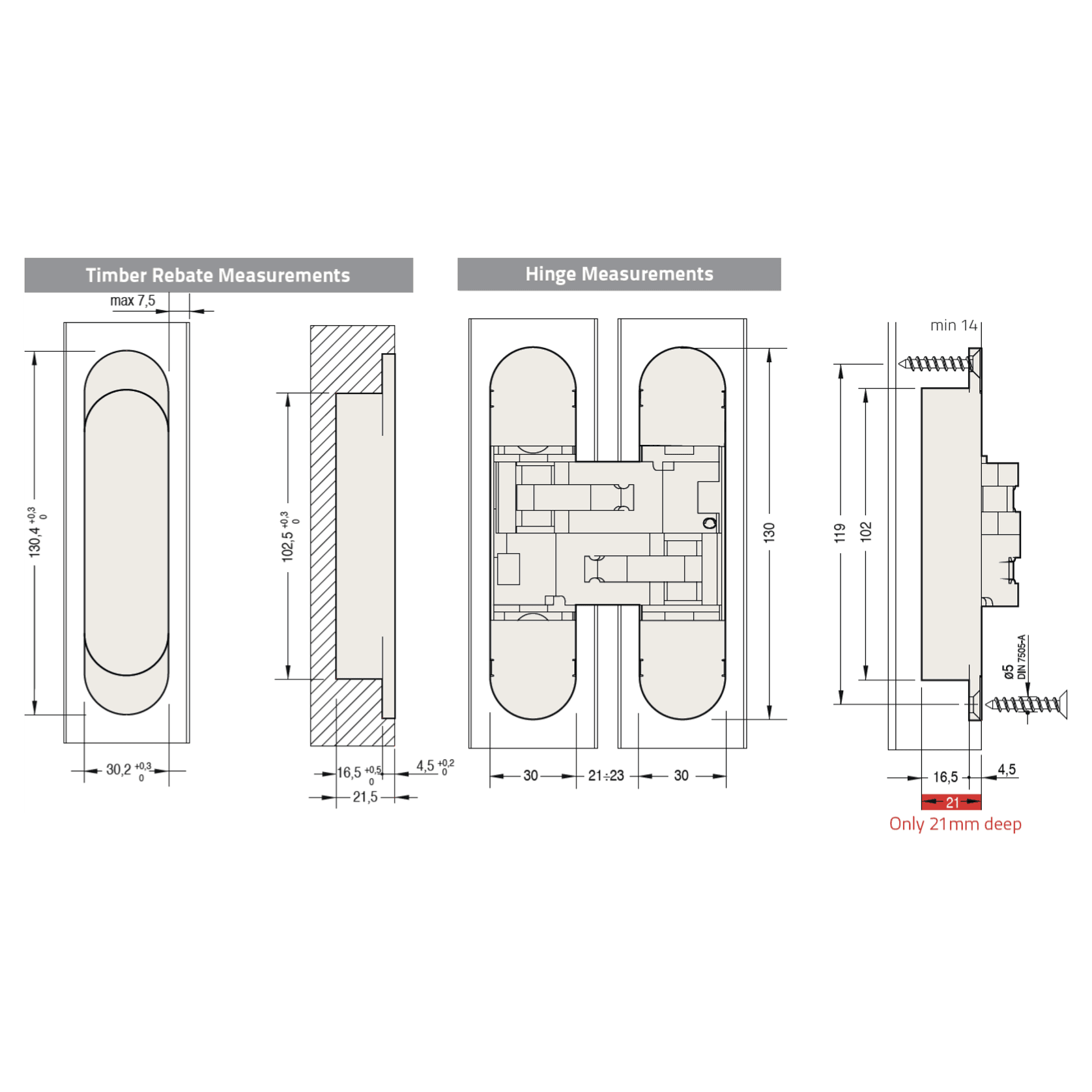

- Height: 130mm
- Width: 30mm
- Depth: 21mm
- Material: Die Cast
- Working Aperture: 180 degree
- Minimum Door Thickness: 35mm
- 3D Adjustable: Yes
- Suitable For Doors: Wood, Aluminum, Steel
- Load Capacity:2 hinges:
- 2 hinges: 53g at 900mm wide doors
- 3 hinges: 73kg at 900mm wide doors
- 3 hinges asymmetrical: 76kg at 900mm wide doors
- 4 hinges: 85kg at 900mm wide doors
- Available Finish:
- Black

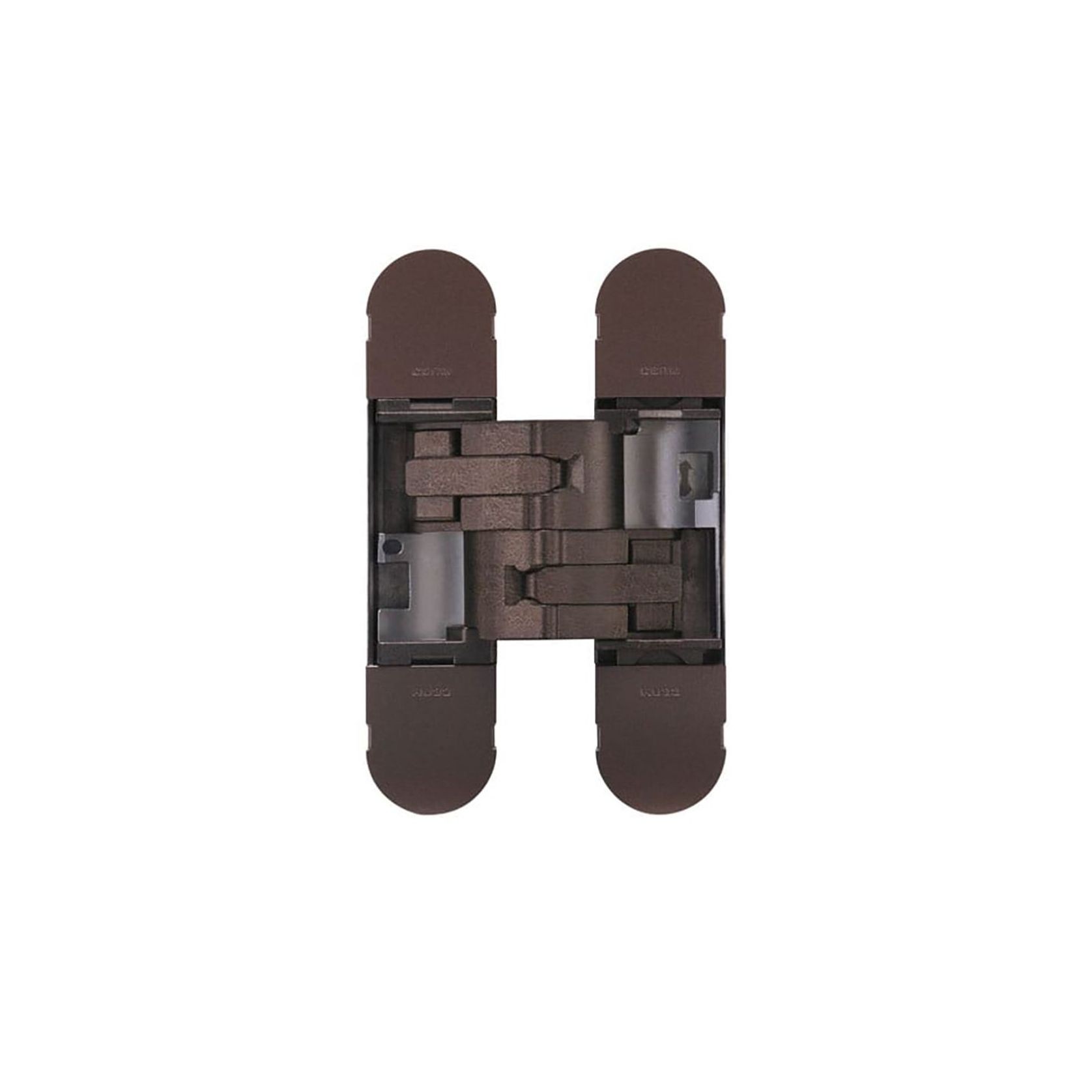

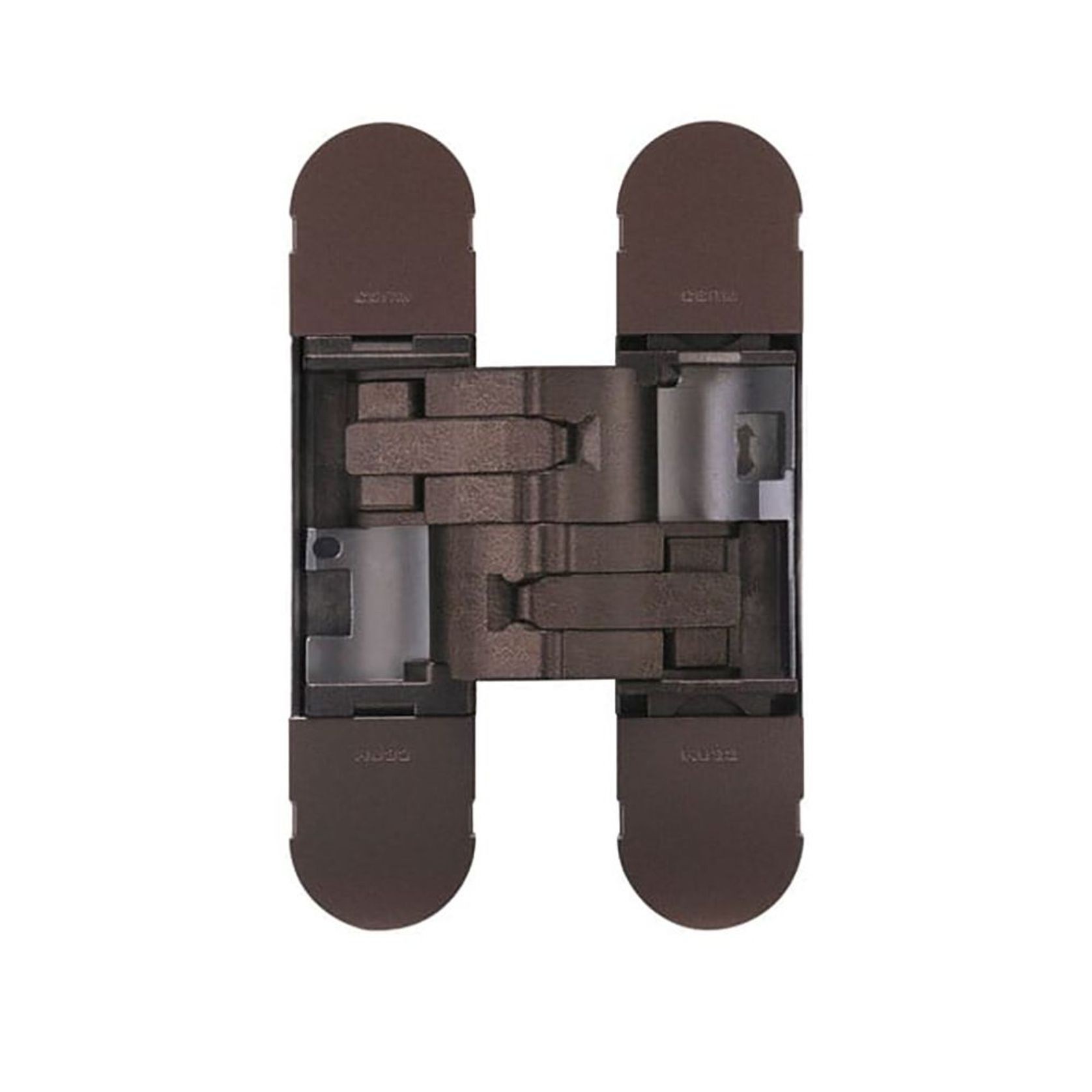

- Bronze

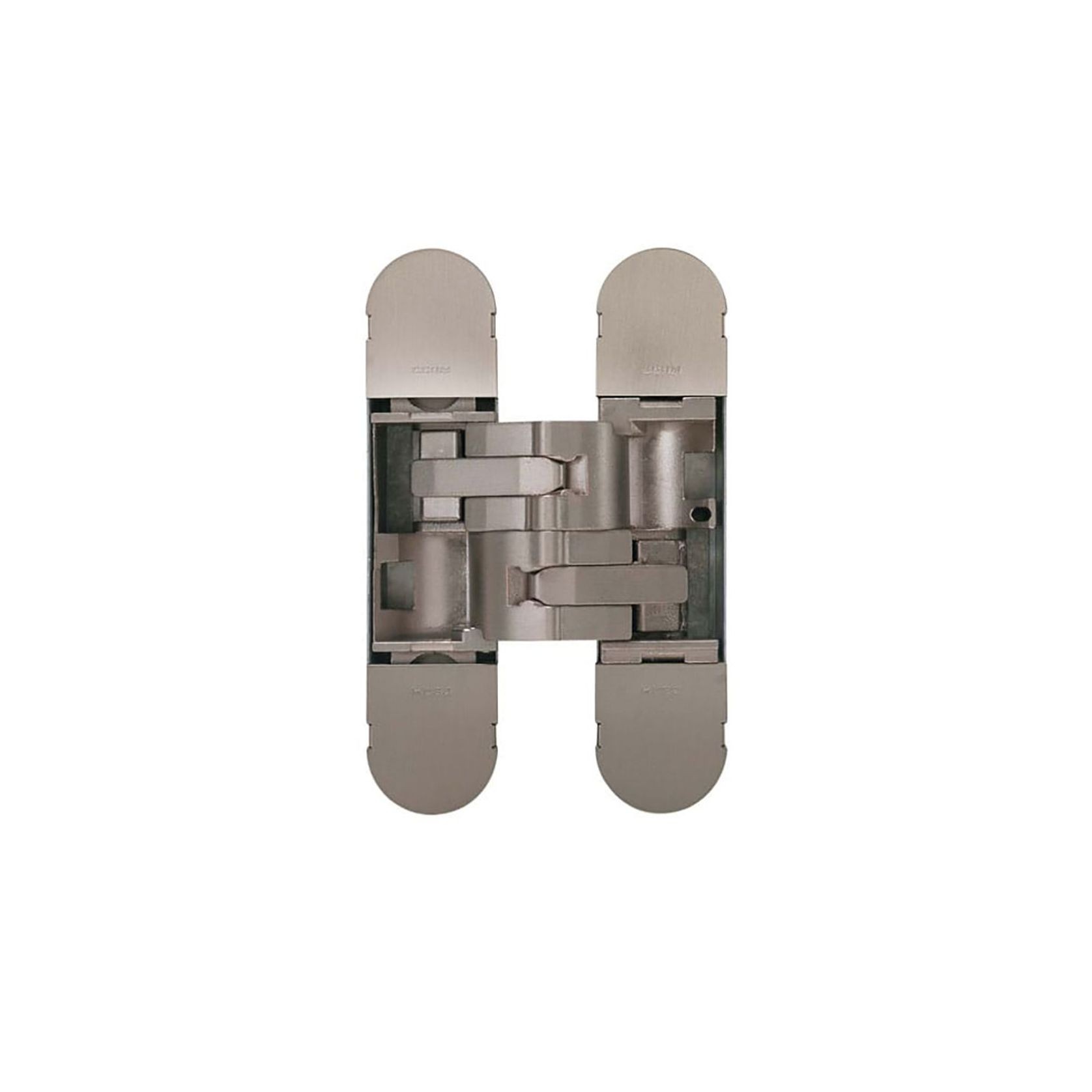

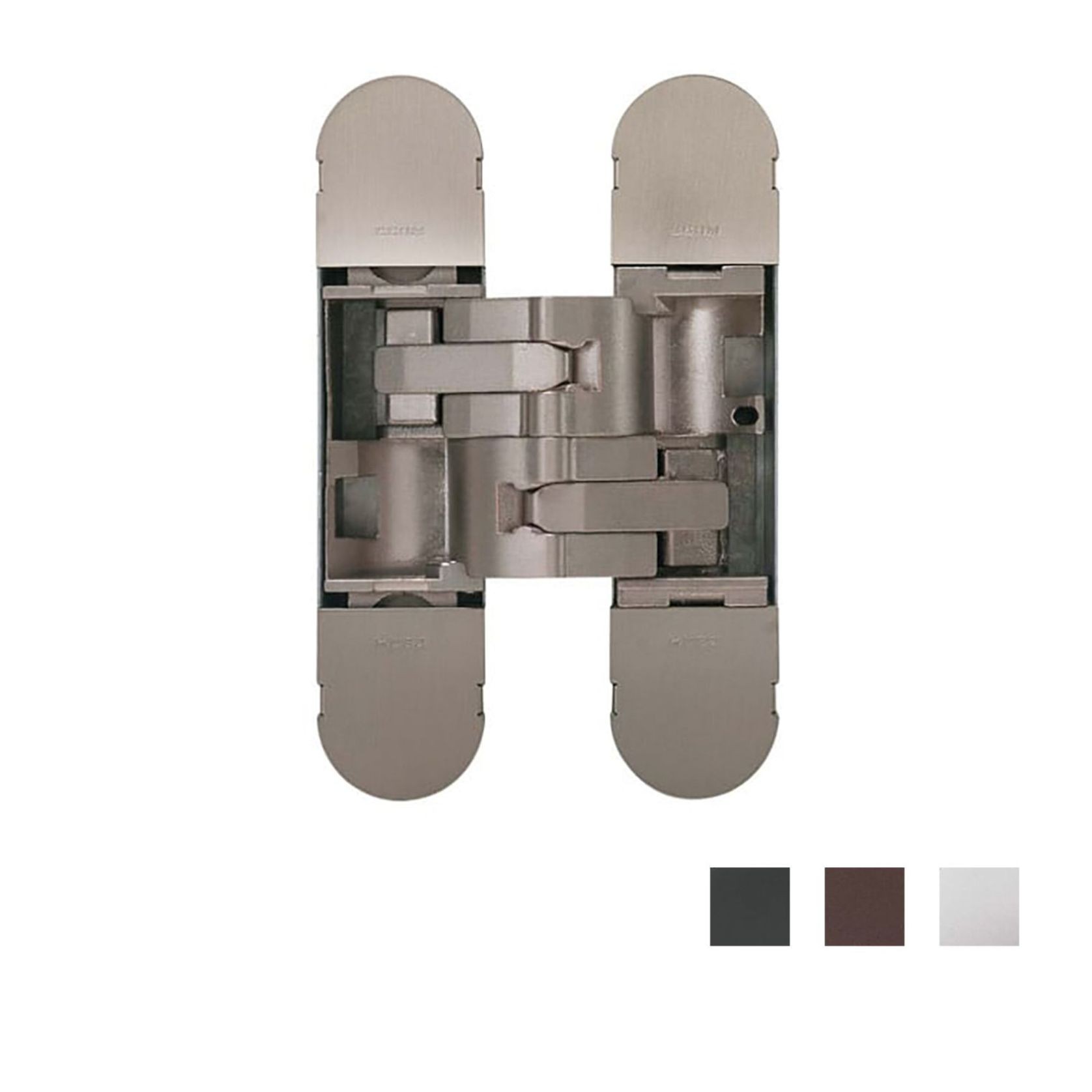

- Satin Nickel

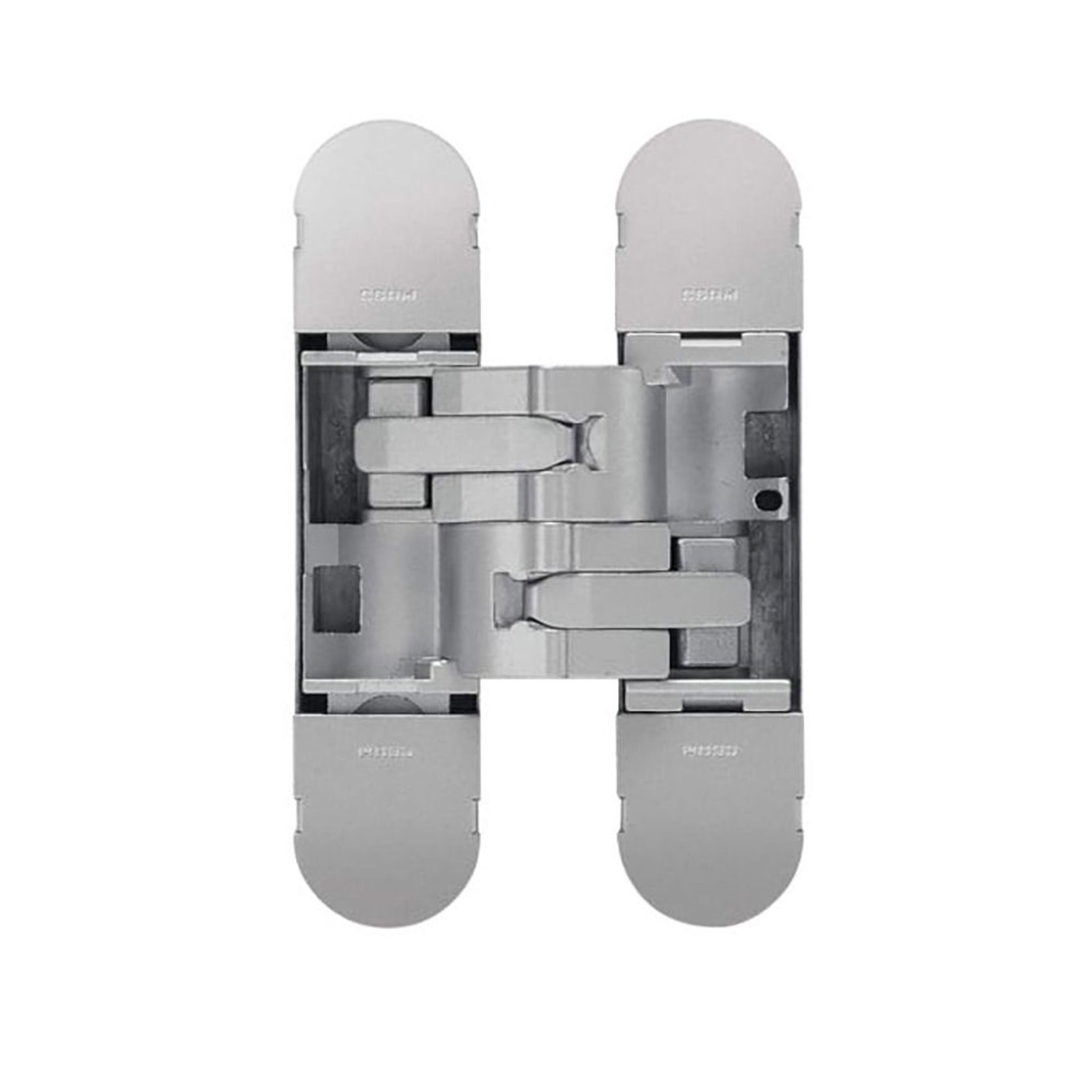

- Silver
- Sold as Single
Scope of use

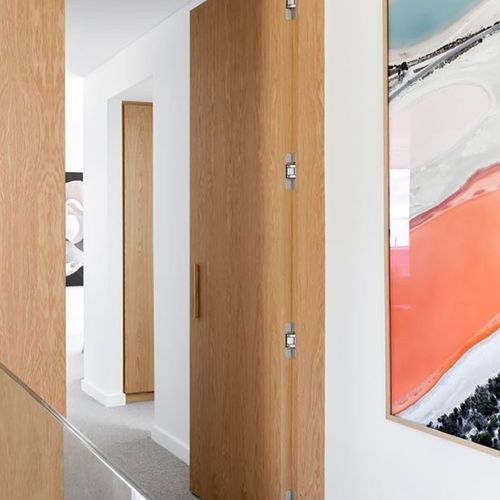

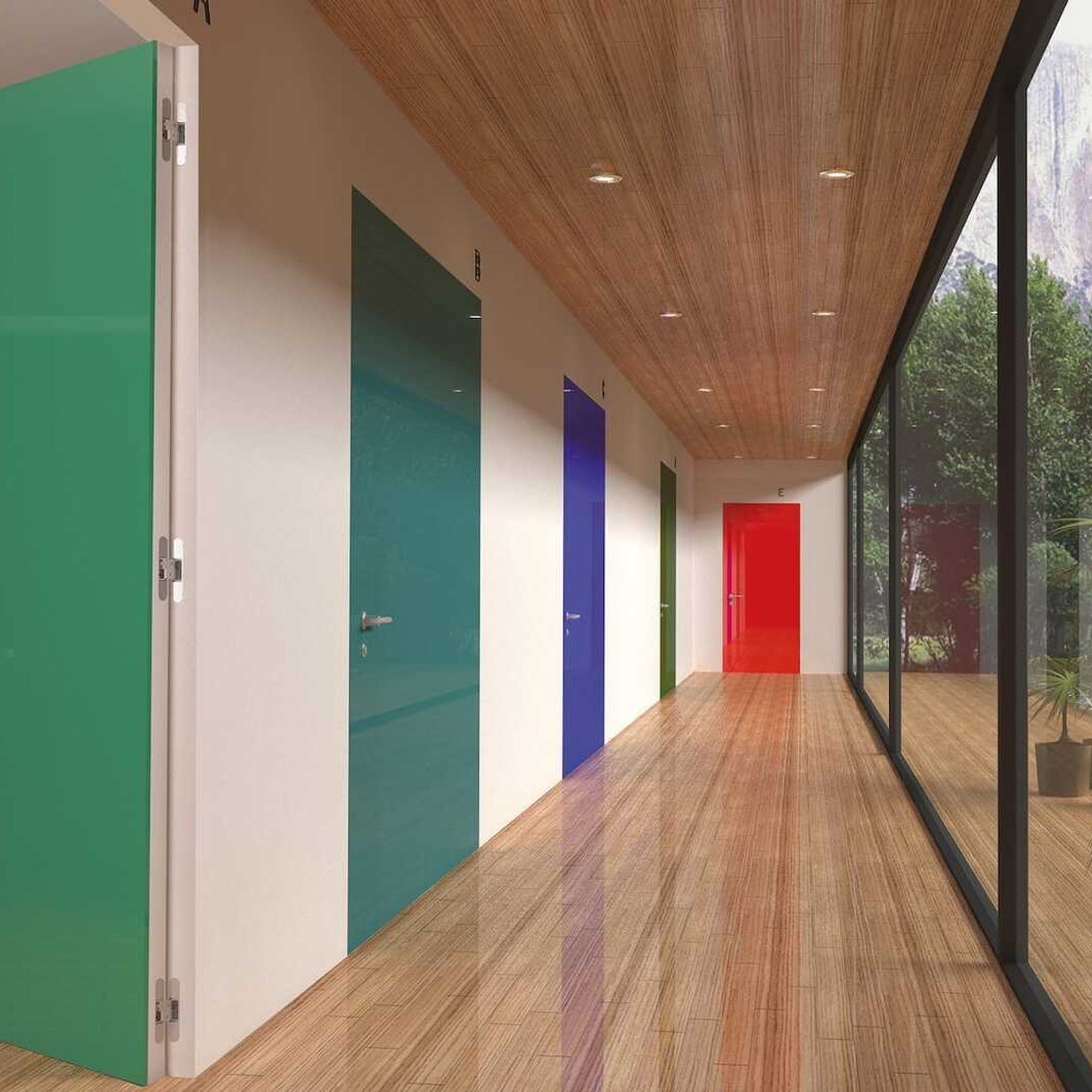

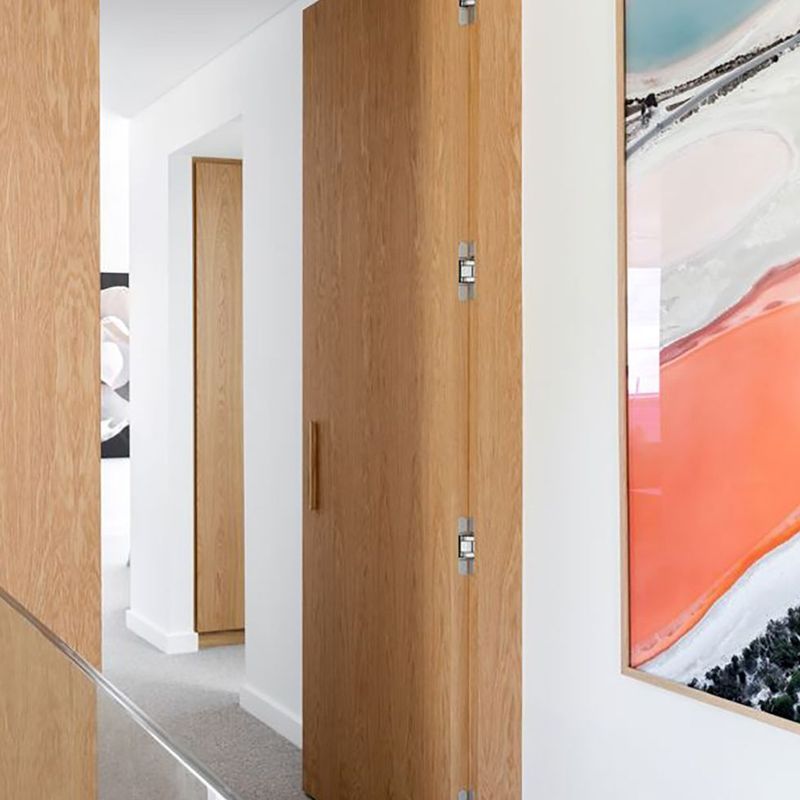

Ceam 3D Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.
Features

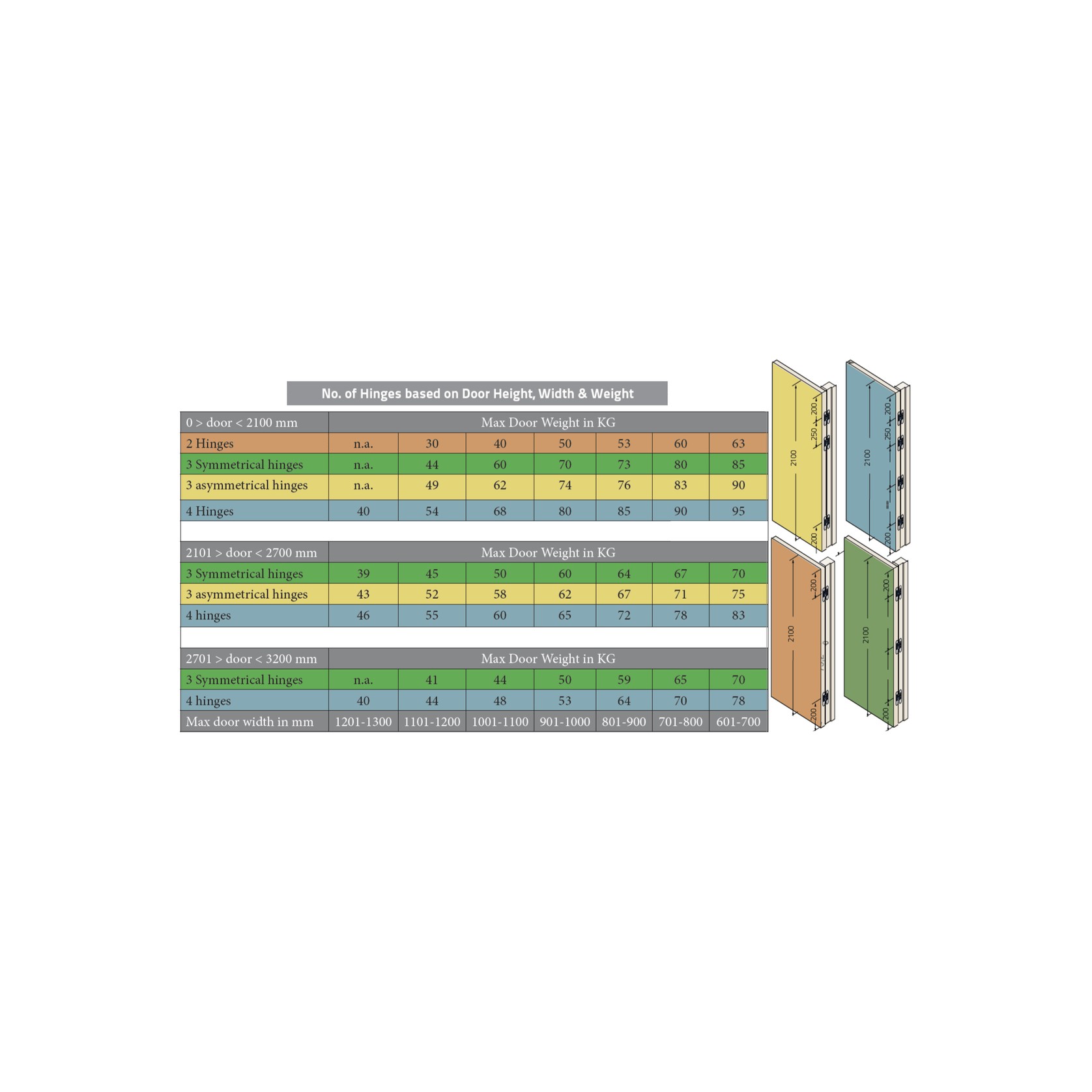

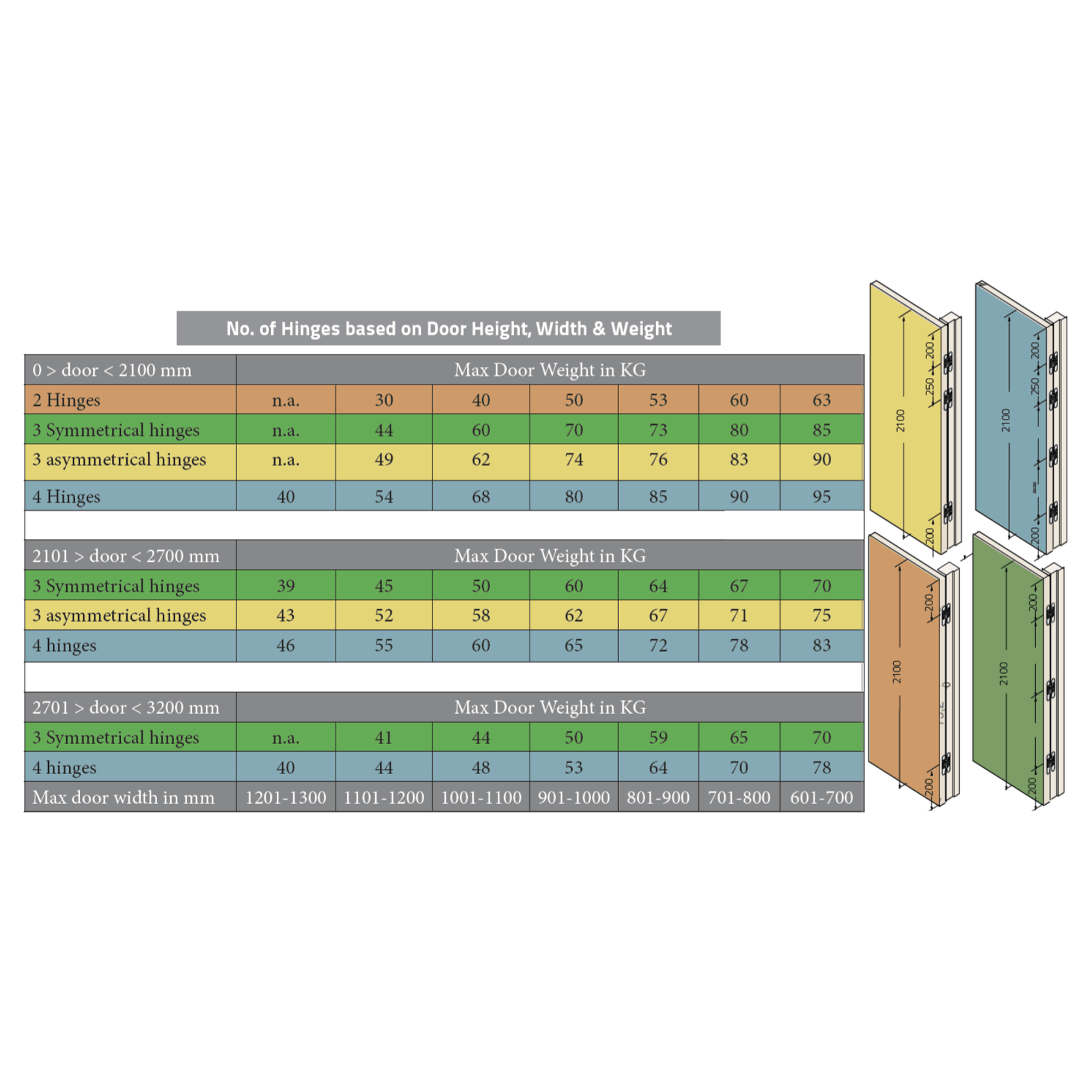

- Load capacity up to 85 kg @ 900mm wide door (subject to door specs, see weight chart)
- Wide throw designed for cladded doors
- Router template available for easy installation and slot symmetry
- 100% made in Italy for over 50 years
- Quick release system
- 3D adjusting system S.T.A.R.S.
- Suitable for internal & external (under cover) locations
- Suitable for residential, commercial & industrial locations
More from
Keeler Hardware

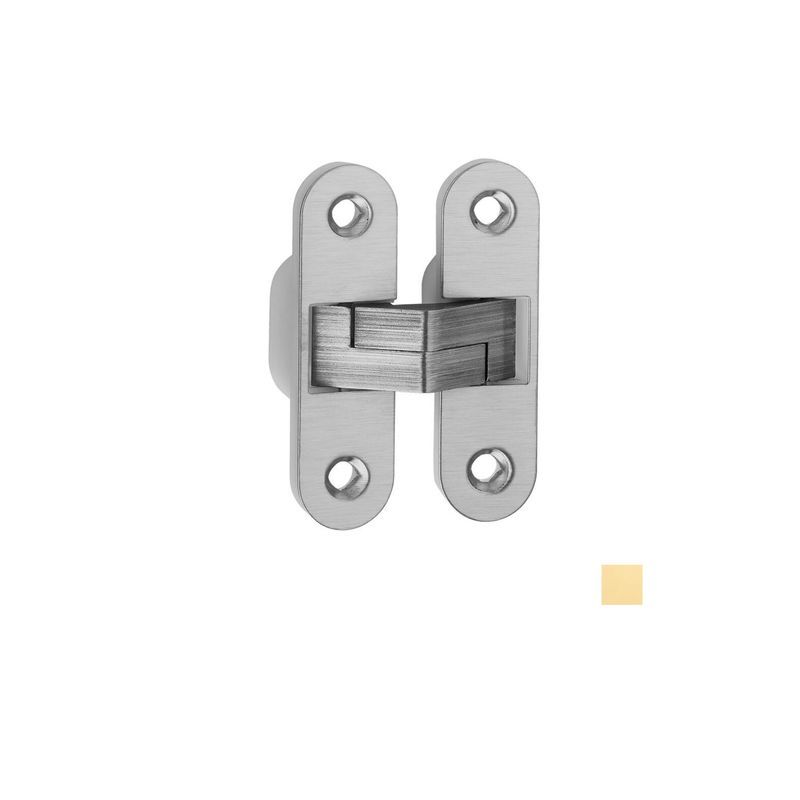

Bellevue Ceam Invisible Concealed Door Hinge 60kg
By Keeler Hardware

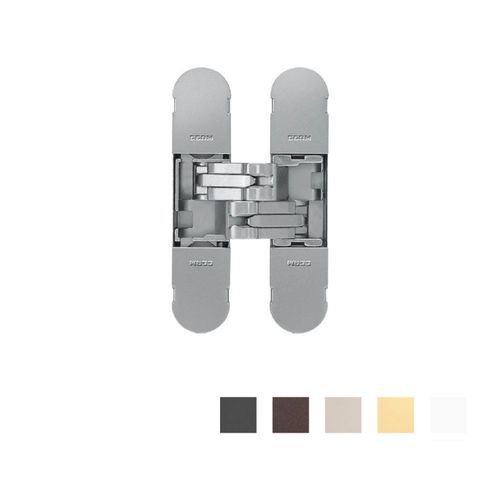

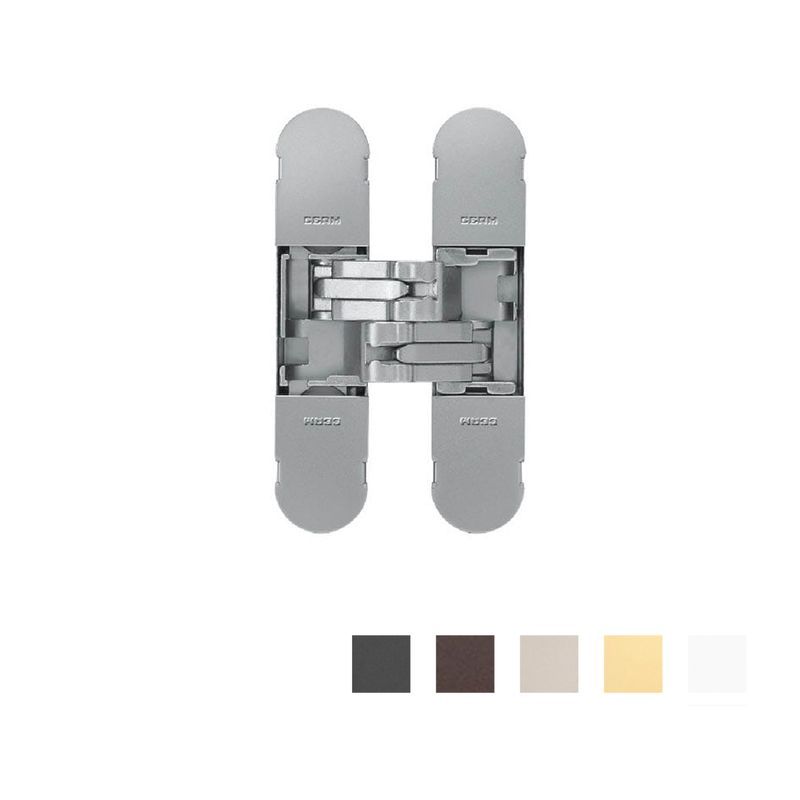

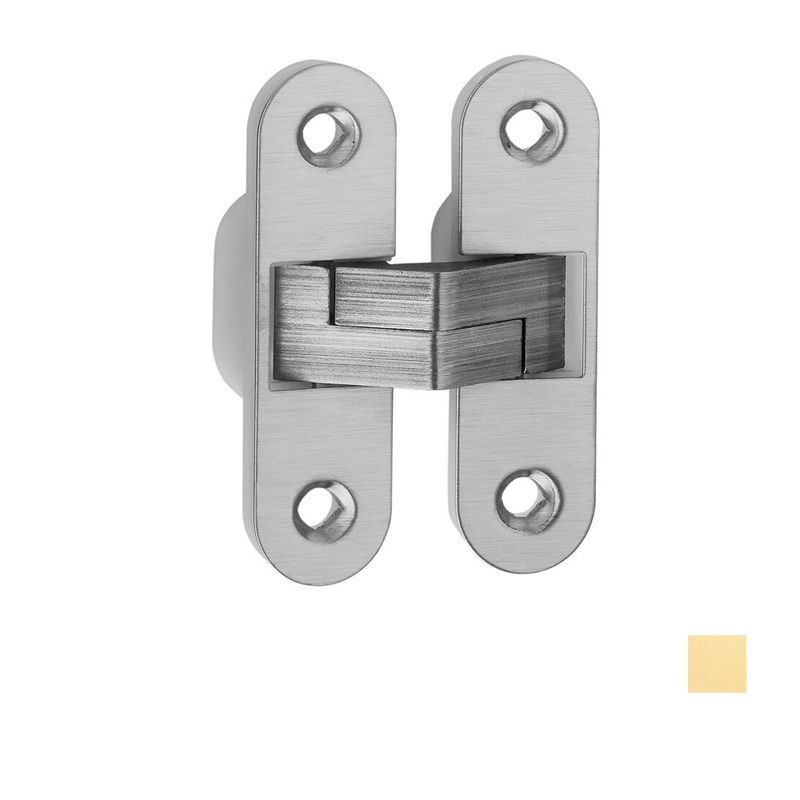

Bellevue Ceam Door Hinge 3D Invisible Concealed BAC1131
By Keeler Hardware
+1

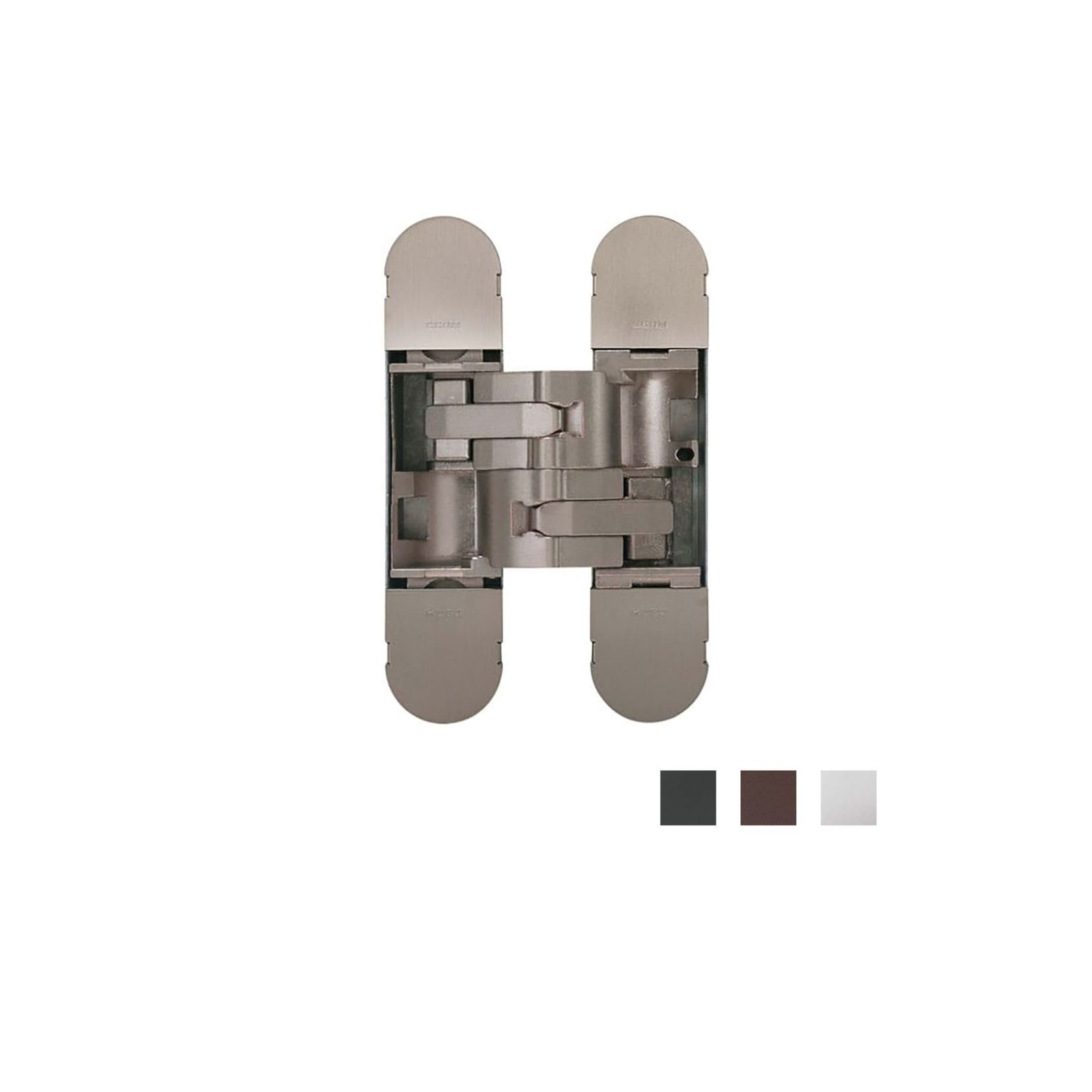

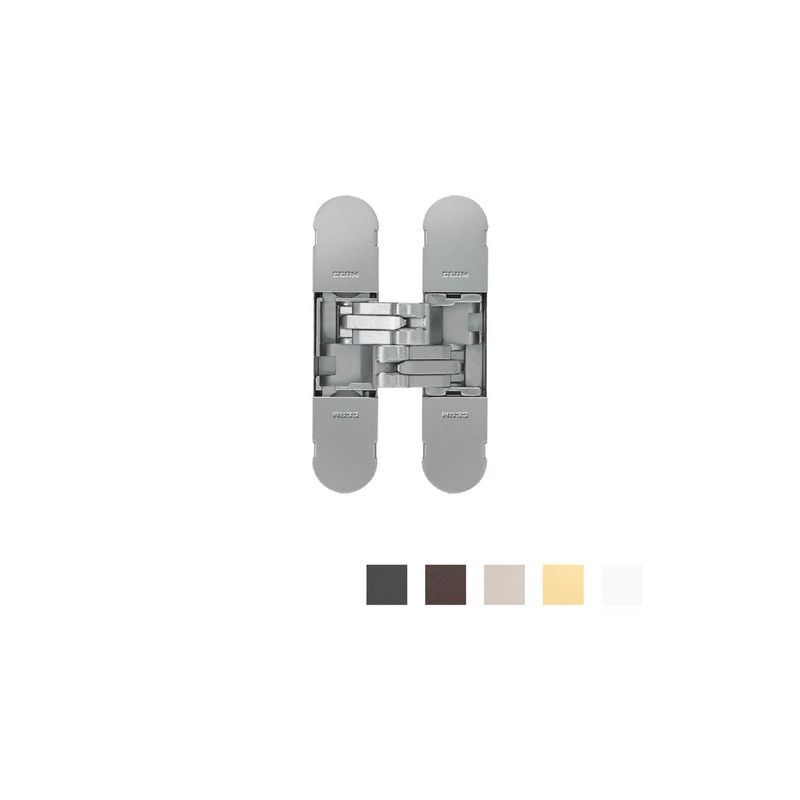

Bellevue Ceam 3D Invisible Concealed Door Hinge BAC1129
By Keeler Hardware
+2
Halliday & Baillie Tectus Concealed Hinge
By Keeler Hardware

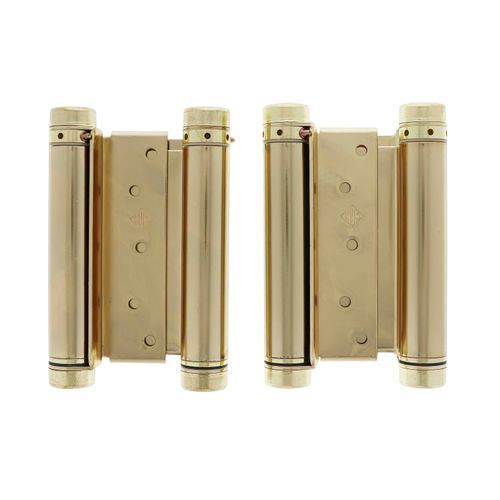

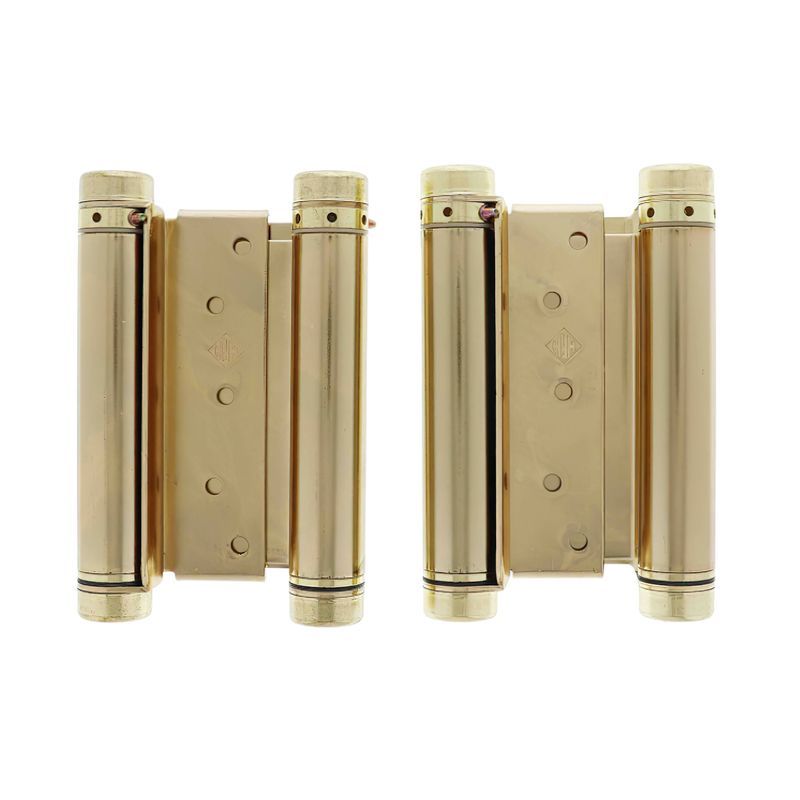

HFH Double Action Spring Door Hinge 150mm Polished Brass 4150-155
By Keeler Hardware

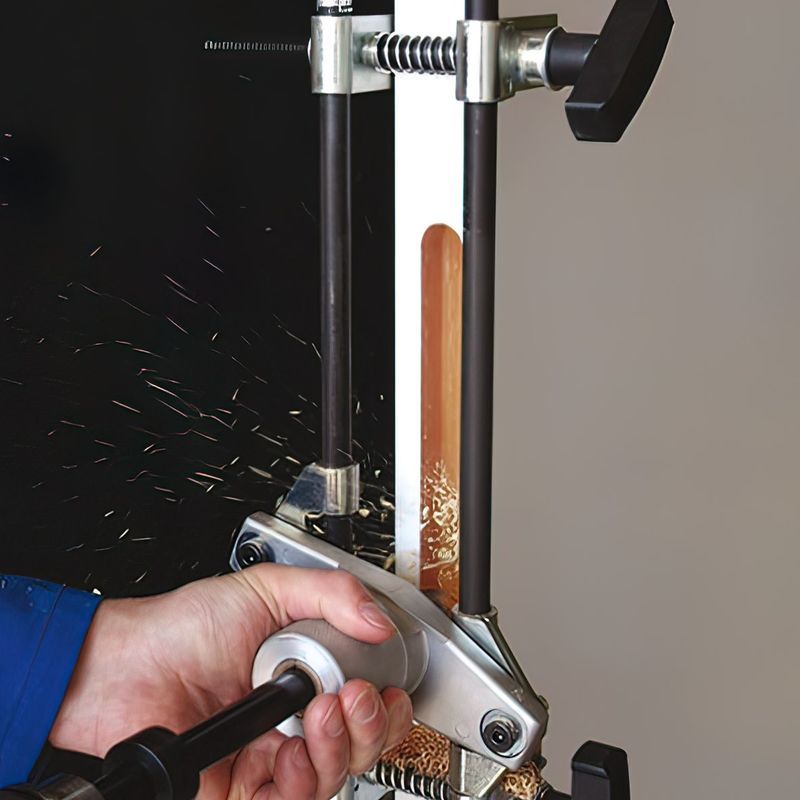

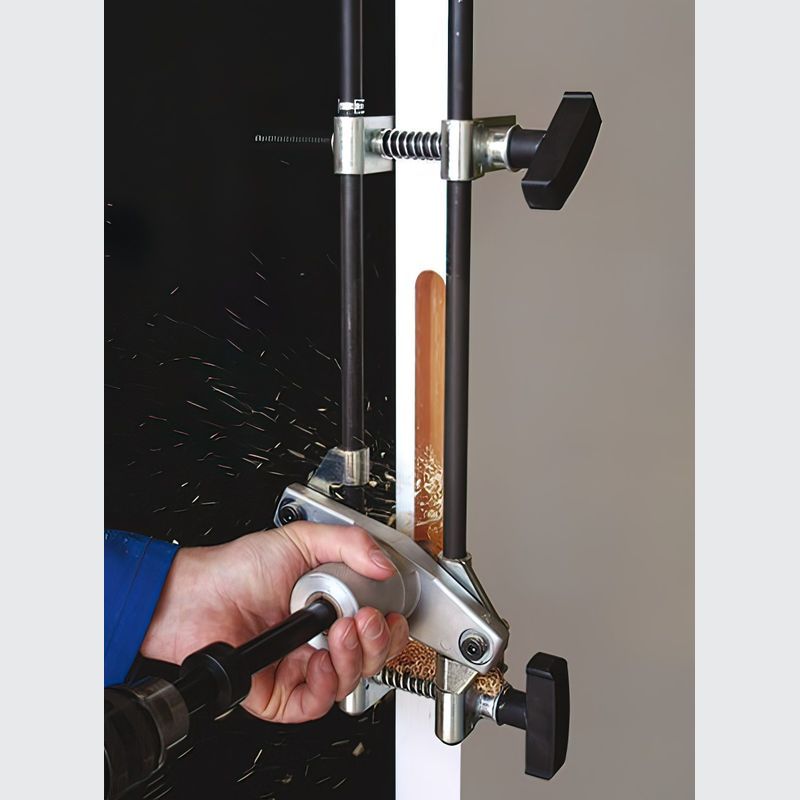

Hafele DBB Lock Morticer Jig and Fittings with 3 Cutters 001.67.700
By Keeler Hardware

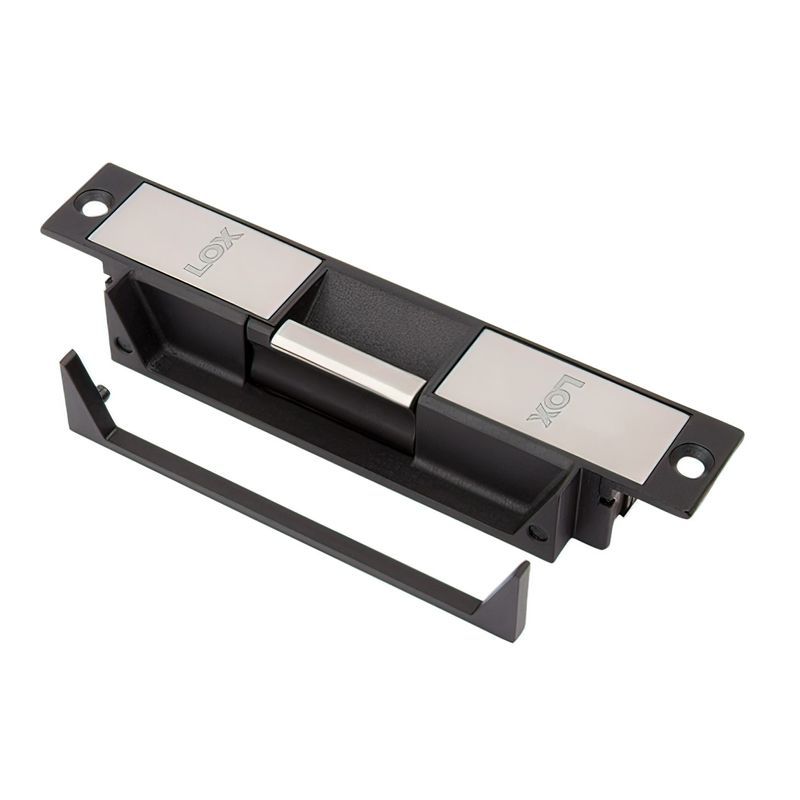

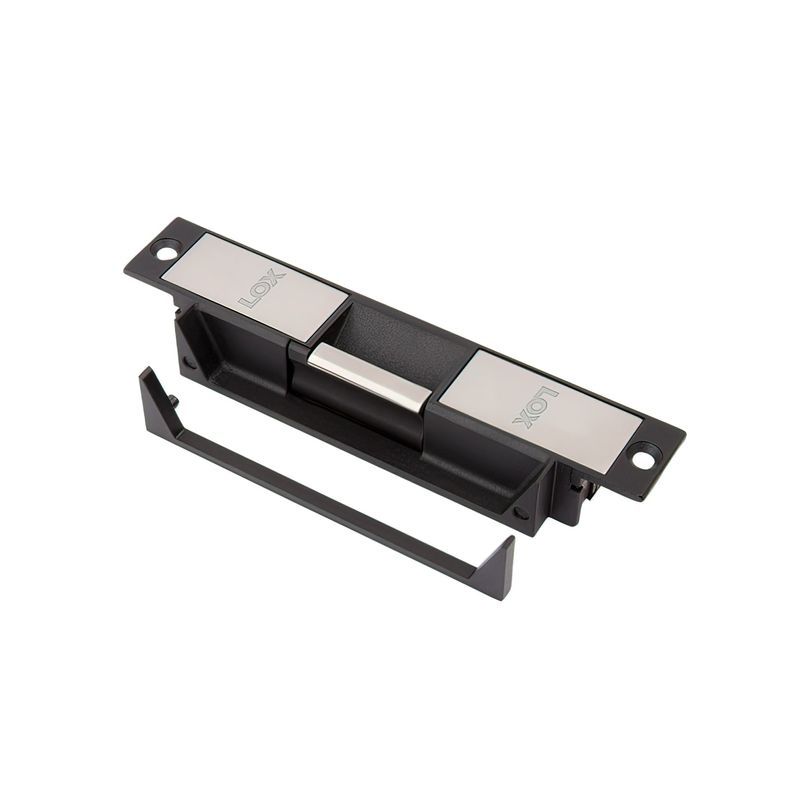

LOX High Security Electric Strike Non-Monitored Multi Voltage 10-30VDC ES20
