Bellevue Ceam Door Hinge 3D Invisible Concealed BAC1131

Name: Bellevue Ceam Door Hinge 3D Invisible Concealed BAC1131
Brand: Keeler Hardware
Availability: InStock

By Keeler Hardware

Visit Website

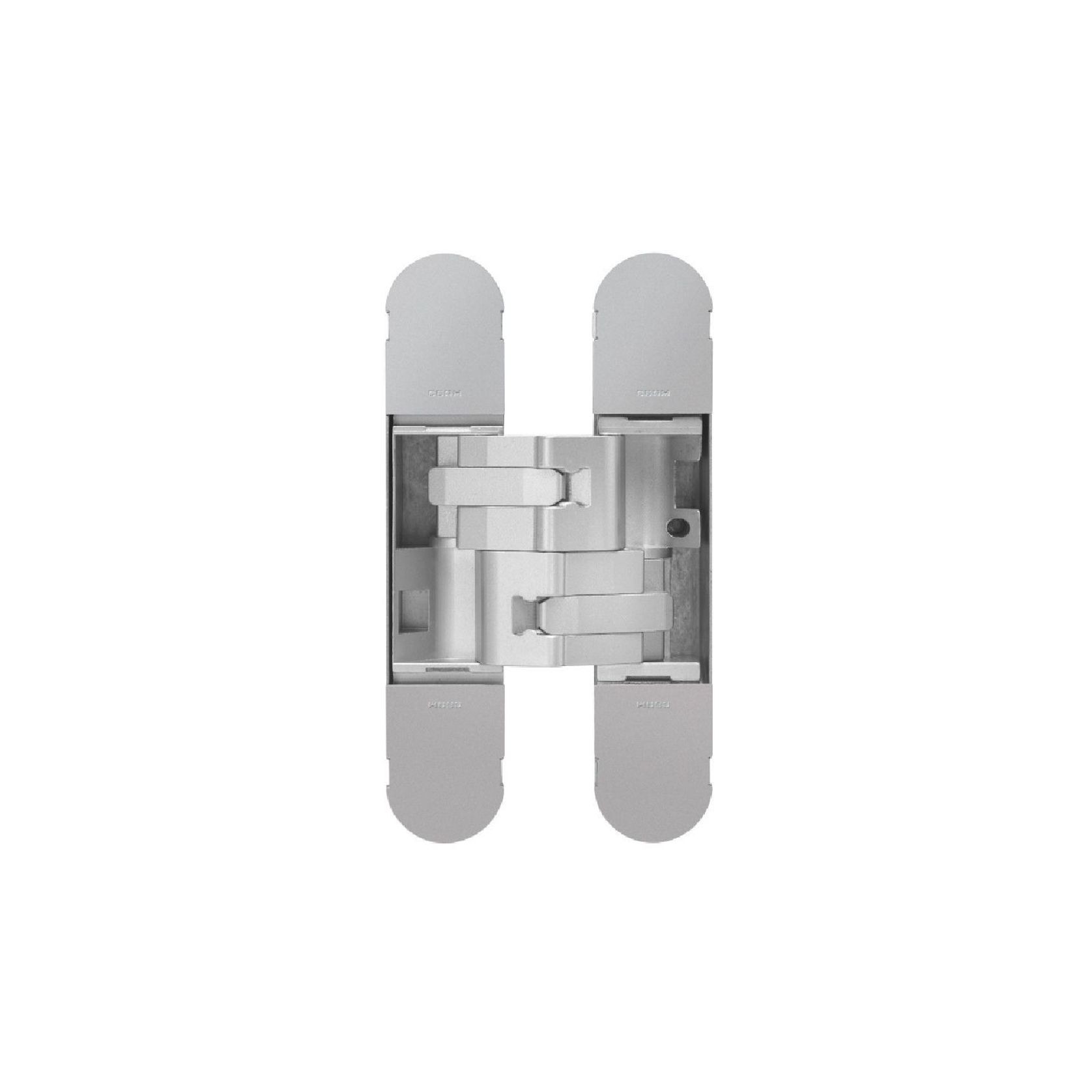

Bellevue Ceam Door Hinge 3D Invisible Concealed BAC1131 gallery detail image

Colour

Silver

Bellevue Ceam 3D Invisible Concealed Door Hinge
BAC1131

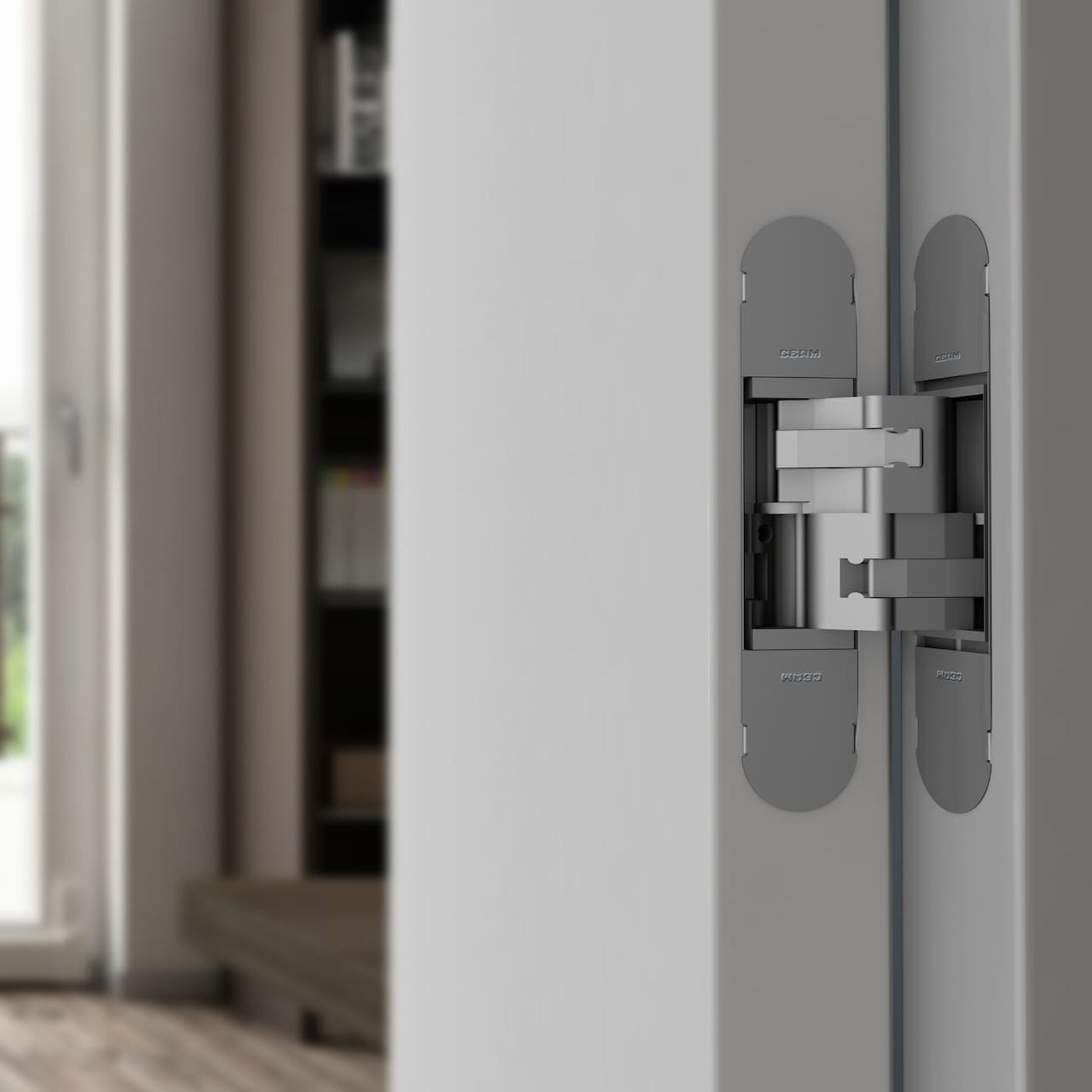

Ceam 3D Invisible Concealed Door Hinge Function - recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.

Details

Category
Door and Window Hinges
Range
Bellevue
Brand
Bellevue
Designer
CEAM

General

Country of origin
Australia
Type of use
Commercial and Residential
Care and cleaning
Easy maintenance
Installation
Professional installation recommended
Assembly
Tools required

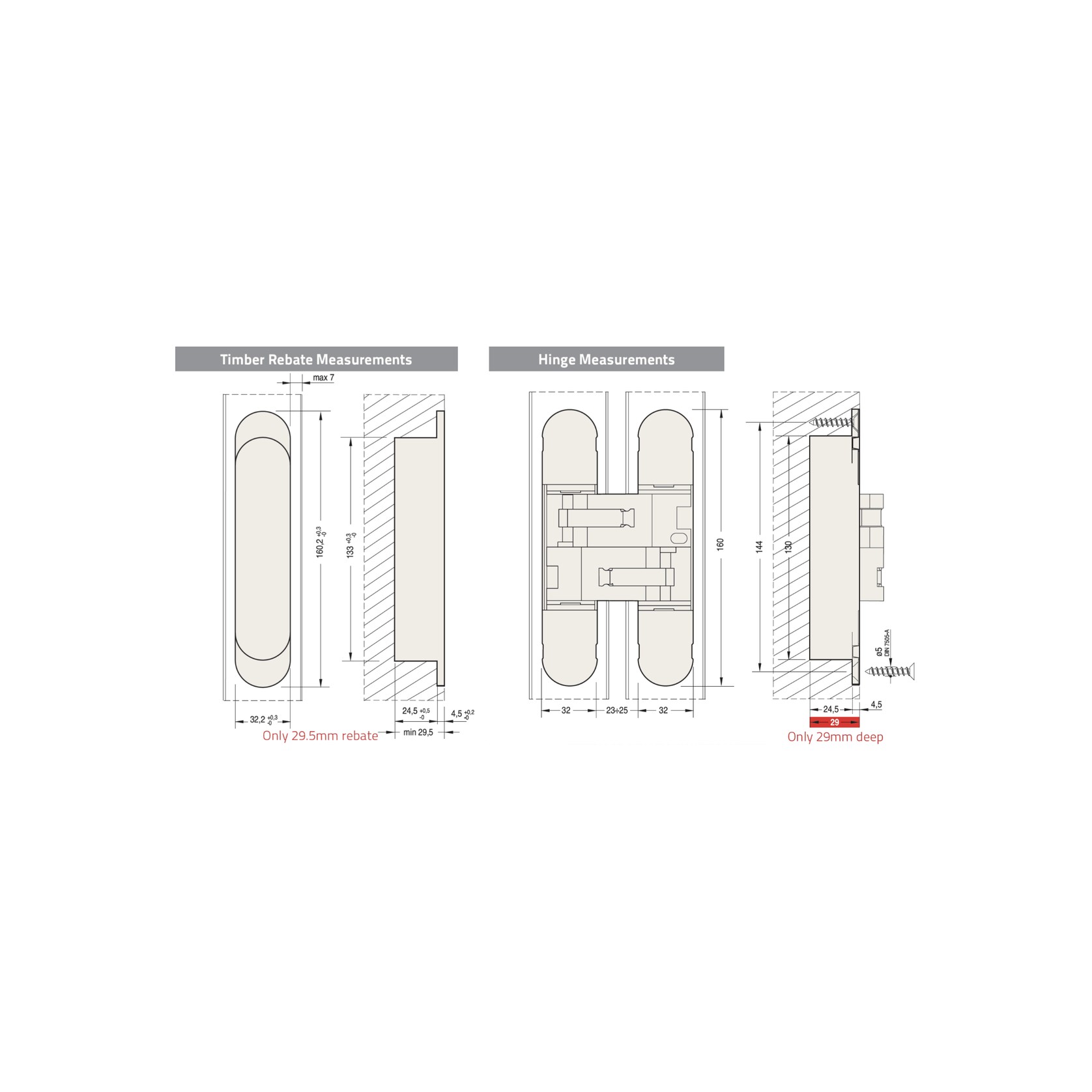

Specifications

Height: 160mm
Width: 32mm
Depth: 29mm
Material: Die Cast
Working Aperture: 180 degree
Minimum Door Thickness: 38mm
3D Adjustable: Yes
Suitable For Doors: Wood, Aluminum, Steel

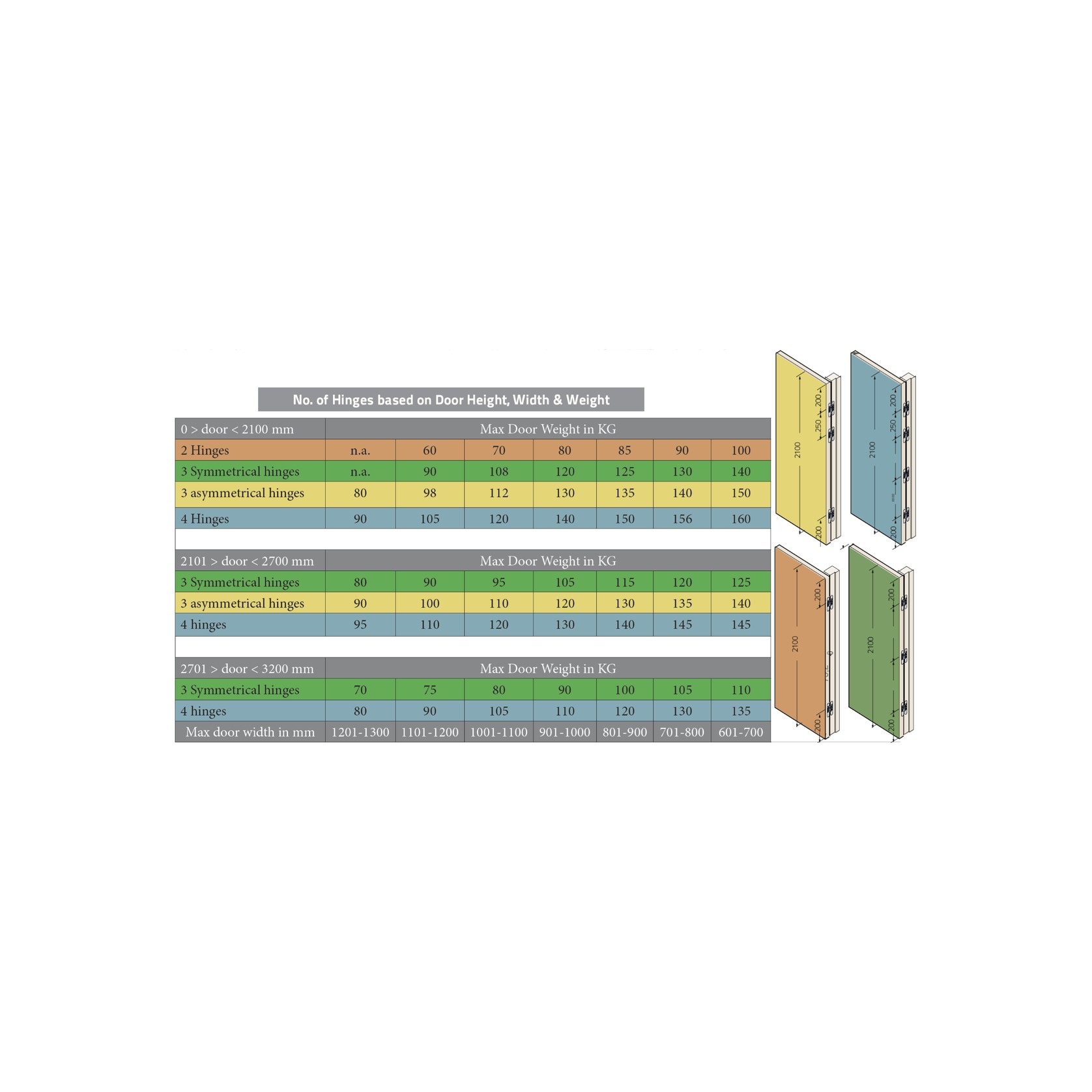

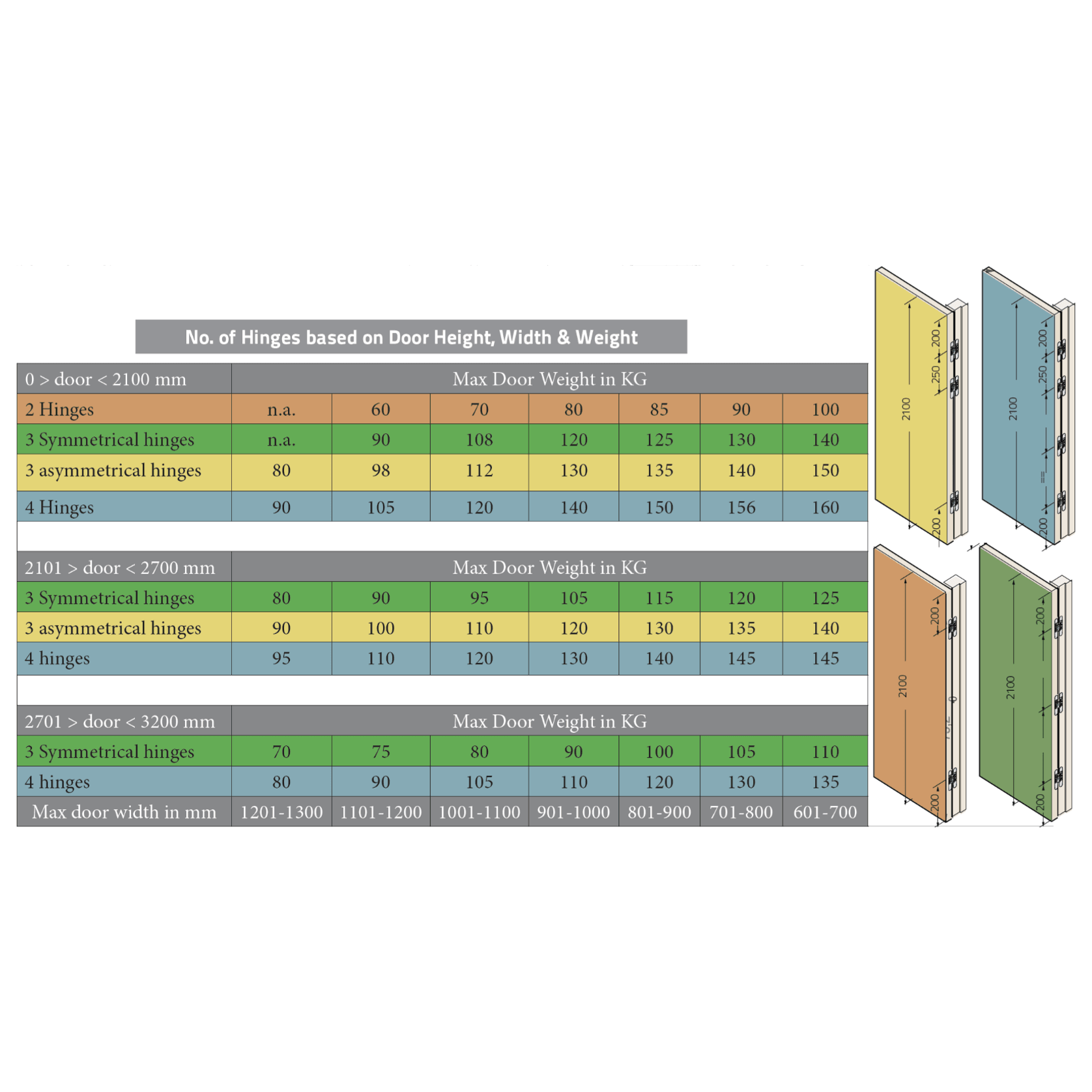

Load Capacity:2 hinges:
- 2 hinges: 85kg at 900mm wide doors
- 3 hinges: 120kg at 900mm wide doors
- 3 hinges asymmetrical: 135kg at 900mm wide doors
- 4 hinges: 150kg at 900mm wide doors

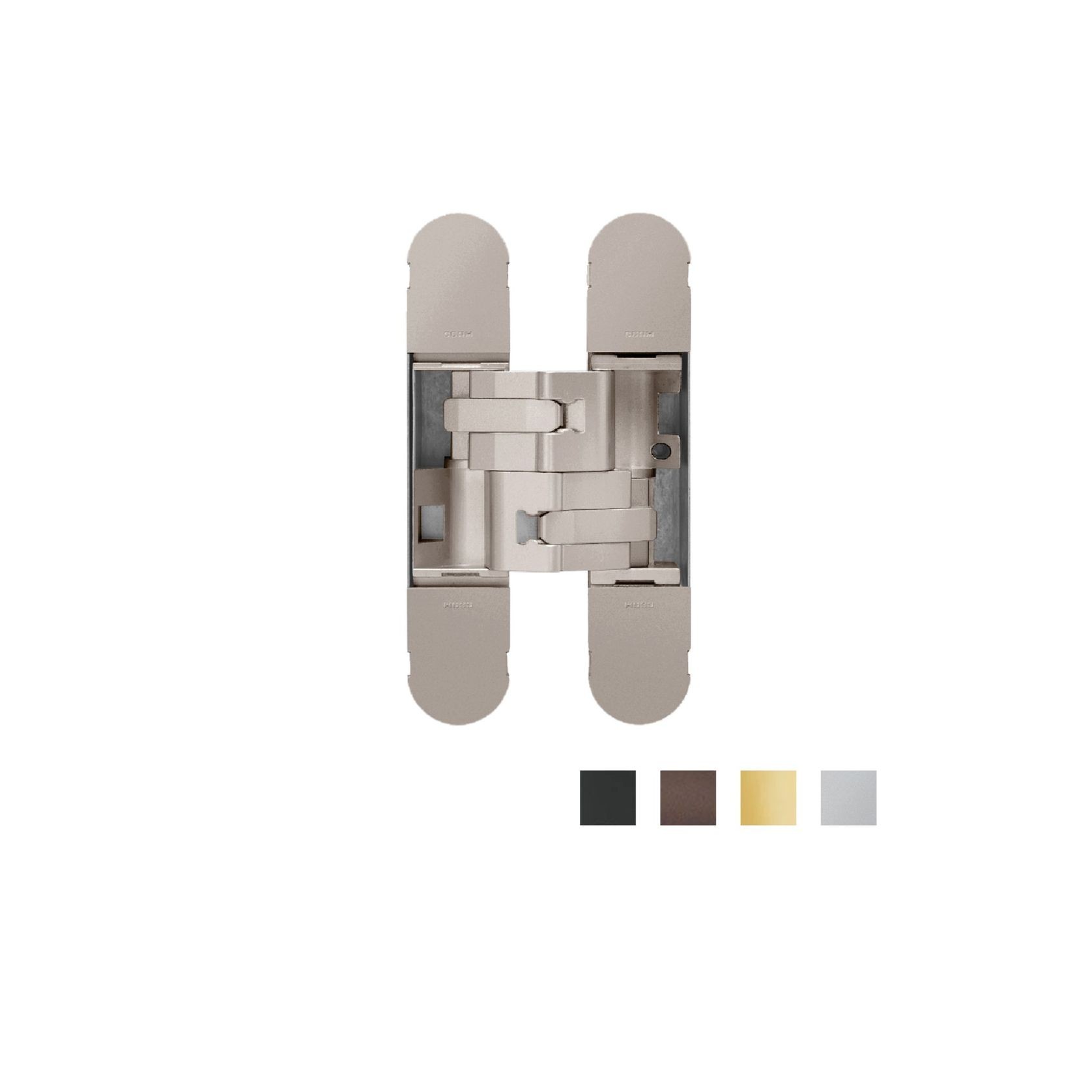

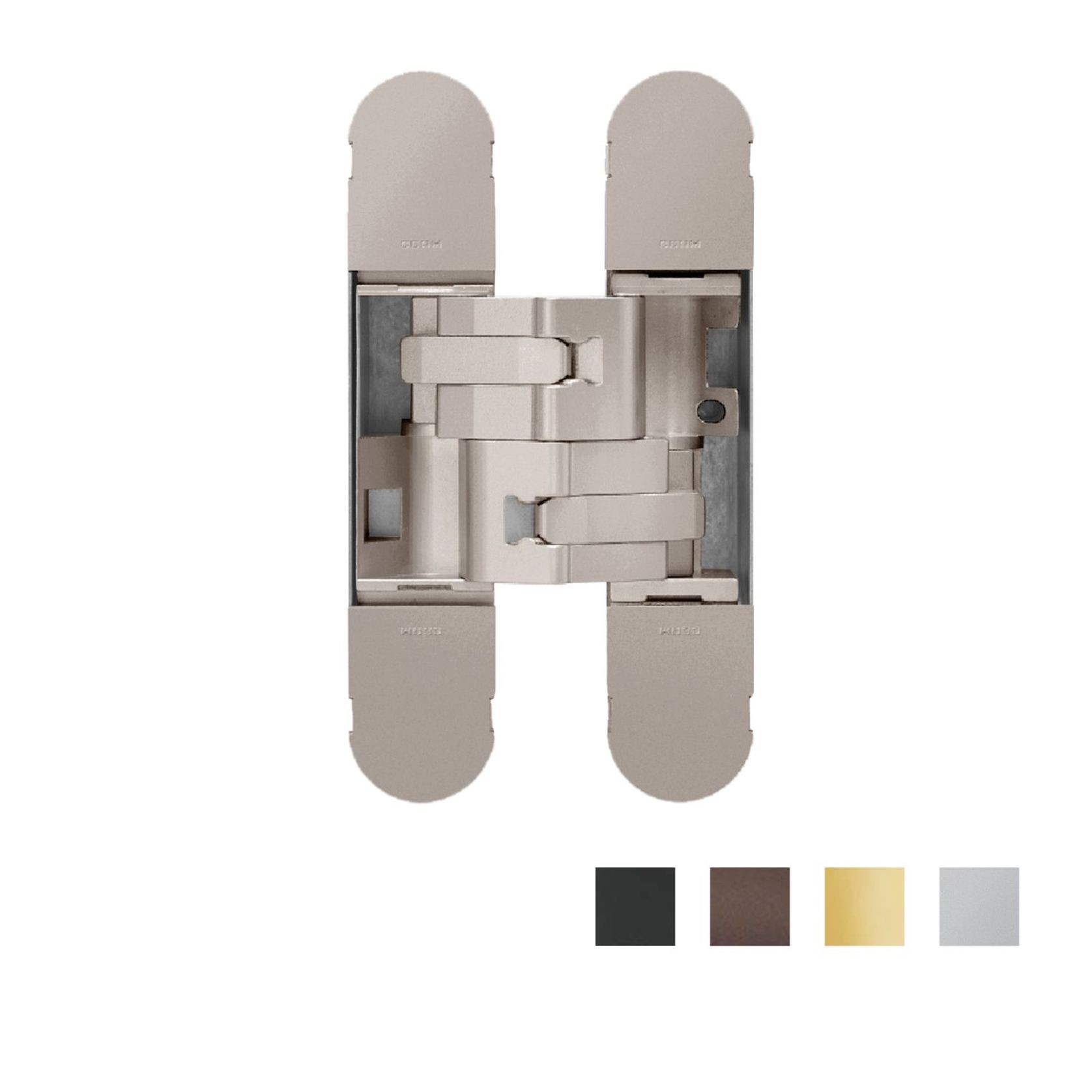

Available Finish:
- Black

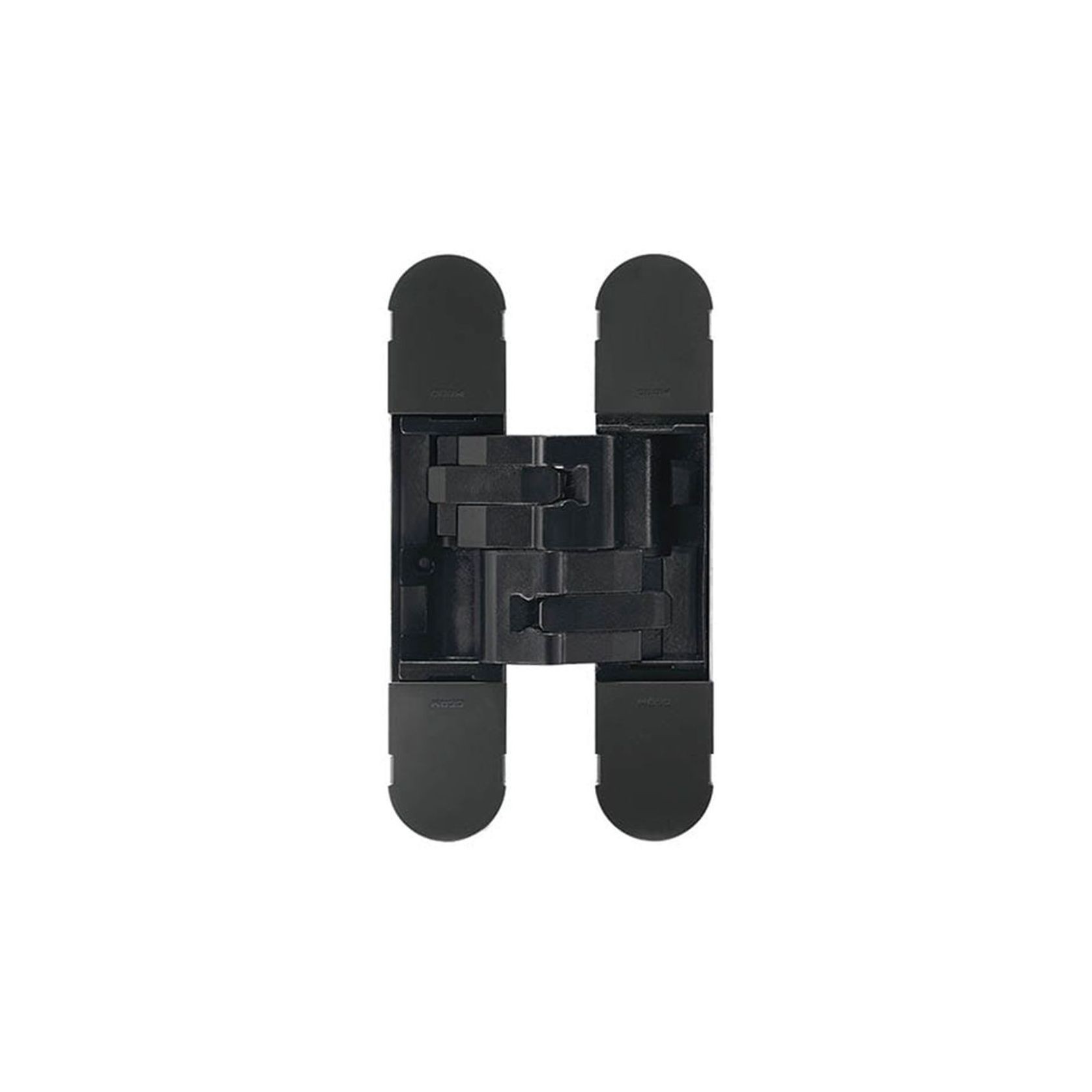

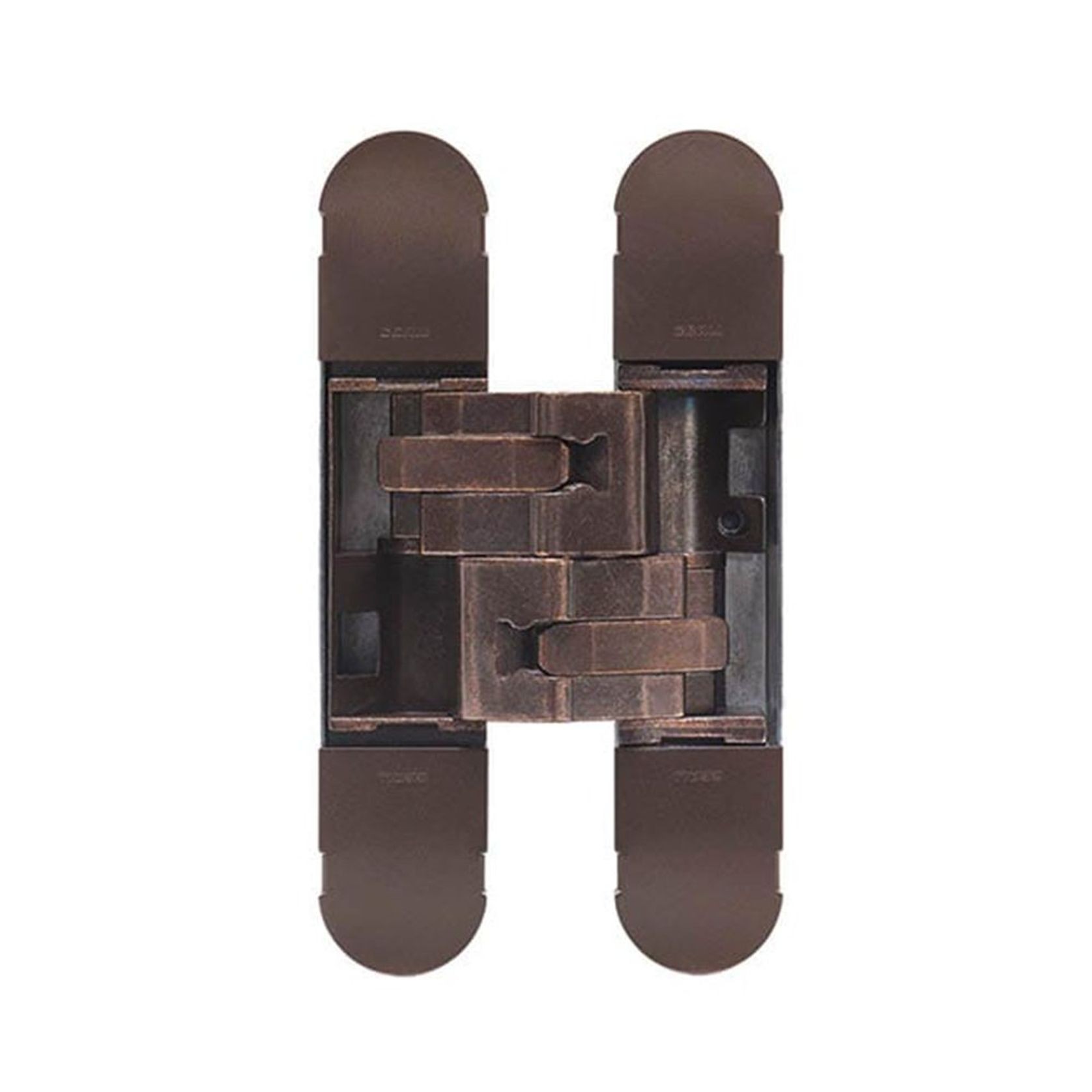

- Bronze

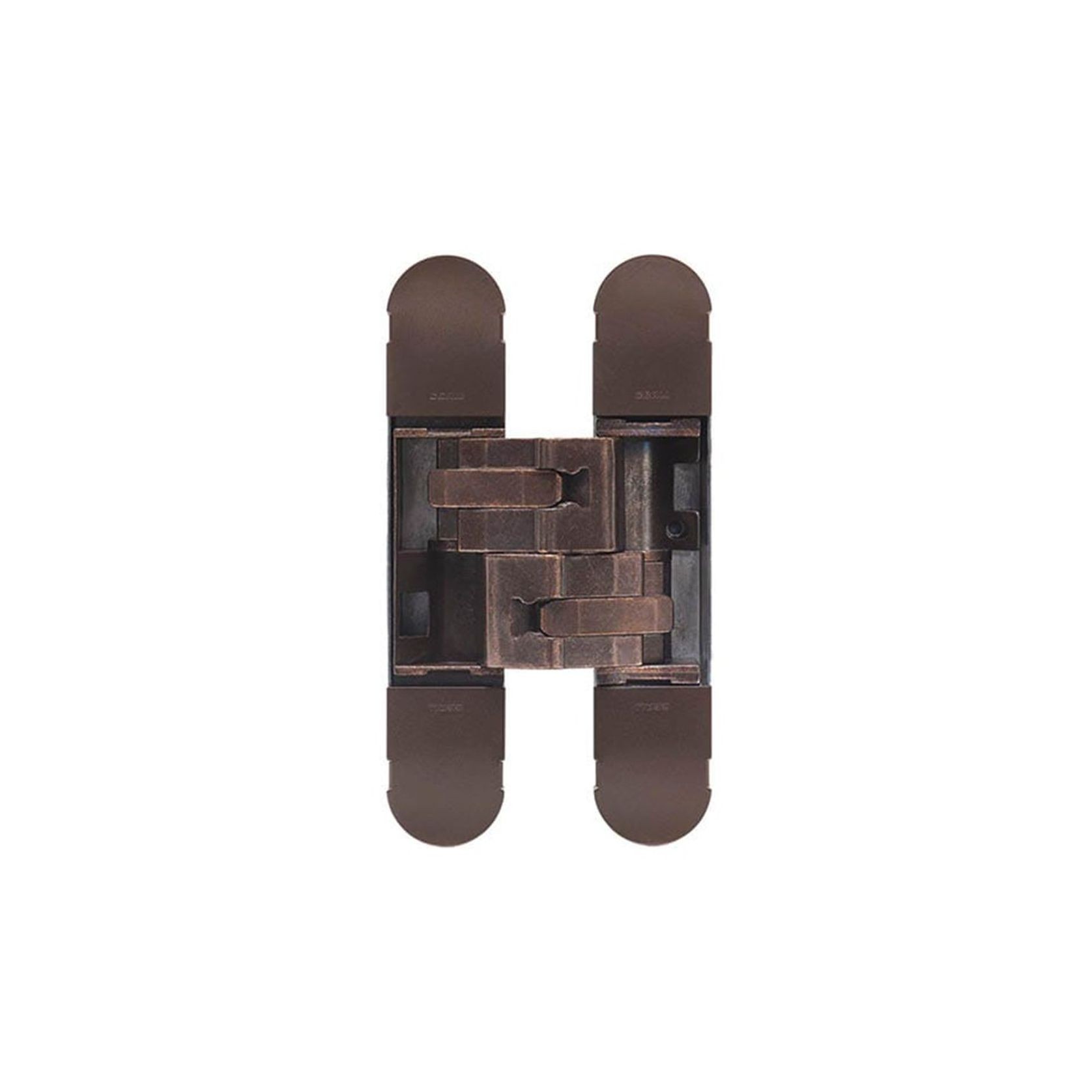

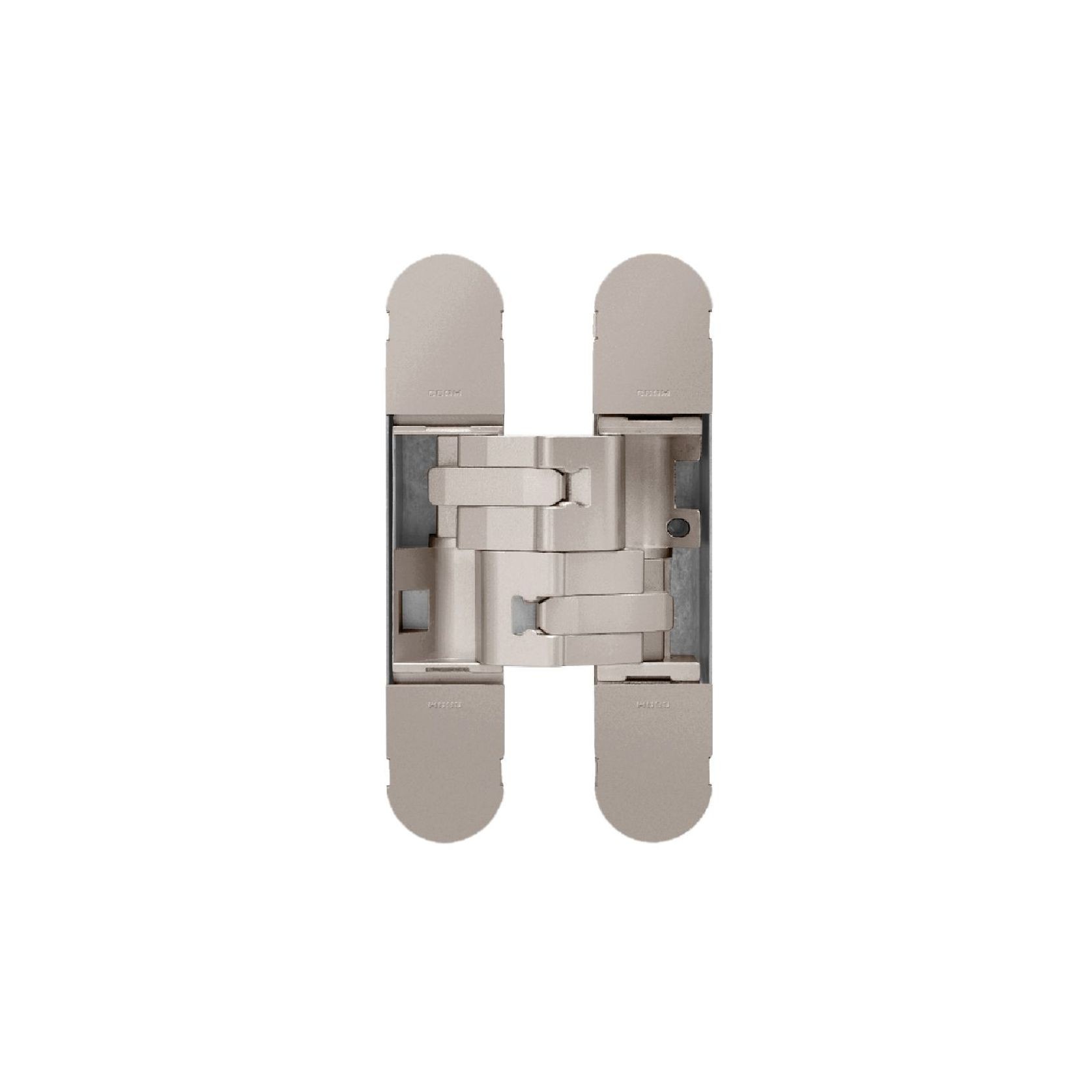

- Nickel

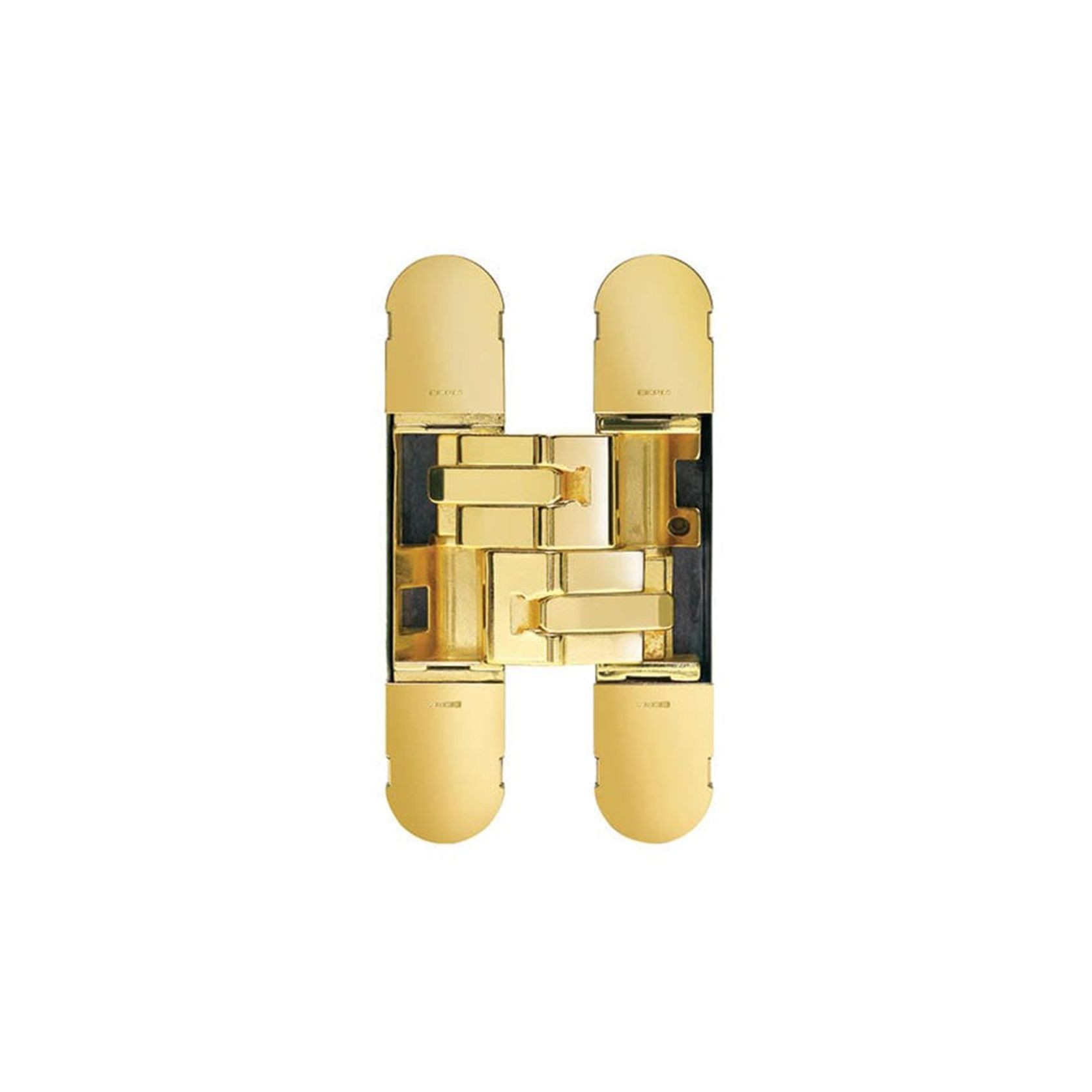

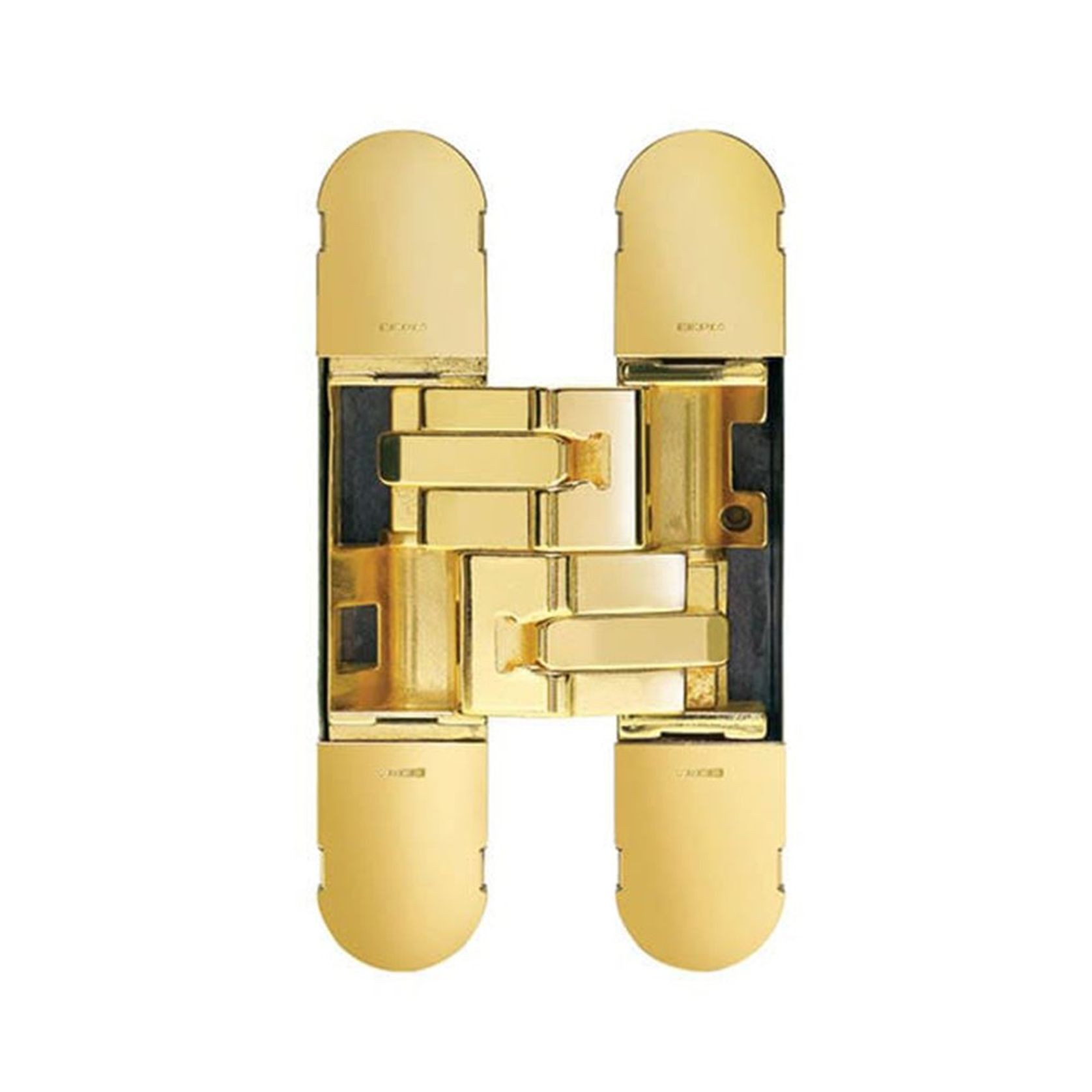

- Polished Brass

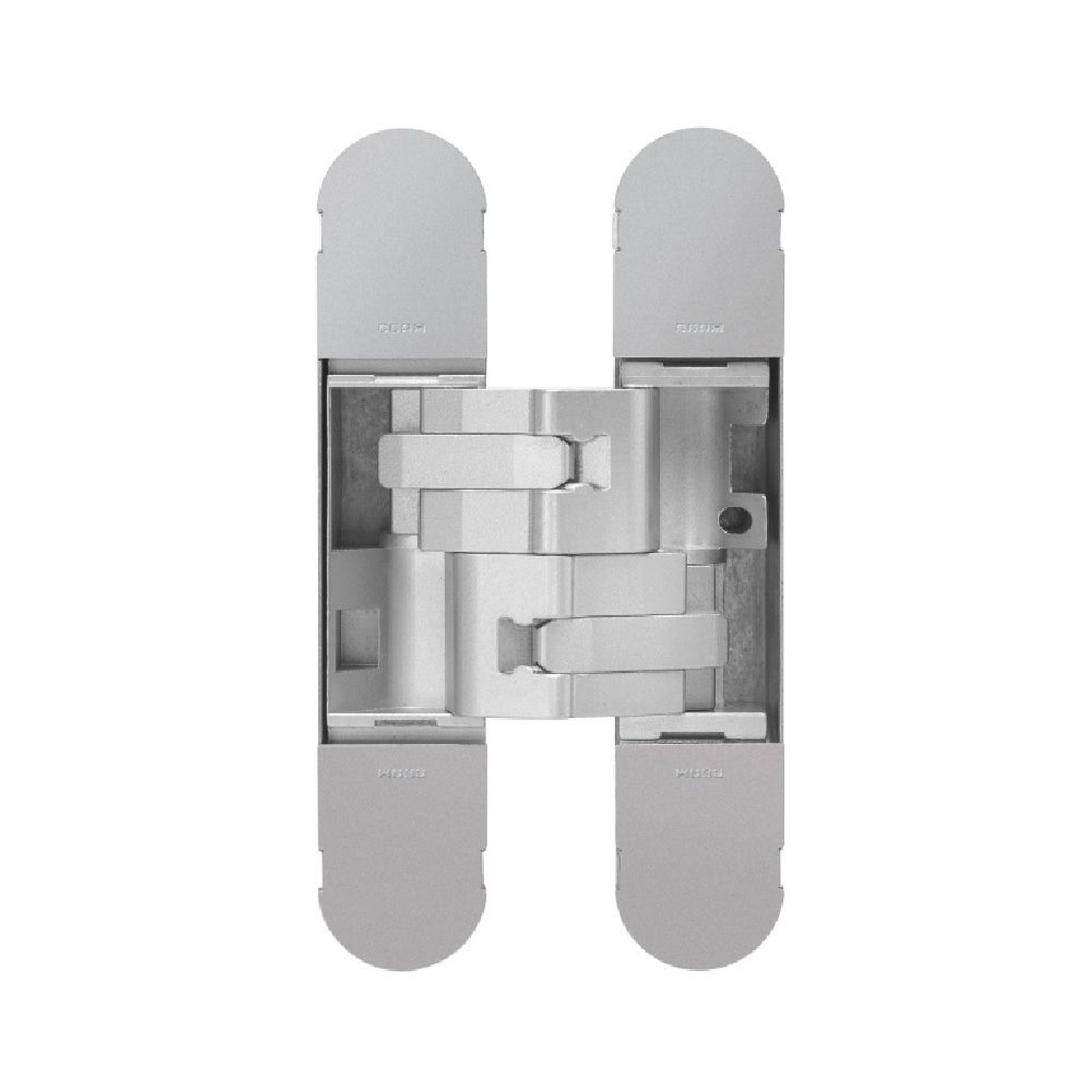

- Silver
Sold as Single

Scope of use

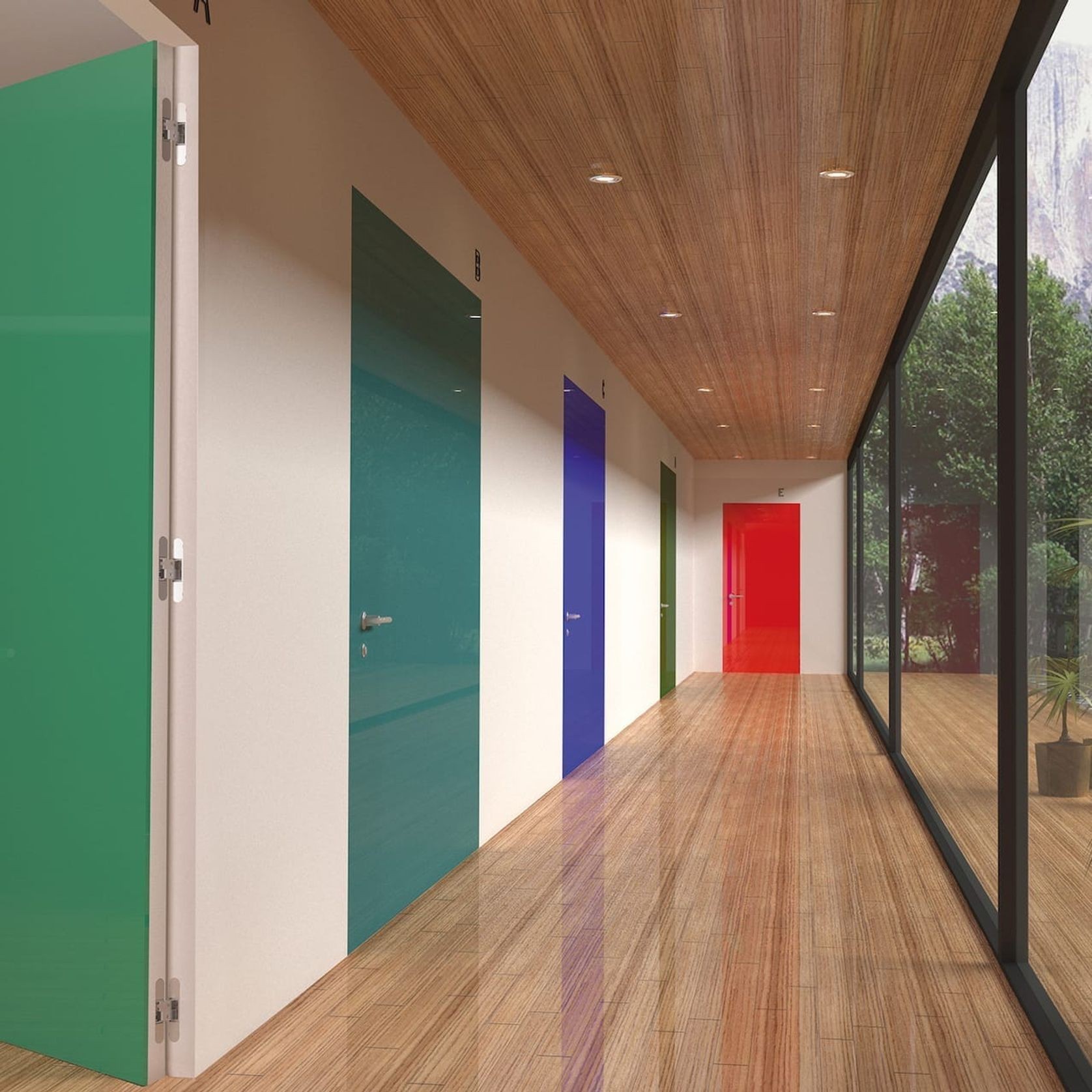

Ceam 3D Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.

Features

Load capacity up to 150 kg @ 900mm wide door (subject to door specs, see weight chart)
Router template available for easy installation and slot symmetry
100% made in Italy for over 50 years
Quick release system
3D adjusting system S.T.A.R.S.
Suitable for internal & external (under cover) locations
Suitable for residential, commercial & industrial locations
