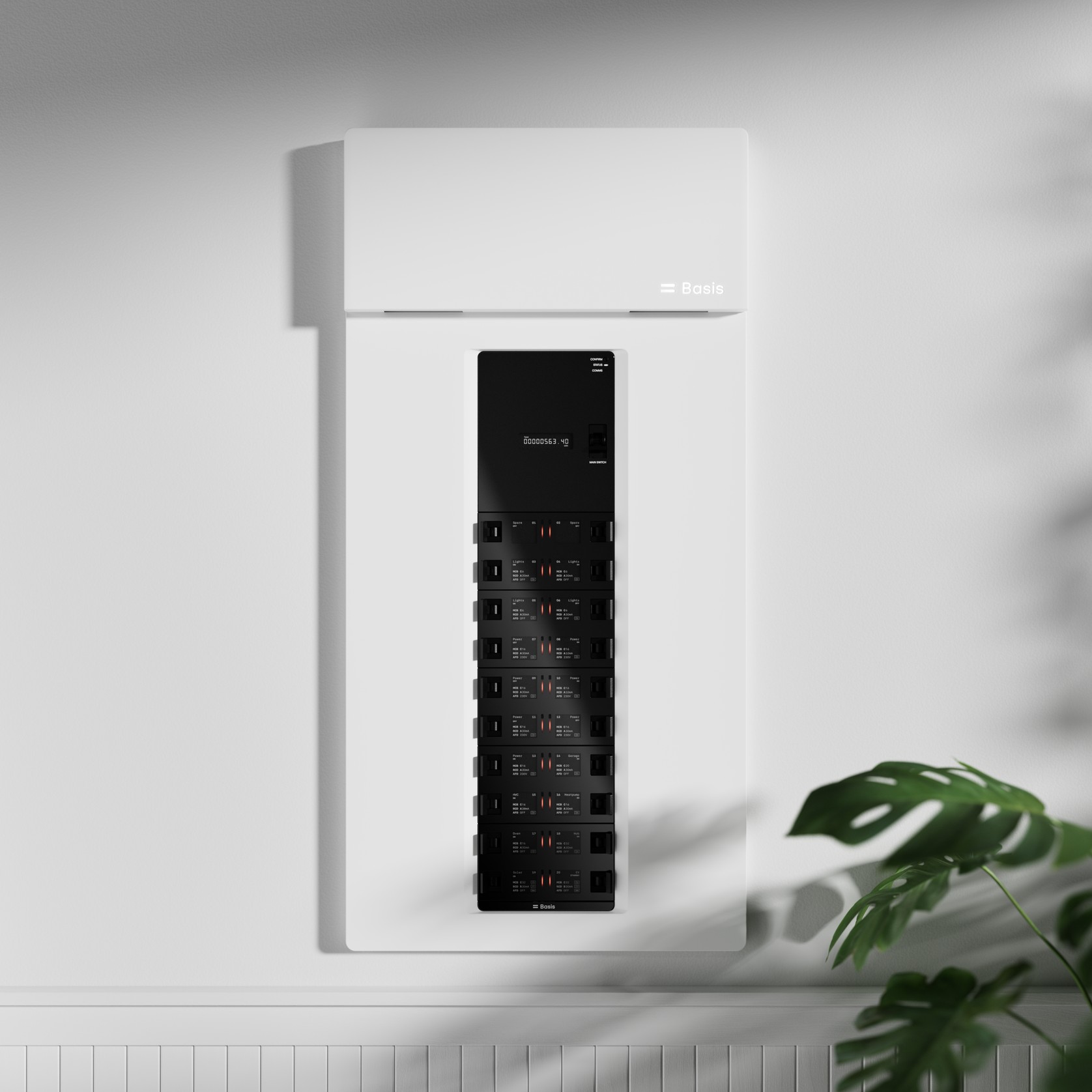

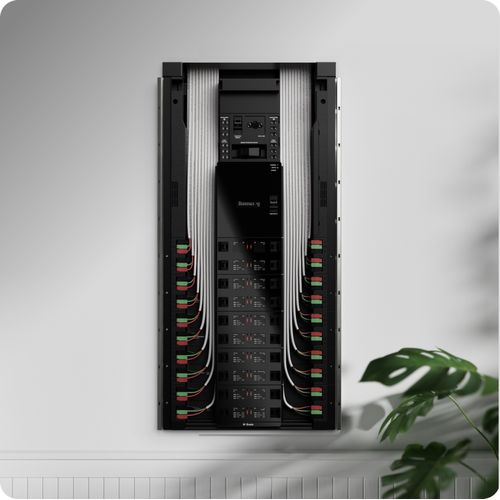

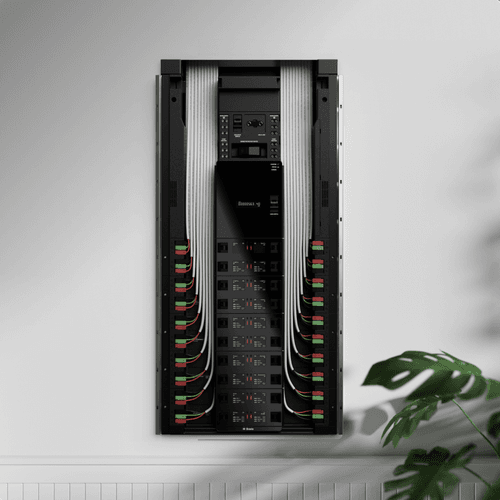

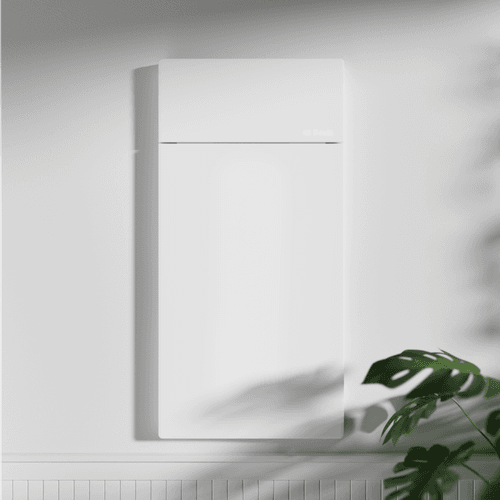

Basis Smart Panel | Control Package

By Basis
Visit Website

Level up from Basis Core. Get the upper hand on energy with automations. Keep your family and home safe with the most advanced fire and electric shock protection on the market.

This product includes the Basis Smart Panel + the Control operating package. Please find more information about the Control package below.

Details
  • Category
    Home Automation, Switchboards
  • Range
    Basis Smart Panel
  • Brand
    Basis
  • Warranty
    2 years
Scope of use

Honest to a fault

Early detection is key to preventing electrical disasters. Basis constantly monitors energy flow and intervening faults to keep your family and home safe.

Stop the shock

Don't settle for ordinary protection when it comes to the safety of your loved ones. Basis comes with Type-B RCD protection, the most advanced defence against electric shock.

Effortless energy

Stop wondering whether or not you left the stove on when you leave the house. Control connected appliances remotely and never worry about a thing.

REVved up

No matter your electric vehicle, Basis has you covered. It works with various EVs and chargers and offers Type B RCD protection for unbeatable safety while charging.

Not so fired up

Don't let a spark turn into a nightmare. Basis monitors arc faults on every circuit. Once detected, power supply is shut off instantly, preventing electrical fires.

Tailored safety

Turn your home into a safe haven. Set up electrical safety parameters room-by-room to suit the needs of your whole family.

Don’t think, save

Use timers and automatic on/off settings to reduce the running costs of big energy users like pool pumps, hot water systems, outdoor lighting circuits, and more.

Features
  • Advanced house fire protection
  • Control circuits via the app
  • Timers and automation
  • EV, solar & battery readiness
  • Advanced electrocution protection
  • Entire-home surge protection
  • Available in both 12 and 20-circuit configurations
Technical Specifications

Compliance

Switchboard Standards and Compliance

AS/NZ 61009.1, AS/NZS 61439.1, AS/NZS 61439.3, AS/NZS 60898.1, AS/NZS 62606, IEC 62423

Meter Standards and Compliance

Class 1: IEC 62053-21, Class 2: IEC 62053-23, IEC 62052-11, IEC 62052-21, IEC 62052-31, IEC 62054-11, IEC 62054-21

Performance

Input supply

  • Nominal Voltage - 230V
  • Grid Connection - Single Phase
  • Rated Frequency - 50Hz
  • Rated Current - 63A
  • Main Overcurrent Protection Device - 63A Type C
  • Overvoltage Category - Category III
  • Bus Bar Rating - 75A
  • Maximum Input Short Circuit Current - 3kA
  • Rated Diversity Factor - 0.5
  • Earth Bus Bar - 2x3 way
  • Neutral Bus Bar - 2x3 way
  • Meter Function - Import & Export 1% Accuracy Supply Control Switch

Environmental

  • Operating temperature -5°C and +40°C
  • Storage temperature -25°C and +55°C
  • Installation Environment Indoor Only
  • Mounting Options Flush Wall Mounted
  • Degree of Protection IP2XC
  • Resistance to Impact IK05
  • Relative Humidity Up to 50% at +40°C
  • Max Elevation ≤ 2000m
Please get in touch with us below for more information about Basis, or to pre-order your Basis Smart Panel now.
