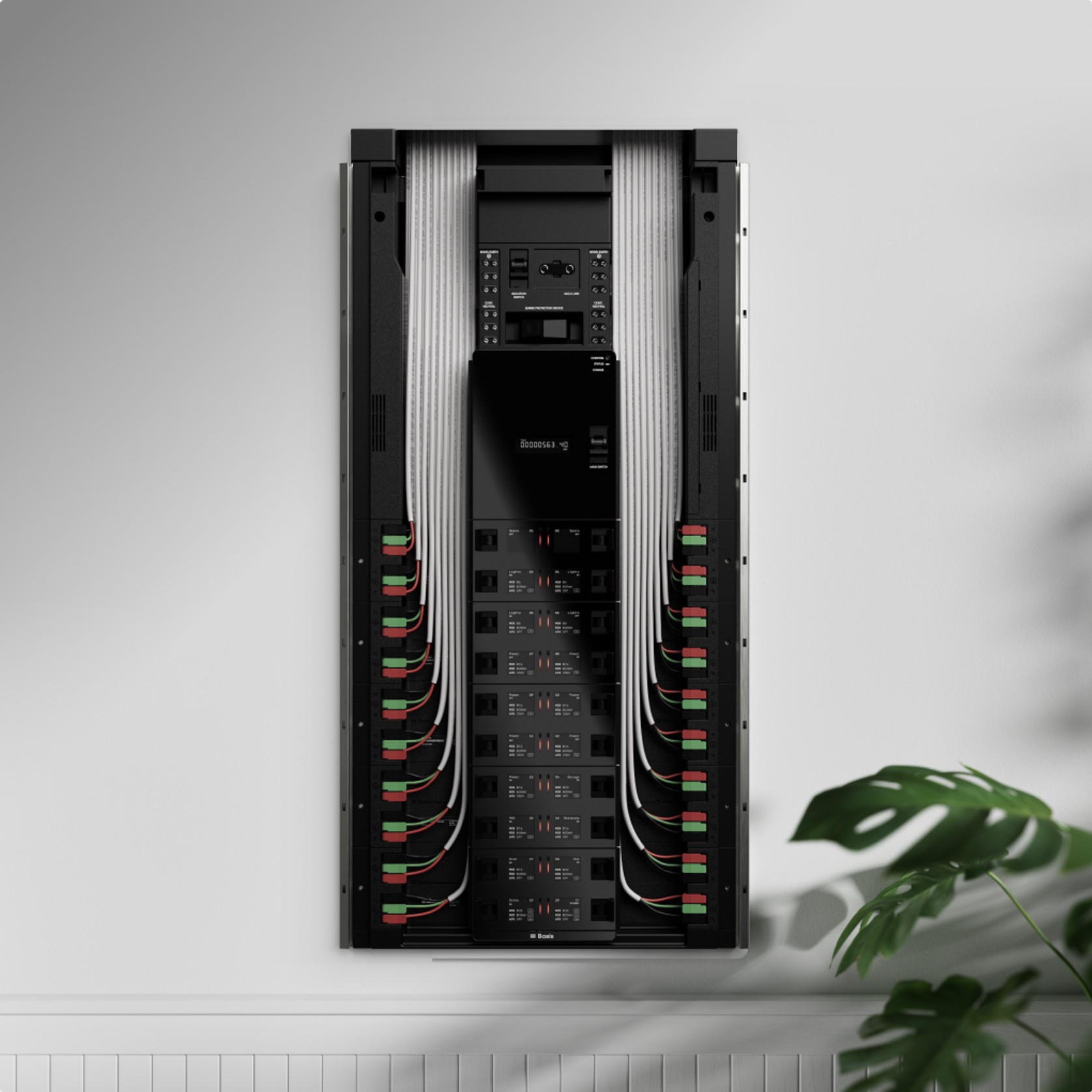

Basis Smart Panel | Max Package
Basis
Get ultimate savings and protection with Basis Max. Enjoy the benefits of Basis Core and Pro, along with detailed insights into your solar production and our most advanced electrical safety features, to keep your home and family safe.
This product includes the Basis Smart Panel + the Max operating package. For more information about the Max package, please see below.
- CategoryHome Automation, Switchboards
- RangeBasis Smart Panel
- BrandBasis
- Warranty2 years
Sunny days
Get insights that show how much your solar panels produce, what you use, and what goes back to the grid, helping you make the most of every ray of sunshine.
Feeling the heat
Enjoy the most advanced load control protection, ensuring your safety against one of the primary culprits of home electrical fires.
Layers of protection
Unlock a deeper understanding of your home’s electrical health with advanced insights alerting to issues like overheating and circuit anomalies.
Peace of mind
Get an extended hardware warranty with Basis Care, which ensures your unit is replaced at no cost should there be any manufacturer issues.
Tailored safety
Turn your home into a safe haven. Set up electrical safety parameters room by room to suit the needs of your whole family.
REVved up
No matter what your electric vehicle is, we've got you covered. Basis Max offers Type B RCD protection for unbeatable safety while you charge.
- Basis Core and Pro features
- Net generation insights (Solar, Battery & Home)
- Advanced electrical fault insights
- Overload protection: B-Curve
- Type-B RCD
- Electric shock threshold: 10mA
- API integrations
- Basis Care
Compliance
Switchboard Standards and Compliance
AS/NZ 61009.1, AS/NZS 61439.1, AS/NZS 61439.3, AS/NZS 60898.1, AS/NZS 62606, IEC 62423
Meter Standards and Compliance
Class 1: IEC 62053-21, Class 2: IEC 62053-23, IEC 62052-11, IEC 62052-21, IEC 62052-31, IEC 62054-11, IEC 62054-21
Performance
Input supply
- Nominal Voltage - 230V
- Grid Connection - Single Phase
- Rated Frequency - 50Hz
- Rated Current - 63A
- Main Overcurrent Protection Device - 63A Type C
- Overvoltage Category - Category III
- Bus Bar Rating - 75A
- Maximum Input Short Circuit Current - 3kA
- Rated Diversity Factor - 0.5
- Earth Bus Bar - 2x3 way
- Neutral Bus Bar - 2x3 way
- Meter Function - Import & Export 1% Accuracy Supply Control Switch
Environmental
- Operating temperature -5°C and +40°C
- Storage temperature -25°C and +55°C
- Installation Environment Indoor Only
- Mounting Options Flush Wall Mounted
- Degree of Protection IP2XC
- Resistance to Impact IK05
- Relative Humidity Up to 50% at +40°C
- Max Elevation ≤ 2000m
