Basis Smart Panel | Core Package

Basis
Visit Website

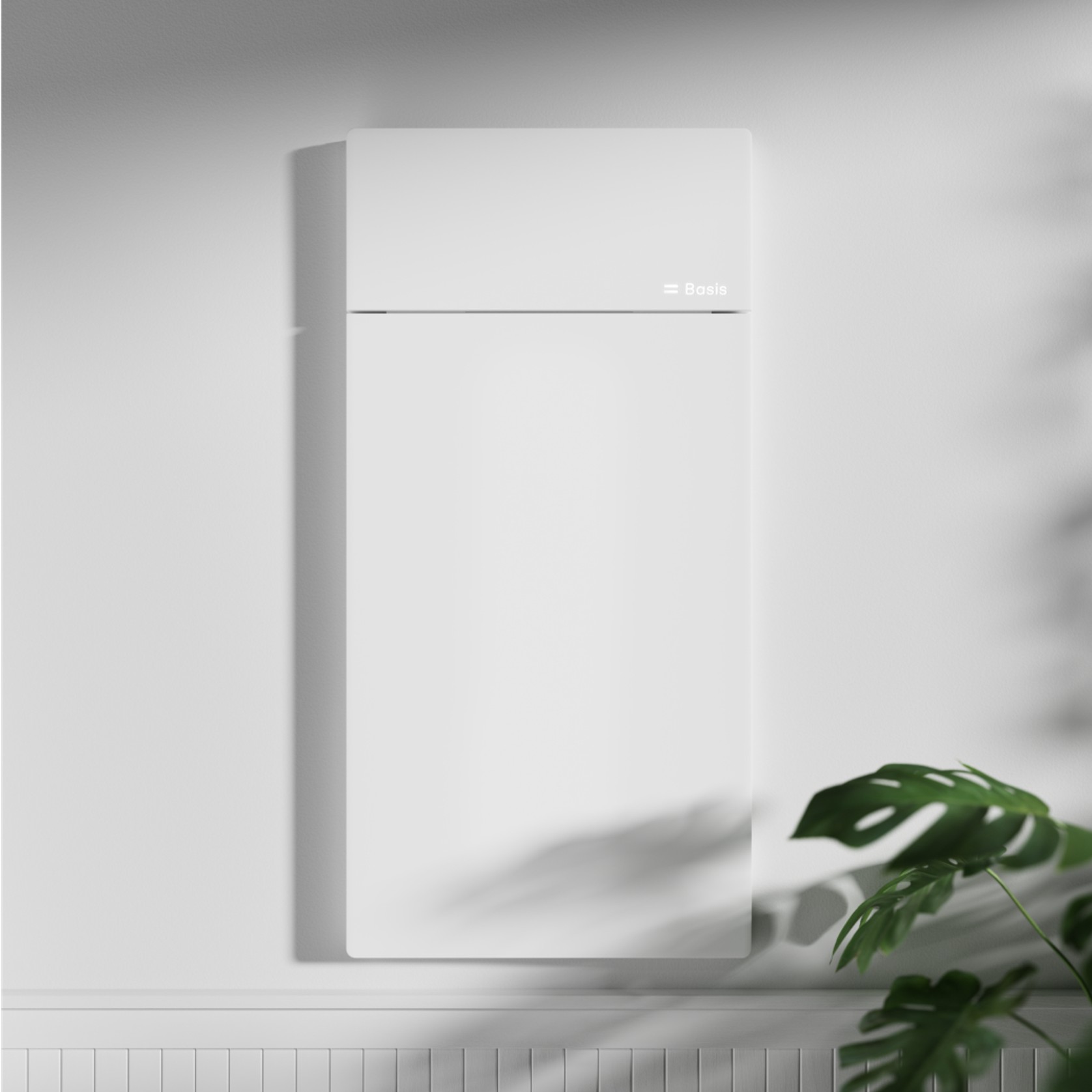

Basis Smart Panel | Core Package gallery detail image
W350 x H640 mm

Basis Core gives you X-ray vision into your home’s energy, exposing where it flows and where it wastes away. The entry-level package shows you hidden power drains, highlights opportunities to save, and continuously monitors your home's electrical health.

This product includes the Basis Smart Panel + the Core operating package. Please find more information about the Core package below.

Details
  • Category
    Home Automation, Switchboards
  • Range
    Basis Smart Panel
  • Brand
    Basis
  • Warranty
    2 years
Scope of use

Power of knowledge

Traditional switchboards leave you in the dark. Basis Core sheds light on your energy usage with real-time insights.

No more waste

Reduce your electricity costs by identifying which appliances are consuming electricity and costing you money without your knowledge.

Perfect power plans

We analyse over 3,000 power plans to match you with the perfect fit, tailored to your home's unique energy footprint. All you have to do is make the switch.

Front-foot faults

Get instant notifications whenever there's a fault in your electrical system so you can spot potential hazards and take immediate action.

Power Play

Protect your investment and extend the lifespan of your electronics with whole-home surge protection.

Real-time alerts

Set up real-time alerts to warn you when you’re chewing through power during periods of high electricity prices.

Features
  • Electricity retail cost optimiser
  • Real-time electricity use insights
  • Real-time electrical fault notifications
  • Short circuit protection
  • Overload protection: C-Curve
  • Configurable safety ratings
  • Overload protection: D-Curve
  • Type-A RCD
  • Electric shock threshold: 30mA
  • Entire home surge protection
  • Import & export smart meter
  • Ripple (emergency, time-control)
Prefabrication

Together as one

Basis combines over 120 monitoring, control and safety devices into one seamless energy experience. Designed by world-class engineers, everything is perfectly in its place right out of the box.

Fire-sealing

Stop electrical fires in their tracks

Many traditional switchboard installations fail to meet fire egress requirements, putting your family at risk if your switchboard caught fire. Basis’s proprietary cable entry system with fire-proof foam stops the spread of fire if the worst was to happen.

  • Almost half of electrical fires are linked to problems in electrical distribution devices, including switchboards
  • Over 60% of installed switchboards either fail to meet ASNZS fire egress standards or become non-compliant during installation
  •  Basis smart panels meet 100% of electrical installation compliance standards
Technical Specifications

Compliance

Switchboard Standards and Compliance

AS/NZ 61009.1, AS/NZS 61439.1, AS/NZS 61439.3, AS/NZS 60898.1, AS/NZS 62606, IEC 62423

Meter Standards and Compliance

Class 1: IEC 62053-21, Class 2: IEC 62053-23, IEC 62052-11, IEC 62052-21, IEC 62052-31, IEC 62054-11, IEC 62054-21

Performance

Input supply

  • Nominal Voltage - 230V
  • Grid Connection - Single Phase
  • Rated Frequency - 50Hz
  • Rated Current - 63A
  • Main Overcurrent Protection Device - 63A Type C
  • Overvoltage Category - Category III
  • Bus Bar Rating - 75A
  • Maximum Input Short Circuit Current - 3kA
  • Rated Diversity Factor - 0.5
  • Earth Bus Bar - 2x3 way
  • Neutral Bus Bar - 2x3 way
  • Meter Function - Import & Export 1% Accuracy Supply Control Switch

Environmental

  • Operating temperature -5°C and +40°C
  • Storage temperature -25°C and +55°C
  • Installation Environment Indoor Only
  • Mounting Options Flush Wall Mounted
  • Degree of Protection IP2XC
  • Resistance to Impact IK05
  • Relative Humidity Up to 50% at +40°C
  • Max Elevation ≤ 2000m
Please get in touch with us below for more information about Basis, or to pre-order your Basis Smart Panel now.
Visit Website

About the
Seller

We're shaping a brighter future with the world's first truly intelligent smart panel.

At Basis, we're a team of visionary designers, engineers, imagineers and pioneers driven by a shared mission: to have a Basis Smart Panel in every building in the world.

We've created an electric smart panel like no other. The Basis Smart Panel is a game-changer designed to intelligently manage energy demand and significantly reduce electricity consumption. Basis Smart Panel bridges the gap between current energy needs and the sustainable future we all deserve.

We're driven by our passion for the planet.

Today's electric infrastructure is primarily powered by fossil fuels, which are responsible for 72% of atmospheric CO2e emissions and the main catalysts of climate change.

Transitioning away from fossil fuels requires a substantial investment in renewable energy and electrifying everything. However, this green revolution will overwhelm our grid by 2050, making it more volatile.

We have two choices: continue to pour resources into an outdated infrastructure or invest in a smart, two-way grid that ensures a clean, sustainable future.

Our innovative products, starting with the Basis Smart Panel, are designed to transform the traditional grid into a dynamic, two-way system that is both sustainable and affordable.

Clean-tech flourishes with a smart grid, and a smart grid thrives with smart panels in every home. This is the beautiful synergy we are creating with Basis Smart Panel.
