Custom Orb® Corrugate Roofing | Cladding

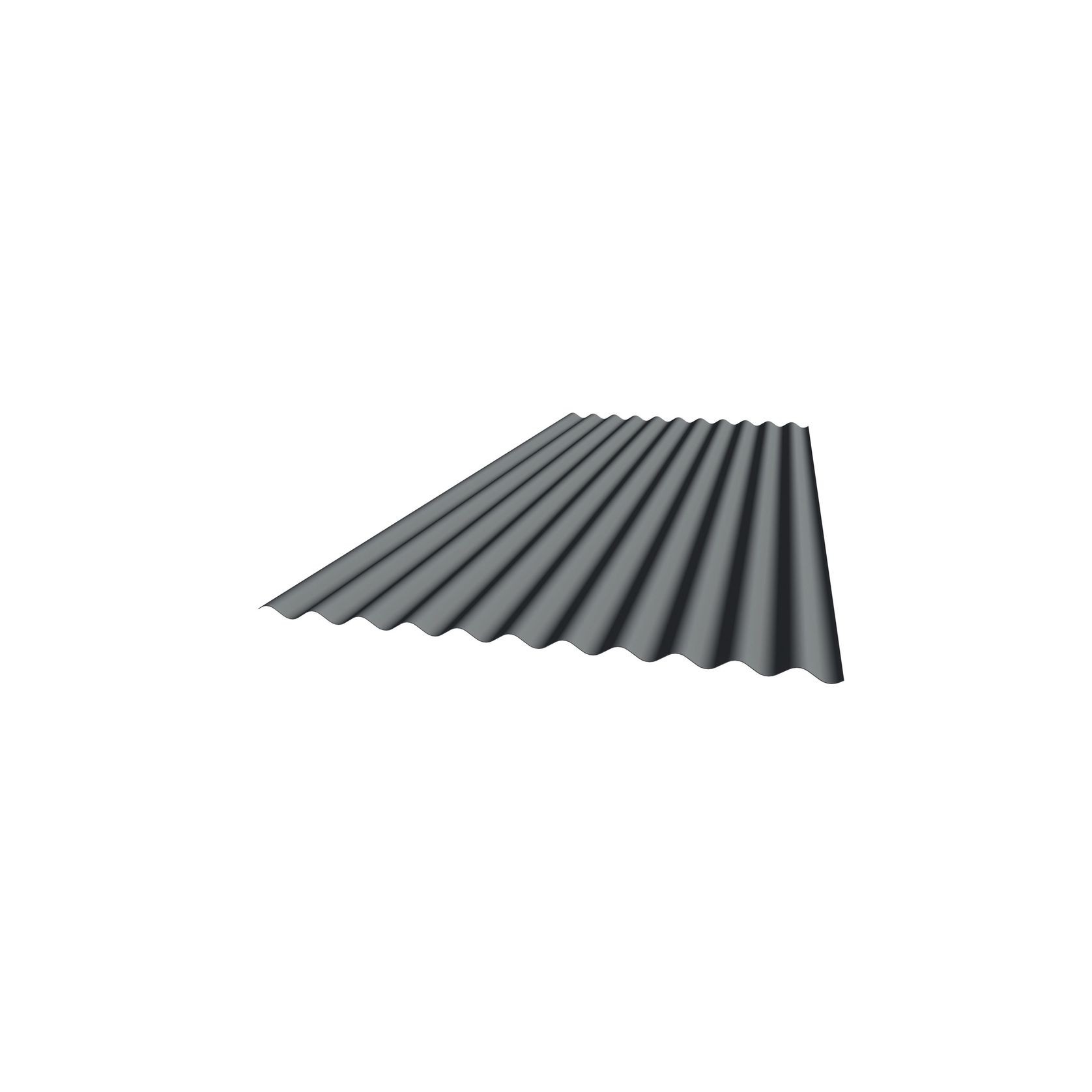

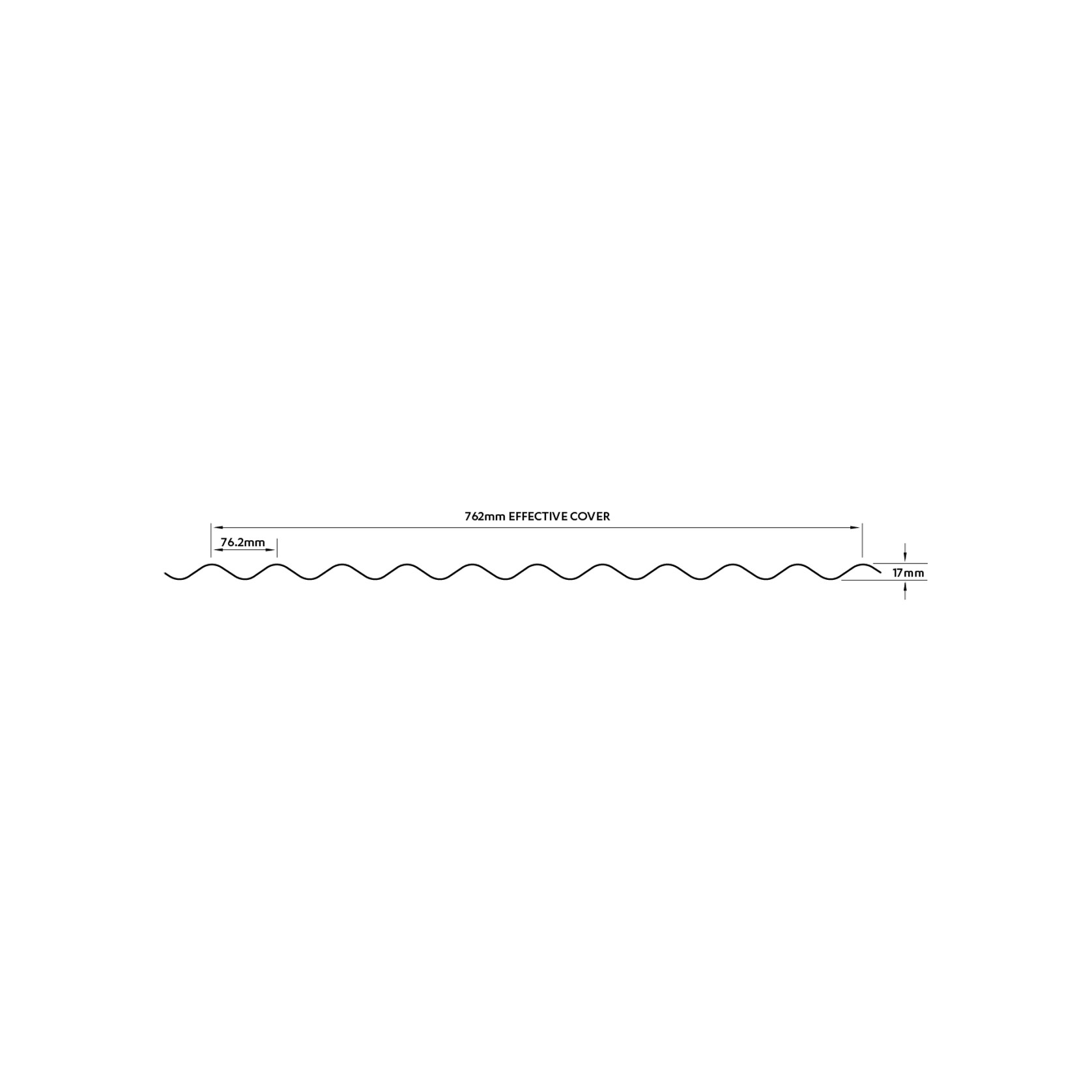

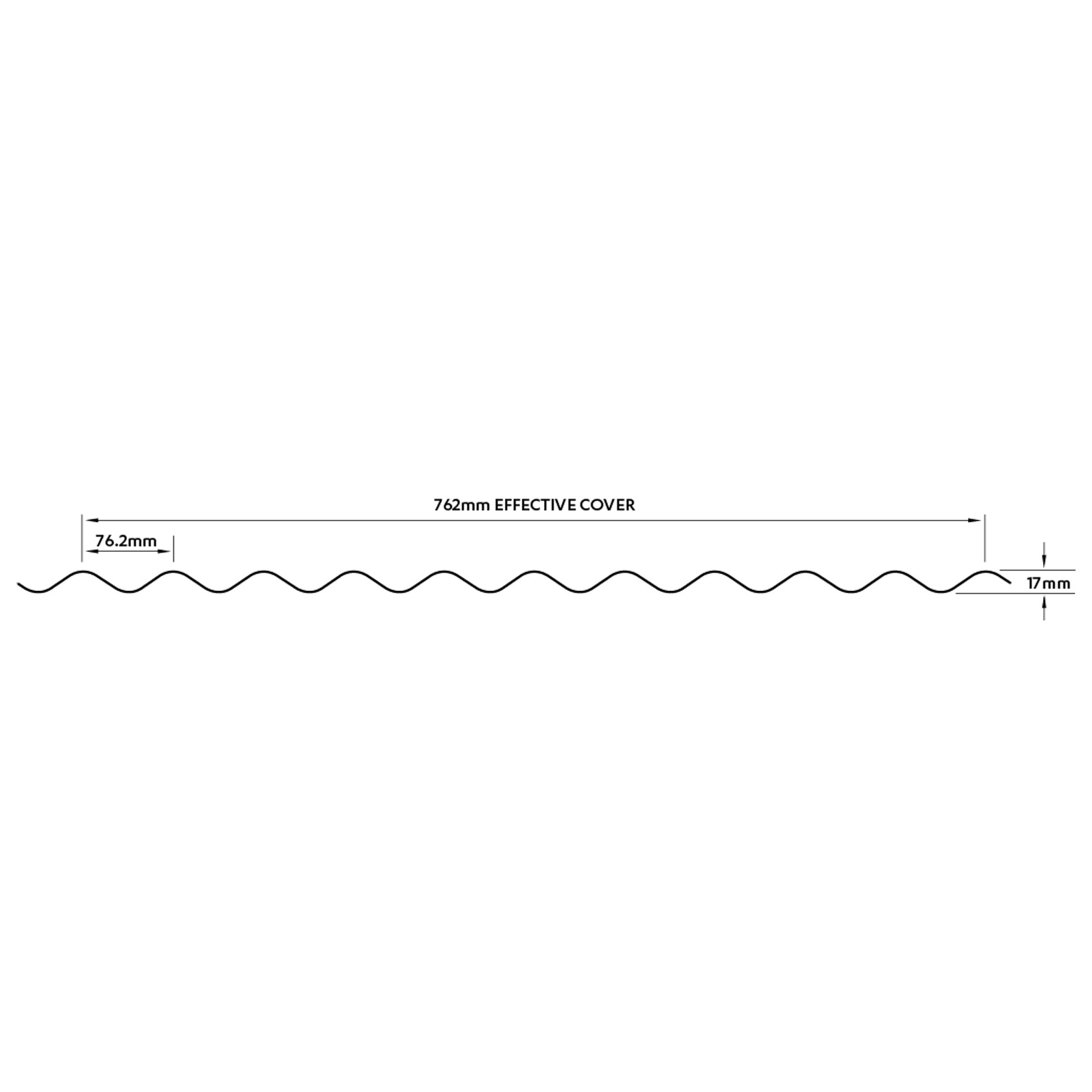

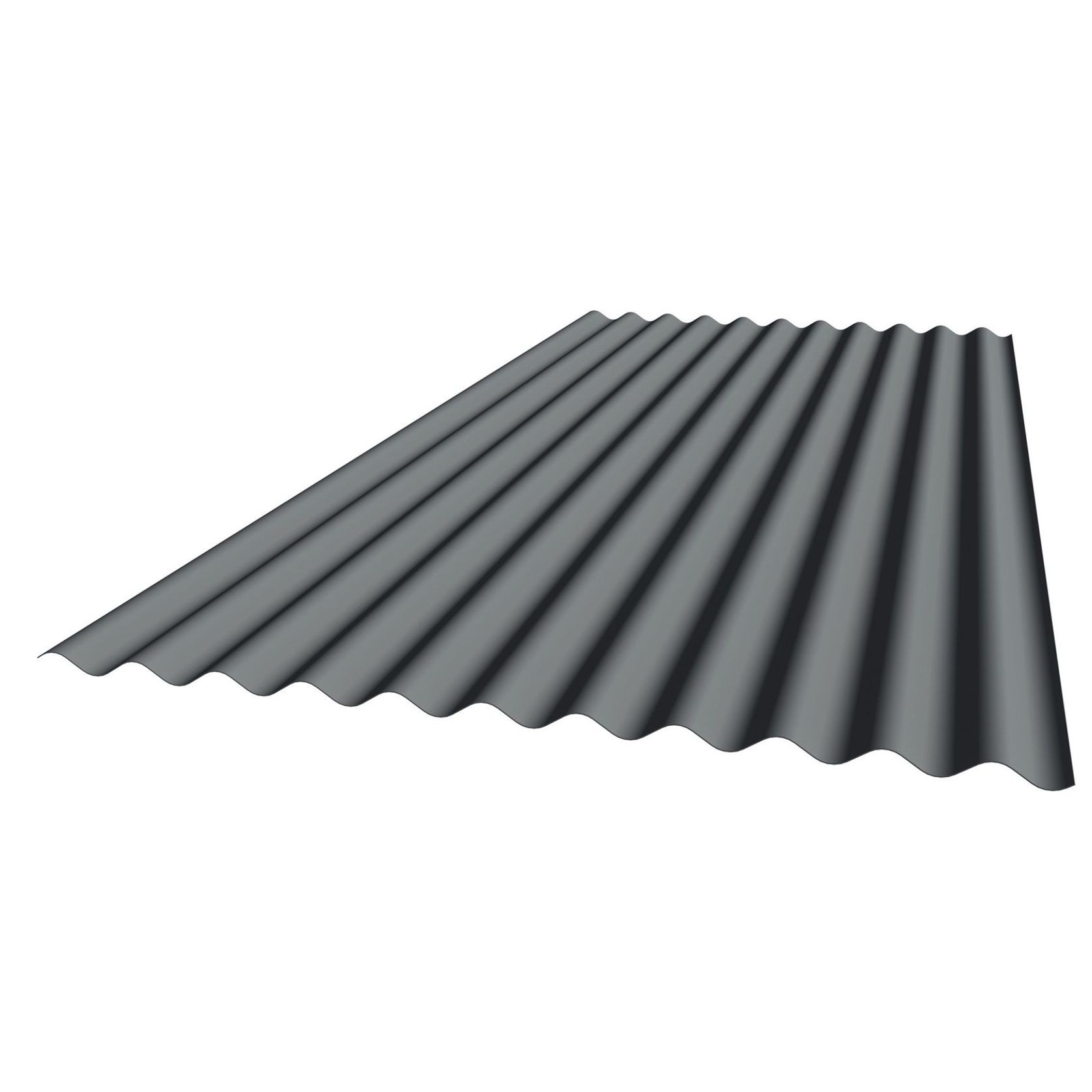

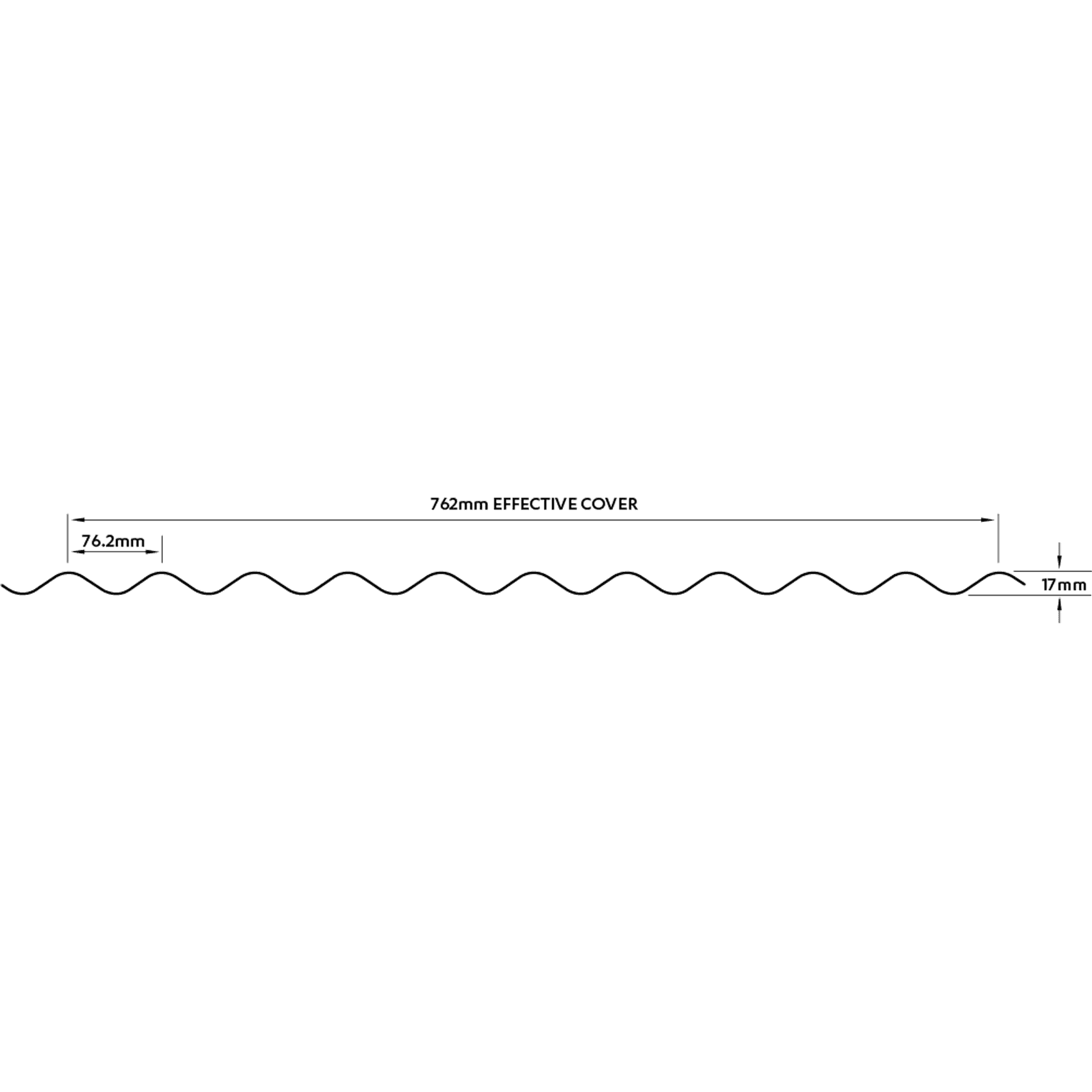

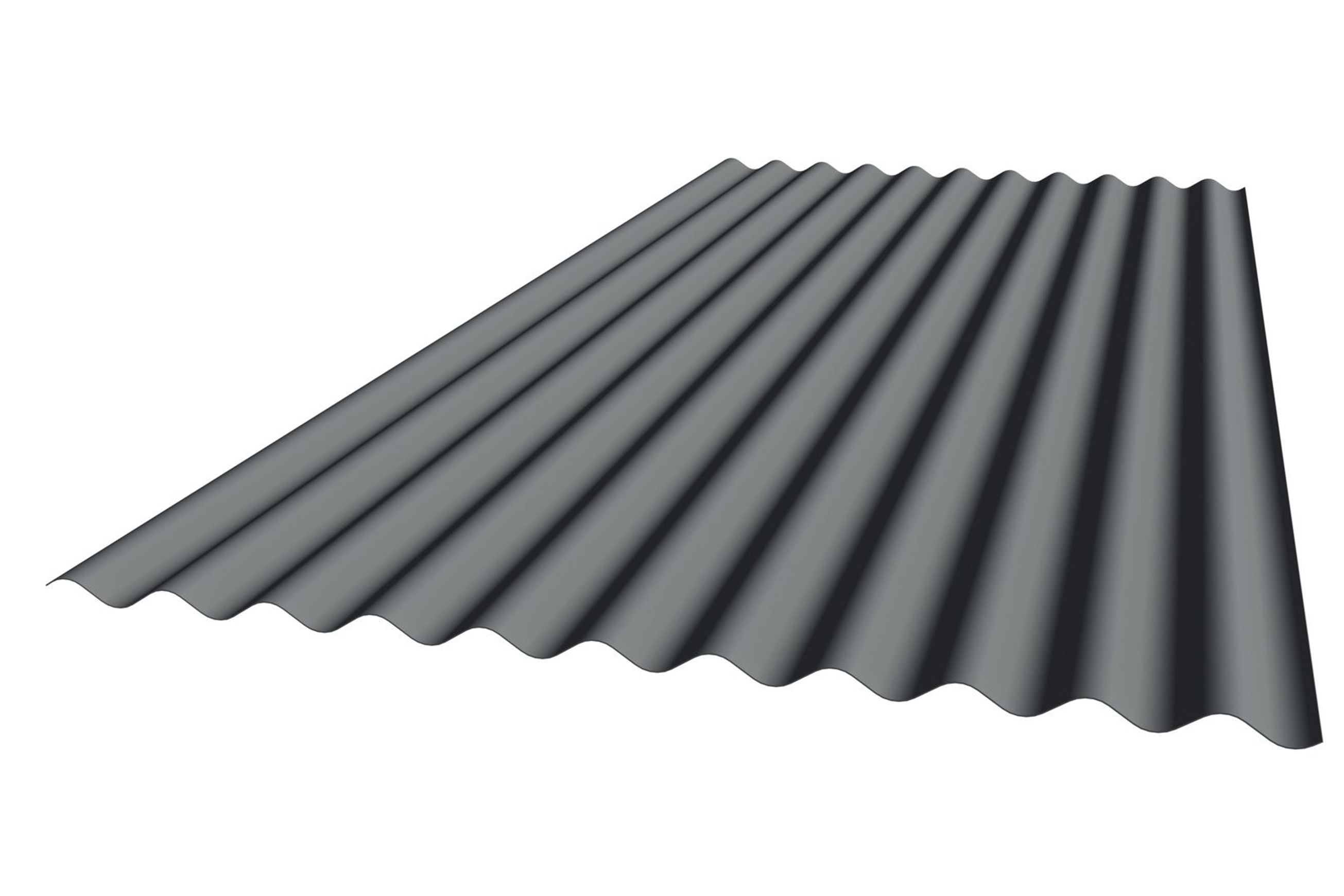

Custom Orb® Corrugate Roofing | Cladding is a premium quality corrugated profile manufactured under licence to BHP.


  • Manufactured in Whangarei, Auckland, Hamitlon, Tauranga, Wellington and Christchurch
  • Minimum pitch 8°

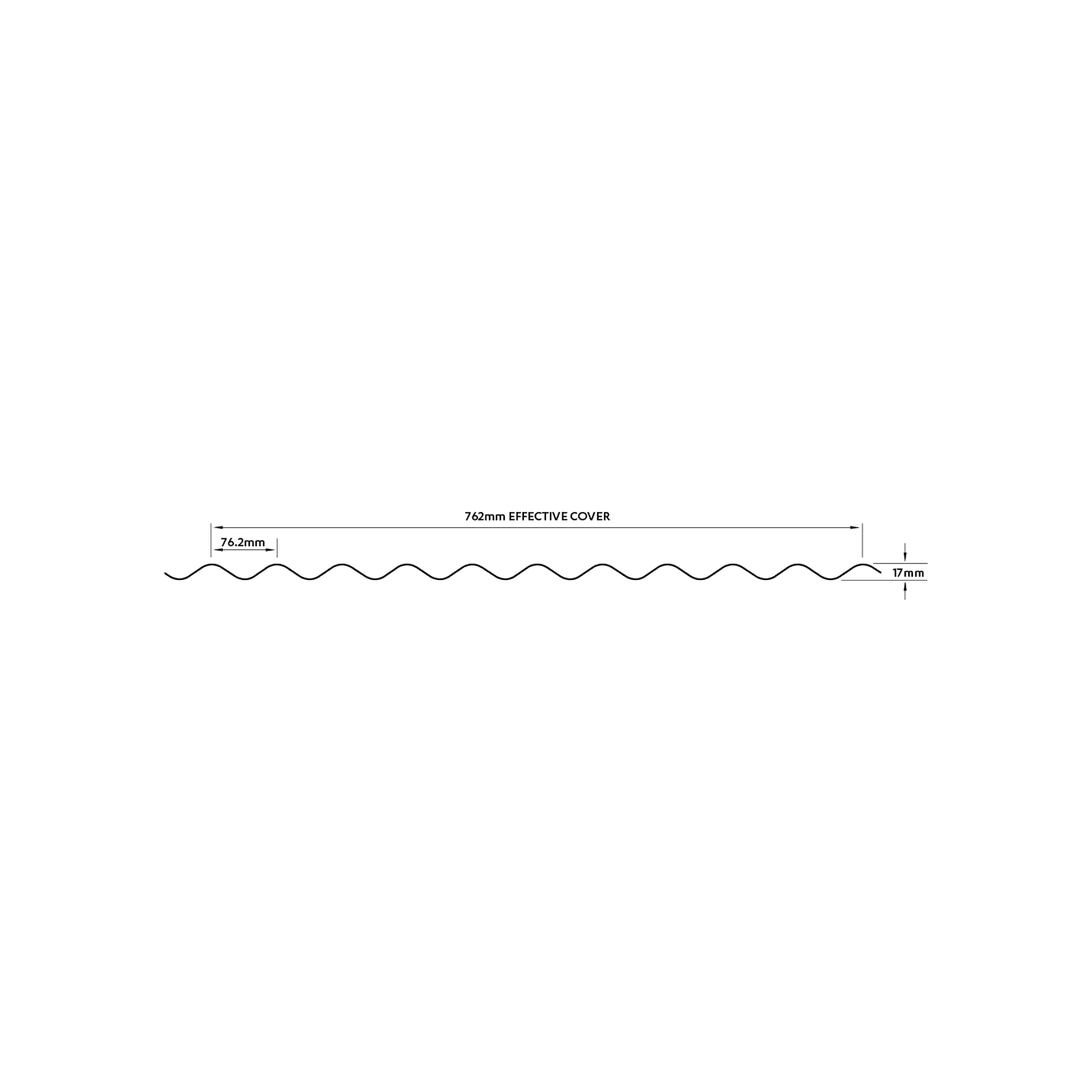

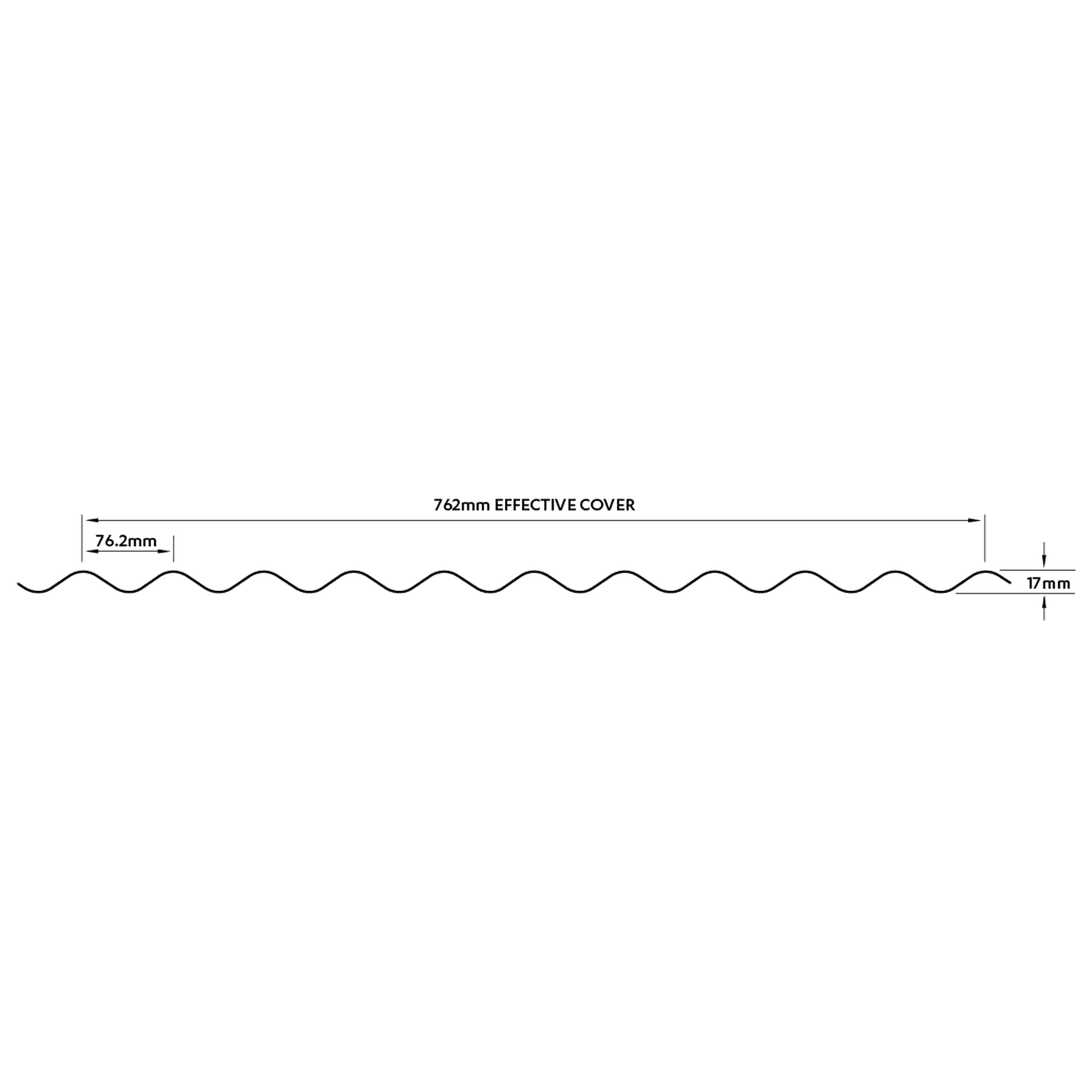

  • Top coverage in its class for best economy

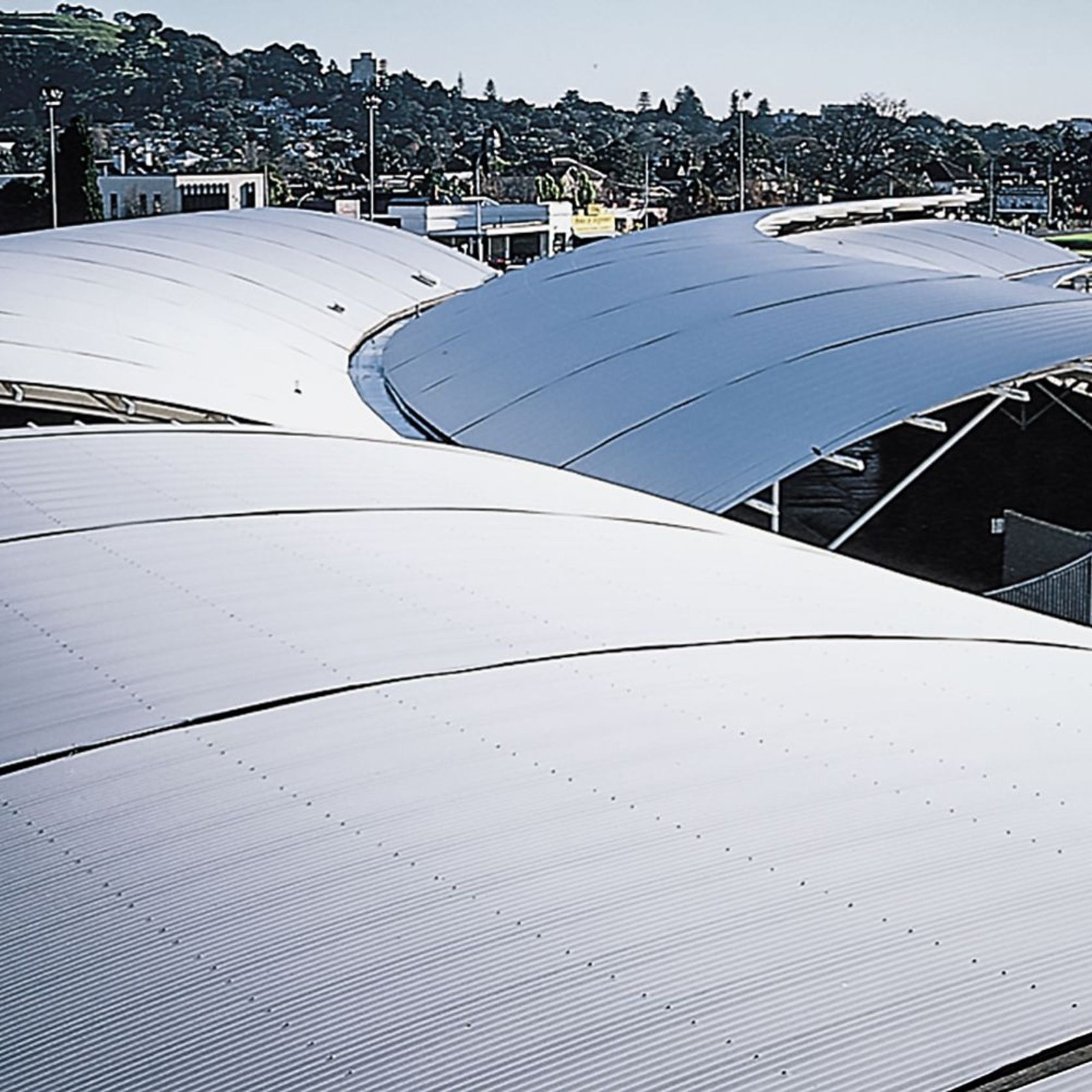

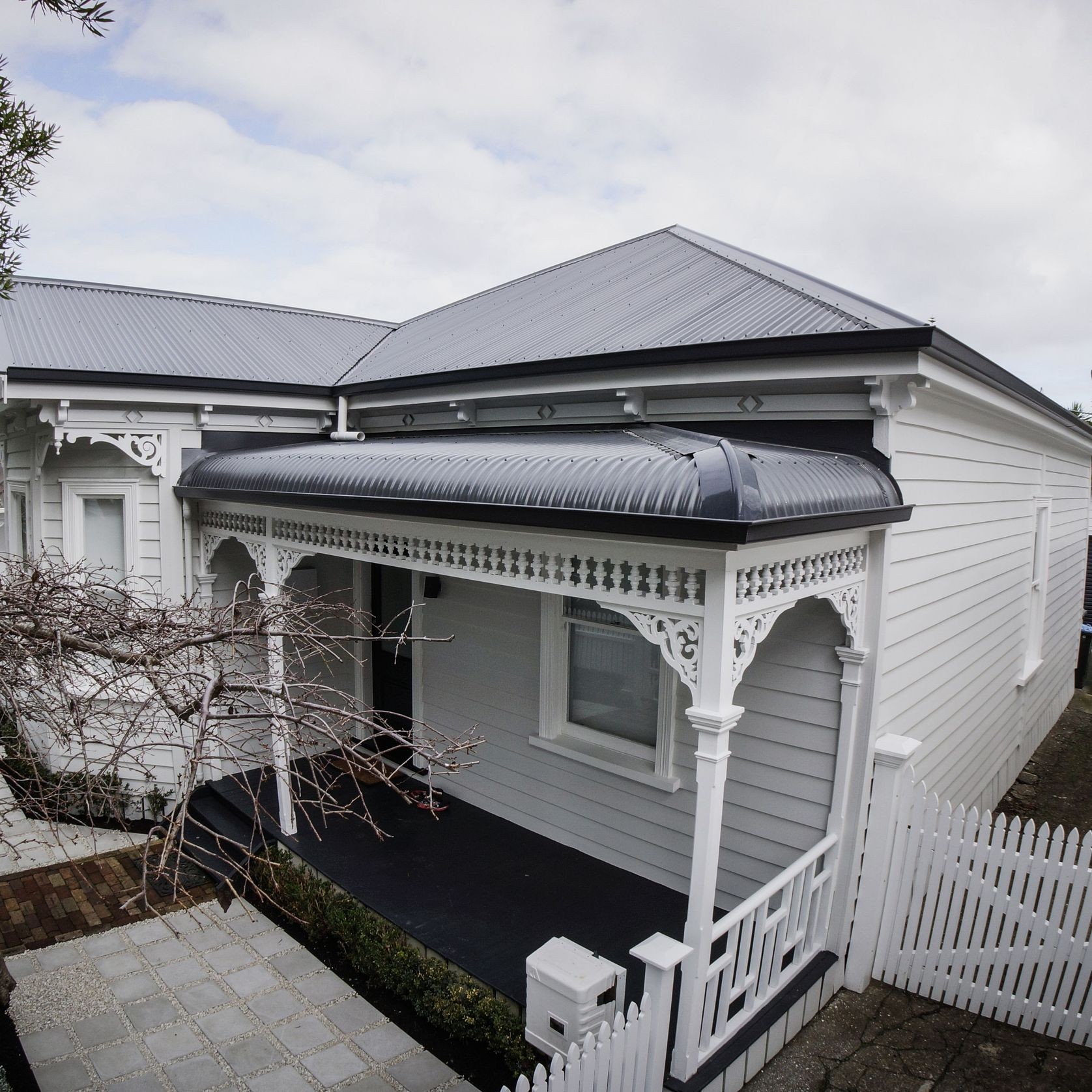

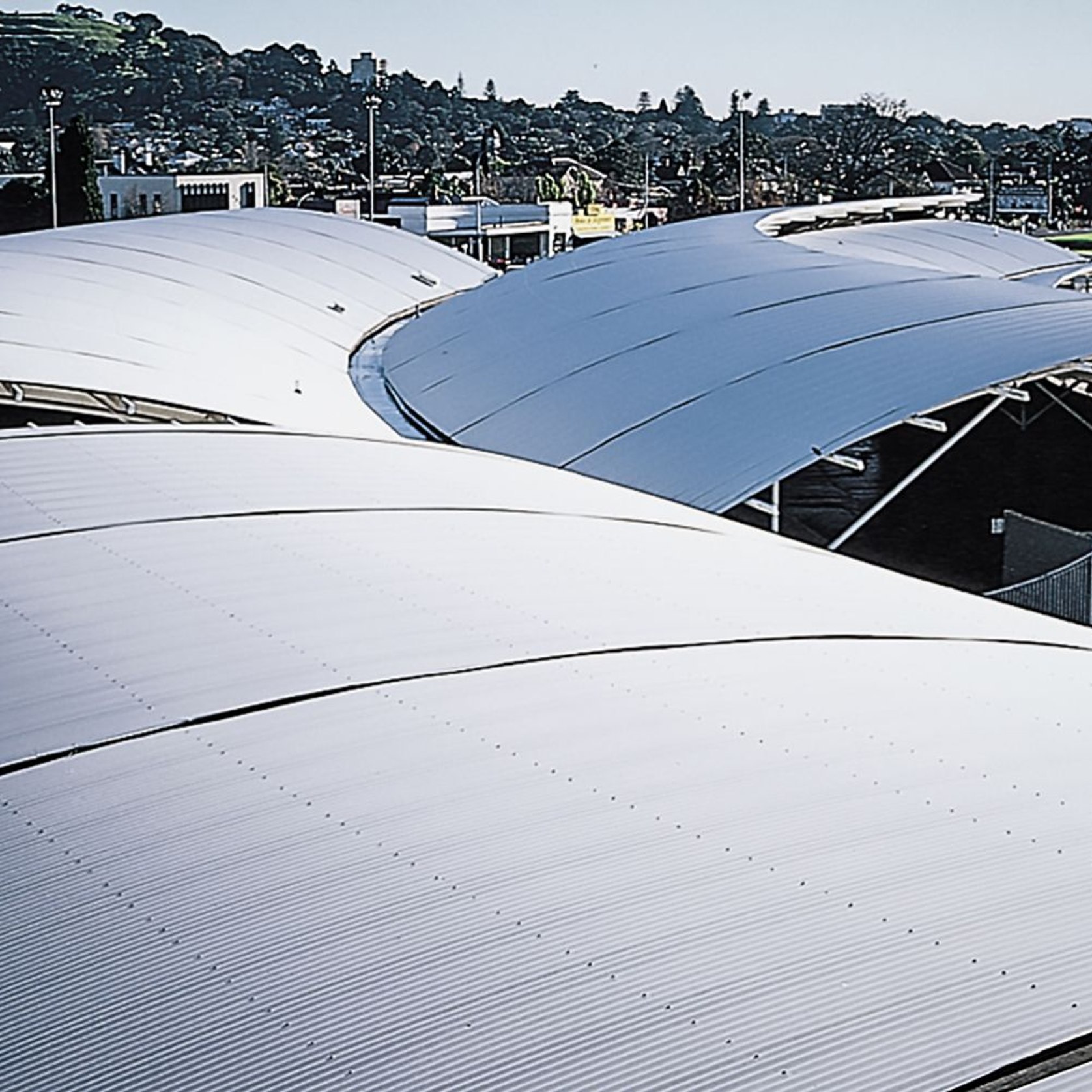

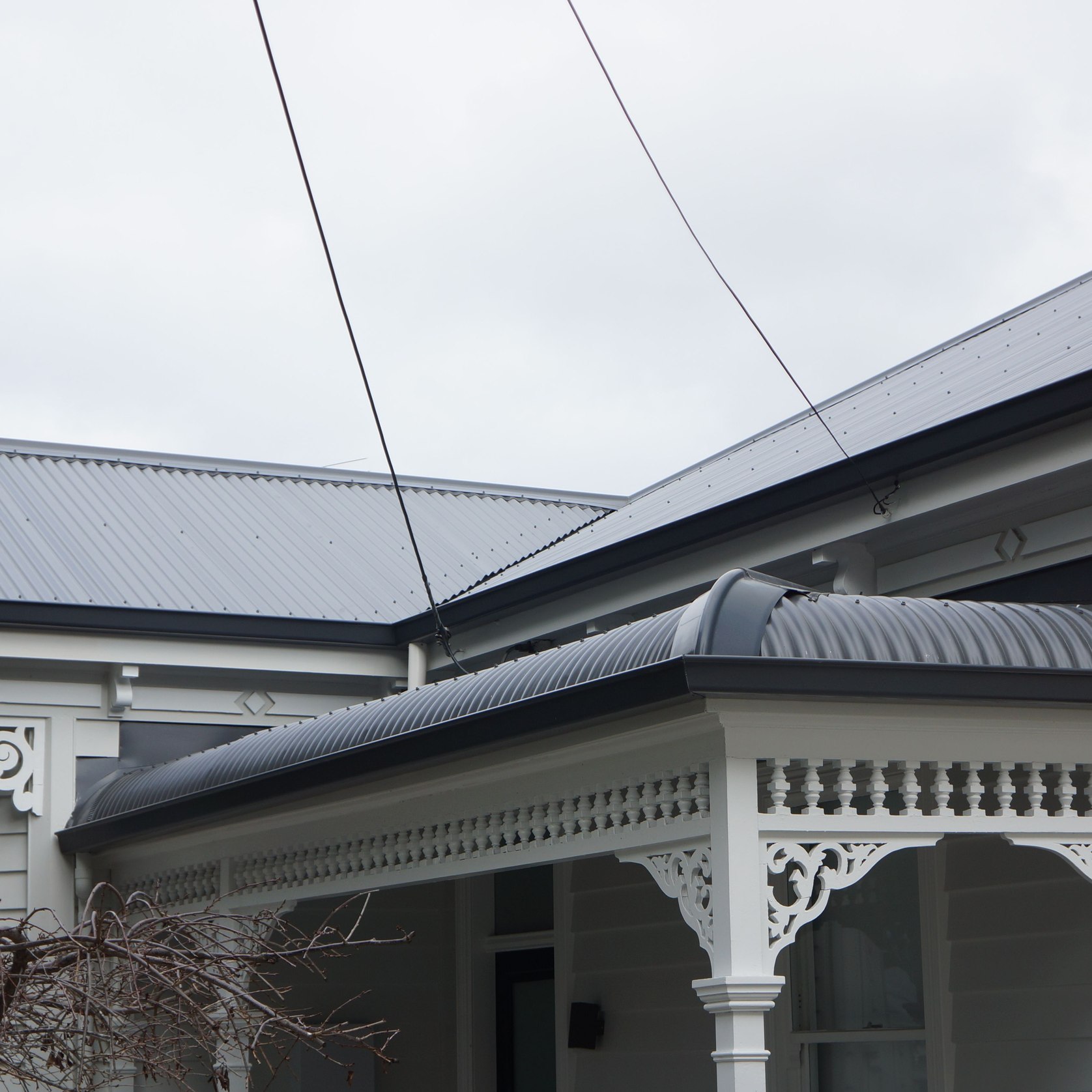

  • Can be roll curved (Bull nosed) to 400mm radius
  • Can be crimp curved to 400mm radius
  • Spring Curved to a radii greater than 9 metres depending on grade, thickness and material used.
  • It is also popular in perforates patterns for decorative or sound control situations.
  • Matching glass reinforced natural lighting sheets are available in trafficable, non-trafficable, thermal and condensation control and fire ratings to suit your project.
  • Category
    Aluminium Roofing, Metal Cladding, Steel Roofing

Minimum Pitch
In accordance with Acceptable Solution E2, the minimum pitch for Custom Orb for roofing dwellings is 8˚. Roof runs in excess of 12 metres should be checked for water runoff capacity

Foot Traffic
Foot traffic up the roof must take place with the load spread equally across two crests, or over purlin lines. Traffic across the roof must take place along purlin lines.

Recommended specifications are available in the branded sections of MasterSpec BASIC or MasterSpec STANDARD, or from your local Steel & Tube branch or visit www.steeland

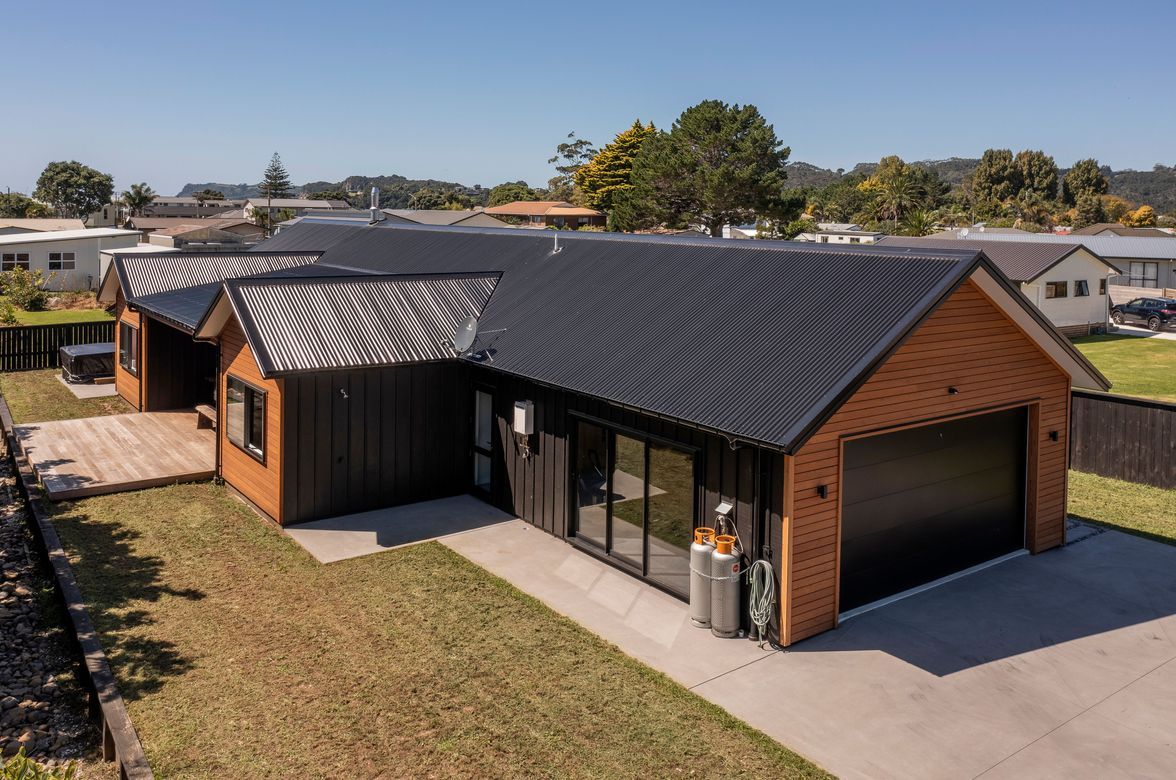

  • Residential Roofing & Cladding
  • Industrial/Commercial Roofing & Cladding
  • Curving
  • Specialty Cladding
  • Ceilings and Linings

Available in metallic coated and pre-painted steel in 0.40mm and 0.55mm B.M.T. (base metal thickness), aluminium plain and prepainted in 0.70mm and 0.90mm, and other nonferrous metals.

All material selections must be compatible with prevailing environmental conditions and adjacent materials, see Roofing Solutions Product Guide or Specifiers Guide for details. Areas not exposed to rain washing will require programmed maintenance.
