DEL 27 Plus Instantaneous Water Heater
Auckland
- 275.4K profile views
- 61 saves
No other instantaneous water heater with 3i technology has such a wide range of features as the DEL Plus. It offers best-in-class comfort and convenience with a backlit multifunction display, temperature memory, and ECO mode.
With the energy and water saving ECO mode, the maximum flow rate of the DEL Plus can be limited so that a constant DHW temperature is possible even at low inlet temperatures.
- Electronically controlled instantaneous water heater
- 3i technology for accurate temperature delivery
- Three-stage ECO mode for increased convenience and greater energy savings
- Backlit multifunction display with output information temperature
Product Details
- Product
- DEL 27 Plus Instantaneous Water Heater
- Category
- Hot Water Heating
- Sold by
- STIEBEL ELTRON
- Brand
- Stiebel Eltron
- Warranty
- 5 years
Product Variants
- Size
STIEBEL ELTRON is specified by
Respond ArchitectsArchitects
First Light Studio LtdArchitects
Gel ArchitectsArchitects
Kamermans Architects LtdArchitects
Patterson AssociatesArchitects
Chaney & Norman ArchitectsArchitects
SA StudioArchitects
Daniel Marshall ArchitectsArchitects
Rafe Maclean ArchitectsArchitects
Johnston ArchitectsArchitects
Arête ArchitectsArchitects
VIA architectureArchitects
Tawa ArchitectureArchitectural Designers
Landmark Homes Auckland - North Shore & RodneyBuilders
Trinity ConstructionConstruction
Passive House Institute New ZealandAssociations
eHausDesign & Build
GS Cayless ConstructionBuilders
Pro ClimaManufacturers and Suppliers
M C Fearnley DesignArchitectural Designers
M A BuildingBuilders
Ethos HomesBuilders
Fairfield ConstructionBuilders
Ockham ResidentialProperty Developers
Bob Burnett ArchitectureArchitectural Designers
No other instantaneous water heater with 3i technology has such a wide range of features as the DEL Plus.
It offers best-in-class comfort and convenience with a backlit multifunction display, temperature memory, and ECO mode.
With the energy and water saving ECO mode, the maximum flow rate of the DEL Plus can be limited so that a constant DHW temperature is possible even at low inlet temperatures.
- Electronically controlled instantaneous water heater
- 3i technology for accurate temperature delivery
- Three-stage ECO mode for increased convenience and greater energy savings
- Backlit multifunction display with output information temperature
- Pricing
- From $1,660.60 *Price indication
- Specs
28kW, 39Amps/Ph, 415V 50oC Max.
The DEL Plus is suitable for supplying hot water to several draw-off points (single and group supply), e.g. simultaneous supply to bathroom and kitchen. Sealed unvented, pressure-tested appliance for use with all commercially available pressure taps. The DEL Plus water heater requires no safe tray, flue or ventilation.

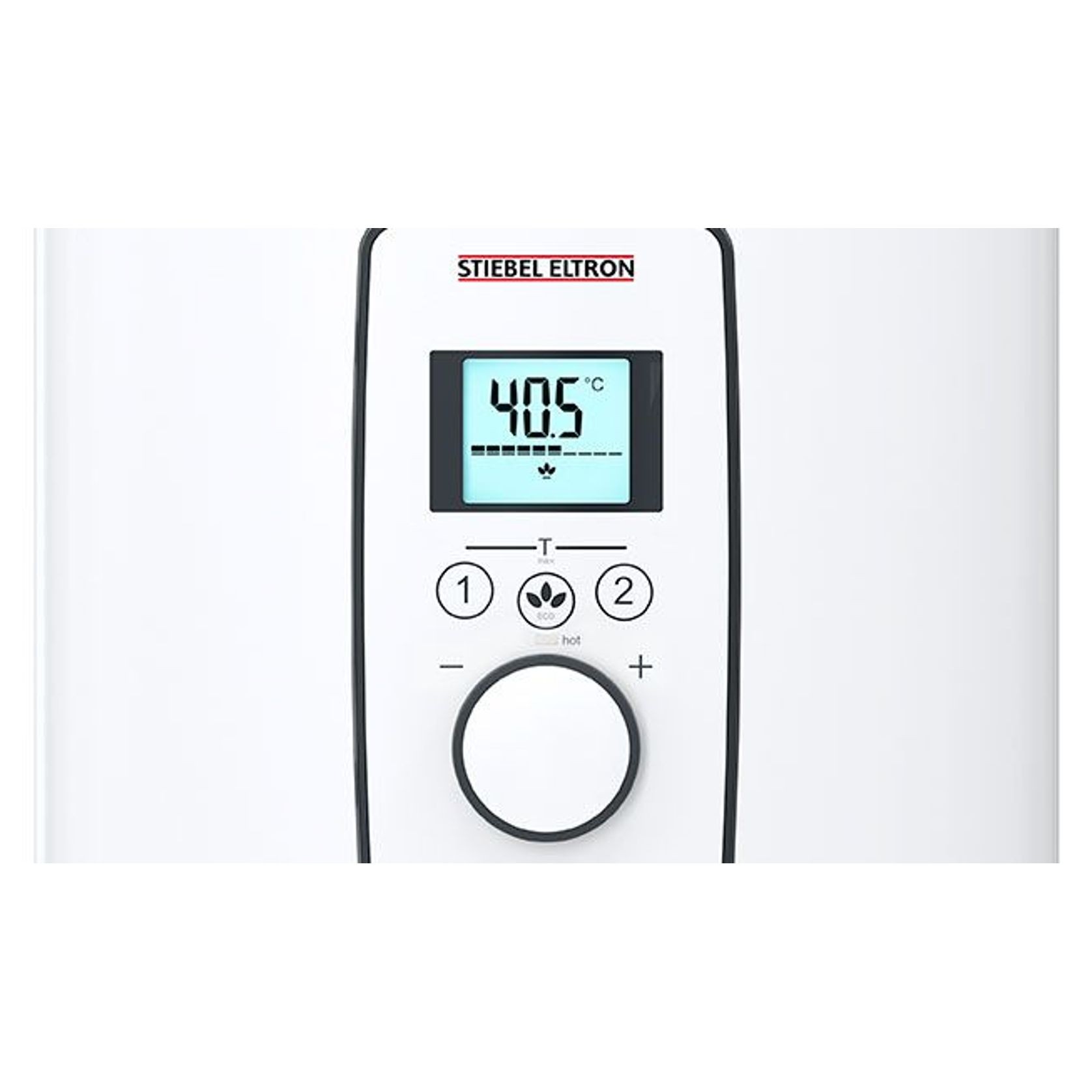

Electronically controlled instantaneous water heater with 3i technology. Accurate temperature delivery up to the maximum output. Temperature selection from 30 to 50°C via rotary selector, temperature adjustment for showers in 0.5 °C increments. Backlit multi-function display to show set temperature, current power consumption, status and service indication. Selectable ECO mode. Memory function for 2 programmable temperatures of choice. Pivoting appliance cover and programming unit for increased operating convenience in under-sink installations.
Saves energy and water by means of electronic output control with 3i technology. 3 sensors ensure that the selected temperature is accurately achieved. For this, only the actual required amount of energy is expended; there is no need to add cold water at the tap. This ensures maximum energy efficiency. ECO mode can be individually selected for economical operation. Suitable for preheated water (e.g. in solar thermal and heat pump systems).
Rapid bare wire heating system, suitable for hard and soft water. Electronic safety concept with air bubble detection.- Scope of use
Continuous hot water for shower, basins, and sink.
- Performance
15ltrs/min at 40oC water temperature
