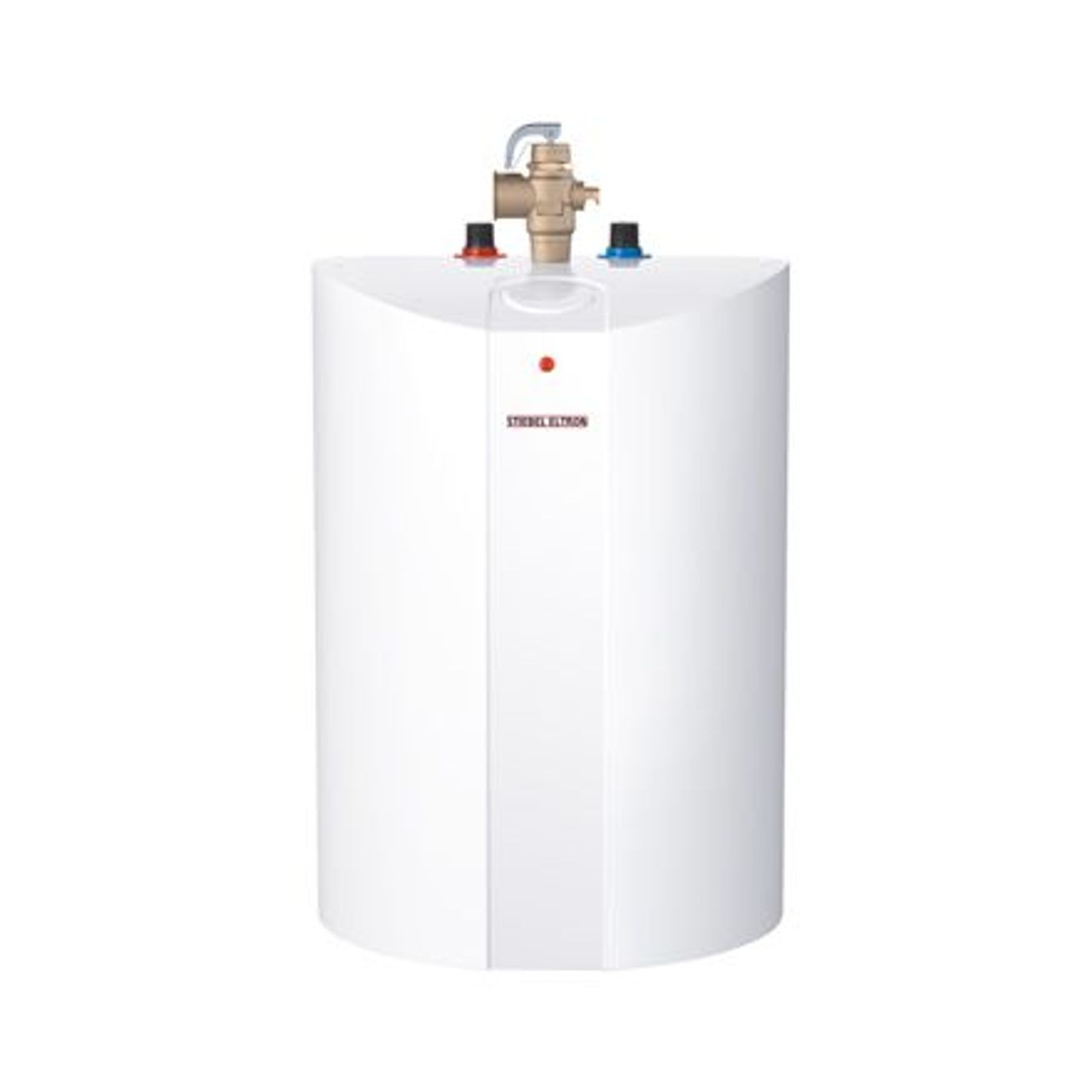

SHC 15 AU Compact Storage Water Heater
Auckland
- 279.3K profile views
- 61 saves
Hot water right at the point of use, ideal for multiple outlets

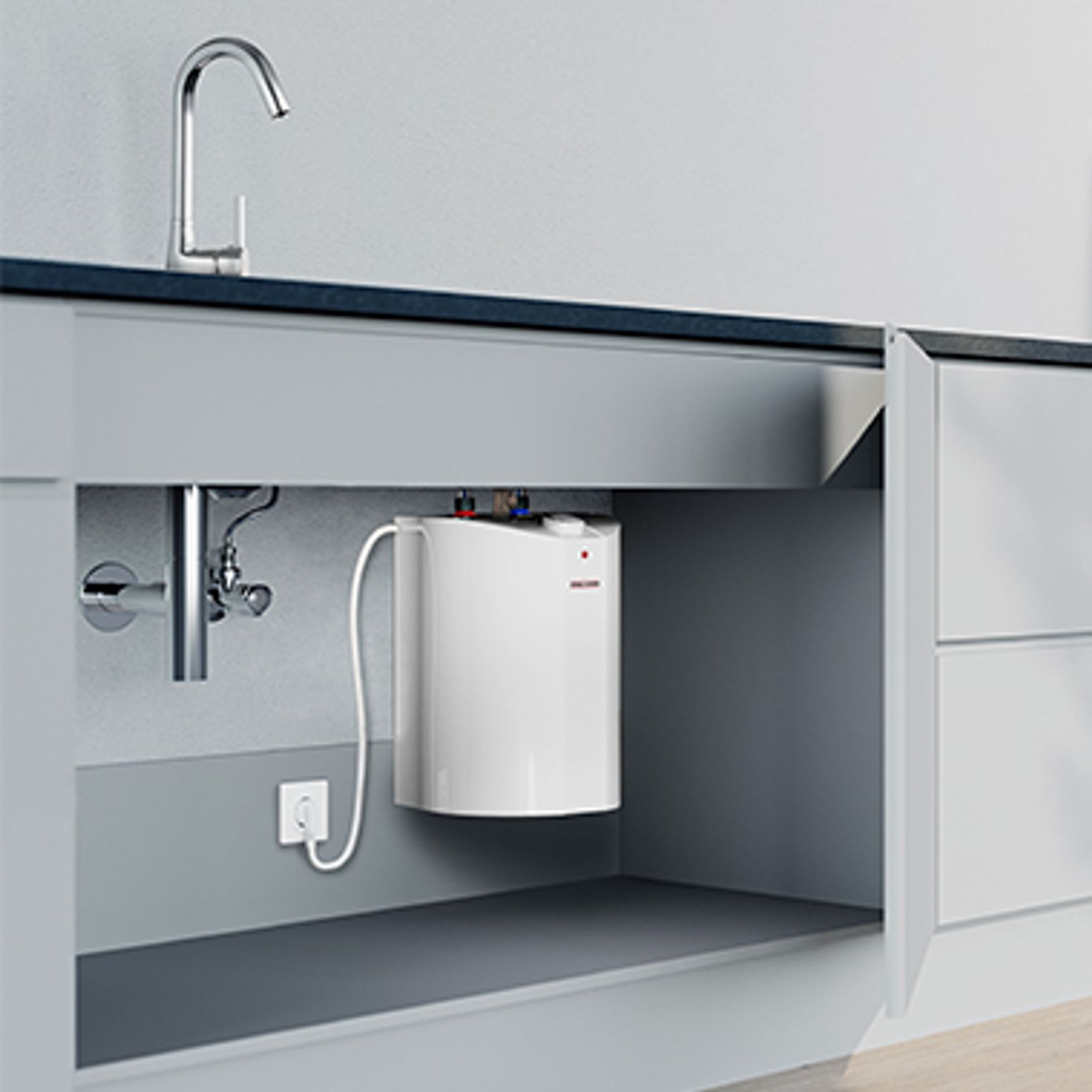

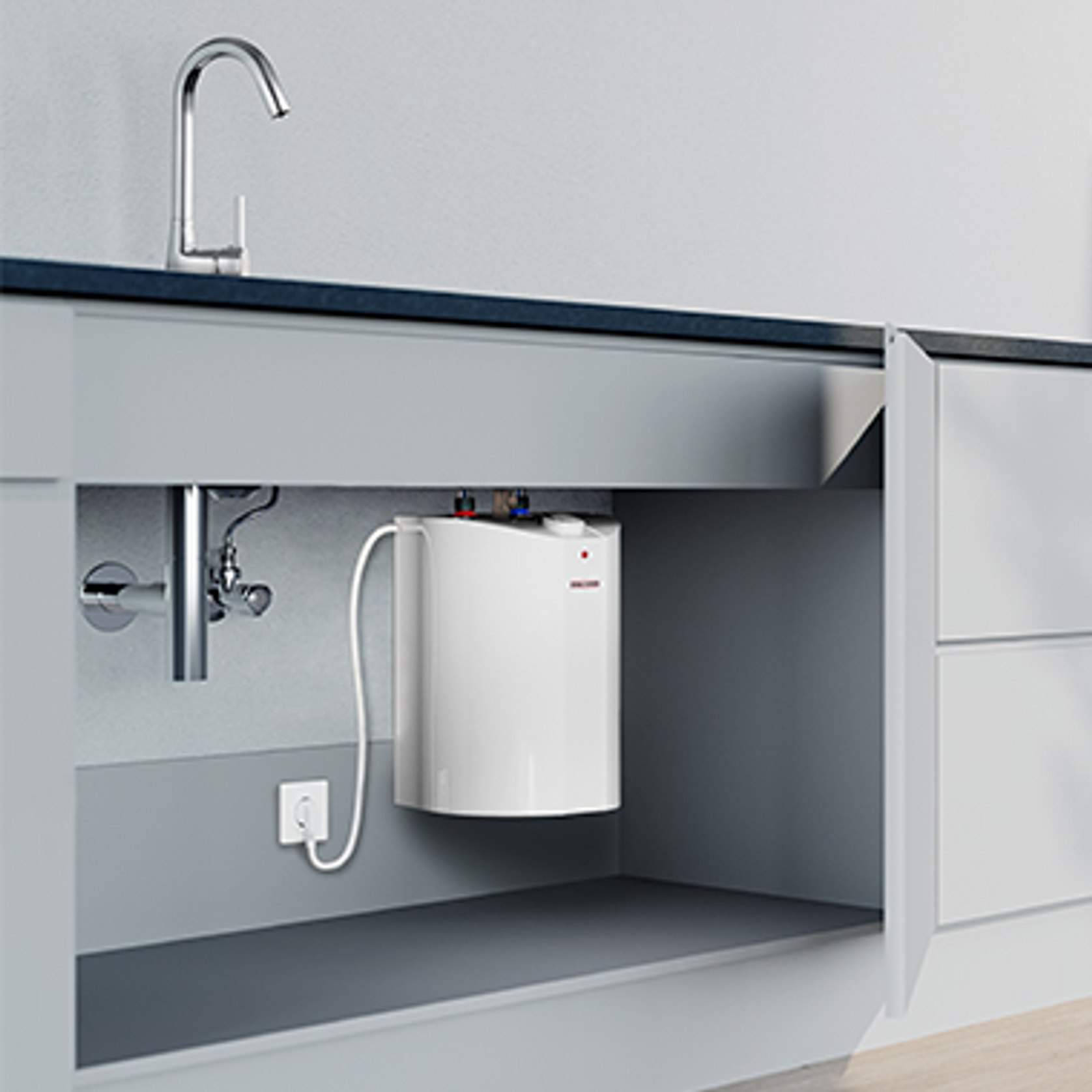

Made in Germany the STIEBEL ELTRON SHC 15 AU under bench mains pressure water heater delivers hot water quickly to multiple sinks or basins. These point of use water heaters eliminate long runs of pipework for isolated sinks and basins and can greatly reduce the waiting time for hot water to arrive at the outlet. Installed directly underneath the basin or sink these water heaters are compact in design to take up less space in the cupboard.
- Made in Germany
- Point of use installation eliminates dead legs
- No waiting time: benefit from immediate hot water
- Space-saving under bench installation
- Ideal for multiple outlets
- Suitable for use with all taps
- Compact modern design
- Enamelled steel tank manufactured by STIEBEL ELTRON

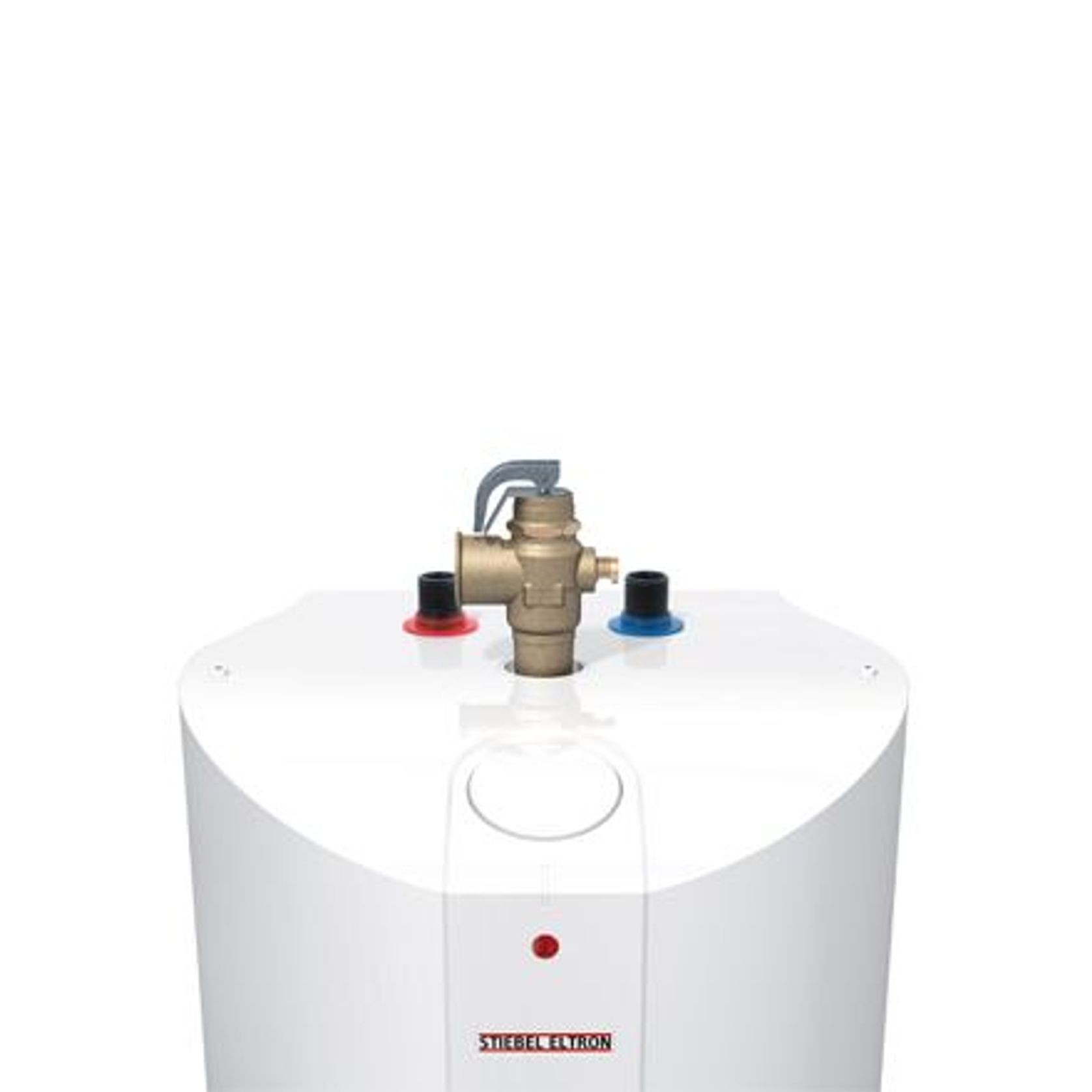

- Includes PTR valve and reducing bush
- Wall mounted design to easily adjust height
- Insulated design minimises heat losses thus saving energy
- Temperature set at 60°C
- 1.6 kW heating element
- Operates on 6.5 Amp 230V, plugs into power point
Product Details
- Product
- SHC 15 AU Compact Storage Water Heater
- Category
- Hot Water Heating
- Sold by
- STIEBEL ELTRON
- Pricing
- $1,032.41
- Brand
- Stiebel Eltron
- Warranty
- 5 years
Product Variants
- Size
Product specified by
Hot water right at the point of use, ideal for multiple outletsMade in Germany the STIEBEL ELTRON SHC 15 AU under bench mains pressure water heater delivers hot water quickly to multiple sinks or basins.
These point of use water heaters eliminate long runs of pipework for isolated sinks and basins and can greatly reduce the waiting time for hot water to arrive at the outlet. Installed directly underneath the basin or sink these water heaters are compact in design to take up less space in the cupboard.
- Made in Germany
- Point of use installation eliminates dead legs
- No waiting time: benefit from immediate hot water
- Space-saving under bench installation
- Ideal for multiple outlets
- Suitable for use with all taps
- Compact modern design
- Enamelled steel tank manufactured by STIEBEL ELTRON
- Includes PTR valve and reducing bush
- Wall mounted design to easily adjust height
- Insulated design minimises heat losses thus saving energy
- Temperature set at 60°C
- 1.6 kW heating element
- Operates on 6.5 Amp 230V, plugs into power point
- Specs
15L storage, plug in 230V.
High quality design- Made in Germany with premium quality parts
- Certified enamelled steel tank manufactured by STIEBEL ELTRON
- Designed for 2+ fixture outlets
- WaterMark approved. Lic No. WMKA00301, AS3498
Energy and water saving
- Low minimum standby power consumption
- Installed close to the point of use helps save water
Easy installation
- Compact space saving design
- Installed underneath sinks or basins, ideal for mulitple points of use
- 230V - 3 pin power cord with earthed plug 6.5 Amp
- Operates with all WELS approved tapware
Warranty
- 5 year cylinder, 3 year parts & labour and 1 year PTR valve domestic water heater warranty*
- *Conditions apply - refer warranty policy for full details.
- Scope of use
Point of use hot water for a sink.
- FAQ
1. Can I install the SHC water heaters with my existing sink mixer?
Yes, the SHC water heaters are mains pressure storage water heaters and can be used with all WELS rated tapware including low flow taps.
2. Can I connect two taps to the SHC mains pressure water heater?
Yes, the SHC water heaters are designed as a multipoint of use water heater and can be operated with multiple taps.
3. How can I tell what size SHC water heater I have?
On top of the water heater between the inlet and outlet the sticker will advise the size SHC 10 AU or SHC 15 AU. Within the download section of the SHC you can download a pdf showing you exactly where and how to locate this sticker.
4. Do these water heaters create hot water that is hot enough to make tea and coffee?
No, the SHC is designed to provide hot and cold water to a sink. These units are not a boiling or chilled system.
5. If I run out of hot water how long will it take for the SHC 10 AU to have another 10 litres of hot water available?
The SHC 10 AU can deliver another 10 litres of 60°C hot water after approximately 29 minutes, based on cold water temperature of 20°C.
6. I want to wash dishes in the sink, what size SHC do I need?
This will be dependant on the sink size, however we recommend the SHC 15 AU if a larger volume of hot water is required.
7. Where can I purchase the SHC water heater from?
The SHC is available from all leading plumbing stores.
- Performance
15Ltrs of 61degC stored water
