Double Tee Flooring

By Ultimate Engineered Concrete
Visit Website

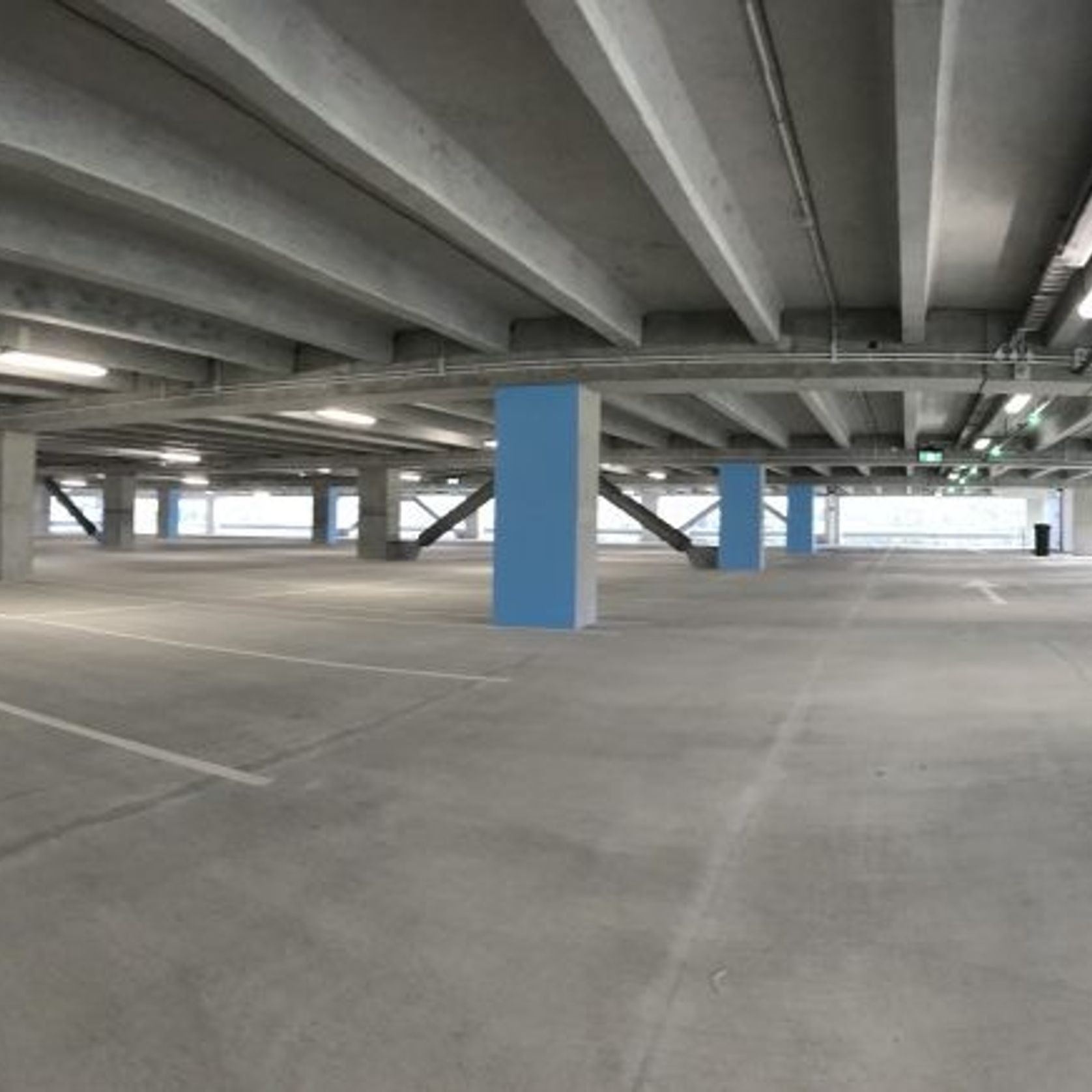

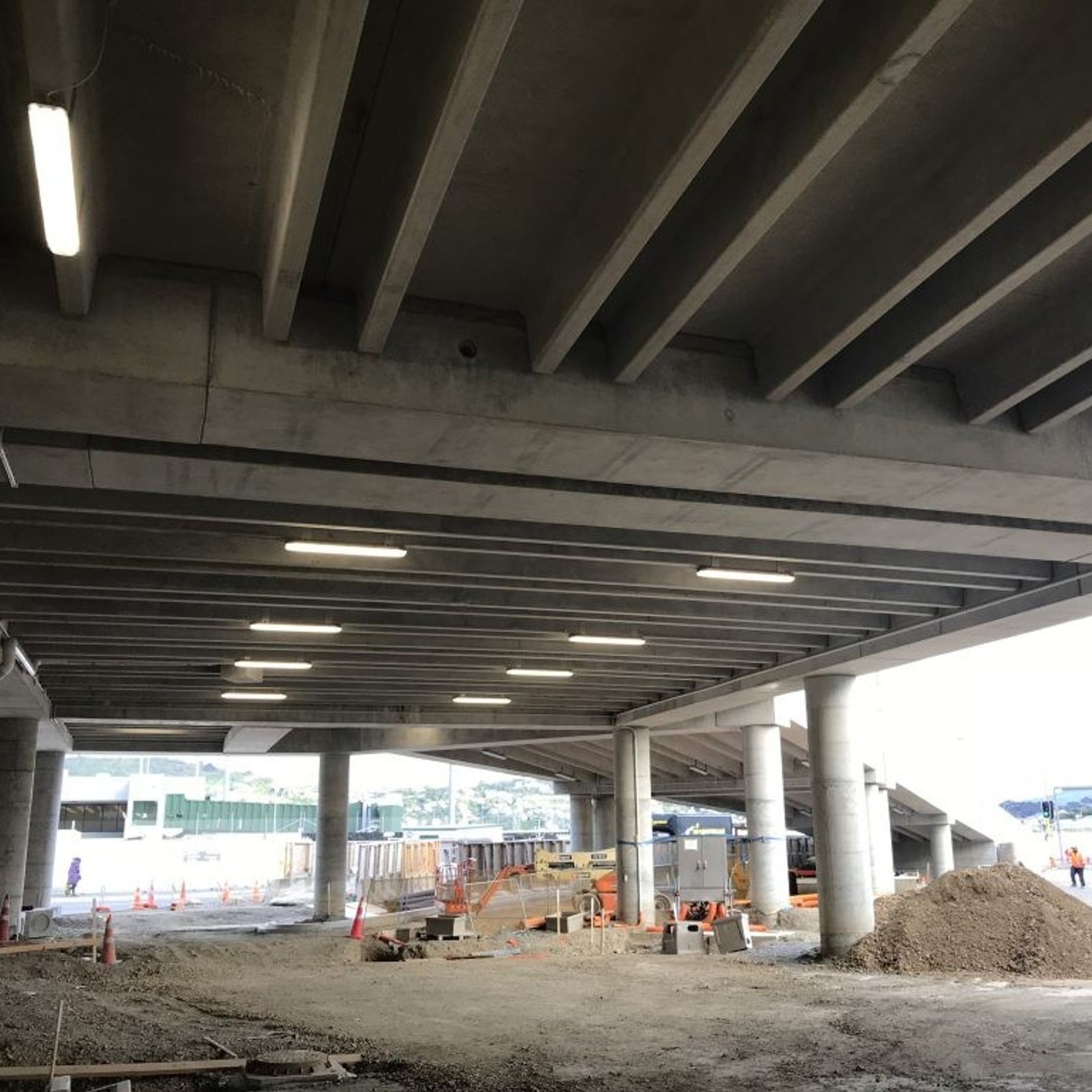

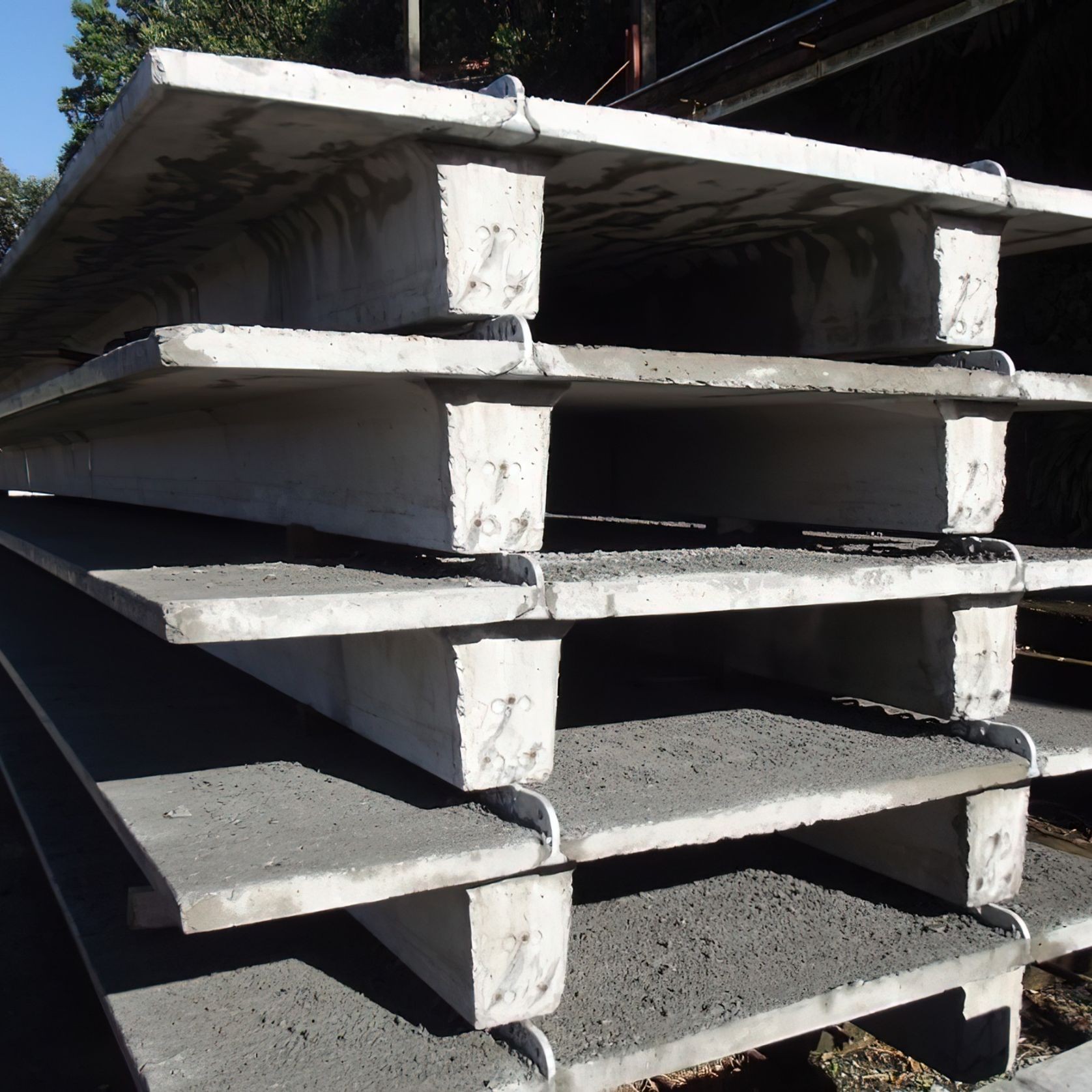

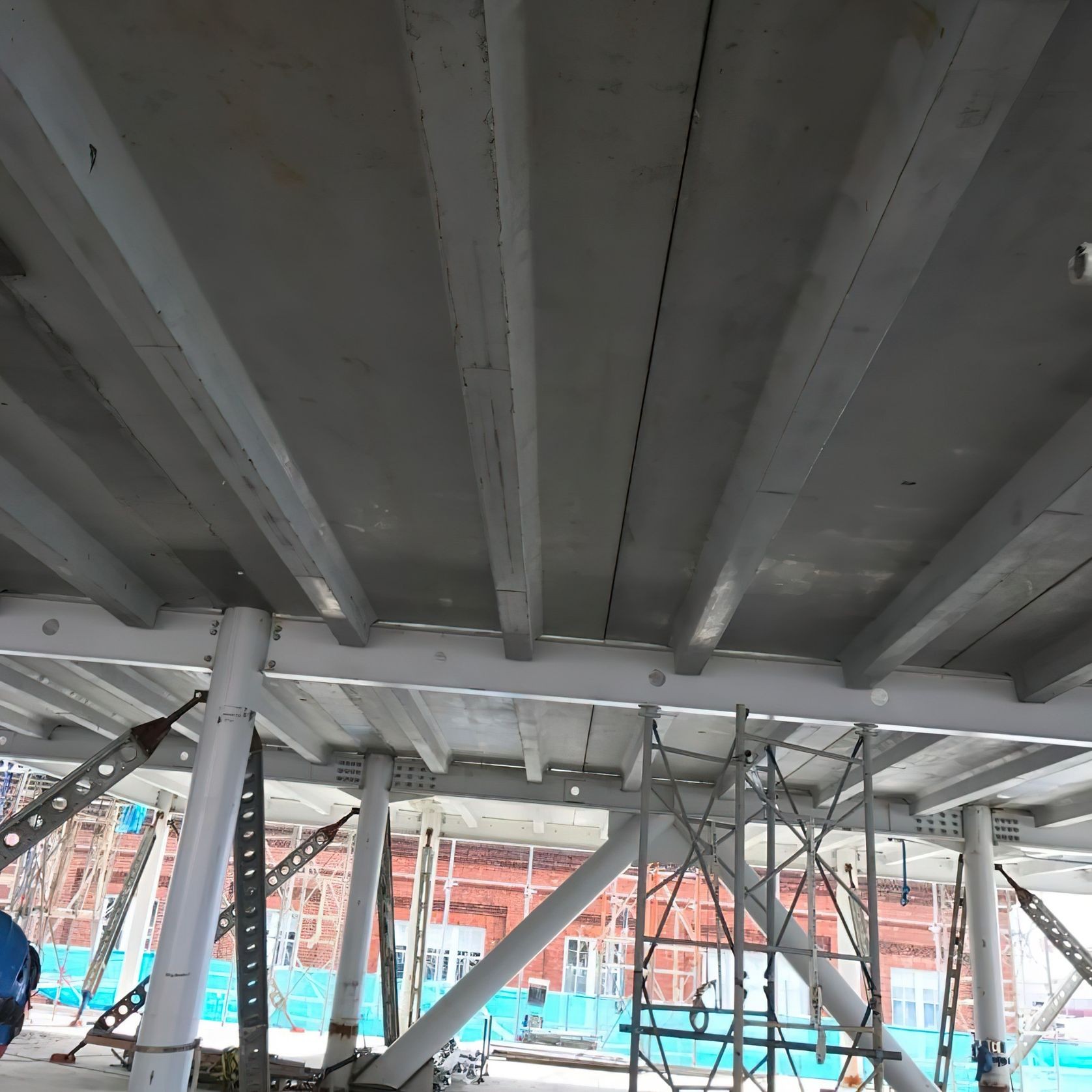

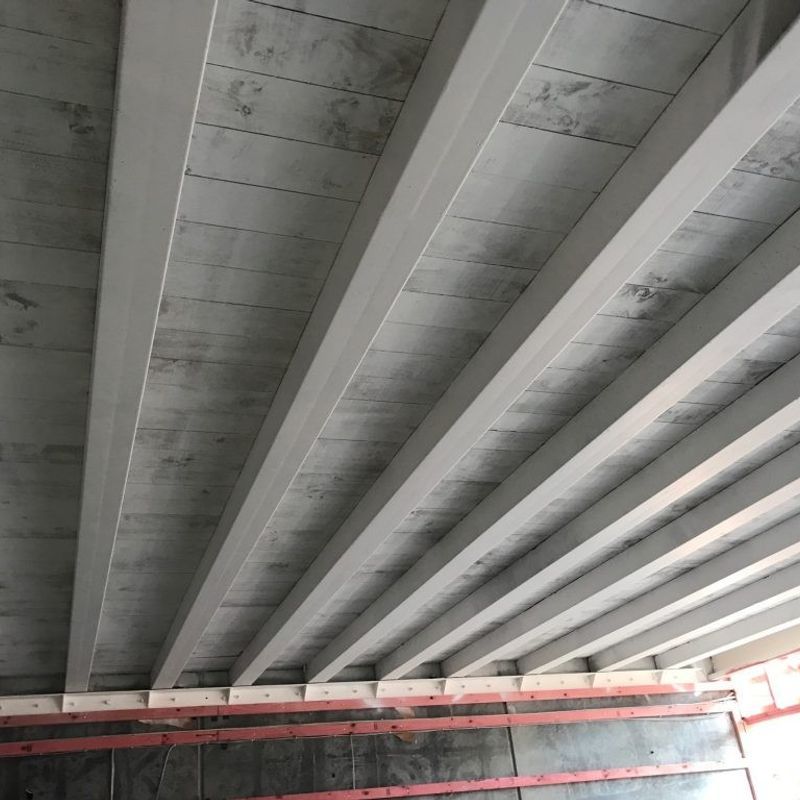

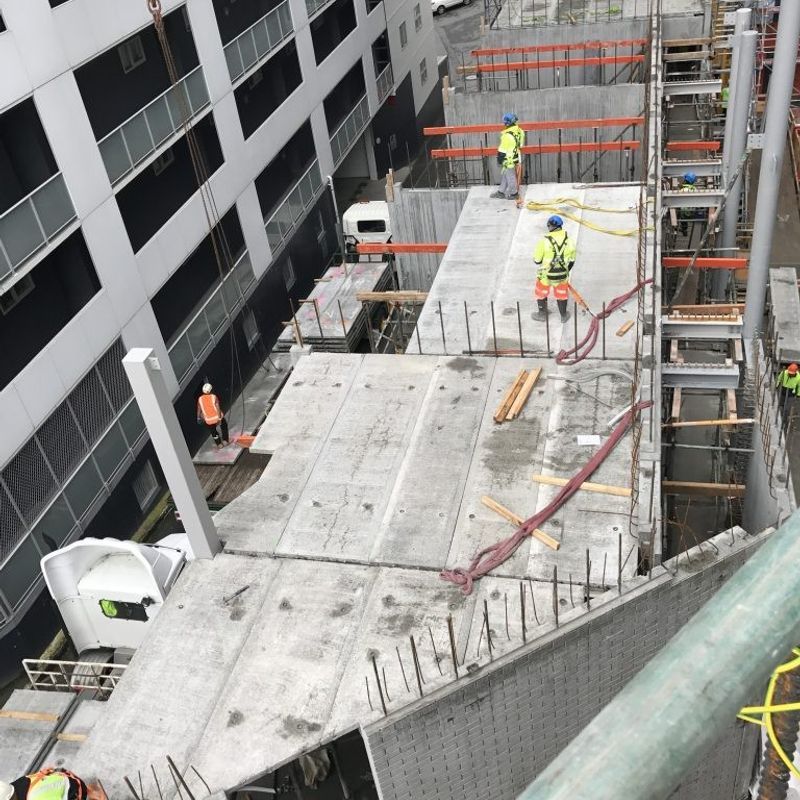

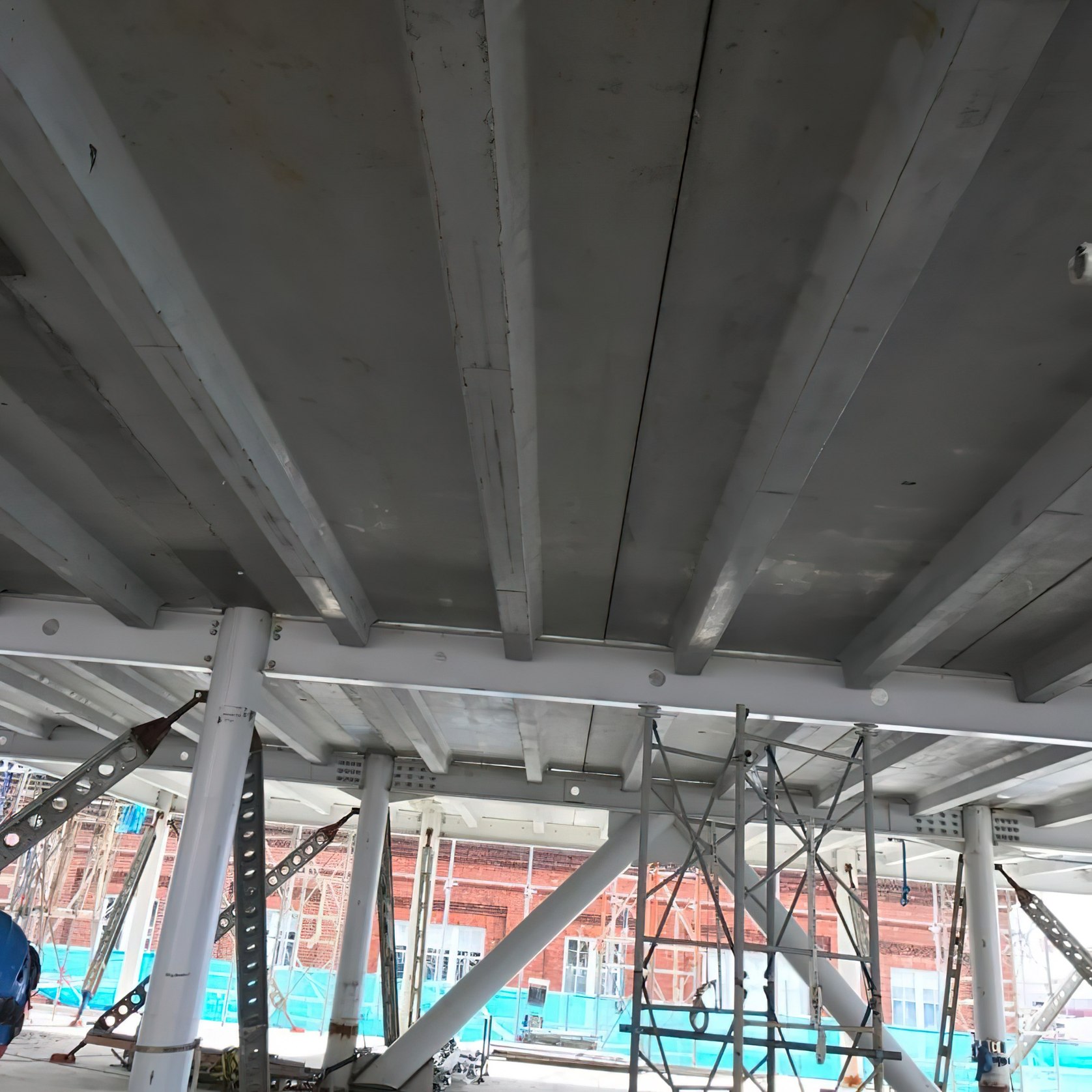

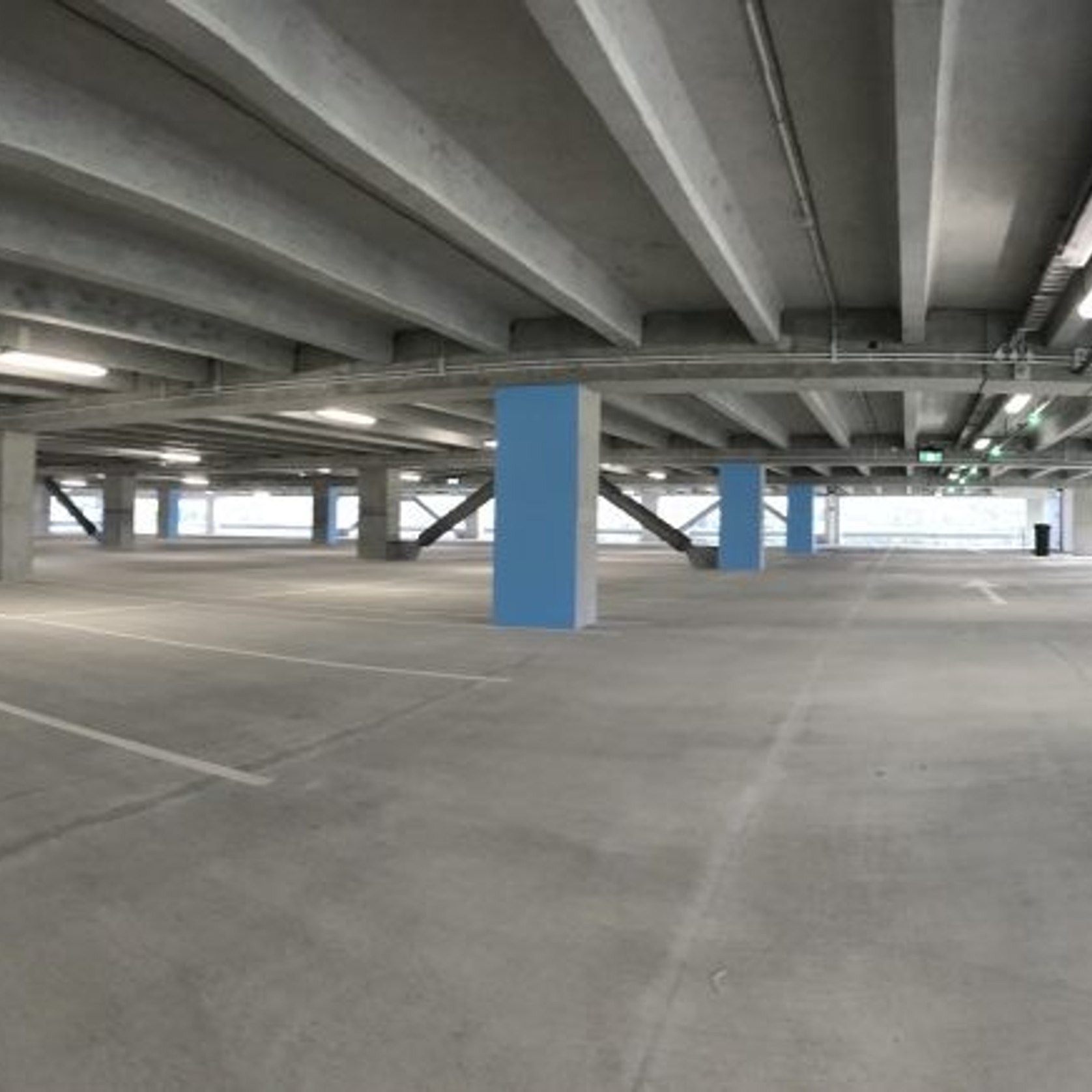

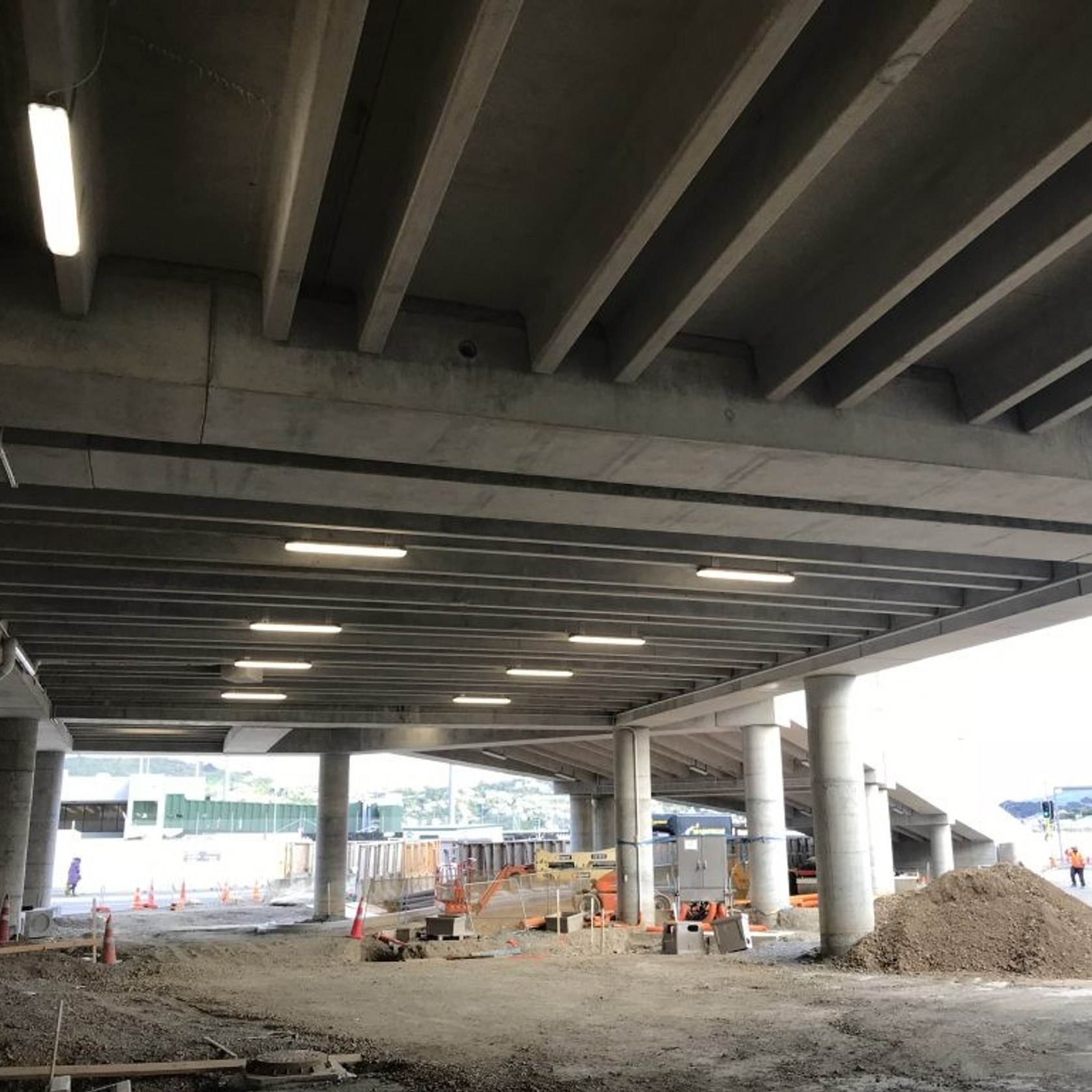

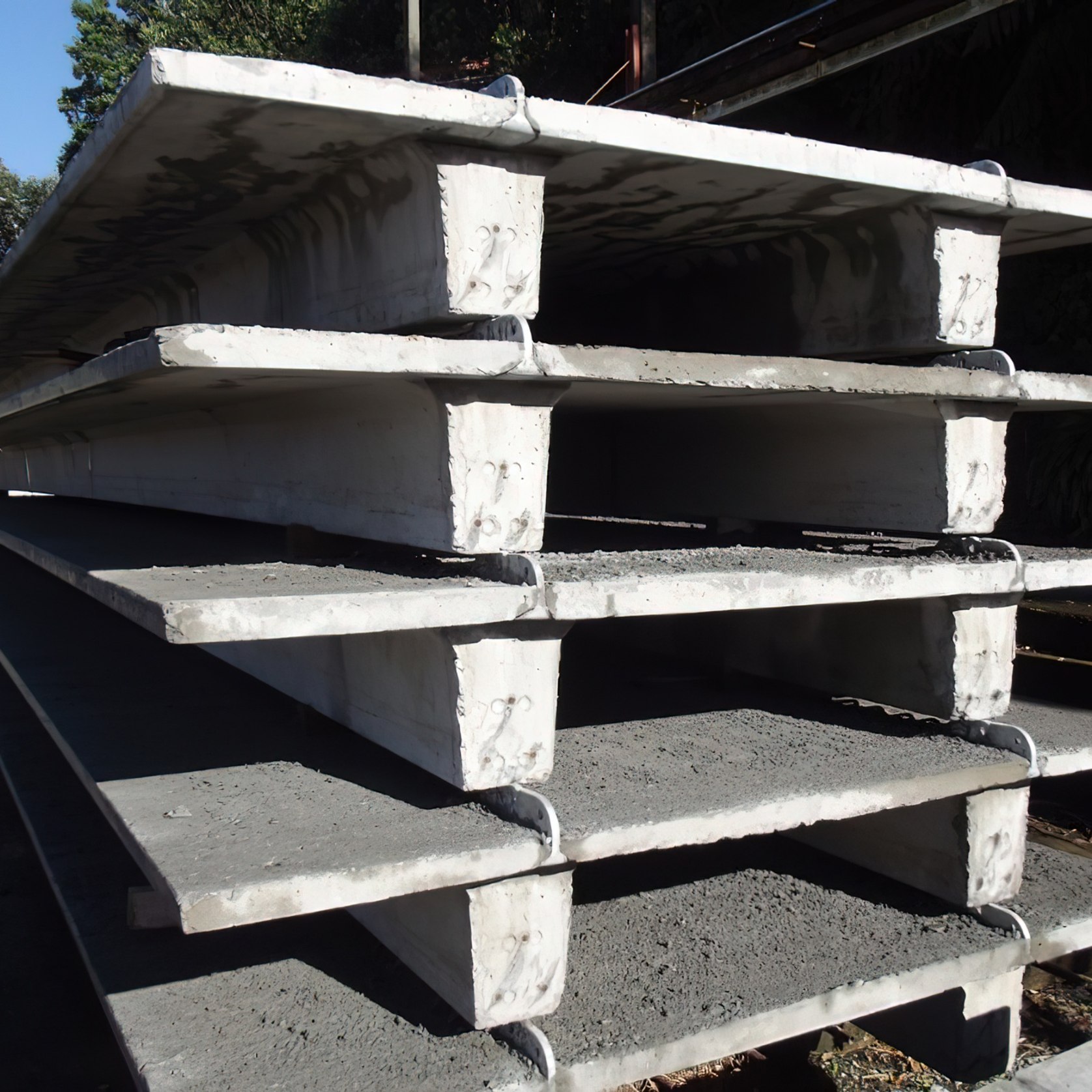

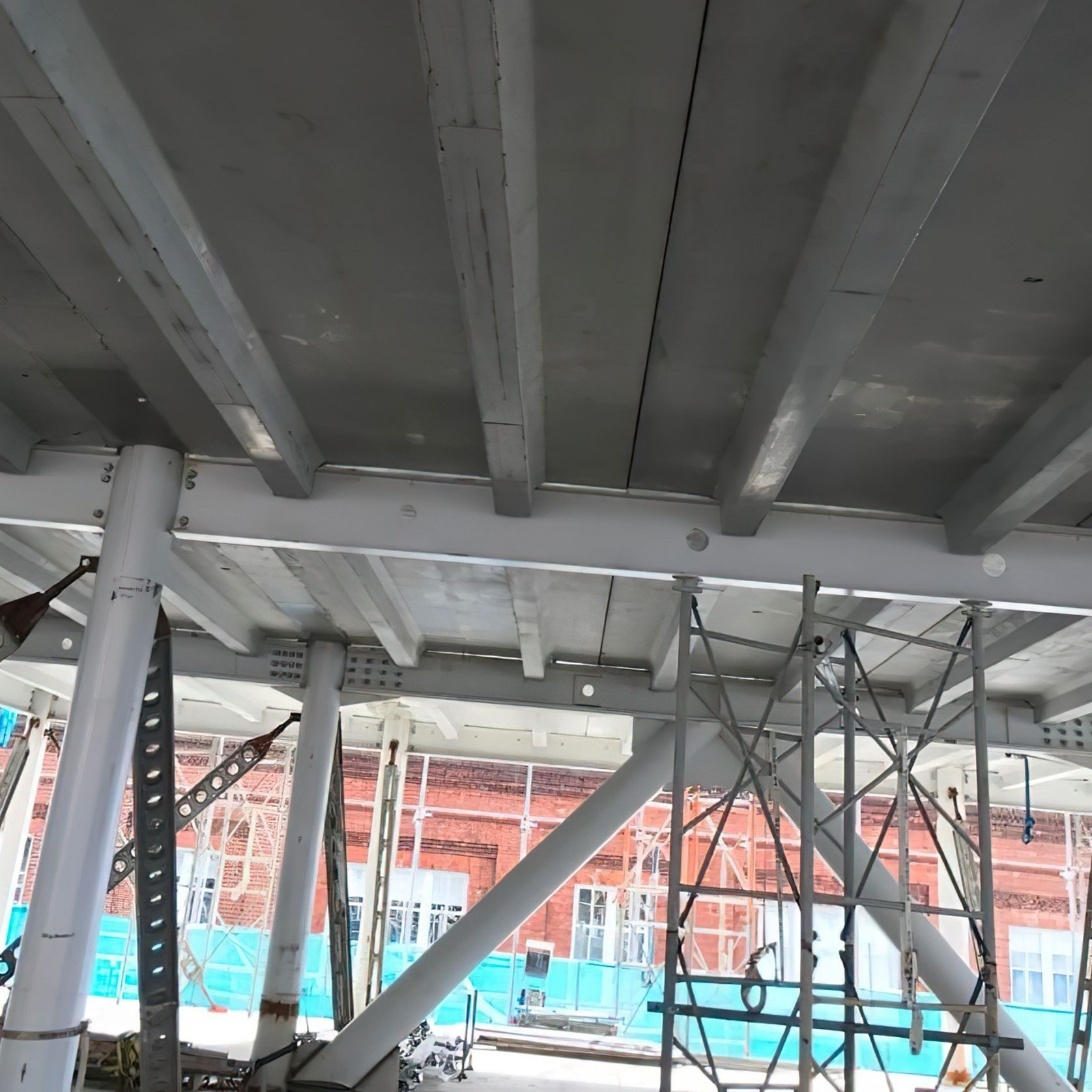

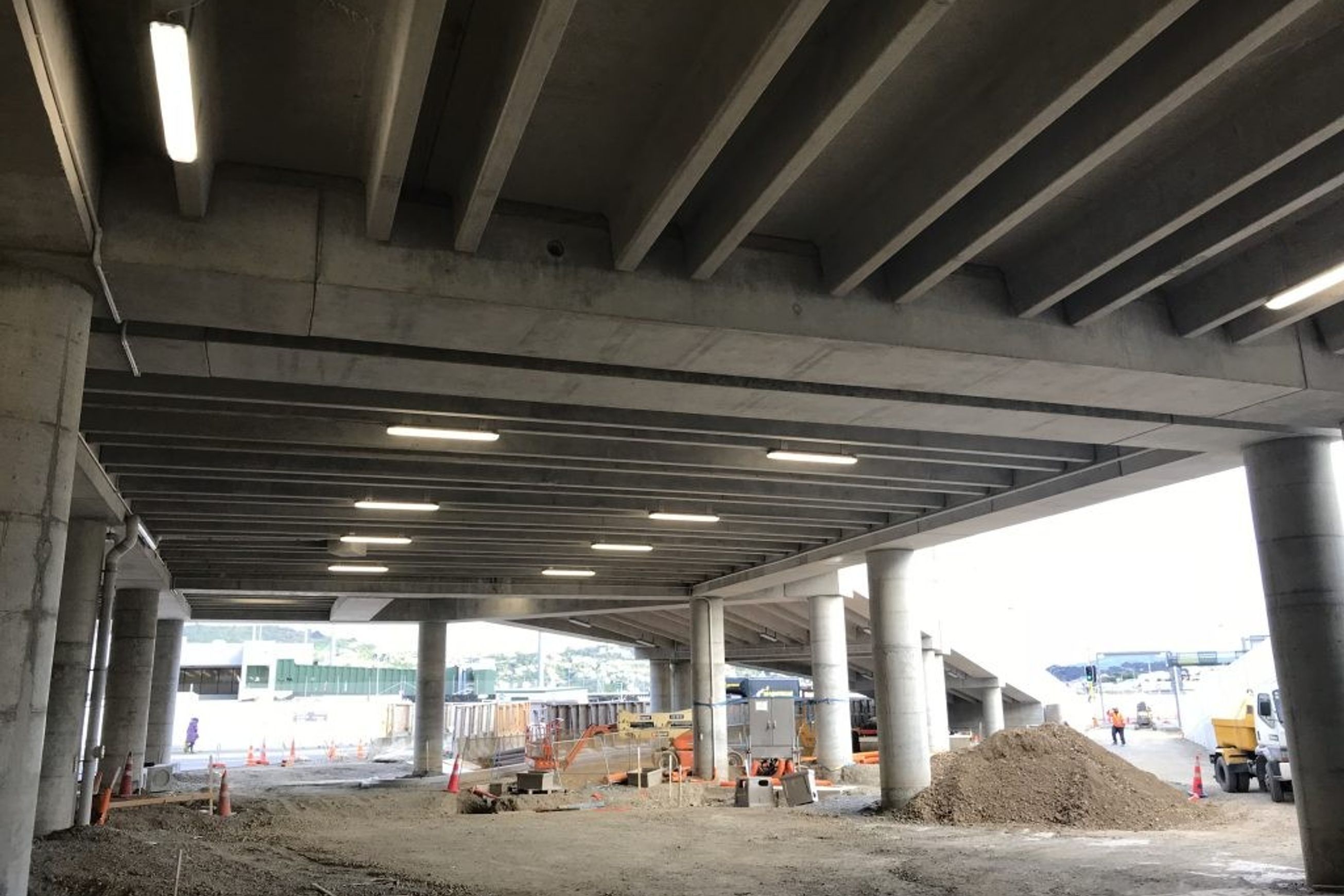

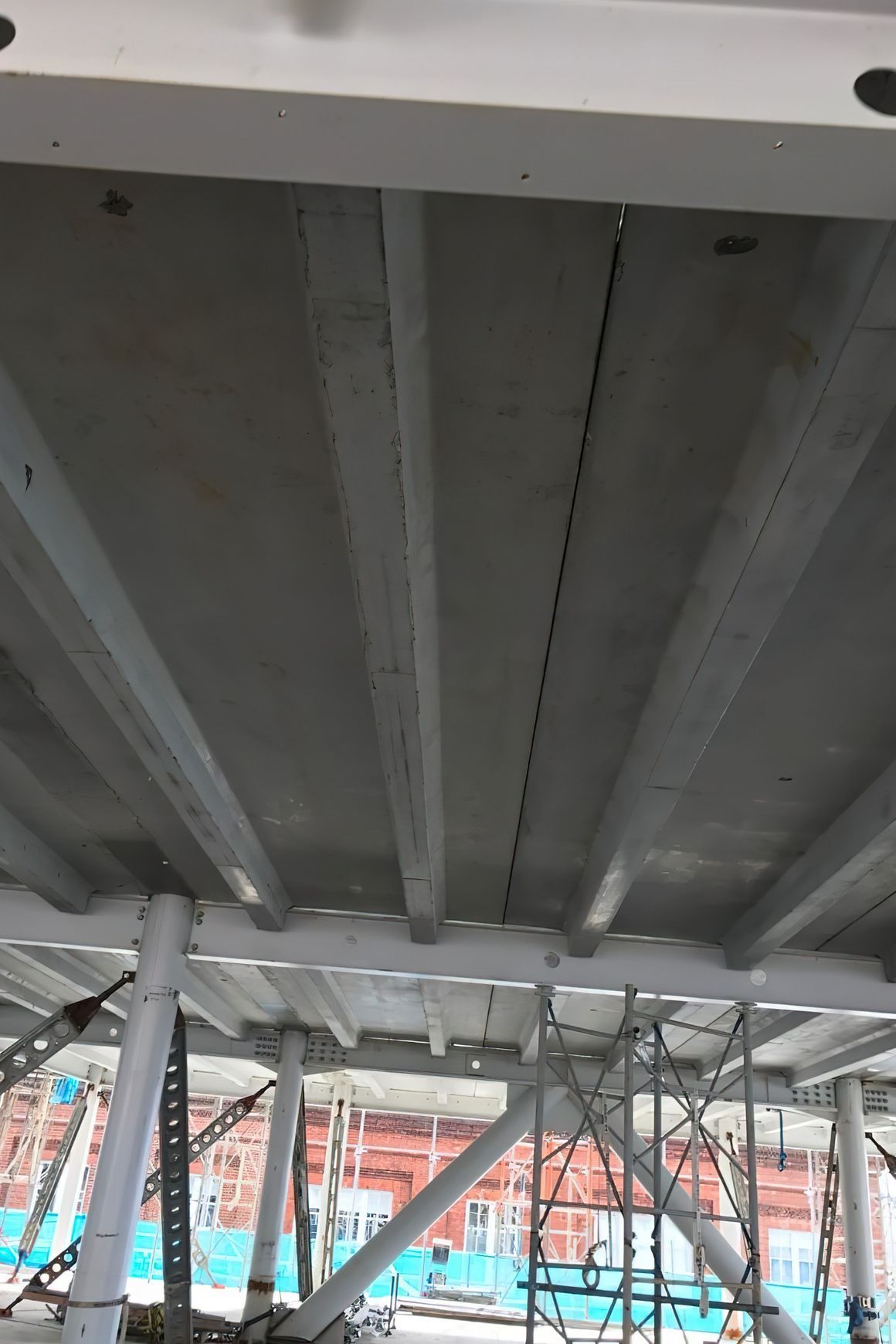

Double Tee flooring units consist of two prestressed ribs and a connecting top slab. The depth of the double Tee can vary from 200 to 550mm. The connecting slab or flange is 2400mm wide x 50mm thick. Double Tees are ideally suited for larger spanning floors with a wide variety of services suspended from the flooring system. Double tees can easily accommodate large floor voids/penetrations through the slab region. The cast insitu topping is a min 65mm thick.

Details
  • Category
    Structural & Framing
General
  • Country of origin
    New Zealand
  • Type of use
    Commercial and Residential
  • Installation
    Professional installation required
Specifications

Sound Transmission:
A major practical benefit of a concrete floor is its ability to reduce noise transmission

Fire Resistance Rating:
2400mm wide unit = 90min fire resistance rating. Increased fire ratings can be achieved with specific design.

Materials:

  • Double Tee strength = 45 MPa at 28 days
  • Topping strength = 20 MPa at 28 days

For further advice on flooring systems or technical information please contact Ultimate Engineered Concrete. Our experienced and qualified staff will be happy to discuss your flooring design.

Ultimate Engineered Concrete
Taranaki
Thanks so much for your interest in our products, please include detail on your upcoming project so we can give the best support possible.
Visit Website

More from
Ultimate Engineered Concrete

Wall Panels Precast & Prestressed
Wall Panels Precast & Prestressed
By Ultimate Engineered Concrete
Rib and Infill Flooring
Rib and Infill Flooring
By Ultimate Engineered Concrete
Insulated Wall Panels
Insulated Wall Panels
By Ultimate Engineered Concrete
Precast Beams & Columns
Precast Beams & Columns
By Ultimate Engineered Concrete
Barriers & Retaining Walls
Barriers & Retaining Walls
By Ultimate Engineered Concrete
Concrete Textures
Concrete Textures
By Ultimate Engineered Concrete
Flat Slab Flooring
Flat Slab Flooring
By Ultimate Engineered Concrete

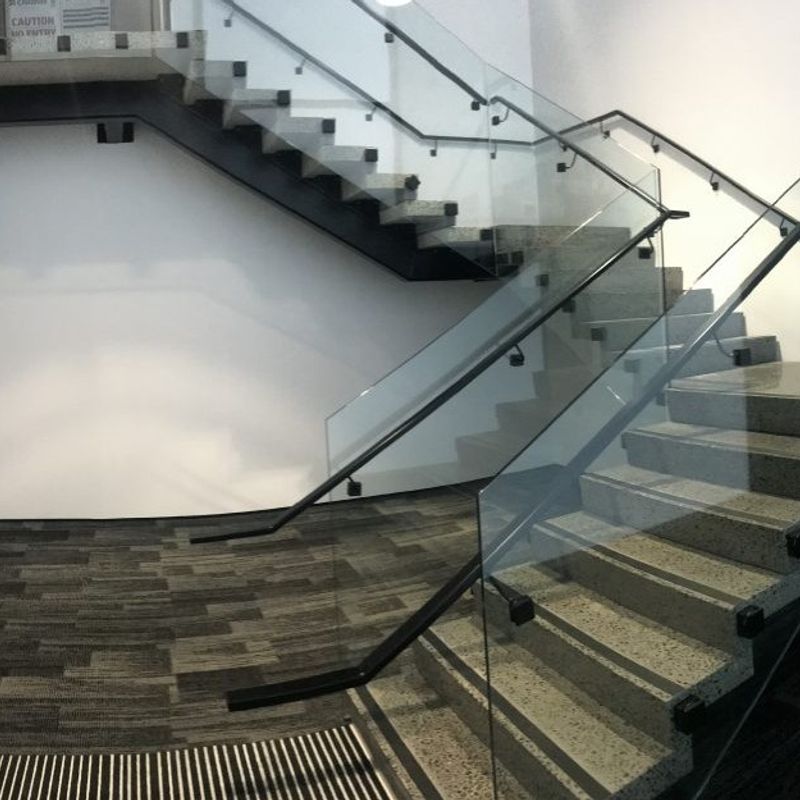

Stairs
