KNX Presence Detector

By Direct Control
Visit Website
Eelectron

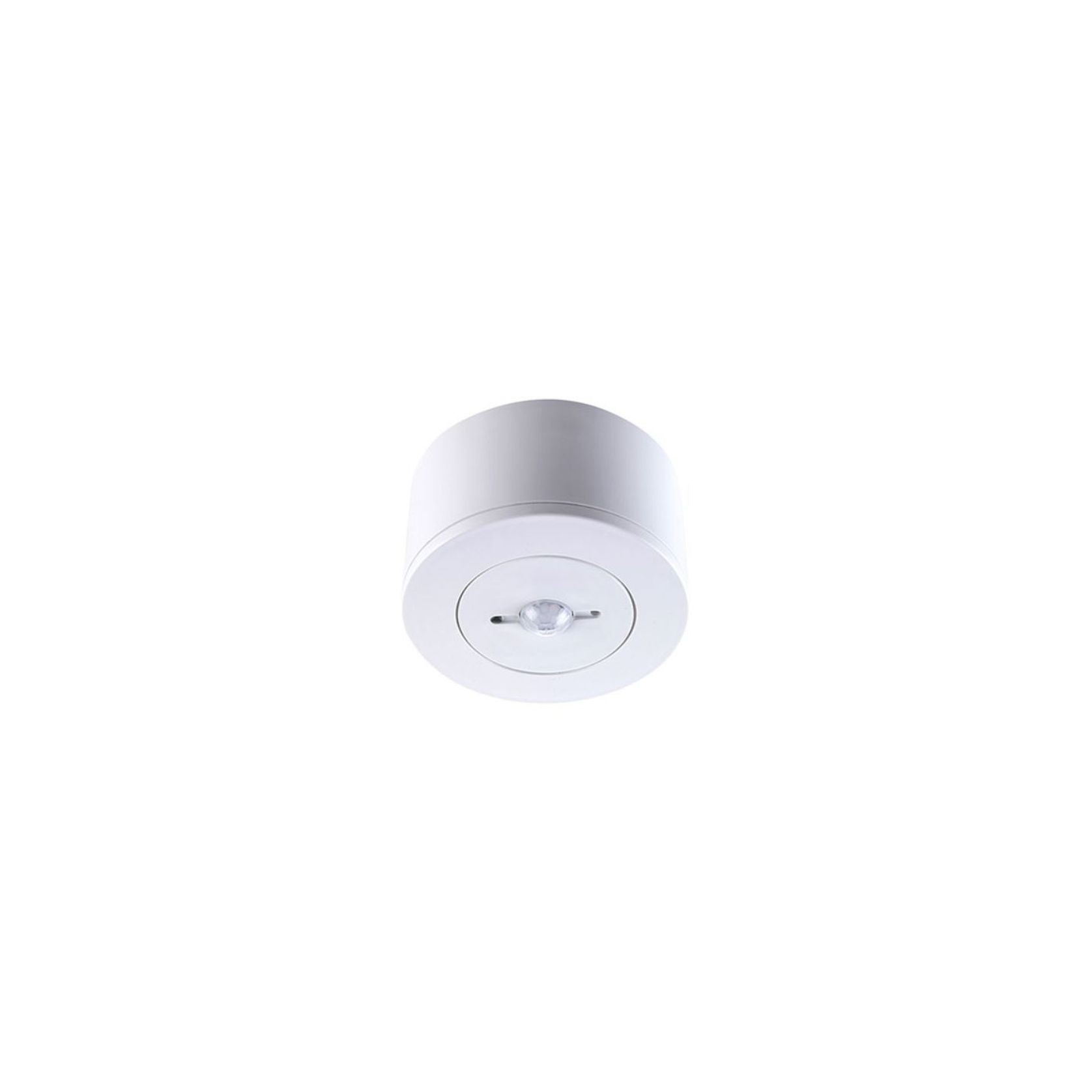

The Eelectron KNX Presence Detector – Standard + Lighting Control (PD00E01KNX) is an advanced presence detector designed for ceiling mounting, offering comprehensive environmental control. This device integrates presence detection and lighting control, making it an essential component for modern smart buildings.

Details
  • Category
    Security & Sensor Lights, Home Automation
General
  • Country of origin
    Italy
  • Type of use
    Commercial and Residential
  • Installation
    Professional installation required
Features
  • Multifunctional Detection: Integrates sensors for brightness, temperature, humidity, and sound to provide a complete environmental control solution.
  • Ceiling Mounting: Designed for easy ceiling installation, ensuring optimal sensor coverage and performance.
  • Digital and Analogue Inputs: Equipped with a rear connector featuring 3 digital inputs for potential-free buttons or switches, enabling on/off commands, dimming, shutters or blinds control, scenarios, sequences, and step commands. One input can be configured as an analogue input for NTC temperature probes.
  • Integrated Thermostat: Manages 2 stages with an integrated PI controller for controlling heating and cooling equipment, valves, and 2- and 4-pipe fan coils.
  • Humidity Control: Includes a humidity sensor with control algorithms for managing humidification and dehumidification equipment.
  • Sound Sensor: Detects sound in rooms with areas not fully visible to the infrared sensor, enhancing presence detection accuracy.
  • Advanced Presence Detection: Utilises a passive infrared sensor with five independently configurable channels for various detection functions, including automatic and semi-automatic activation.
  • Flexible ETS Parameterization: Allows different behaviours to be assigned to the sensor elements via ETS parameterization.
  • Logic Blocks: Features 12 logic blocks for implementing simple or complex expressions using logical, threshold, algebraic, or conditional operators. Includes predefined algorithms for proportional control of temperature and humidity or dew point calculation.
  • Circadian Rhythm Lighting: Manages ambient lighting based on measured illuminance and enables theCircadian Rhyth logic, adjusting brightness and colour temperature based on predefined curves or the real position of the sun.
  • Surface Mounting Boxes: Available in white or black (PD00E00ACC) for easy installation and aesthetic integration.
  • High-Quality Design: Made in Italy, ensuring superior quality and durability for long-lasting performance in residential, commercial, hotel, and building applications.
Applications
  • Residential Homes: Enhance comfort and energy efficiency with precise environmental control.
  • Commercial Buildings: Provide advanced automation and energy management for offices, shopping centres, and other commercial spaces.
  • Hotels: Optimise guest experience and operational efficiency with comprehensive environmental monitoring and control.
  • Building Automation: Integrate seamlessly with KNX systems for comprehensive automation and energy management across various building applications.
SKU: 98-Eelectron

More from
Direct Control

KNX 1-10V Dimmer 4 Channels
KNX 1-10V Dimmer 4 Channels
By Direct Control
KNX Switch 4 Channel & Thermostat
KNX Switch 4 Channel & Thermostat
By Direct Control
KNX Inwall 4 IN / 2 OUT Module
KNX Inwall 4 IN / 2 OUT Module
By Direct Control
UMG 96RM | Multifunctional Power Analyzer
UMG 96RM | Multifunctional Power Analyzer
By Direct Control
KNX Universal DIN Module 12 OUT
KNX Universal DIN Module 12 OUT
By Direct Control
UMG 96 PQ-L | Power Analysis & Monitor
UMG 96 PQ-L | Power Analysis & Monitor
By Direct Control
SD1 Modbus 100A
SD1 Modbus 100A
By Direct Control
KNX Universal DIN Module 4 OUT
KNX Universal DIN Module 4 OUT
By Direct Control
KNX Push Button Interface 2 IN – 2 OUT LED
KNX Push Button Interface 2 IN – 2 OUT LED
By Direct Control

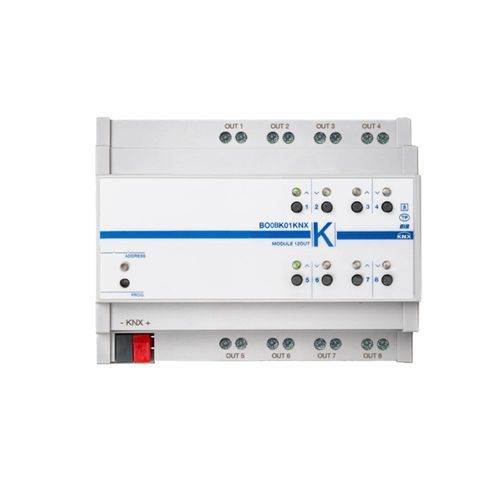

KNX Universal DIN Module 8 OUT
