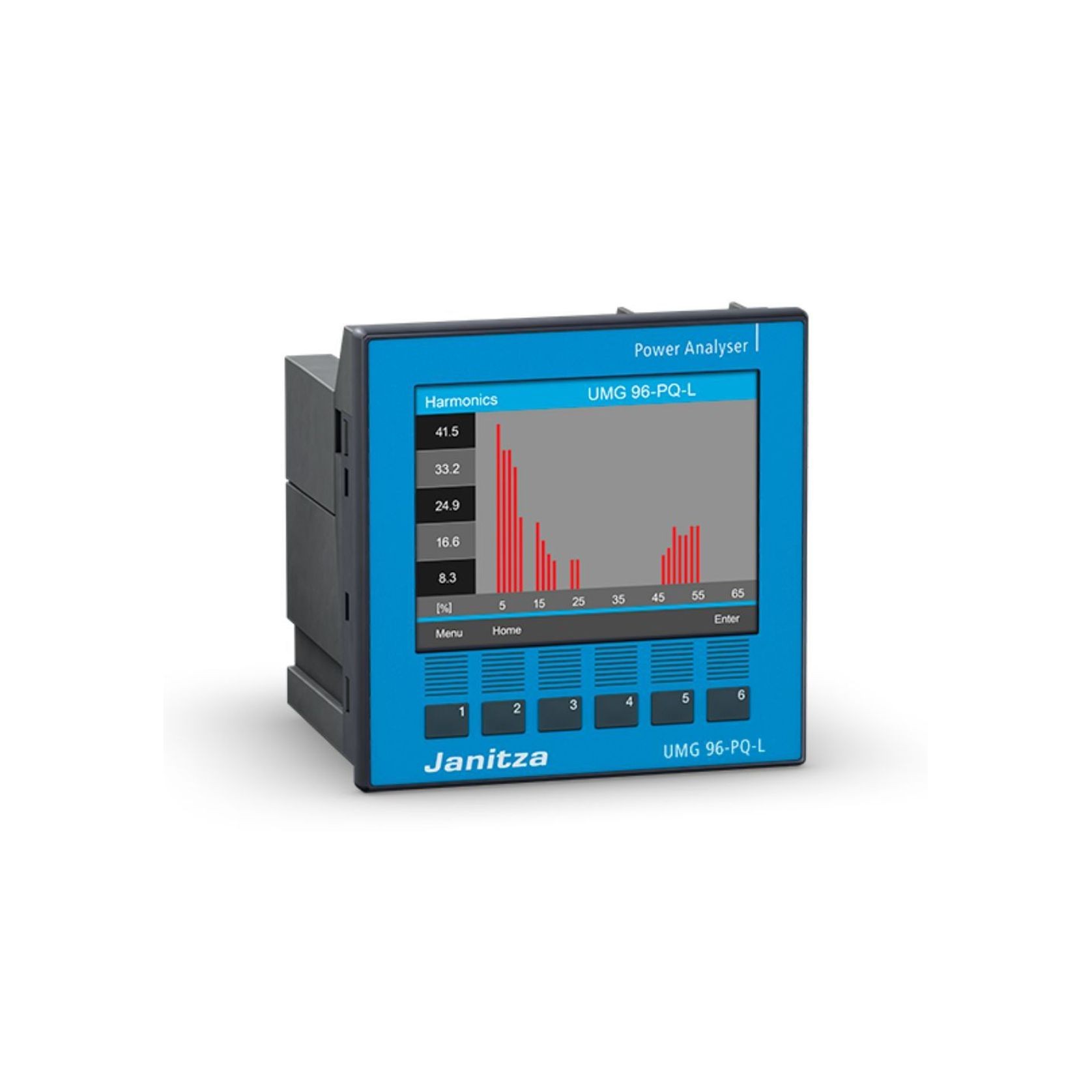

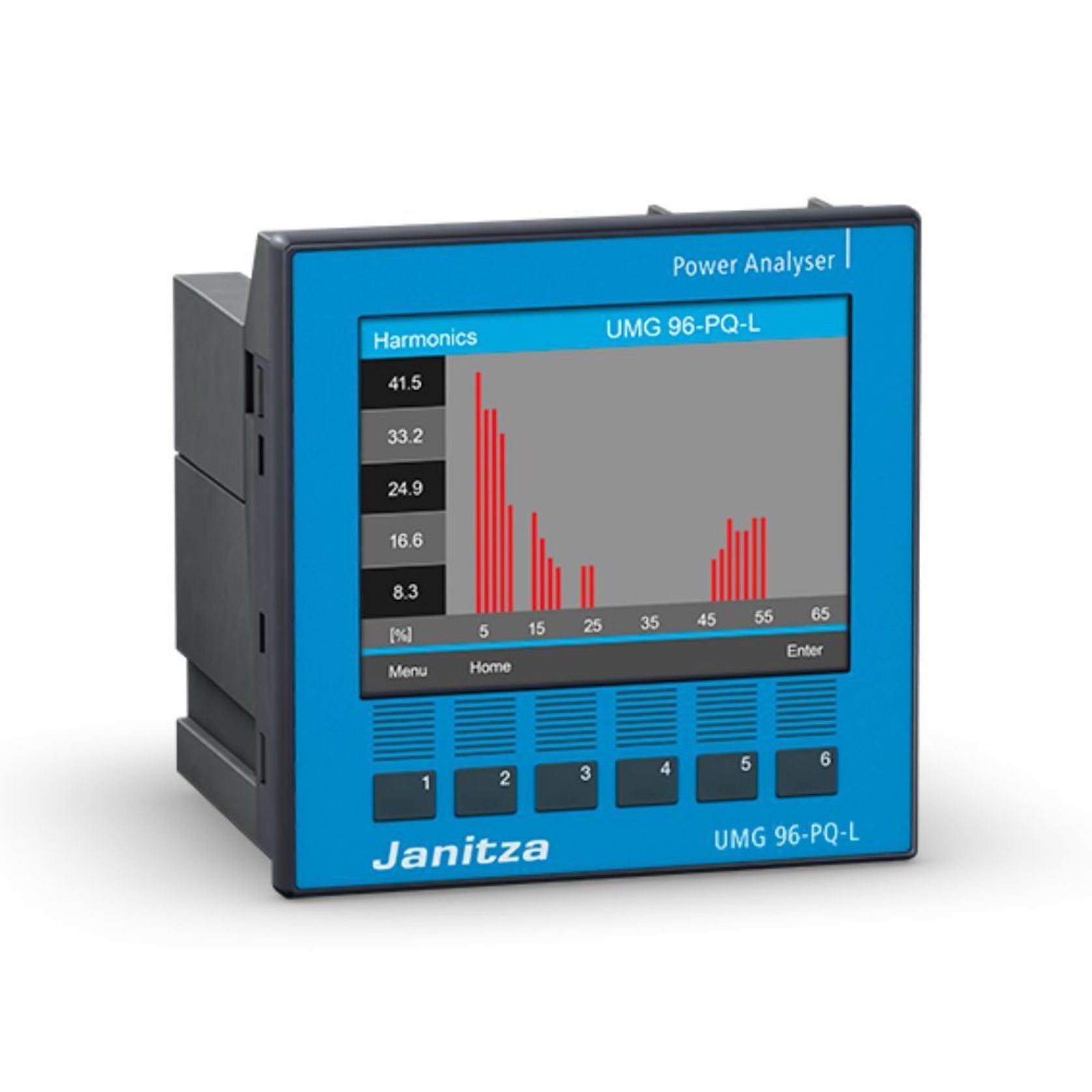

UMG 96 PQ-L | Power Analysis & Monitor

By Direct Control
Visit Website
Janitza

The Janitza UMG 96 PQ-L extends the 96 series with a wide range of advanced functions, making it an indispensable tool for comprehensive power quality analysis and monitoring. Featuring a large memory capable of storing up to 15 years of records and a high-resolution colour-graphic display, this device ensures precise and reliable measurement for a variety of applications.

Details
  • Category
    Home Automation
General
  • Country of origin
    Germany
  • Type of use
    Commercial
  • Installation
    Professional installation required
Features
  • High Accuracy Measurement: The UMG 96 PQ-L achieves Class 0.2S accuracy, providing precise and reliable energy data.
  • Harmonic Analysis: Measures harmonic currents up to the 65th harmonic, offering detailed insights into power quality.
  • High Sampling Frequency: Features a 67 kHz sampling frequency for accurate and detailed data capture.
  • Extensive Memory: Equipped with 64 MB of memory, utilising a special compression method to store up to 15 years of records, supported by battery backup for reliable data retention.
  • Comprehensive Display: The colour-graphic display provides a clear view of consumption data, oscilloscope readings, phasor diagrams, and harmonic analysis. The home screen is freely selectable for customised display preferences.
  • Versatile Communication: Includes RS485 communication and supports 3 digital outputs (D/O), 1 analogue output (A/O), and 2 digital inputs (D/I) for flexible integration.
  • Modular Options: Offers modular expansion options such as Ethernet connectivity, temperature input, residual current monitoring (RCM), and neutral input, enhancing the device's functionality.
Applications
  • Industrial Facilities: Monitor and analyse power quality, energy consumption, and environmental conditions in manufacturing plants and industrial settings.
  • Commercial Buildings: Ensure accurate energy metering, power quality analysis, and comprehensive monitoring in office buildings, shopping centres, and other commercial properties.
  • Energy Management: Implement advanced power quality monitoring and detailed energy analysis for effective energy management and optimisation.
  • Utility Companies: Use for precise power quality metering, data logging, and monitoring in utility grids and distribution networks.
SKU: 5043-Janitza
