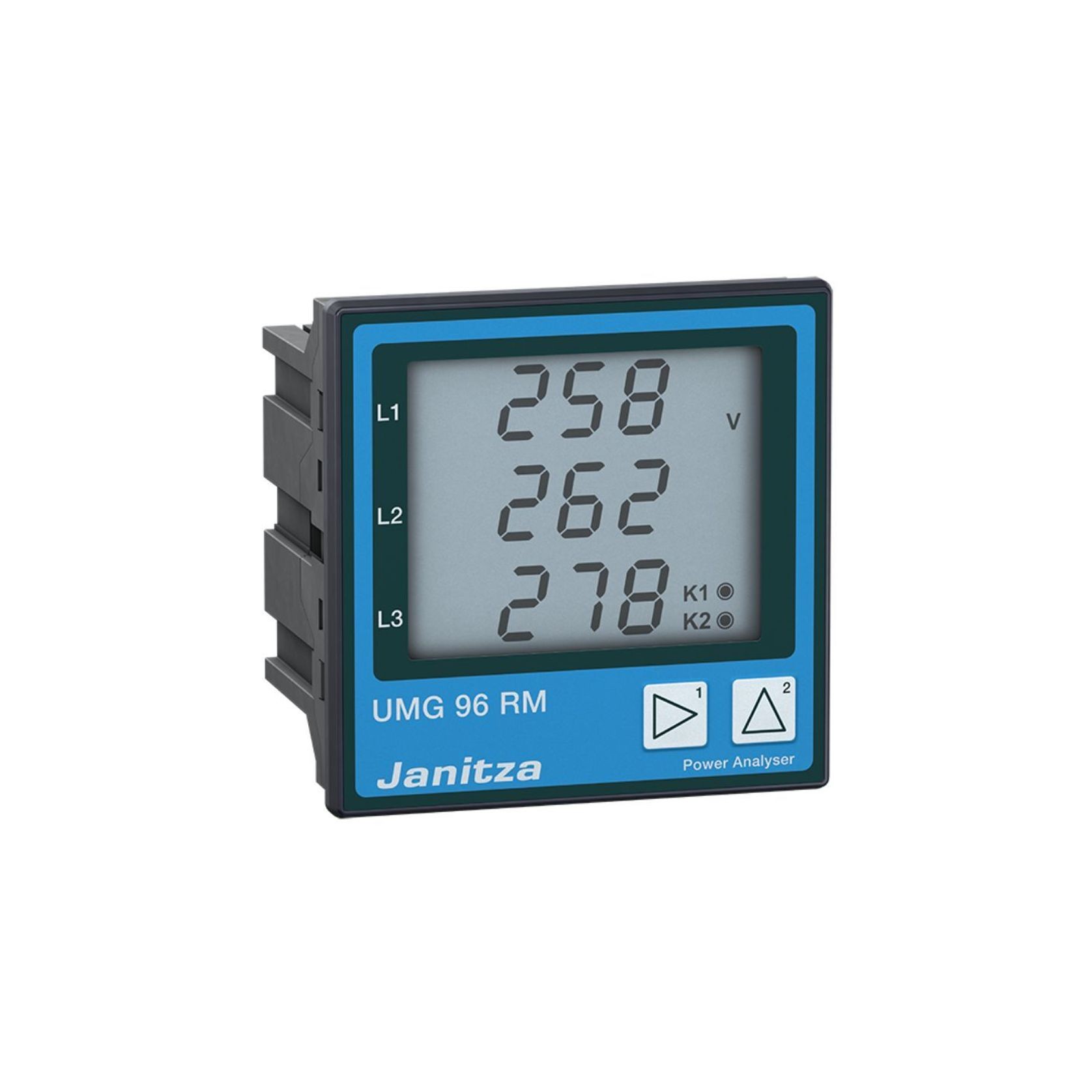

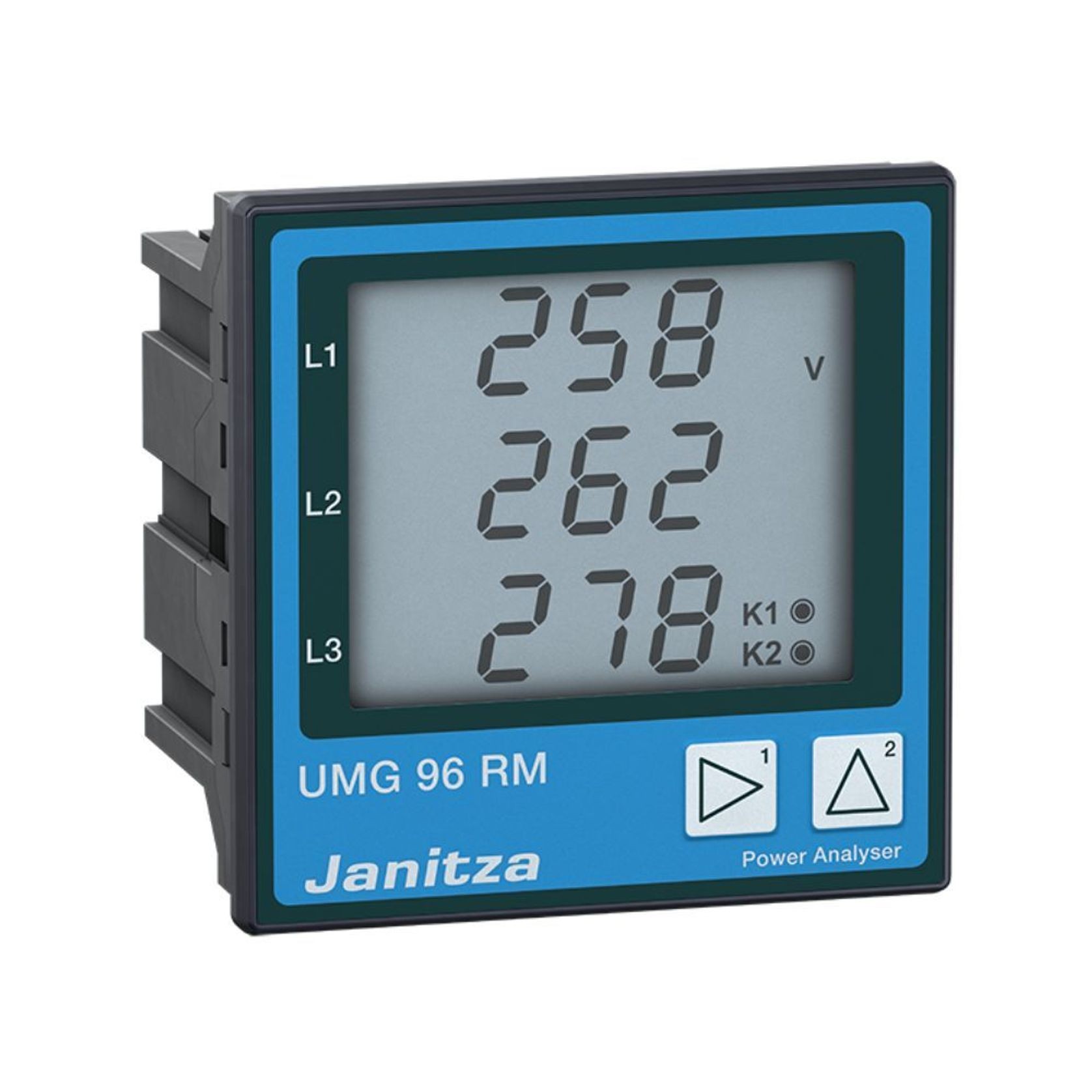

UMG 96RM | Multifunctional Power Analyzer

By Direct Control
Visit Website
Janitza

The Janitza UMG 96RM is a versatile and cost-efficient series of multifunctional power analyzers designed for high-accuracy measurement and comprehensive power quality analysis. Equipped with a wide range of advanced features, the UMG 96RM series ensures reliable and precise monitoring of electrical parameters, making it an ideal choice for various applications.

Details
  • Category
    Home Automation
General
  • Country of origin
    Germany
  • Type of use
    Commercial
  • Installation
    Professional installation required
Features
  • High Accuracy Measurement: The UMG 96RM series achieves Active Energy Class 0.5S, providing precise and reliable energy measurements.
  • Harmonics Analysis: Conducts harmonics analysis up to the 40th harmonic per order, delivering detailed insights into power quality.
  • Waveform Display: The UMG 96RM-EL model includes a waveform display for real-time visualisation of electrical parameters.
  • Extensive Data Retention: Offers up to 256 MB of flash memory with battery backup, ensuring large data retention and reliable logging.
  • Onboard Webserver: The UMG 96RM-E model features an onboard webserver for easy remote monitoring and access.
  • Versatile Communication Interfaces: Optional interfaces include RS485, Ethernet, Profibus, and USB, providing flexible communication options.
  • Network Protocols: Supports SNTP, SMTP, NTP, and FTP protocols for seamless data communication and integration.
  • Digital Inputs and Outputs: Equipped with up to 4 digital inputs (D/I) and up to 6 digital outputs (D/O), enhancing control and monitoring capabilities.
  • Built-in Modbus Gateway: Includes a built-in Modbus gateway, facilitating efficient data transfer and integration with other systems.
Applications
  • Industrial Facilities: Optimise energy usage and monitor power quality in manufacturing plants, processing facilities, and other industrial environments.
  • Commercial Buildings: Ensure accurate energy metering and power quality analysis in office buildings, shopping centres, and other commercial spaces.
  • Energy Management: Implement detailed power quality monitoring and energy measurement for effective energy management and optimisation.
  • Utility Companies: Use for precise power quality metering and data logging in utility grids and distribution networks.
SKU: 5046-Janitza
