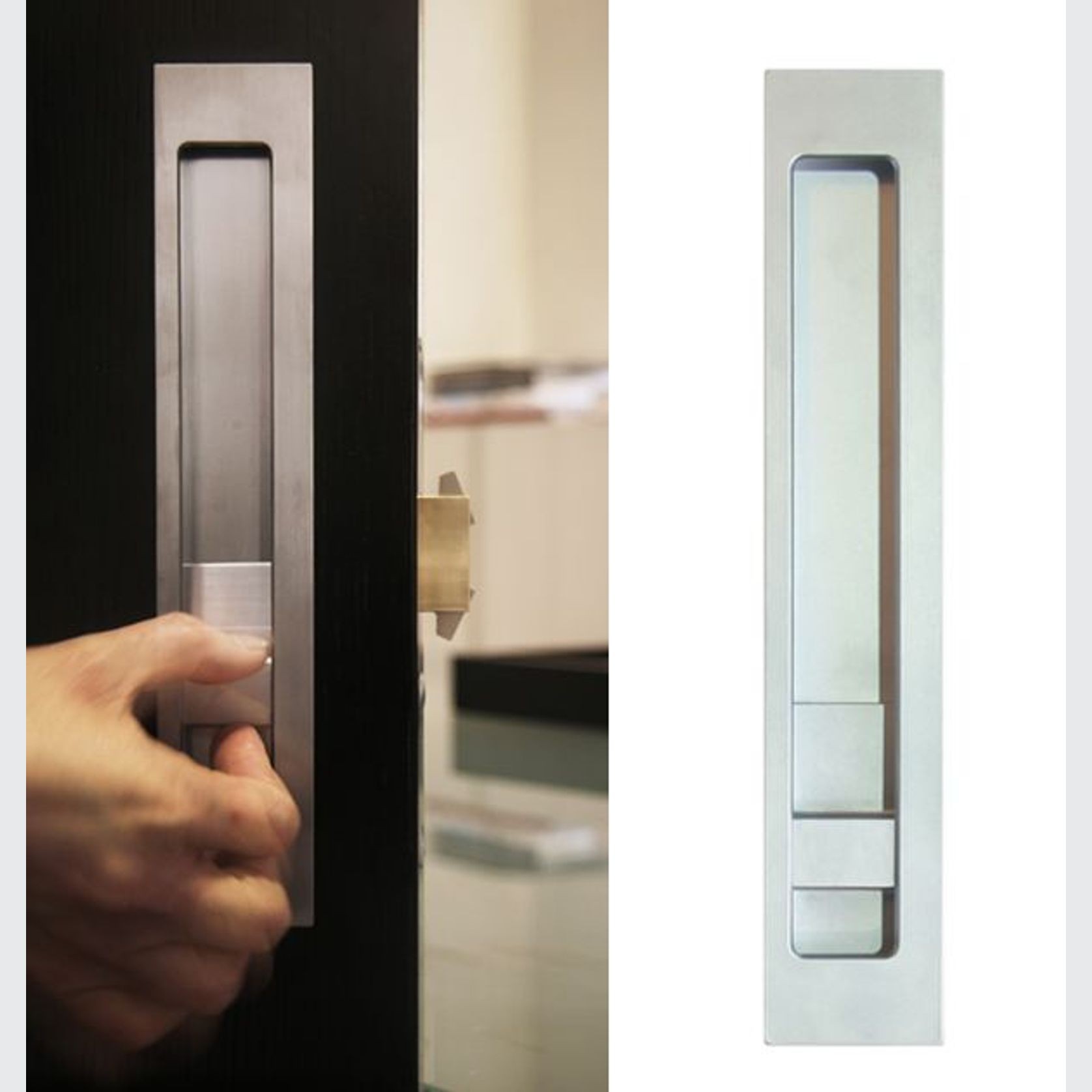

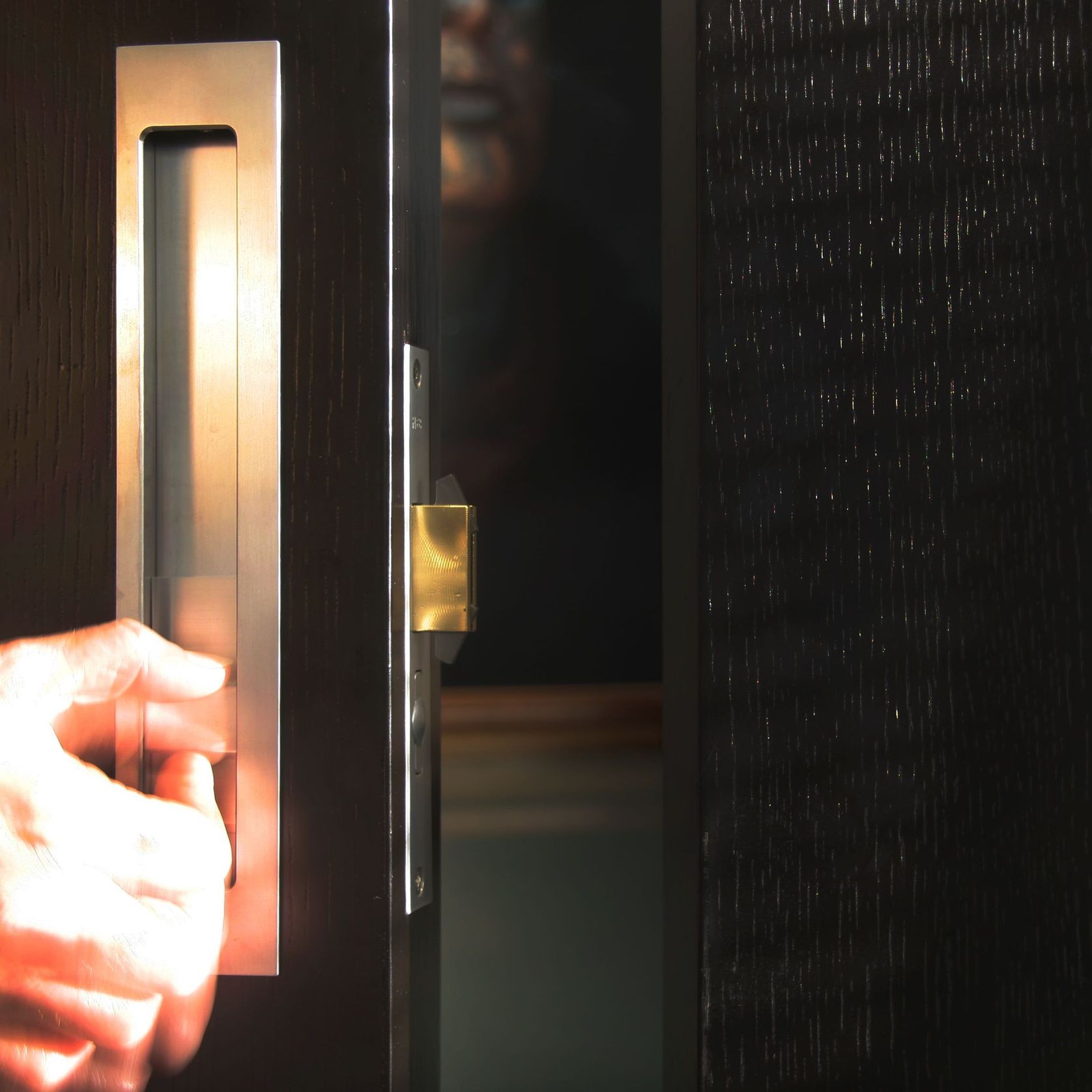

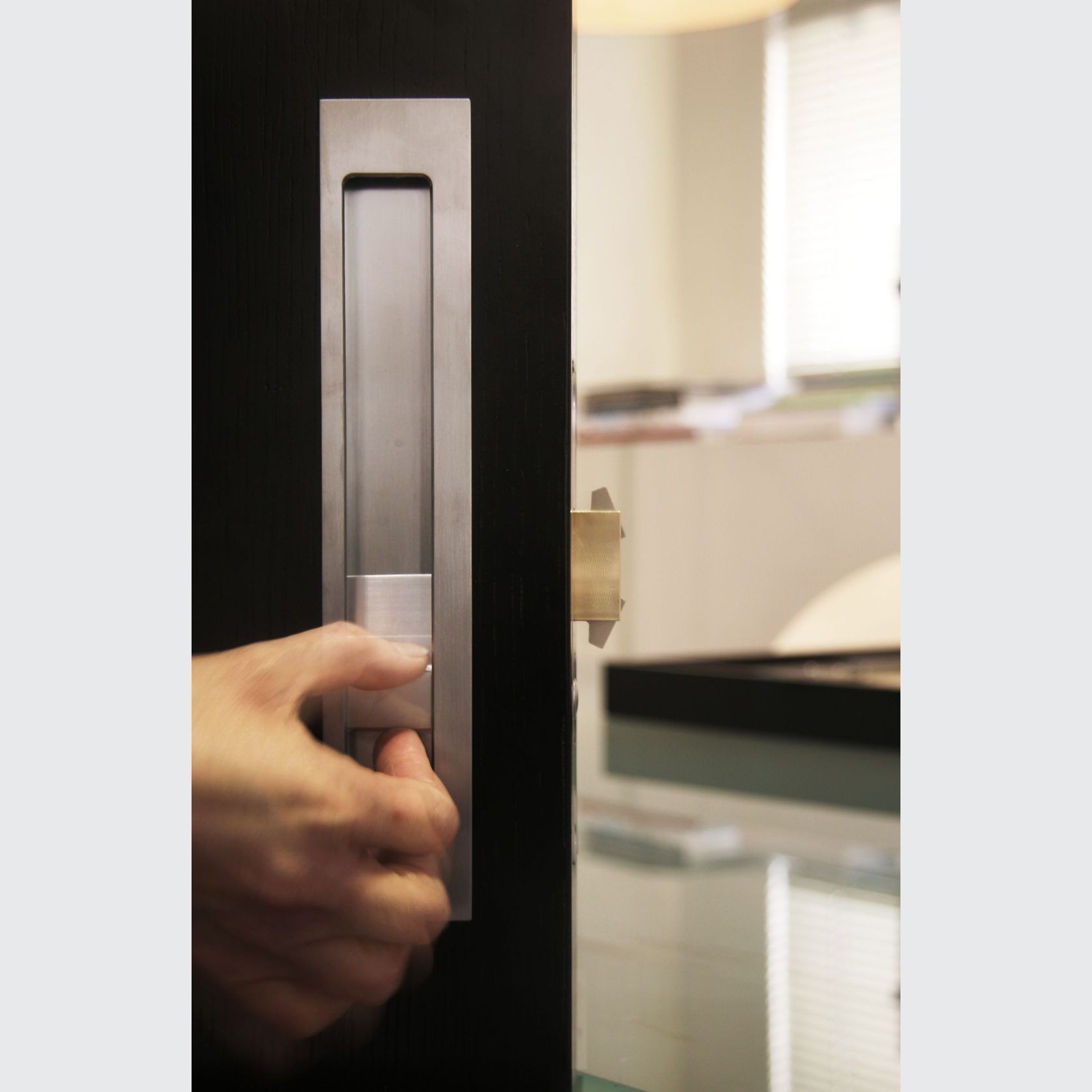

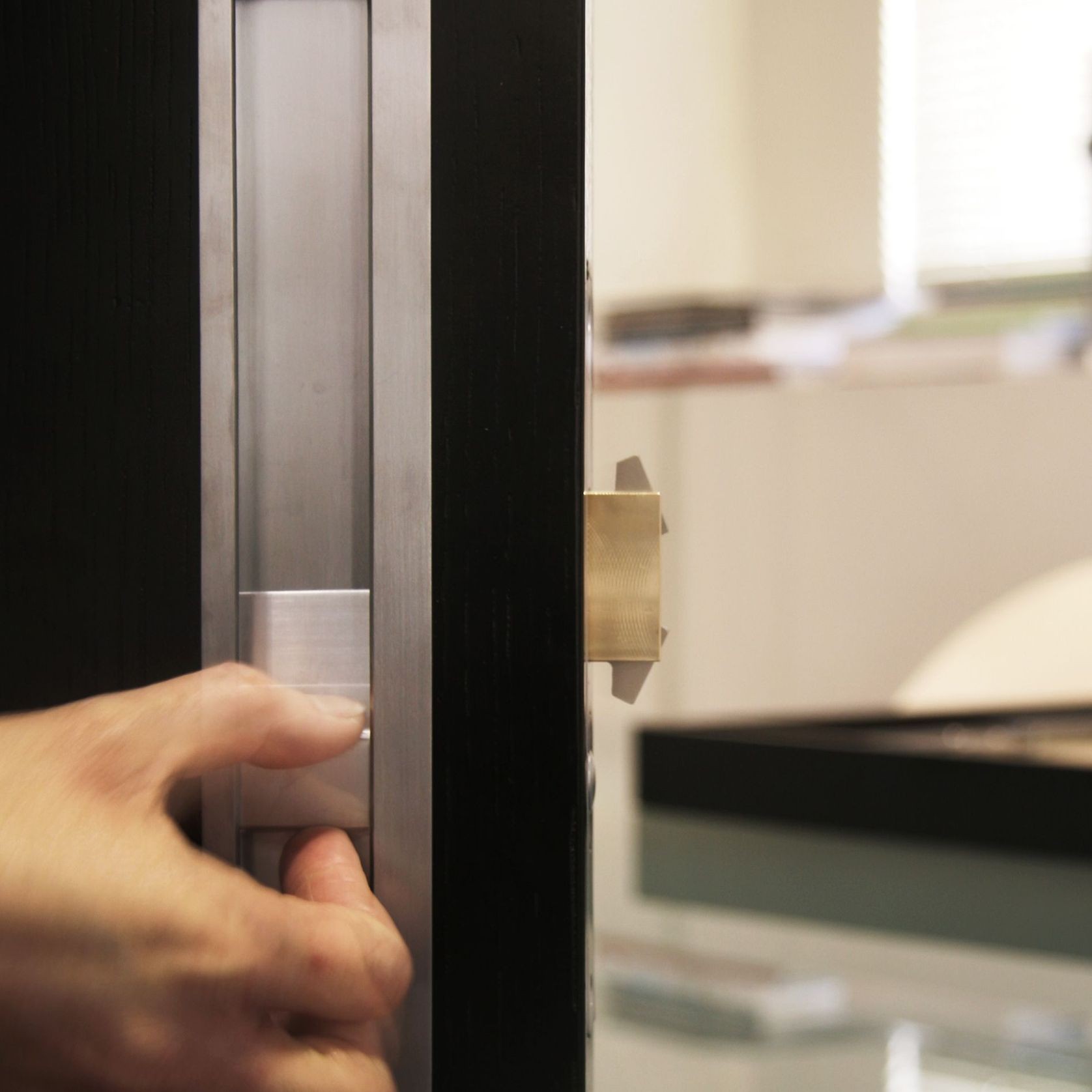

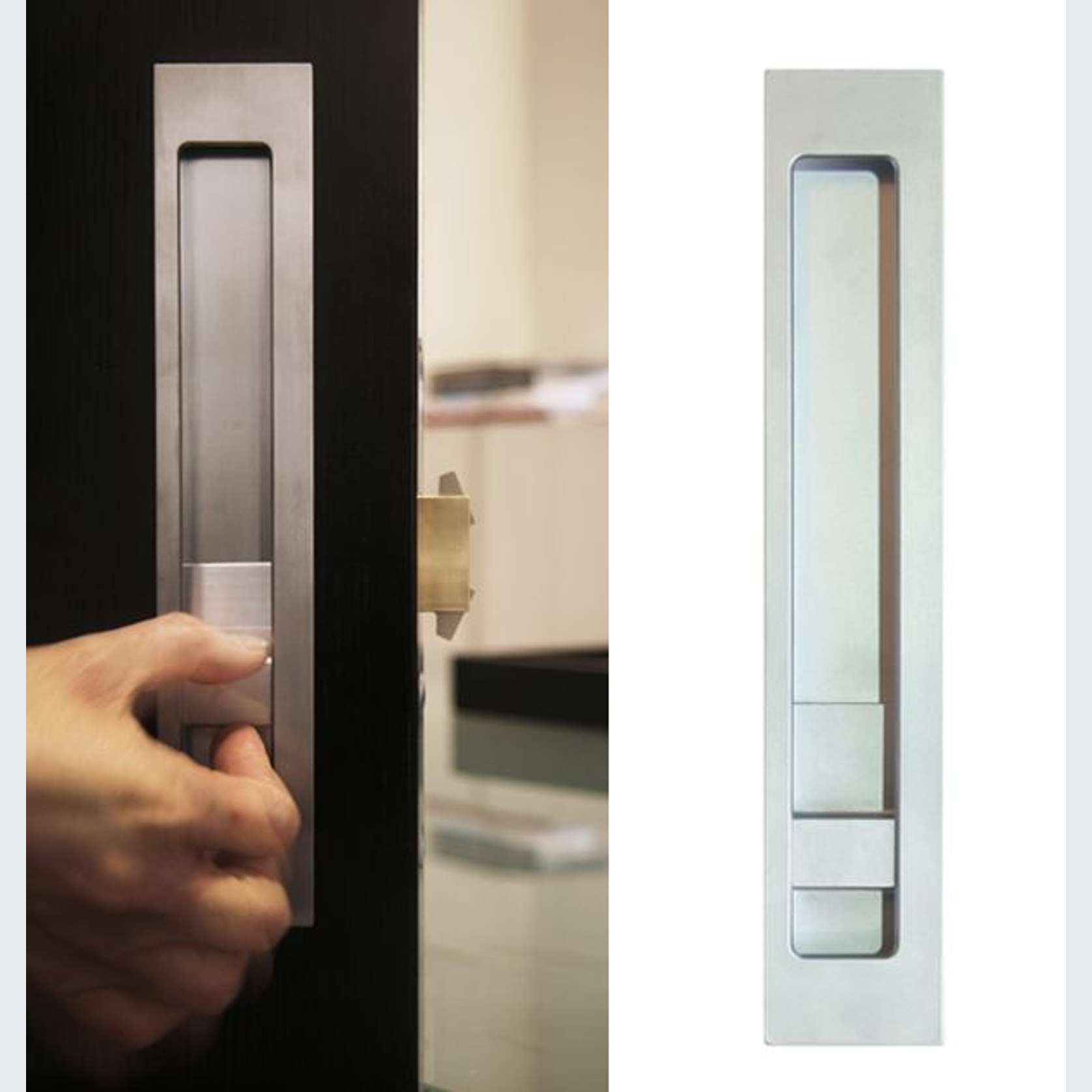

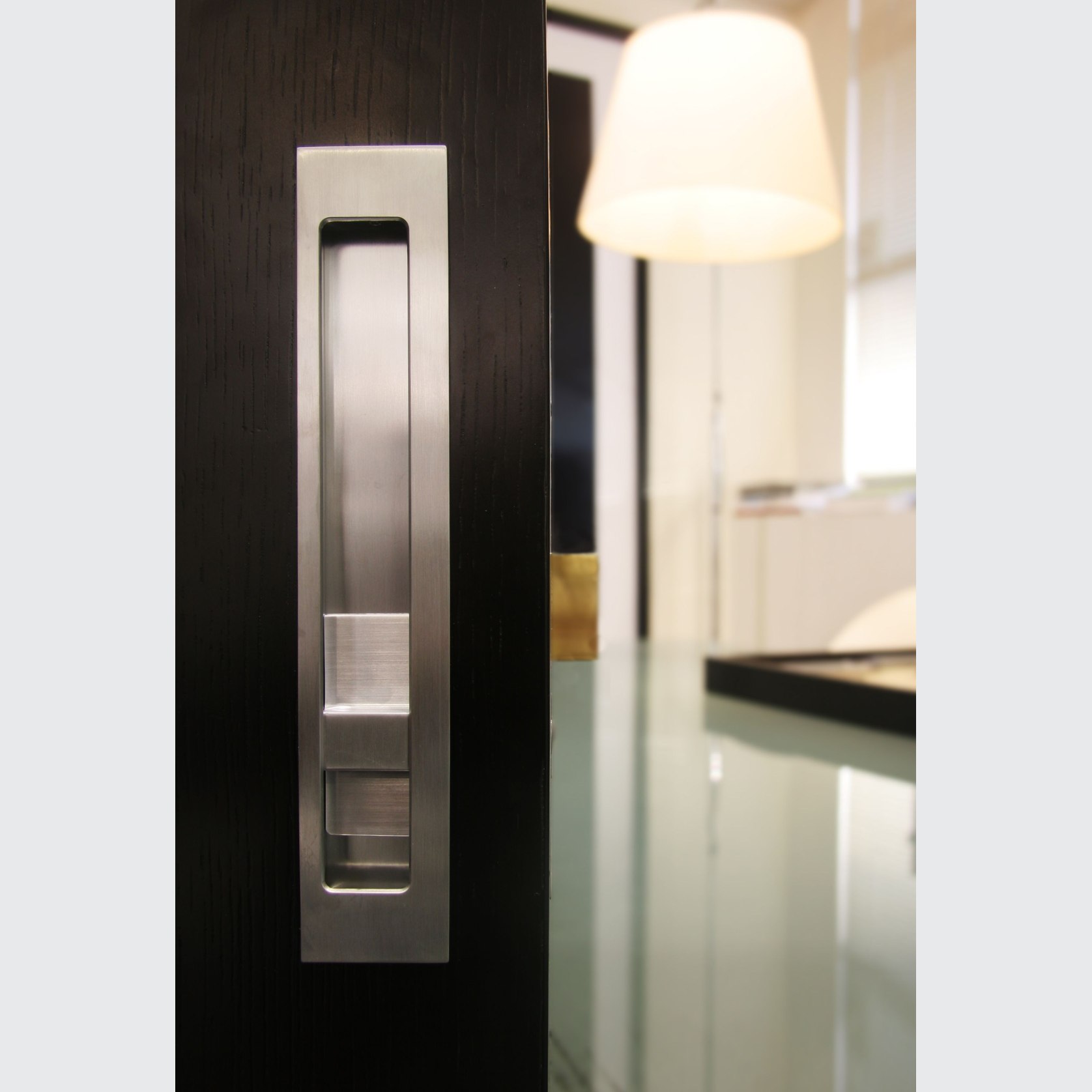

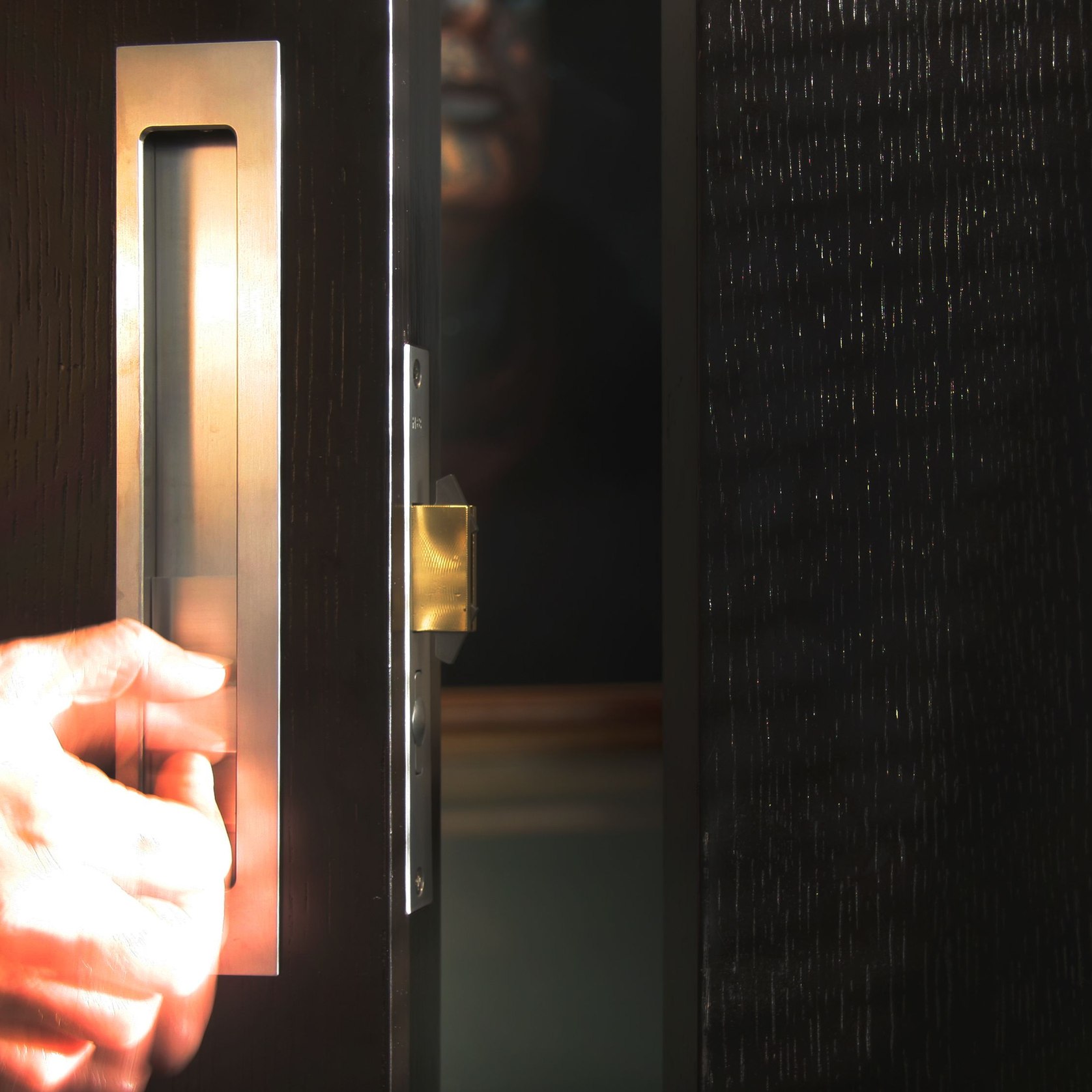

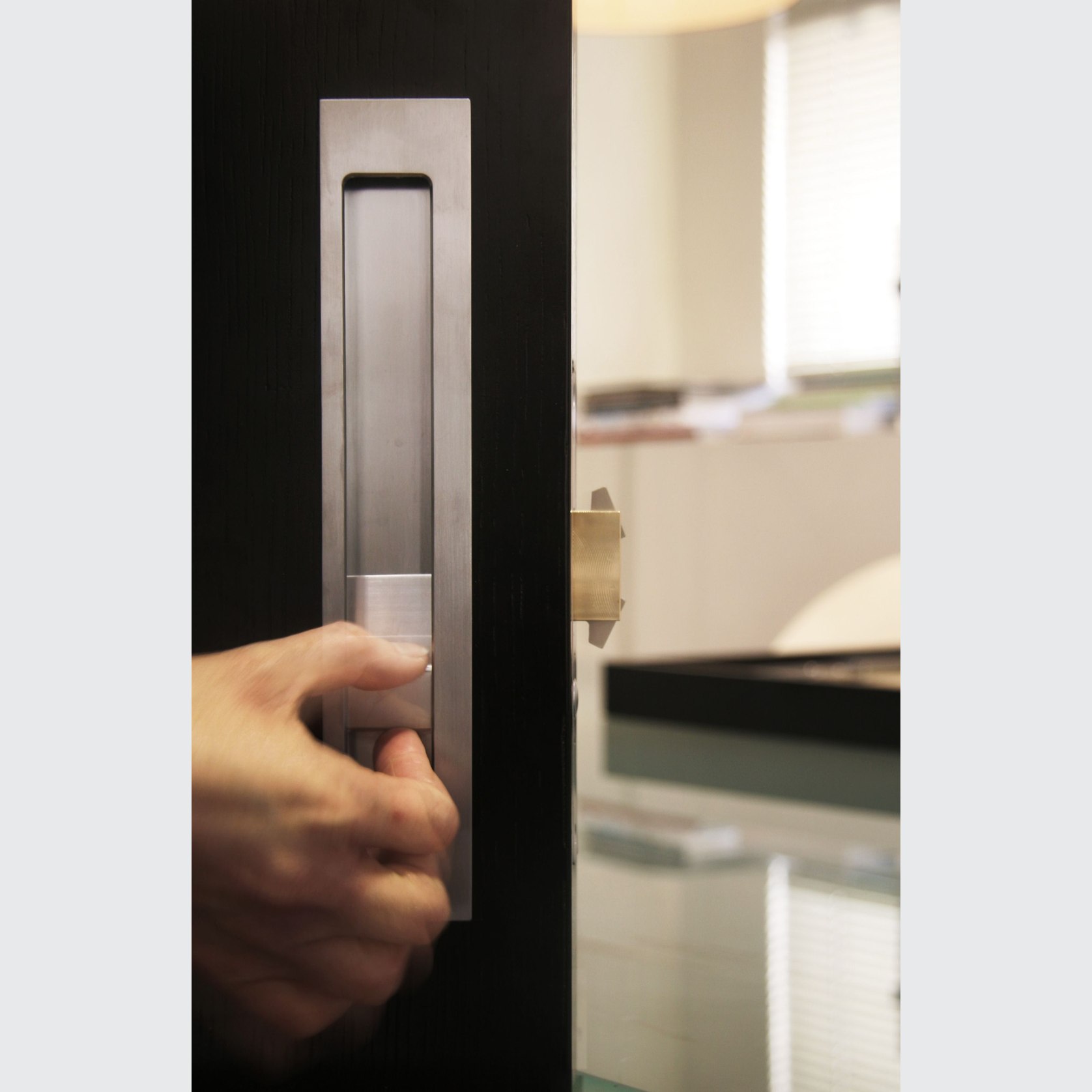

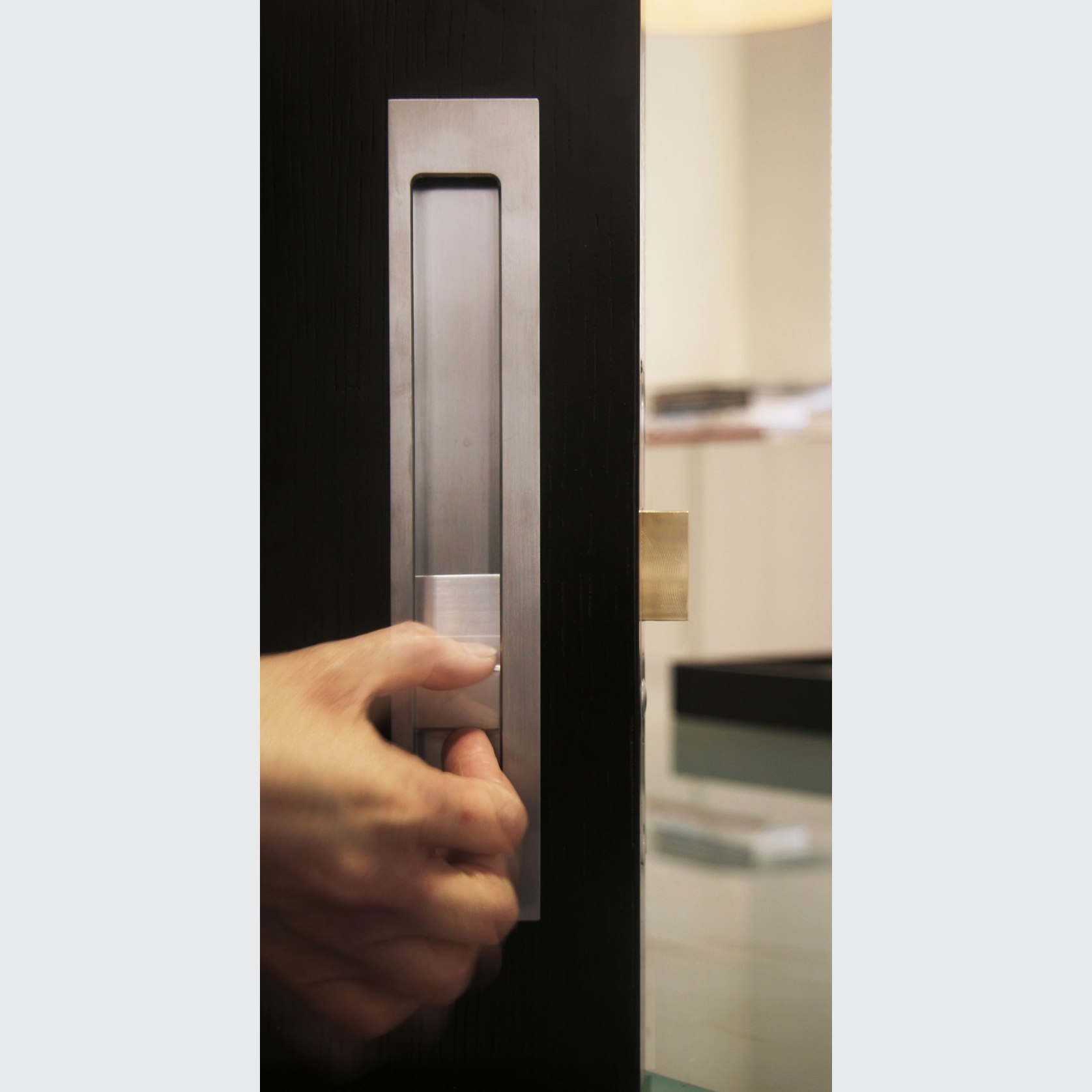

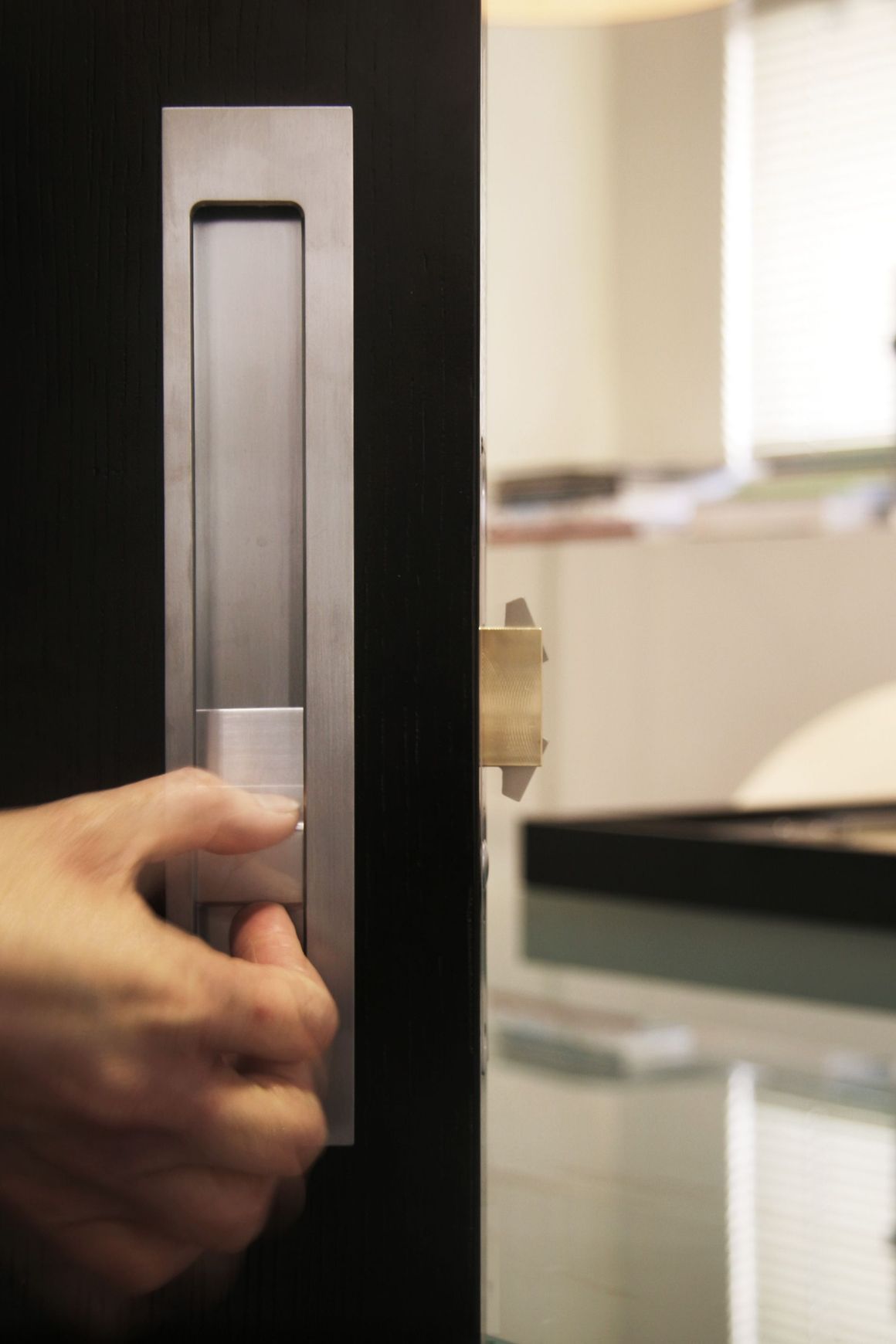

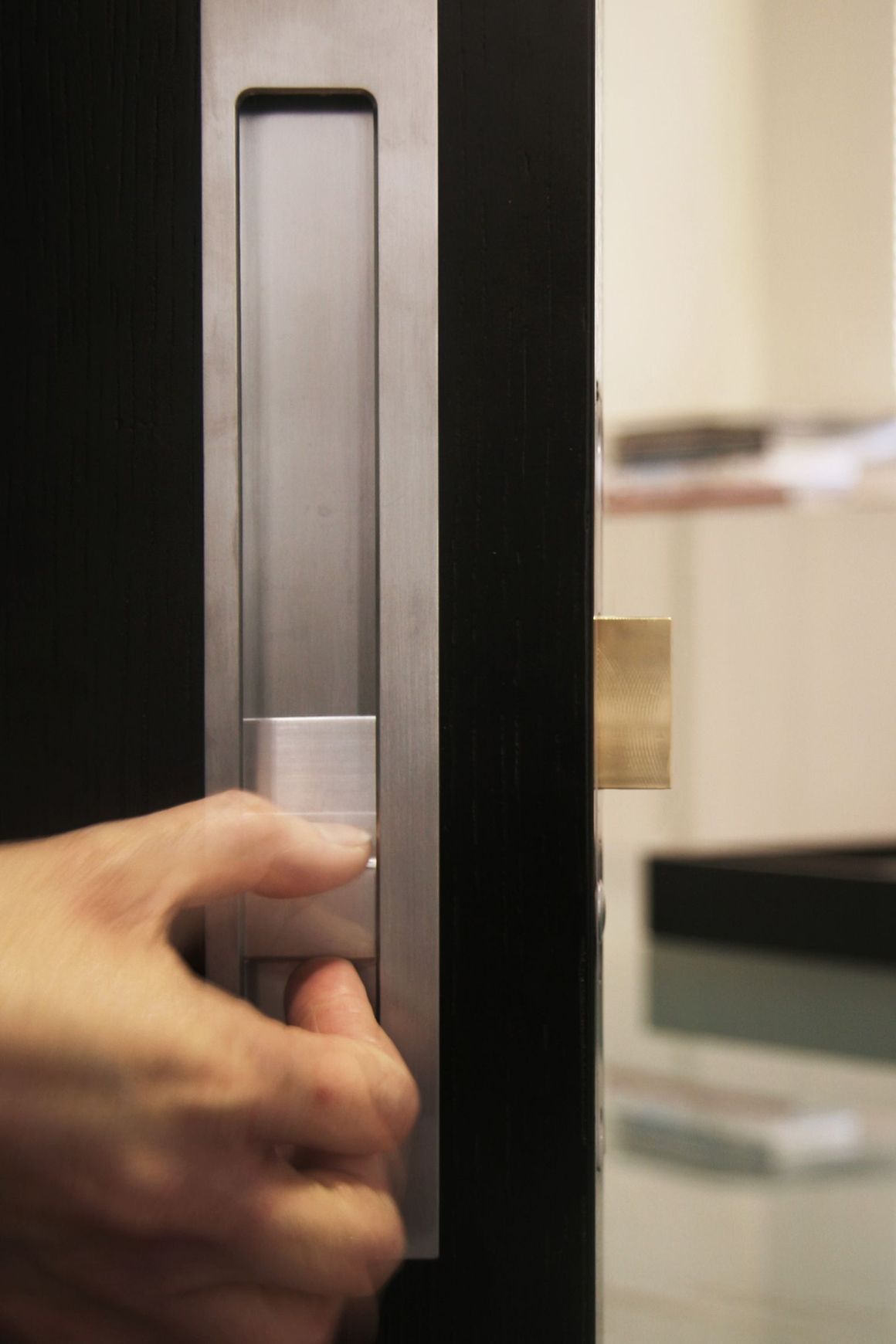

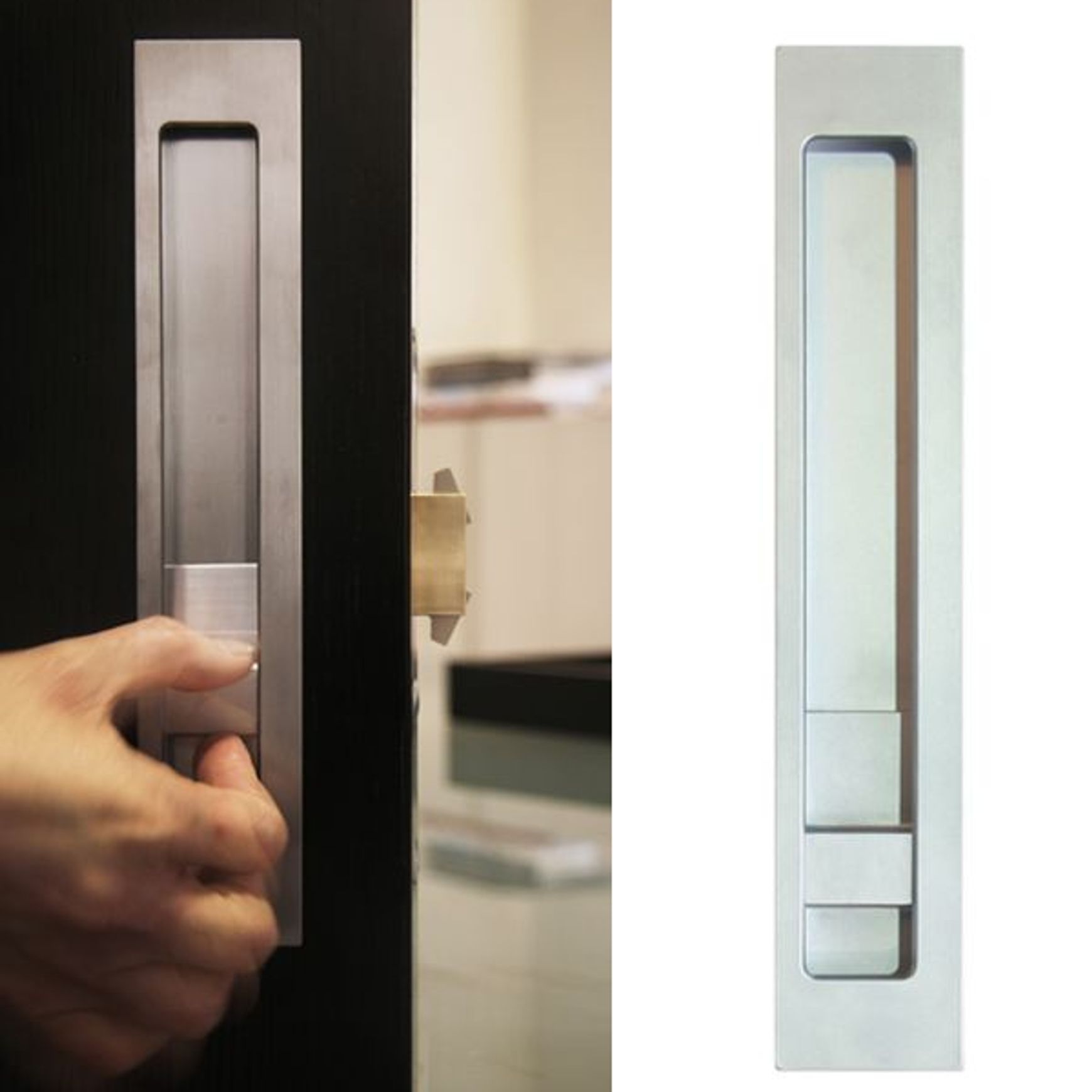

HB1650 Offset Flush Pull Lock for Sliding Doors

The HB1650 Pivot Door Set series has been developed primarily for use on large pivot doors as a medium sized option smaller than the 310mm length HB 1480 Series.

Features

For finish options please see our current Finishes Sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.

Flush pulls are designed to be mounted with the body within the thickness of the door, and the face plate on the door surface – total projection is 2mm. Fully recessed mounting is possible on timber doors with the appropriate door thickness. Using glue, epoxy or silicone products etc to secure flush pulls to the door is not required or recommended for installation, and may void warrantee. Glue, epoxy, or silicone products can be used to secure the spindle bar to the back of the snib flush pull for example where sets have a flush pull to one side only.

Scope of use

This HB1650 flush pull lock set is used for large-scale sliding doors (and can also apply for bi-fold or pivot doors HB1650 D) where a deeper flush pull grip is required, but a sleek, recessed appearance is desired.
Ideal for timber or aluminium sliding doors in architectural interiors (or high-end residential/commercial projects) where the door thickness and backset can accommodate the set. Because the flush pull is ~250mm long, it also gives better finger access on larger leaves or heavier sliding panels.

Specs / Details

Material: Zinc die cast and brass

Backset : 55mm

Minimum door thickness : 46mm

Flush pulls : 250mm x 45mm x 15mm

Suitable for timber or aluminium doors.

Configurations:
HB1650 – Privacy Set, Snib In, Emergency Release Out, HB690 Standard Body
HB1652 – Snib Inside, Blank Out, HB690 Standard Body
HB1653 – Snib Inside, Nothing Out, HB690 Standard Body
HB1654 – Snib Both Sides, HB690 Standard Body
