HB695 Series Sliding Door Privacy Lock - 55mm Backset
Victoria
- 676.1K profile views
- 58 saves

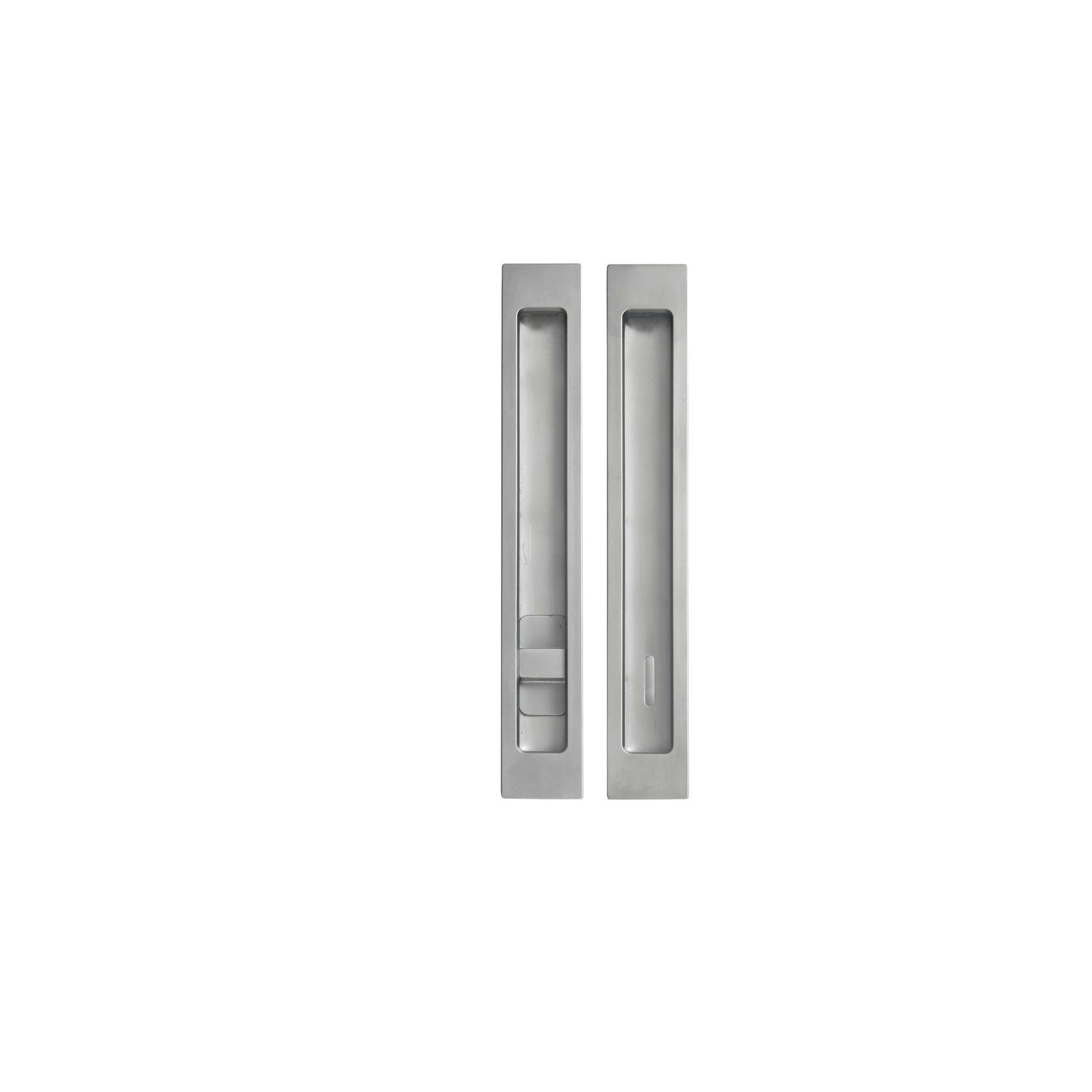

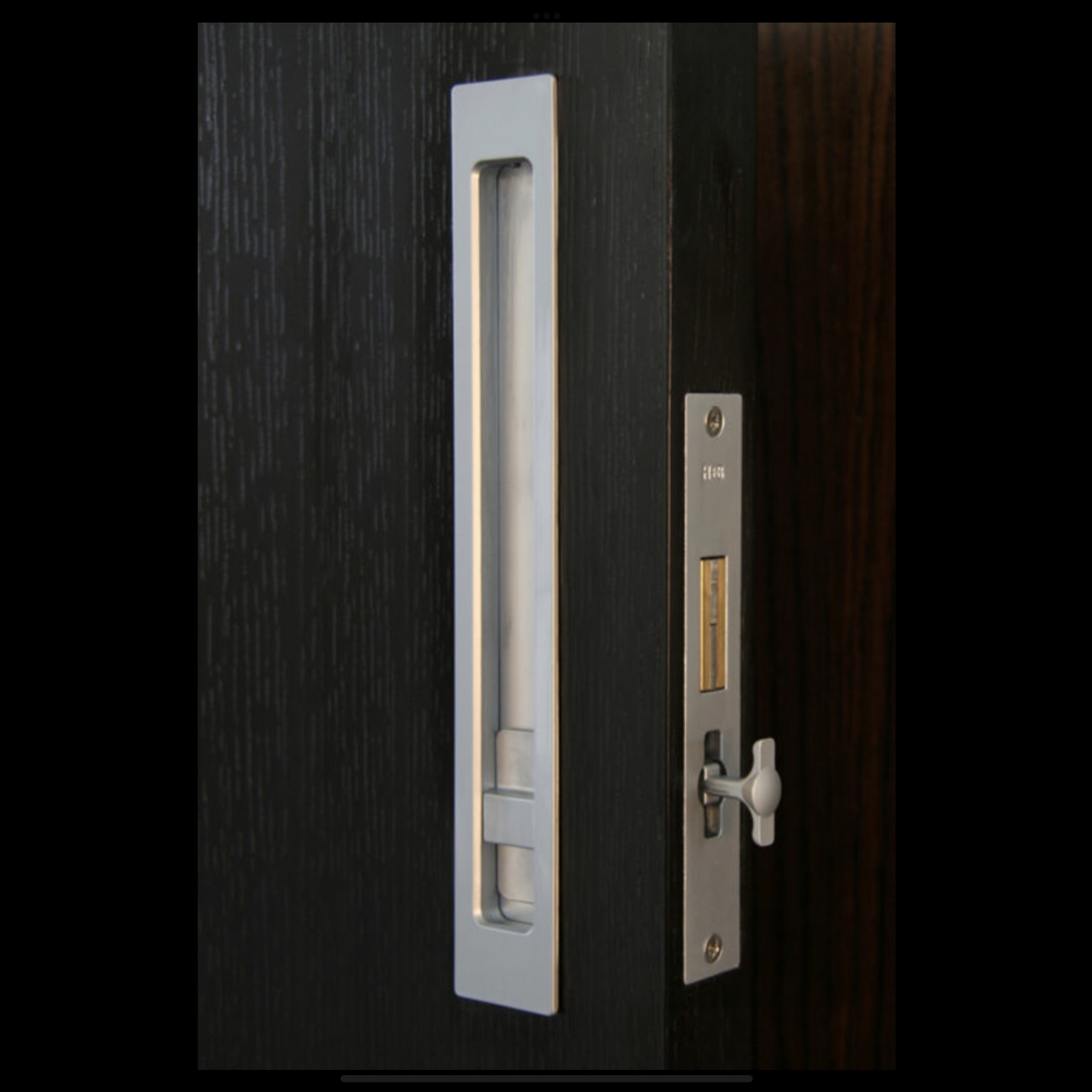

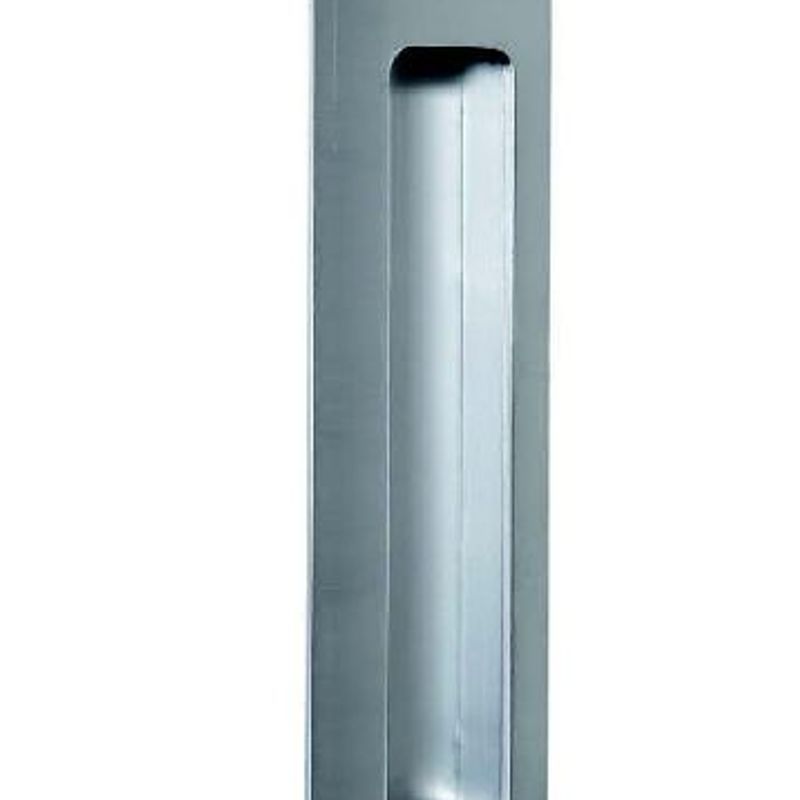

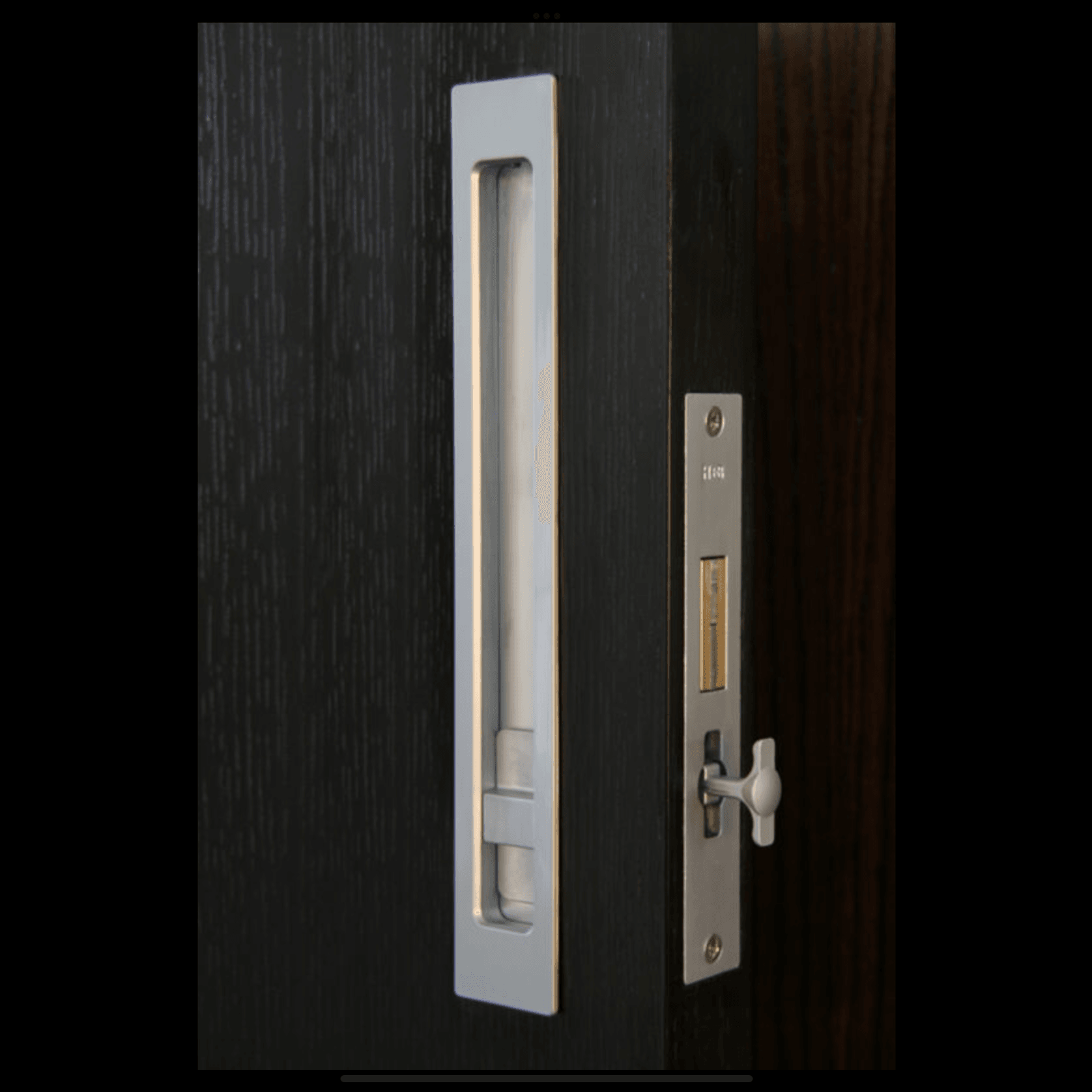

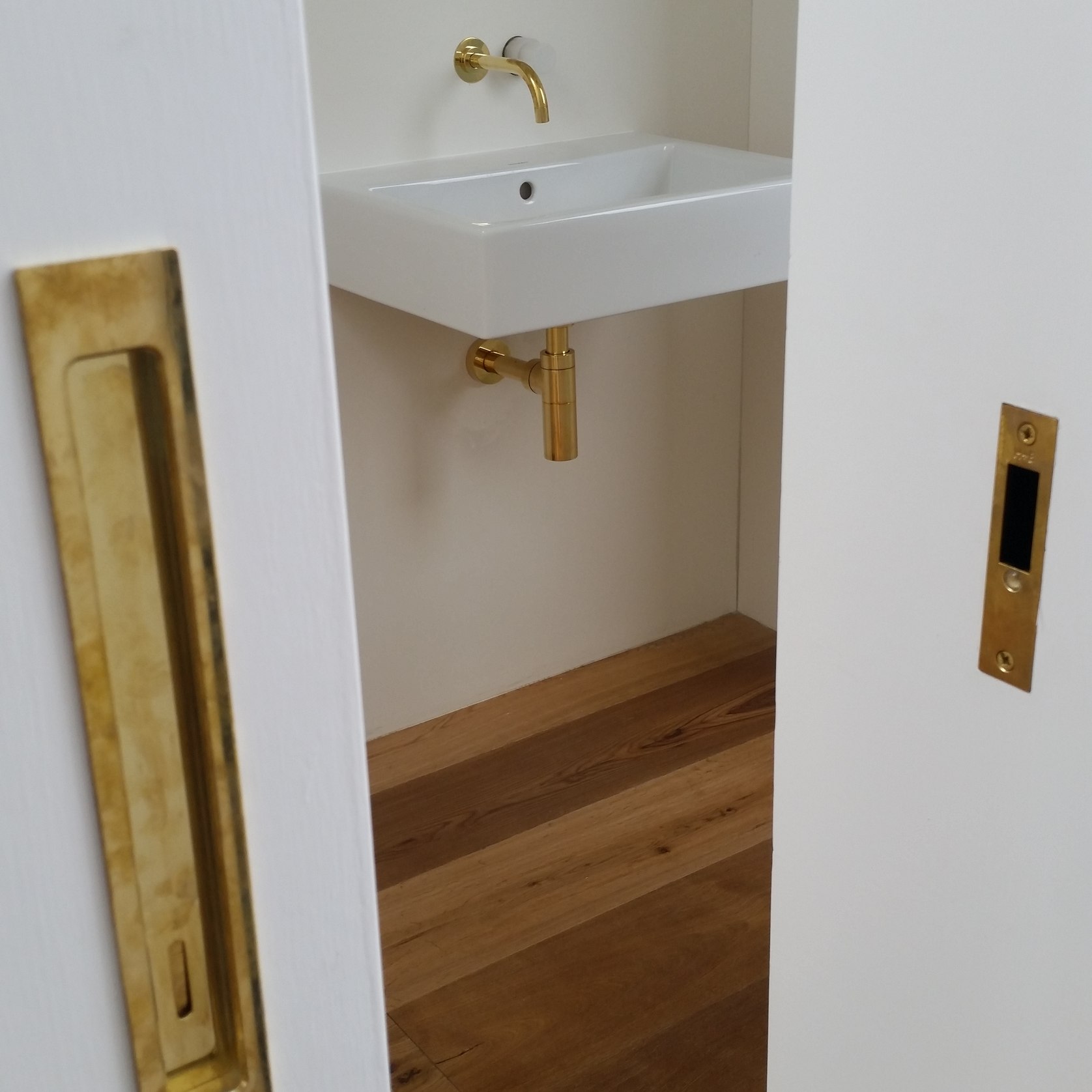

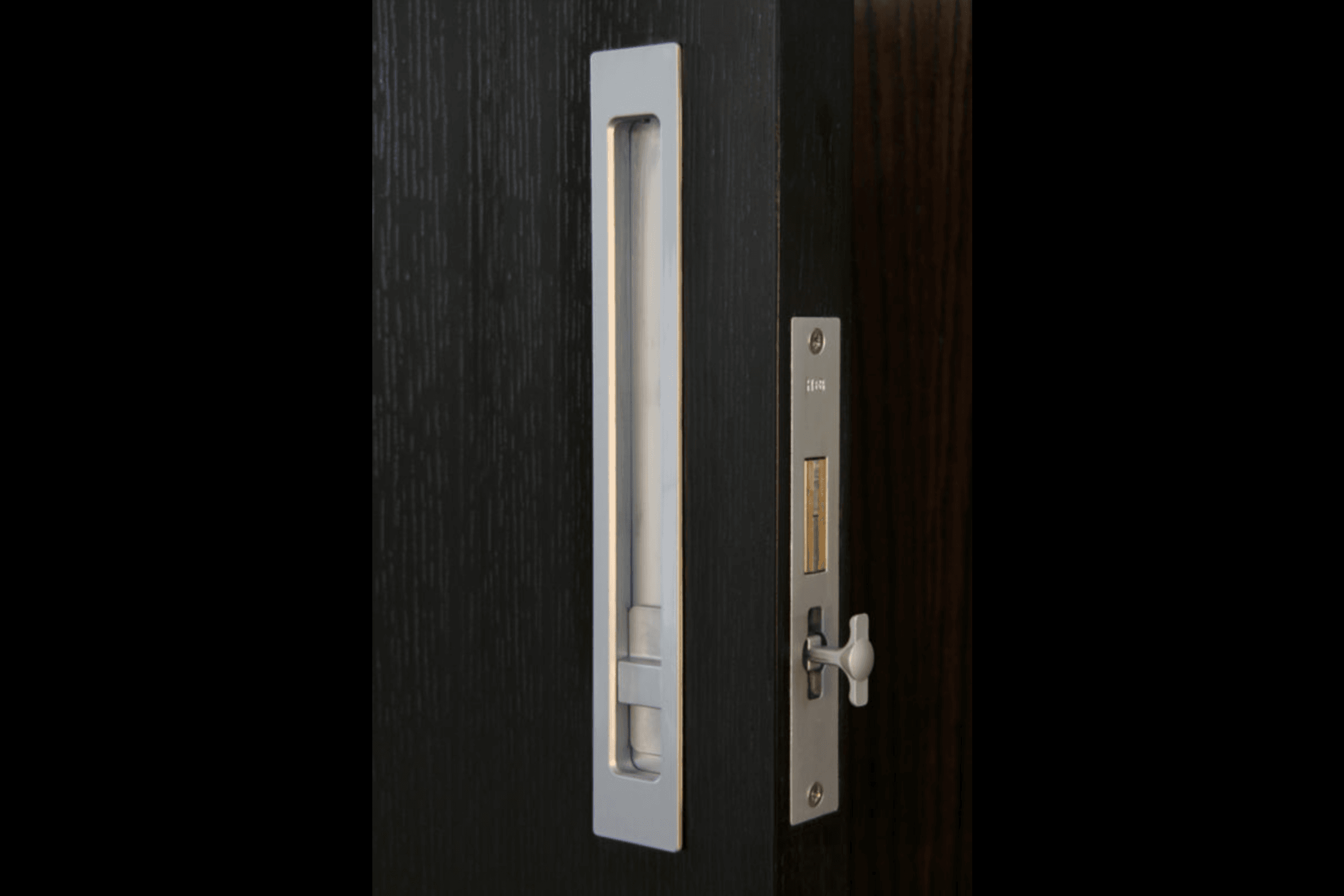

The HB695 250mm length privacy sliding door lock includes a snib flush pull inside and emergency release flush pull outside for safe, efficient, locking on bathroom and washroom cavity sliders. The HB695 comes with a small recessed end pull for easy use to bring slider from pocket. Minimum door thickness required is 38mm. For 35mm-38mm door thickness, please order the HB690/35 (170mm long pulls) with shallower flush pulls.

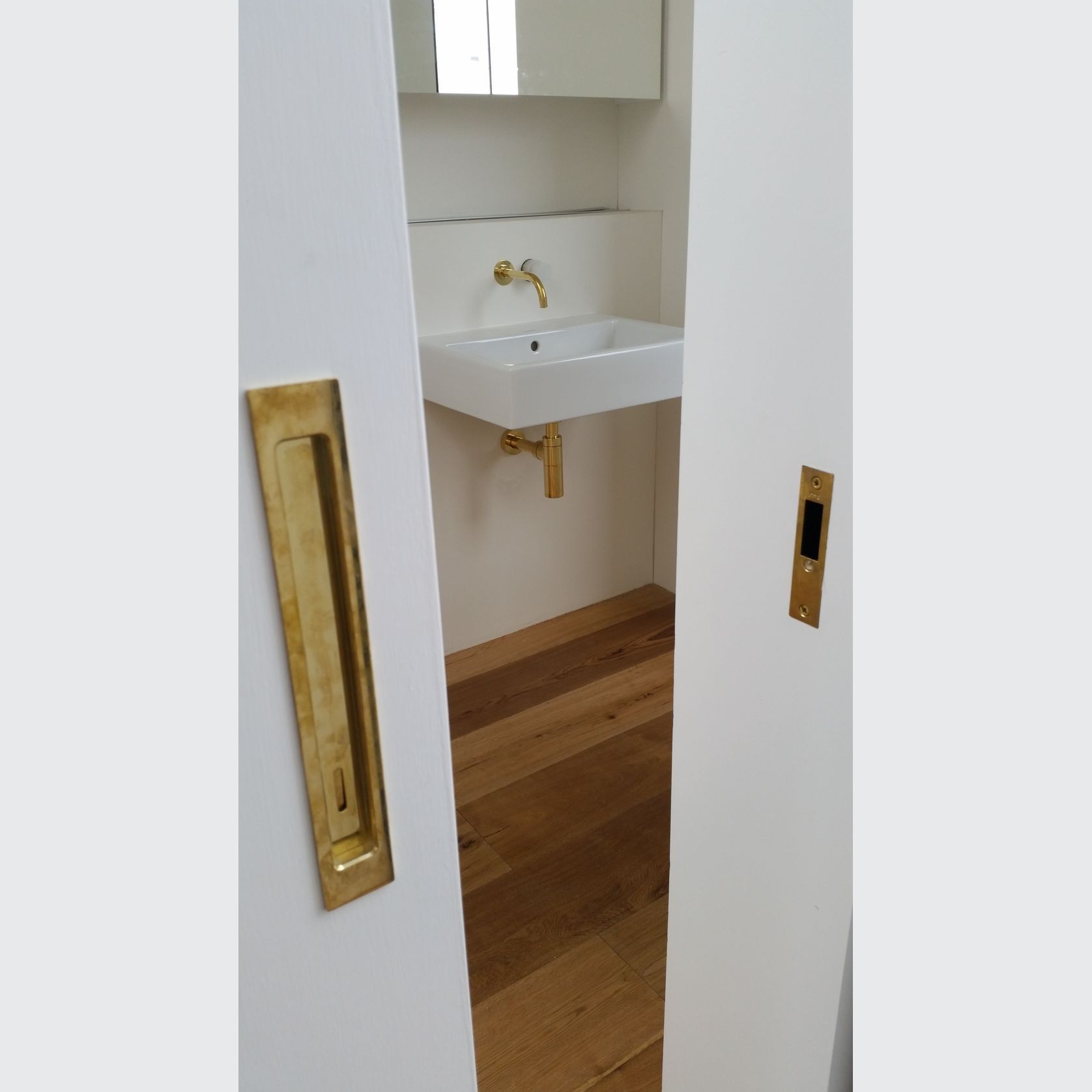

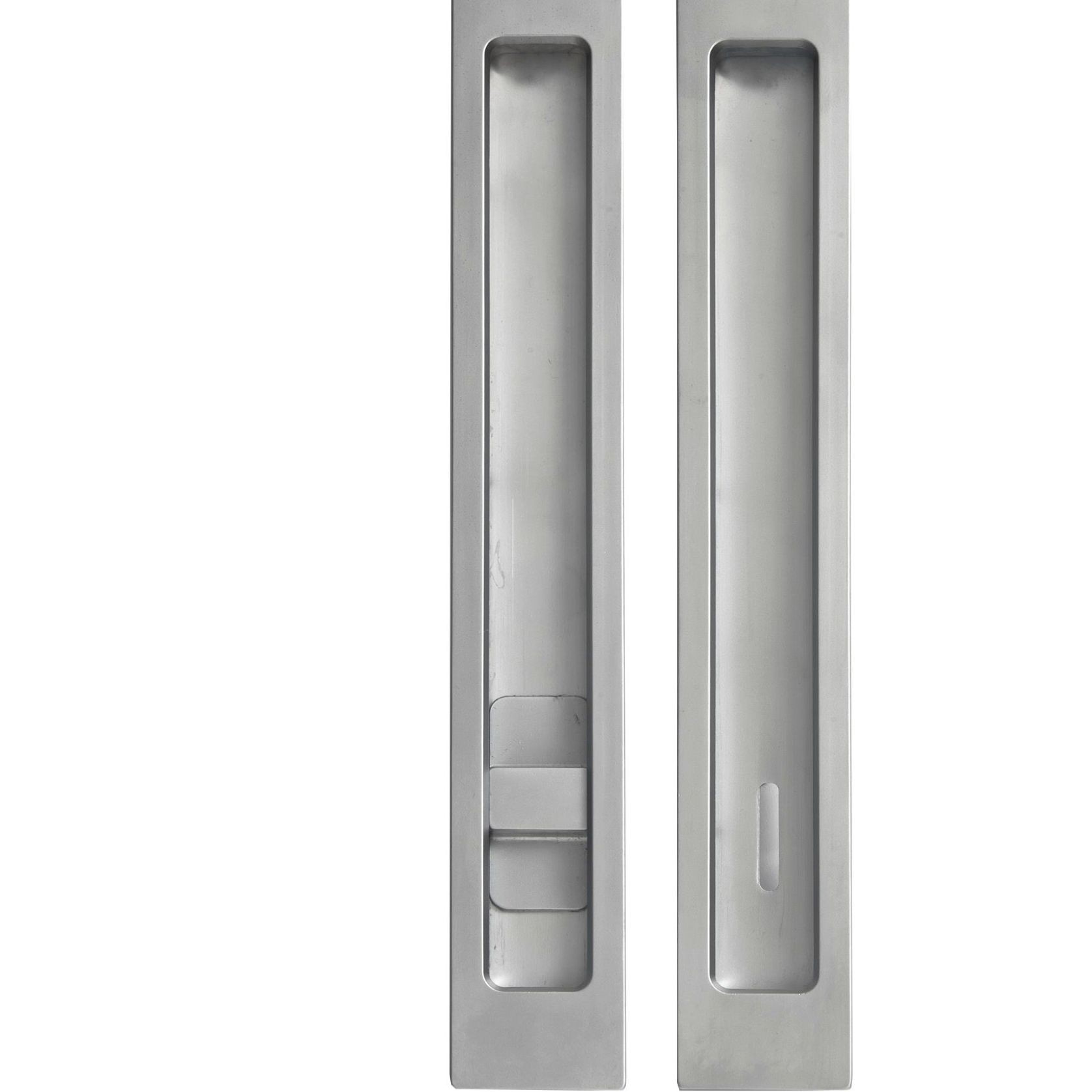

Available in HB690 as pictured 170mm + HB695 (250mm).
Product Details
- Product
- HB695 Series Sliding Door Privacy Lock - 55mm Backset
- Category
- Pull Handles
- Sold by
- Halliday + Baillie
- Designer
- Halliday + Baillie
- Brand
- Halliday + Baillie
- Country of origin
- New Zealand
- Installation
- Professional installation recommended
- Assembly
- Professional assembly recommended
Halliday + Baillie is specified by
Studio IlkArchitects
DX ArchitectsArchitects
Smyth & SmythArchitects
MHNDUArchitects
Utz Sanby ArchitectsArchitects
Carter Williamson ArchitectsArchitects
TKD ArchitectsArchitects
Cadence & CoArchitects
Bryant Alsop ArchitectsArchitects
Woods BagotArchitects
Anderson ArchitectureArchitects
Abe McCarthy ArchitectsArchitects
Shade FactorManufacturers and Suppliers
The HB695 250mm length privacy sliding door lock includes a snib flush pull inside and emergency release flush pull outside for safe, efficient, locking on bathroom and washroom cavity sliders.
The HB695 comes with a small recessed end pull for easy use to bring slider from pocket. Minimum door thickness required is 38mm. For 35mm-38mm door thickness, please order the HB690/35 (170mm long pulls) with shallower flush pulls.
Available in HB690 as pictured 170mm + HB695 (250mm).
- Type of use
- Residential, Commercial and Residential
- Specs
Material: Diecast zinc with brass and 316 stainless steel
Backset : 55mm
Minimum door thickness : 38mm
Flush pulls : 250mm x 36mm x 11mm
Suitable for timber or aluminium doors.
- Features
Flush sliding privacy all in one unit for high end residential. Emergency release for safety.
Range of finishes. Min 38mm required.
- Scope of use
For finish options please see our current Finishes Sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.
Flush pulls are designed to be mounted with the body within the thickness of the door, and the face plate on the door surface – total projection is 2mm. Fully recessed mounting is possible on timber doors with the appropriate door thickness. Using glue, epoxy or silicone products etc to secure flush pulls to the door is not required or recommended for installation, and may void warrantee. Glue, epoxy, or silicone products can be used to secure the spindle bar to the back of the snib flush pull for example where sets have a flush pull to one side only.
Configurations:

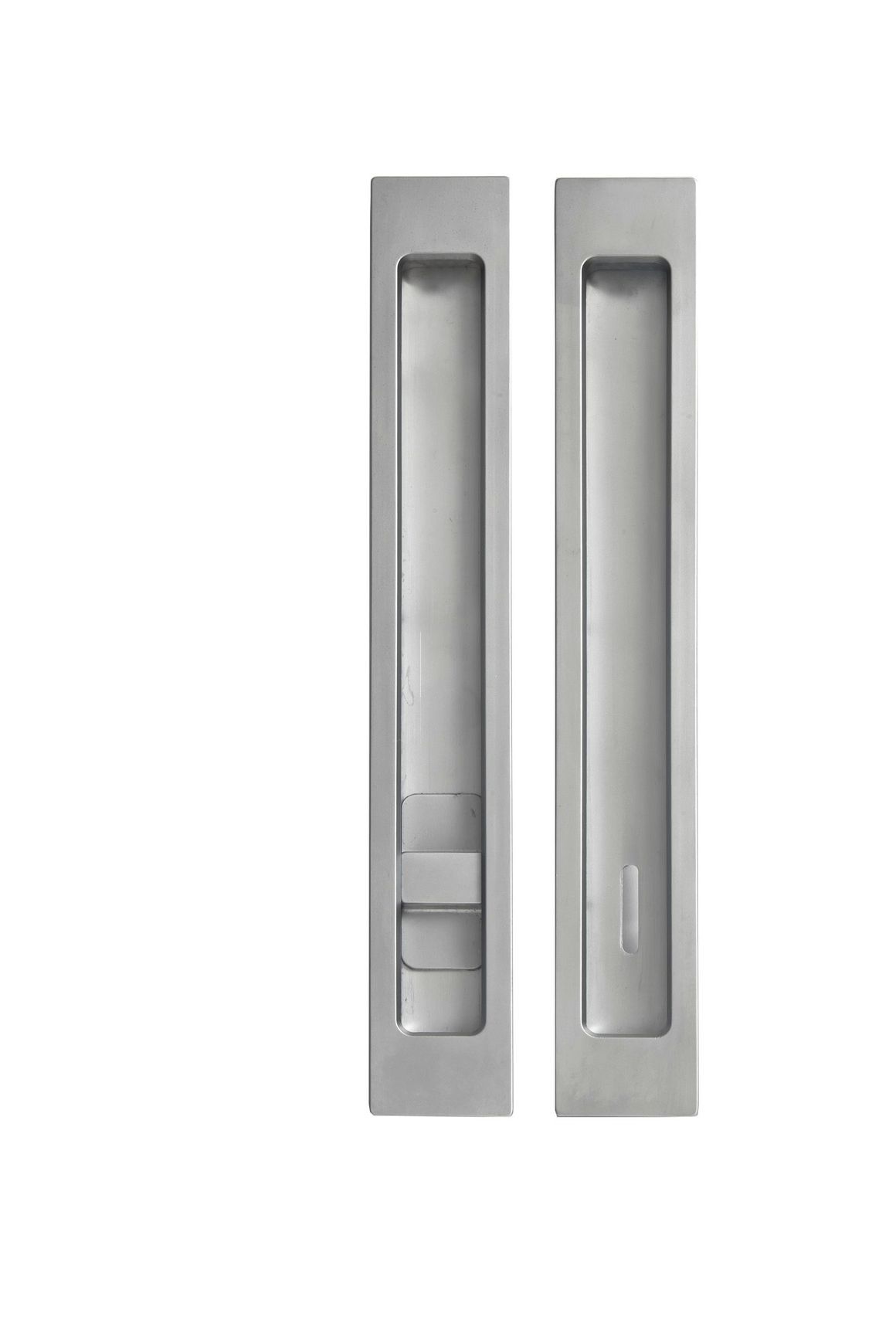

HB 695 – Privacy Set with Snib Inside and Emergency Release Pull Outside
HB 696 – Snib In, No Pull Out
HB 698 – Snib In, Blank Out
HB 699 – Snib Pulls to Both Sides
