High-speed turbo door EFA-STT® Clear

By EFAFLEX
Visit Website

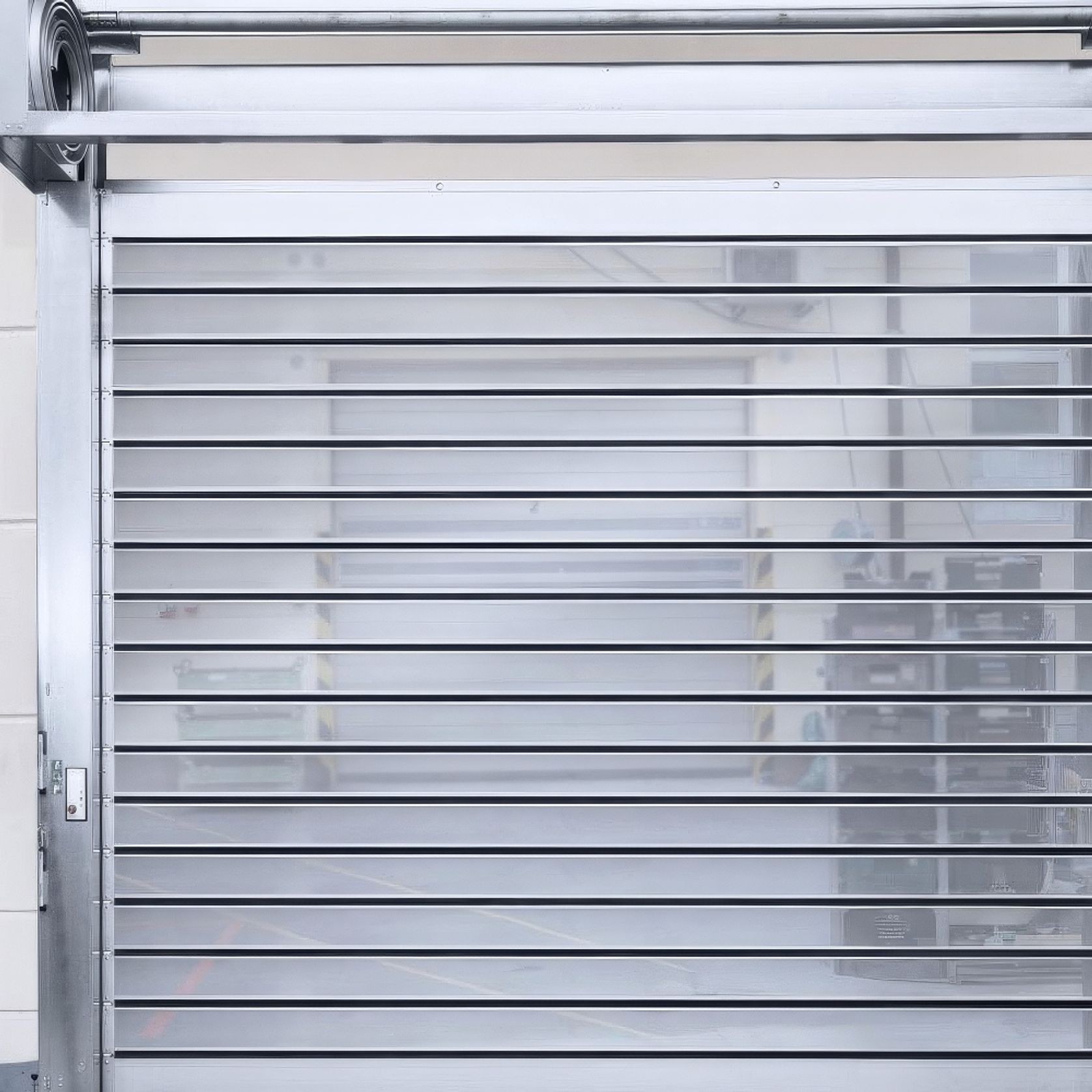

The EFA-STT® Clear, our high-speed turbo door, features an impressively fast opening speed of up to 3.2 m/s. Our EFA-CLEAR® transparent laths ensure sufficient light and brightness in the hall. In addition, the transparent laths ensure a clear view with open lines of sight, for increased safety.

Packages: We offer various optional equipment packages for special requirements

  • The cooling areas package is suitable for an application range from -1 °C to -25 °C (30,2°F to -13 °F).
  • The process package is used in logistics and manufacturing areas.
  • Security 1 with mechanical locking can be integrated into an existing alarm system.
  • Security 2 with automatic locking can also be integrated into an existing alarm system.
Details
  • Category
    Commercial Doors
  • Range
    Next Generation Doors
  • Brand
    EFAFLEX
  • Designer
    EFAFLEX
General
  • Installation
    Professional installation required
  • Assembly
    Professional assembly required
Specifications

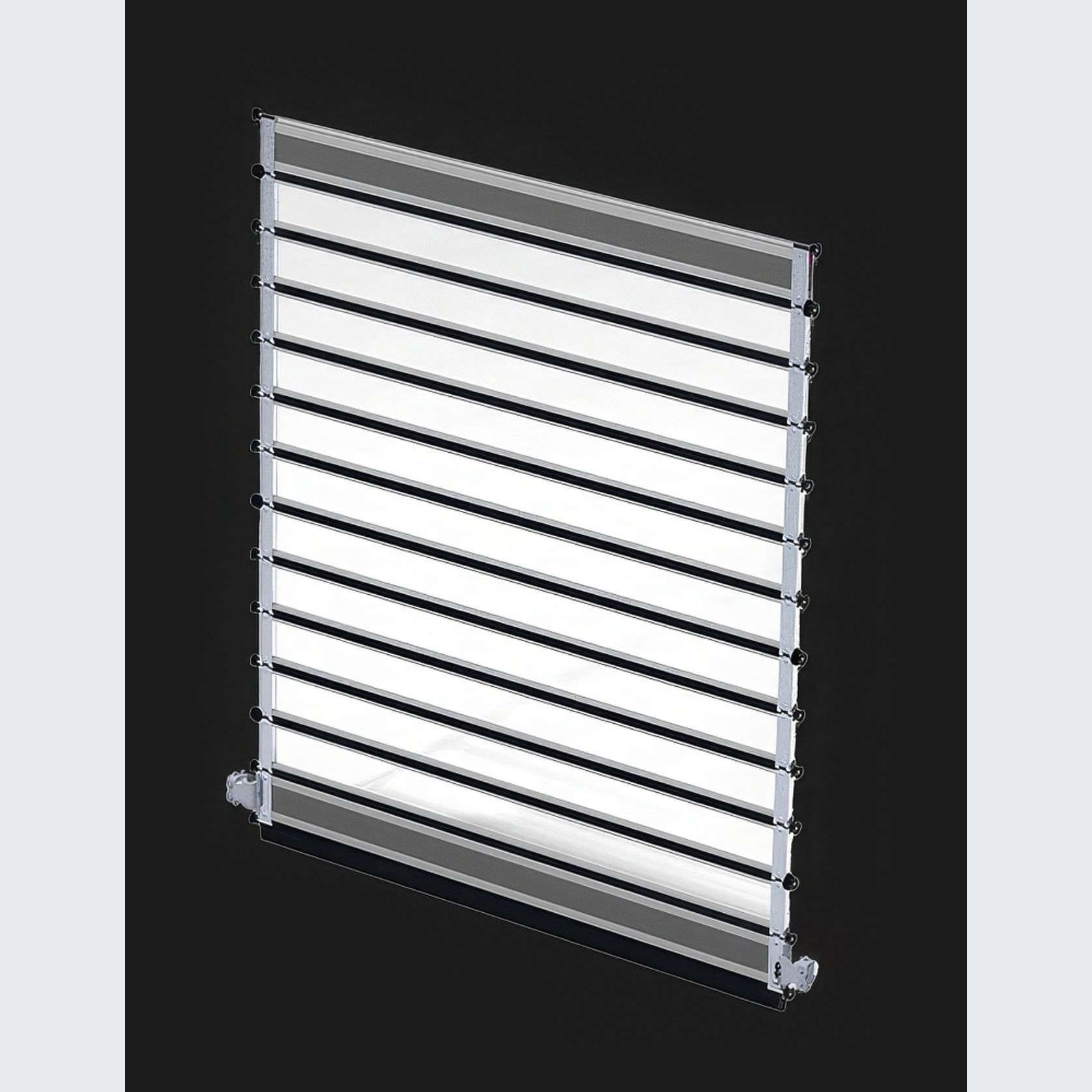

  • The door leaf comprises of crystal clear acrylic glass
  • Opening in up to 3,2 m/s
  • Closing in up to 1,0 m/s
  • Usable up to wind class 4
  • EFA-TLG® as standard
  • Up to 400.000 operating cycles p.a.
  • Standard sizes up to w=4.500 mm, h=5.100 mm
Features

Maximum transparency

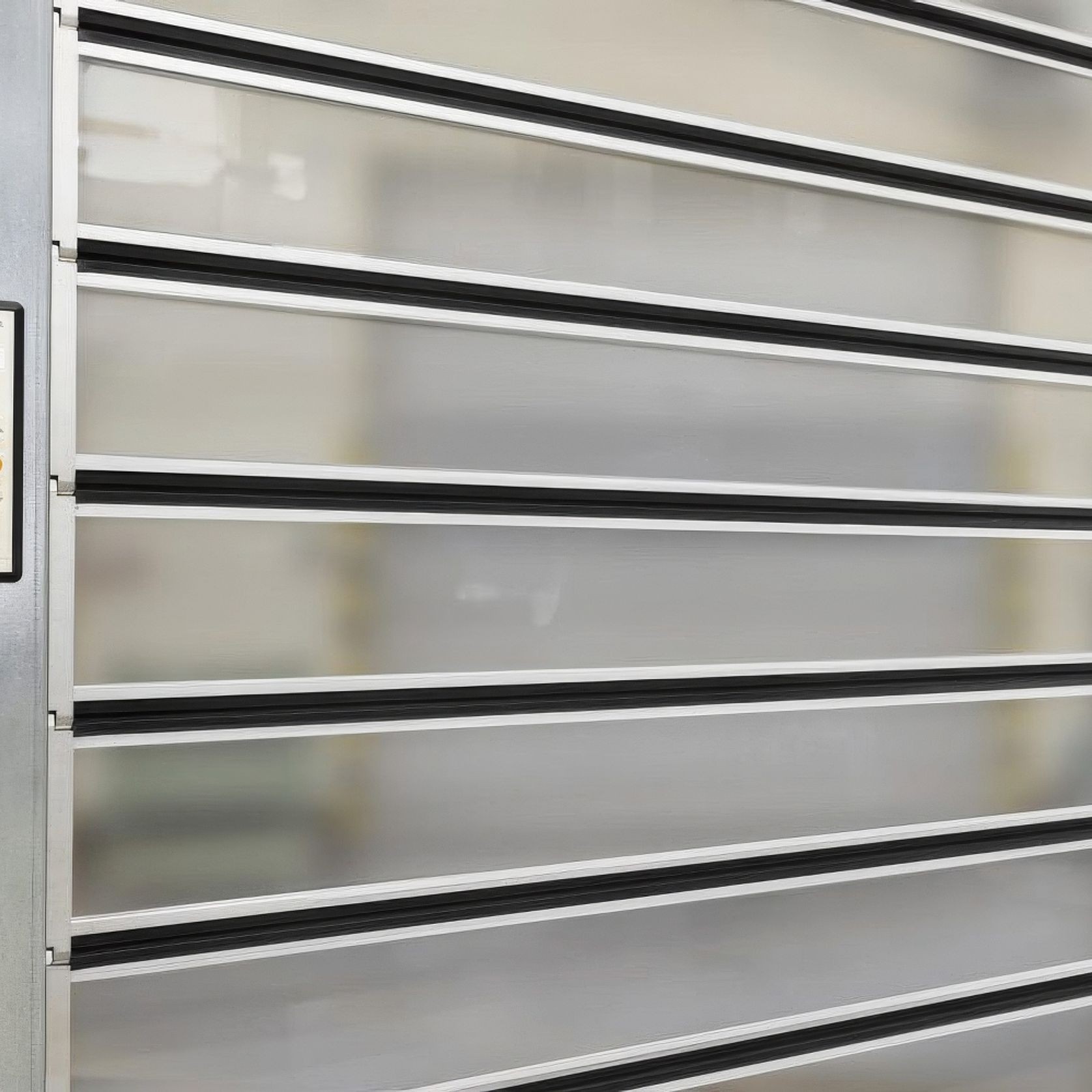

The transparent laths of the EFA-STT® Clear provide sufficient light and brightness. This particularly makes work easier In atr locks, such as those used In the automotive industry. In addition, transparent laths ensure an unobstructed view with open lines of slight between the rooms, for increased safety.

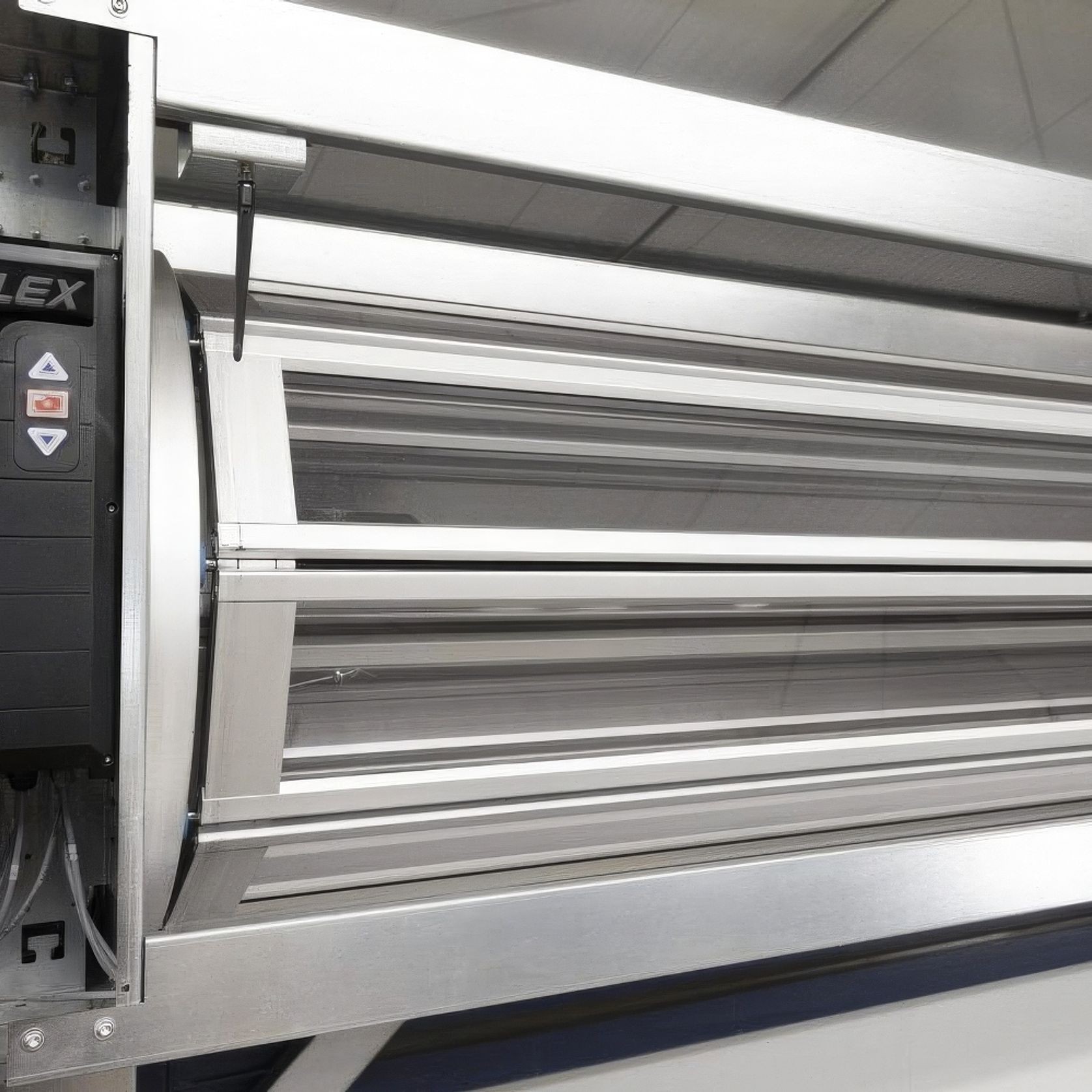

Pivotable frame cover
The pivotable frame covers facilitate maintenance and allow quick access if necessary. In combination with EFA-SmartAssist®, easy remote diagnosis is also possible at any time.

Safety features
By default, the door is equipped with our EFA-TLG® door light grid. The broken spring detection increases safety and is integrated in both door cases as a standard. In addition, a bolt lock makes necessary maintenance significantly safer, since the bolt in the rail prevents unwanted movement of the door.

Flexibly adaptable

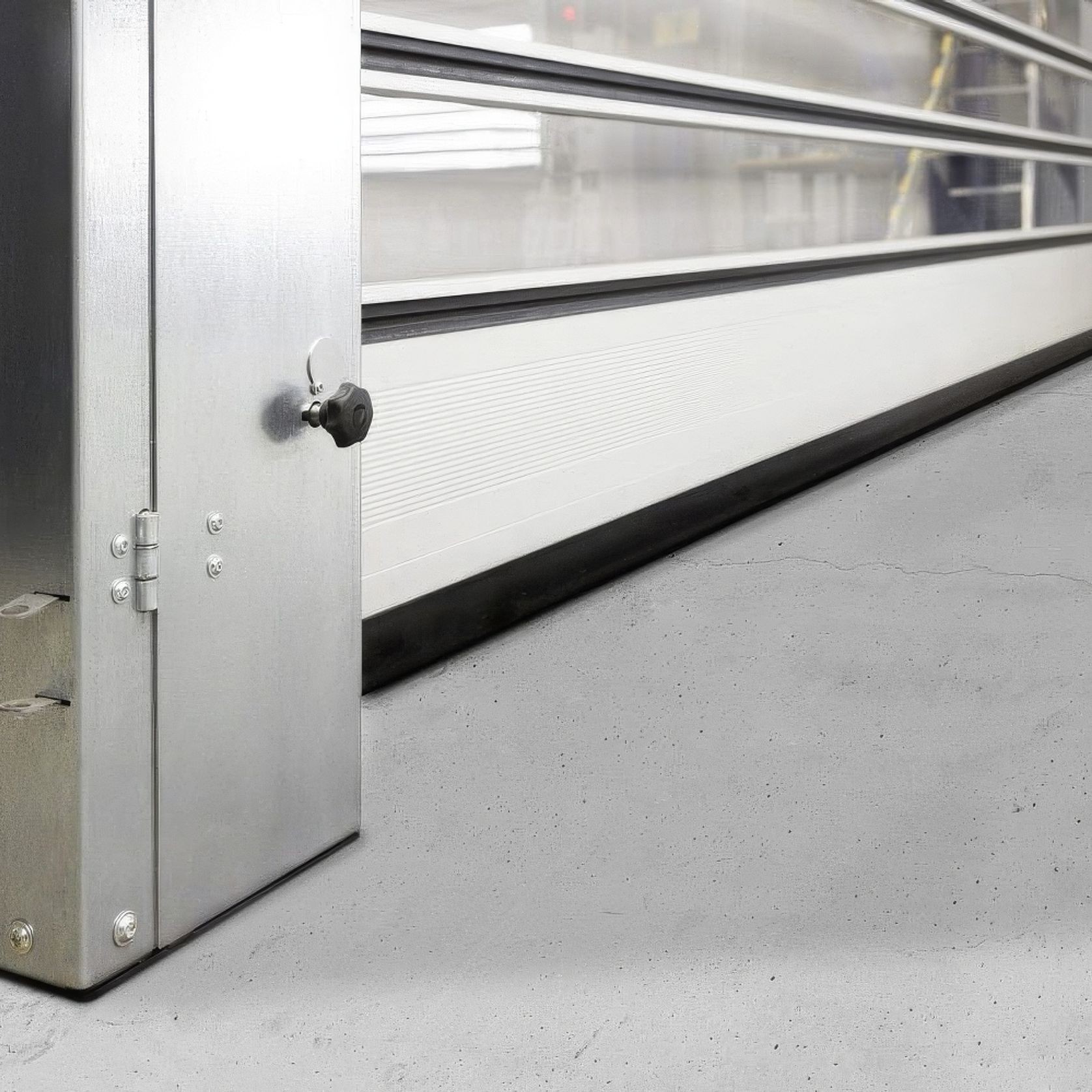

In addition to the straight standard endshield, a slanted variant is also available. This enables a flush door closure on uneven floors an compensate for differences of up to 200 millimetres. Depending on requirements, there is a rigid metal or a flexible rubber version.

Control
Various control arrangements are possible: on the wall or integrated into the curtain box in a space-saving manner. With EFA-Tronic® and EFA-Tronic® Professional, we also offer suitable control solutions for every need.
