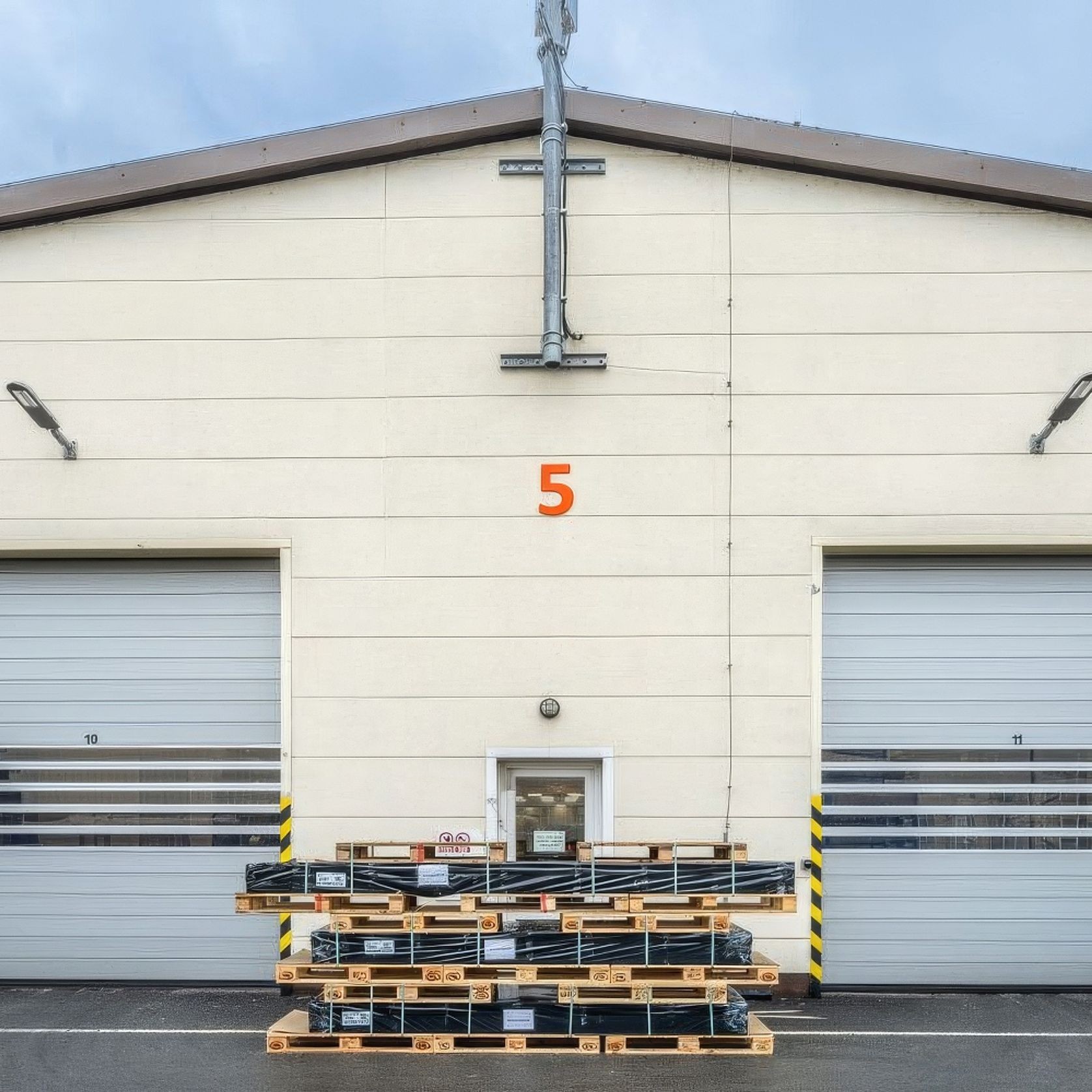

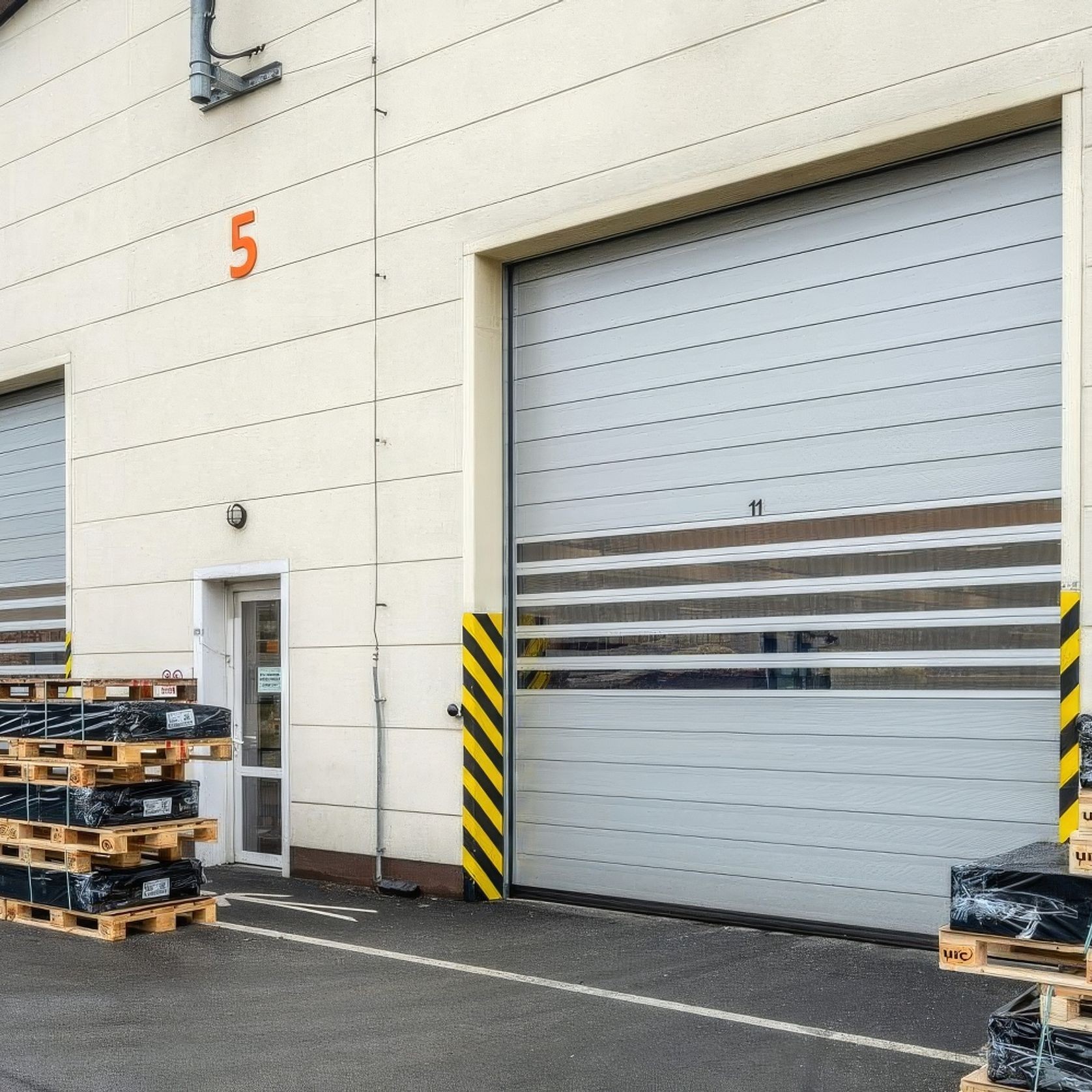

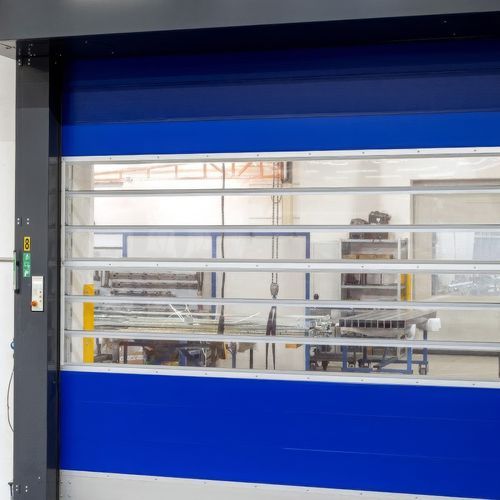

High-speed spiral door EFA-SST® Therm

By EFAFLEX
Visit Website

The EFA-SST® Therm has thermally separated EFA-THERM® insulation laths as a standard feature. EFAFLEX offers this design as the first manufacturer of industrial doors worldwide. As a result, the door achieves a brilliant U Value, which clearly minimises cold or heat losses.

Packages: We offer various optional equipment packages for special requirements

  • The cooling areas package is suitable for an application range from -1 °C to -25 °C (30,2°F to -13 °F).
  • The process package is used in logistics and manufacturing areas.
  • Security 1 with mechanical locking can be integrated into an existing alarm system.
  • Security 2 with automatic locking can also be integrated into an existing alarm system.
Details
  • Category
    Commercial Doors
  • Range
    Next Generation Doors
  • Brand
    Efaflex
  • Designer
    Efaflex
General
  • Installation
    Professional installation required
  • Assembly
    Professional assembly required
Specifications

EFA-SST® Therm at a glance:

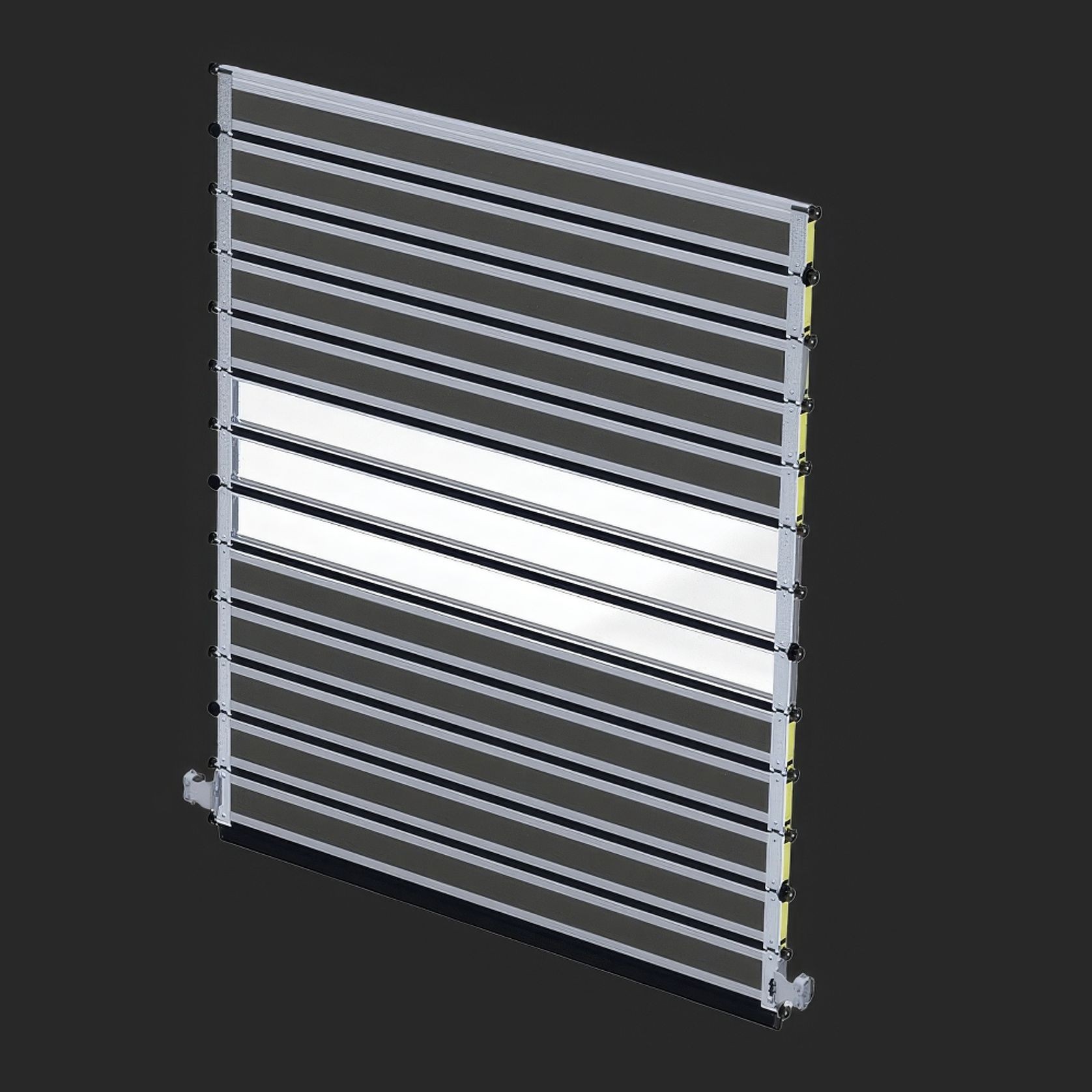

  • Max. thermal insulation with EFA-THERM® insulation laths
  • Opening up to 2,5 m/s
  • Closing up to 1,0 m/s
  • Usable up to wind class 4
  • EFA-TLG® as standard
  • U-value: bup to 1,4 W/m²K
  • Up to 400.000 operating cycles p.a.
  • Standard sizes up to w=5.000 mm, h=5.100 mm
Features

Excellent insulation
As the first manufacturer of industrial doors worldwide, EFAFLEX offers thermally separated EFA-THERM® insulation laths as a standard. As a result, the door achieves a very good U value of up to 1.4 W/m2K and thus minimises heat and cold losses.

Pivotable frame cover
The pivotable frame covers facilitate maintenance and allow quick access if necessary. In combination with EFA-SmartAssist®, easy remote diagnosis is also possible at any time.

Safety features
By default, the door is equipped with our EFA-TLG® door light grid. The broken spring detection increases safety and is integrated in both door cases as a standard. In addition, a bolt lock makes necessary maintenance significantly safer, since the bolt in the rail prevents unwanted movement of the door.

Flexibly adaptable
In addition to the straight standard endshield, a slanted variant is also available. This enables a flush door closure on uneven floors an compensate for differences of up to 200 millimetres. Depending on requirements, there is a rigid metal or a flexible rubber version.

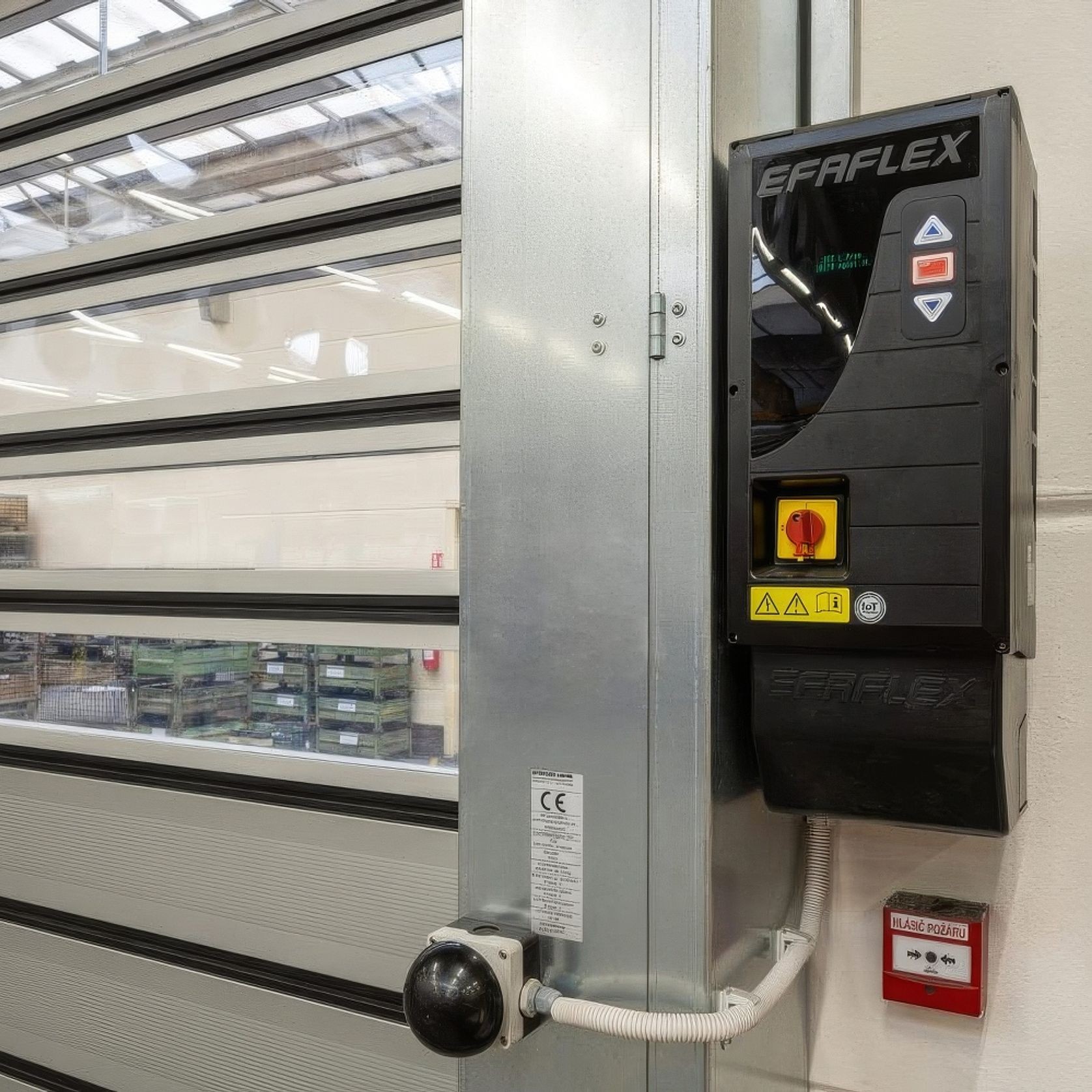

Control
Various control arrangements are possible: on the wall or integrated into the curtain box in a space-saving manner. With EFA-Tronic® and EFA-Tronic® Professional, we also offer suitable control solutions for every need.

Visit Website
