High-speed turbo roll-up door EFA-STR® Flex

By EFAFLEX
Visit Website

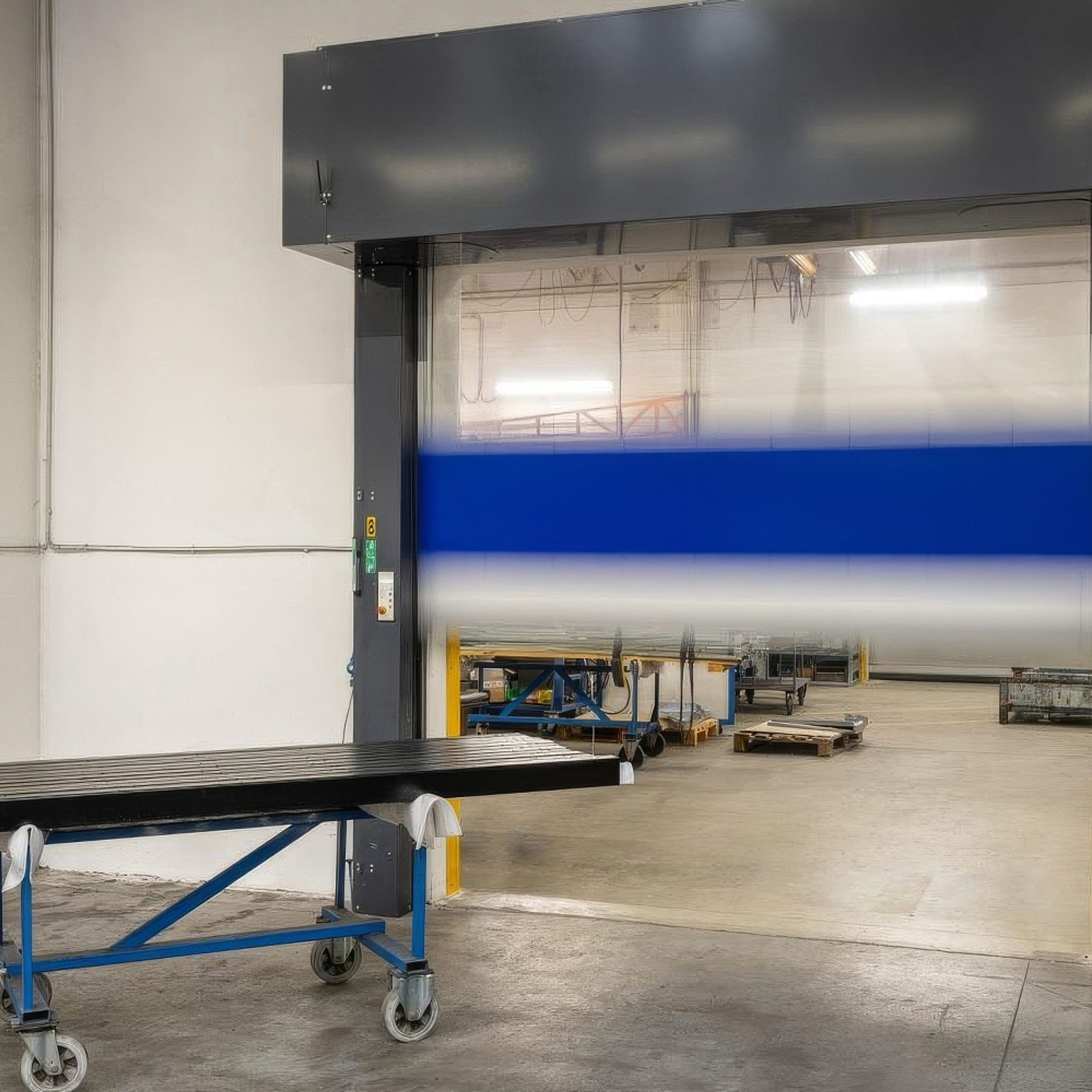

The fastest vertically opening door in the world. With its flexible curtain and its fast speed of up to 4.0 m/s, the EFA-STR® enables efficient and fast logistics. The door leaf made of PVC-coated polyester fabric, the reinforcements made of aluminium profiles contained therein and the EFAFLEX spiral technology enable these record speeds.

Packages: We offer various optional equipment packages for special requirements

  • The cooling areas package is suitable for an application range from -1 °C to -25 °C (30,2°F to -13 °F).
  • The process package is used in logistics and manufacturing areas.
Details
  • Category
    Commercial Doors
  • Range
    Next Generation Doors
  • Brand
    EFAFLEX
  • Designer
    EFAFLEX
General
  • Installation
    Professional installation required
  • Assembly
    Professional assembly required
Specifications
  • Opening in up to 4,0 m/s
  • Closing in up to 1,0 m/s
  • Highest wind resistance at wind class 4
  • EFA-TLG® as standard
  • Up to 400.000 operating cycles p.a.
  • Standard sizes up to w=4.500 mm, h=5.100 mm
Features

Excellent dimensional stability

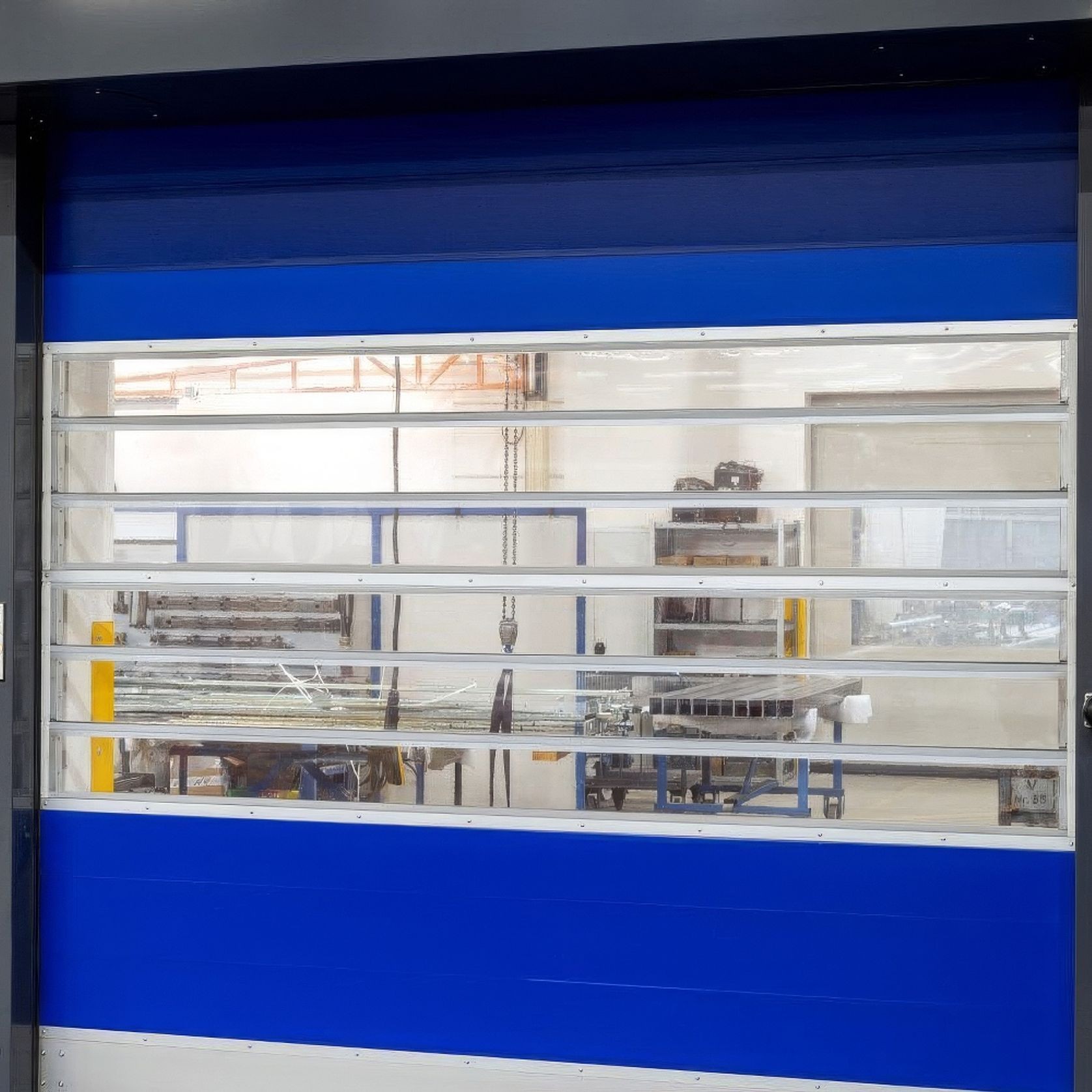

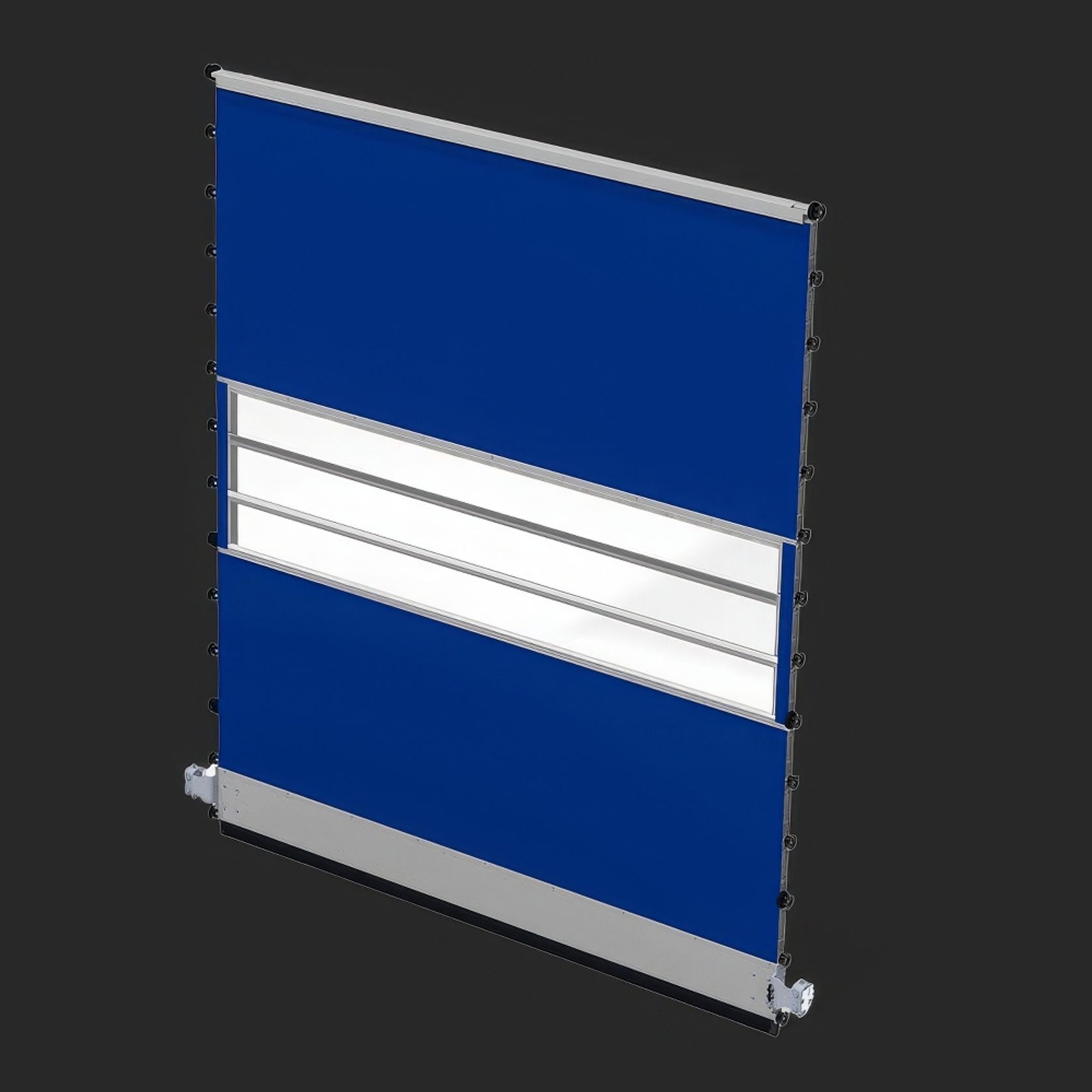

The EFA-STR® Flex combines the best of two worlds: the flexibility of the roll-up doors meets the stability of the spiral doors. The door leaf itself is made of PVC-coated polyester fabric. Aluminium profiles reinforce the individual segments at a distance of 225 millimetres and thus provide the necessary stability. Due to the unique combination of flexible door leaf, reinforcement by aluminium profiles and the EFAFLEX spiral technology, the EFA-STR® Flex achieves record speeds.

Pivotable frame cover
The pivotable frame covers facilitate maintenance and allow quick access if necessary. In combination with EFA-SmartAssist®, easy remote diagnosis is also possible at any time.

Safety features
By default, the door is equipped with our EFA-TLG® door light grid. The broken spring detection increases safety and is integrated in both door cases as a standard. In addition, a bolt lock makes necessary maintenance significantly safer, since the bolt in the rail prevents unwanted movement of the door.

Flexibly adaptable
In addition to the straight standard endshield, a slanted variant is also available. This enables a flush door closure on uneven floors an compensate for differences of up to 200 millimetres. Depending on requirements, there is a rigid metal or a flexible rubber version.

Control
Various control arrangements are possible: on the wall or integrated into the curtain box in a space-saving manner. With EFA-Tronic® and EFA-Tronic® Professional, we also offer suitable control solutions for every need.
