The EFA-SST® Alux is very robust in its design thanks to double-walled aluminium laths and can carry out up to 400.000 load cycles per year. In addition, the door distinguishes itself by the maximum Wind Class 5, which allows operation even under the highest wind loads.

Packages: We offer various optional equipment packages for special requirements

  • The cooling areas package is suitable for an application range from -1 °C to -25 °C (30,2°F to -13 °F).
  • The process package is used in logistics and manufacturing areas.
  • Security 1 with mechanical locking can be integrated into an existing alarm system.
  • Security 2 with automatic locking can also be integrated into an existing alarm system.
Details
  • Category
    Commercial Doors
  • Range
    Next Generation Doors
  • Brand
    EFAFLEX
  • Designer
    EFAFLEX
General
  • Installation
    Professional installation required
  • Assembly
    Professional assembly required
Specifications

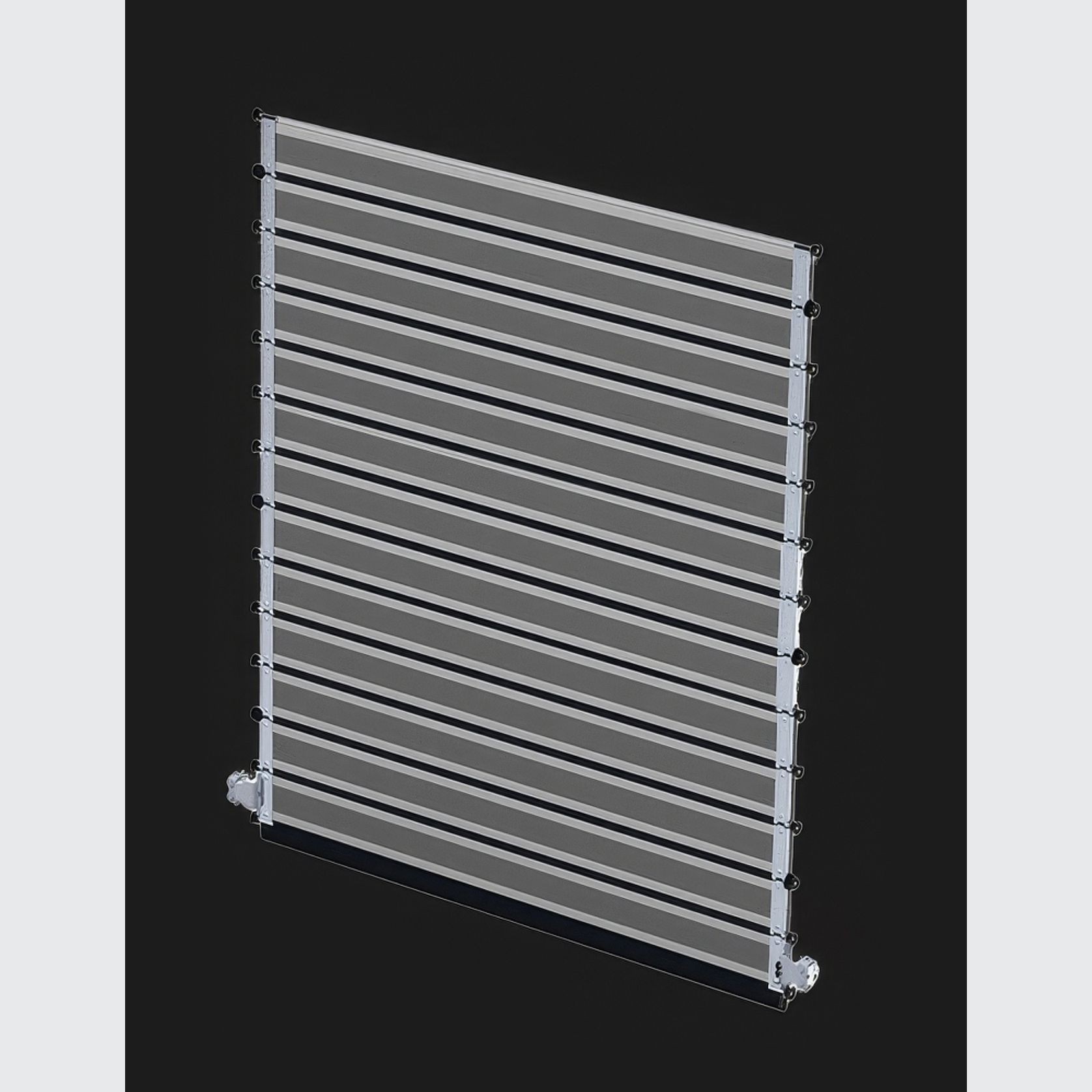

  • Double-wall aluminium laths
  • Opening in up to 2,5 m/s
  • Closing in up to 1,0 m/s
  • Highest wind resistance at wind class 5
  • EFA-TLG® as standard
  • Up to 400.000 operating cycles p.a.
  • Standard sizes up to w=5.000 mm, h=5.100 mm
Features

Outstanding robustness
The EFA-ss1• Alux ls partlcularly stable and ls characterlsed by the maxTmum wind class 5. The door opens and closes rellably and at any time, even under the hlghest wind load.

Pivotable frame cover
The pivotable frame covers facilitate maintenance and allow quick access if necessary. In combination with EFA-SmartAssist®, easy remote diagnosis is also possible at any time.

Safety features
By default, the door is equipped with our EFA-TLG® door light grid. The broken spring detection increases safety and is integrated in both door cases as a standard. In addition, a bolt lock makes necessary maintenance significantly safer, since the bolt in the rail prevents unwanted movement of the door.

Flexibly adaptable
In addition to the straight standard endshield, a slanted variant is also available. This enables a flush door closure on uneven floors an compensate for differences of up to 200 millimetres. Depending on requirements, there is a rigid metal or a flexible rubber version.

Control
Various control arrangements are possible: on the wall or integrated into the curtain box in a space-saving manner. With EFA-Tronic® and EFA-Tronic® Professional, we also offer suitable control solutions for every need.
