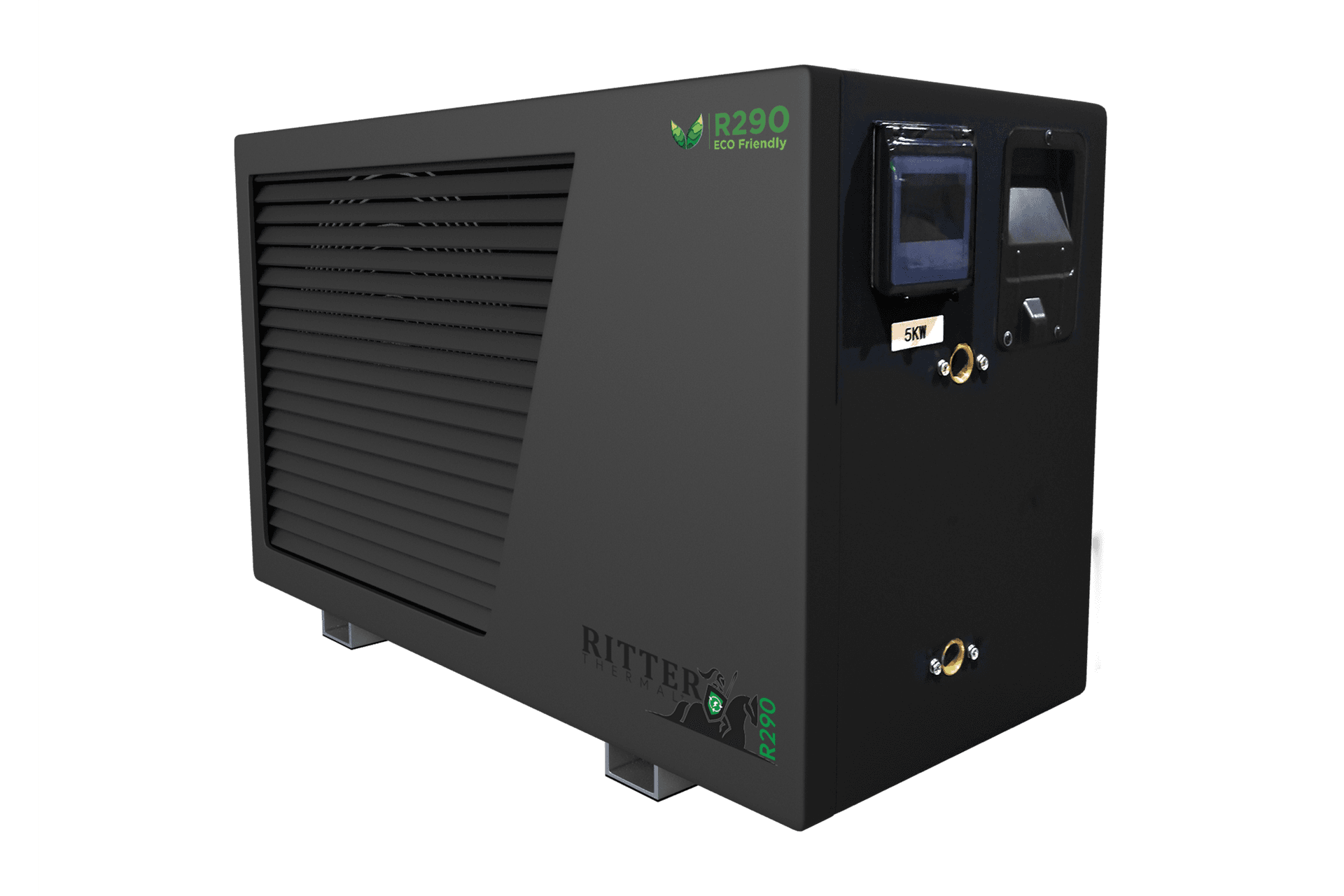

Ritter R290 High Temperature Direct Hot Water Heat Pump

Waterware

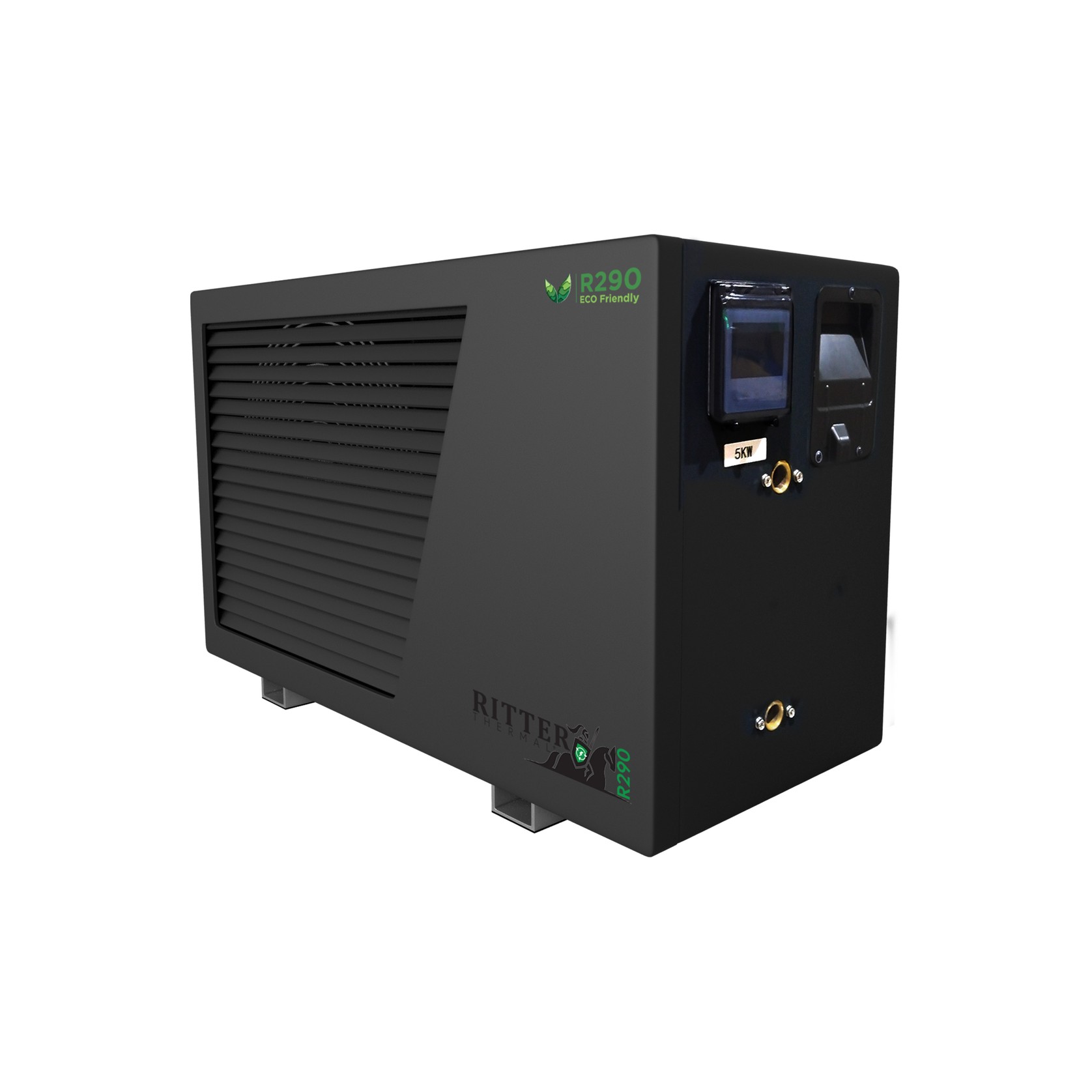

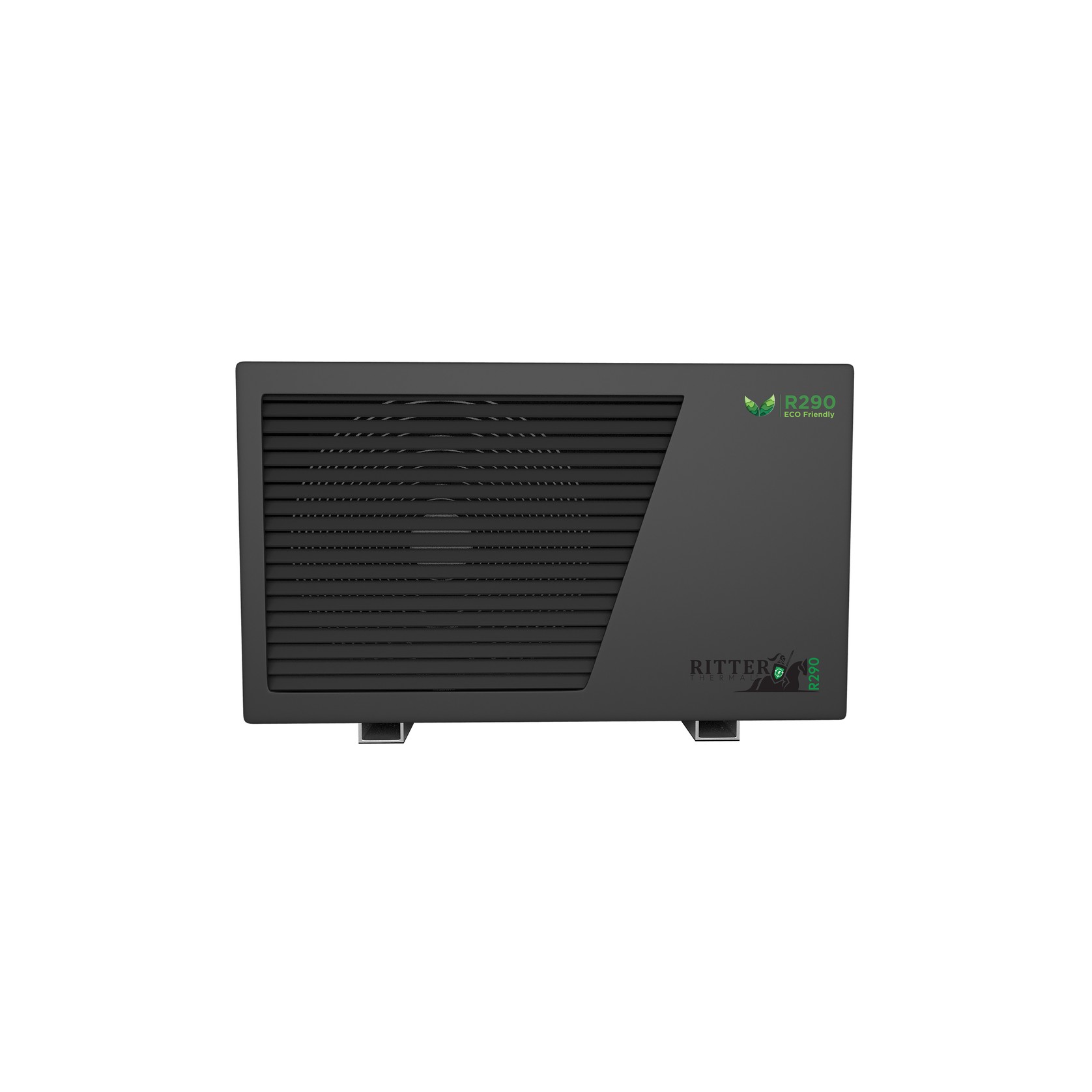

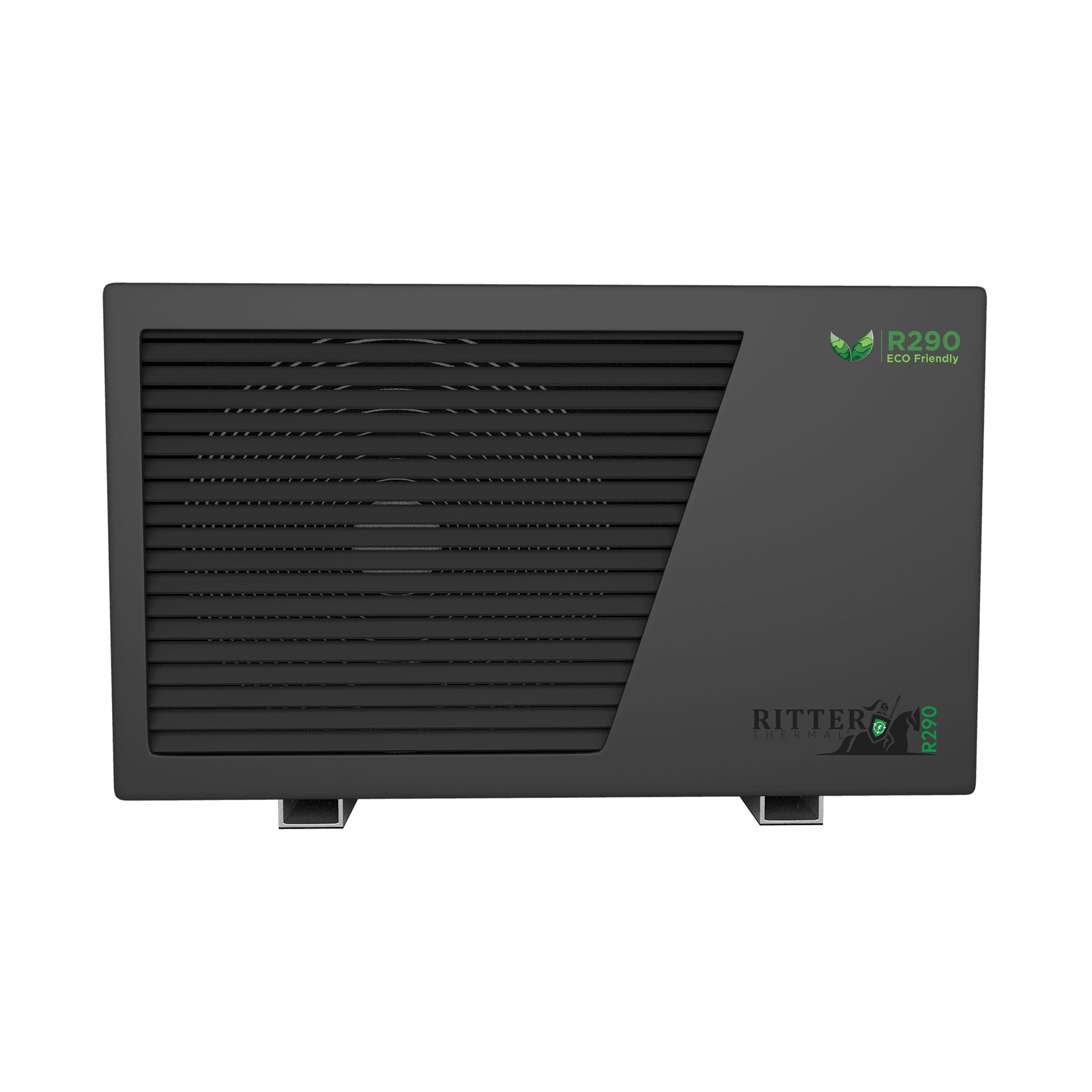

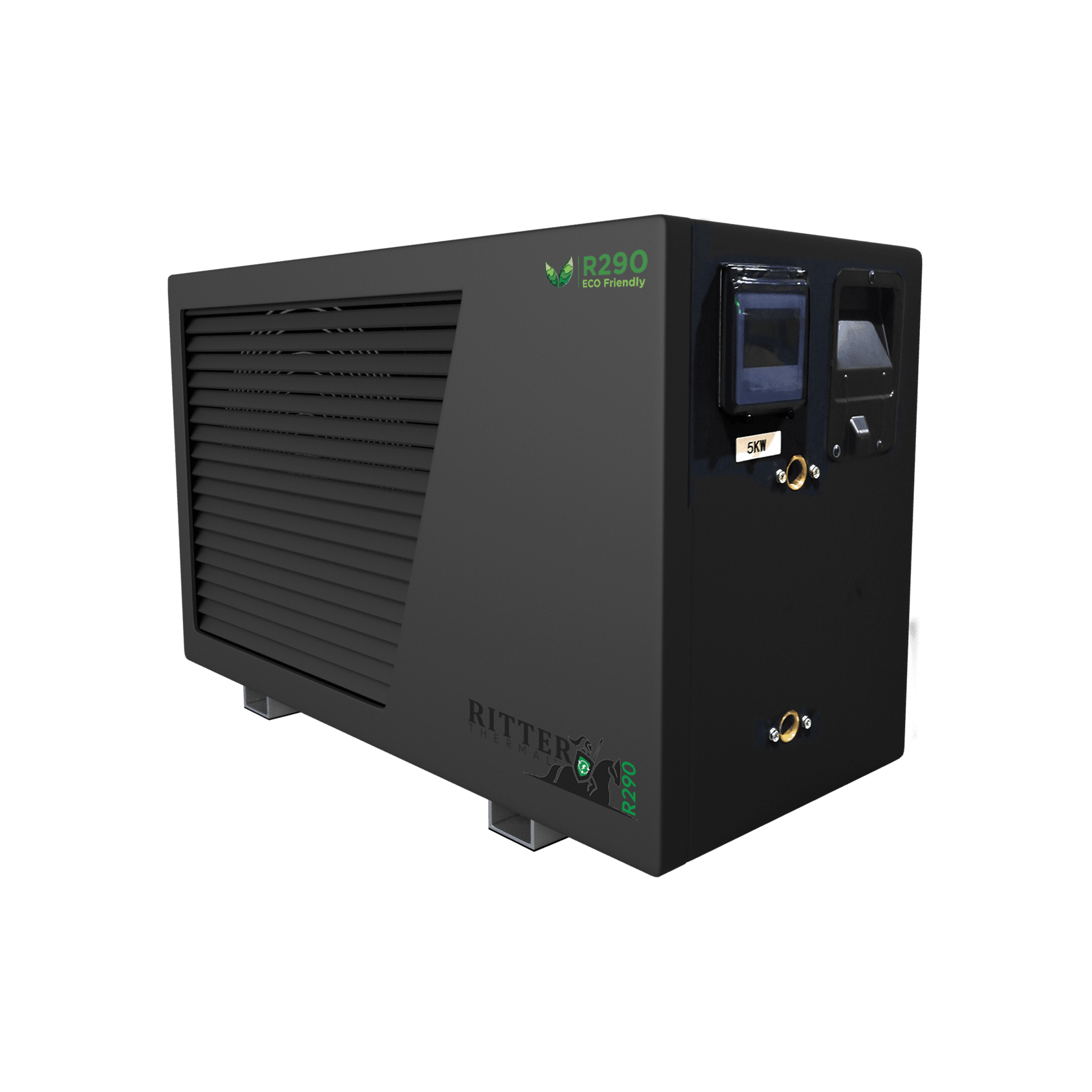

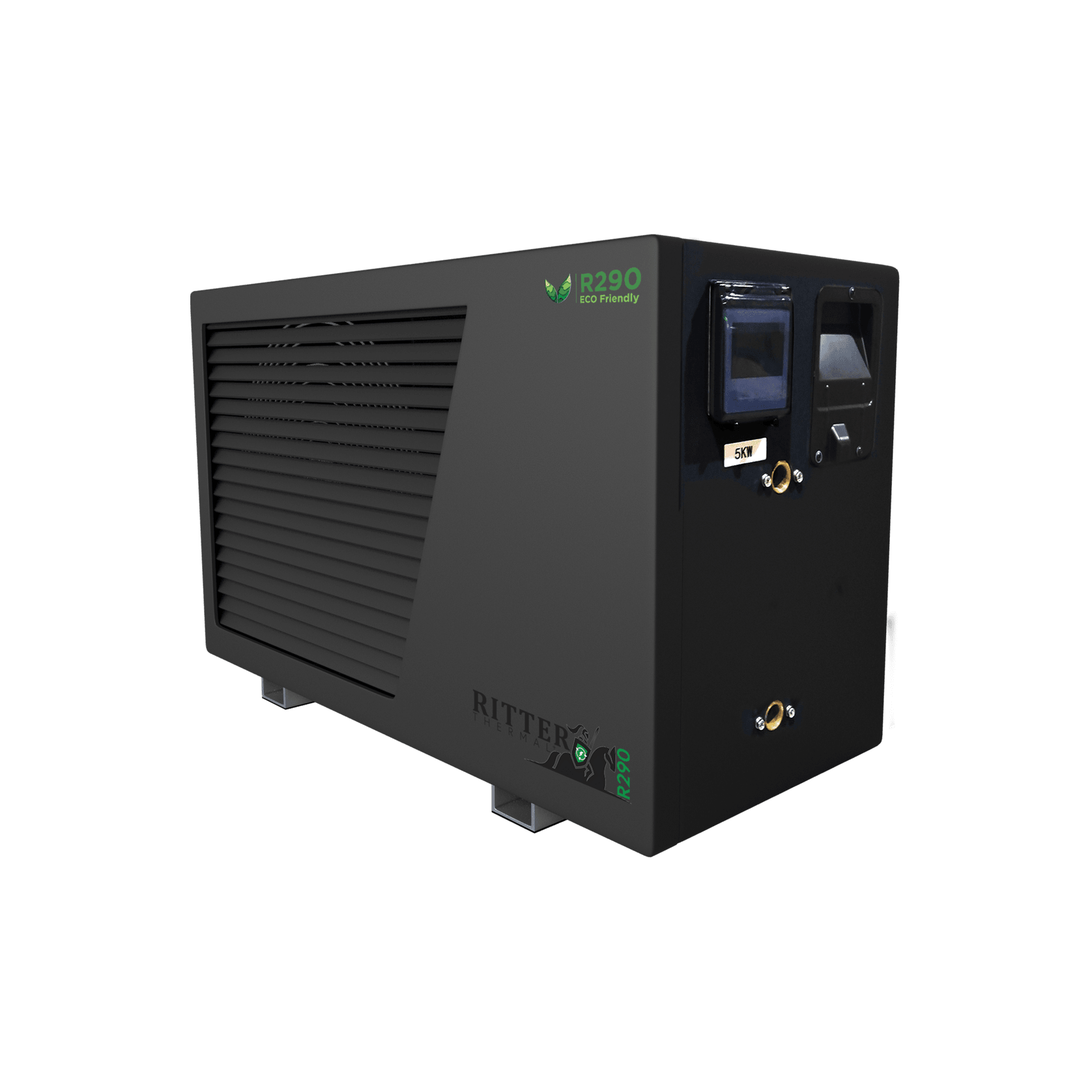

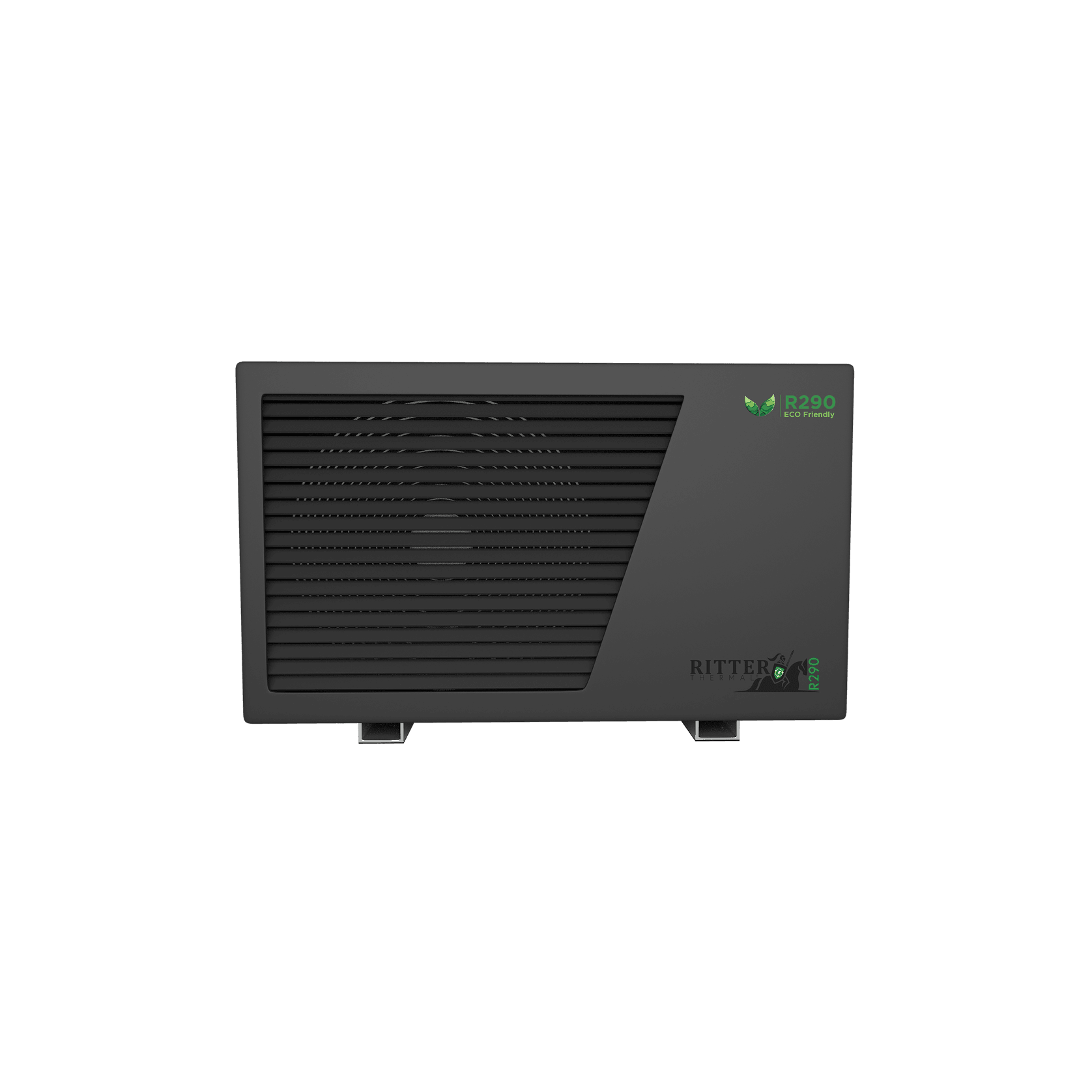

Ritter Hot Water Direct is a high temperature inverter air-to-water heat pump with R290 refrigerant optimized for direct recovery domestic hot water applications. It has an operational outdoor temperature range of -15ºC & 43ºC so it can be safely used for efficient hot water production in all regions of New Zealand.

This series of heat pump can connect directly to most modern mains pressure potable water tanks on the market. With an output flow temperature up to 70ºC it does not require any electric element support and provides significantly higher efficiency and more rapid hot water recovery all year around when compared to popular all-in-one heat pump cylinders.

The Ritter Hot Water Direct is designed for plug-n-play installation with only 2 pipes and one probe and can be placed remotely from the storage tank for ultimate placement flexibility. Control is provided via an included touch screen panel, and it can also connect to your smart phone via Wi-Fi for ultimate convenience. With an attractive metallic case, compact footprint, low noise operation, and a Global Warming Potential (GWP) = 3 it is also good for the environment.

Details
  • Category
    Heat Pumps, Air to Water Heat Pumps, Hot Water Cylinders
  • Range
    Ritter
Specifications

Specification Details:

  • Hot Water Capacity Range (kW): 3.1 to 6.3
  • Power Input Range (kW): 0.7 to 1.5
  • Max Flow Temp: 70ºC
  • Power Supply: 220-240V 50Hz
  • Max Input Current (A): 9.3
  • Refrigerant: R290
  • COP: Up to 5.25 @ A20/15 W15-55
  • Sound Power Level (Max) dB(A): 50
  • Water Connection (Inch): 3/4” BSP
  • Working ambient temperature: -15ºC to +43ºC

Component Manufacturer Details:

  • Compressor: Highly R290
  • Water pump: Shinhoo
  • Condenser: Laxi Langer Energy-saving Technology
  • Heat Exchanger: Danfoss Dual Wall
Scope of use
  • Residential houses and apartments
  • Light commercial (e.g. salons, bars and restaurants)
  • Light industrial (e.g. preheating of wash down water on farms)
Features
  • Direct connection to any suitable domestic mains pressure hot water cylinder.
  • Up to 6.4kW of heating power or 138 litres per hour of hot water production.
  • Premium dual wall plate exchanger for superior safety and efficiency.
  • R290 refrigerant technology for low environment impact (GWP = 3).
  • Inverter technology adjusts power to match demand and conditions.
  • HWC temperature probe included and pre-wired on a 3m cable.
  • LED controller with Wi-Fi app control included as standard.
  • Stylish metal case with a high-quality powder coated finish.
  • Electric boosting element in the HWC not required.
