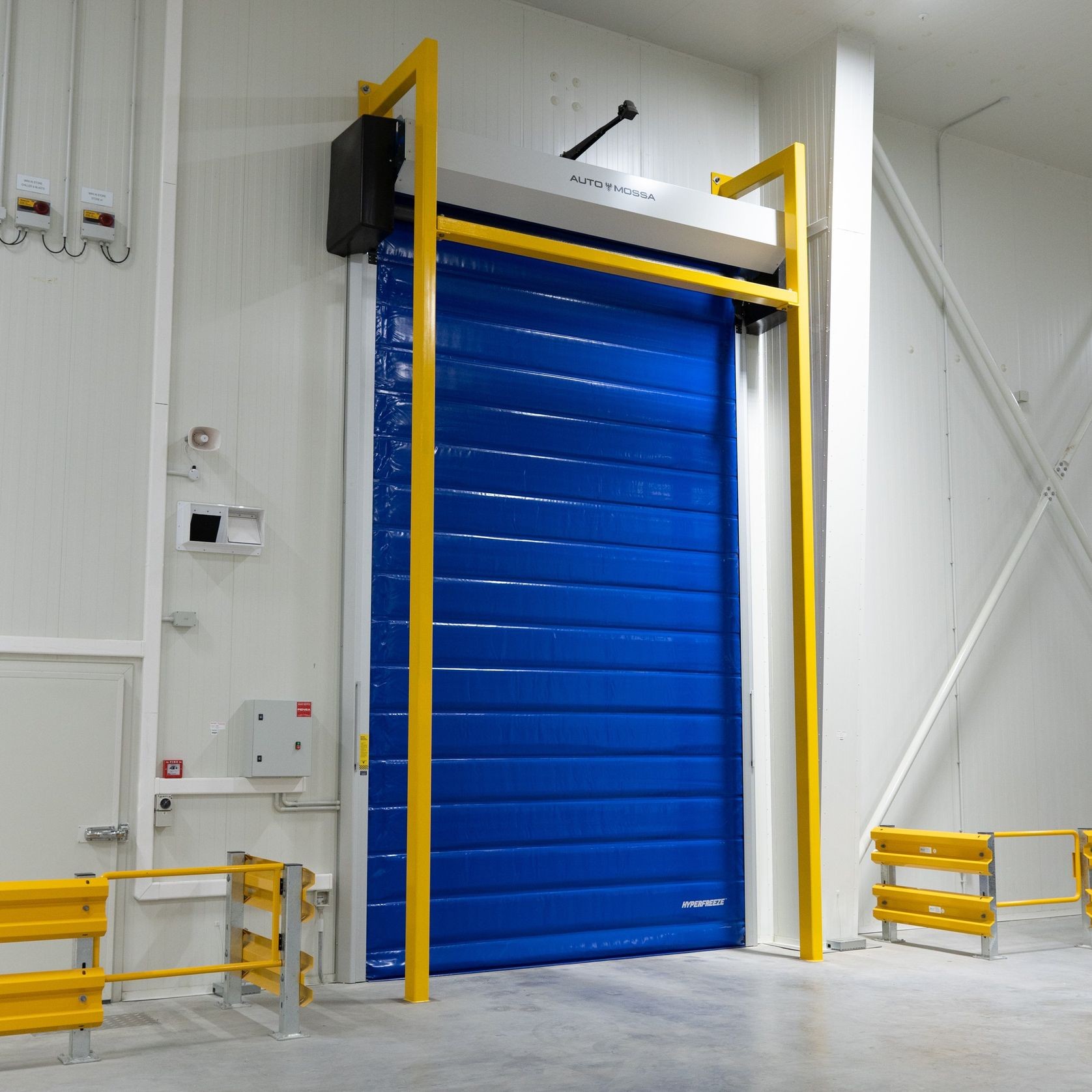

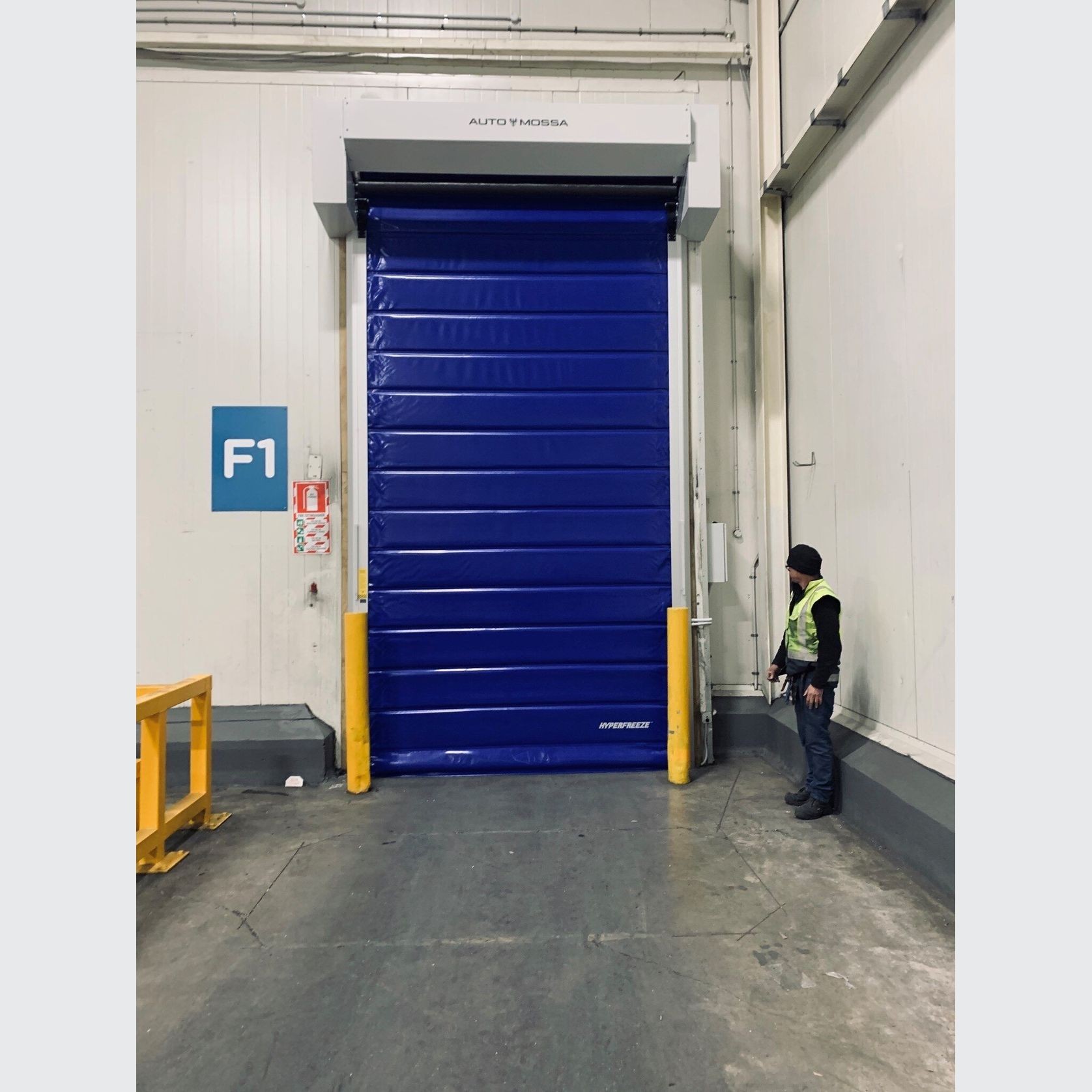

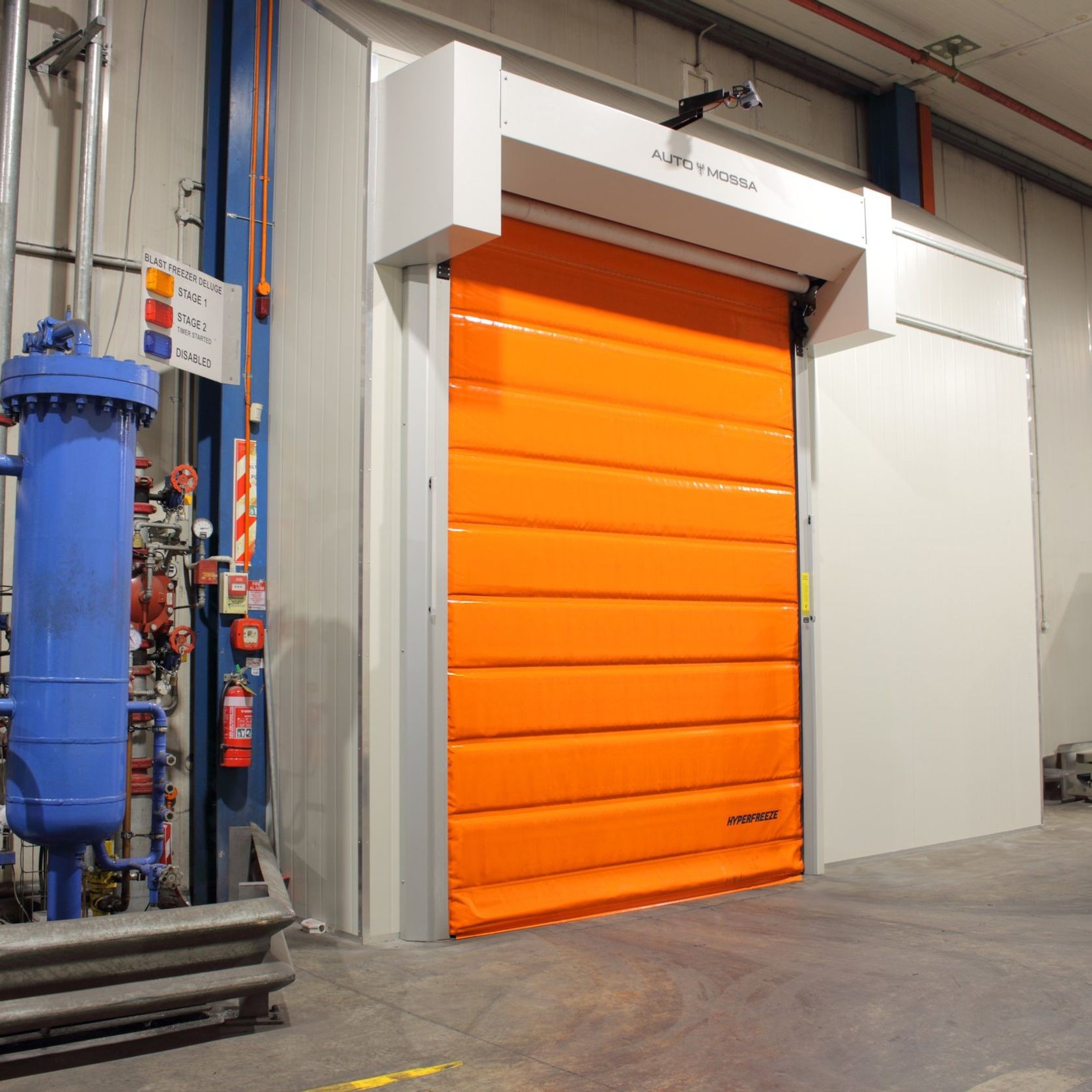

HyperFreeze™ High Speed Freezer Door
The AUTO MOSSA HyperFreeze™ is a new generation High Speed Freezer Door designed for cold storage applications. With its advanced thermal performance the door is suited to operating environments down to -30 degrees C. The door has also been designed to operate without air movement fans in most applications. The other important benefit is the doors resistant to impacts by fork-hoists, with the robust door blade design, crash-out capability and auto relocate feature.
- CategoryCommercial Doors, Roller Garage Doors
- RangeHigh Speed Doors
- BrandAuto Mossa
Door Dimensions
- Max width: 4.0m
- Min Width: 1.5m
- Max Height: 6.0m
- Min Height: 2.0m
Speeds
- Speed Up ≤4.0m w x 4.0m h: 2m/s
- Speed Up ≤4.0m w x 6.0m h: 2m/s
- Speed Down: 0.6m/s
Door Blade Construction
- 900gsm: Standard
- 30mm insulation: Standard
- 40mm insulation: Optional
- AirStripTM: Standard
Door Components
- Side Frames: Aluminum
- Metal Components: Zinc plated
- Fixings: Stainless
- Top Roll: Aluminum
- Double Top Seal: Standard
- Full Hood Cover: Standard
- Side Frame Heaters: Standard
- Full Motor Cover: Standard

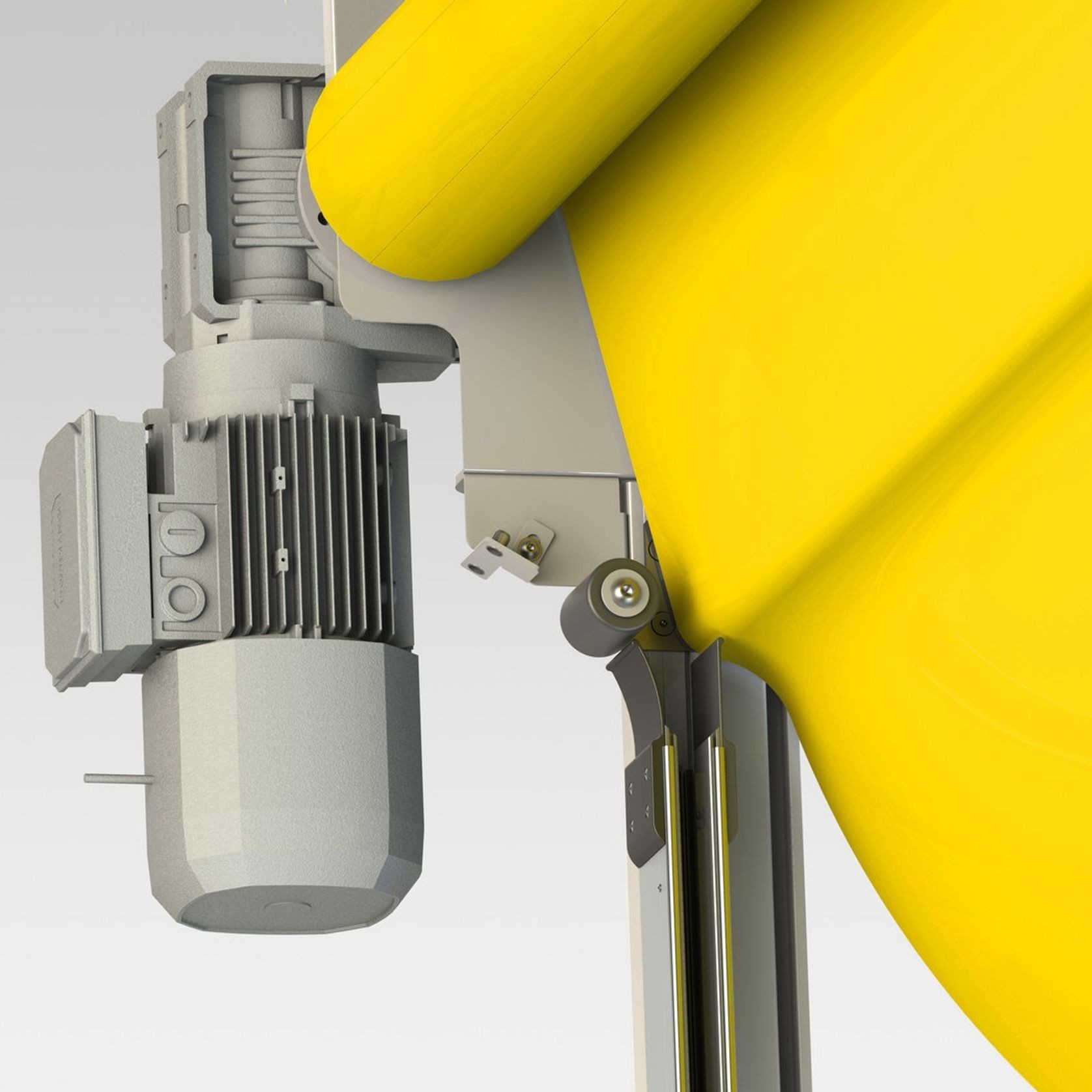

Control and Drive
- PLC and VSD: Standard
- Encoder: Standard
- Voltage ≤4.0m w x 4.0m h: 240v
- Voltage ≤4.0m w x 6.0m h: 415v
- Motor ≤4.0m w x 4.0m h: 1.5kW
- Motor ≤4.0m w x 6.0m h: 2.2-3.0kW
- Protection: IP65
Safety
- Two sets of thru-beam sensors: Standard
- Soft Bottom Edge: Standard
- Manual Op – Hand Crank: Standard
Optional Equipment
- Light Curtain: Optional
- Wind Bars wind class 2: Optional
- Manual Op – UPS: Optional
- Integrated Warning Lights: Optional
- SS Enclosure Grade 316: Optional
- Defrost Ventilation: Optional
- Curtain Bottom Edge Heater: Optional
Thermal
The most important aspect of this door is its thermal performance: five layers of twin wall foil separated by air giving a 30mm thick door blade with a U Value = 0.9 W/m2C. The two outer skins are made up of 900 gsm PVC coated woven fabric giving the overall product a high thermal performance combined with strong impact resistance.
Faster
The HyperFreeze™ High Speed Door operates at speeds of up to 3.0m/sec on doors up to 4.0m wide and 4.0m high. The new AirStrip™ design enables the door to be sized up to 5.0m wide on special applications.
Smoother

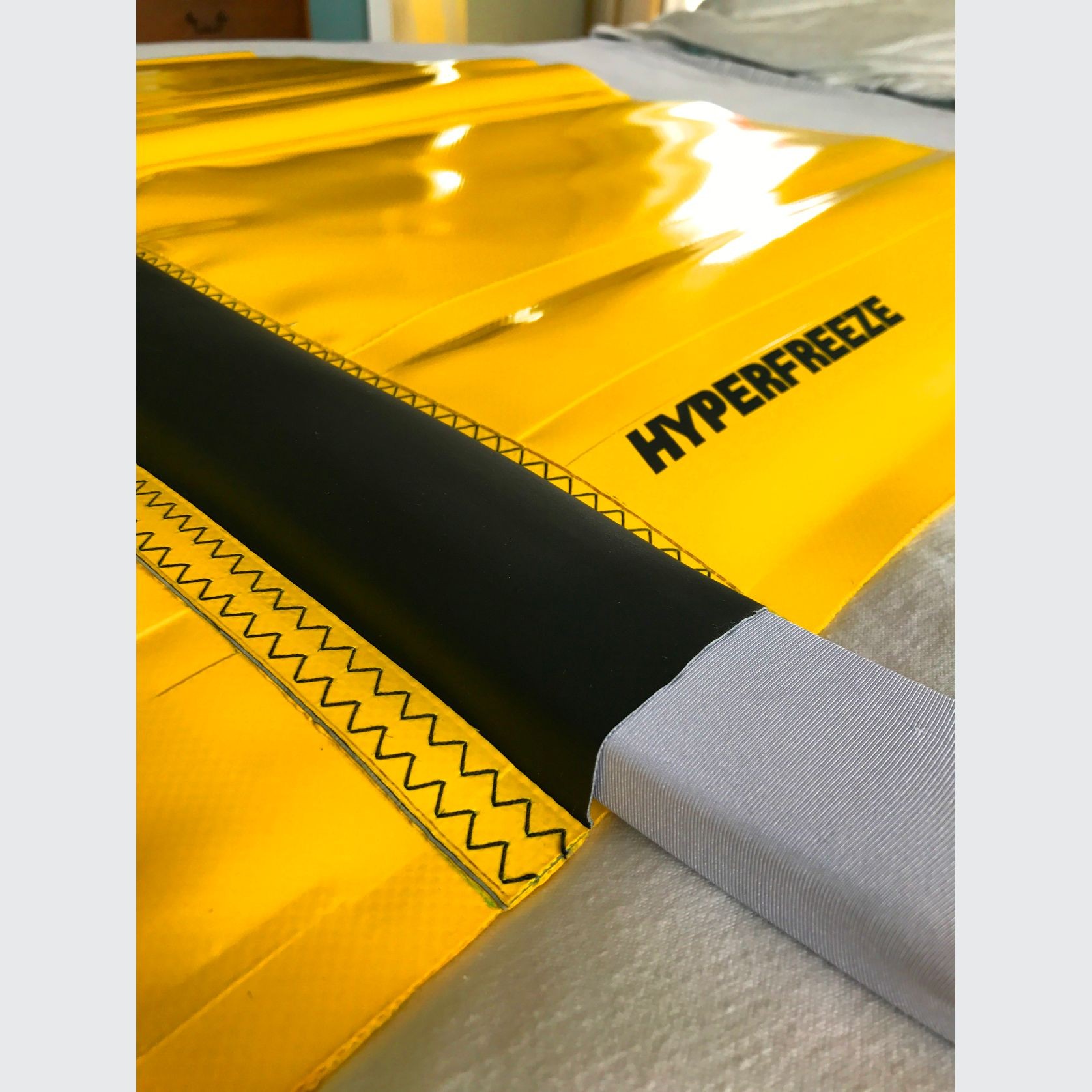

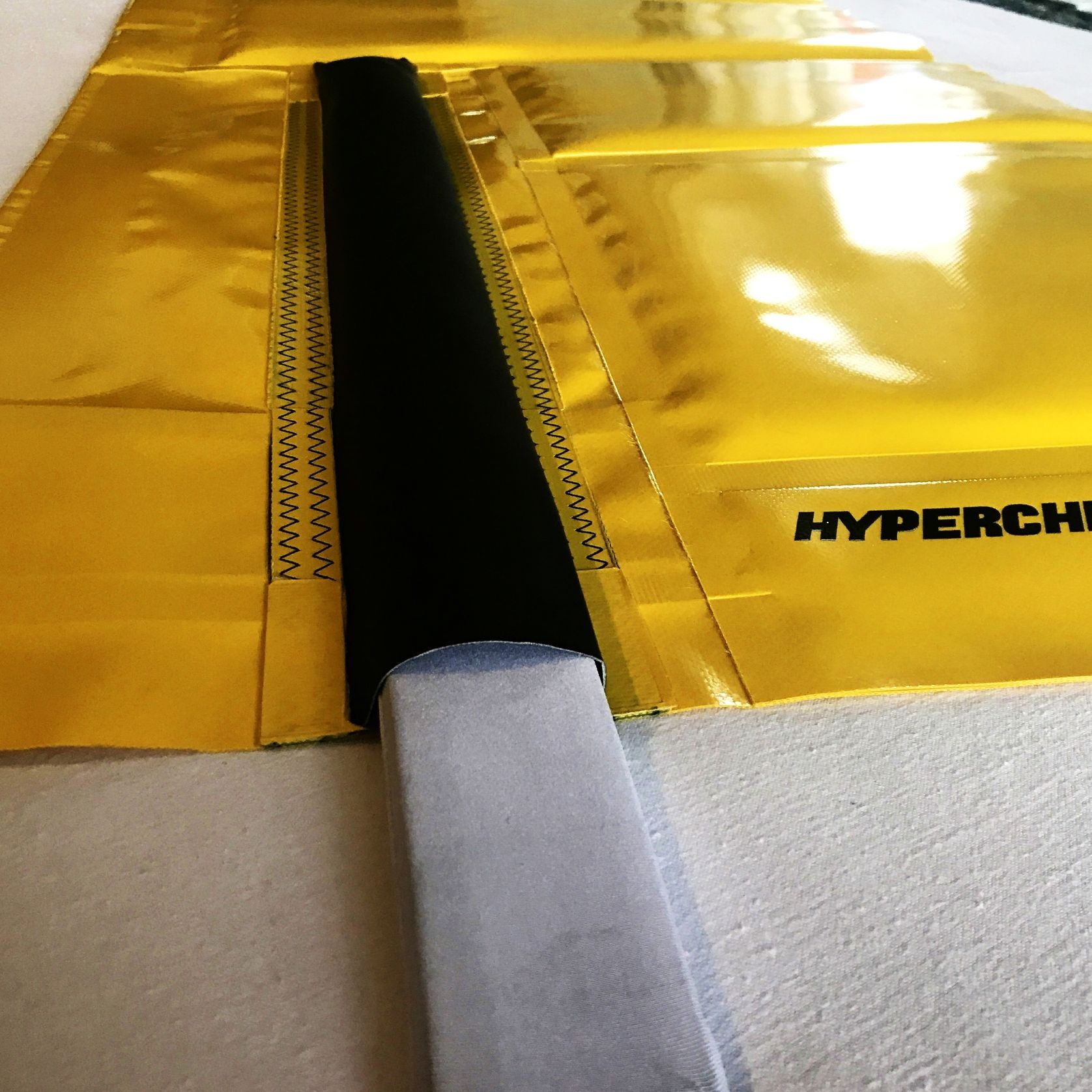

The AirStrip™ was designed to combine high speed with quiet and smooth operation. Constructed from a flexible rubber strip, the Airstrip dampens noise and creates a cushioning effect when the door runs at high speeds.
Separation
The AirStrip™ feature on the Hyperfreeze™ separates the layers of the door blade to ensure that the PVC has minimal contact with itself. Importantly this ensures that there is no load or pressure on the insulation within the door blade, allowing the air-spaces to hold their integrity and therefore the thermal properties of the door are maintained throughout its life.
