HyperGlide™ XL High Speed Door
The AUTO MOSSA HYPRGLIDE XL is the new generation High Speed Door designed for large openings, for both interior and exterior applications.
The door blade is constructed from a robust PVC coated woven fabric. Integrated into the door blade is the patented AIRSTRIP system. This rubber AIRSTRIP design allows the door to operate at faster speeds with a smoother operation without compromising other functions.
The AIRSTRIP also allows the door to be reinforced for unequaled higher wind loadings while still maintaining fast operating speeds.
The door comes standard with a soft bottom edge and knock out / automatic curtain relocation function
- CategoryCommercial Doors, Roller Garage Doors
- RangeHigh Speed Doors
- BrandAuto Mossa
- Warranty1 year
- Country of originNew Zealand
- Type of useCommercial
- InstallationProfessional installation required

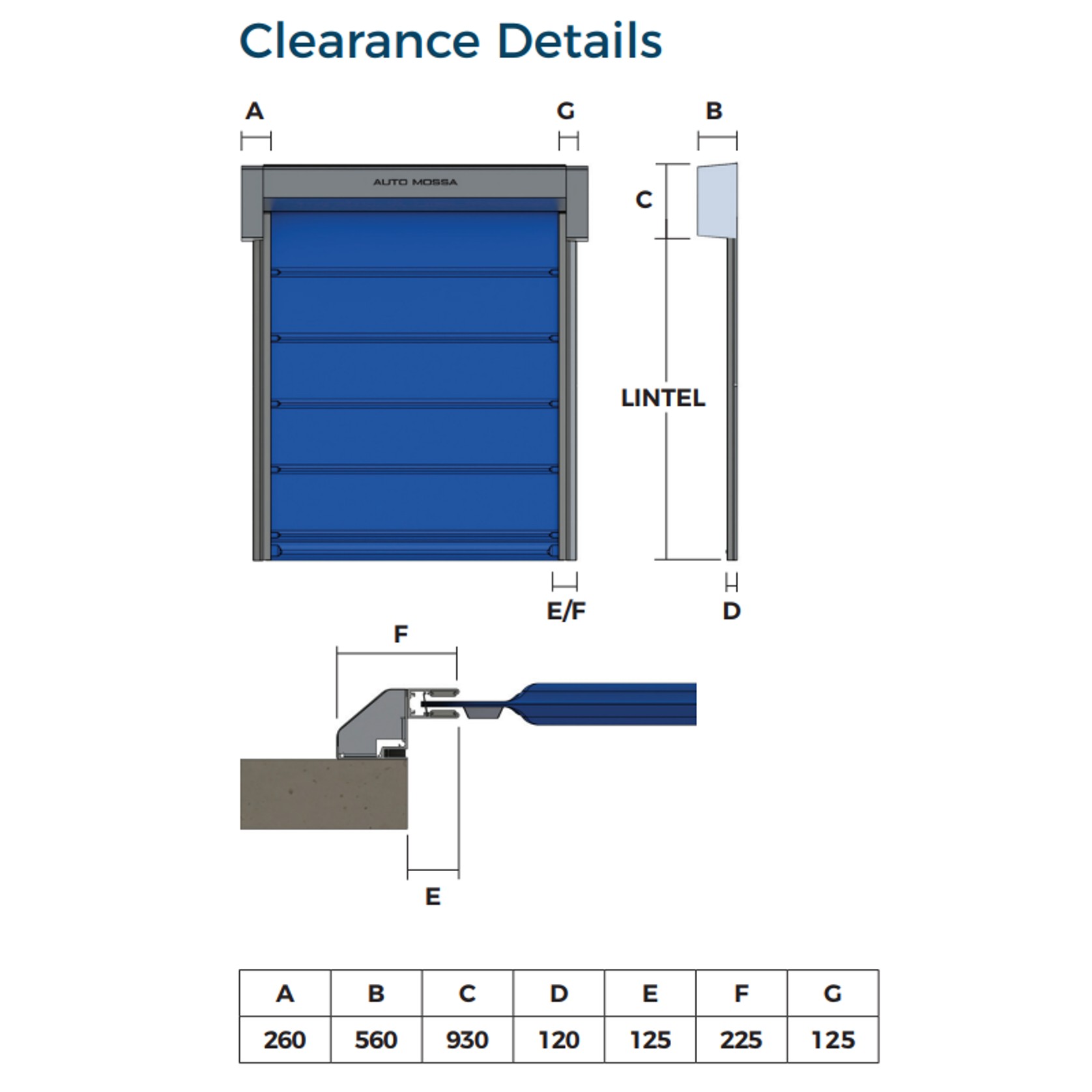

- Standard size up to (W x H)’: 7500 x 6000 mm
- Opening/closing speed up to max.: 2.5 / 0.6 m/s
- Wind resistance: Class 1 - 3 EN 12424
- AirStrip: Standard
- Variable speed drive: Standard
- Control voltage: 24V DC
- Mains connection: PNE 230V, 3L(N)/PE/415V, 50/60 Hz
- 2 x sets of in-line photocells: Standard
- Flexible soft bottom edge: Standard
- Door blade Knock-out capability: Standard
- Top roll cover: Standard
- Motor Cover: Standard
- Curtain colour options: Six standard colours available
Faster
The Hyperglide™ High Speed door will operate at speeds of up to 2.5m/sec and can acommodate openings of up to 7.5m wide x 6m high. The new AirStrip™ design enables the door to operate at these speeds without wear on the door blade.
Quieter
The AirStrip™ was designed to combine high speed with quiet and smooth operation. Constructed from a flexible rubber strip, the Airstrip dampens noise and creates a cushioning effect when the door runs at high speeds.
Cleaner
The AirStrip™ feature on the Hyperglide™ separates the layers of the door blade to ensure that the PVC has minimal contact with itself. This will ensure that dirt is not infused into the PVC, protecting the vision panels and preventing surface damage over many thousands of cycles.
Stronger
Many door designs over 4.0m wide struggle to perform in high winds. This is often a result of the track retention systems being under excessive load, or the rigidity of the door blade is not up to the task. The Hyperglide™ XL AirStrip™ design enables the wind bar system to be greatly strengthened to handle higher wind class up to 7.5m wide x 6.0m high. Increasing the integrity of the wind bars has no impact on the speed or the smoothness of the door operation.
