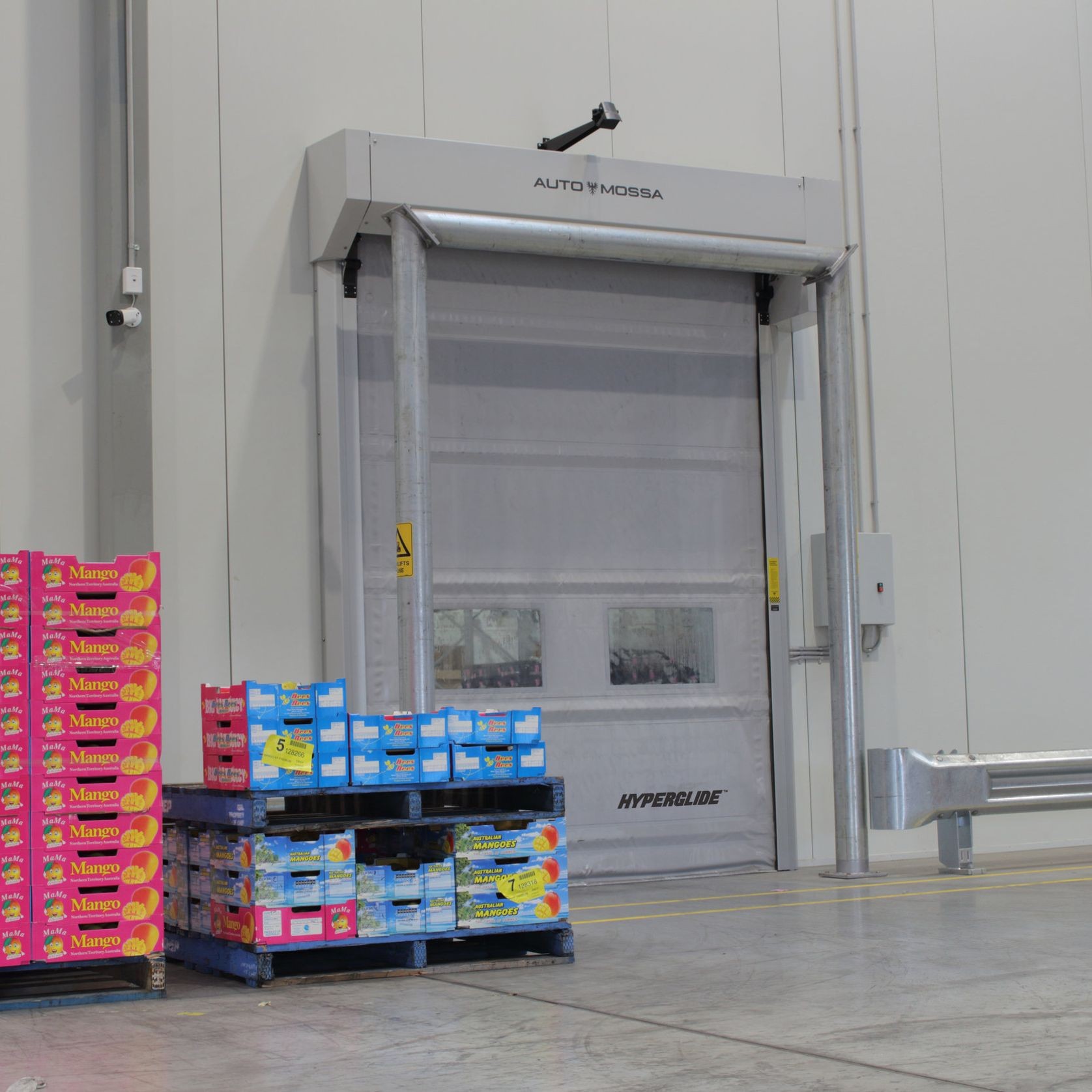

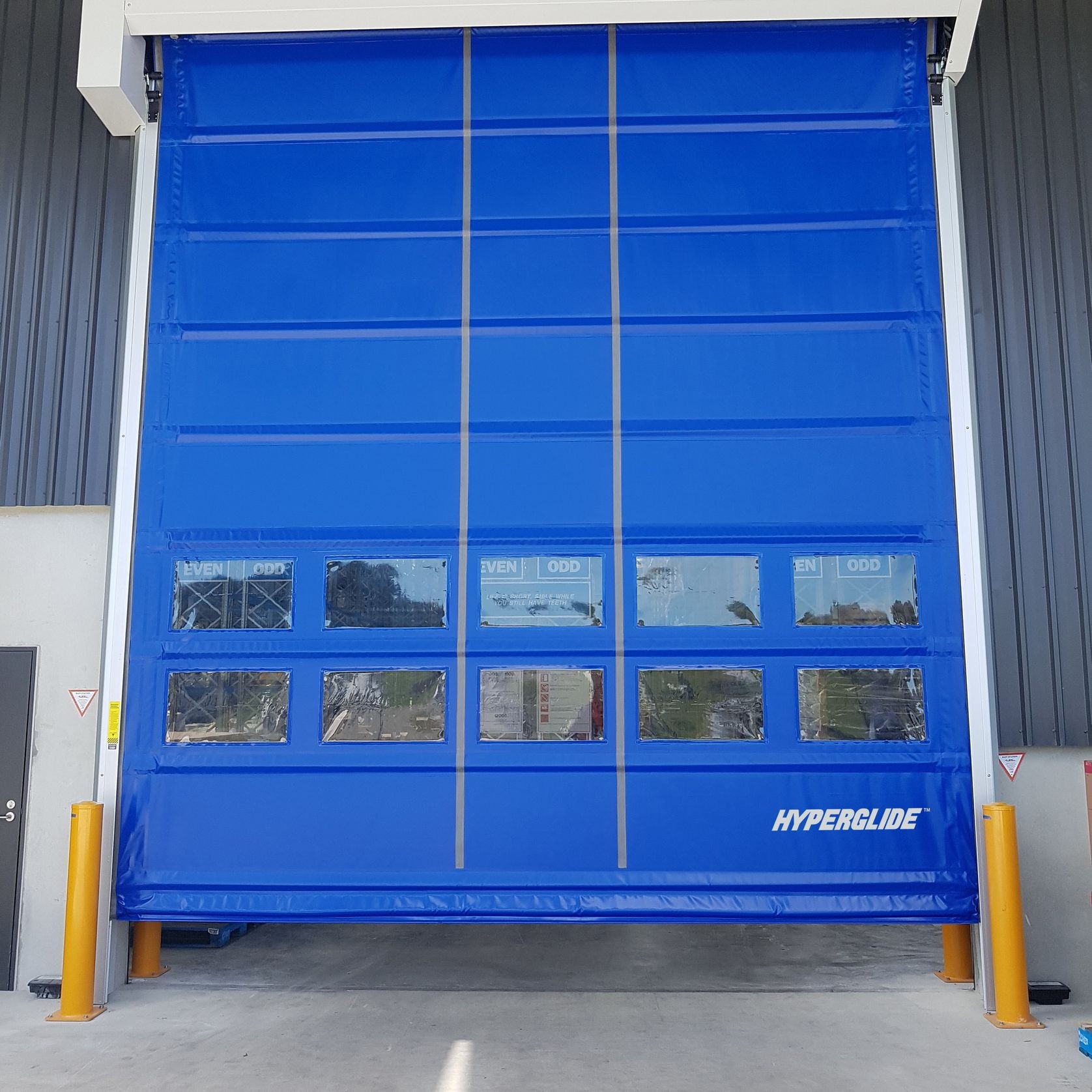

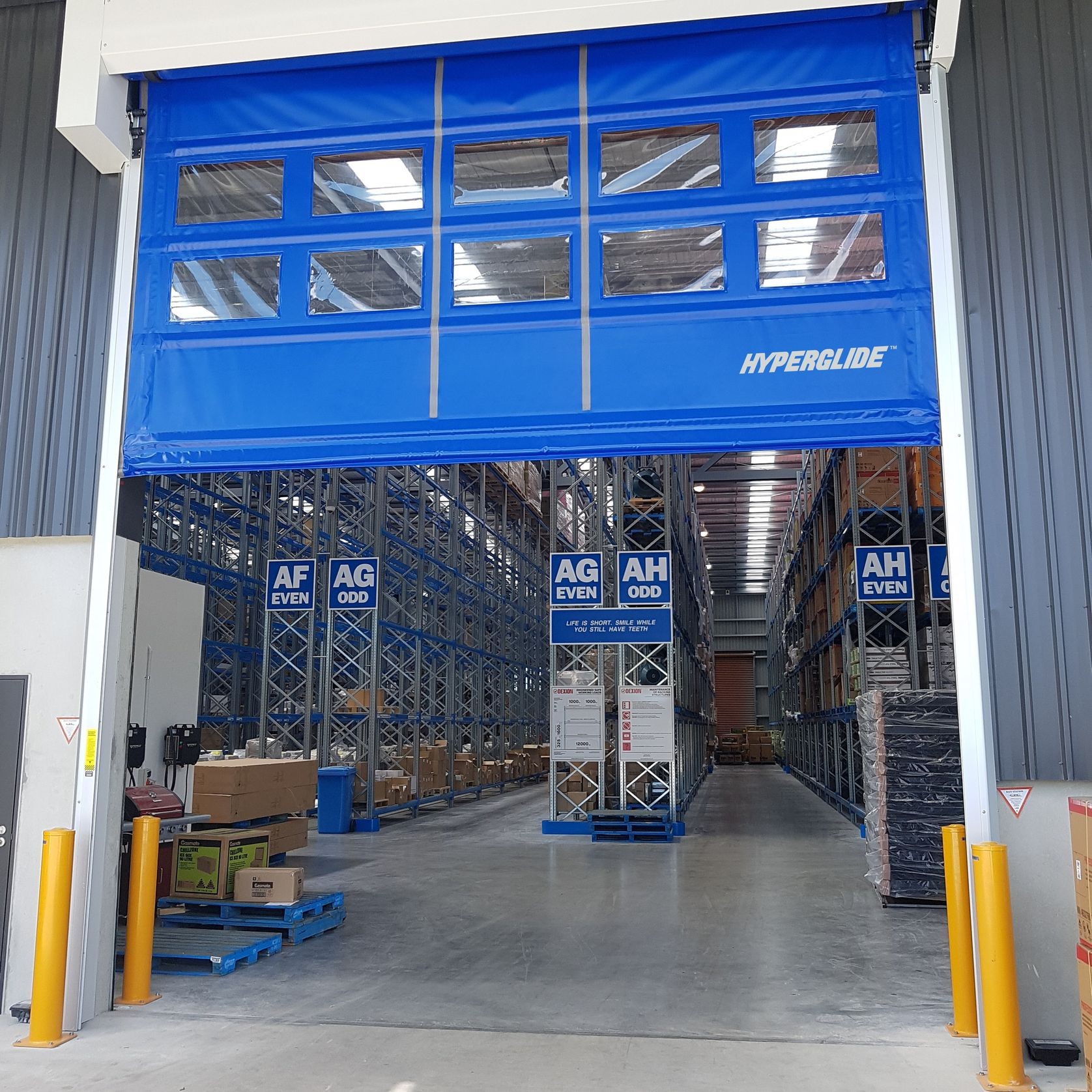

Hyperglide™ High Speed Door

By Auto Mossa
Visit Website

The Hyperglide™ High Speed Door you are about to look at has a number of features brought about by a simple idea – to increase the performance of both the speed and wind resistance of the door. This was achieved through the development of the AirStrip™ – an innovative and effective design feature that has transformed the standard door design to one with key advantages.

Details
  • Category
    Commercial Doors, Roller Garage Doors
  • Range
    High Speed Doors
  • Brand
    Auto Mossa
Specifications
  • Standard size up to (W x H)’: 6000 x 6000 mm
  • Opening/closing speed up to max.: 2.5 / 0.6 m/s
  • Wind resistance: Class 1 - 3 EN 12424
  • AirStrip: Standard
  • Variable speed drive: Standard
  • Control voltage: 24V DC
  • Mains connection: PNE 230V, 3L(N)/PE/415V, 50/60 Hz
  • 2 x sets of in-line photocells: Standard
  • Flexible soft bottom edge: Standard
  • Door blade Knock-out capability: Standard
  • Top roll cover: Standard
  • Motor Cover: Standard
  • Curtain colour options: Six standard colours available
Features

Faster

The Hyperglide™ High Speed door will operate at speeds of up to 3.0m/sec on doors up to 4.0m wide and 4.0m high and 2.0m/sec on doors up to 6.0m wide x 6.0m high. The new AirStrip™ design enables the door to operate at these speeds without wear on the door blade.

Quieter

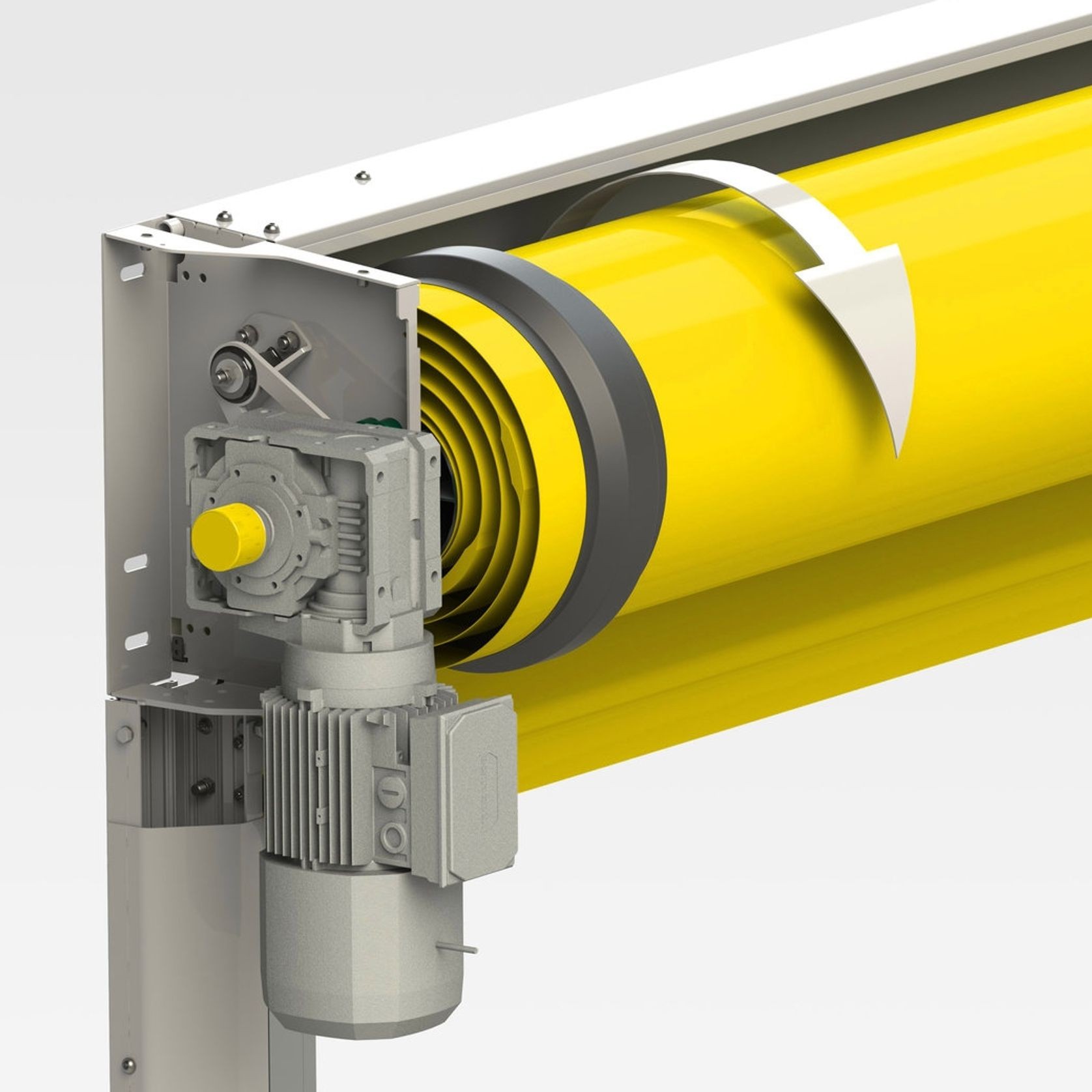

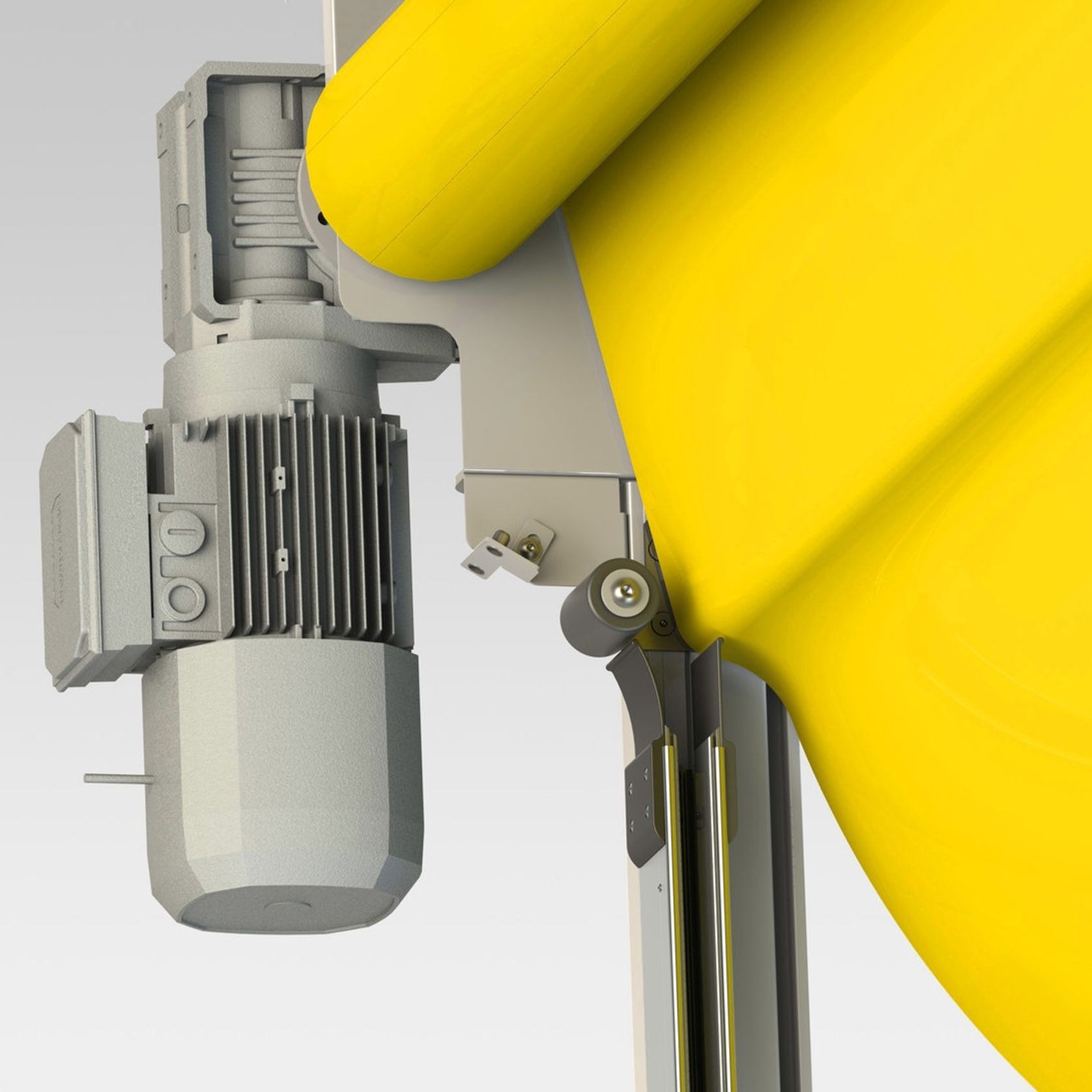

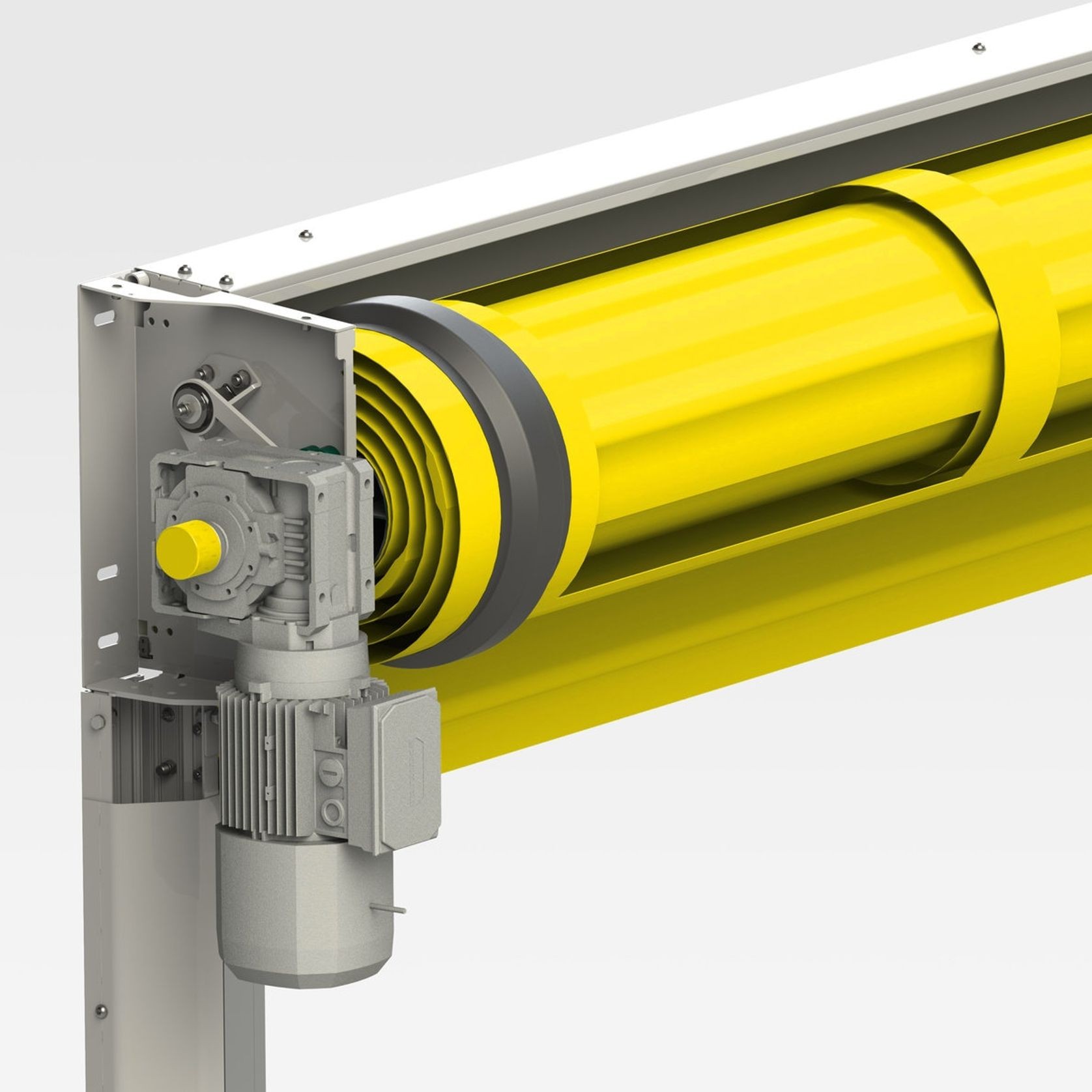

The AirStrip™ was designed to combine high speed with quiet and smooth operation. Constructed from a flexible rubber strip, the Airstrip dampens noise and creates a cushioning effect when the door runs at high speeds.

Cleaner

The AirStrip™ feature on the Hyperglide™ separates the layers of the door blade to ensure that the PVC has minimal contact with itself. This will ensure that dirt is not infused into the PVC, protecting the vision panels and preventing surface damage over many thousands of cycles.

Stronger

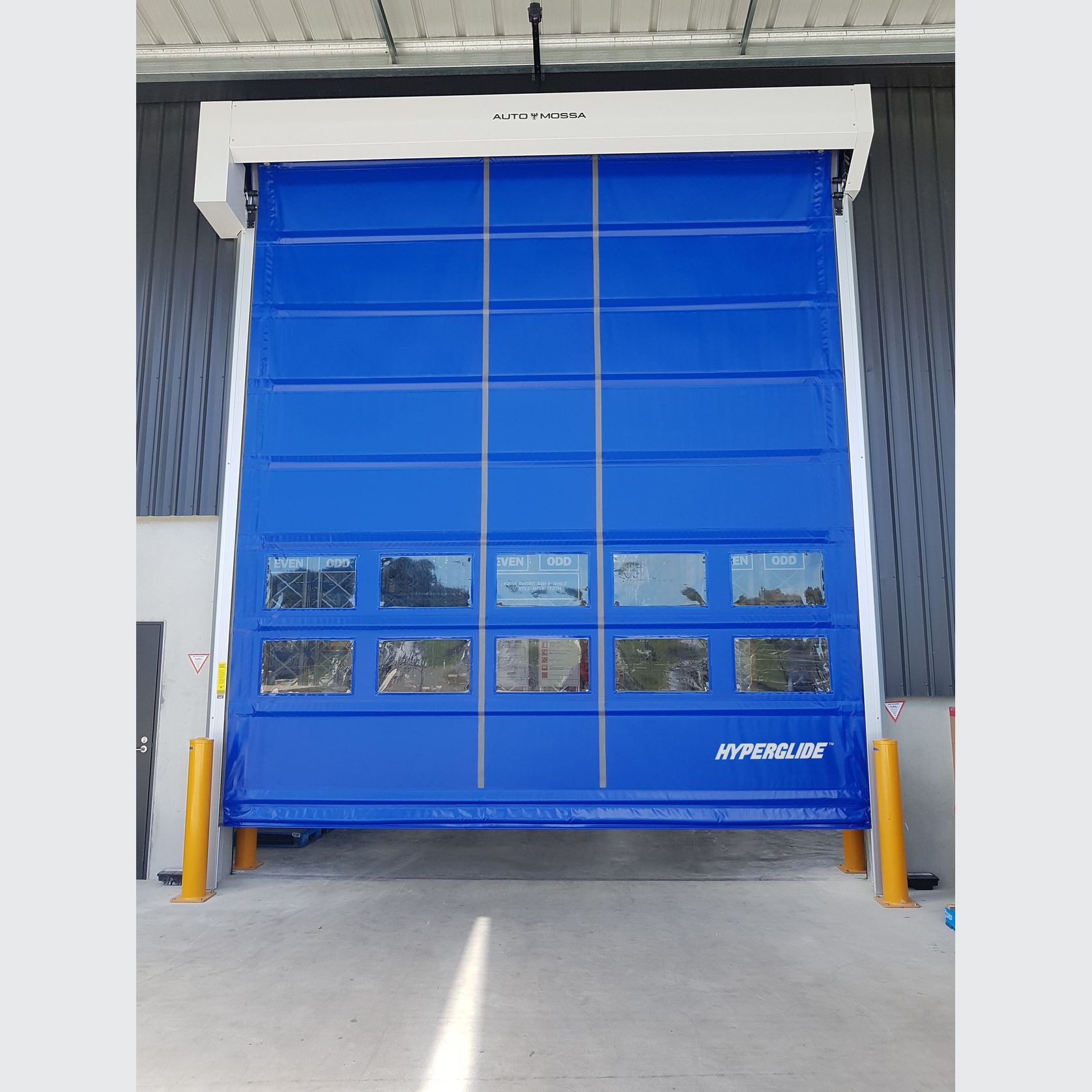

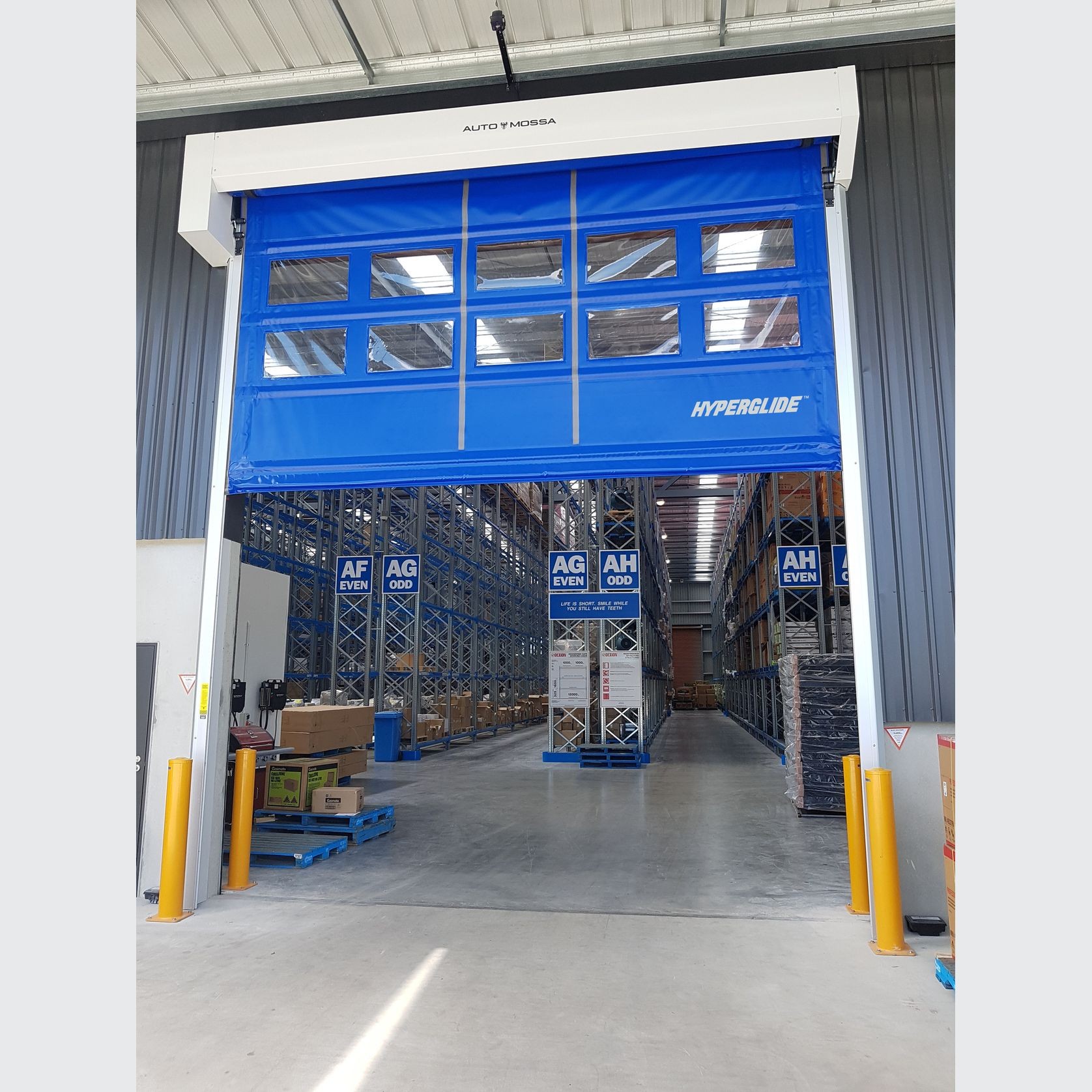

Many door designs over 4.0m wide struggle to perform in high winds. This is often a result of the track retention systems being under excessive load, or the rigidity of the door blade is not up to the task. The Hyperglide™ AirStrip™ design enables the wind bar system to be greatly strengthened to handle higher wind class up to 6.0m wide x 6.0m high. Increasing the integrity of the wind bars has no impact on the speed or the smoothness of the door operation.
