In Screed Floor Heating

Coldbuster Floor Heating
Visit Website
In Screed Floor Heating gallery detail image
In Screed Floor Heating gallery detail image
In Screed Floor Heating gallery detail image
In Screed Floor Heating gallery detail image

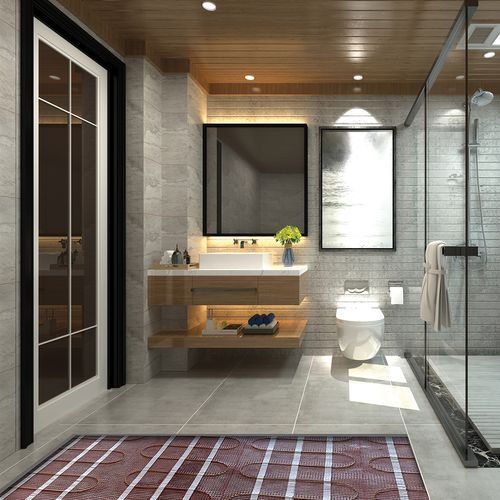

Coldbuster In Screed Heater Installation in A Wet Area
In Screed Floor Heating gallery detail image

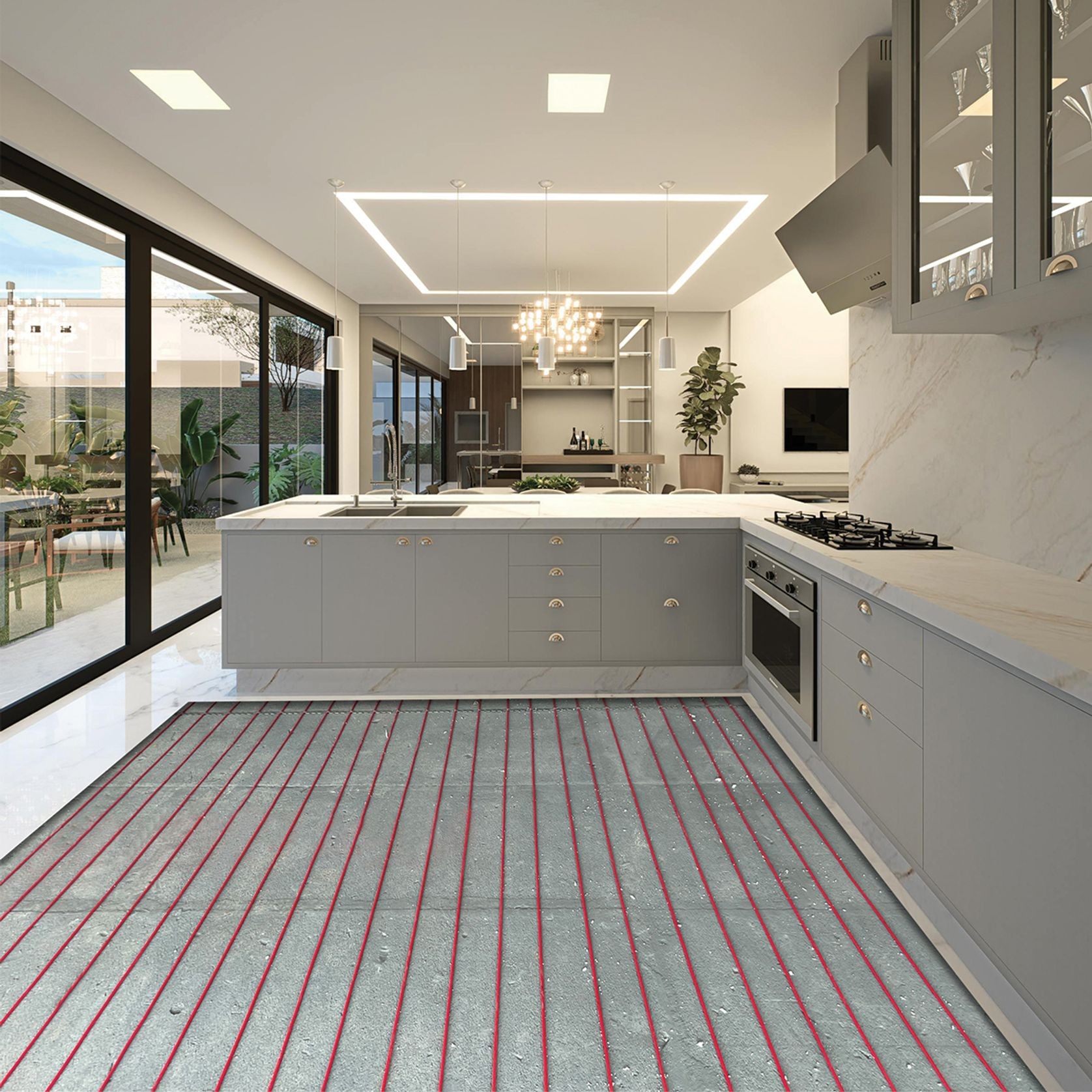

Coldbuster In Screed Heater Installation in A Dry Area

The ideal choice for heating the majority of floor finishes, including stone, porcelain and ceramic tiles. Our in-screed heaters are designed to be installed directly onto your existing subfloor. The screed bed can then be laid over the floor heating cables. The heaters, in combination with our smart programmable thermostats, ensure heating efficiency and economical running costs. In-screed heaters come in 14 standard lengths and can be combined to heat large areas.

The Coldbuster in-screed heating cable is a bi-directional, single-ended 6mm heating cable, rated at 18W/m and supplied as a cable on a roll. To achieve the required wattage per square meter, secure the cable at the spacing centres according to the simple formula provided. The In Screed Heating Cable has a single 3m long cold tail lead that can be connected to a programmable or manual thermostat control. A range of 14 standard lengths or a combination of these lengths caters for all area sizes and shapes.

Details
  • Category
    Underfloor Heating, Concrete Flooring
  • Range
    Floor Heating
  • Brand
    Coldbuster
  • Warranty
    25 years
Attributes
  • General features
    • Heating
    • Resilient
  • Room/Use
    Indoor/outdoor
General
  • Type of use
    Commercial and Residential
  • Care and cleaning
    Easy maintenance
  • Installation
    • Easy self install
    • Professional installation recommended
  • Assembly
    • Easy self assembly
    • Professional assembly recommended
Specifications

The Coldbuster in-screed under floor heating cable is:

  • Teflon coated, 6mm thin loose heating cable, supplied on a reel with a single 3m long cold tail
  • 18W/lineal meter

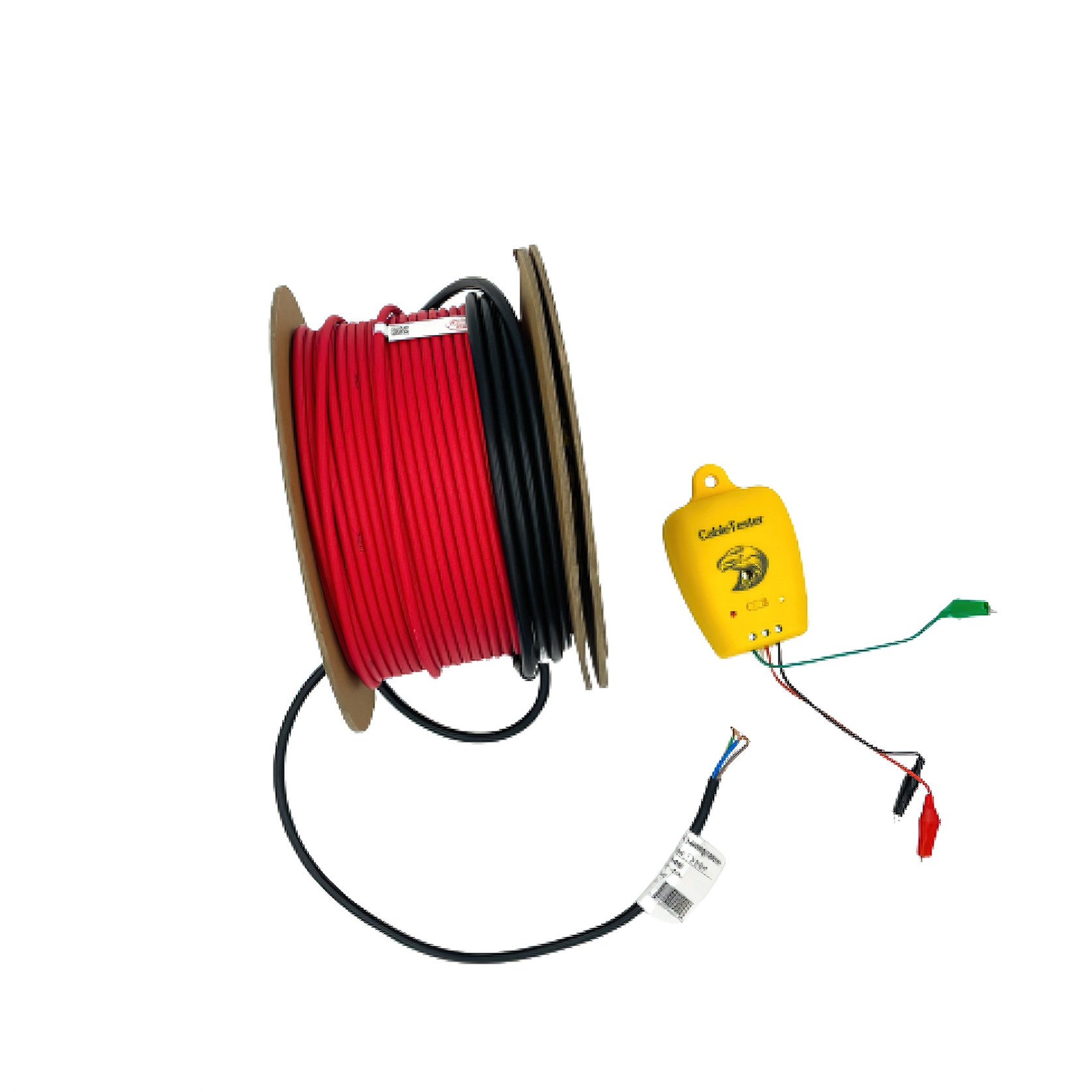

Included in each kit:

  • In-Screed Heater on a reel
  • Installation Monitor (element alarm) with battery
  • Installation Manual
  • 25 Year Warranty
  • Note: Thermostats sold separately

Basic Installation Instructions:

  • Calculate the cable spacing based on the floor area to be heated and the length of the heater (formula on each heater box and inside the installation manual.
  • Plan heater layout before securing the heating to the subfloor in order to ensure it will fit properly into the floor space available
  • Ways to fix the heating cable to the subfloor:Non-Wet Areas
Scope of use

This product is designed to be installed directly on the existing sub-floor or on top of waterproofing.

Features
  • Suitable for majority of floor finishes, including stone, ceramic tiles, slate, porcelain, limestone, marble, terracotta and more.

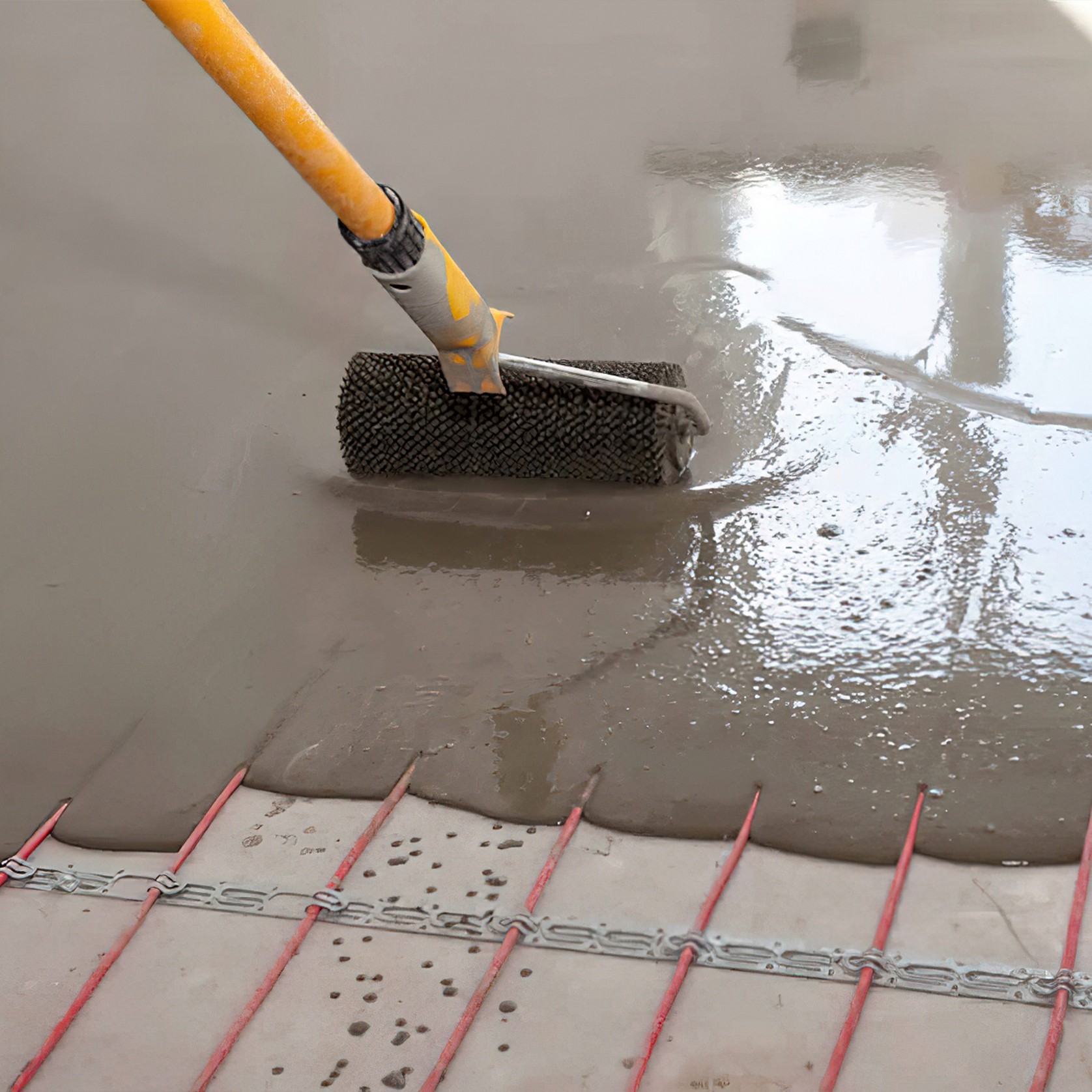

  • Designed to be installed directly on the existing sub floor or on top of waterproofing. The screed layer is then applied on top of the heaters and floor finish is laid over the top of the screed.
  • Easy DIY install or Coldbuster installation services are available.
Awards and Recognition
SKU: SCK
You're in good company! How can we help you?
Visit Website

About the
Seller

Coldbuster Floor Heating is the leading supplier of electric floor heating Australia-wide supplying a range of floor heating and related heating products to the trade, retail and DIY markets.

With over 27 years experience, we import and distribute only the best quality products manufactured by top international companies that invest substantial funds in new product Research and Development in consultation with Coldbuster, ensuring leading-edge technology.

Our products meet European quality standards and have ISO certification and USA Underwriters Laboratory listings. The products meet Australian standards regarding volatile organic compounds and electromagnetic radiation.
