​Invisedge ™ - The Virtually Invisible Edging

By Sage Doors
Website

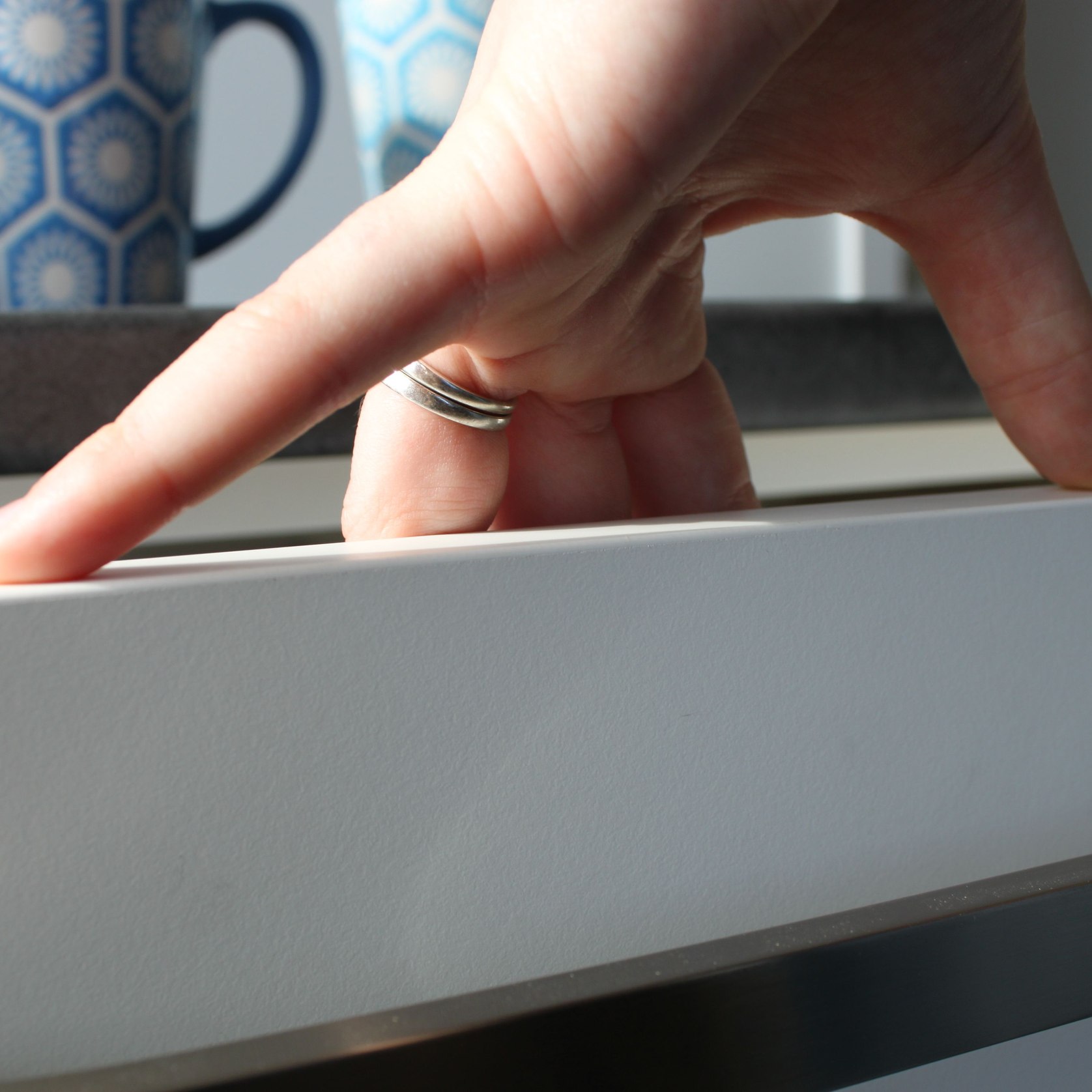

Advancements in technology have enabled Sage Doors to manufacture melamine doors with a virtually seamless edge. As the edgetape is melted directly to the edge of the board, there is no glue line.

HOW DOES INVISEDGE™ WORK?

​Invisedge ™ is a new edge banding technology in which the edgetape is melted directly to the edge of the board. This eliminates the need for standard bonding agents such as glue to be used to adhere the edging to the board, enabling us to manufacture doors with no ugly glue-line around the edge.

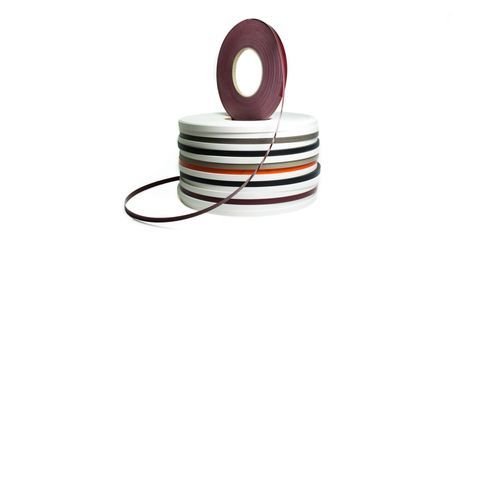

Sage Doors has invested into the future by using the next generation of plastic edge bandings from MTK in Germany – Polypropylene (PP),

THE ADVANTAGES OF USING SAGE DOORS' INVISEDGE™

Environmentally Friendly: the manufacture of polypropylene edge tape requires less energy to manufacture than alternative plastics and when recycled, it produces only carbon dioxide and water.

Less Shrinkage: Hot air technology uses extremely hot compressed air to melt the functional layer and fuse it onto the board. Polypropylene does not shrink during the cooling process, ensuring a seamless edge with no glue line.

Dedicated Colour Matching: Our colourfast tape has been matched to our board finishes for a perfect finish every time.

Hard Functional Layer: the functional layer is as hard as the outer layer to give you a solid edge. When this layer is bonded there will be no indents for dirt to gather due to its unique hardness.

Tight corners: our MKT Alpha-Tape® Zero can fully weld to itself at the joint in the corners, this enhances the seamless joint to give you a perfected molded panel.

Details
  • Category
    Kitchen Panels
Colour Range

SNOWDRIFT NATURALE & SATIN

  • a crisp, clean white
  • Mitred Handle:      Yes
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210

WARM WHITE NATURALE & SATIN

  • a warm white… literally.
  • Mitred Handle:      Yes
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210

FEATHER WHITE VELVET

  • a creamy warm white
  • Mitred Handle:      Yes
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     2430×1210

BAIKAL NATURALE

  • grey off-white
  • Mitred Handle:      Yes
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210

STREETLIGHT NATURALE

  • a creamy warm white
  • Mitred Handle:      Yes
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210

ANTIQUE WILUNA WHITE NATURALE

  • Mitred Handle:      Yes
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 57mm
  • Max Panel Size:     3650×1210

FOG NATURALE

  • like a foggy morning.
  • Mitred Handle:      Yes
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210

SEAL GREY NATURALE

  • soft clean grey
  • Mitred Handle:      Yes
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210

MIST NATURALE

  • misty grey colour with a warm tone.
  • Mitred Handle:      Yes
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210

SILVER STRATA NATURALE

  • Mitred Handle:      Yes
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210

ROCK SALT NATURALE

  • Mitred Handle:      Yes
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210

SILVER VAPOUR PEARL

  • Mitred Handle:      Yes
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210

SNOWDRIFT PUREGRAIN

  • Mitred Handle:      Yes
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210

MELTECA AGED ASH PUREGRAIN

  • Mitred Handle:      Yes (some whitening may occur on the corner of the mitre)
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210

MELTECA SEASONED OAK PUREGRAIN

  • Seasoned Oak? Seasoned with Salt and Pepper – perfection!
  • Mitred Handle:      Yes (some whitening may occur on the corner of the mitre)
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210

MELTECA DARK OAK WOODGRAIN

  • Mitred Handle:      Yes (some whitening may occur on the corner of the mitre)
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210

MELTECA BURNISHED WOOD PUREGRAIN

  • Mitred Handle:      Yes (some whitening may occur on the corner of the mitre)
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210

VELVETEEN NATURALE

  • Mitred Handle:      Yes
  • Thicknesses:           18mm, 25mm
  • Max Panel Size:     3650×1210

BULLET NATURALE

  • Mitred Handle:      No
  • Thicknesses:           18mm, 25mm
  • Max Panel Size:     3650×1210

BLACK NATURALE

  • Mitred Handle:      No
  • Thicknesses:           18mm, 25mm, 30mm, 36mm, 60mm
  • Max Panel Size:     3650×1210
Specs / Details

THE FACE

We use quality melamine from leading New Zealand suppliers for the face of our Invisedge® door range.

THE EDGE

The edge tape is melted directly to the edge of the board, eliminating the need for glue and enabling us to manufacture doors with no ugly glue lines. Invisedge® doors are edged on custom built Homag KAL 310 edgebanders to create a superior edge

Following latests trends in Europe, we use a 1.2mm thick edge.

Sage Doors Invisedge® take advantage of the benefits of MKT Alpha-Tape®PP Zero. This Polypropylene edgetape has many advantages over PVC or ABS – it is more environmentally friendly, it shrinks less, is more chemical resistant, and is colourfast.

IT’S NOT JUST LASEREDGE. IT’S SAGE DOORS’ INVISEDGE®.

Get in touch
If you have any questions or you’d like samples of any of our door profiles you've seen please contact us here.
