The Lockwood 2615 Series is a non-handed CAM Action Door Closer.

Due to the CAM design this premium door closer is light to open but still strong enough to close a door.

The Lockwood 2615 Door Closer can be adjusted to meet the requirements of a light door opening resistance and is ideal for both interior and exterior doors.

The Lockwood 2615 is light to open, but its adjustable closing force is high enough for heavy duty applications.

For disabled toilet applications where a breakout feature is required, the double action of the mechanism allows the door to be operated in the opposite direction for easy access into the room.

One model (2615) covers right hand and left hand applications, pull side/ push side applications and also features an adjustable arm height.

The 2615 has a very high efficiency of 70% - 80%.

Details
  • Category
    Door Closers
  • Range
    Lockwood
  • Brand
    Lockwood
Specifications
  • Power: EN adjustable 1 to 5
  • Back check (BC): Adjustable
  • Hold Open: Adjustable. Hold-open can be set at any angle up to 120° of opening
  • Handing: Non-handed. Suitable for left or right hand doors.
  • Cover: Formed metal cover
  • Materials: Cast aluminium body manufactured from high performance silicon alloy
  • Mechanism: CAM action
  • Mounting: Pull side, push side and over-door mounting
  • Valves: Two pressure relief valves are a standard feature to protect against abuse
  • Delayed Action: Adjustable
  • Closing Speed: Adjustable
  • Latching Speed: Adjustable

Standards and Compliance

The Lockwood 2616 series closer has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets. Note: Hold open option is not approved on any fire door.

Disabled Access Australian Standard (AS1428.1) Design for access and mobility.

ASSA ABLOY Door Locks & Security Solutions
Thanks for your interest in our offering, please send a message and we will respond to you shortly.
Visit Website

About the
Seller

GLOBAL LEADING SELLER OF LOCKS AND SECURITY HARDWARE

ASSA ABLOY is the global supplier of intelligent door locks and security solutions. Its products account for more than one in ten of all lock and security installations worldwide.

 Enhance Your Skills with ASSA ABLOY's CPD Training and Earn CPD Points

ASSA ABLOY's CPD on Door Hardware Design provides architects with valuable tools to navigate Australian Building and Fire Codes, ensuring informed hardware choices. It helps identify and understand the key components of door hardware, aids in designing efficient door openings, and enables the creation of detailed door and hardware schedules for seamless project documentation. Completing this CPD program not only enhances expertise in door hardware design but also supports broader professional development.

We know that in-person learning delivers real value, through hands-on experience and direct engagement with our experts. That’s why we offer face-to-face CPD-accredited training, designed to help you stay up to date with the latest compliance standards, regulations and innovations.

Prefer to learn on-site? We’ll come to you. Our team can deliver training at your preferred location making it easy to fit CPD into your schedule.

The Group’s strength is the variety of traditional and new products that can be combined to create a large number of different door environments. ASSA ABLOY has products for different climates, different types of buildings and differing security and safety requirements. By combining hundreds of thousands of components to meet the needs of consumers, architects and installers, the Group creates products with the right quality, design and price, which are ideal for both new buildings and renovations.

ASSA ABLOY is divided into three regional and two global divisions. The regional divisions, Americas, EMEA and Asia Pacific, manufacture and sell mechanical and electromechanical locks, digital door locks, cylinders and security doors adapted to the local market’s standards and security requirements. The global divisions, Global Technologies and Entrance Systems, manufacture and sell electronic access control, identification products and entrance automation on the global market.

ASSA ABLOY Door Locks & Security Solutions

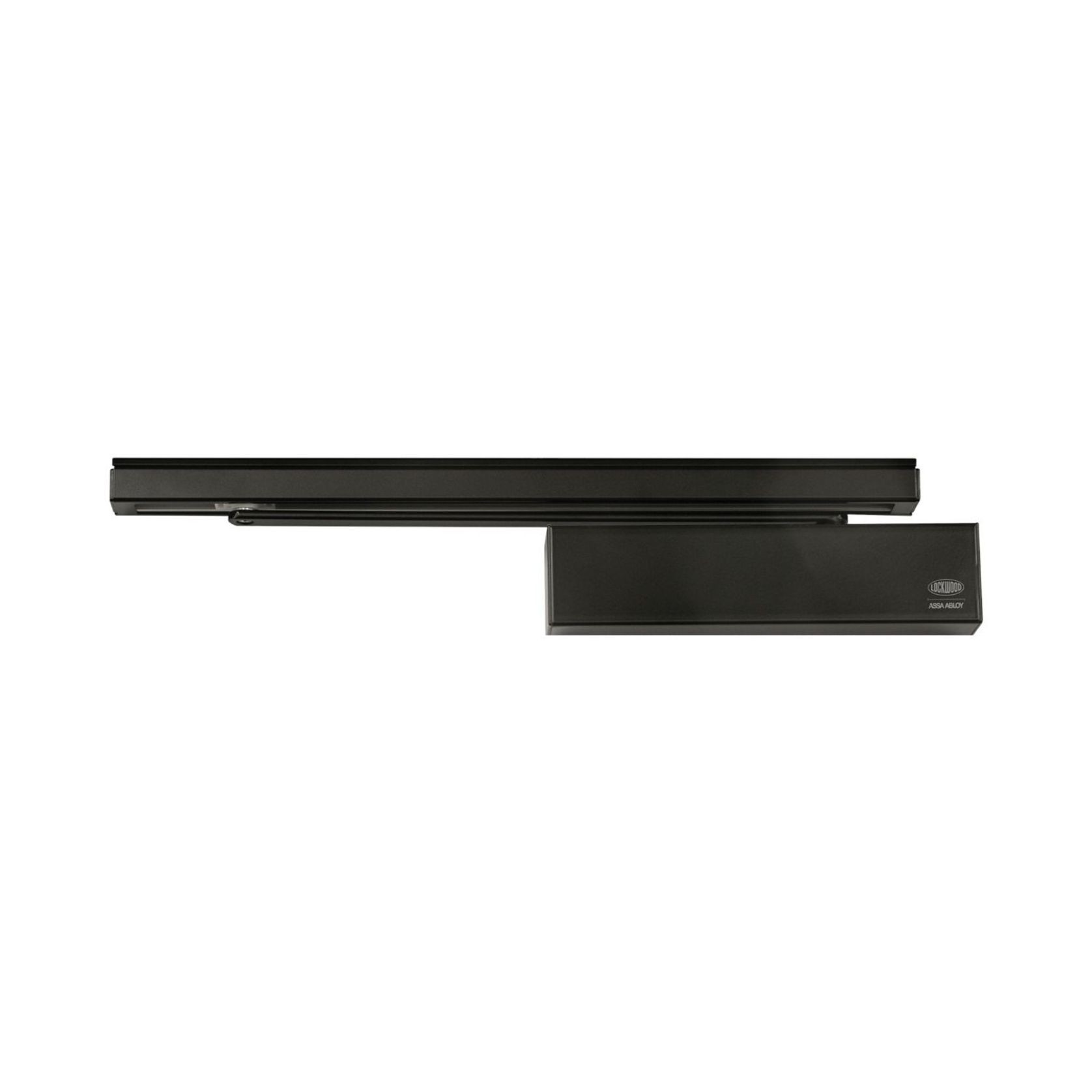

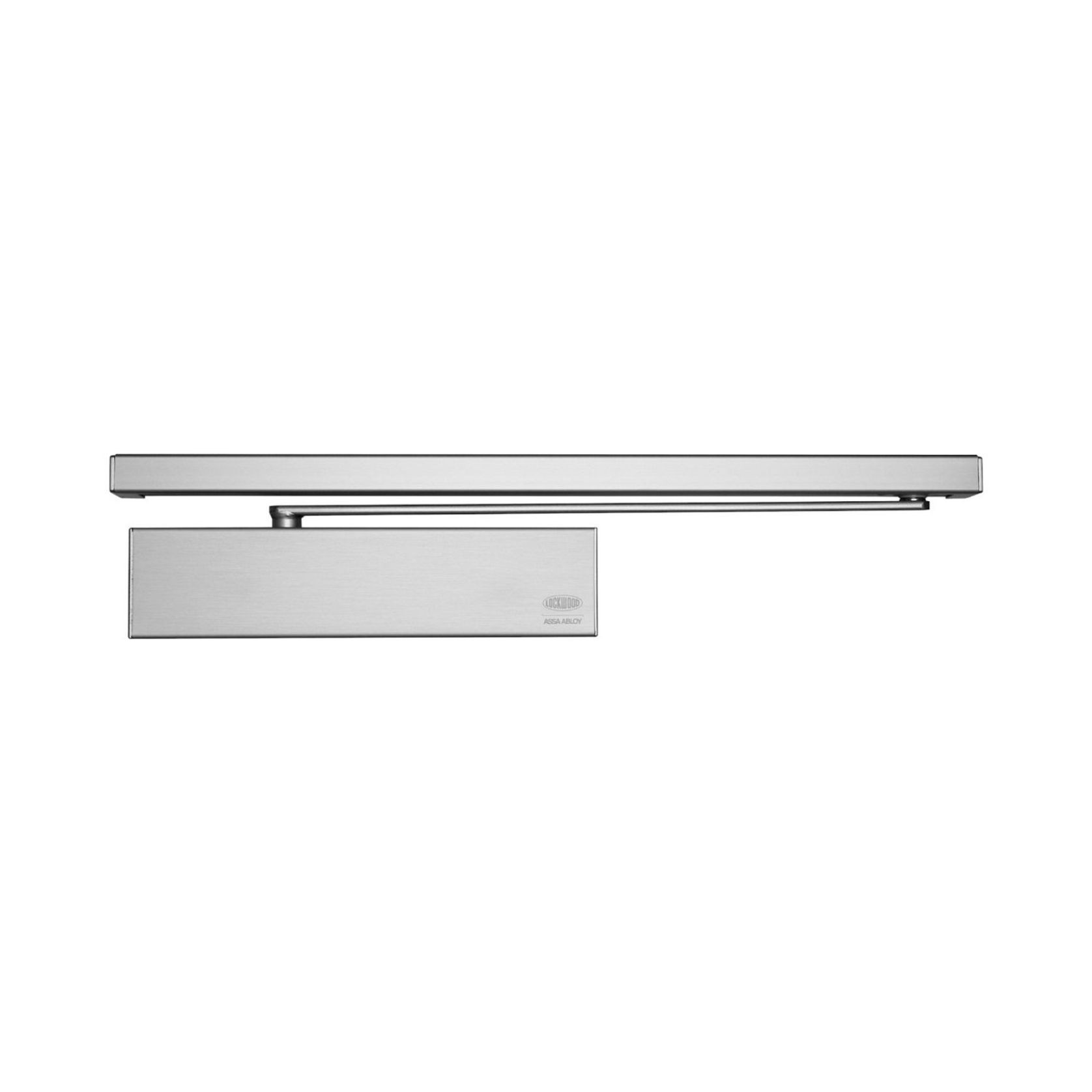

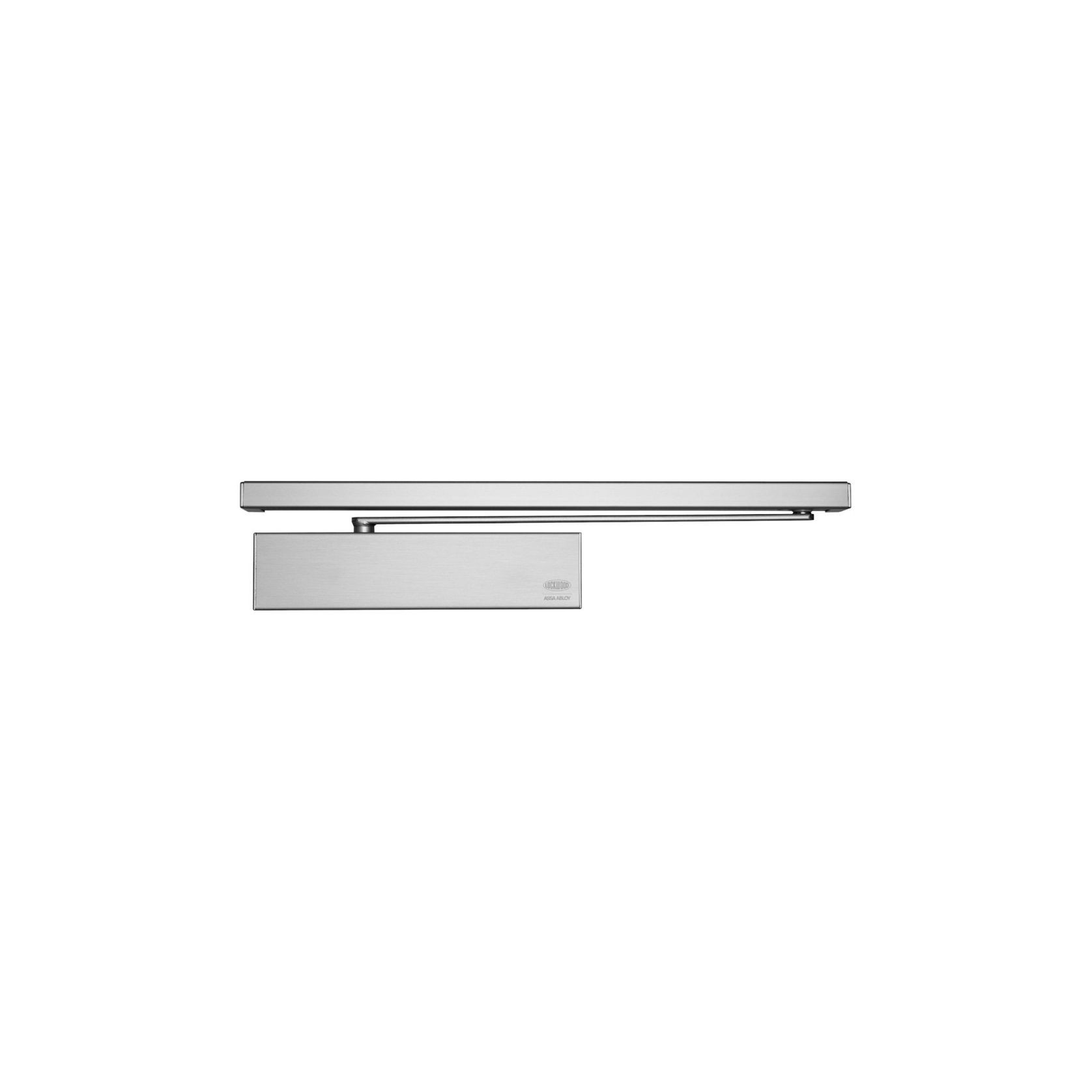

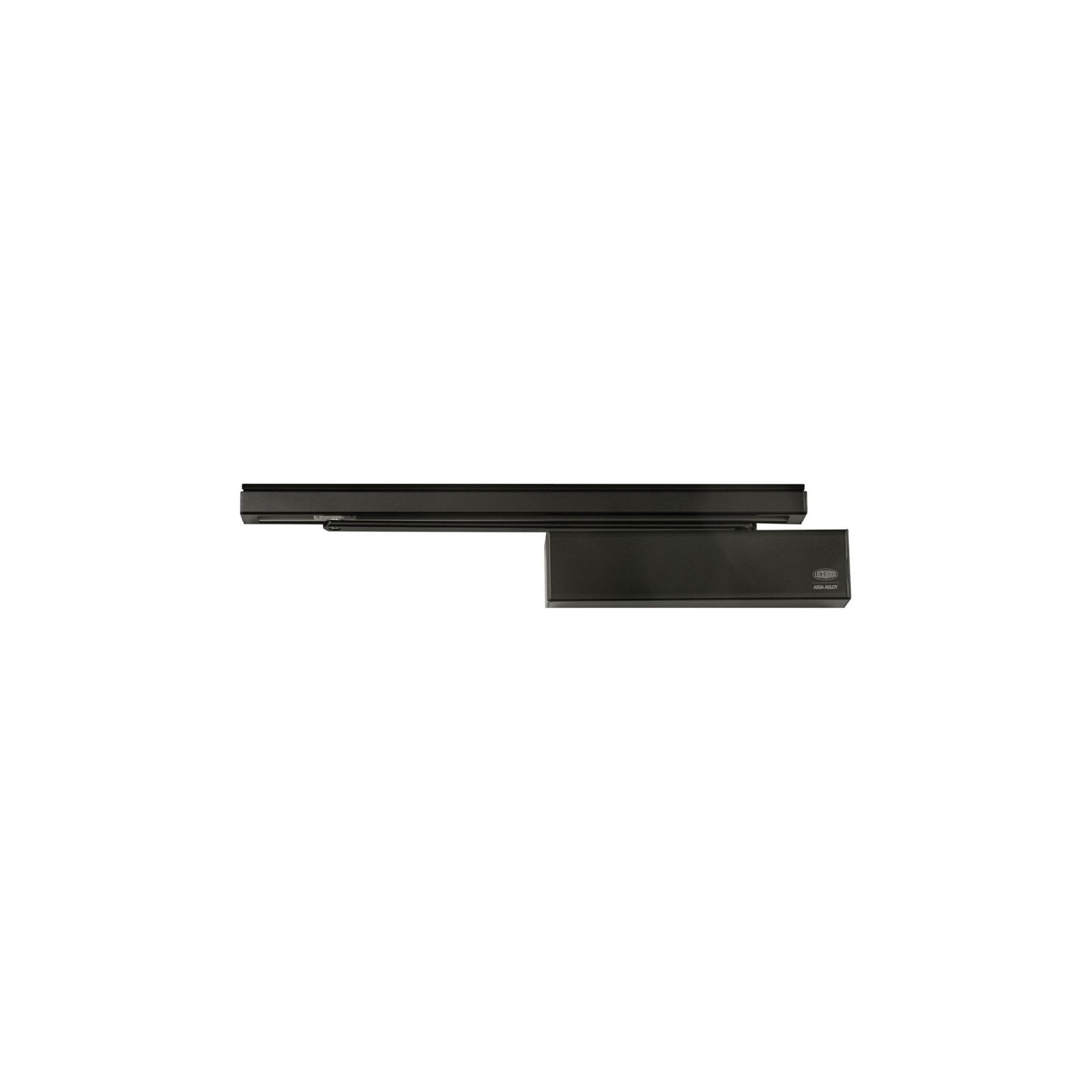

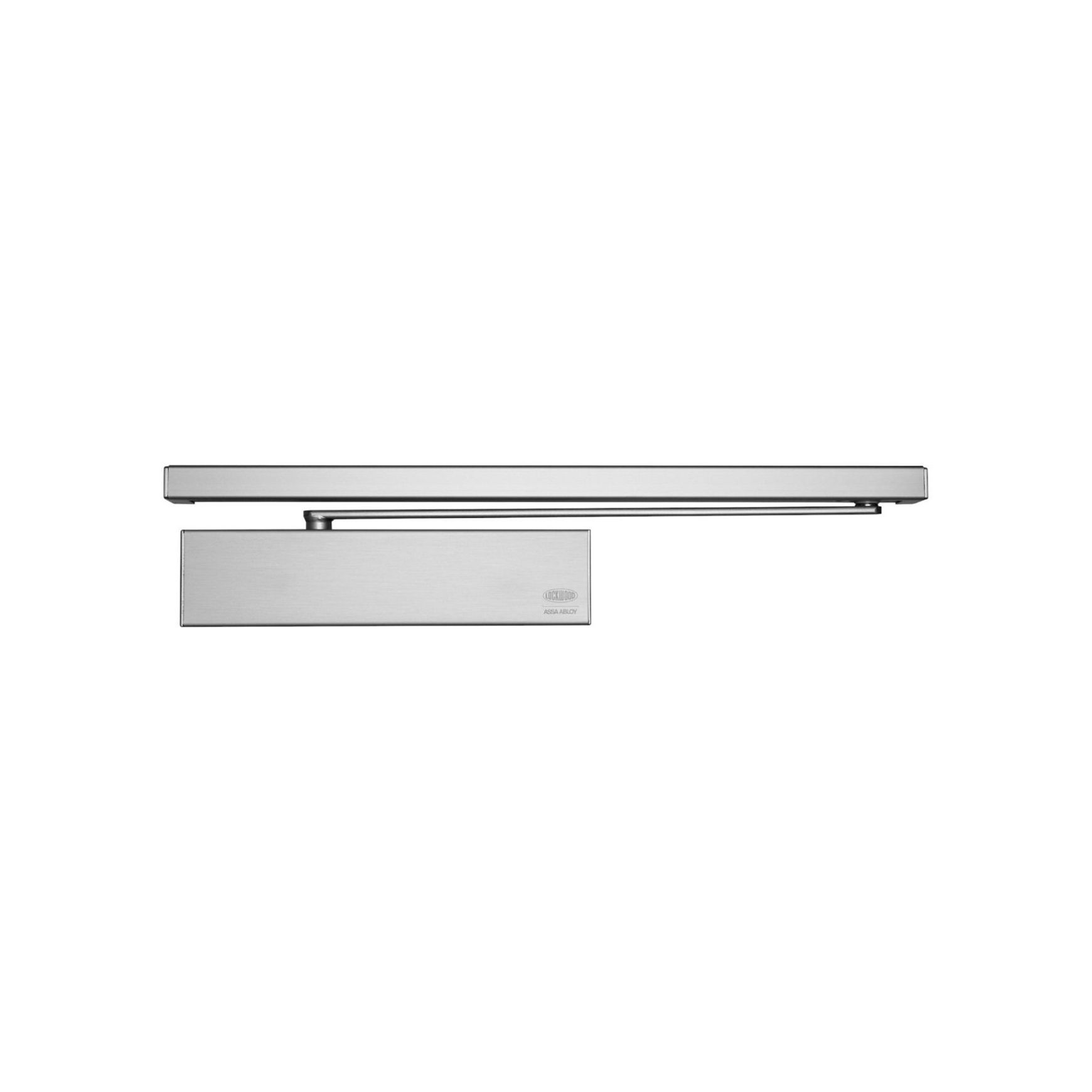

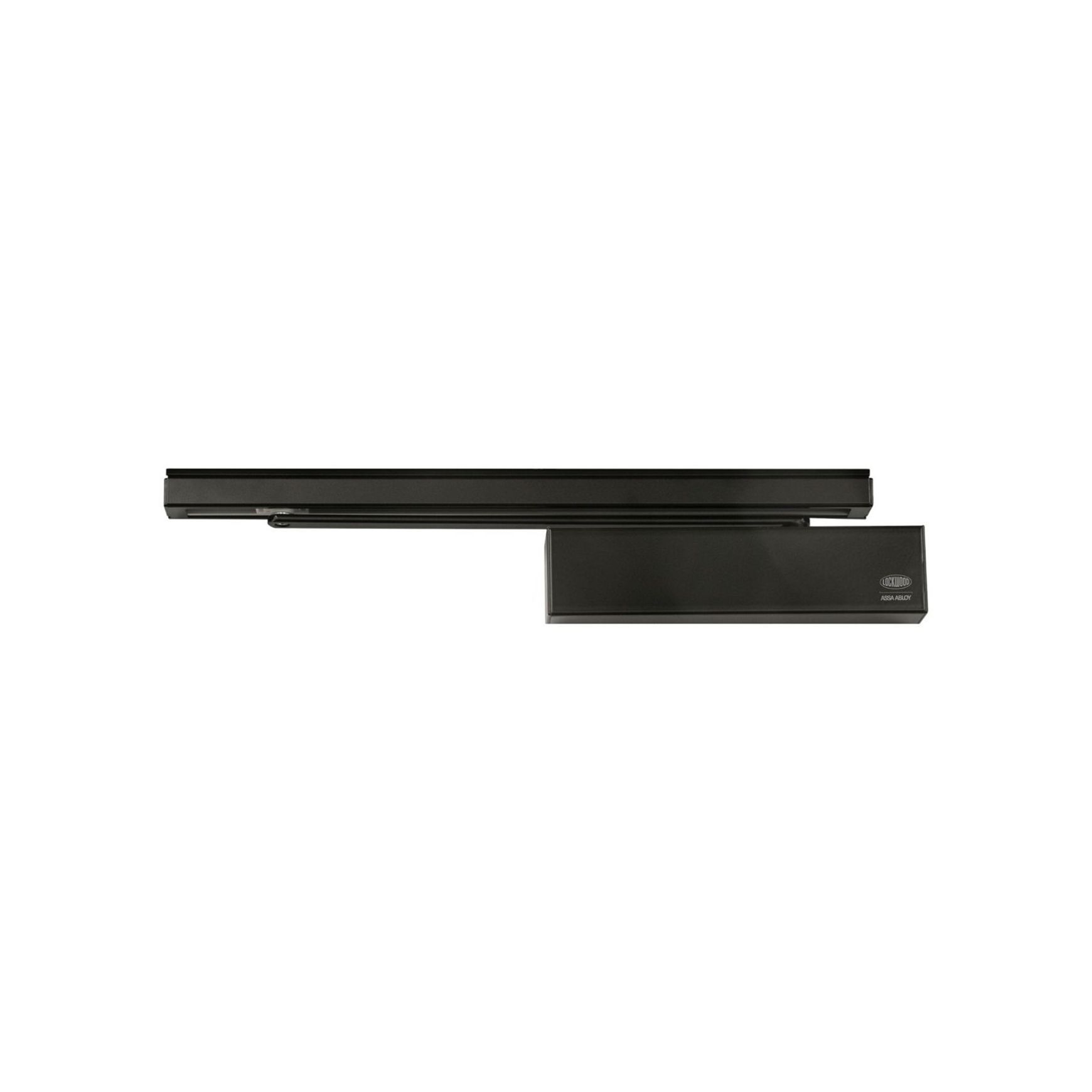

Lockwood 2615 CAM Action Door Closer with Slide Arm
