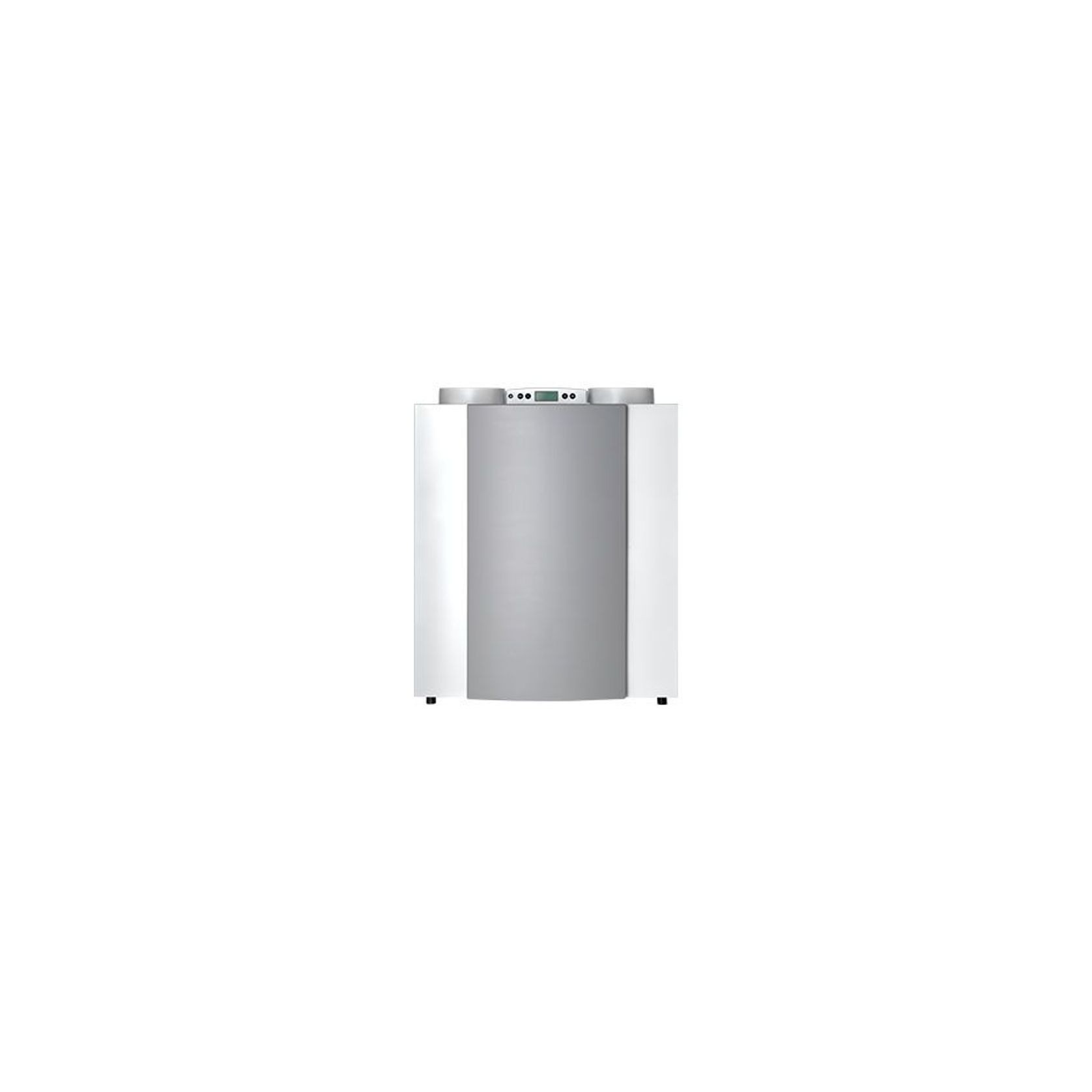

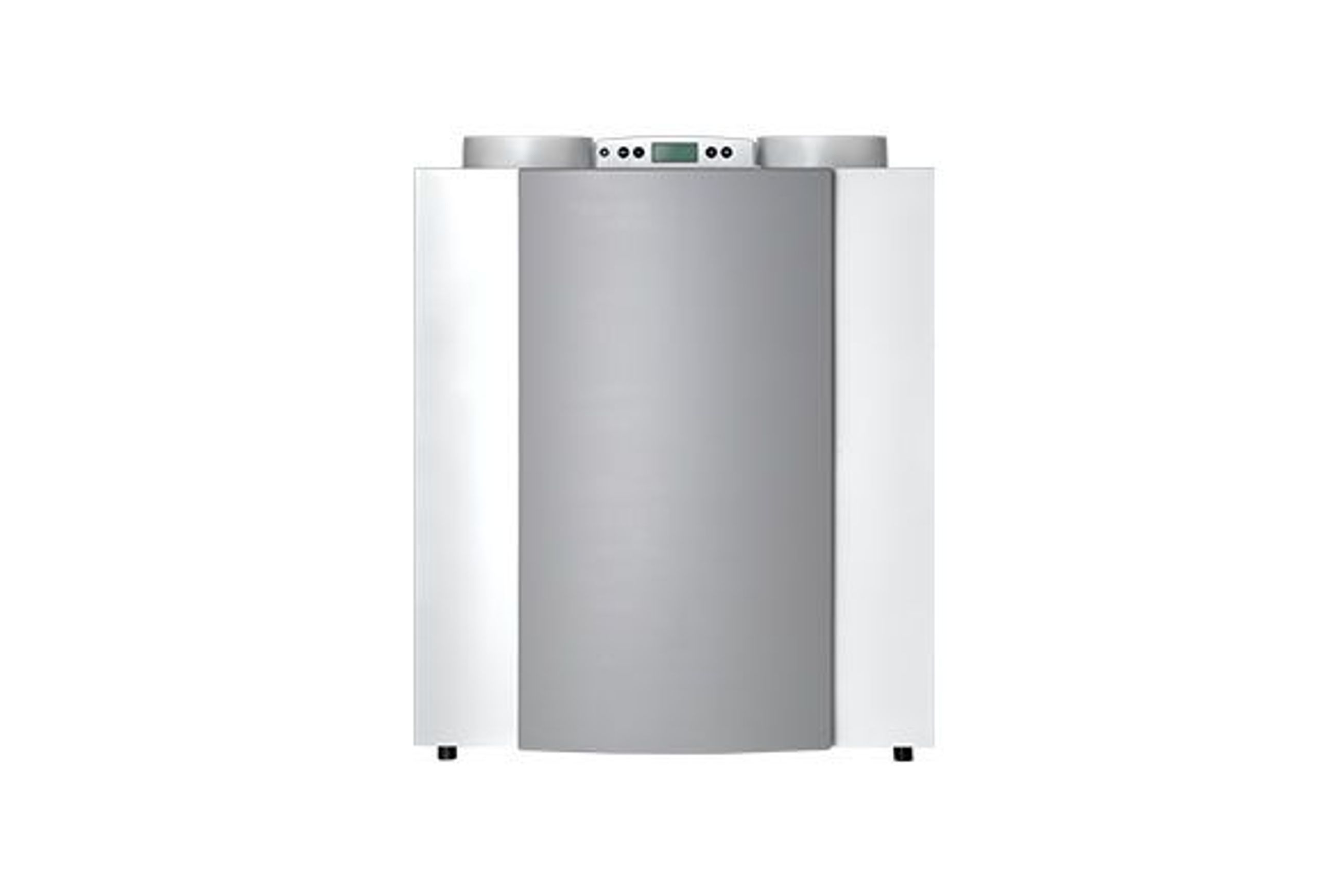

LWZ 170 E PLUS Central Ventilation System

STIEBEL ELTRON
Visit Website
LWZ 170 E PLUS Central Ventilation System  gallery detail image
LWZ 170 E PLUS Central Ventilation System  gallery detail image
LWZ 170 E PLUS Central Ventilation System  gallery detail image

The LWZ 170 E plus central ventilation system with heat recovery is specifically designed for use in large detached houses and small commercial properties. The slow-turning, highly efficient fans guarantee a high air flow rate with significantly reduced noise levels. The air volume can be conveniently adjusted in three stages via a remote control (essential accessory). Up to 90 % of thermal energy is recovered from the extract air by an efficient cross-countercurrent heat exchanger. The optimised heat exchanger and minimisation of the internal pressure drop enable very quiet and efficient operation. An integrated bypass prevents unwanted heat transfer on hot days.

The LWZ 170 E PLUS uses a cross current design to effectively recover the heat in the air indoors as it exchanges this with fresh air from outdoors. The LWZ 170 E PLUS is ideal for low energy buildings and passive homes.

Details
  • Category
    Mechanical Ventilation Systems
  • Range
    Ventilation
  • Brand
    Stiebel Eltron
Specifications
  • Product Number: 233850
  • Depth: 567 mm
  • Height: 765 mm
  • Width: 677 mm
  • Air flow rate: 50-300 m³/h
  • Technical data
  • Energy efficiency class in average climates, manual control: A
  • Energy efficiency class in average climates, time control: A
  • Energy efficiency class in average climates, central demand-dependent control: A
  • Heat availability level up to: 90 %
  • Air connector diameter: 160 mm
  • Weight: 38 kg
  • Rated voltage 230 V
  • Filter class: ISO Coarse > 45 % (G3)
  • Sound power level (EN 12102): 44 dB(A)
  • Power consumption without preheater bank: 132 W
  • Energy efficient with up to 90% heat recovery
  • Designed for air flow rates of 100-300 m3/h
  • Quiet operation
  • Low power operation
  • Replaces indoor air with filtered fresh air from outside
  • Passive House Institute certified component
  • Quick cooling effect via night ventilation function
  • Pollutants are removed from indoors
  • Prevents dust and pollen build up
  • Prevents condensation and mould through improved ventilation
  • Easily accessible design for filter replacement

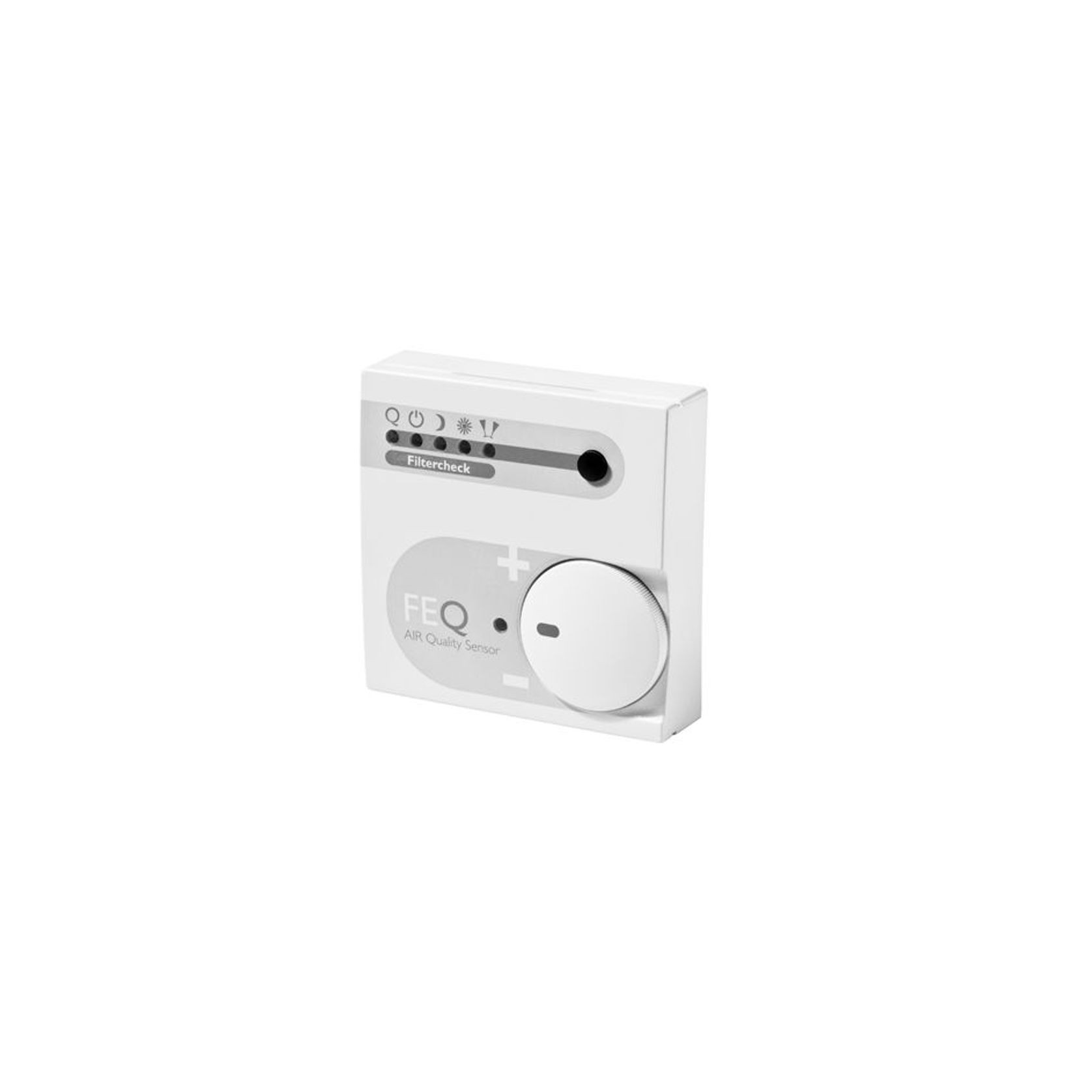

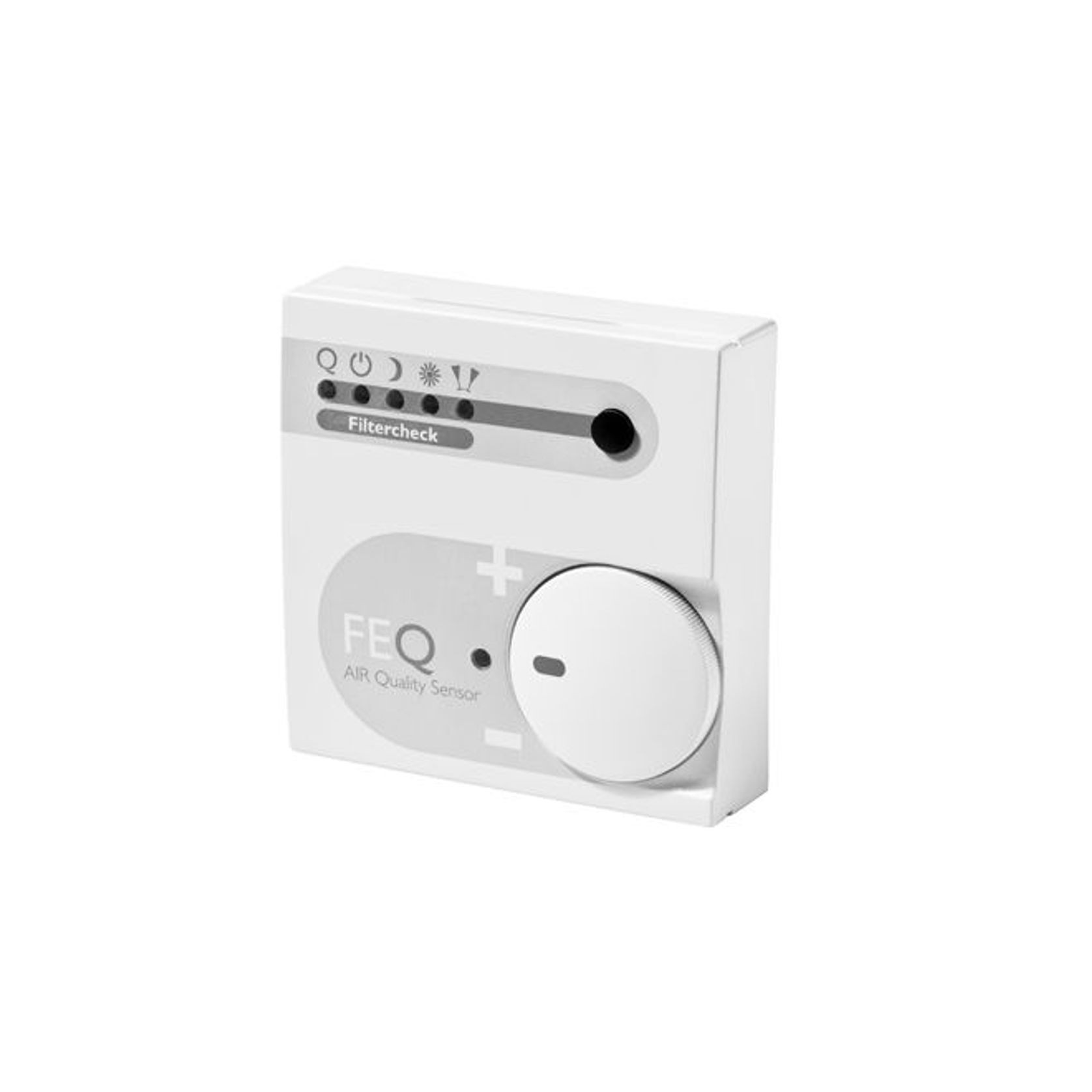

  • FEQ air quality sensor (optional accessory)
STIEBEL ELTRON
Auckland
Visit Website

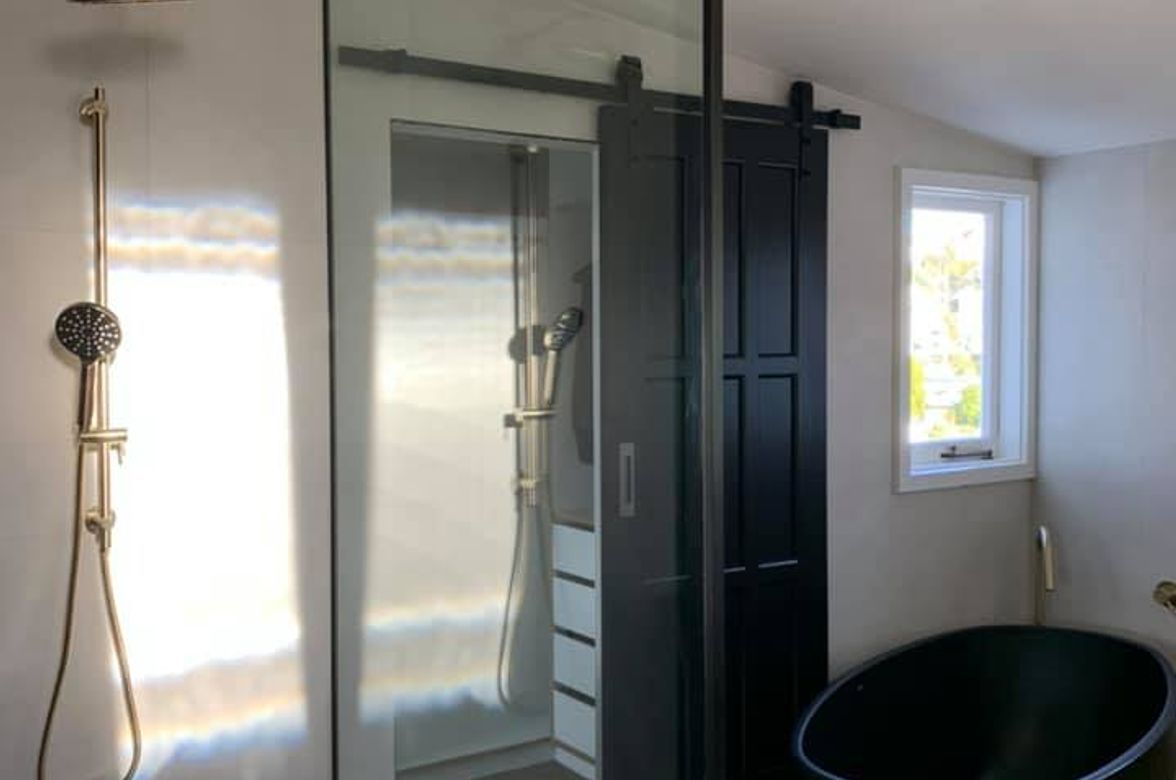

Projects featuring LWZ 170 E PLUS Central Ventilation System
