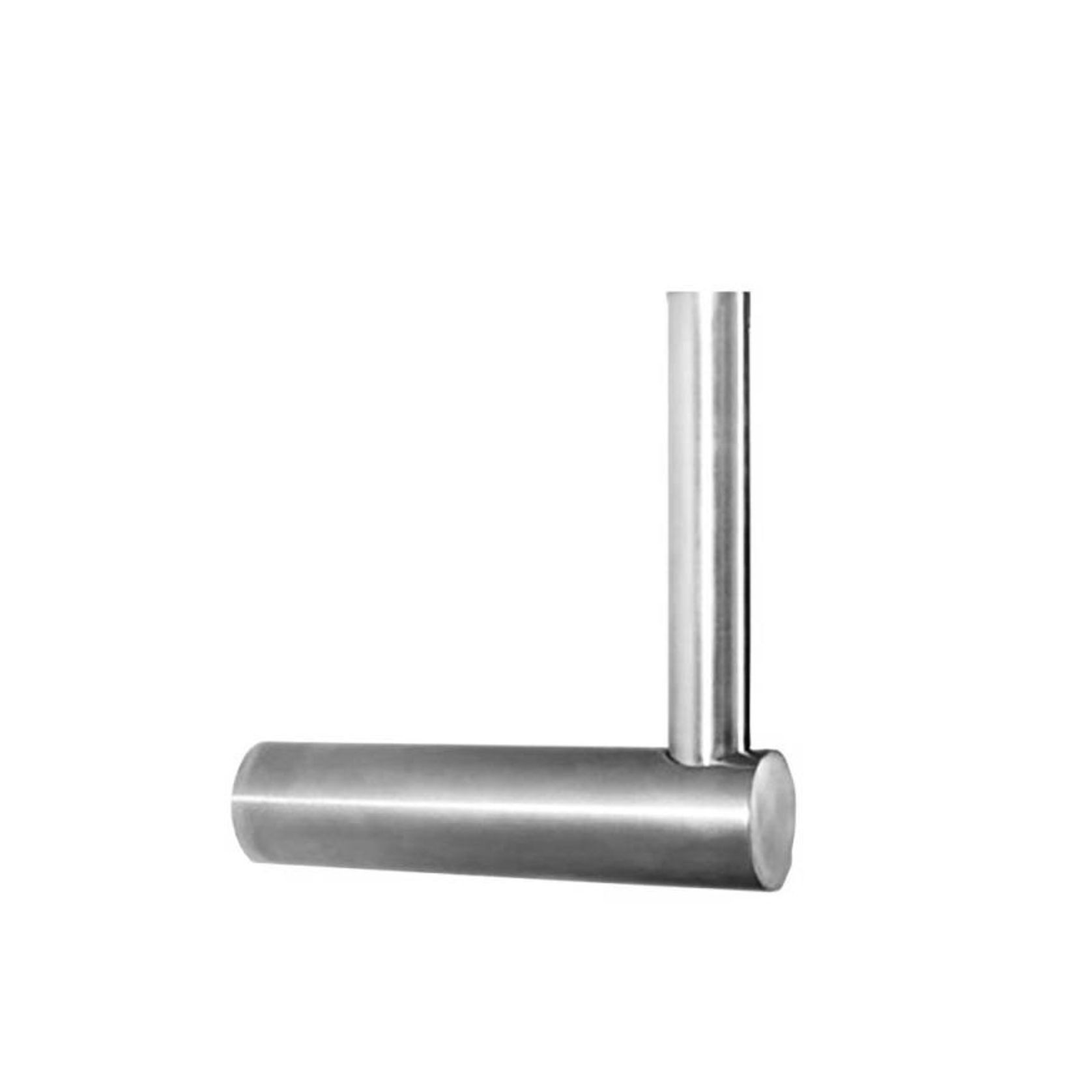

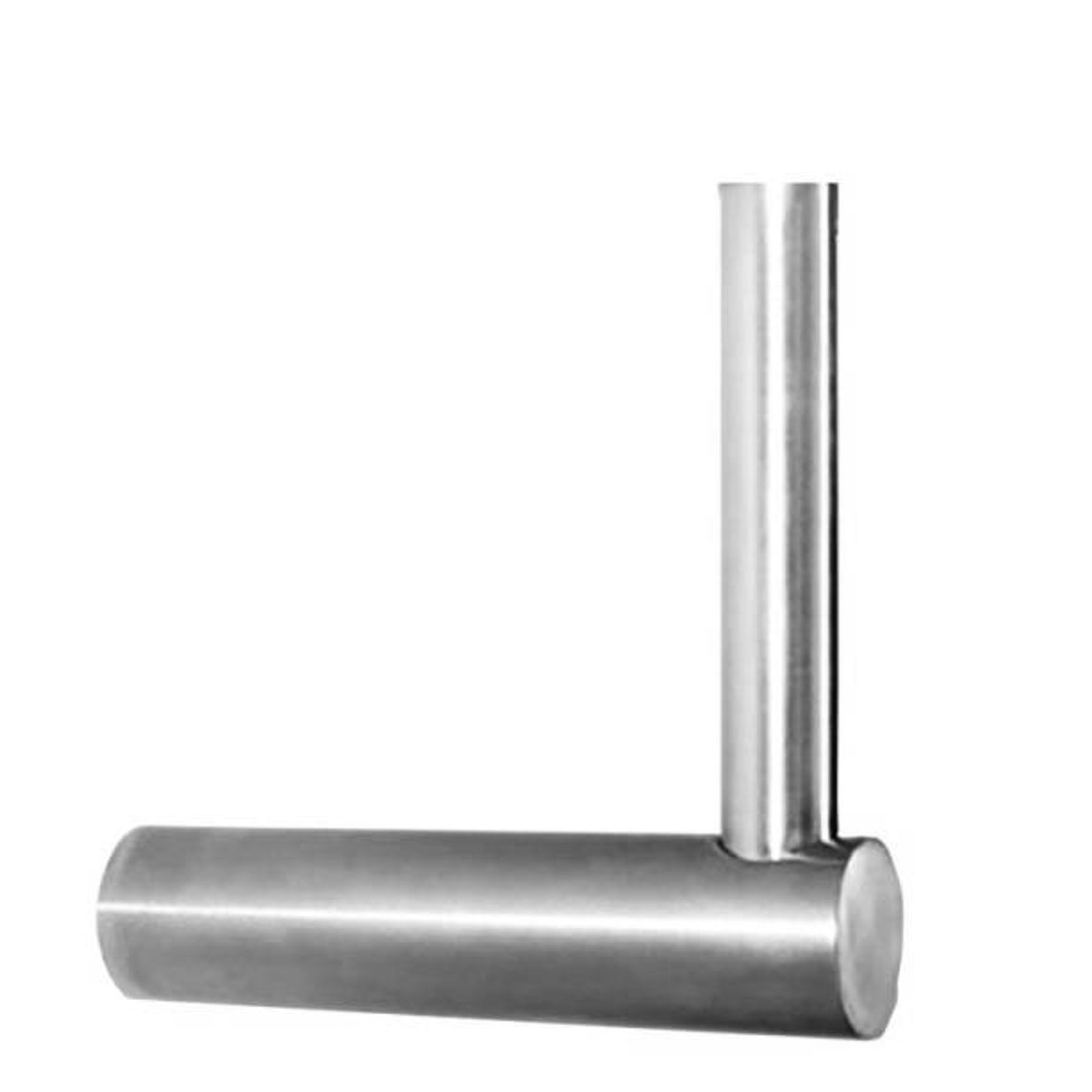

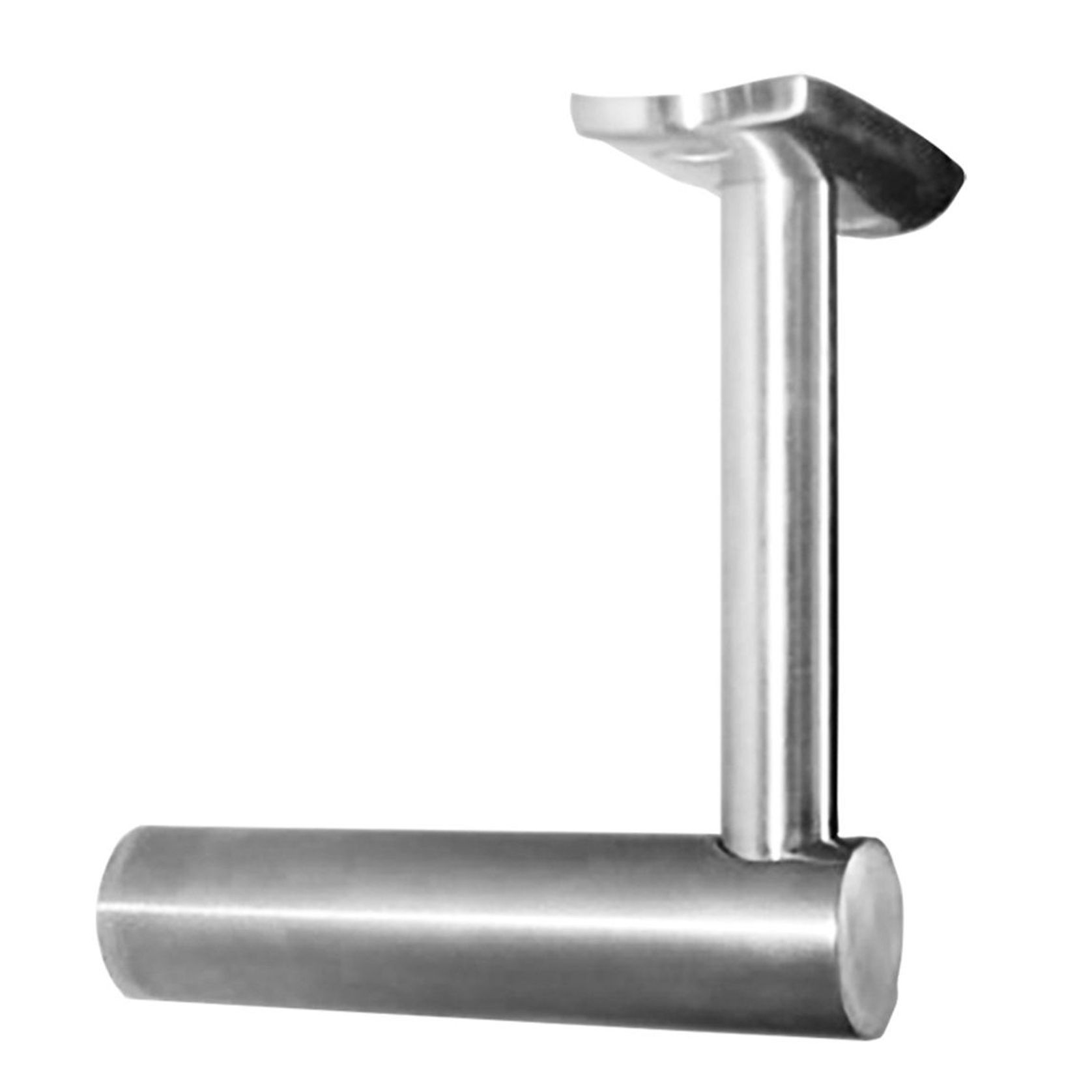

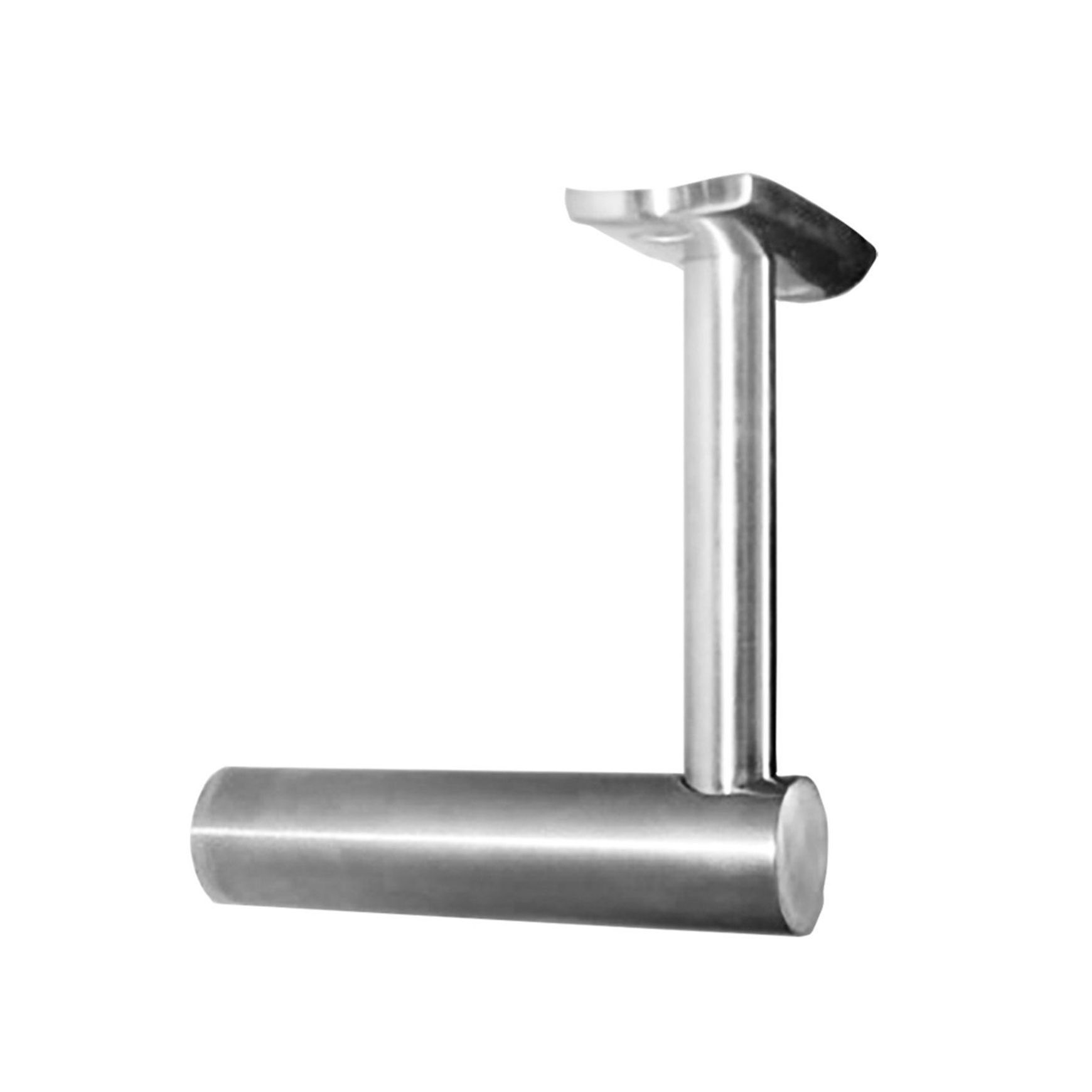

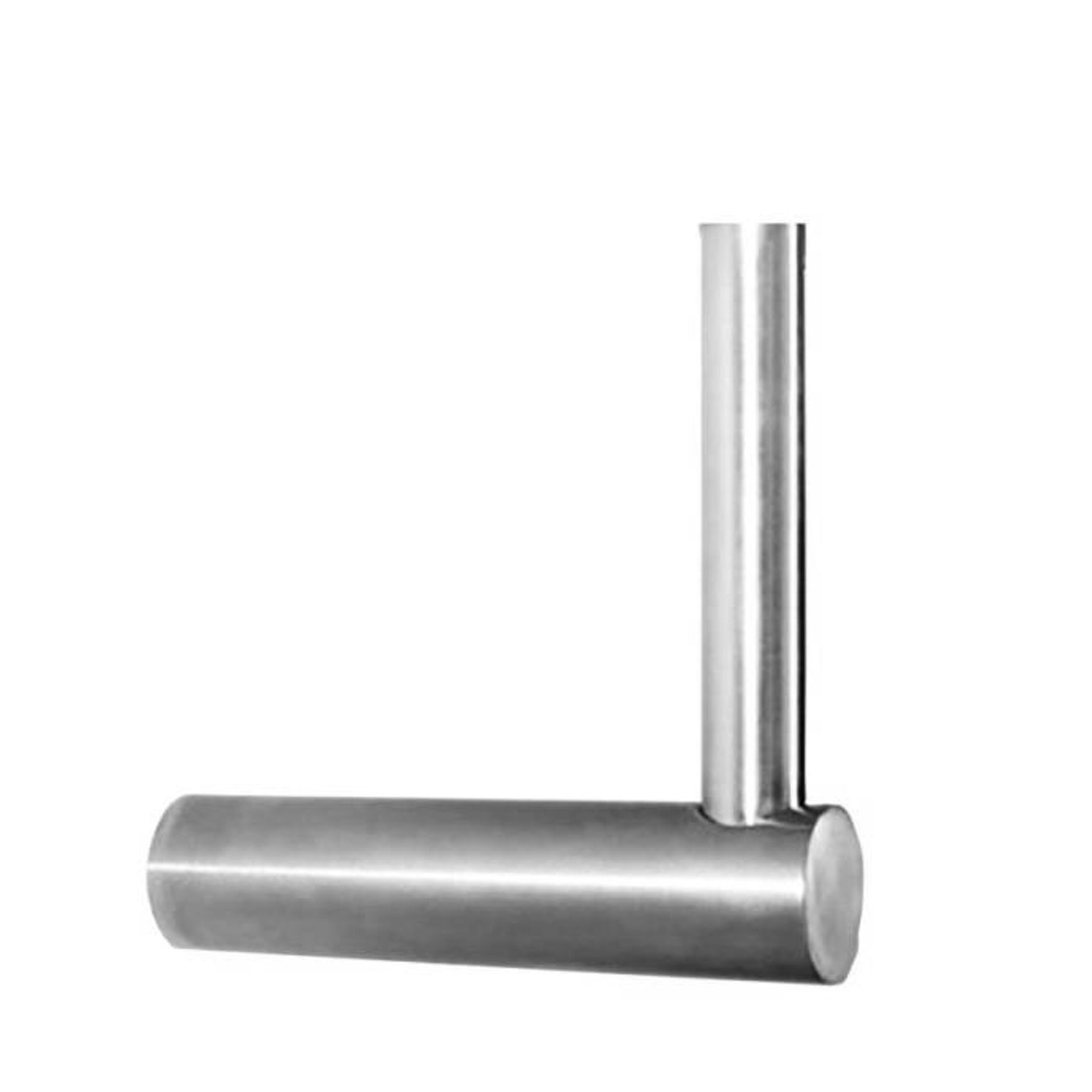

Architecturally Designed 20mm Diameter Solid Rod Handrail Bracket

Single Lag screw fixing (supplied) *Please note either an M8 or an M10 will be supplied.

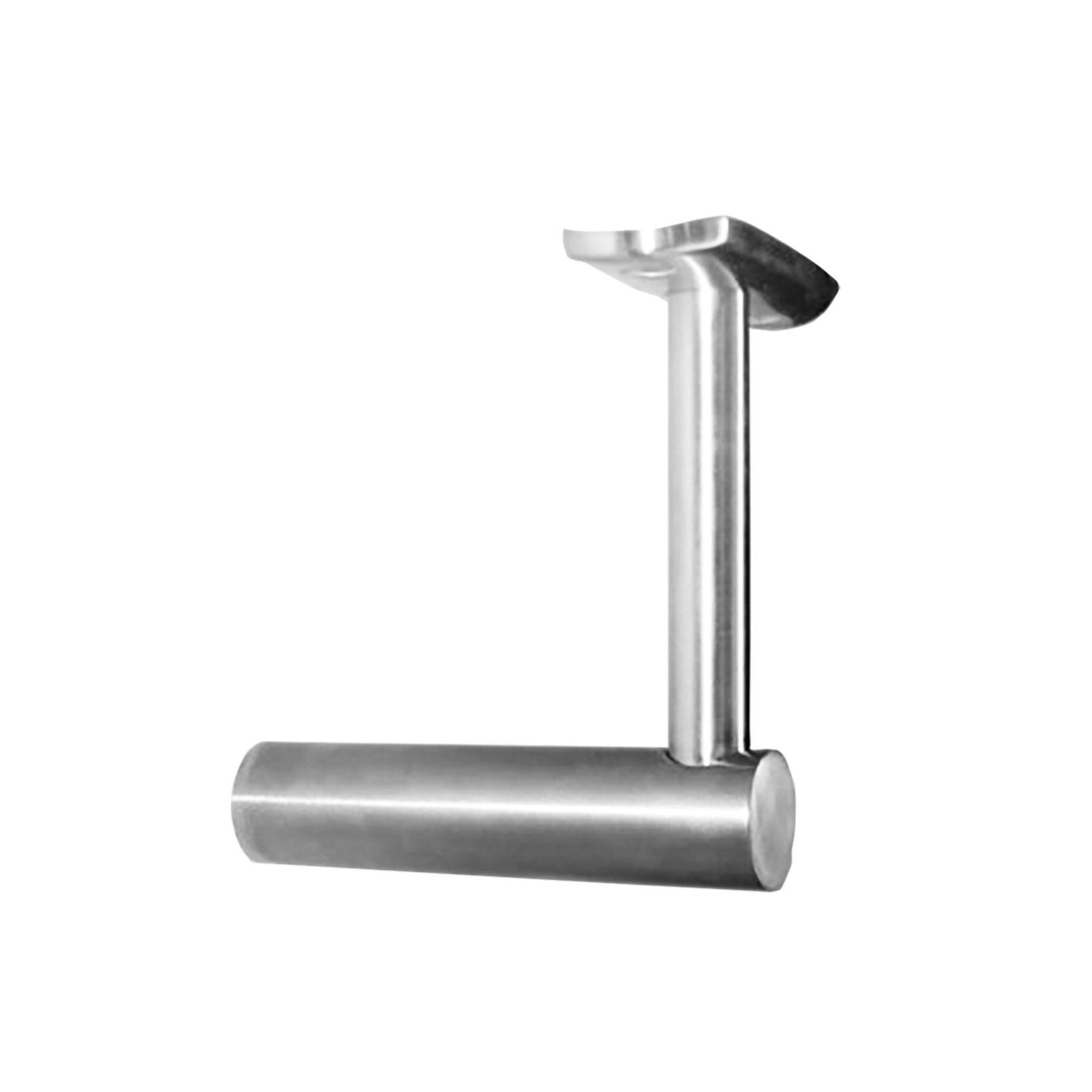

Weld on and saddle options available:

  • curved saddle to fit handrail profiles from 38mm diameter
  • flat saddle to fit flat handrail profiles

Materials available:

  • AISI 304 Satin & Mirror Finish
  • AISI 316 Satin & Mirror Finish

Recommended Spacings:

In normal traffic areas, recommended bracket spacings are 1000mm to 1200mm.  In heavy traffic areas, spacings of 600mm to 800mm are recommended.

This bracket complies with all relevant Building Codes

*    It is recommended to only use hand tools or the bracket itself to wind the lag screws into the fixing point. Power tools could damage the lag screws.

Download Data Sheet

Download CAD File

Details
SKU: HBR20
