OHL-102 100mm Panel Weather Louver

Auckland

427.8K profile views
27 saves

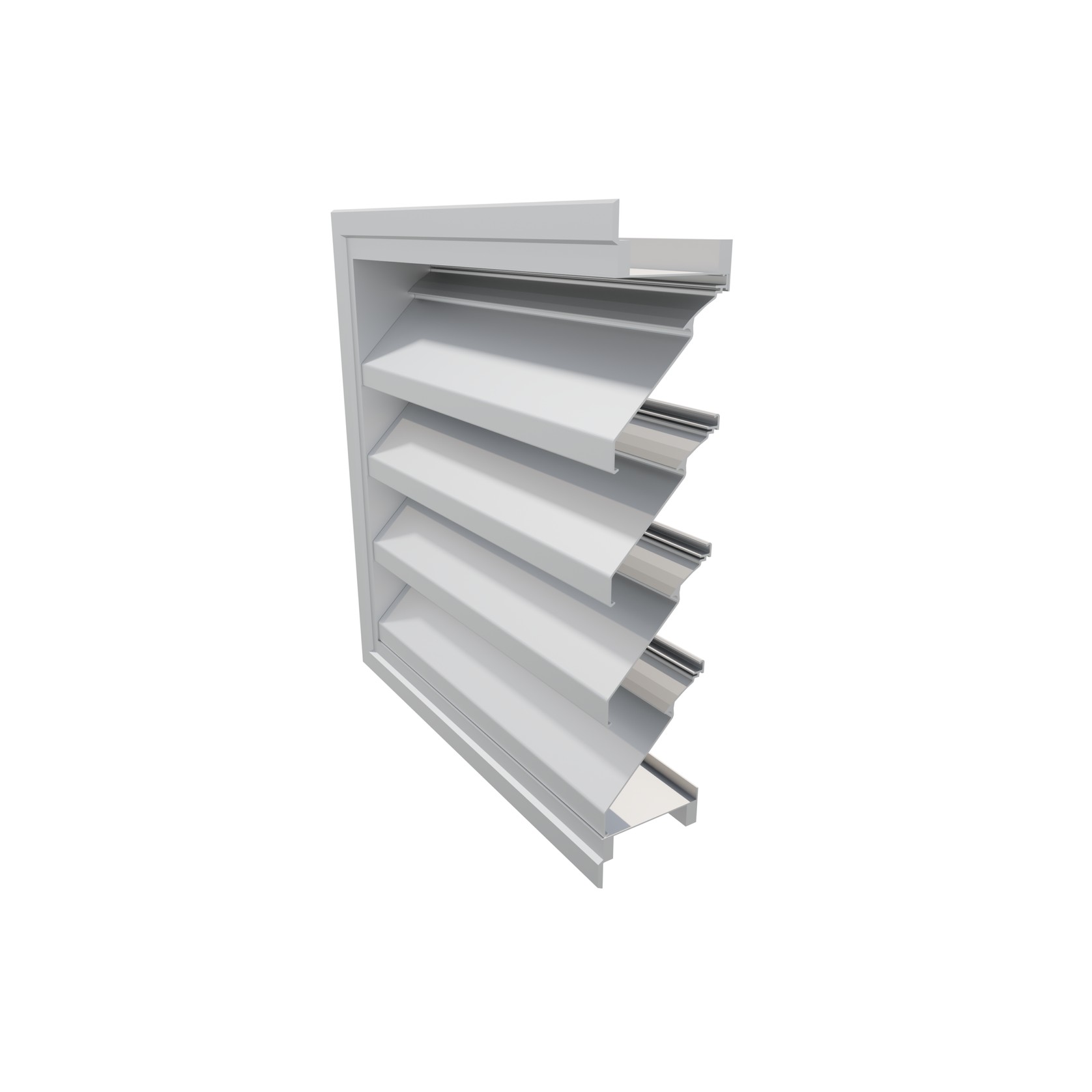

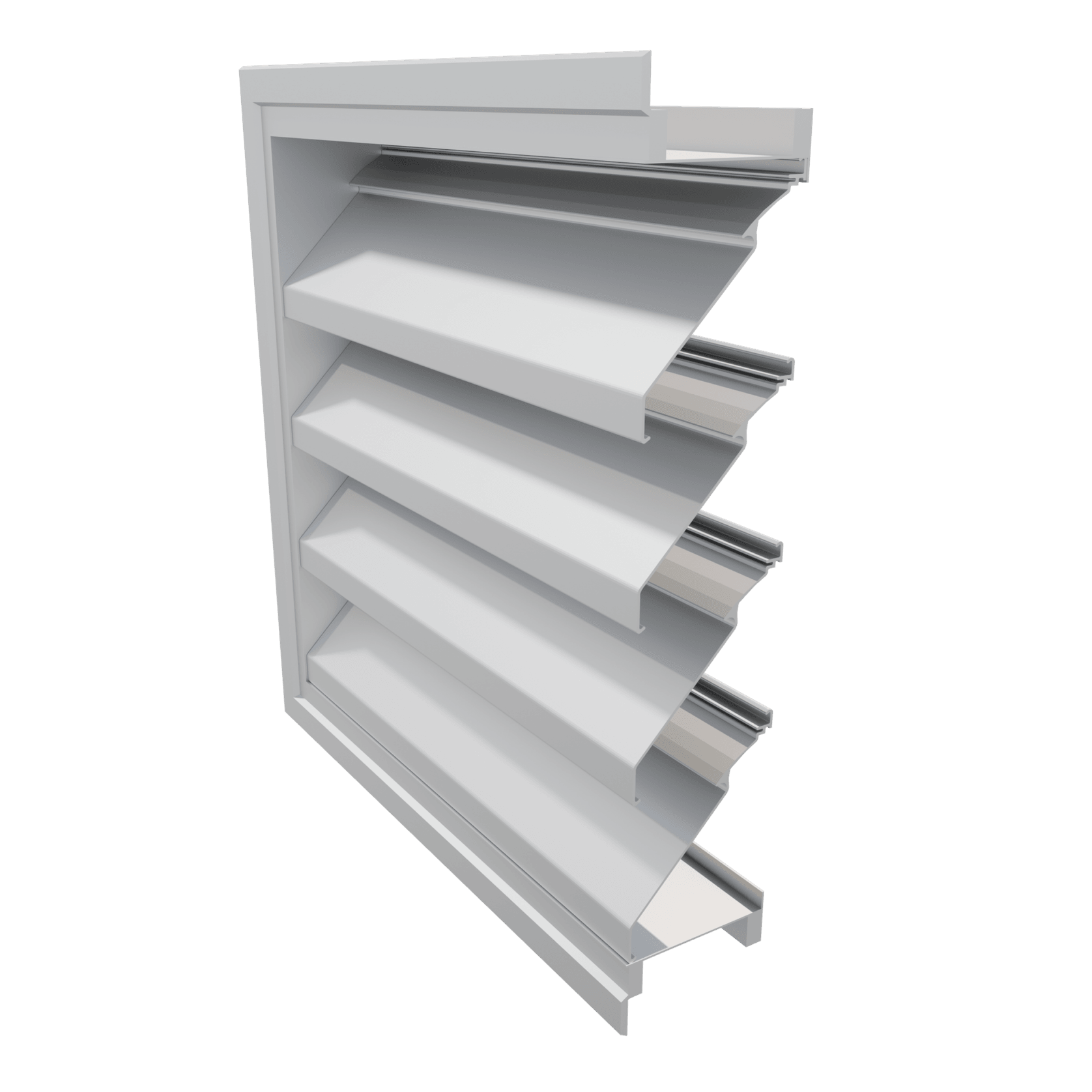

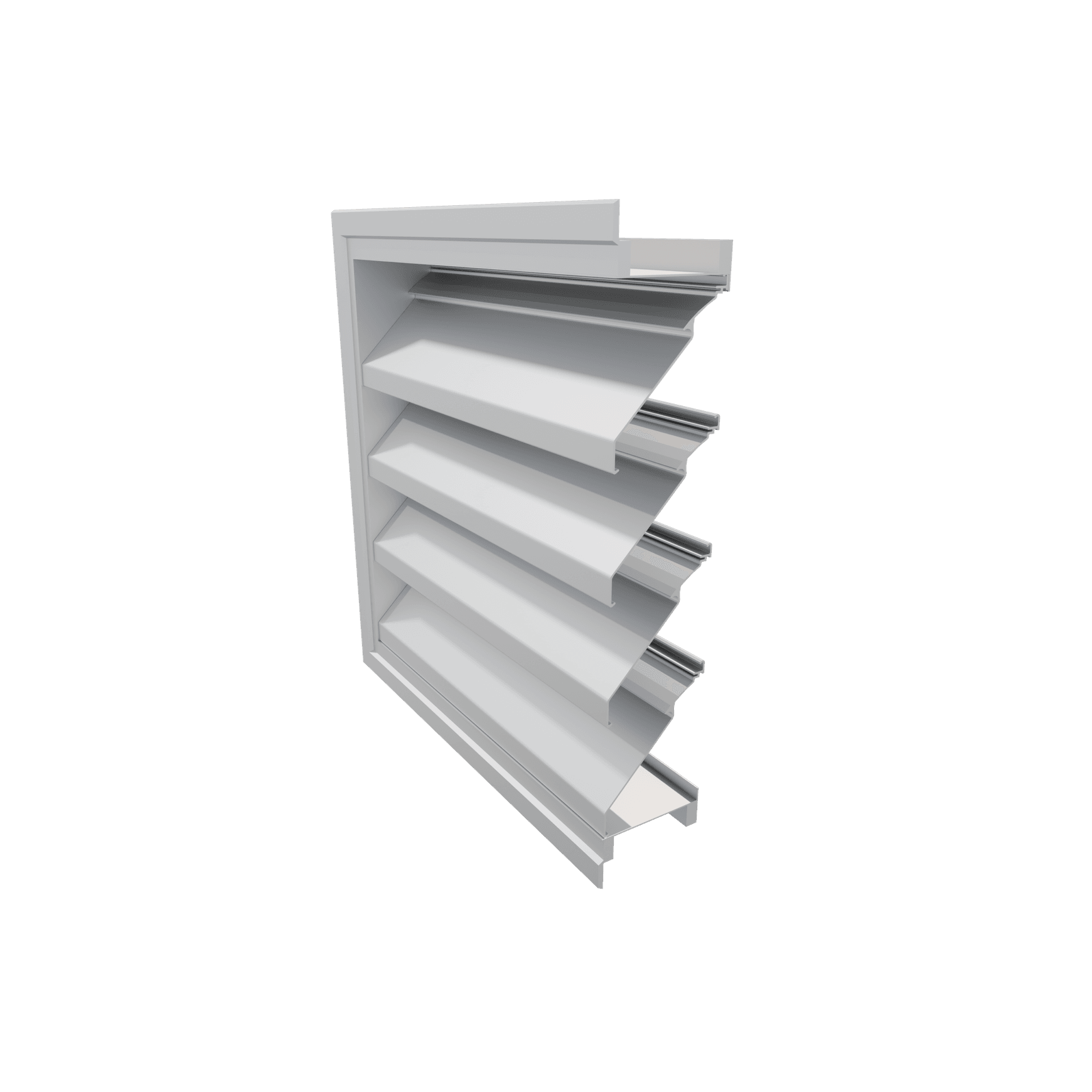

The Holyoake OHL-102 louver is an attractive, moderate performance, multi-purpose louver, primarily used in more conventional louvre panel applications. Based on proven Holyoake louver technology, the louver blade features two water stops on its front face. The blades overlap one another to minimise any water carryover. The large profile and 100mm blade spacing of the OHL-102 creates a bold line across the louver face which is architecturally pleasing. The slightly curved blade face enhances the architectural appeal of the louver. The OHL-102 is ideally suited for applications where the deeper profile depth increases the weather protection performance. The larger profile also improves the visual aspect of the horizontal lines across the system, when viewed from a distance.

ventilation ventilation supply ventilation components ventilation systems ventilation exhaust

Product Details

Product: OHL-102 100mm Panel Weather Louver
Category: Ventilation Components
Sold by: Holyoake Air Management Solutions
Range: Architectural Louvres
Brand: Price Holyoake
Warranty: 5 years

Holyoake Air Management Solutions is specified by

Based on proven Holyoake louver technology, the louver blade features two water stops on its front face. The blades overlap one another to minimise any water carryover. The large profile and 100mm blade spacing of the OHL-102 creates a bold line across the louver face which is architecturally pleasing. The slightly curved blade face enhances the architectural appeal of the louver. The OHL-102 is ideally suited for applications where the deeper profile depth increases the weather protection performance. The larger profile also improves the visual aspect of the horizontal lines across the system, when viewed from a distance.

The Holyoake OHL-102 louver is an attractive, moderate performance, multi-purpose louver, primarily used in more conventional louvre panel applications.

Specs: Weather Louvres shall be Holyoake Model OHL-F/C-102 curved profile 100mm louvred blades set at 102mm centres and constructed in a 107mm flanged (F) or channel (C) frame to suit the installation profile. Weather Louvres shall be of extruded aluminium construction and finished in natural anodised, powdercoat and fitted with accessories and dampers where indicated as manufactured by Holyoake.
Features: Moderate performance louver.

Attractive curved blade profile.

Obstructed line of sight.

Dual weather stop blade.

The OHL-102 is available in three surround options: Flangeless channel surround, 25mm flange cover and 40mm flange cover
