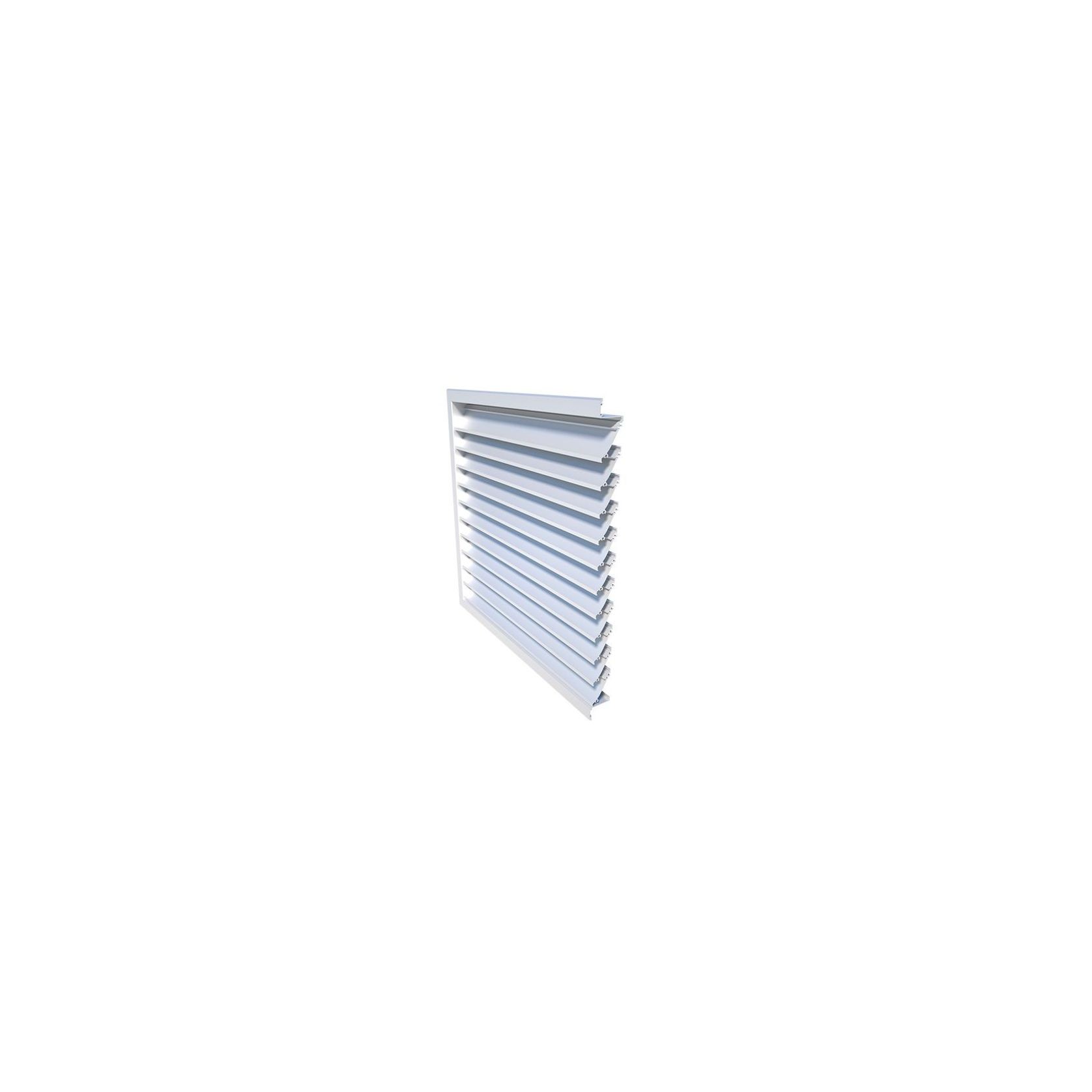

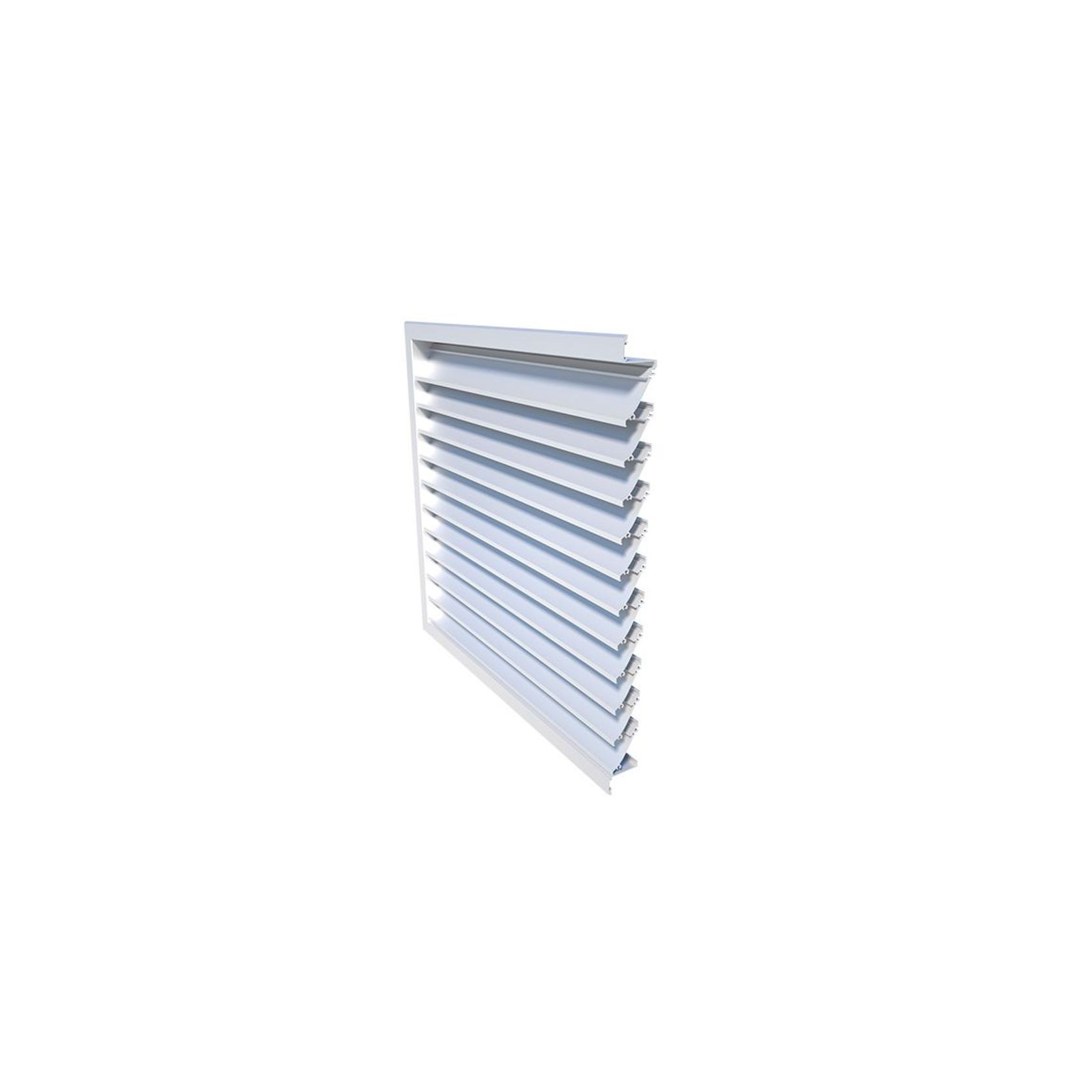

The Holyoake OHL-34 is a slimline louver designed primarily to suit smaller applications where the depth and pitch of the larger profile may not be practical. Based on proven Holyoake louver technology, the louver blade features two water stops on its front face. The slim profile and 38mm blade spacing of the OHL-34 creates a fine appearance across the louver face. The slightly curved blade enhances the architectural appeal of the louver. The OHL-34 is ideally suited for situations that require louvers that are lower in height such as are regularly seen in the kitchen and toilet exhaust systems of large scale apartment buildings. As a general rule the OHL-34 would not be used in large panel or screen applications.

The OHL-34 louver is designed to be fabricated as panel louver only, with a maximum blade span of 1.8 meters. It does however use the Holyoake “Concealed Mullion” as an intermediate support, so that each finished panel will have a continuous appearance across its face.

Details
  • Category
    Ventilation Components, Mechanical Ventilation Systems
  • Range
    Architectural Louvres
  • Brand
    Price Holyoake
  • Warranty
    5 years
Specifications

Weather Louvres shall be Holyoake Model OHL-F/C-34 curved profile 34mm louvred blades set at 38mm centres and constructed in a 40mm flanged (F) or channel (C) frame to suit the installation profile. Weather Louvres shall be of extruded aluminium construction and finished in natural anodised, powder coat and fitted with accessories and dampers where indicated as manufactured by Holyoake.

Features
  • High performance louver.
  • Attractive curved blade profile.
  • Obstructed line of sight.
  • Weather stop blade.
  • The OHL-34 is available in three surround options: Flangless channel surround, 25mm flange cover and 40mm flange cover
