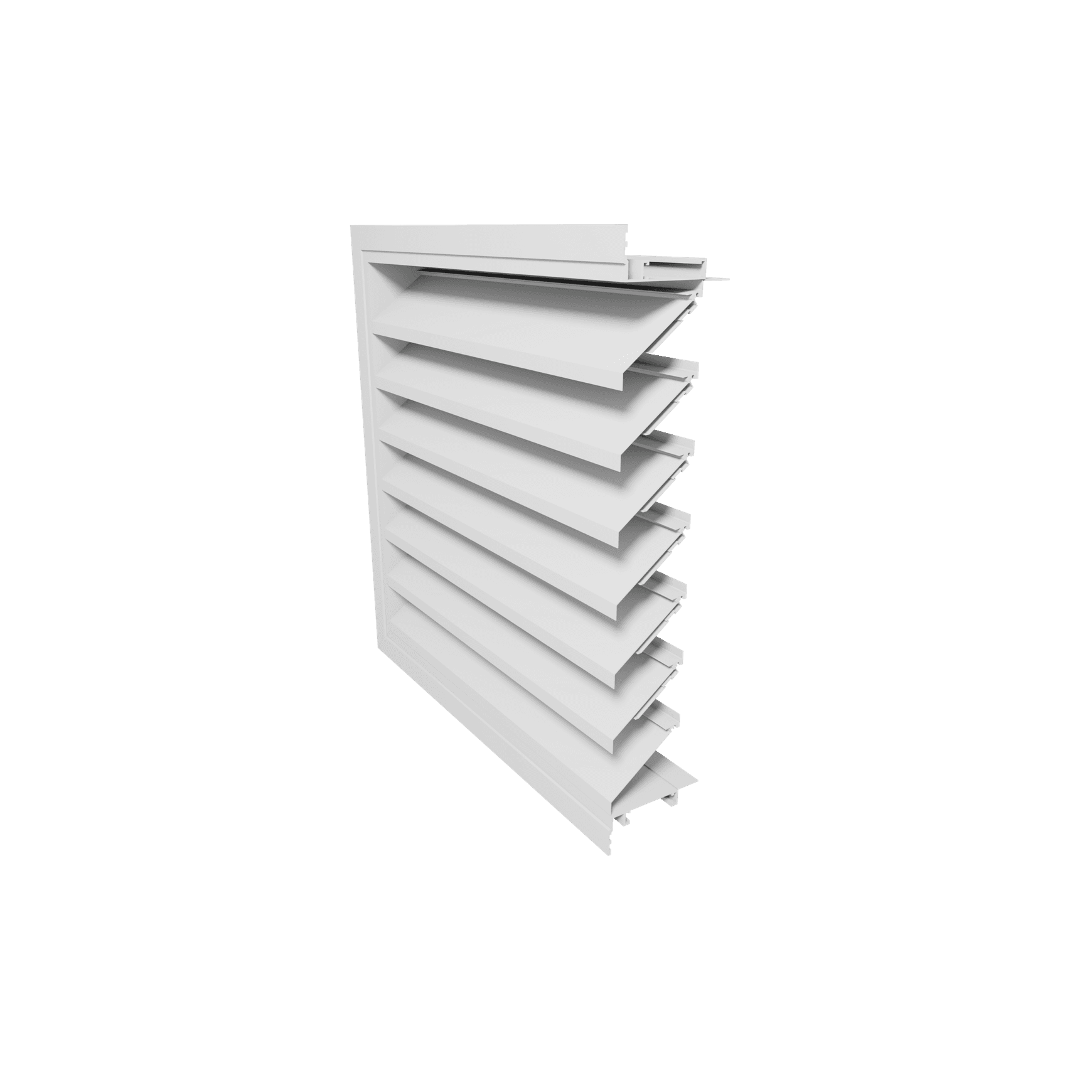

Holyoake OHCL-125 Closable Weather Louver
by Holyoake Air Management Solutions
Auckland
- 429.1K profile views
- 27 saves
The OHCL-125 is a combination louver designed from proven Holyoake louver technology, featuring improved weather performance alongside a high free area.
The OHCL-125 is an operable, closable louver that offers functionality through black anodised damper blades. These blades are pivoted on the underside of each fixed blade and operated by either manual or motorised means. While open the closing blades offer minimal additional air flow resistance.
Product Details
- Product
- Holyoake OHCL-125 Closable Weather Louver
- Category
- Heat Recovery Ventilation
- Brand
- Price Holyoake
- Country of origin
- New Zealand
- Type of use
- Commercial
- Warranty
- 5 years
Holyoake Air Management Solutions is specified by
DCA Architects of TransformationArchitects
Herriot Melhuish O'Neill Architects LtdArchitects
Edwards White ArchitectsArchitects
Pelorus ArchitectureArchitects
ASC ArchitectsArchitects
ArchitectusArchitects
DLA ArchitectsArchitects
SGAArchitects
Johnston ArchitectsArchitects
Tennent Brown ArchitectsArchitects
CCM ArchitectsArchitects
Daniel Marshall ArchitectsArchitects
Ignite ArchitectsArchitects
GHD DesignArchitects
HB ArchitectureArchitects
Godward DesignspaceArchitects
Wilson & Hill ArchitectsArchitects
ArchimediaArchitects
South ArchitectsArchitects
Studio Pacific ArchitectureArchitects
Gary Todd ArchitectureArchitects
Leuschke Group ArchitectsArchitects
Crosson ArchitectsArchitects
Dalman ArchitectsArchitects
Architecture HDTArchitects
Studio Brick ArchitectsArchitects
GNR StudioArchitects
Sang ArchitectsArchitects
Stephenson&TurnerArchitects
Marina Mathews PhotographyPhotographers
Natural Habitats LandscapesLandscape Architects
Trinity Interior DesignInterior Designers
Apple AirHVAC Designers and Installers
Jessica Chloe PhotographyPhotographers
ACSL GroupElectricians
Studio H DesignArchitectural Designers
Walker ArchitectureArchitectural Designers
CDMCommercial Interior Fitouts
Keith Bennett PhotographyPhotographers
Mark Scowen PhotographyPhotographers
Haydn & RollettCarpenters & Cabinetmakers
Air Mark HVAC SpecialistsHVAC Designers and Installers
Weir ArchitectureArchitectural Designers
Gaze CommercialInterior Designers
Lobell ConstructionBuilders
DobsonsElectricians
VADAInterior Designers
Intelligent DesignArchitectural Designers
The Workspace StrategistProfessional Services
HawkinsConstruction
Collins Plumbing, Gas and HeatingPlumbers & Gas Fitters
HVAC Design New ZealandHVAC Designers and Installers
Tailor IncInterior Designers
ACE Air ConditioningElectricians
Arcline ArchitectureArchitectural Designers
Guild and Spence ElectricalElectricians
Ockham ResidentialProperty Developers
Space StudioInterior Designers
Material CreativeInterior Designers
Urban Lounge InteriorsInterior Designers

The OHCL-125 is a combination louver designed from proven Holyoake louver technology, featuring improved weather performance alongside a high free area.
The OHCL-125 is an operable, closable louver that offers functionality through black anodised damper blades. These blades are pivoted on the underside of each fixed blade and operated by either manual or motorised means. While open the closing blades offer minimal additional air flow resistance.
- Specs
- Aluminium Louver (different finishes available)
- Motorised or Manually Closable
- 125mm deep
- Stainless Steel 10x10 vermin mesh as standard
- Stainless Steel Hardware
- Minimum Size 300mm wide x 280mm high
- Maximum Size (Single Section) 5800mm wide x 1198mm high
Below options are available on request
- Insect Screens
- Blank-off Panels
- Head and/or Sill Flashings
- Security Bars
- Filter Racks
- Features
The OHCL-125 is a high performance louver with a bold straight blade profile. The louver can be either motorised or manually operable as requested. The louver has a obstructed line of sight from the face and has a dual weather stop blade. The OHCL-125 is available in two surround options that include a 40mm flange cover and a flangeless channel surround.
- Scope of use
The OHCL-125 Louver can be installed as part of the Mechanical Services System for either intake or exhaust applications and is suited for applications where high airflow is required.
Typical uses are to provide controlled air movement in conjunction with powered and matural ventilation systems in stadiums, data centres, factories, plant rooms, power stations, schools, gyms and projects that require similar large air volumes.
