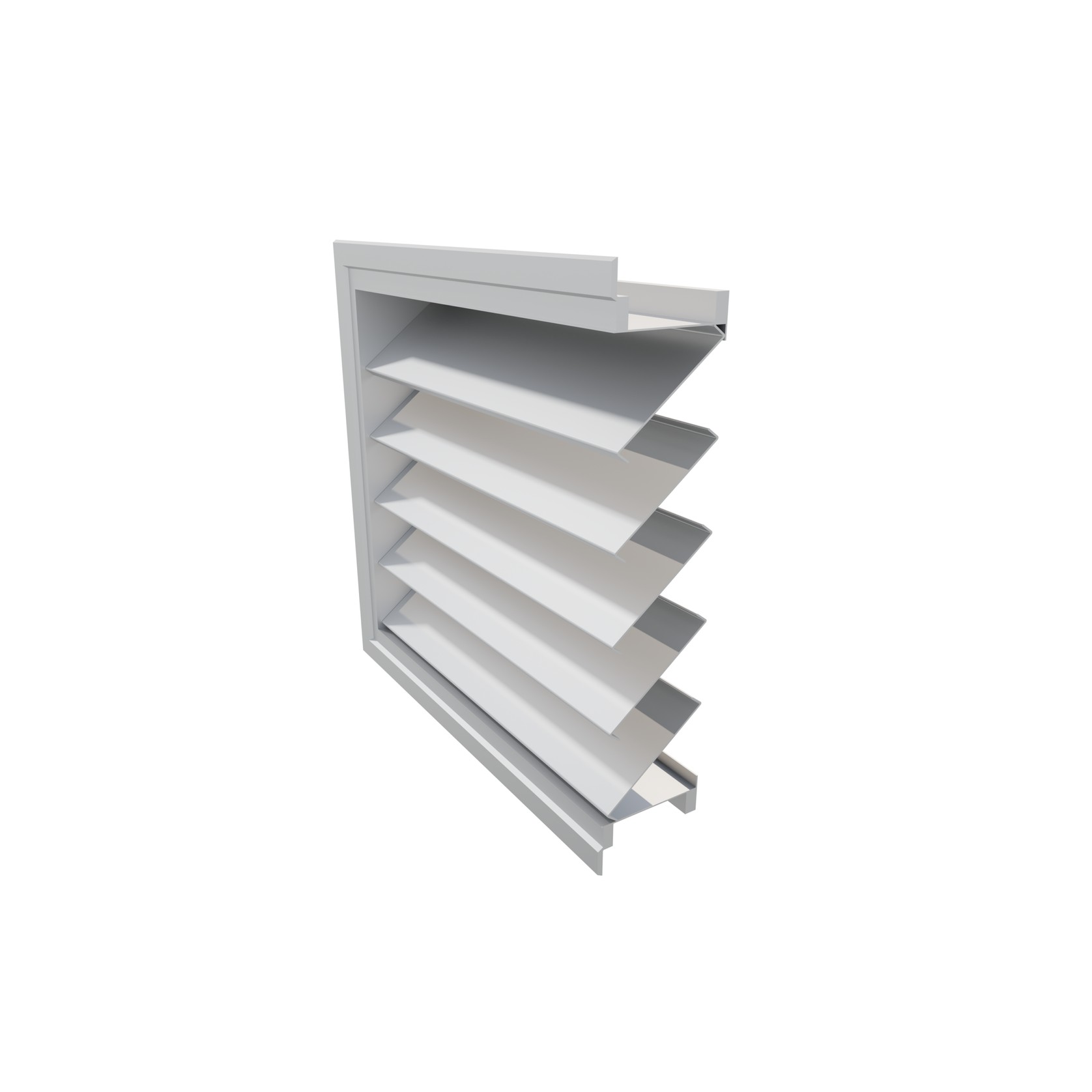

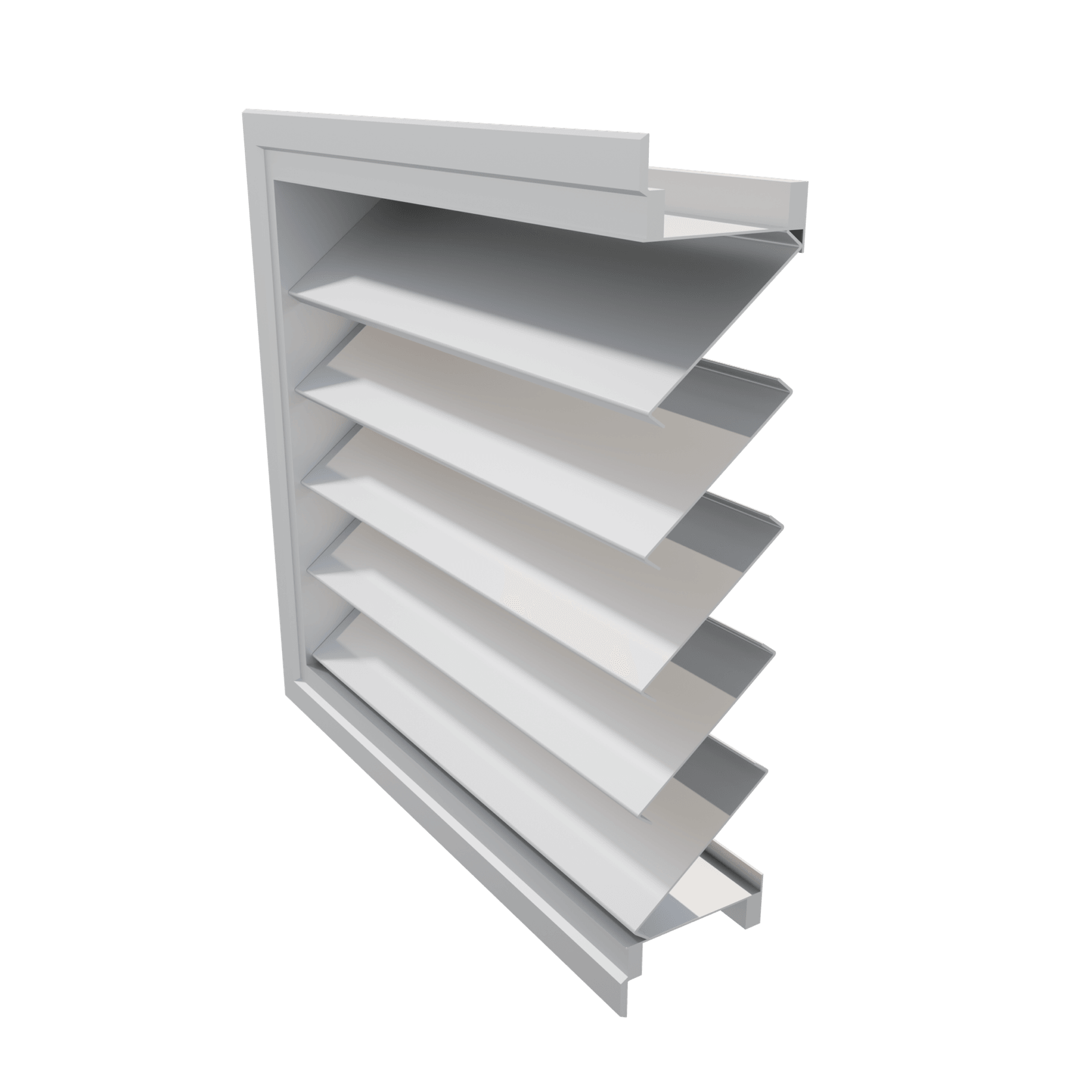

OHL-124 76mm Panel Weather Louver

Auckland

427.4K profile views
27 saves

The Holyoake OHL-124 louver is an attractive, high performance, multi-purpose louver, which features a high “effective pressure area”, for applications where maximum airflow is a requirement. Based on proven Holyoake louver technology, the flat profile louver blades are set at a low angled pitch. The blades are spaced at 76mm centres which ensure enhanced aerodynamic performance coupled with high weatherability. The installed blades overlap one another to minimise the possibility of any water carryover. The OHL-124 is available in conventional single panel construction with a maximum blade length of 2.8 meters or for greater lengths an architectural style is available to give a continuous line.

ventilation ventilation supply ventilation components ventilation systems ventilation exhaust

Product Details

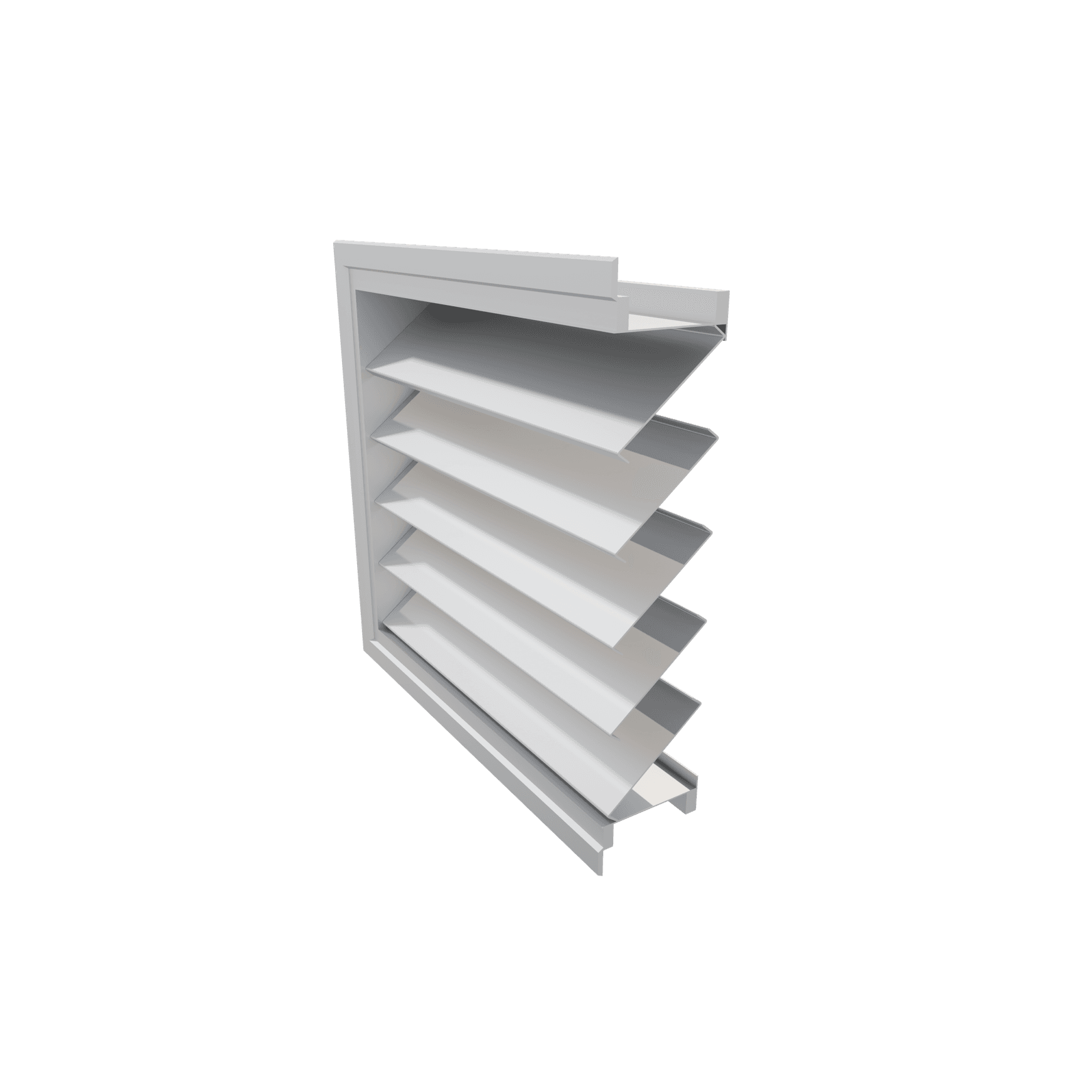

Product: OHL-124 76mm Panel Weather Louver
Category: Ventilation Components
Sold by: Holyoake Air Management Solutions
Range: Architectural Louvres
Brand: Price Holyoake
Warranty: 5 years

Holyoake Air Management Solutions is specified by

Based on proven Holyoake louver technology, the flat profile louver blades are set at a low angled pitch. The blades are spaced at 76mm centres which ensure enhanced aerodynamic performance coupled with high weatherability. The installed blades overlap one another to minimise the possibility of any water carryover. The OHL-124 is available in conventional single panel construction with a maximum blade length of 2.8 meters or for greater lengths an architectural style is available to give a continuous line.

The Holyoake OHL-124 louver is an attractive, high performance, multi-purpose louver, which features a high “effective pressure area”, for applications where maximum airflow is a requirement.

Specs: Weather Louvres shall be Holyoake Model OHL-F/C-124 straight profile 100mm louvred blades set at 76mm centres and constructed in a 107mm flanged (F) or channel (C) frame to suit the installation profile. Weather Louvres shall be of extruded aluminium construction and finished in natural anodised, powder coat and fitted with accessories and dampers where indicated as manufactured by Holyoake.
Features: High performance louver.

Straight blade profile.

Low resistance louver.

Obstructed line of sight.

Single stop blade.

The OHL-124 is available in three surround options: Flangeless channel surround, 25mm flange cover and 40mm flange cover
