Shut it® Combo Half Bolt-On Badass
by ASSA ABLOY
Auckland, New Zealand
- 657.1K profile views
- 60 saves
With a wide mounting plates and four anchor points, the 4" and 6" Half Bolt-on BadAss hinges reduce fence post flexing, preventing fatigue in the fence post. Four anchor points position bolts at the sides, rather than the center of the fence post for a solid, stronger connection. Shut It gate hinges are assembled in the U.S.A. with the industrys first maintenance-free high-temperature sealed bearings, which are safe to powder coat with the hinges installed on the gate.
Product Details
- Product
- Shut it® Combo Half Bolt-On Badass
- Category
- Gate Accessories
- Sold by
- ASSA ABLOY
- Range
- Shut it®
- Designer
- D&D Technologies
- Brand
- D&D Technologies
- Country of origin
- United States
- Warranty
- Lifetime
ASSA ABLOY is specified by
Borrmeister ArchitectsArchitects
DLA ArchitectsArchitects
Smith ArchitectsArchitects
Dalman ArchitectsArchitects
ASC ArchitectsArchitects
Jigsaw ArchitectsArchitects
Respond ArchitectsArchitects
SA StudioArchitects
Construkt ArchitectsArchitects
Sheppard & Rout ArchitectsArchitects
Architecture BureauArchitects
GHD DesignArchitects
Ignite ArchitectsArchitects
South ArchitectsArchitects
Paul Brown & Associates LimitedArchitects
ContextArchitects
RTA StudioArchitects
YokeArchitects
Bossley ArchitectsArchitects
Evelyn McNamara ArchitectureArchitects
Francis Gp ArchitectsArchitects
Nulook® Windows & Doors WanganuiGlaziers
Walker ArchitectureArchitectural Designers
Alpha 1 BuildersBuilders
Nebulite® Windows & Doors MastertonGlaziers
Nebulite® Windows & Doors Garden CityGlaziers
Vistalite® Ashburton Heartland AluminiumMetal Fabricators and Welders
VoxellArchitectural Designers
Fairview WarkworthMetal Fabricators and Welders
PJM Project ManagementProject Managers
Cogan Custom HomesBuilders
Nulook® Windows & Doors CanterburyGlaziers
Liddington Electrical SouthernElectricians
Altus® Window SystemsJoinery Installers & Repairs
Nulook® Windows & Doors New PlymouthGlaziers
Nulook® Windows 2000Glaziers
eHausDesign & Build
Landmark Homes Auckland - North Shore & RodneyBuilders
David Reid HomesDesign & Build
Rylock® Windows & Doors Auckland SouthGlaziers
Landmark Homes New ZealandBuilders
Landmark Homes GisborneBuilders
Lewis WindowsServices
High Performance WindowsMetal Fabricators and Welders
Begg Security GroupLocksmiths
The House CompanyBuilders
Fixation BuildersBuilders
New Zealand Green Building CouncilAssociations
ArmstrongLocksmiths
Landmark Homes Auckland CentralDesign & Build
White Wood HomesBuilders
Fisher® Windows and Doors OtagoGlaziers
Foley GroupInterior Designers
Golden Homes CanterburyDesign & Build
Vistalite® Windows and Doors ManawatuGlaziers
Conder ConstructionConstruction
Fisher® Windows and Doors GisborneGlaziers
Fisher® Windows and Doors MarlboroughGlaziers
Maddren HomesBuilders
Fisher® Windows and Doors WellingtonGlaziers
With a wide mounting plates and four anchor points, the 4" and 6" Half Bolt-on BadAss hinges reduce fence post flexing, preventing fatigue in the fence post.
Four anchor points position bolts at the sides, rather than the center of the fence post for a solid, stronger connection. Shut It gate hinges are assembled in the U.S.A. with the industrys first maintenance-free high-temperature sealed bearings, which are safe to powder coat with the hinges installed on the gate.
- Specs

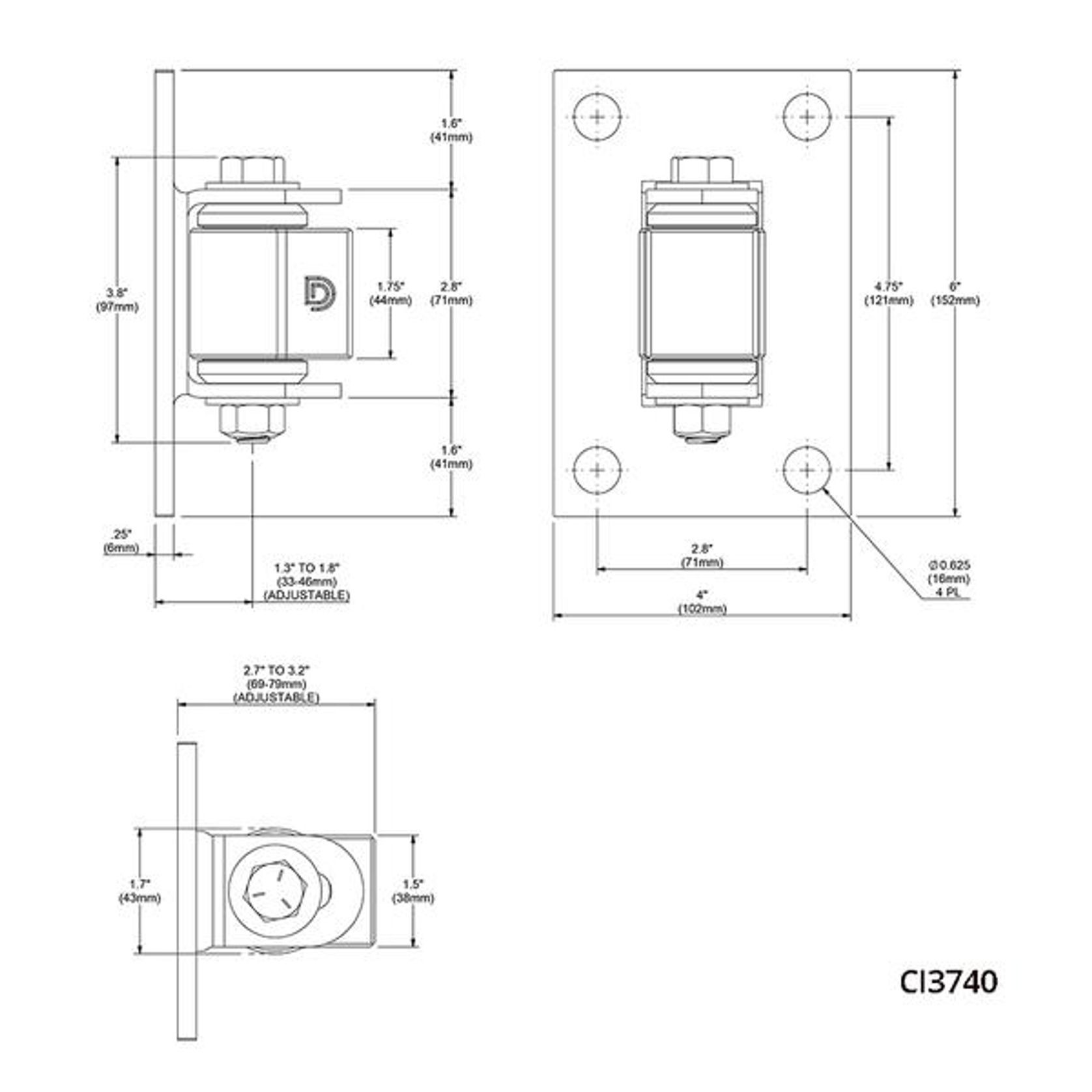

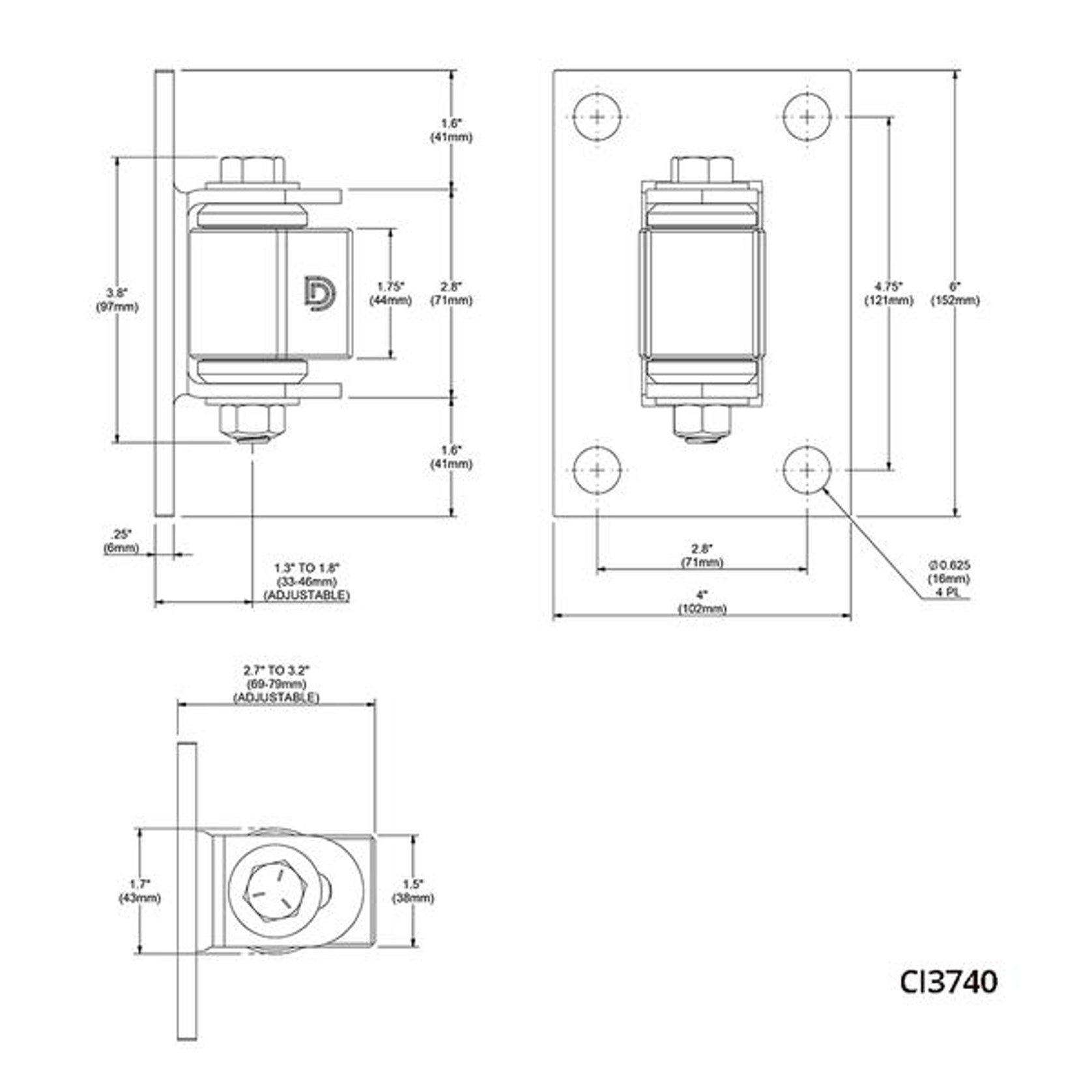

- Product Code - CI3740
- Gate Type - Non-Self-Closing
- Gate Material - Aluminum
- Approx Gate Size - 1.5m x 2m (6ft W x 8ft H)
- Gate Frame/ Post Shape - Square to Square
- Min Post Size - 38mm+
- Ideal Gate Gap - 73-86 mm
- Fixing Method - Bolt-On, Weld One
- Colour/ Finish - Zinc
- Features
- Made to bolt or weld to 100 -125mm (4” or 5”) fence posts
- Wider brackets enable anchor points to be positioned at the sides, rather than the centre of a fence post - reducing flexing, preventing fatigue in fence post
- High-temperature sealed bearings - safe to powder coat with hinges installed on the gate
- No greasing, no maintenances. EVER!
- Precision bushing - distributes gate load for optimal performance and longer life
- CNC machined to perfection and near-frictionless movement
- Max Gate Load: 450kg (1,000 lb)
- Max Gate Weight: 270kg (600 lb)
- Limited Lifetime Warranty
