MonoFlat LIN-X1000 Heavy-Duty Flush Door System

Unique Hardware Solutions
Visit Website

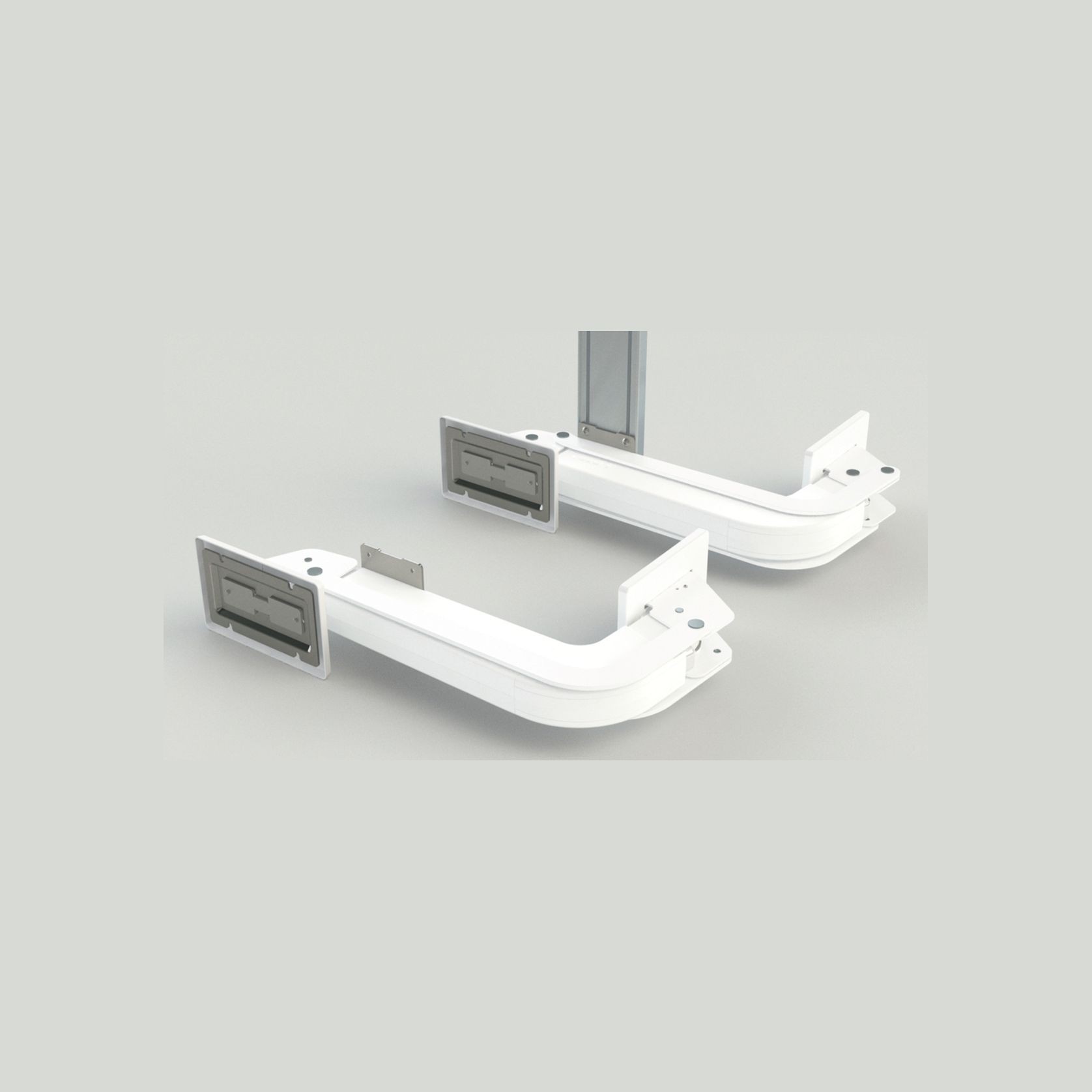

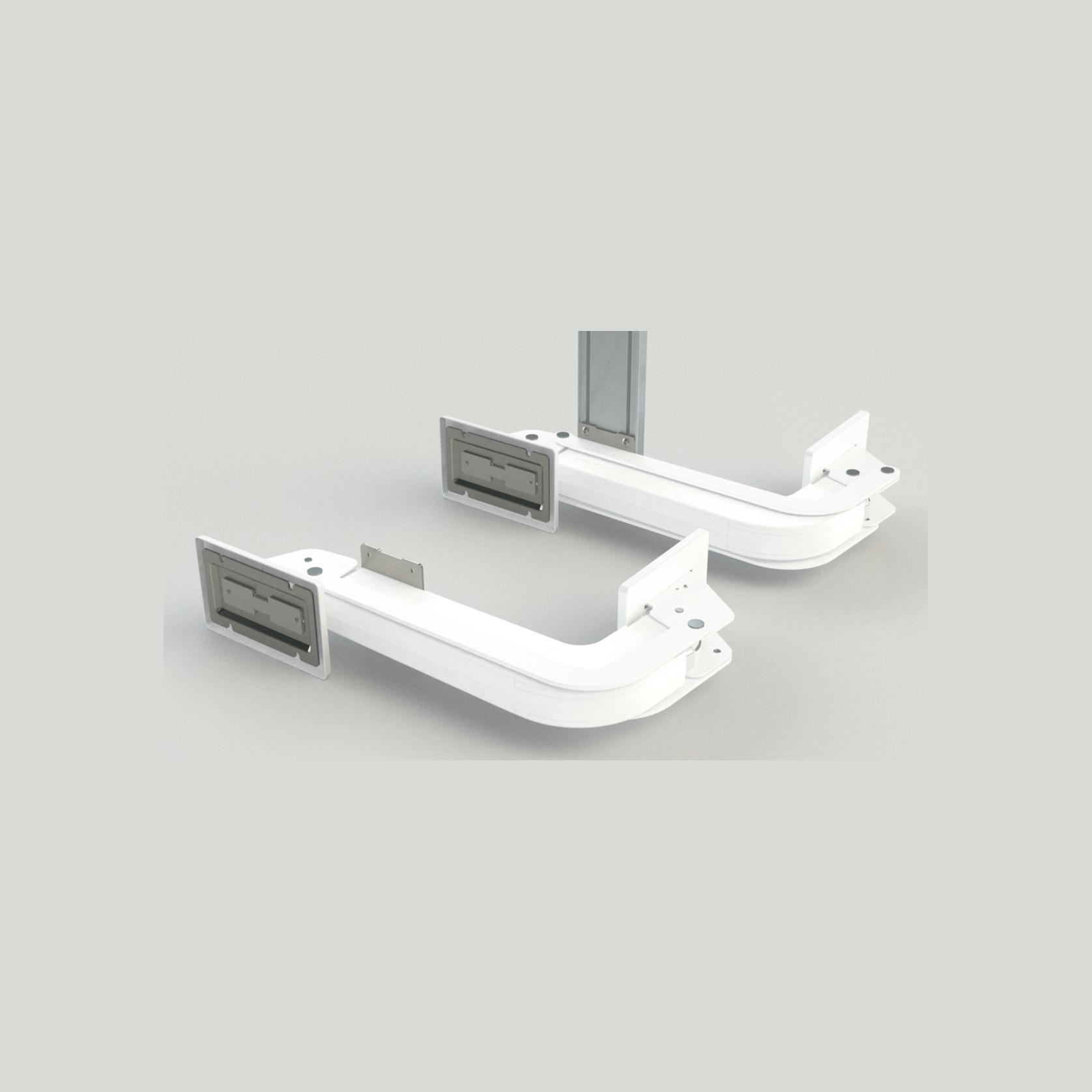

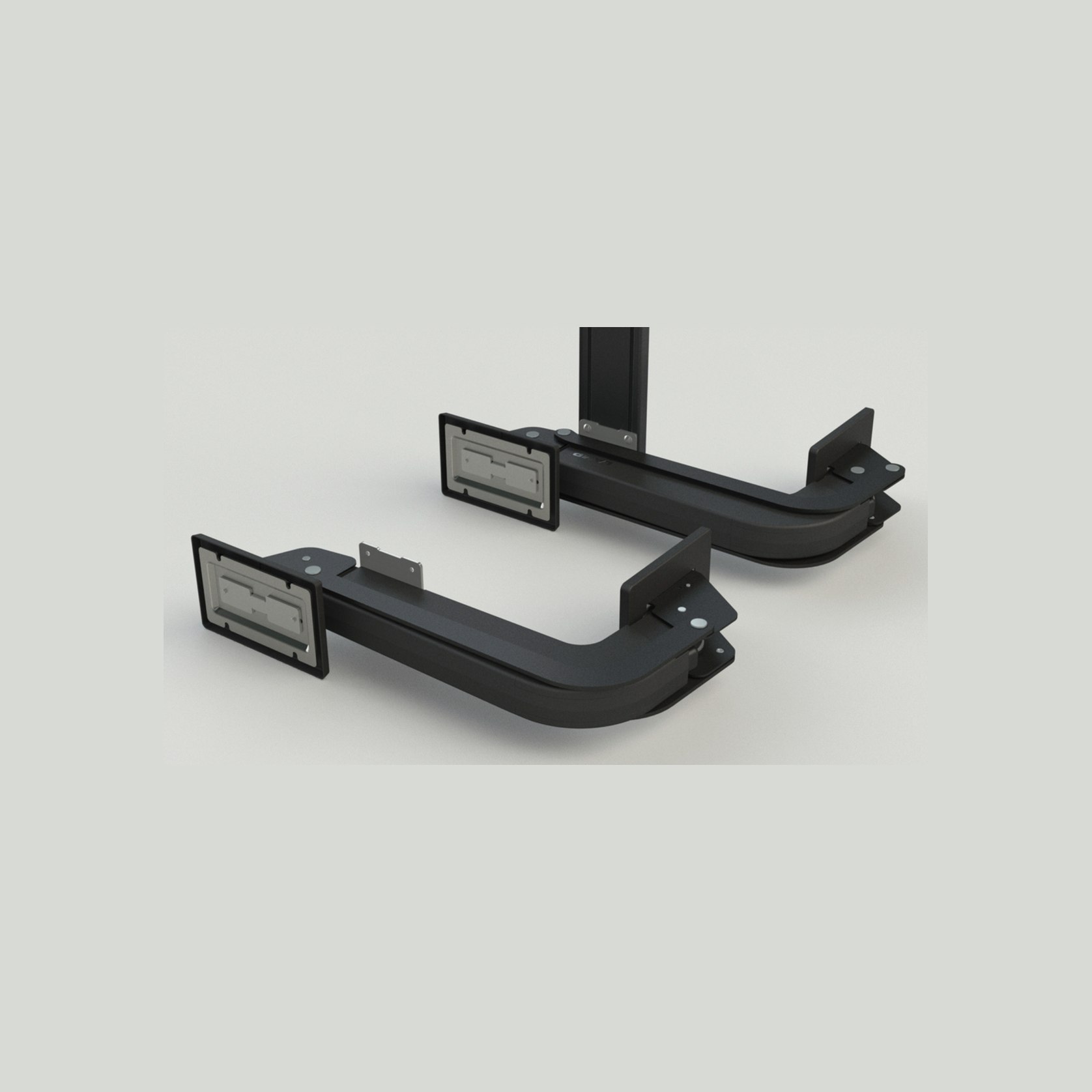

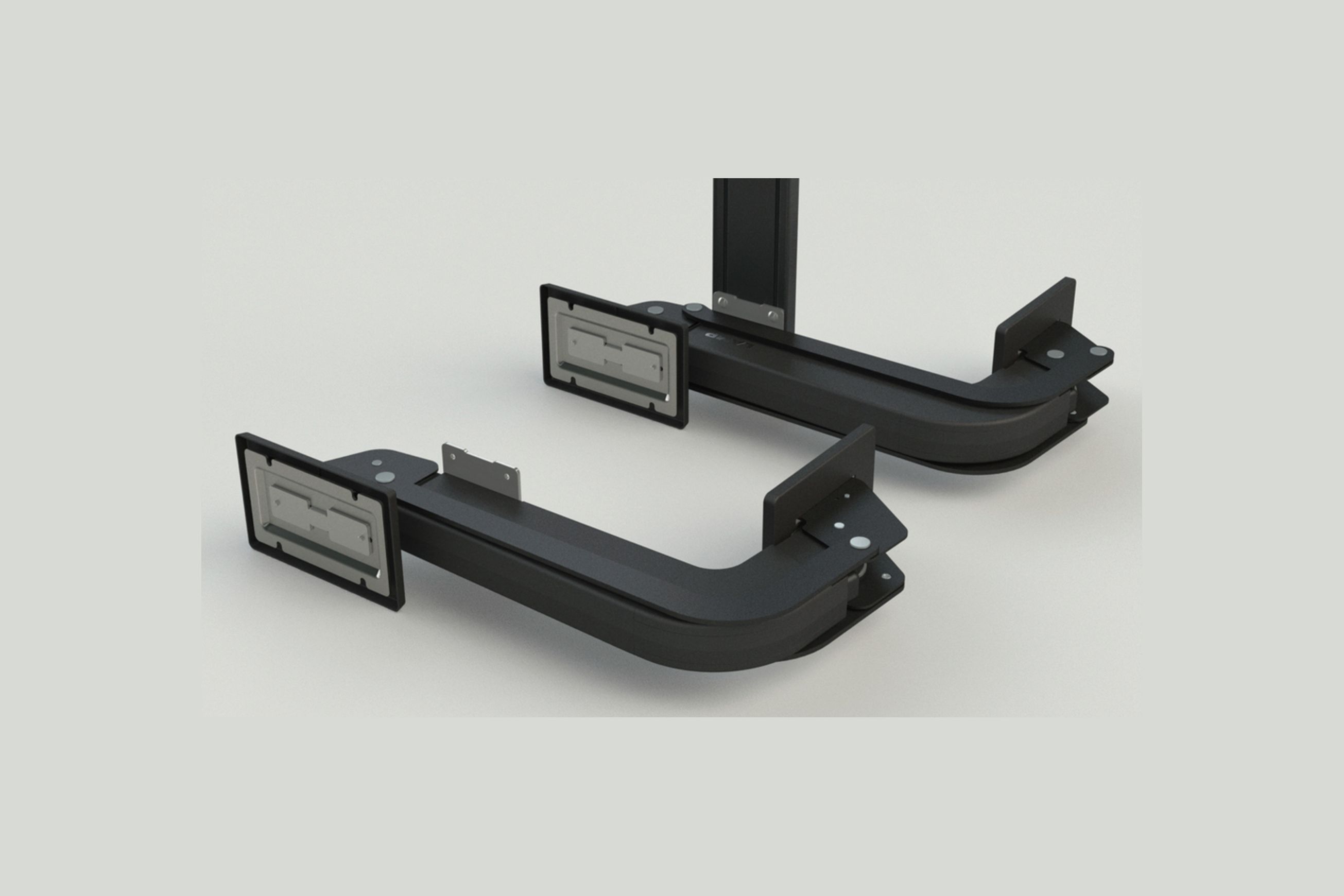

The MonoFlat LIN-X1000 is a heavy-duty lateral door hinge system designed for large, flush-fitting doors where space, access and clean architectural lines are important.

Unlike a conventional hinge, the LIN-X uses a unique lateral swinging movement, allowing the door to move outwards in a small radius before opening. The result is a door that sits flush when closed while providing clear access to the space behind it when fully open.

Designed for doors up to 90kg, 1100mm wide and 2980mm high, the LIN-X1000 is suited to large architectural doors, concealed rooms, full-height cabinetry and space-efficient interiors.

Built-in soft closing prevents the door from slamming, while free-stop functionality allows the door to hold at any position within its opening range. Four-way adjustment after installation makes it possible to fine-tune the door for a precise final fit.

Details
Specifications
  • Door Material: Timber
    Door Width: 750–1100 mm
    Door Height: 2400–2980 mm*
    Door Thickness: 24–40 mm
    Maximum Door Weight: 90 kg per door
    Opening: Lateral swing
    Soft Close: Integrated
    Free Stop: Yes
    Adjustment: 4-way post-installation adjustment
    Vertical Adjustment: ±7 mm
    Horizontal Adjustment: ±7 mm
    Depth Adjustment: ±5 mm
    Parallel Adjustment: ±3°
    Door Opening: Left or right hand
    Installation: No floor rail or floor groove required
    Finish Options: White / Black
    Cycle Testing: 100,000 open/close cycles – private test
Scope of use

The MonoFlat LIN-X1000 is suited to:

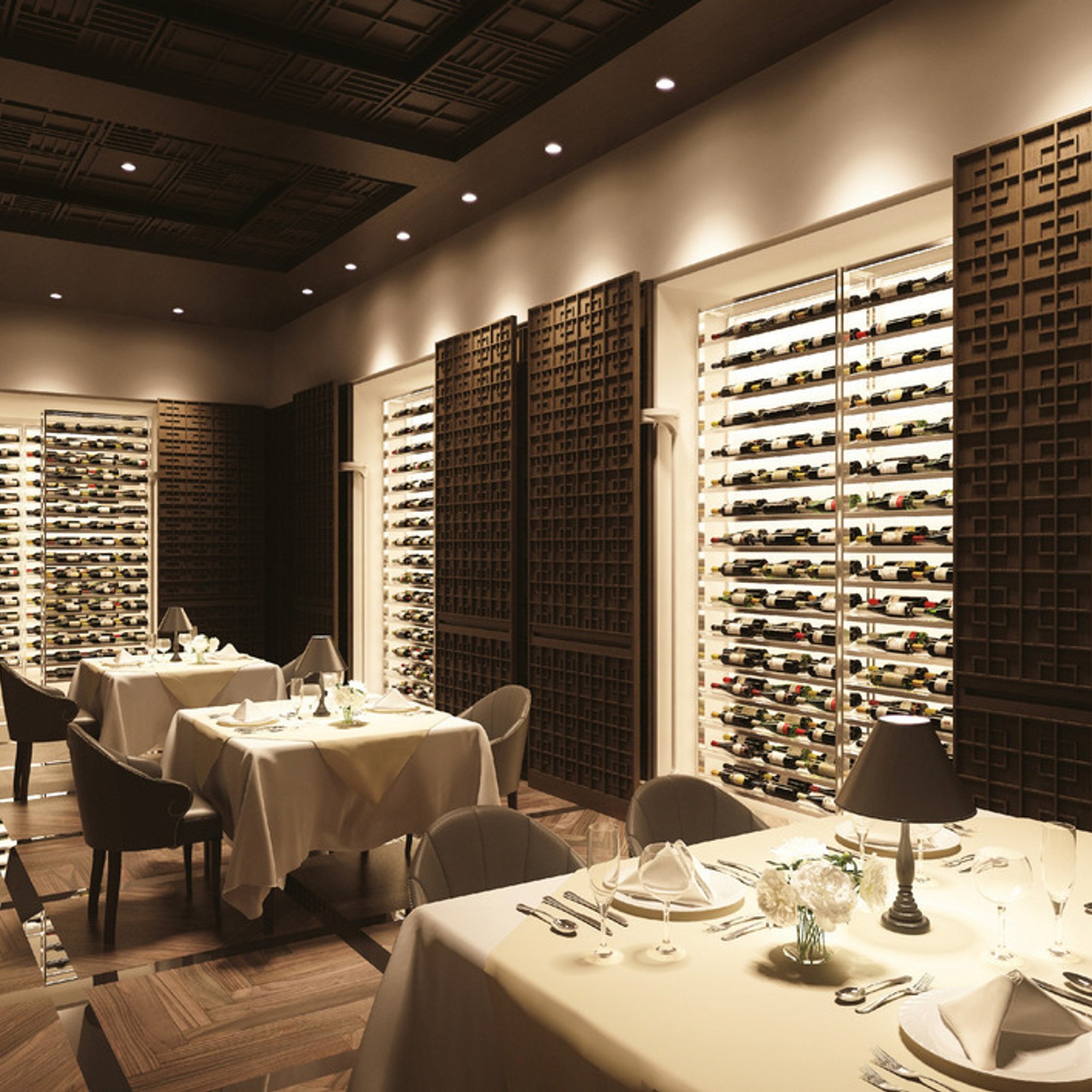

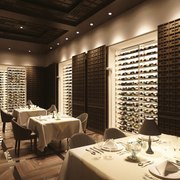

  • Large flush architectural doors

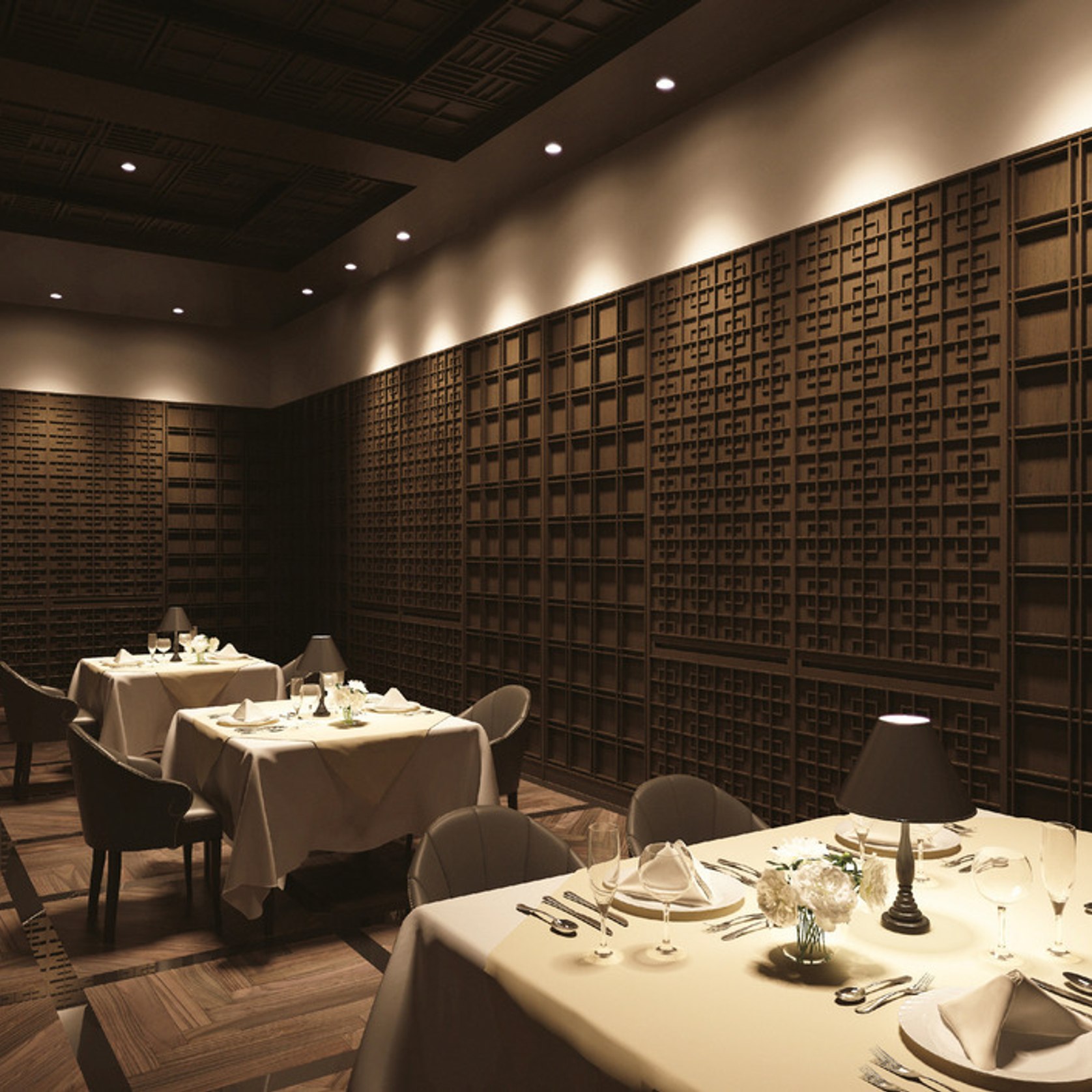

  • Concealed and hidden doors
  • Full-height interior doors

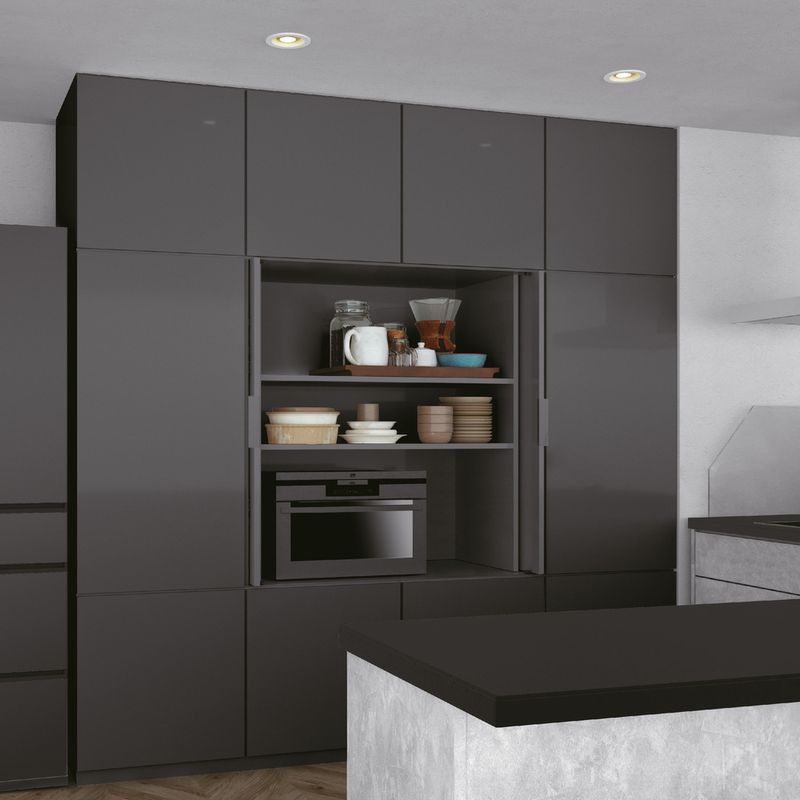

  • Flush wall and cabinetry applications
  • Walk-in wardrobes and dressing rooms
  • Large storage and utility doors
  • Space-efficient residential interiors
  • Micro apartments and compact spaces
  • High-end residential and architectural projects
  • Commercial interiors where a clean, flush finish is required
Features
  • Heavy-duty capacity up to 90kg per door
  • Unique lateral swinging movement
  • Small opening radius compared with conventional door hinges
  • Door sits flush with surrounding surfaces when closed
  • Full access when the door is fully open
  • Built-in soft-close function
  • Free-stop positioning throughout the opening range
  • Four-way post-installation adjustment
  • Suitable for large doors up to 1100mm wide and 2980mm high
  • Passed 100,000 open/close cycle private testing
  • No floor rail required
  • Suitable for timber doors
  • BIM/Revit data available
Configurations & Options

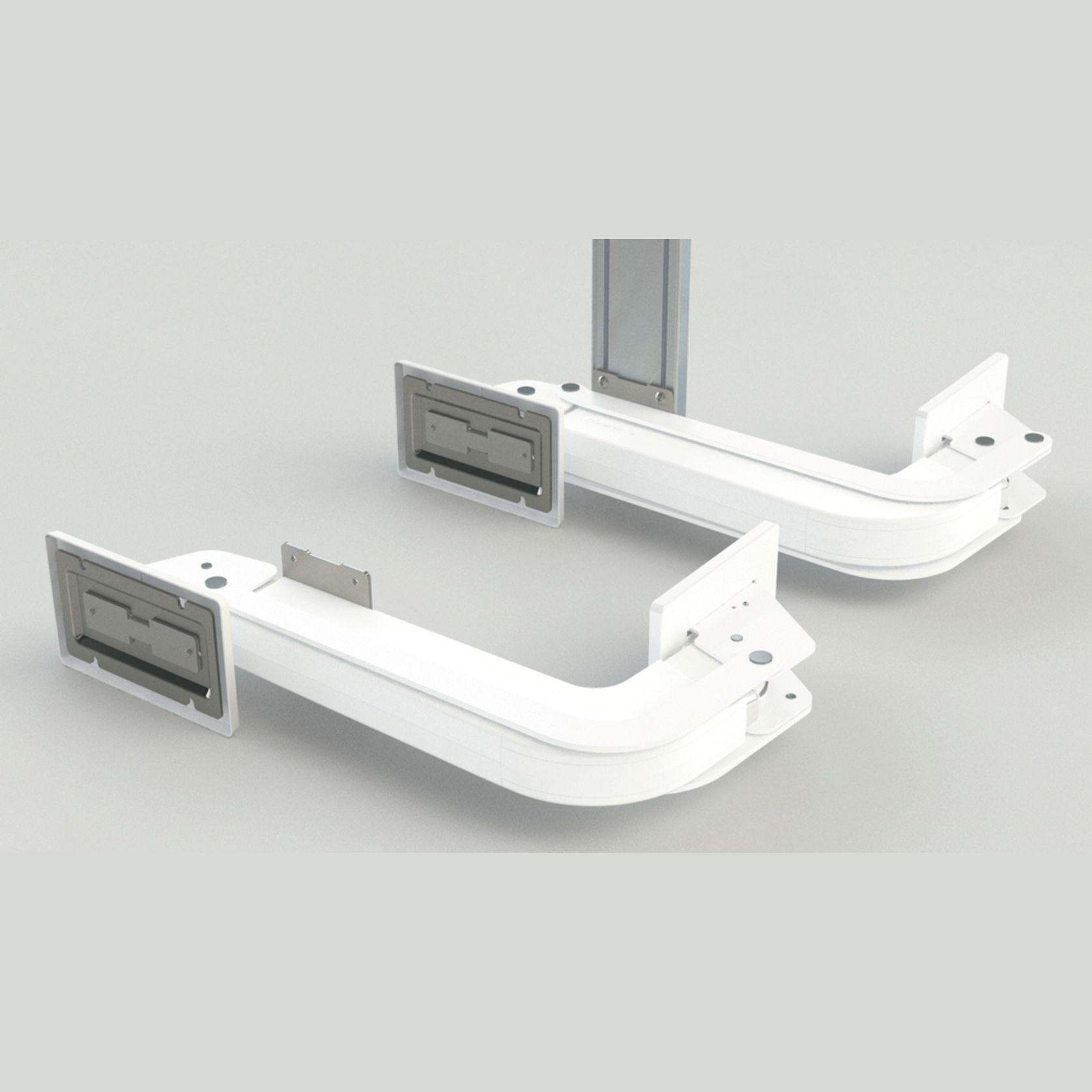

The LIN-X1000 is supplied as a complete lateral door hinge system and is available in:

  • White

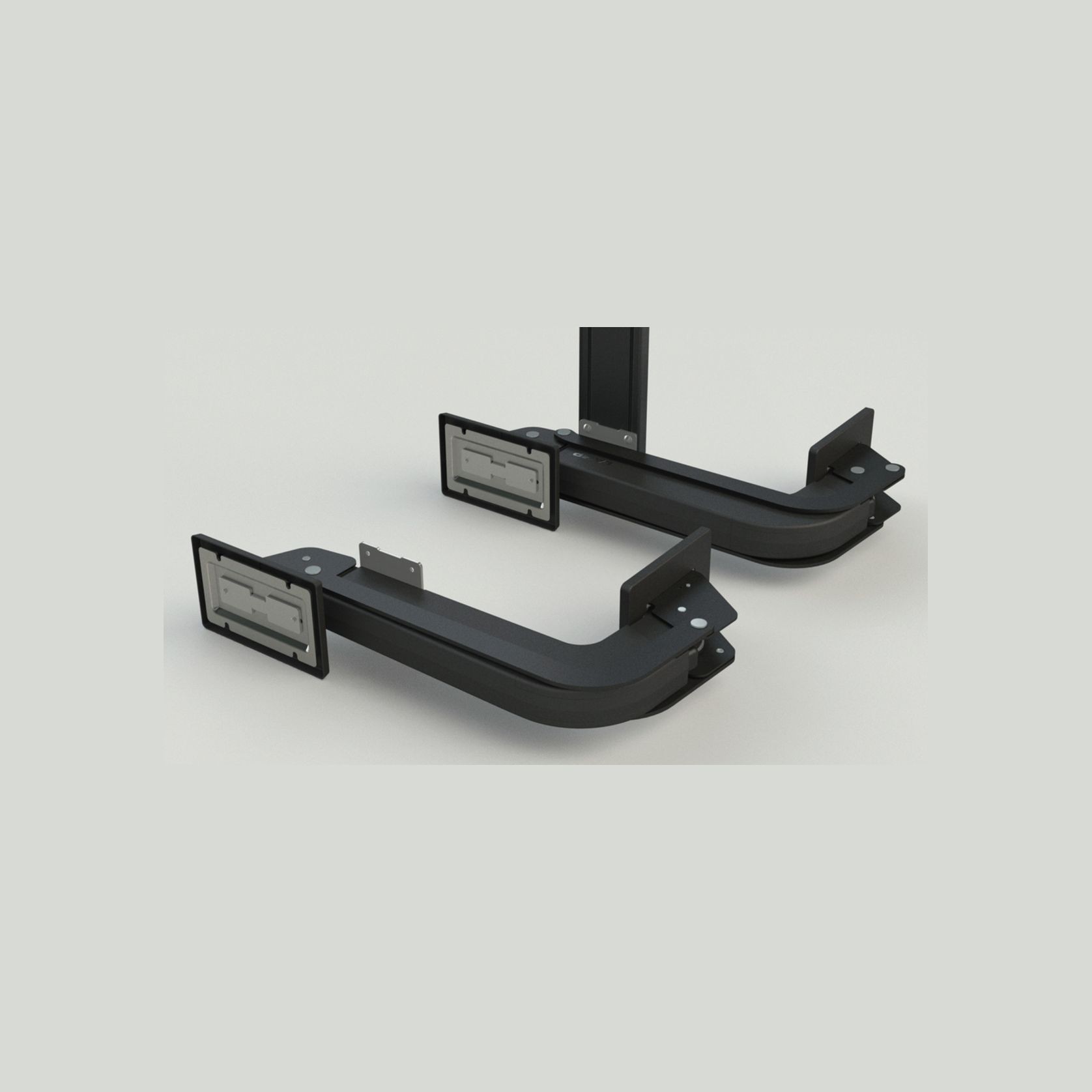

  • Black anodised

The system is designed for timber doors between 24–40mm thick and can be configured for large single doors within the published size and weight limits.

Installation can be used for both cabinet and passage door applications, depending on the project requirements.
