Utek Reversus 2 - Ventilation System with Heat Recovery

By SolutionAir
From
$6,199 - $8,643*
*Price indication
Visit Website
grey

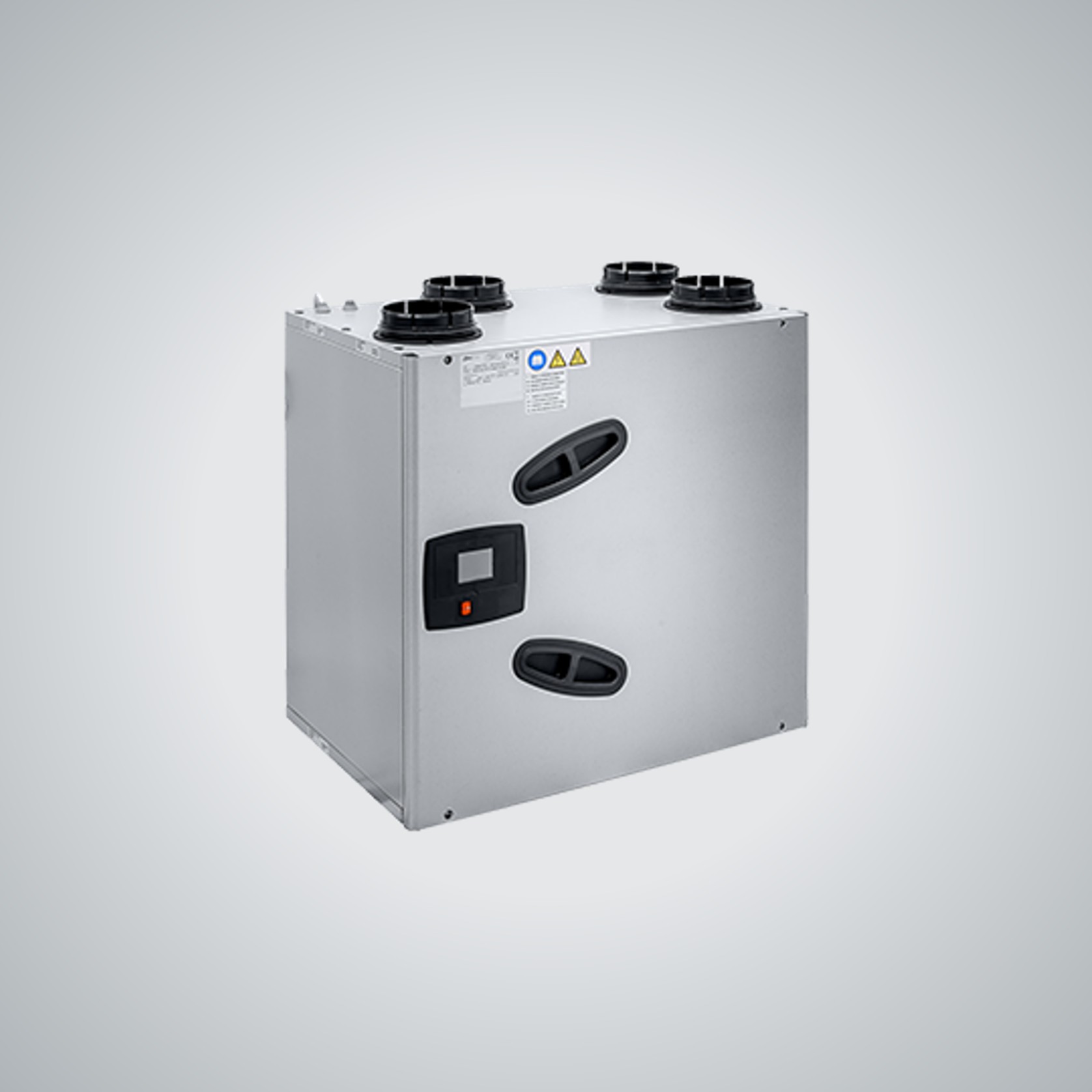

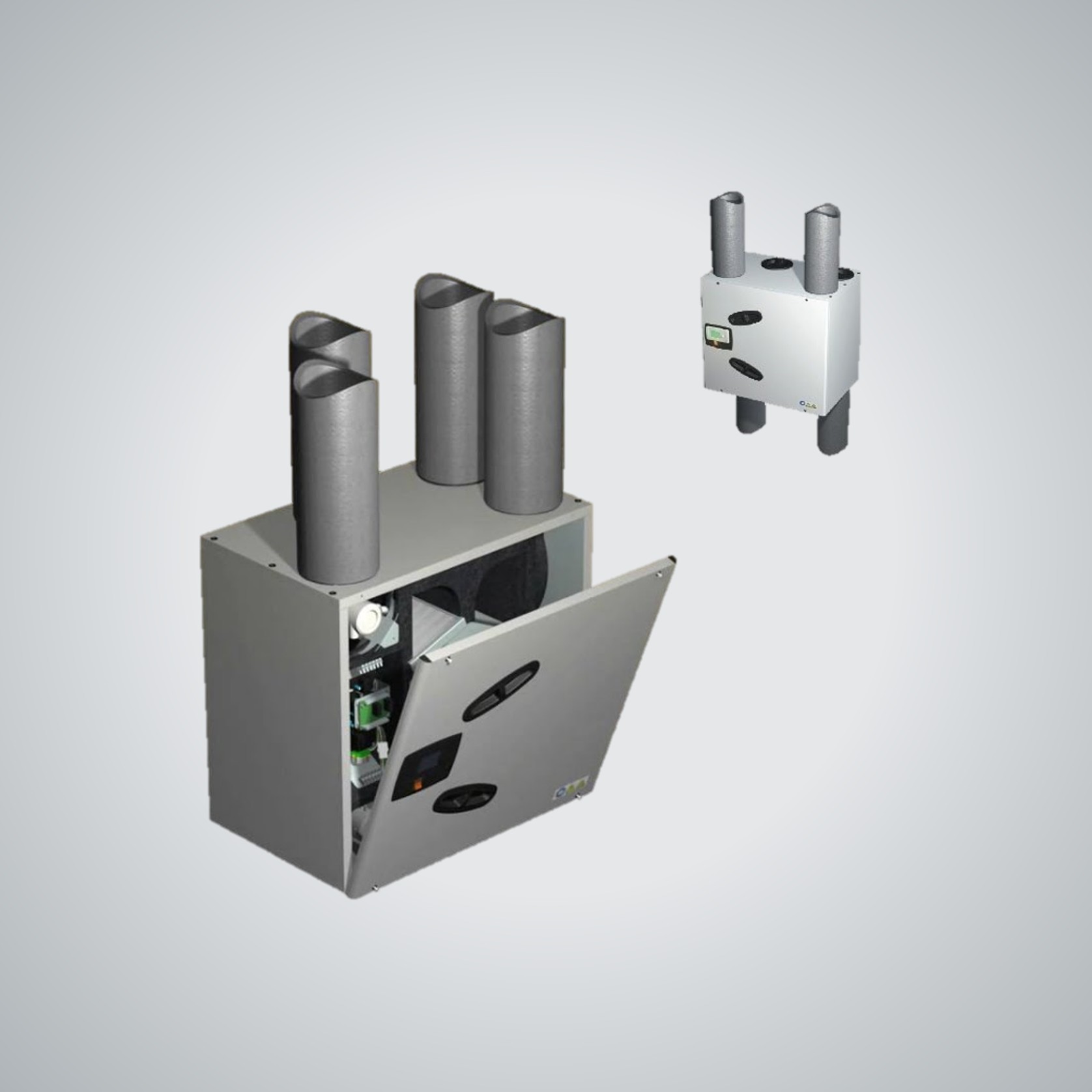

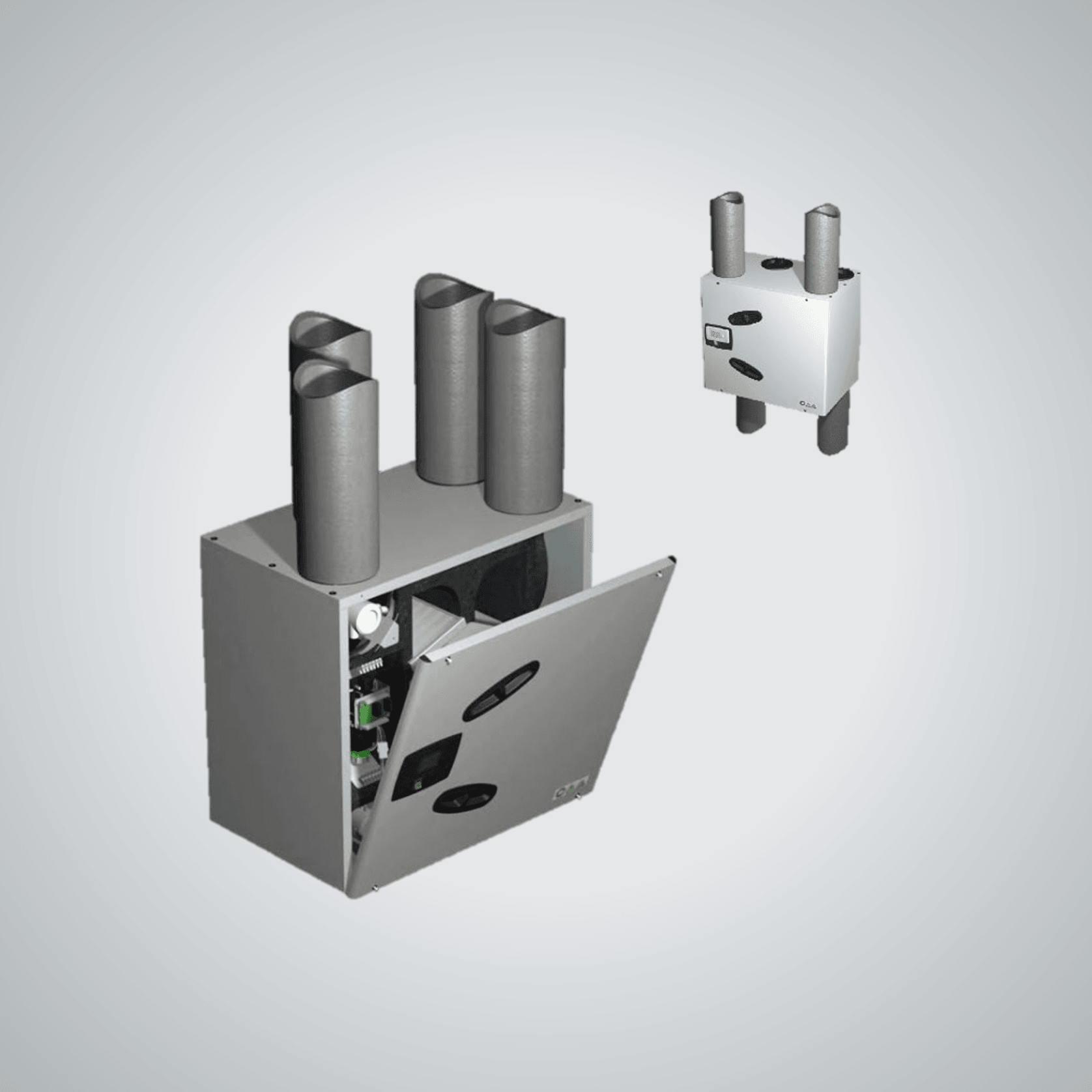

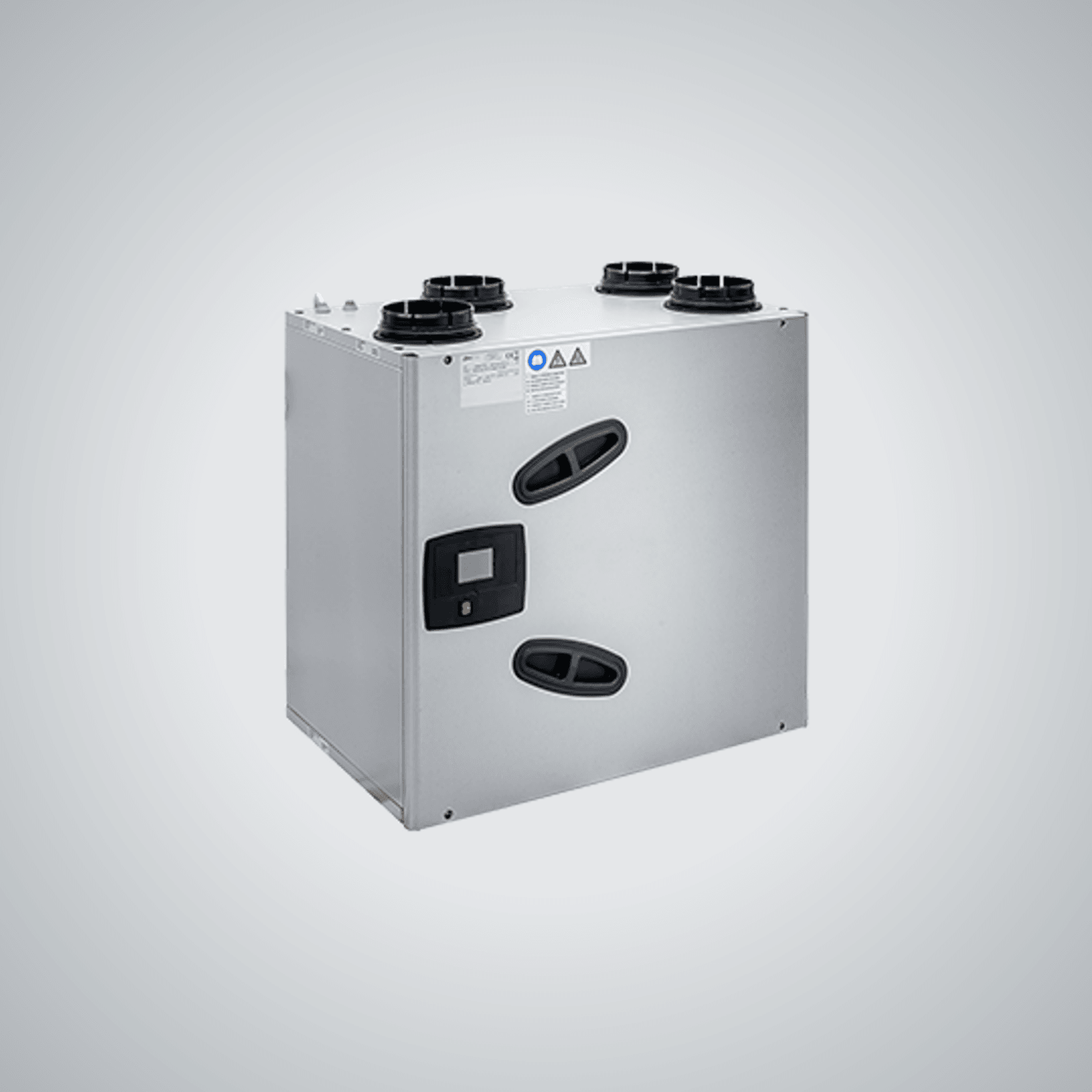

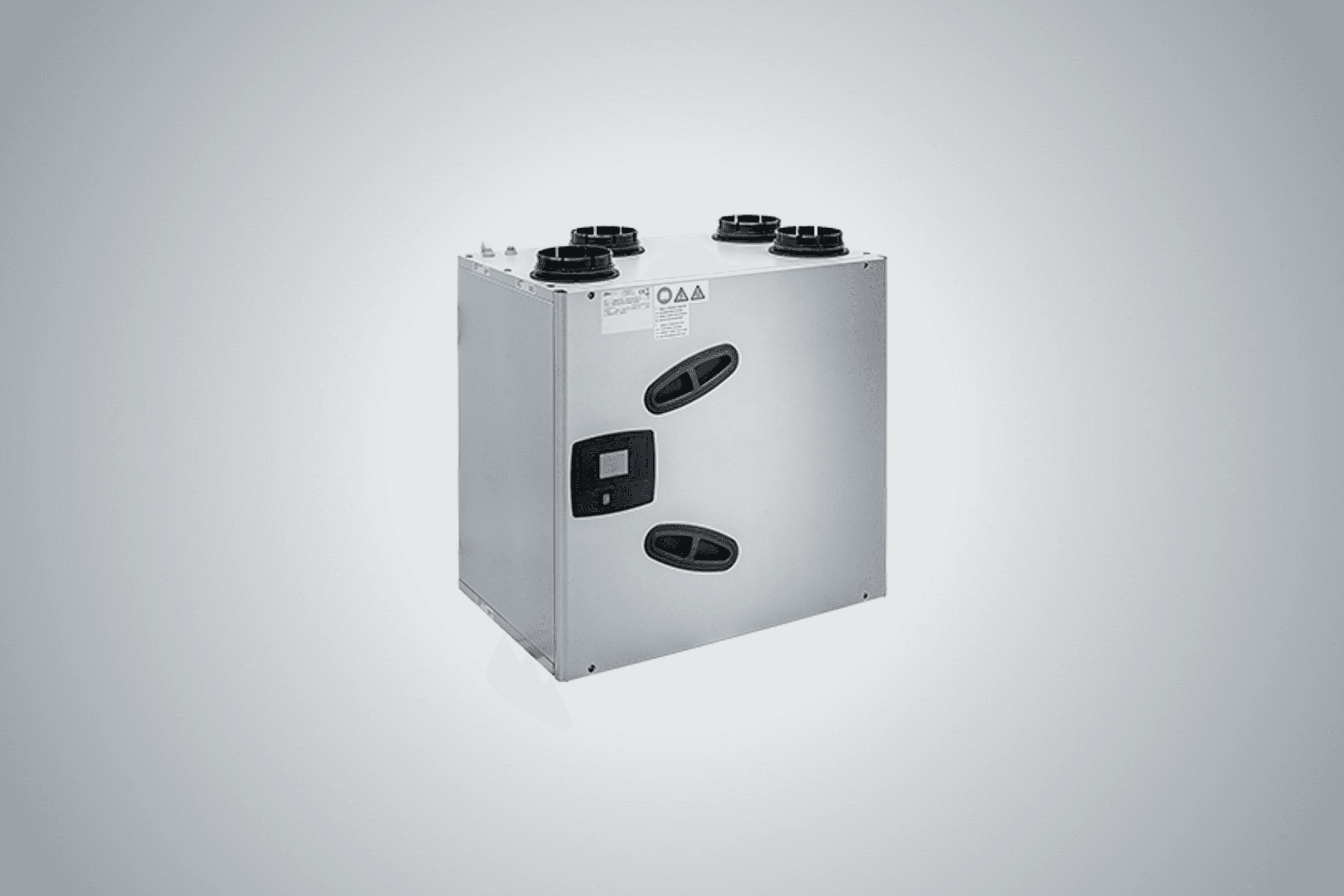

Utek Reversus 2 – Vertical Ventilation Unit

The Reversus unit from Utek Italy are highly developed MHRV units. With Utek’s commercial background these units are built to perform and last. Its excellent pressure performance makes the unit suitable for large houses and commercial spaces with space for vertical installation.

Highlights

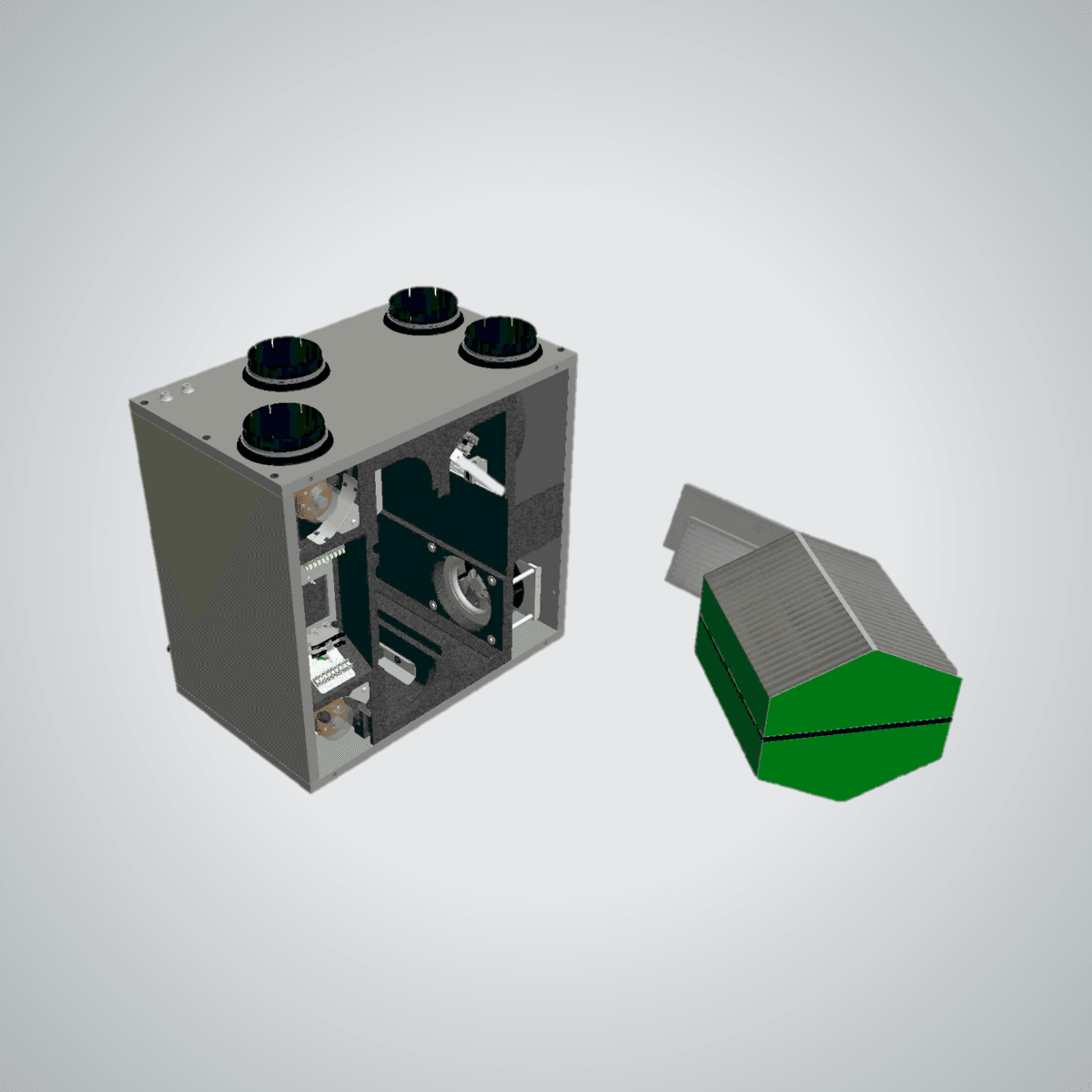

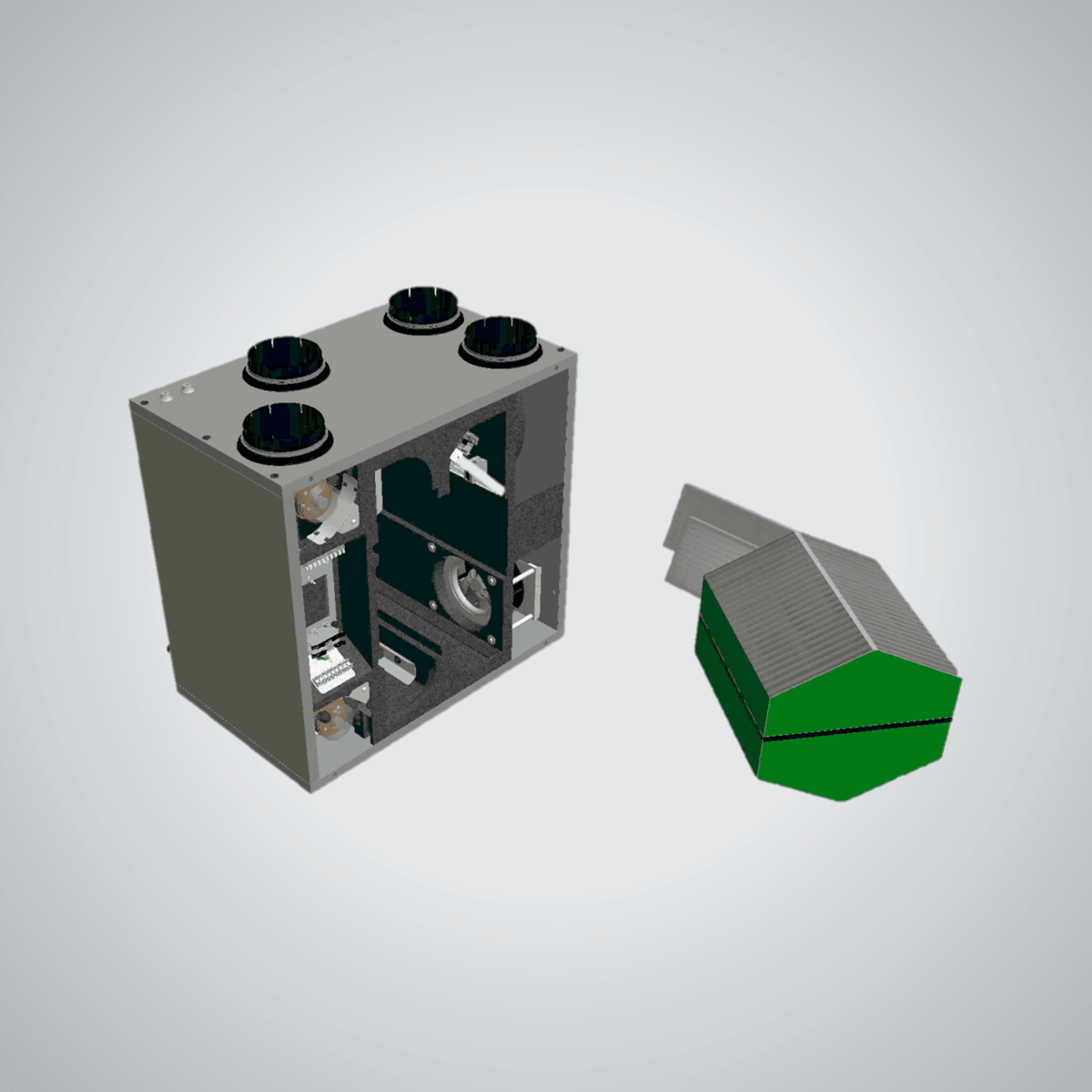

  • High-efficiency counterflow heat exchanger
  • EC-fans, pressure or flow controlled

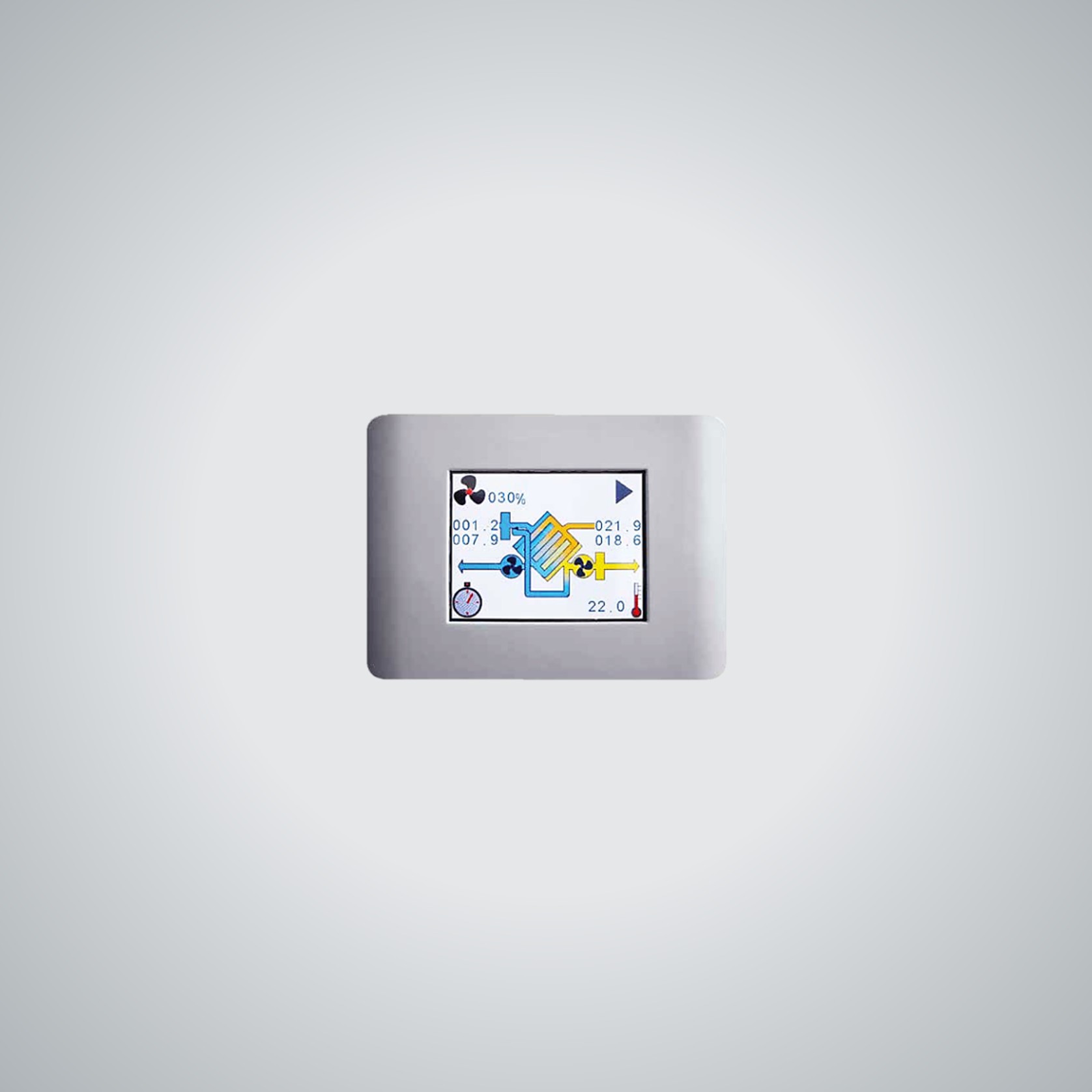

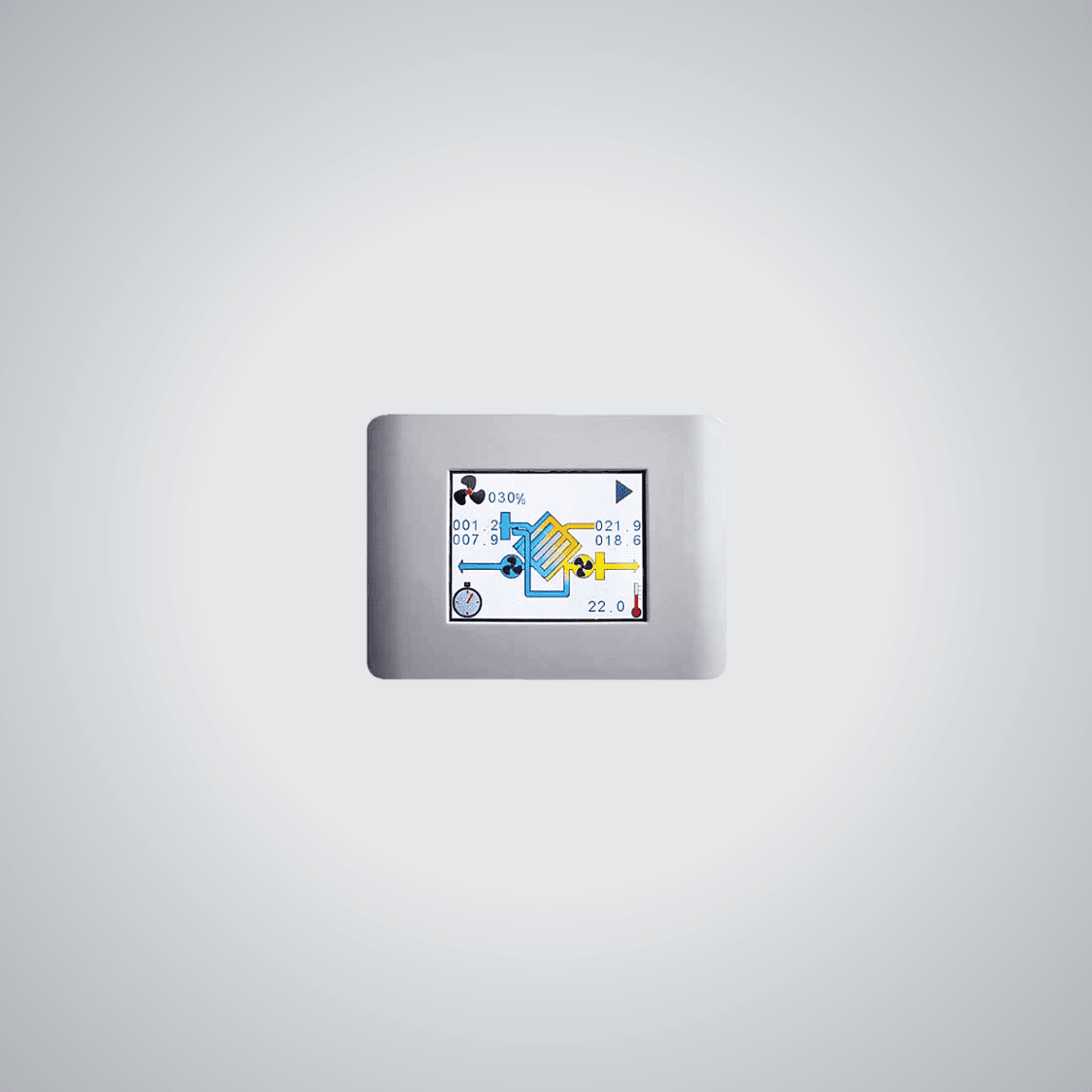

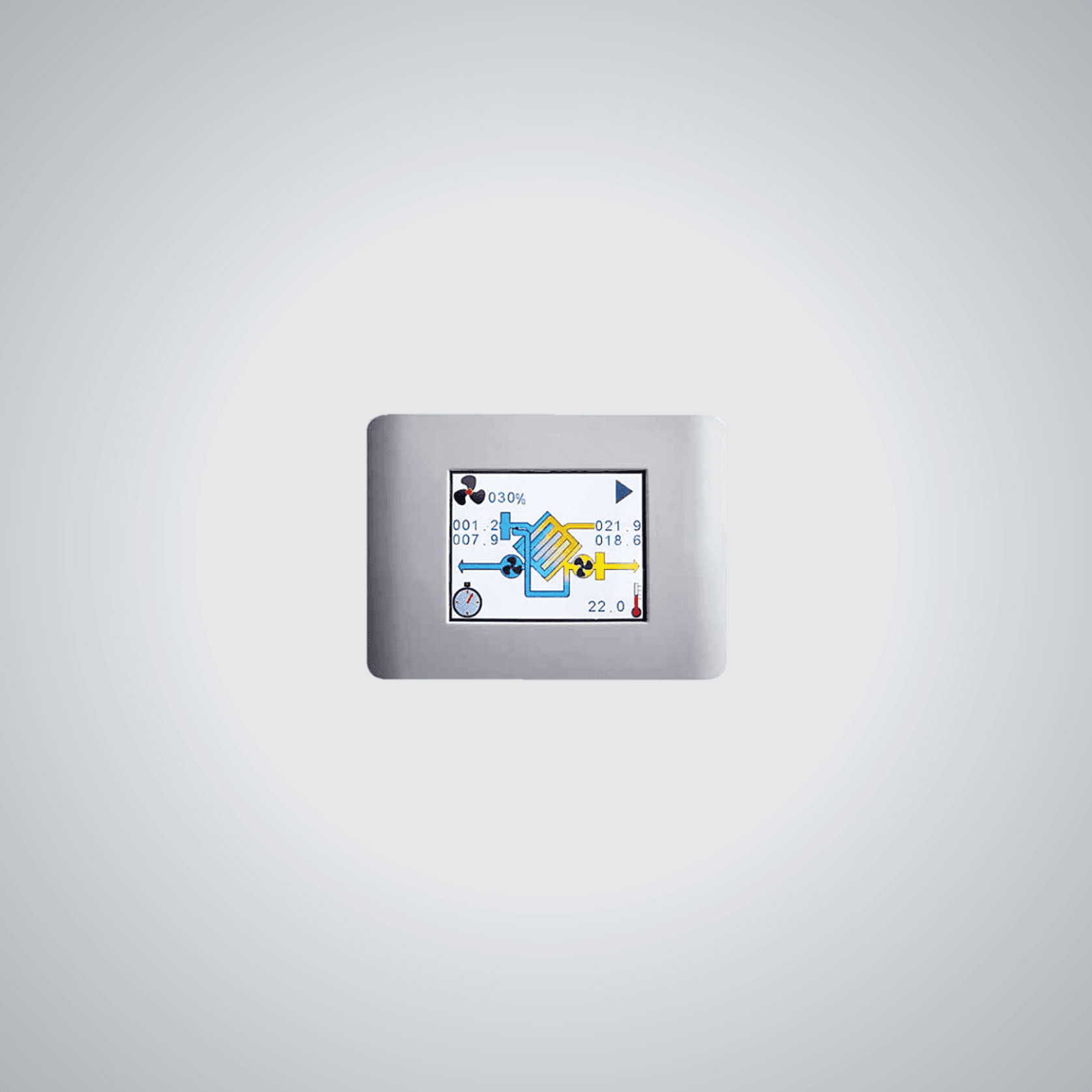

  • Touch-screen Controller
  • Optional ventilation on demand (CO2, RH, VOC)
  • Summer By-pass

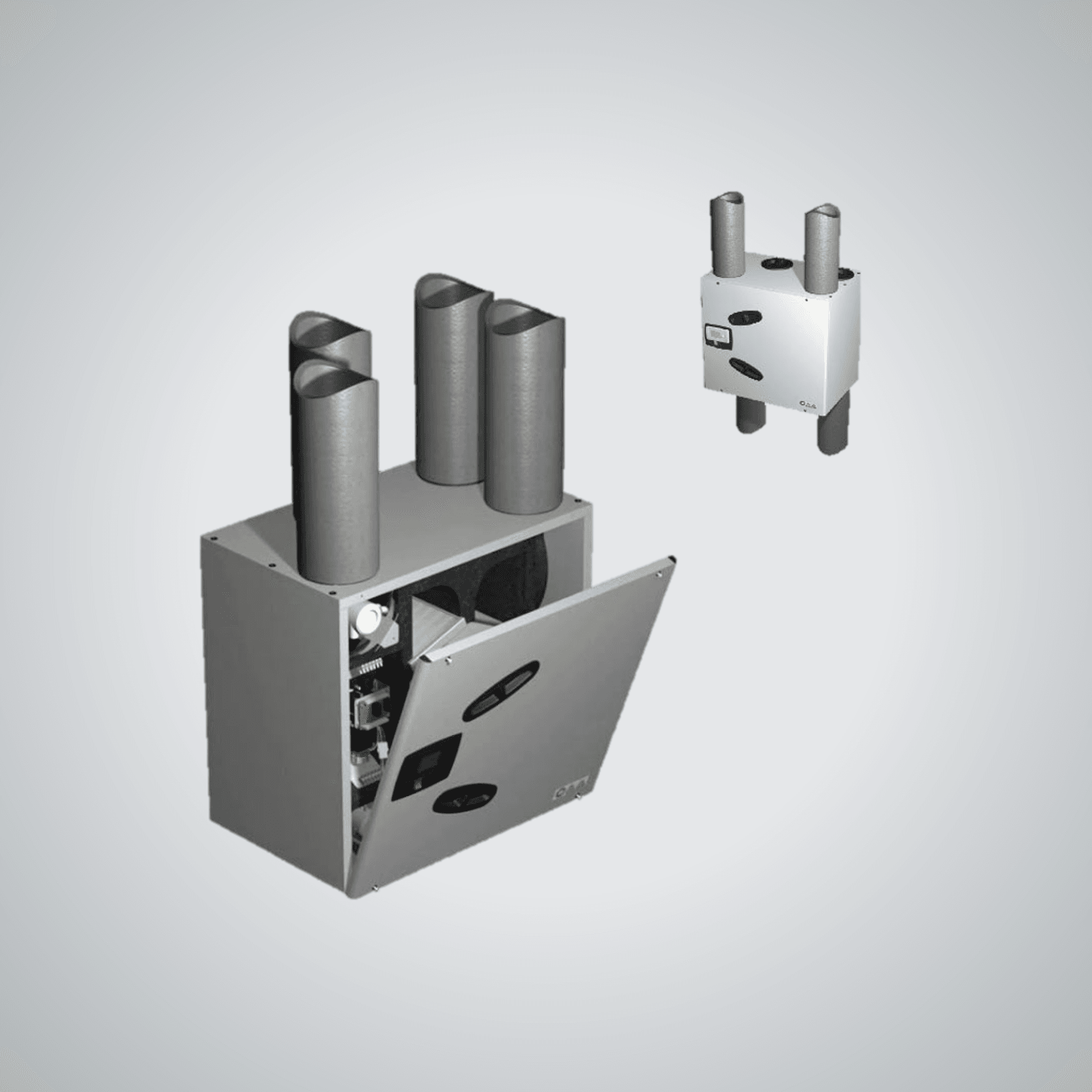

  • Top or bottom duct connection
  • Optional with hydronic Post-Heater/Cooler
  • High-grade F7 filter for supply air (G4 for exhaust air)
  • Meets G4 and Healthy Home Standard
  • 2-year warranty
Details
  • Category
    Ducted Heat Pump Systems, Heat Recovery Ventilation, Bathroom Extractor Fans
  • Range
    Ventilation Systems
  • Brand
    Utek - Italy
  • Year
    2022
  • Warranty
    2 years
Specifications

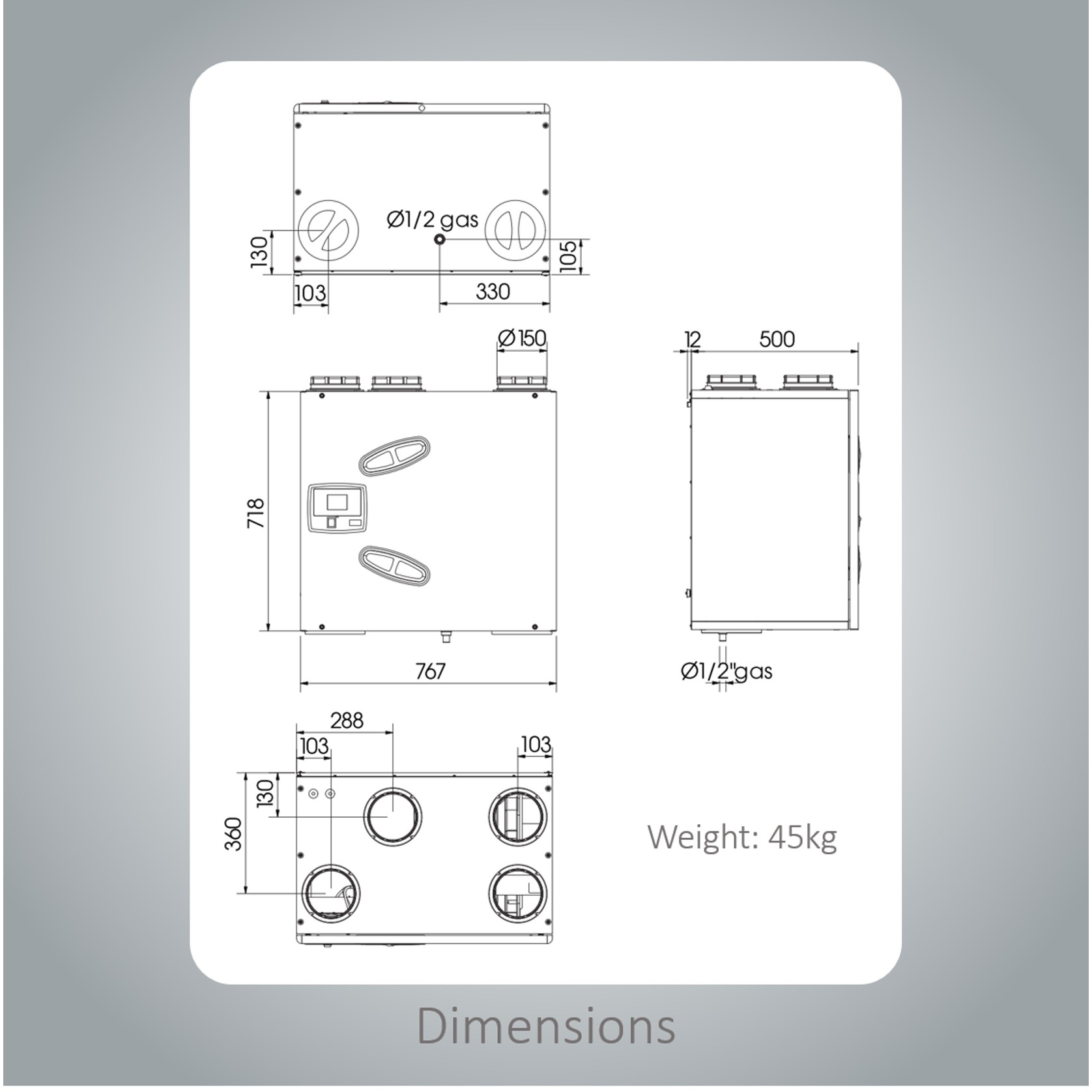

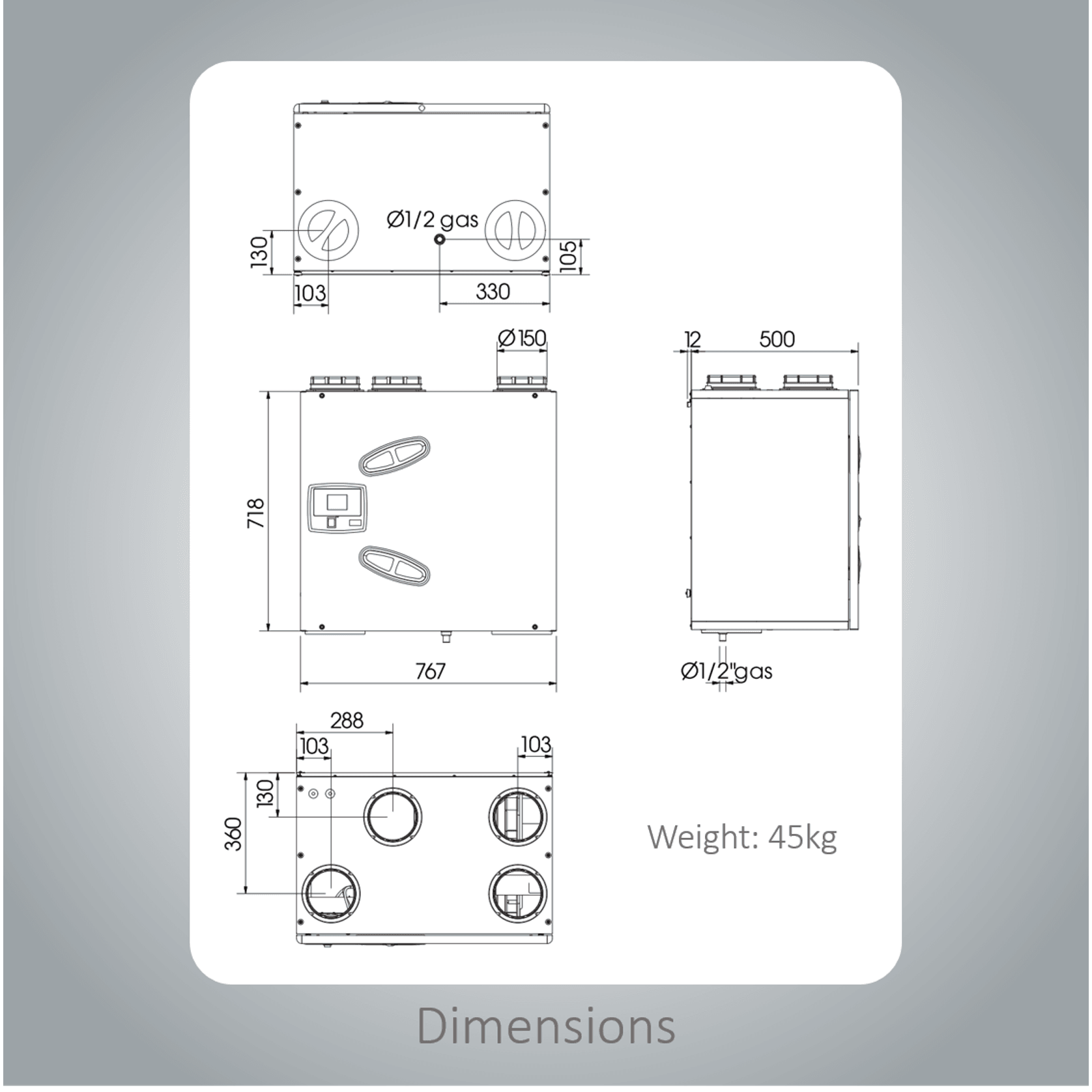

Dimensions

Height: 720mm (without spigots and siphon)

Wide: 770mm

Deep: 500mm

Sipot size: Ø 150mm

Scope of use

Typical Application

  • Domestic: Family houses with attic space
  • Commercial: Office space, training rooms
  • Includes dedicated bathroom, kitchen and laundry extraction
Performance
  • Airflow:​​ 510 m³/h (max.)
  • Pressure:​​ 520 Pa (max.)
  • Example: ​Duty point: 420m³/h @ 280Pa / House: 240m² with 2.6m ceiling
    ⇨ approx. 0.67 air changes per hour
Versions

Reversus 2

  • BP EVOD-PH-IP SV
    MHRV unit without heater
  • BP EVOD-PH-IP Pre-Heater SV
    MHRV unit with electric Pre-Heater to prevent heat-exchanger from frosting.Required for colder regions with winter frost.
  • BP EVOD-PH-IP SV+HB+BAFC500-150

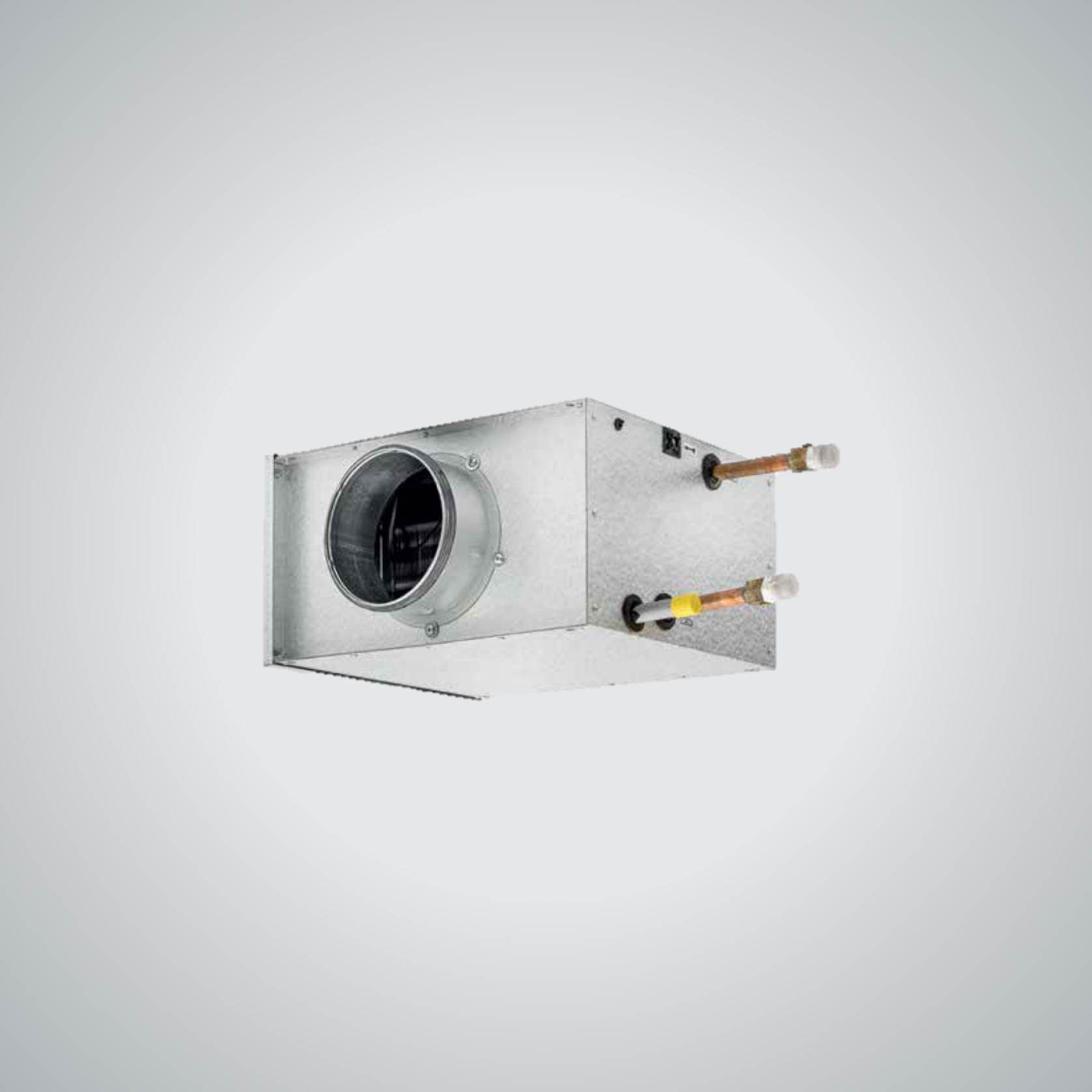

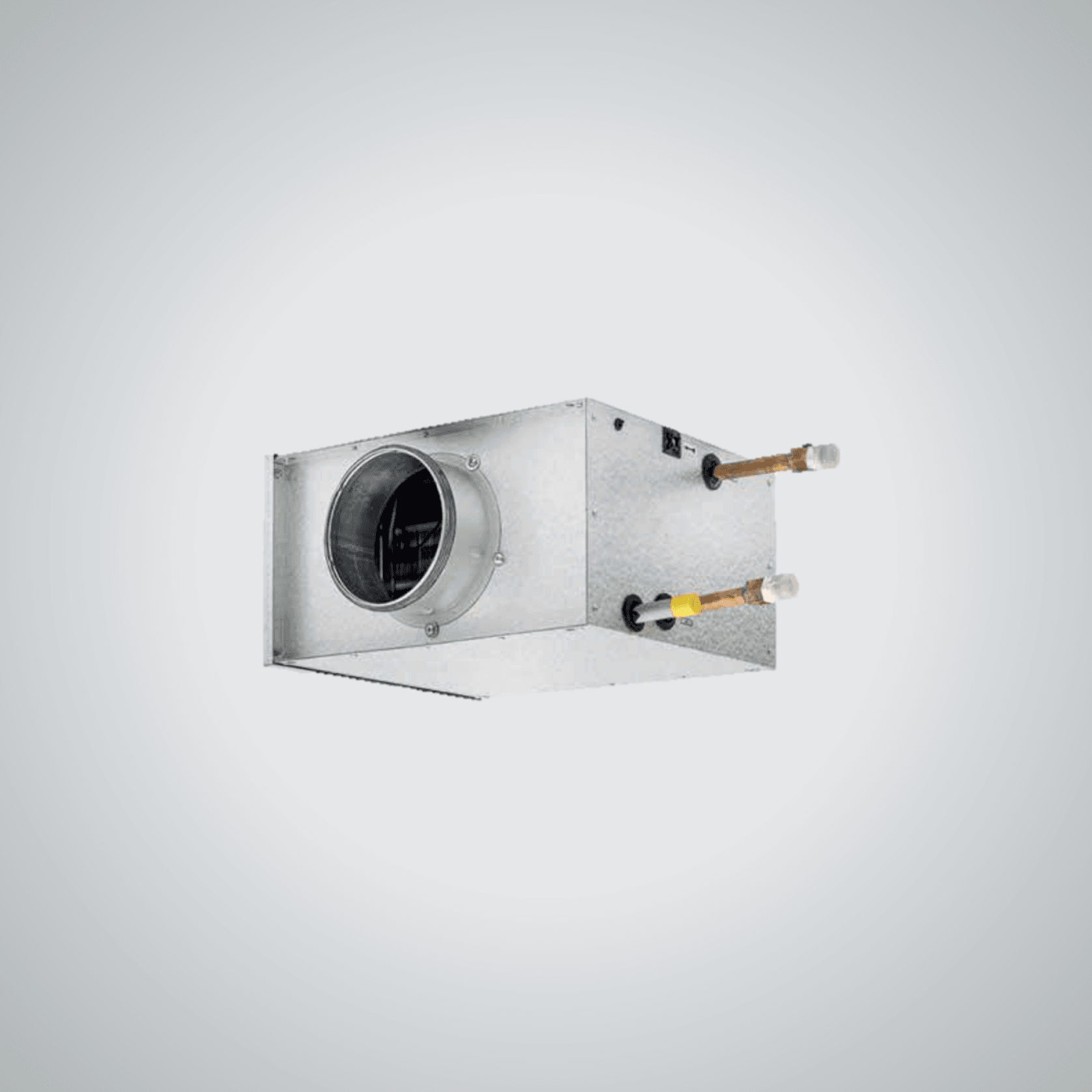

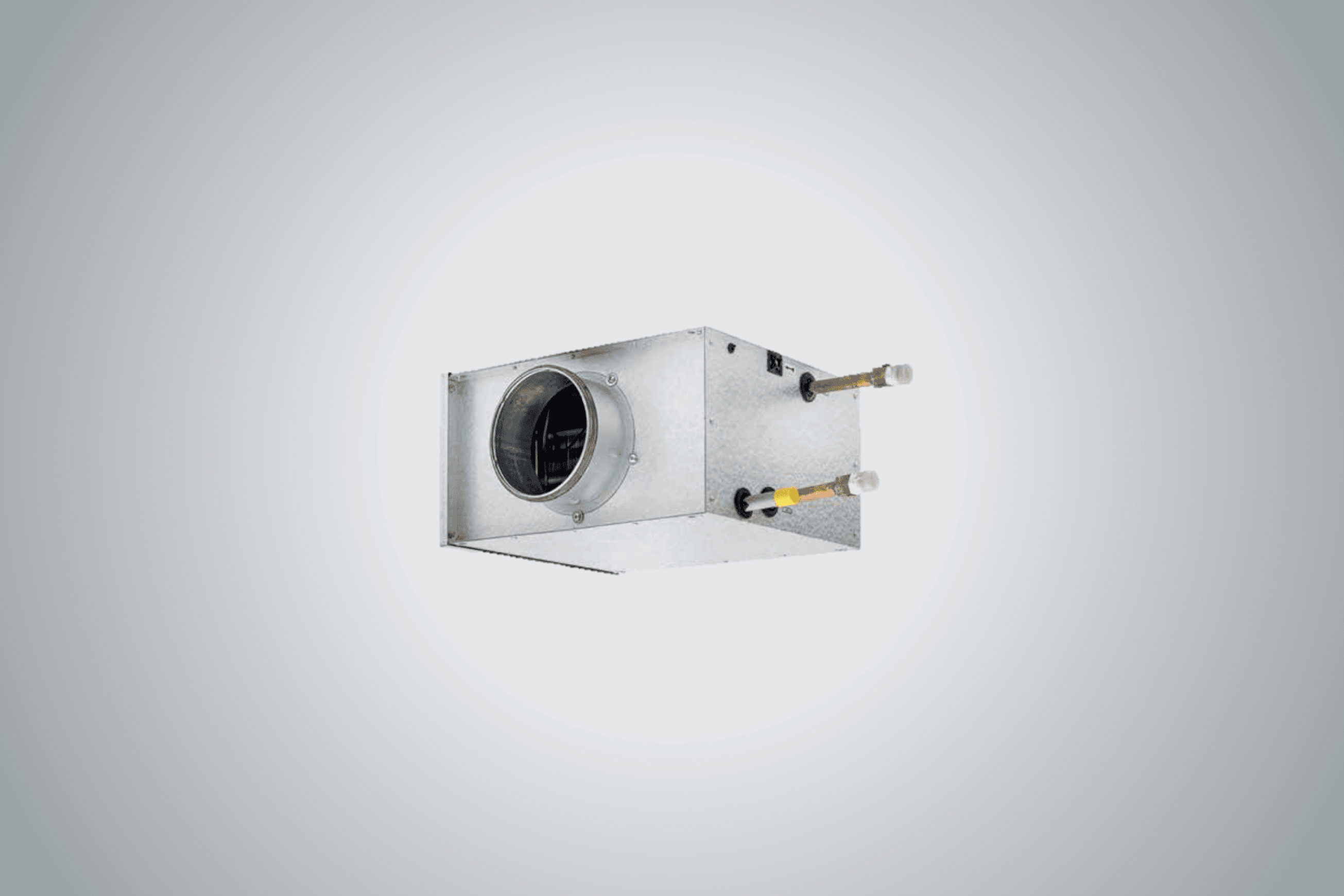

    MHRV unit with hydronic Post-Heater/Cooler (Coil Unit). Coil unit controlled by Reversus Controller. Requires hydronic heat pump connection.
  • BP EVOD-PH-IP Pre-Heater SV+HB+BAFC500-150
    Combination of above Heaters: MHRV unit with electric Pre-Heater and hydronic Post-Heater/Cooler.
In The Box
  • MHRV Unit
  • Touchscreen Controller
  • Wall-mounting brackets
  • User manual

Typically required for domestic installation

  • Tools and consumables (e.g. duct tape and screws)
  • Indoor Duct System (Recommended: BlauFast 75 or 90)
  • Ducting to outside (Recommended: EPP 150mm)
  • Outdoor grill/ Trade seal*
  • *Check with local council for acceptability
SolutionAir
Please fill out the form below for more detail on our solutions
Visit Website

Other products
in this range

Utek Reversus 3 - Ventilation System with Heat Recovery
Utek Reversus 3 - Ventilation System with Heat Recovery
By SolutionAir
From
$5,499.00
VENTUS 150 Ventilation System
VENTUS 150 Ventilation System
By SolutionAir
From
$1,115.00

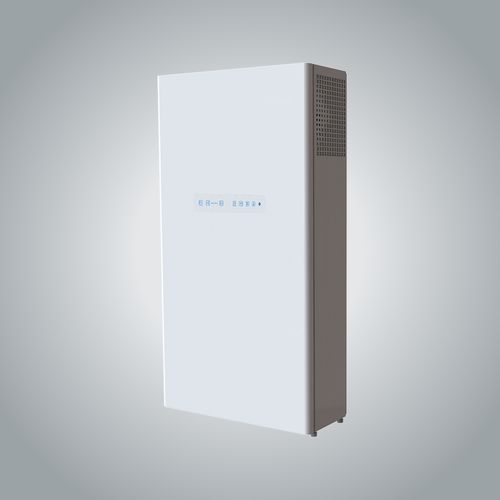

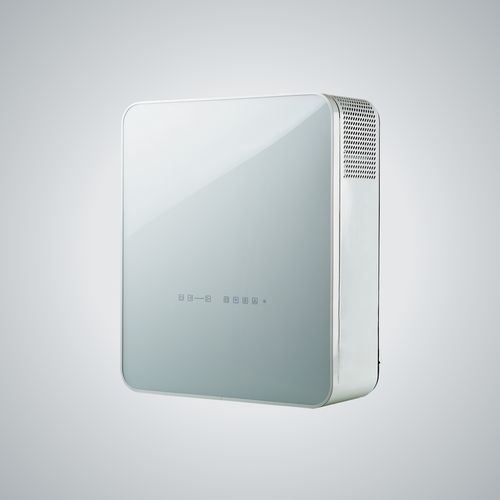

Freshbox 200 WIFI - Decentralised Ventilation System
Freshbox 200 WIFI - Decentralised Ventilation System
By SolutionAir
From
$4,567.00
VENTUS 450+ Residential Balanced Ventilation with Heat Recovery
VENTUS 450+ Residential Balanced Ventilation with Heat Recovery
By SolutionAir
From
$4,999.00

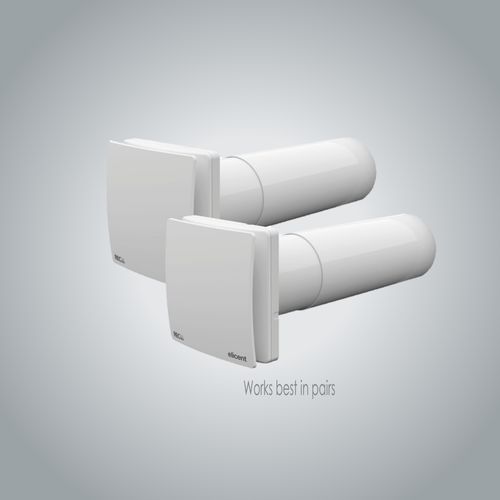

REC-Duo 100 - Decentralized Ventilation System
REC-Duo 100 - Decentralized Ventilation System
By SolutionAir
From
$626.00
Aertesi EOS B Air Handling Unit for Heating, Cooling and Ventilation
Aertesi EOS B Air Handling Unit for Heating, Cooling and Ventilation
By SolutionAir

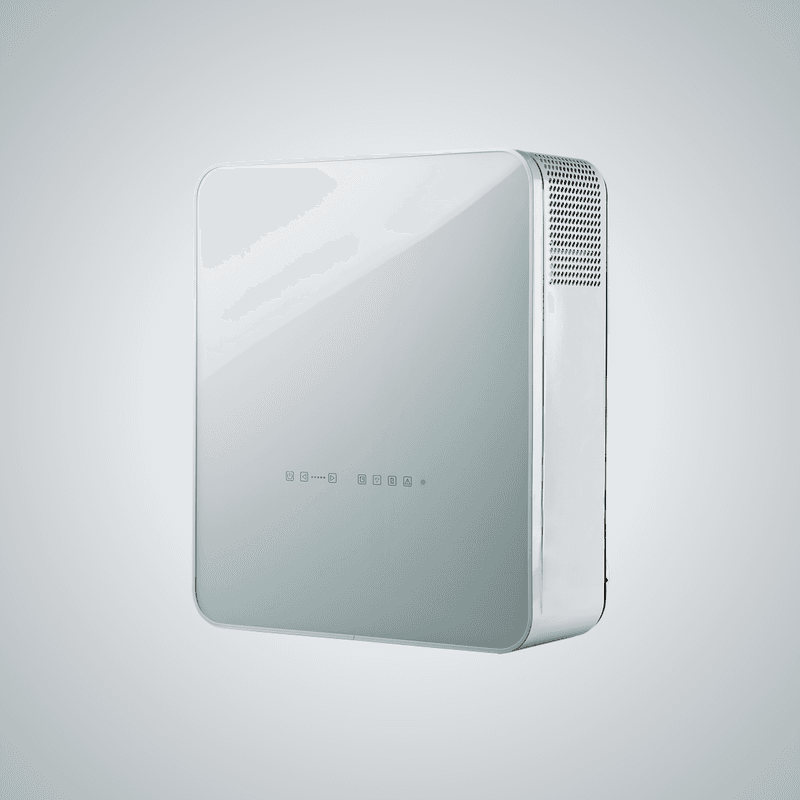

Freshbox 100 WIFI - Decentralised Ventilation System
